Meet your hydraulic system needs with our high-performance P40 Directional Valve. Customizable options and wholesale availability make it an ideal choice for various applications.
| P40-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Solenoid och Joystick, Manuell och Joystick, Magnetventil och kabel |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 40 l/min (10,5 US gpm) |
| Maximalt tryck | 250 bar (3600 psi) |
| Inloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Utloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Portstorlek | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

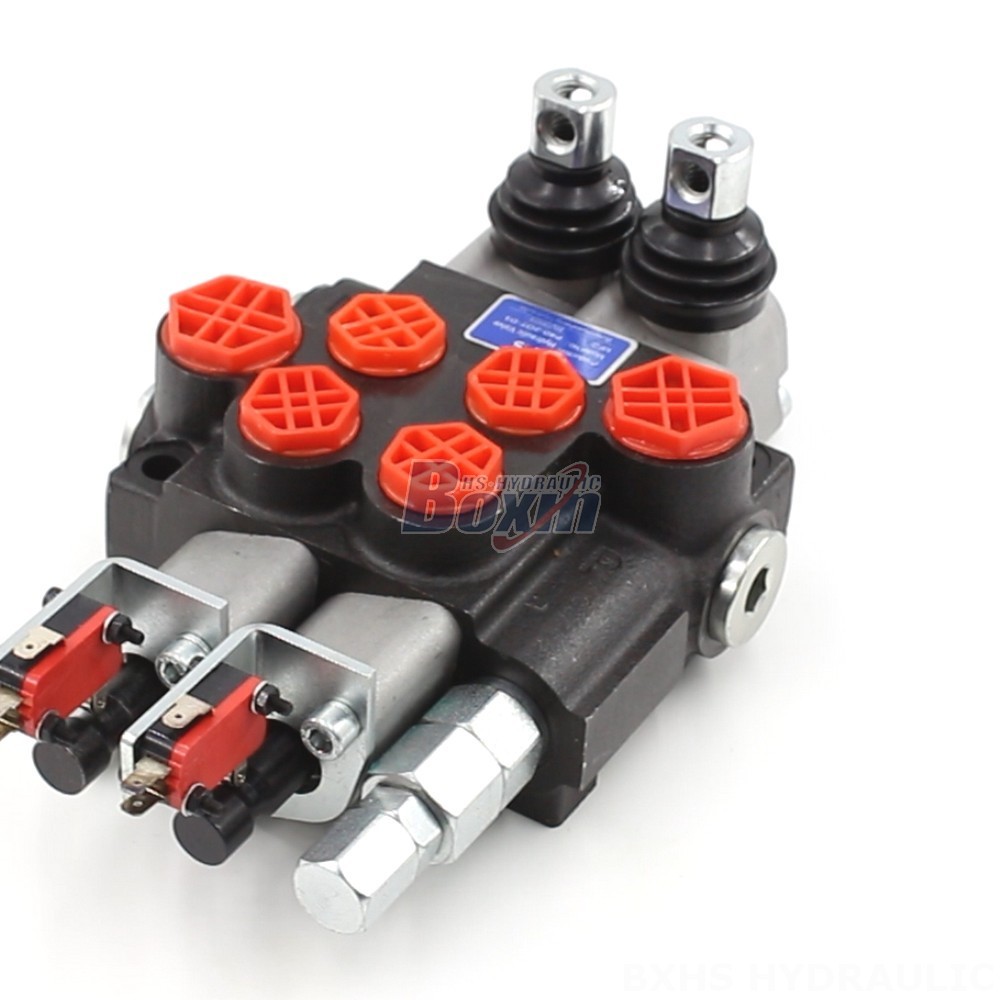

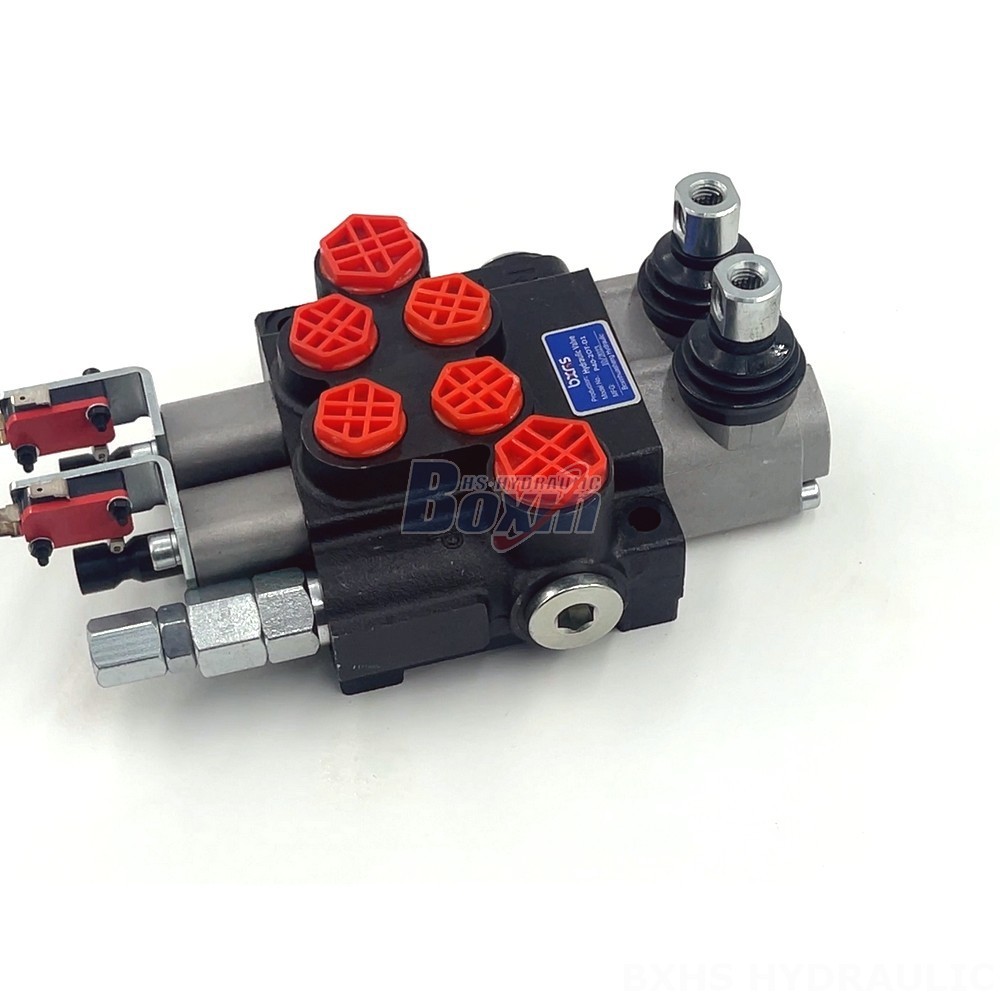

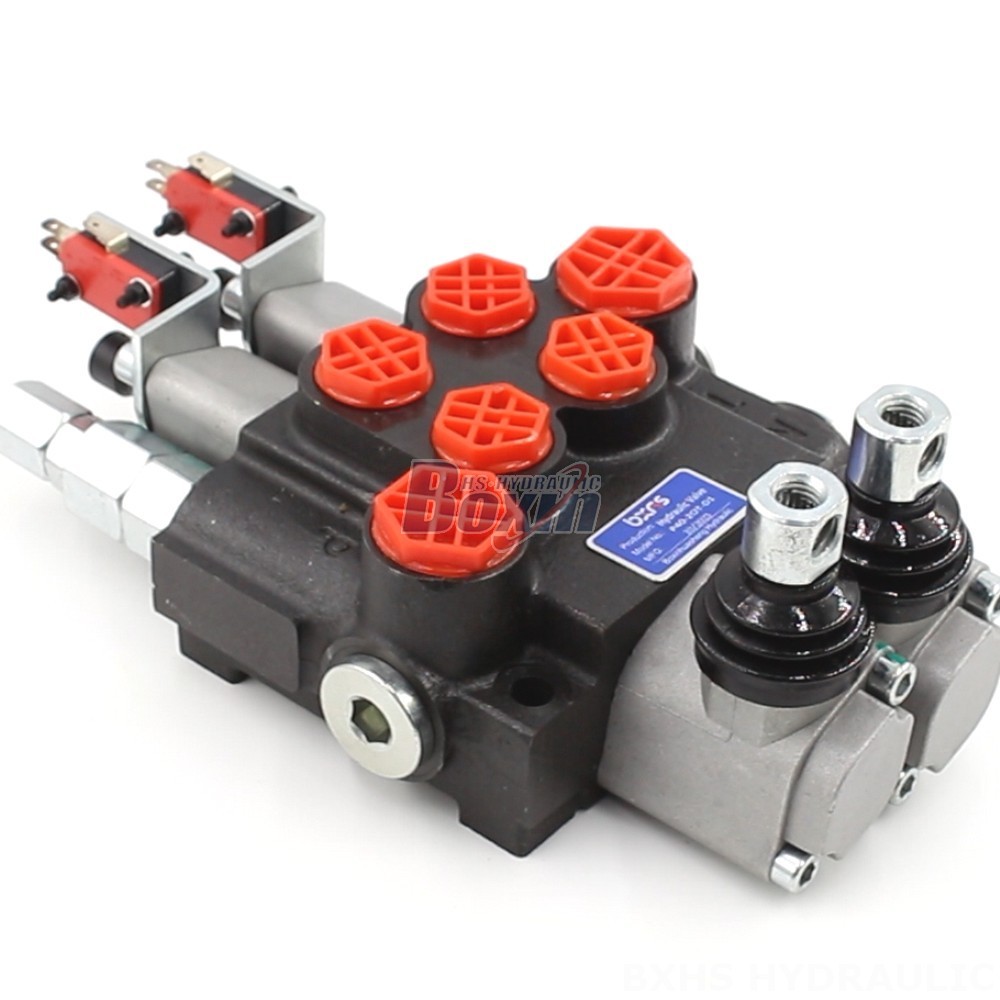

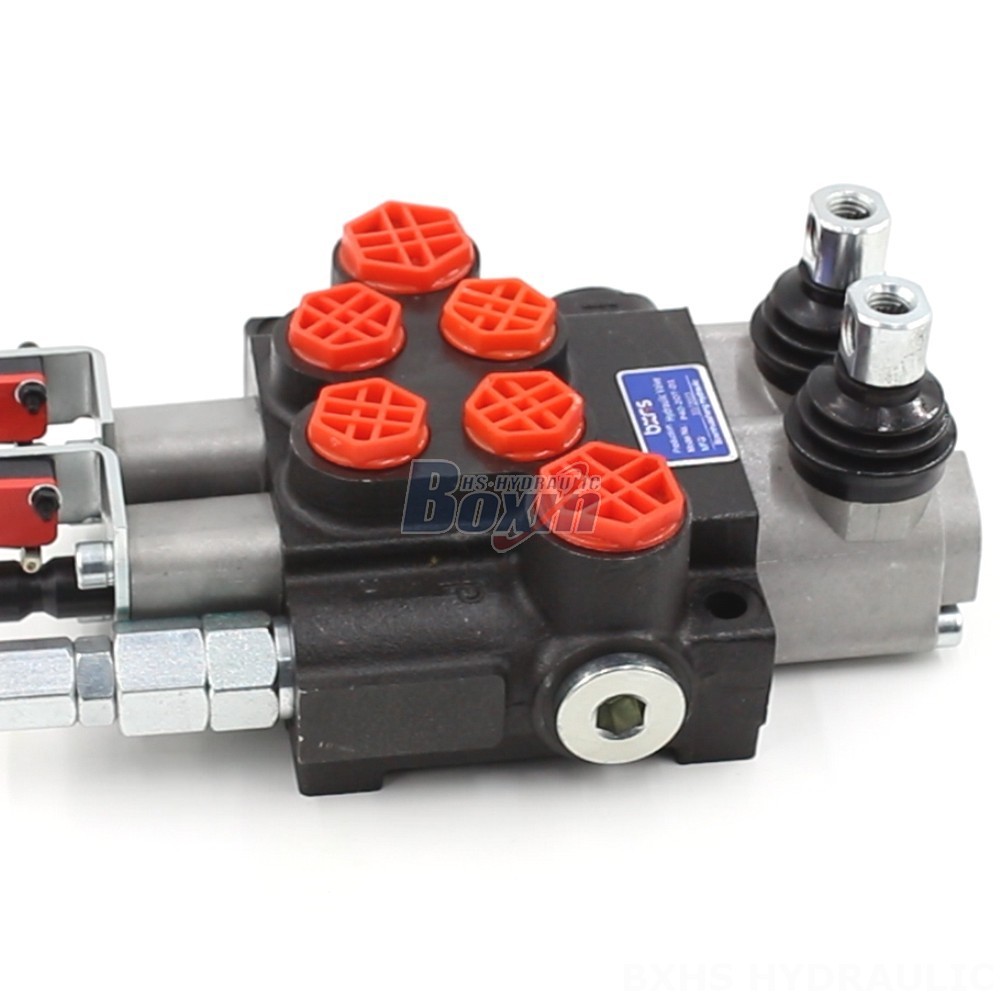

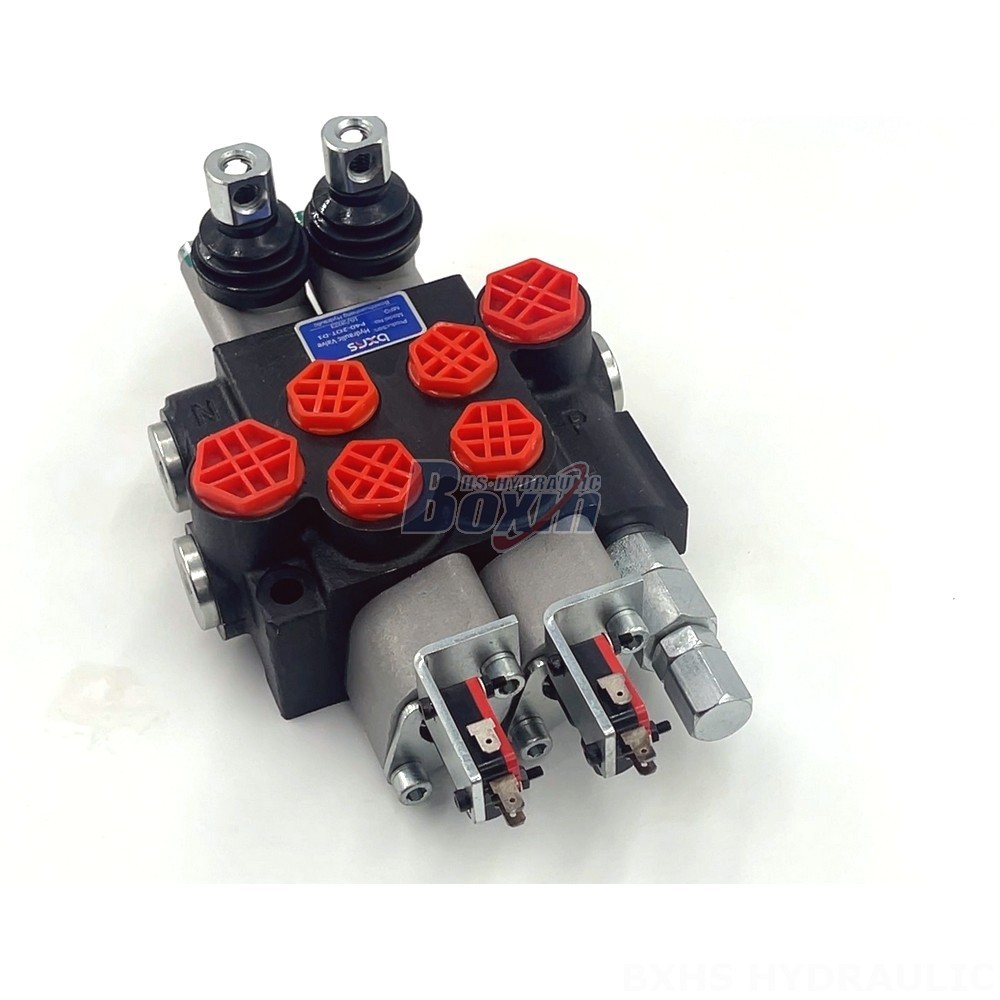

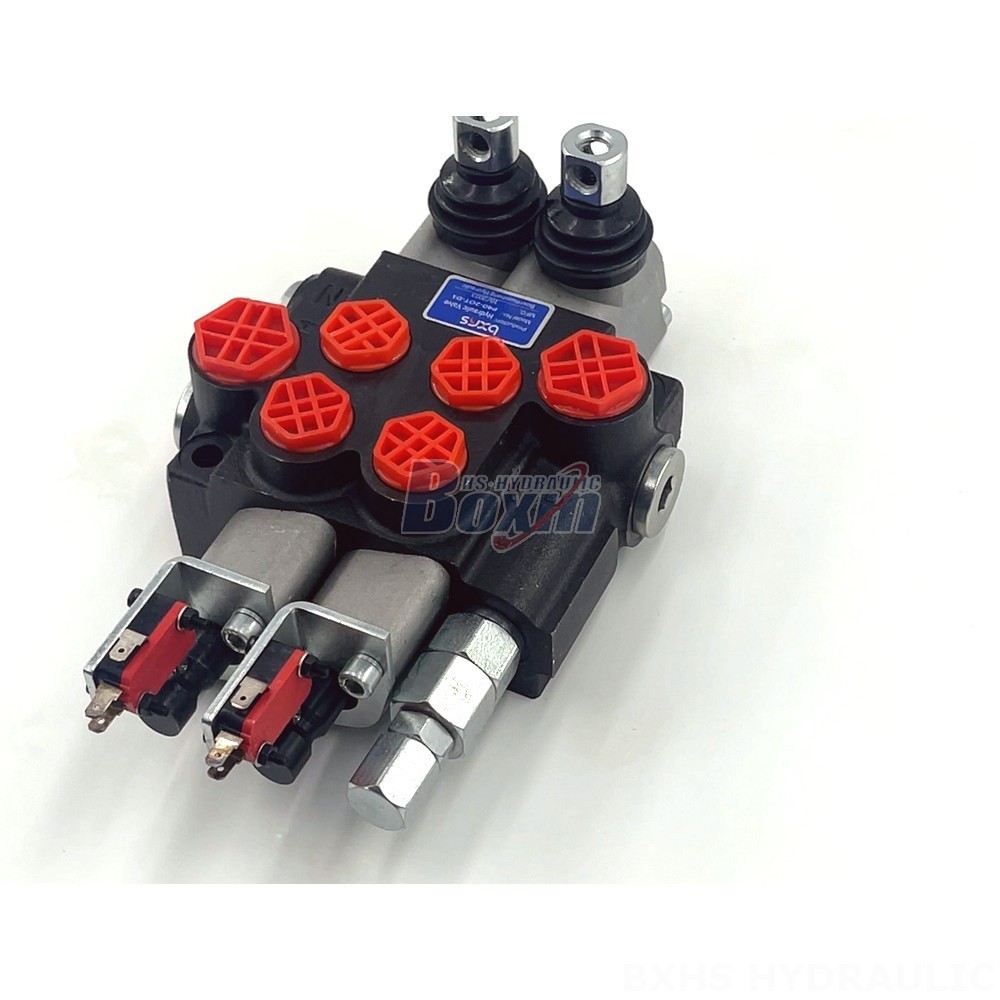

**P40 Hydraulic Directional Valve: A Versatile Solution**
- Customizable options for tailored solutions
- Wholesale availability for cost-effective procurement
- Manual control for precise operation
- 2 section design for efficient flow management
- Monoblock valve construction for durability and reliability
- Rated flow of 40 L/min for optimal performance
- Max pressure of 250 bar for demanding applications
- Compatible with operating viscosity range of 15 - 75 mm²/s
- Operates in ambient temperatures from -40°C to +80°C
- Suitable for diverse applications: material handling, construction, agriculture, industrial vehicles, and forestry
