Produktion & Leverans
15-30 dagars produktionsledtid
Innovation driver utvecklingen Tekniken formar framtiden
507 Vyer letar efter den här produkten

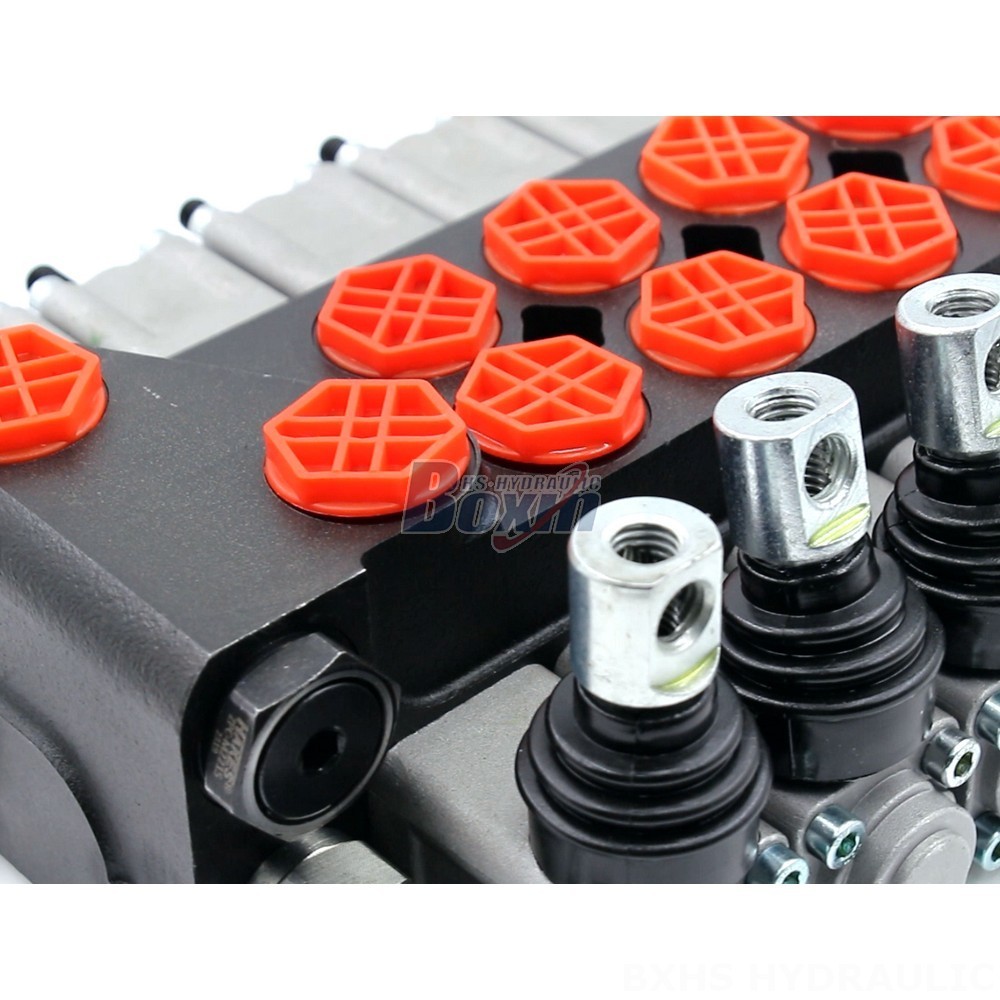

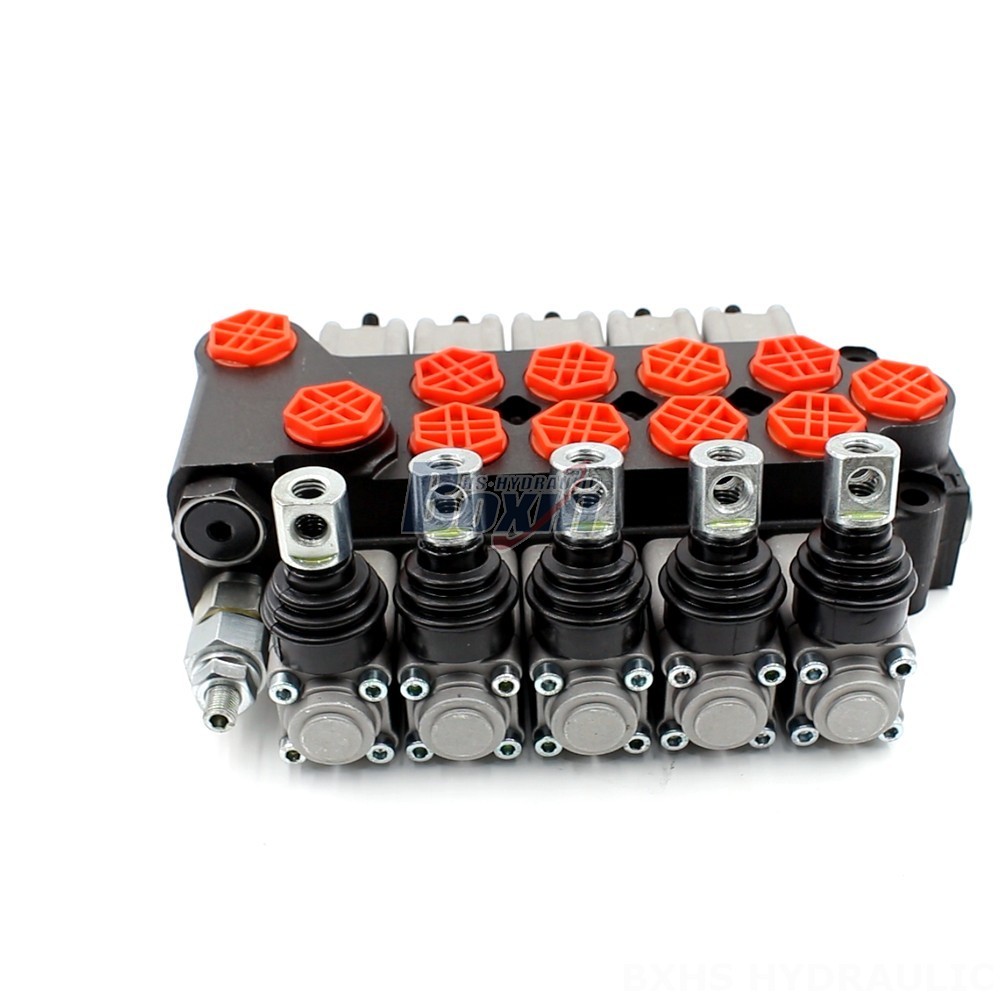

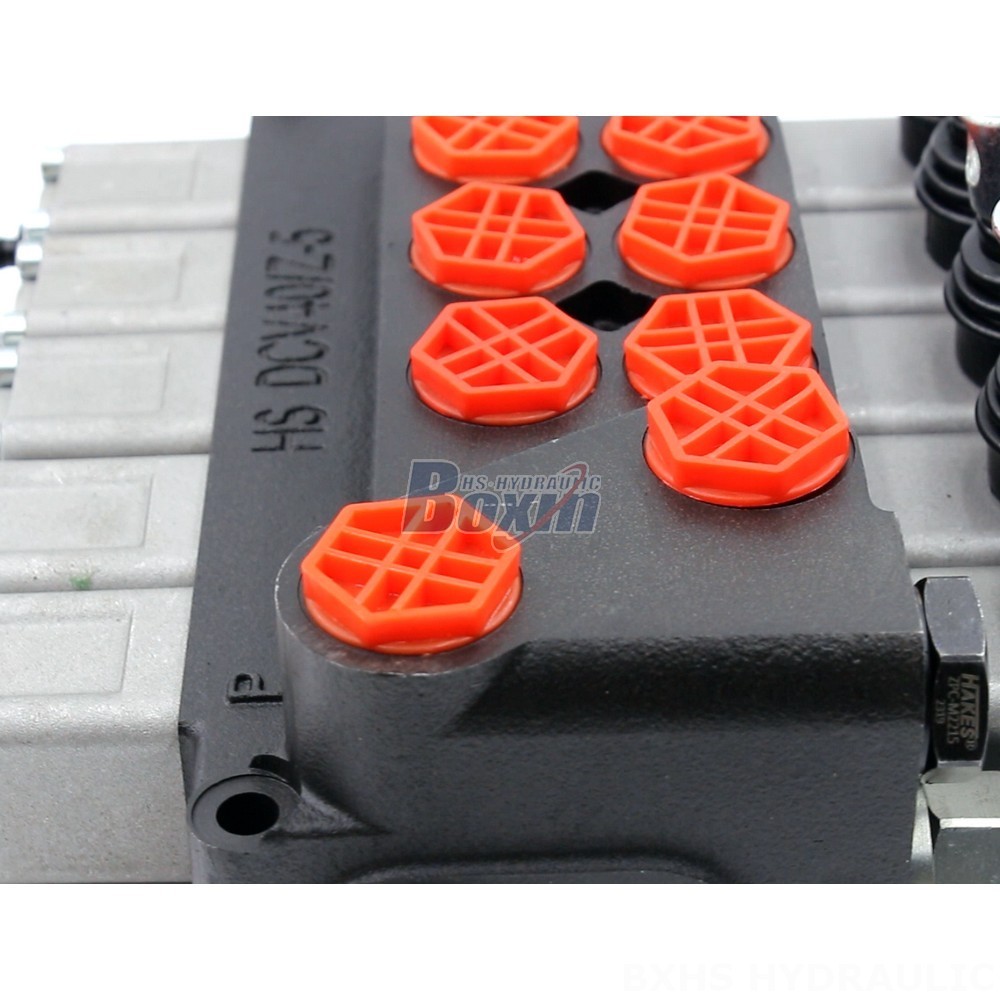

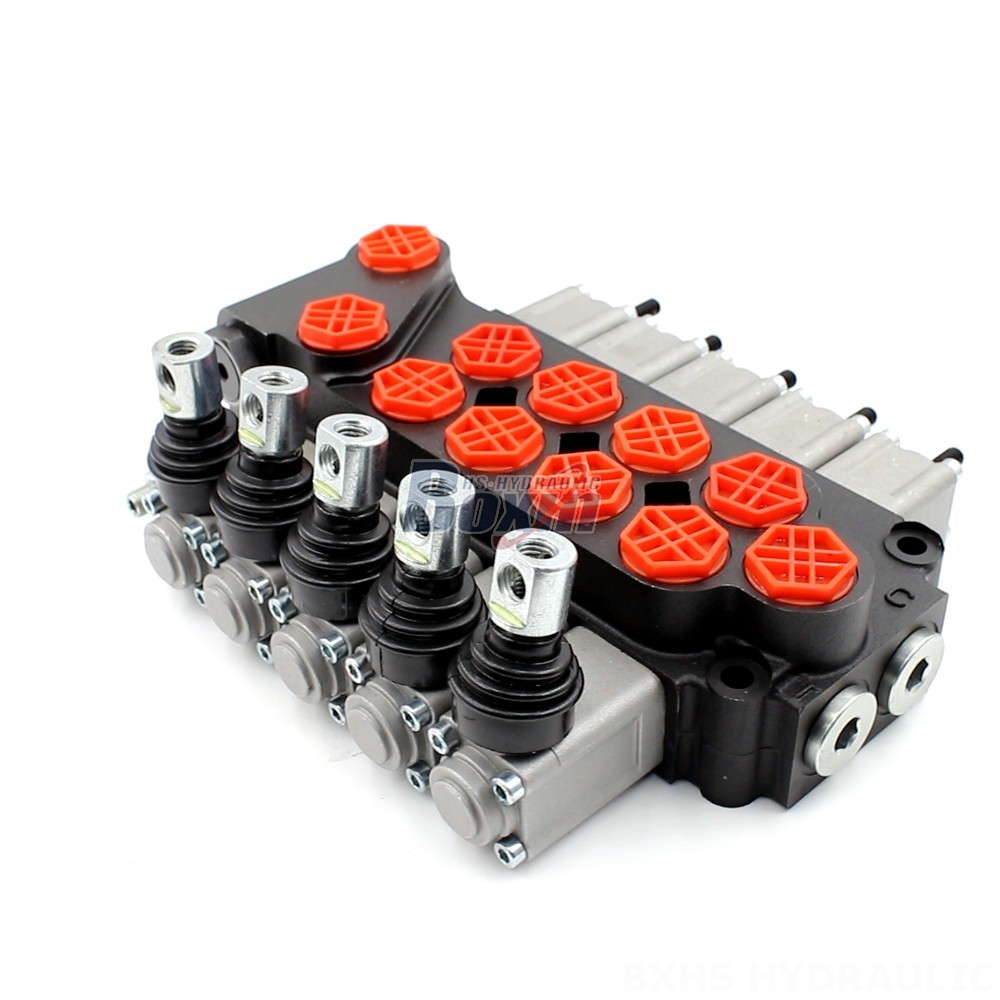

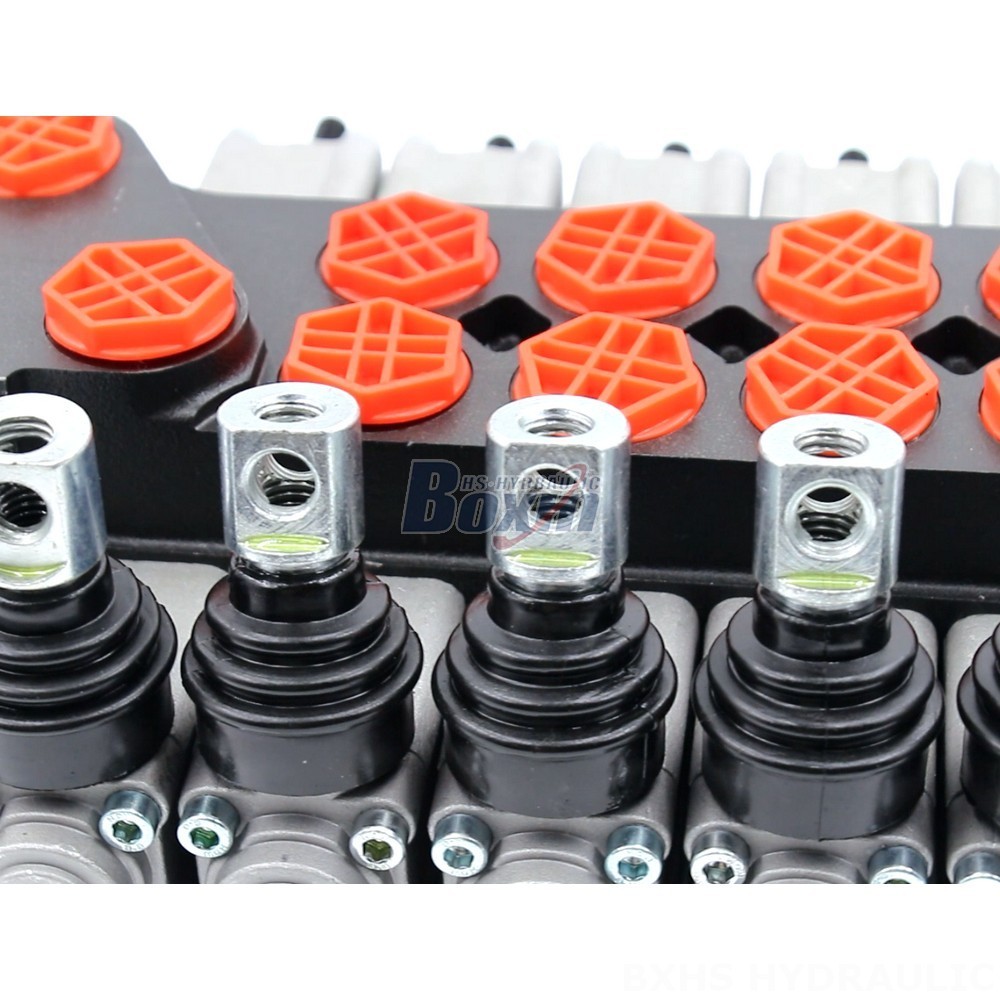

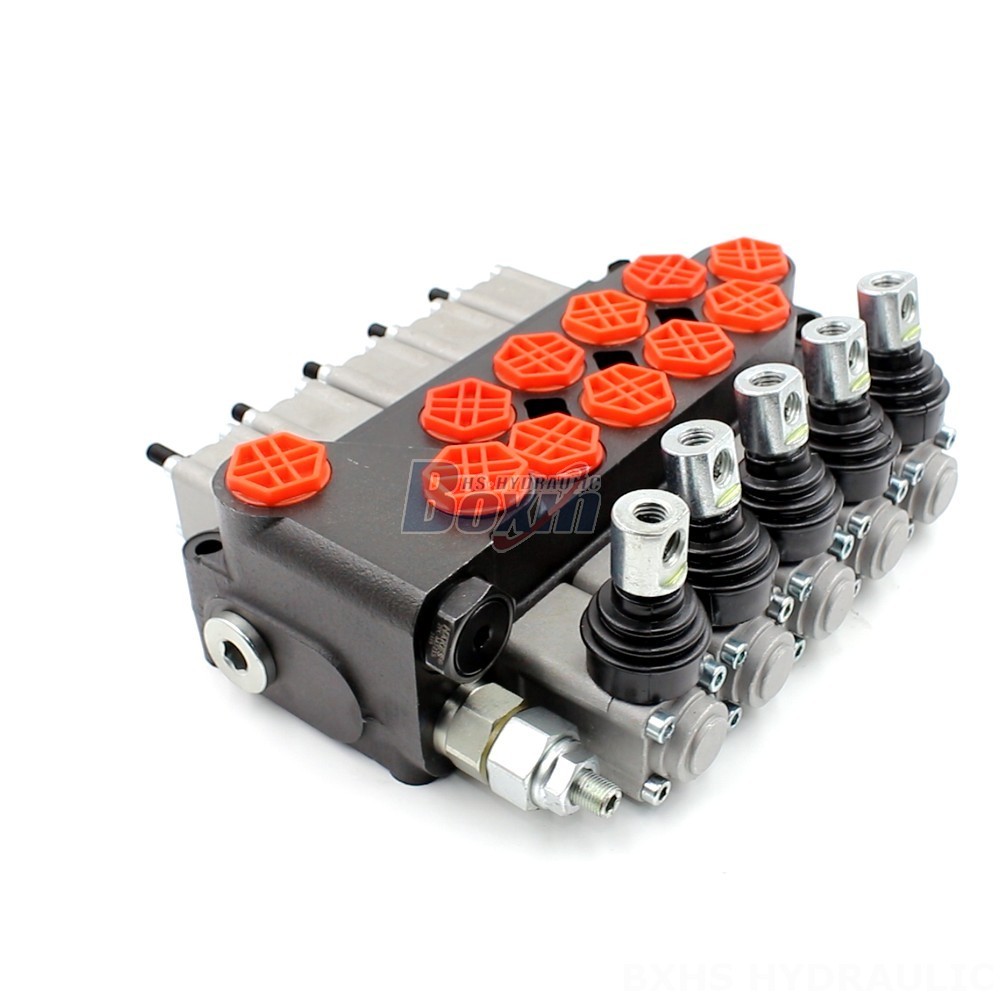

The DCV40Z Series Hydraulic Monoblock Valve is a 5-section, electric controlled valve designed for demanding applications in construction, material handling, and industrial vehicles. This valve offers reliable performance with a 40 L/min flow rate and 350 bar pressure rating.
| DCV40Z-serien Stödbensventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Elektrohydraulisk, Joystick, Manuell och Joystick |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 40 l/min (10,5 US gpm) |
| Maximalt tryck | 350 bar (5100 psi) |
| Inloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Utloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Portstorlek | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This DCV40Z Series Hydraulic Monoblock Valve is a high-performance, electric control valve designed for demanding applications. Featuring a 5-section design, this valve provides precise control over hydraulic systems. The valve is rated for a maximum flow rate of 40 L/min and a maximum pressure of 350 bar. It is suitable for a wide range of operating temperatures and viscosities. This valve is ideal for various applications, including telehandlers, forklifts, mini-excavators, skid steer loaders, and other construction and industrial vehicles.
