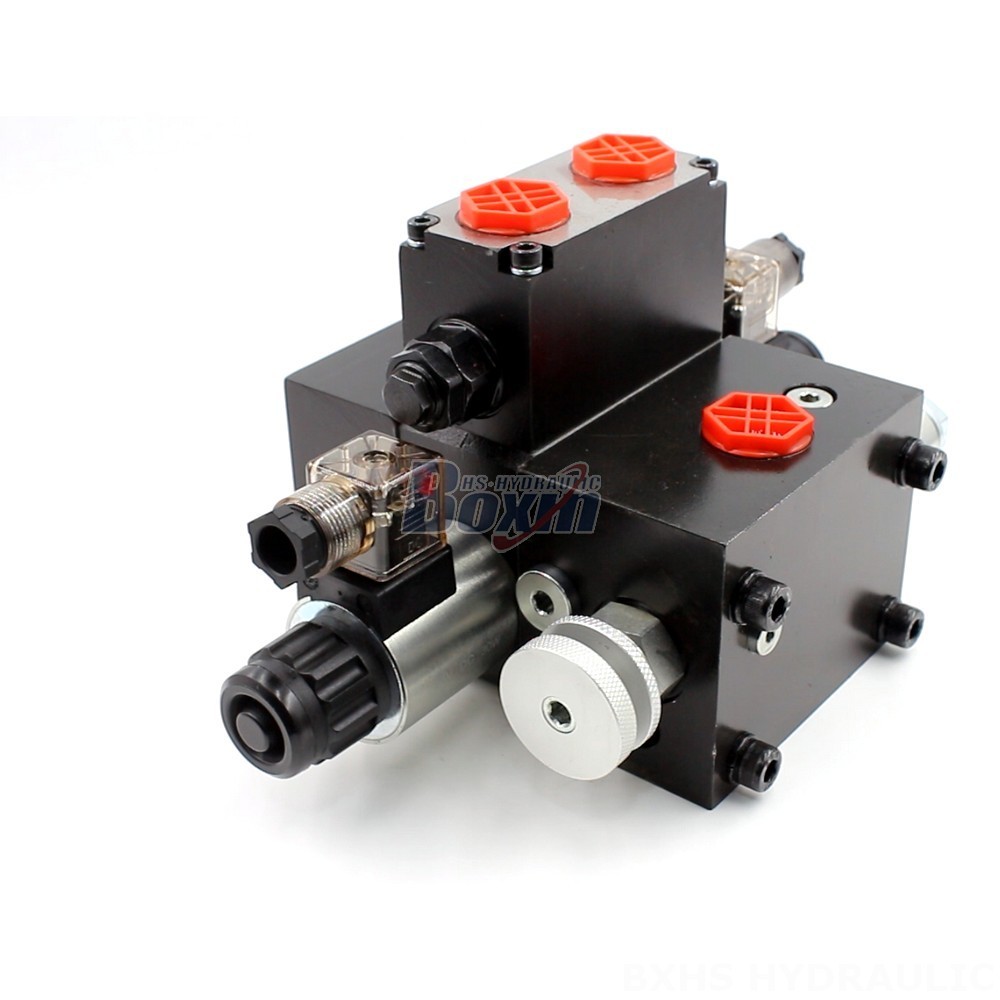

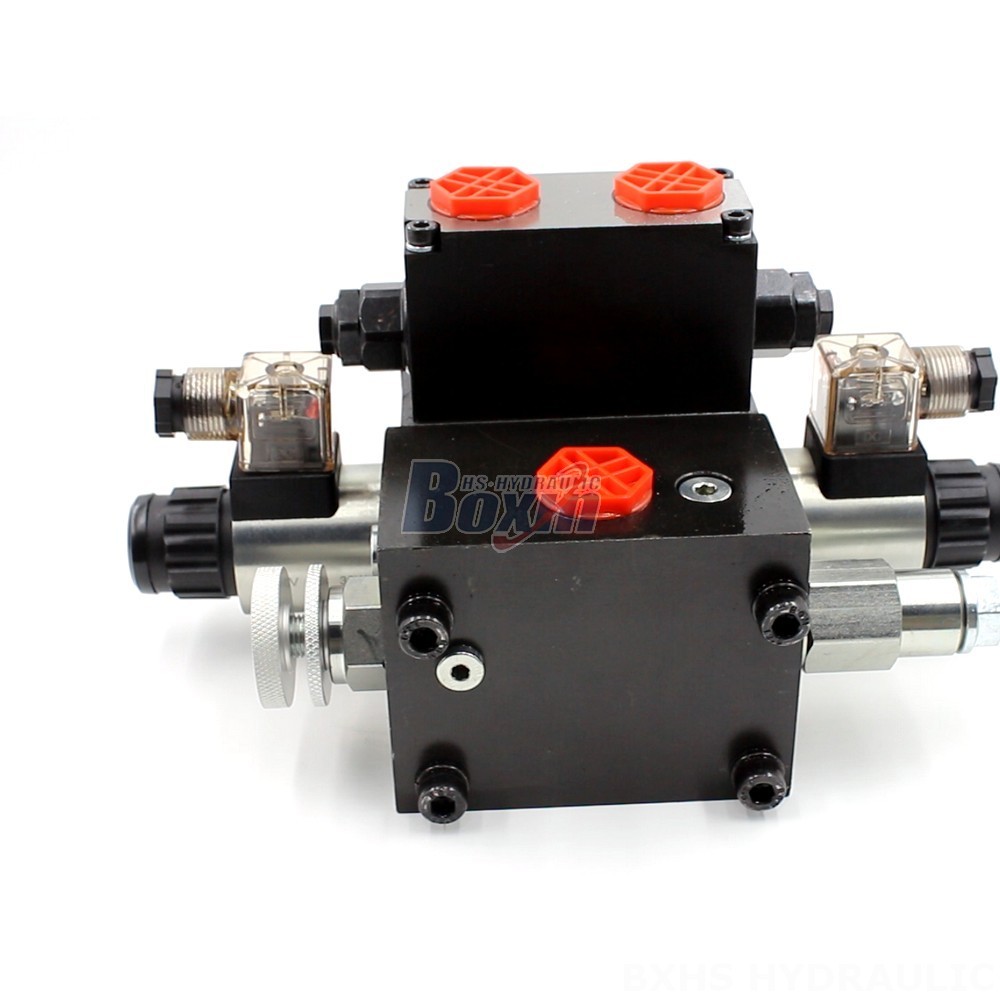

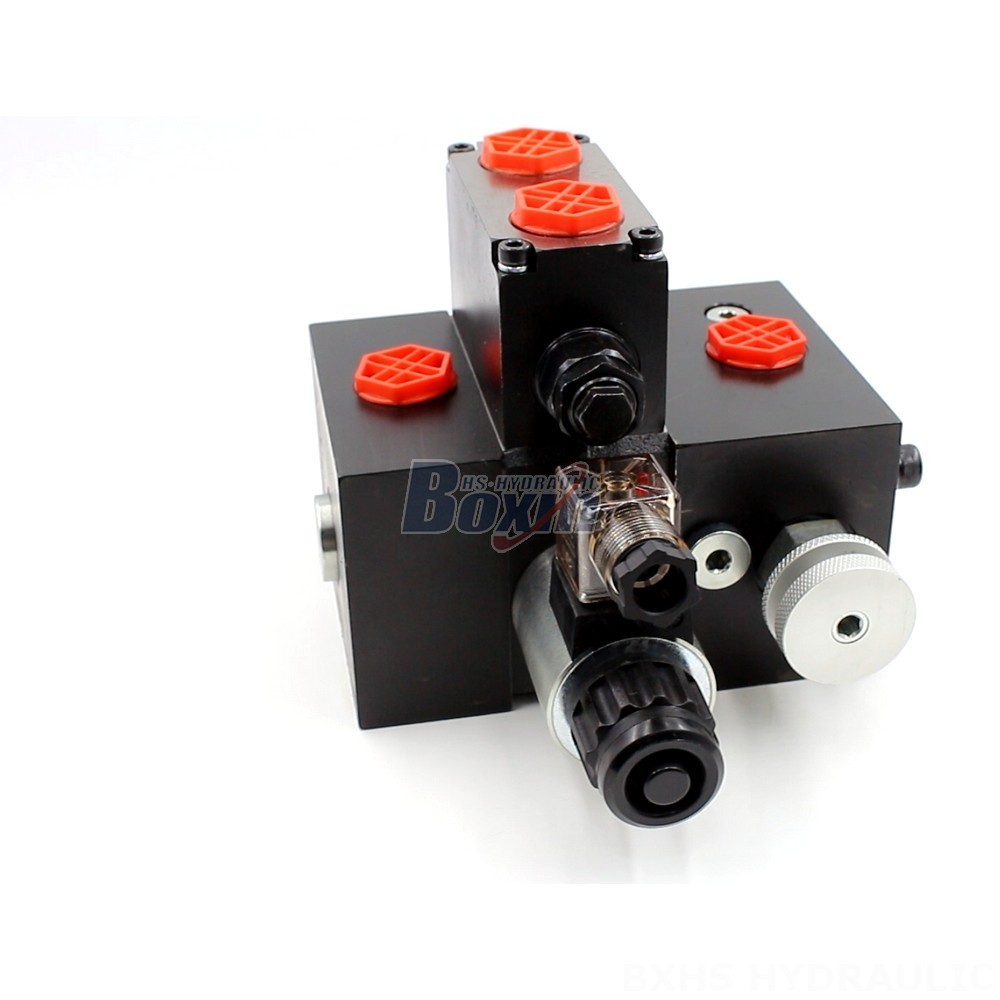

The DCV58F Series Hydraulic Directional Control Valve is a 12v solenoid-operated valve designed for heavy-duty applications in construction, agriculture, and material handling equipment. With a rated flow of 60 L/min and a maximum pressure of 350 bar, this valve is suitable for controlling hydraulic actuators in various machinery, including telehandlers, forklifts, excavators, and loaders.
| DCV58F-serien Sektionsstyrvventil Parametrar | |
|---|---|
| Kontrollmetod | Solenoid, Solenoid och manuell |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner, 8 ventilsektioner, 9 ventilsektioner, 10 ventilsektioner, 11 ventilsektioner, 12 ventilsektioner |
| Nominellt flöde | 60 l/min (15,8 US gpm) |
| Maximalt tryck | 350 bar (5100 psi) |
| Inloppsport | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Utloppsport | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Portstorlek | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner, 8 sektioner, 9 sektioner, 10 sektioner, 11 sektioner, 12 sektioner |
| Strukturtyp | Sektionsventil |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
This 1-section sectional valve features a single spool and operates with a control method of solenoid. It is designed for high-performance applications, offering a flow rate of 60 L/min and a maximum pressure rating of 350 bar. Its robust construction allows for reliable operation across a wide range of ambient temperatures, from -40°C to +80°C. The DCV58F Series valve is specifically designed for demanding applications in construction, material handling, agriculture, and industrial vehicles, including telehandlers, forklifts, cranes, excavators, loaders, and dumpers.
