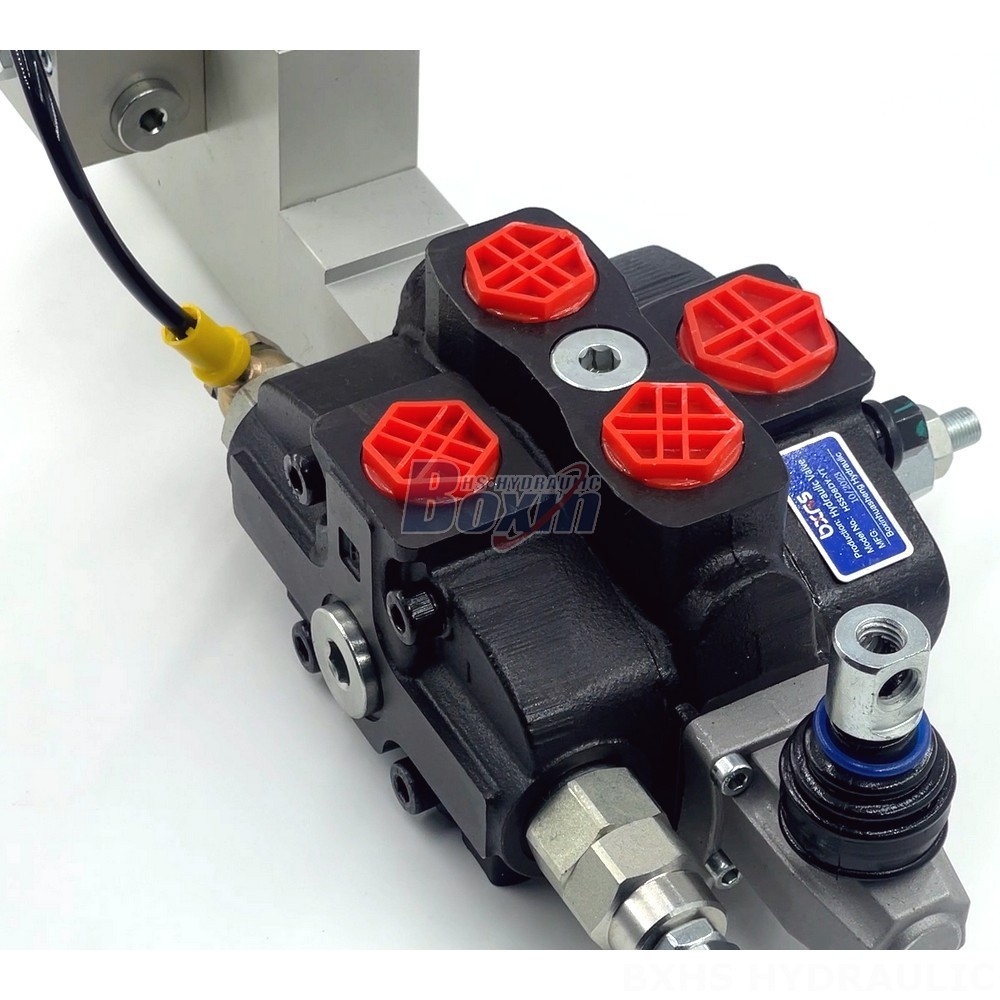

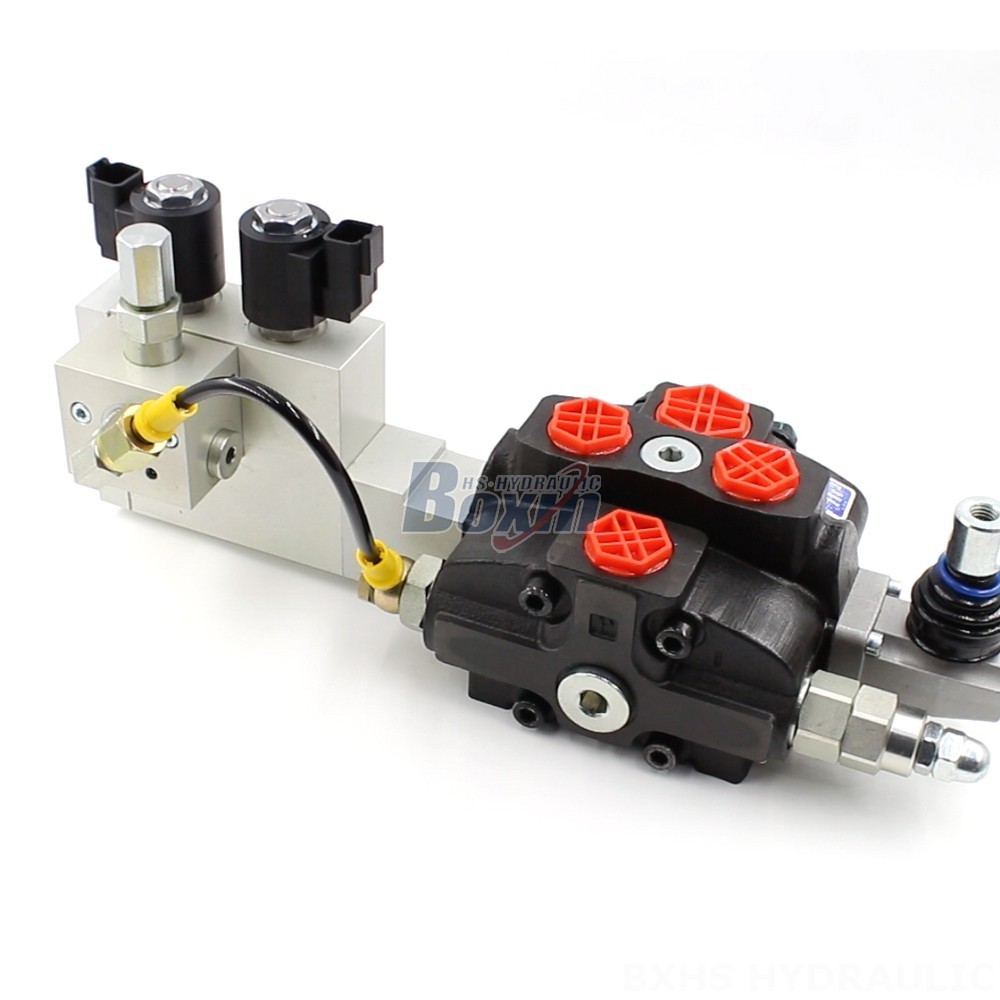

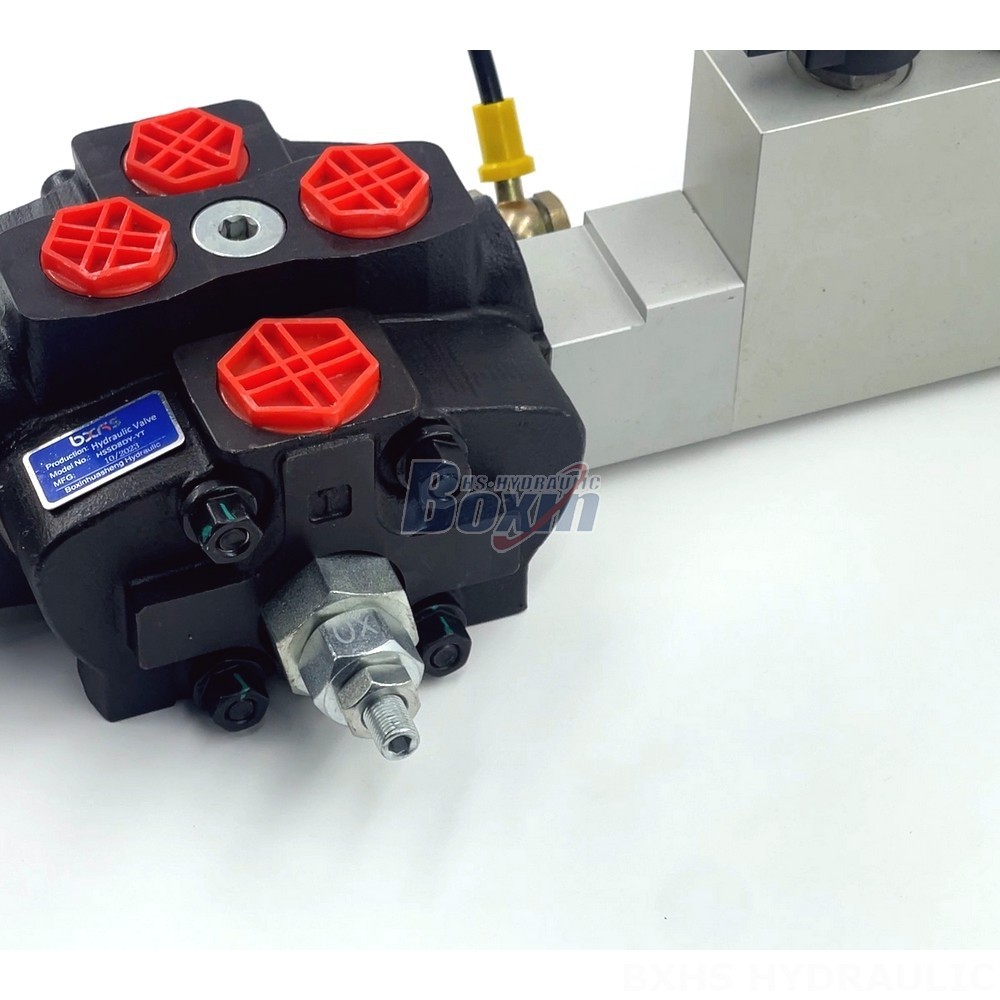

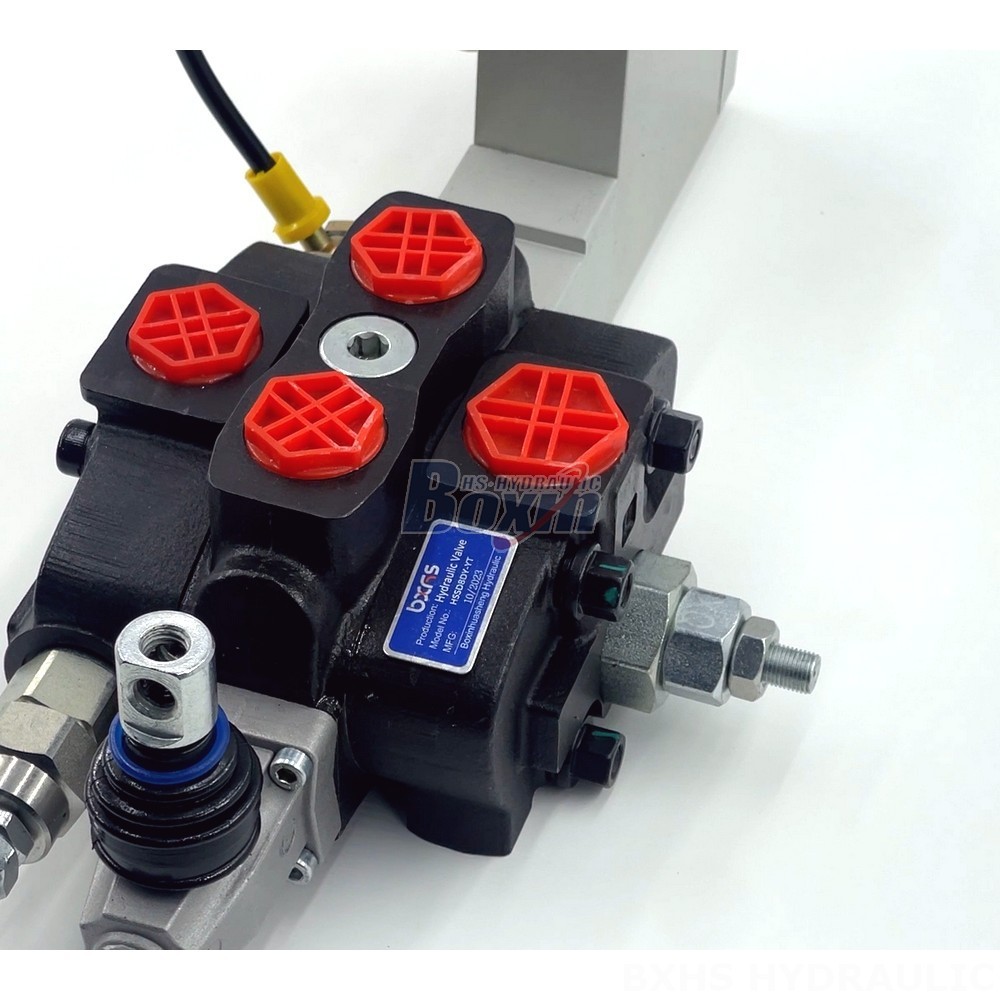

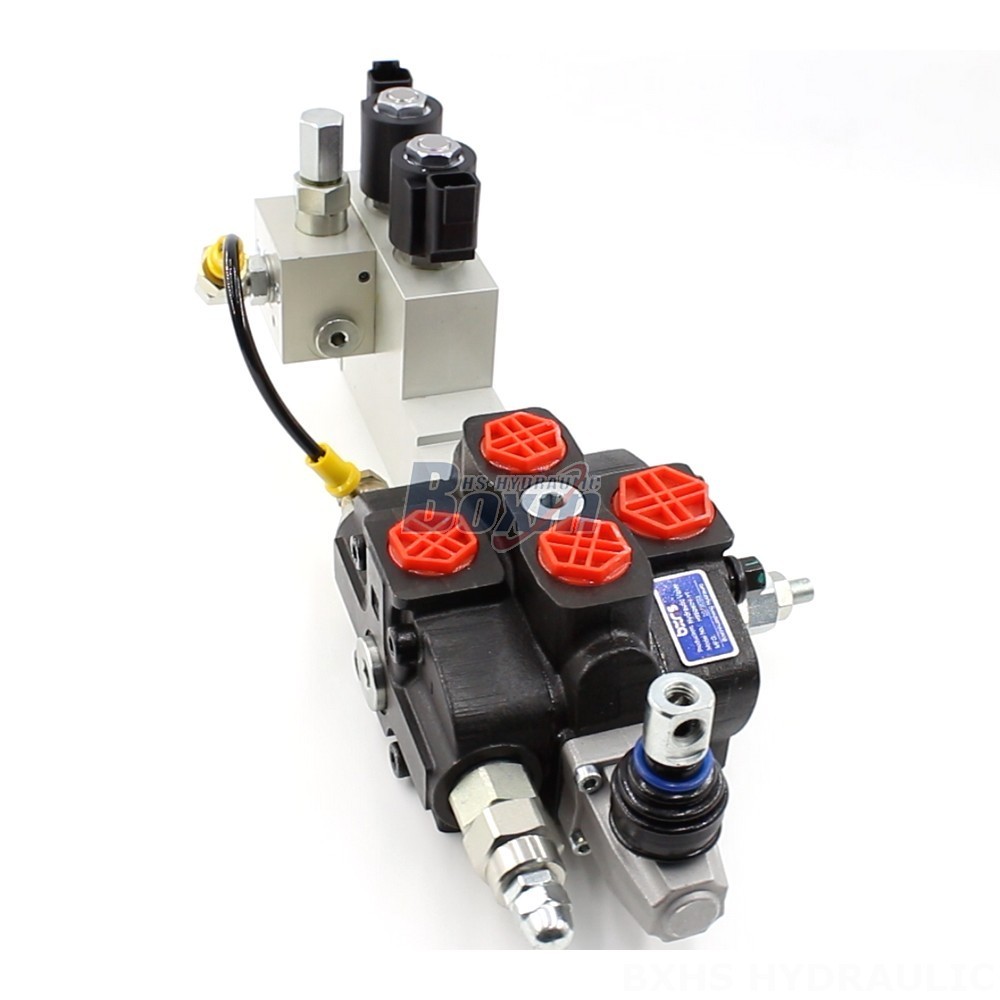

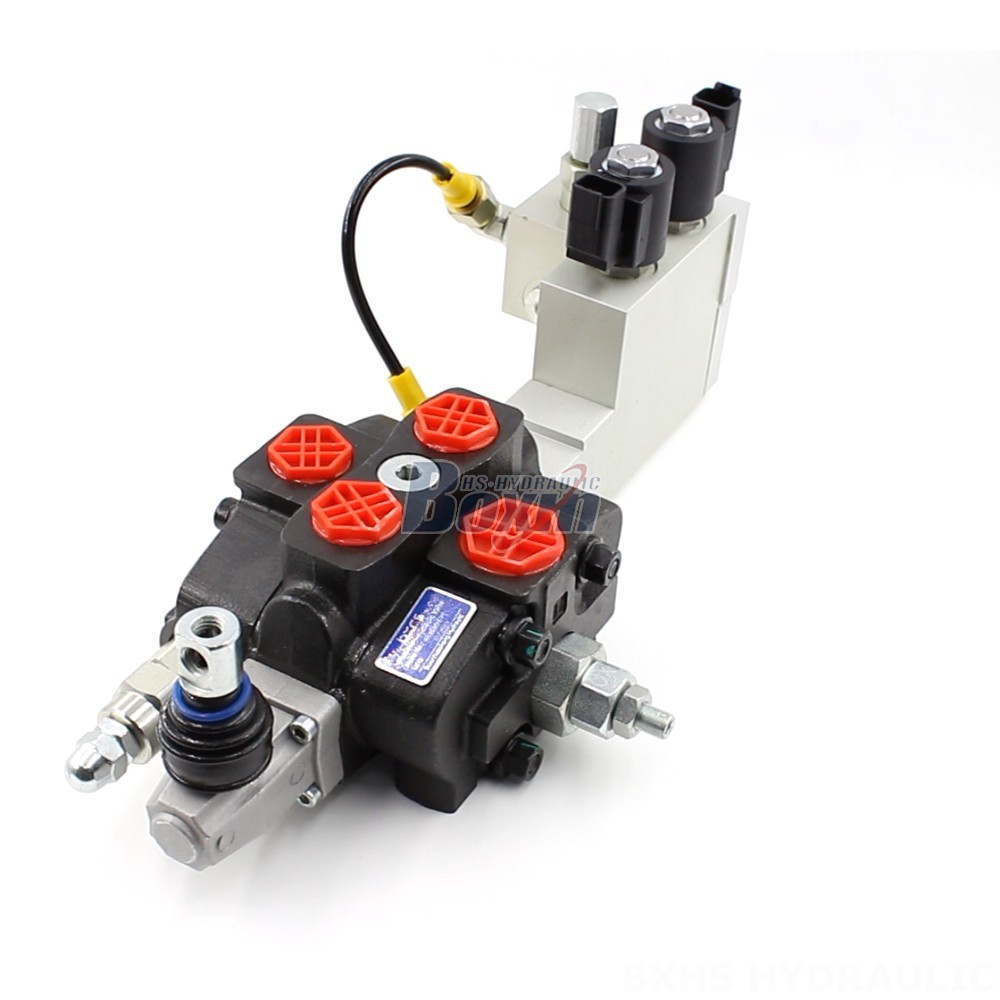

The SD8 Electro-hydraulic Directional Valve is a 1-section, 1-spool valve designed for controlling hydraulic systems in a variety of applications, including material handling, construction, and agriculture. It offers a rated flow of 90 L/min and a maximum pressure of 350 bar, making it suitable for heavy-duty machinery.
| SD8-serien Sektionsstyrvventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Solenoid och Joystick, Manuell och Joystick |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner, 8 ventilsektioner, 9 ventilsektioner, 10 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Sektionsventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner, 8 sektioner, 9 sektioner, 10 sektioner |
| Driftsviskositetsintervall | 12 - 400 mm²/s (12 cSt till 400 cSt) |
| Nominellt flöde | 90 l/min (23,8 US gpm) |
| Maximalt tryck | 315 bar (4600 psi) |
| Inloppsport | G1/2, G3/4, SAE 10 |
| Utloppsport | G1/2, G3/4, SAE 10, 3/4 NPT |
| Portstorlek | G1/2, SAE 10 |
The SD8 Series Electro-hydraulic Directional Valve is a robust and reliable solution for controlling hydraulic systems in applications such as telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. Its sectional valve structure provides precise and efficient control, while its electro-hydraulic actuation ensures quick response times. The valve features a rated flow of 90 L/min and a maximum pressure of 350 bar, making it suitable for demanding applications. It operates within a wide viscosity range and ambient temperature range, ensuring optimal performance in diverse environments.
