Produktion & Leverans
15-30 dagars produktionsledtid
Innovation driver utvecklingen Tekniken formar framtiden
1605 Vyer letar efter den här produkten

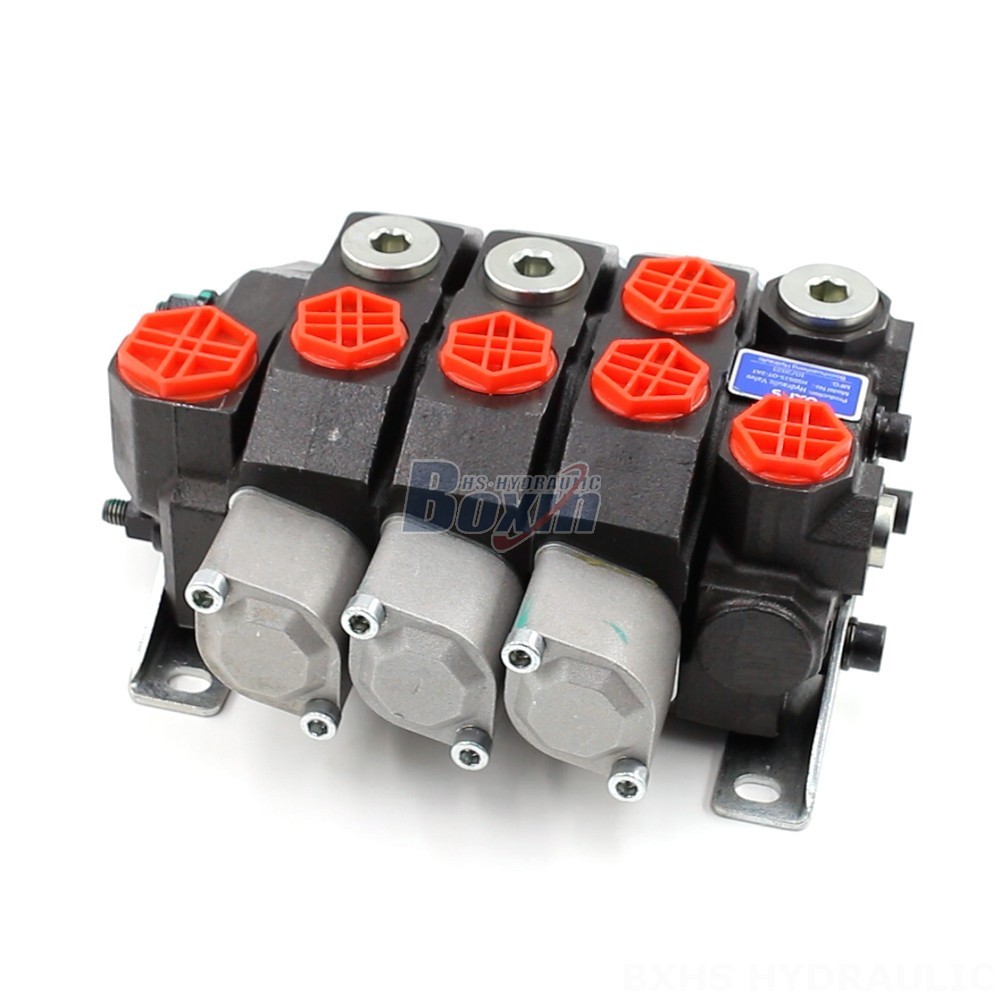

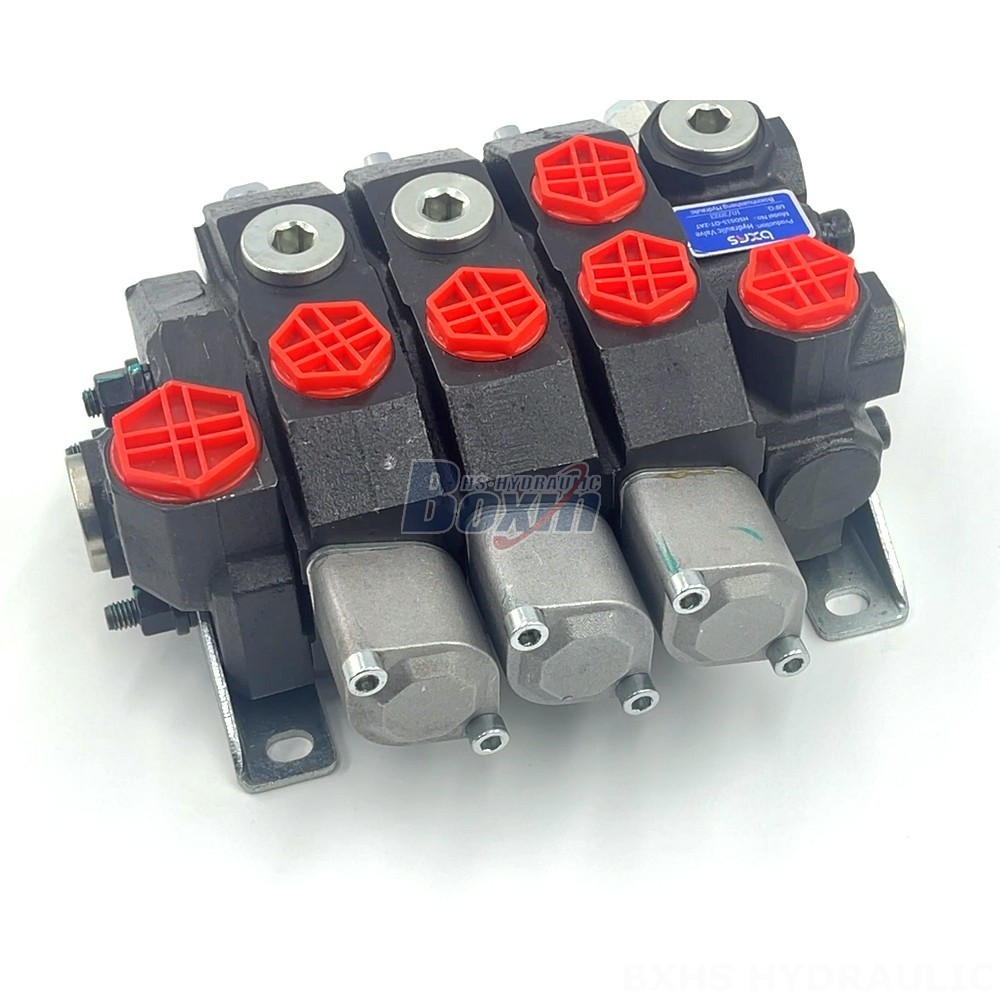

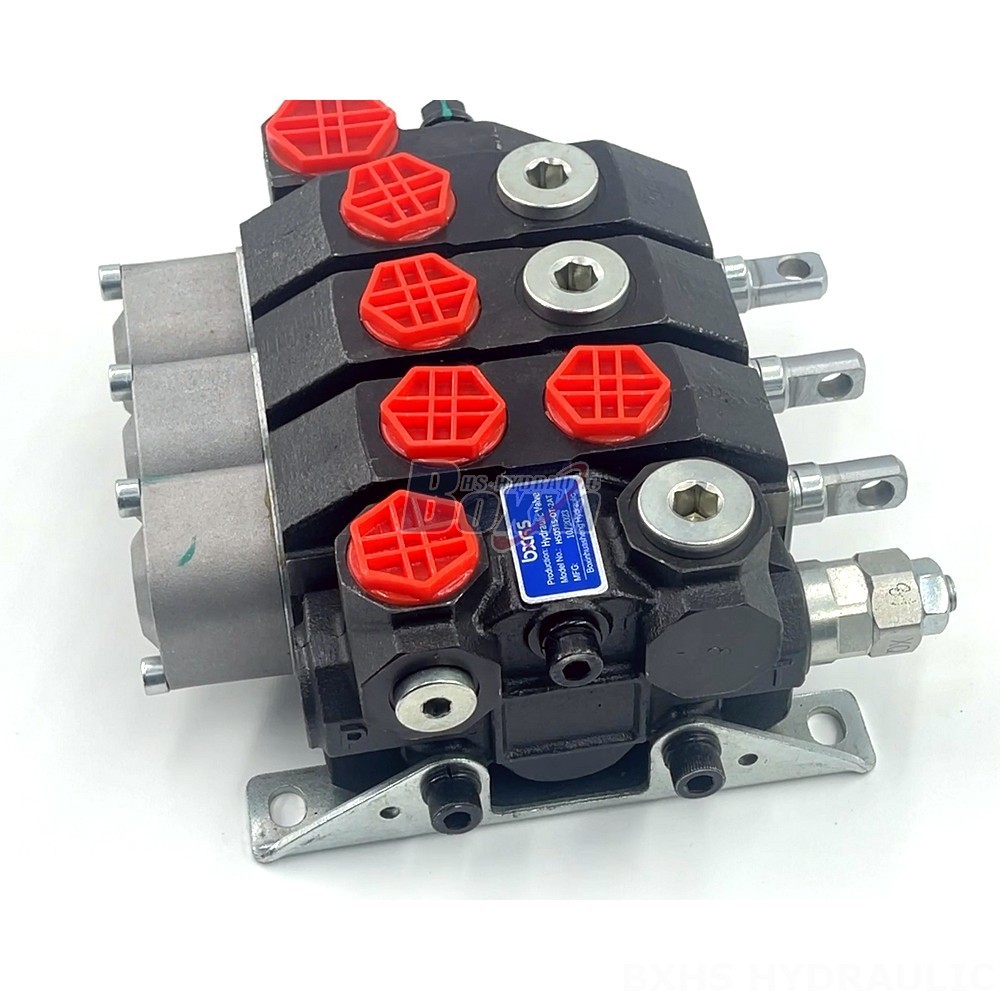

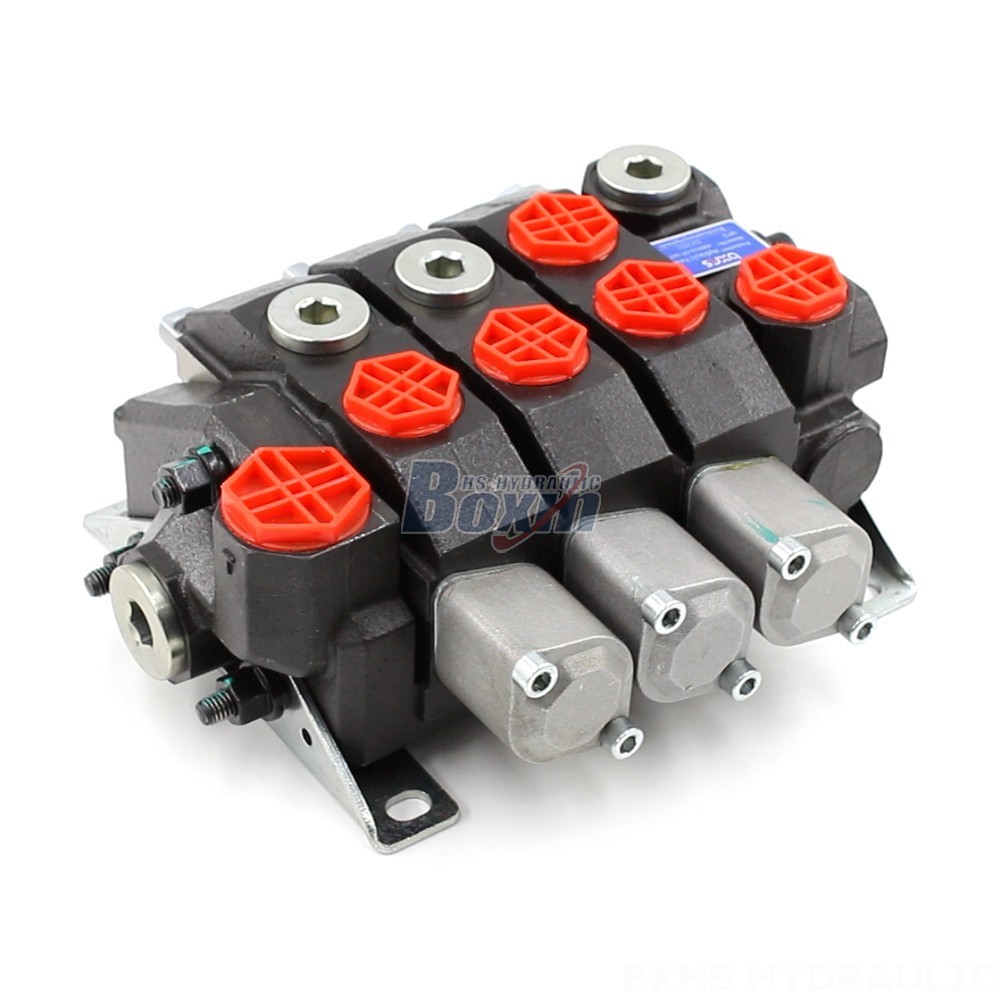

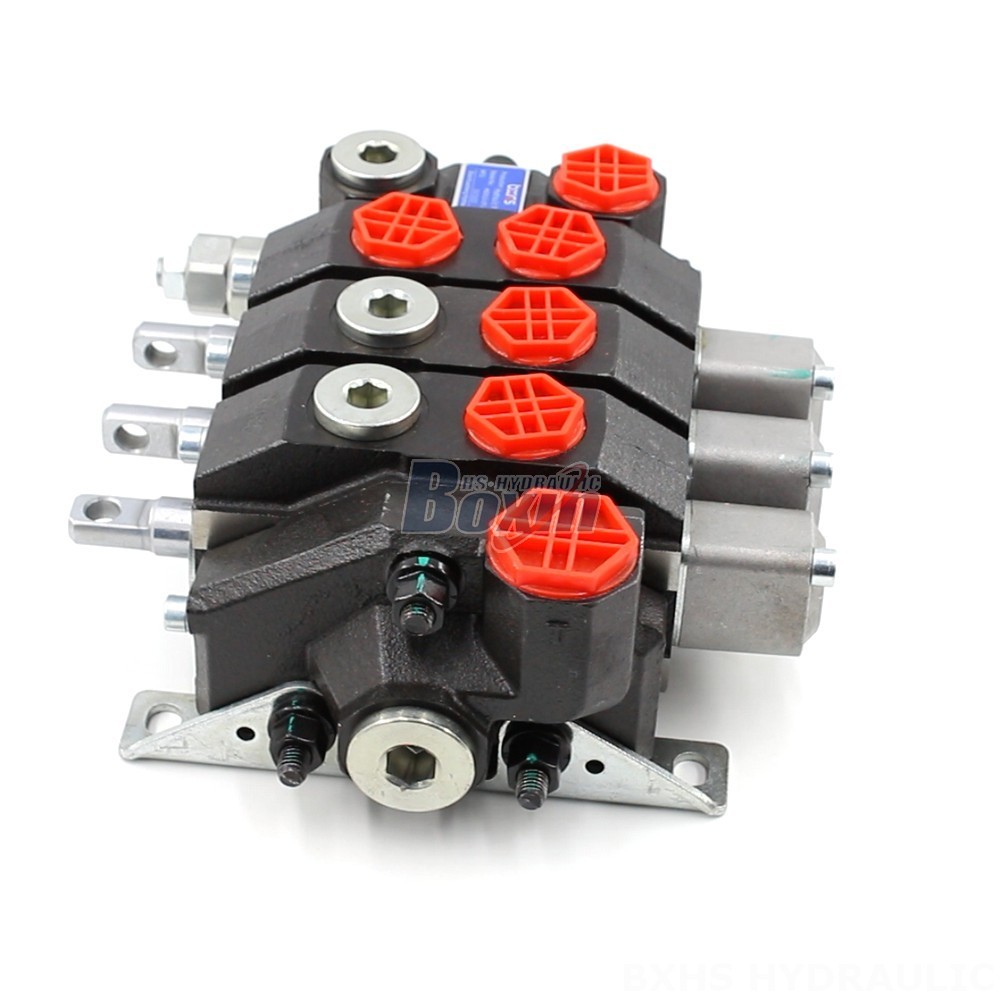

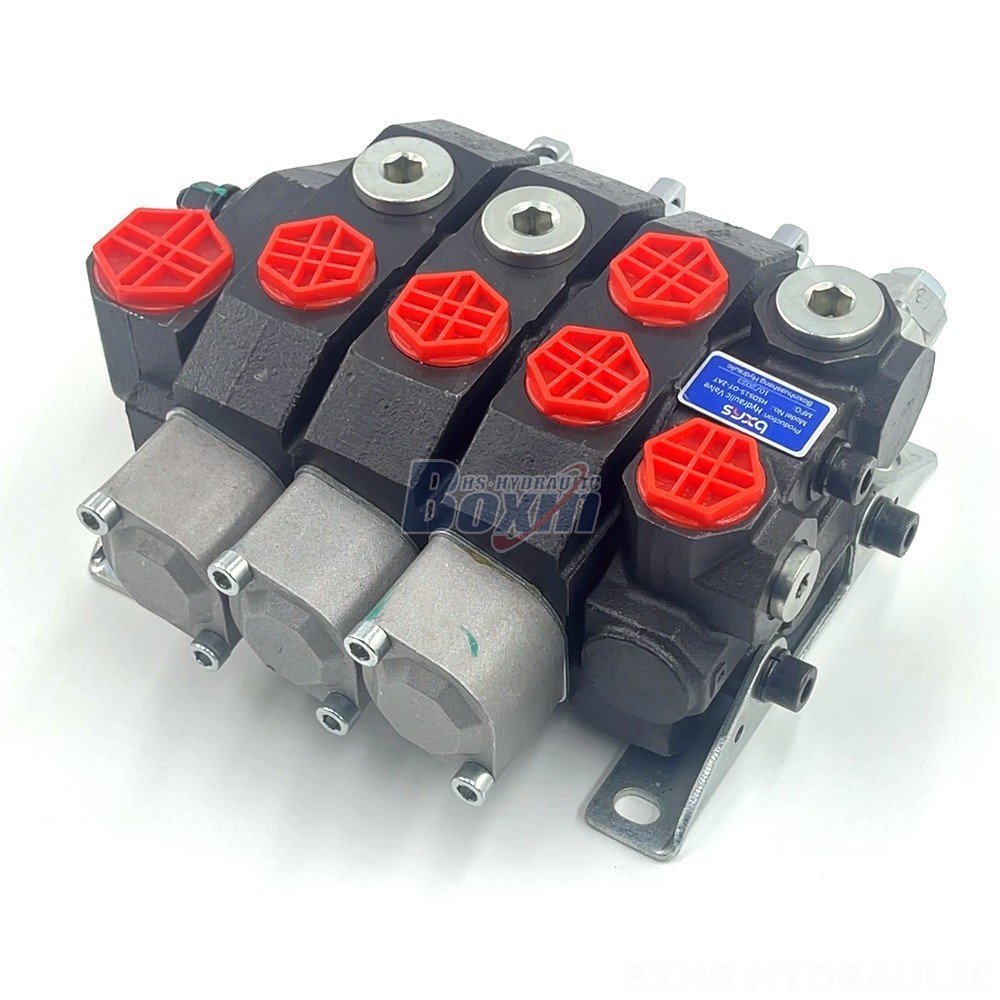

The HSDS15 Series Manual 3 Spool Monoblock Directional Valve is a high-performance, reliable hydraulic valve designed for use in a wide range of applications including material handling, construction, agriculture, and industrial vehicles. It features a 3 spool configuration, a rated flow of 60 L/min, and a maximum pressure of 315 bar.
| HSDS15-serien Sektionsstyrvventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Manuell och Joystick |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner, 8 ventilsektioner, 9 ventilsektioner, 10 ventilsektioner, 11 ventilsektioner, 12 ventilsektioner |
| Nominellt flöde | 60 l/min (15,8 US gpm) |
| Maximalt tryck | 250 bar (3600 psi) |
| Inloppsport | G1/2, SAE 8 |
| Utloppsport | G1/2, G3/4, SAE 8 |
| Portstorlek | G1/2, SAE 8 |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner, 8 sektioner, 9 sektioner, 10 sektioner, 11 sektioner, 12 sektioner |
| Strukturtyp | Sektionsventil |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
This manual 3 spool monoblock directional valve is a robust and versatile solution for controlling hydraulic systems. Designed for demanding applications, it offers a rated flow of 60 L/min and a maximum pressure of 315 bar. Its compact and modular design makes it easy to integrate into existing systems. The valve is suitable for various applications, including forklifts, telehandlers, mini excavators, skid steer loaders, compact wheel loaders, tractors, front-end loaders, harvesters, balers, backhoes, and sprayers. The HSDS15 series is known for its reliability and durability, making it an ideal choice for demanding operating environments.
