Produktion & Leverans
15-30 dagars produktionsledtid

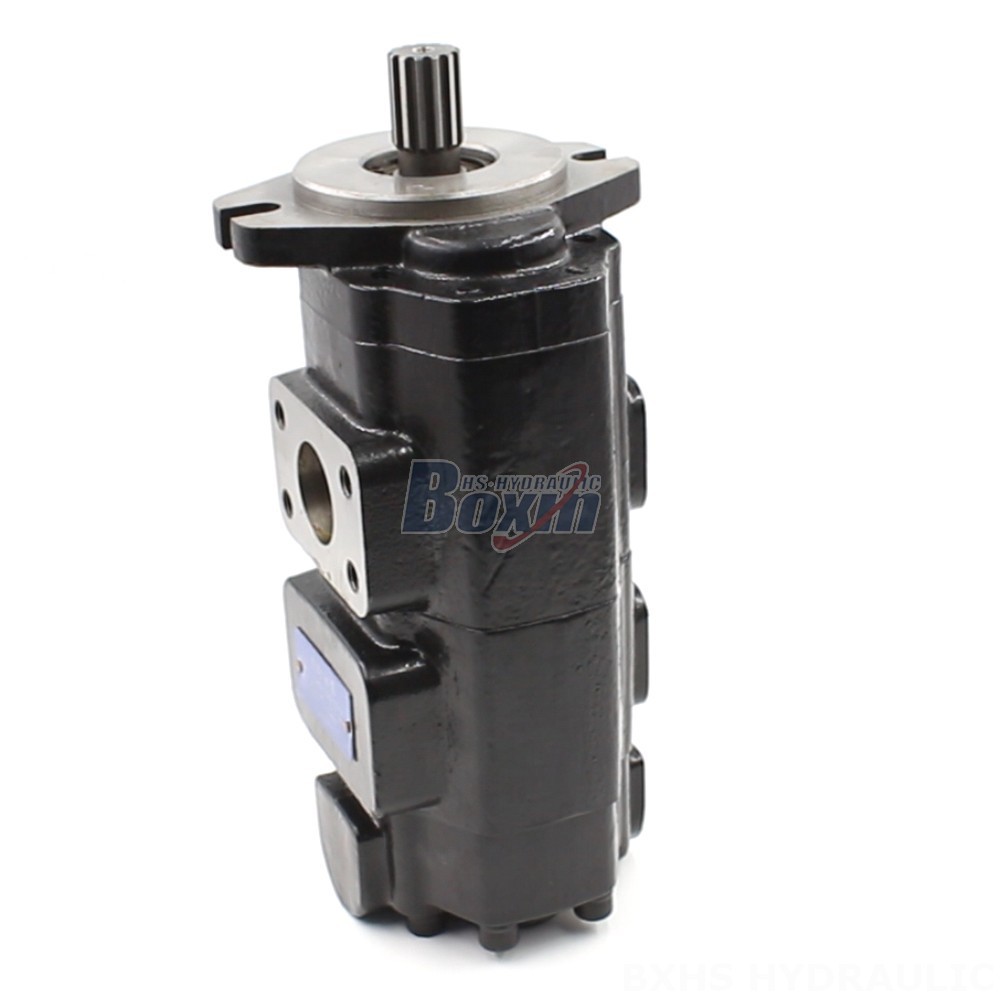

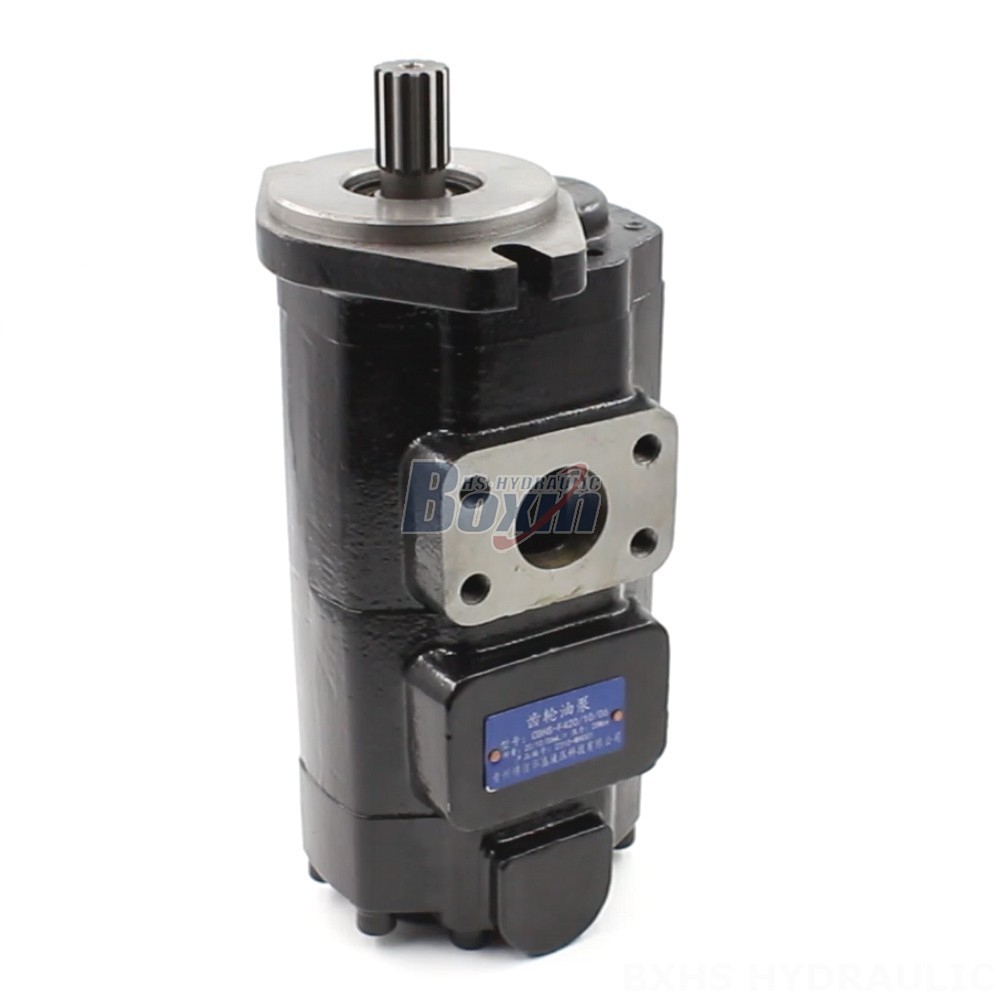

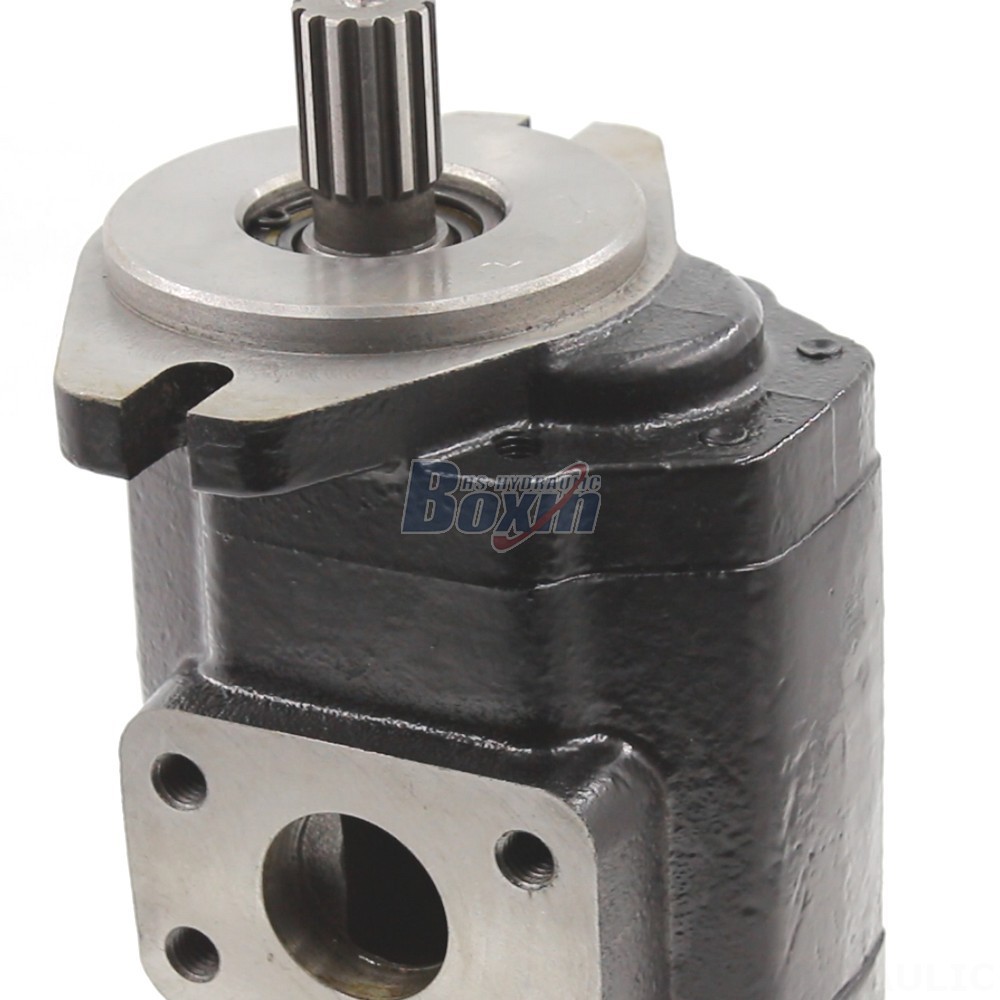

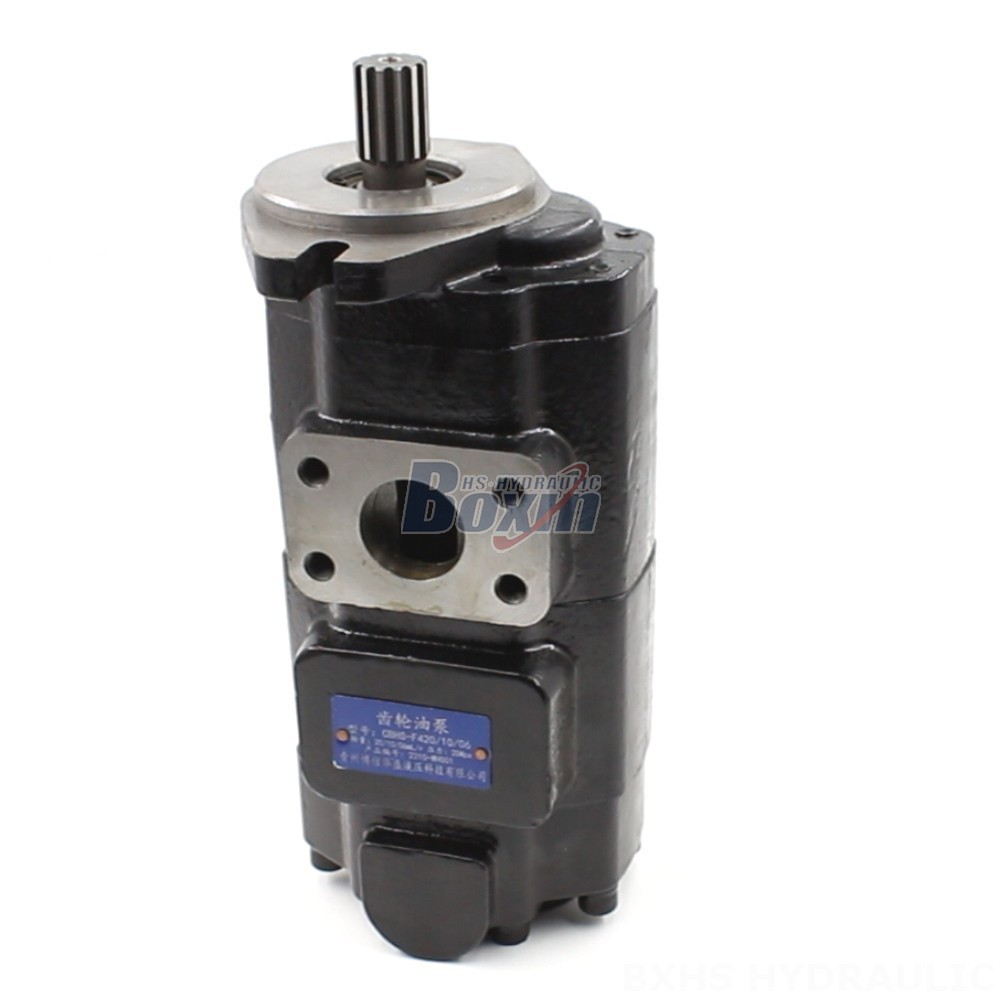

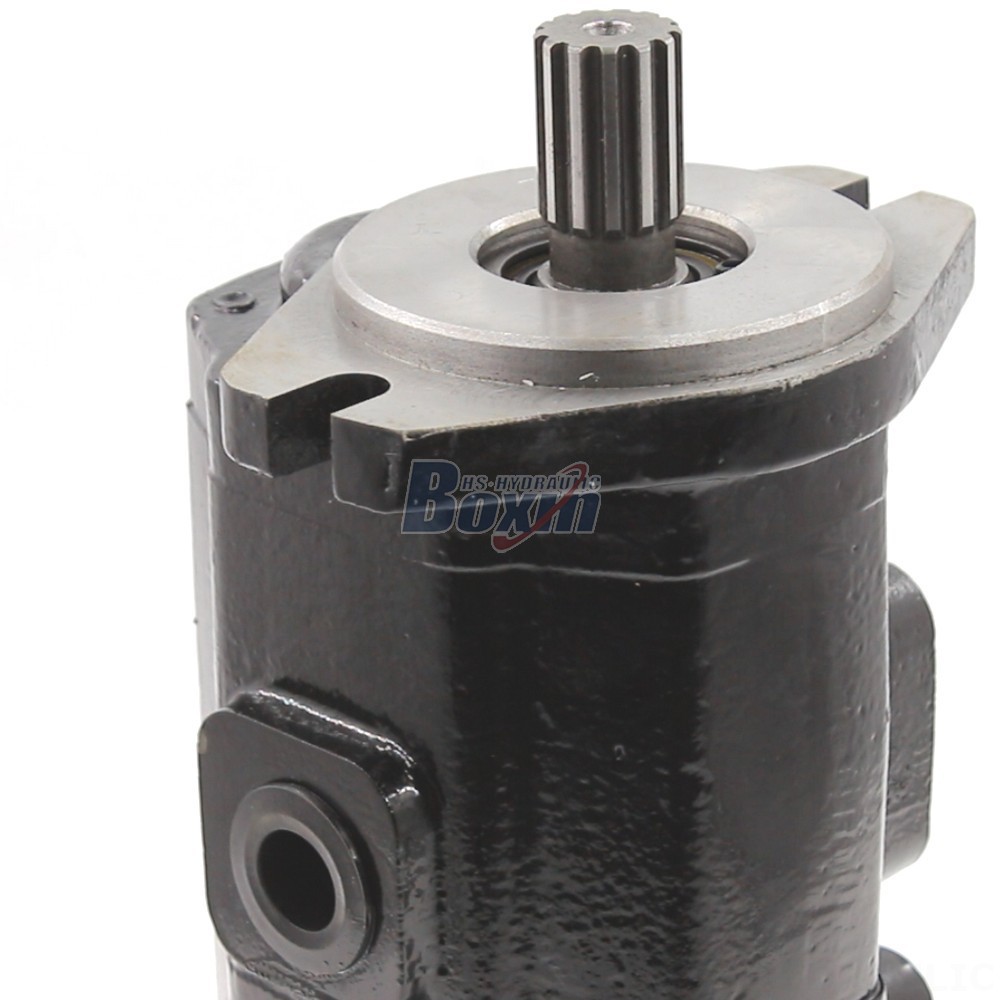

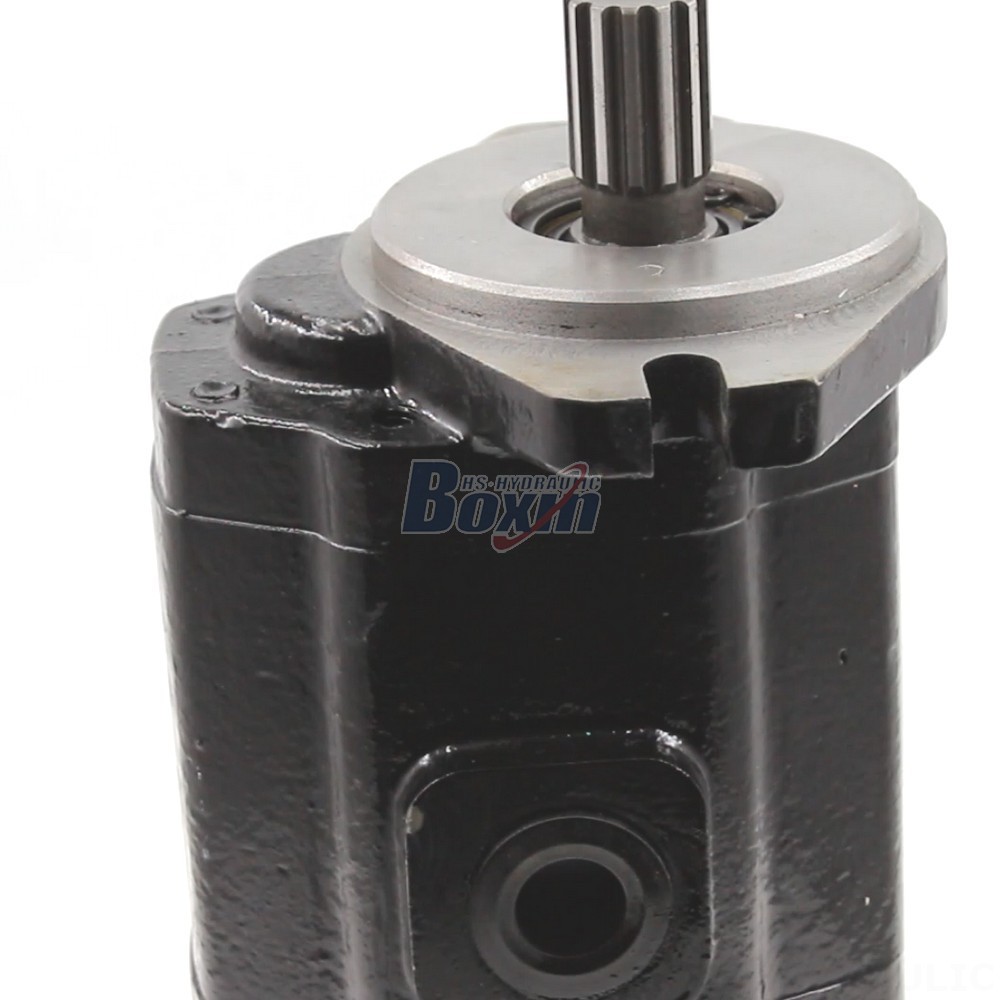

This Industrial Hydraulic Gear Pump is a high-performance, durable and reliable pump designed for various construction, agricultural, and industrial applications. Available in different displacement sizes and pressure ratings, it caters to diverse needs and equipment types.
| CBHS-F4-serien Hydraulisk kugghjulspump Parametrar | |
|---|---|
| Deplacement | 40 cc/varv, 25 cc/varv, 20 cc/varv |
| Nominellt tryck | 20 MPa (2900 psi), 25 MPa (3625 psi) |
| Maximalt tryck | 25 MPa (3625 psi) |
| Nominell hastighet | 2000 varv/min |
| Maximal hastighet | 2500 varv/min |
| Rotationsriktning | Vänster (motsols), Höger (medsols) |
| Material | Gjutjärn, Aluminiumgjutjärn, Aluminium |
| Struktur | Kamaxeltyp |
| Flanschversion | A-Oval fläns, B-Kvadratisk fläns, ISO-4 monteringshål, UNI-3 monteringshål, SAE-fläns |
| Axeltyp | H: Rektangulär splines, X: Evolventsplines, P: Enkel nyckel |
This Industrial Hydraulic Gear Pump is a reliable and durable solution for a wide range of applications in construction, agriculture, and industrial vehicles. It offers displacement options ranging from 32 cc/rev to 80 cc/rev and pressure ratings up to 3625 psi (25 MPa). The pump features an external gear design with a cam plate type structure and is available with both A-oval and B-square flange versions. It also features a rectangle spline shaft for easy installation. The pump is suitable for various equipment such as forklifts, telehandlers, mini-excavators, midi-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, and harvesters. Our company offers manufacturing, OEM, ODM, and customization services to meet the specific needs of our clients. We are actively seeking distributors, wholesalers, agents, and traders to expand our global reach and offer our high-quality hydraulic gear pumps to a wider market.
