Manual 1 Spool Monoblock Valve - P40-G12 Series | Wholesale and OEM

Kontrollmetod:Manuell

Spole:1 ventilsektion

Nominellt flöde:40 l/min (10,5 US gpm)

Maximalt tryck:250 bar (3600 psi)

Inloppsport:G1/2

Utloppsport:G1/2

Portstorlek:G1/2

Märke:BXHS

Produkttyp:Monoblockriktningsventil

Produktserie:P40-serien Monoblockriktningsventil

Förpackningsstorlek:23*16*11

Bruttovikt:3.00 kg

Tillgänglighet: I lager

1019 Vyer letar efter den här produkten

Manual 1 Spool Monoblock Valve - P40-G12 Series | Wholesale and OEM

Manual 1 Spool Monoblock Valve - P40-G12 Series | Wholesale and OEM

Manual 1 Spool Monoblock Valve - P40-G12 Series | Wholesale and OEM drawing image

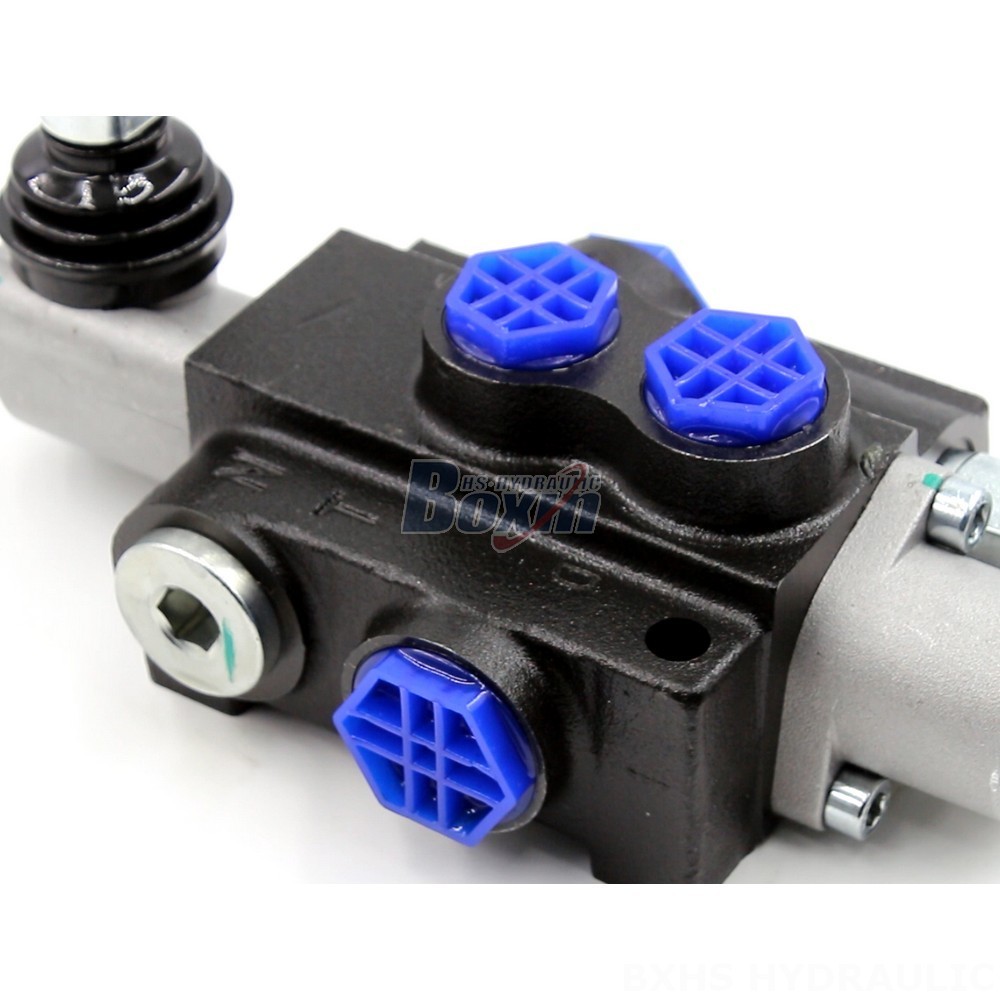

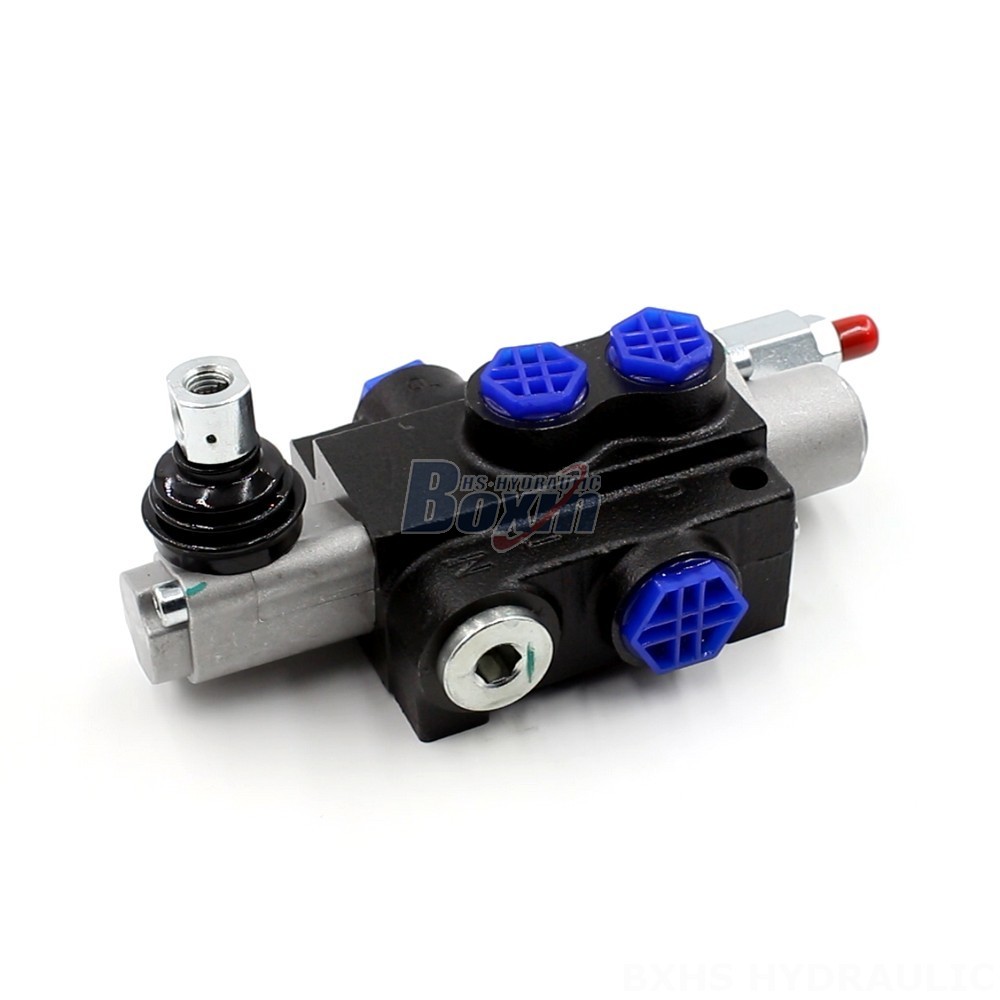

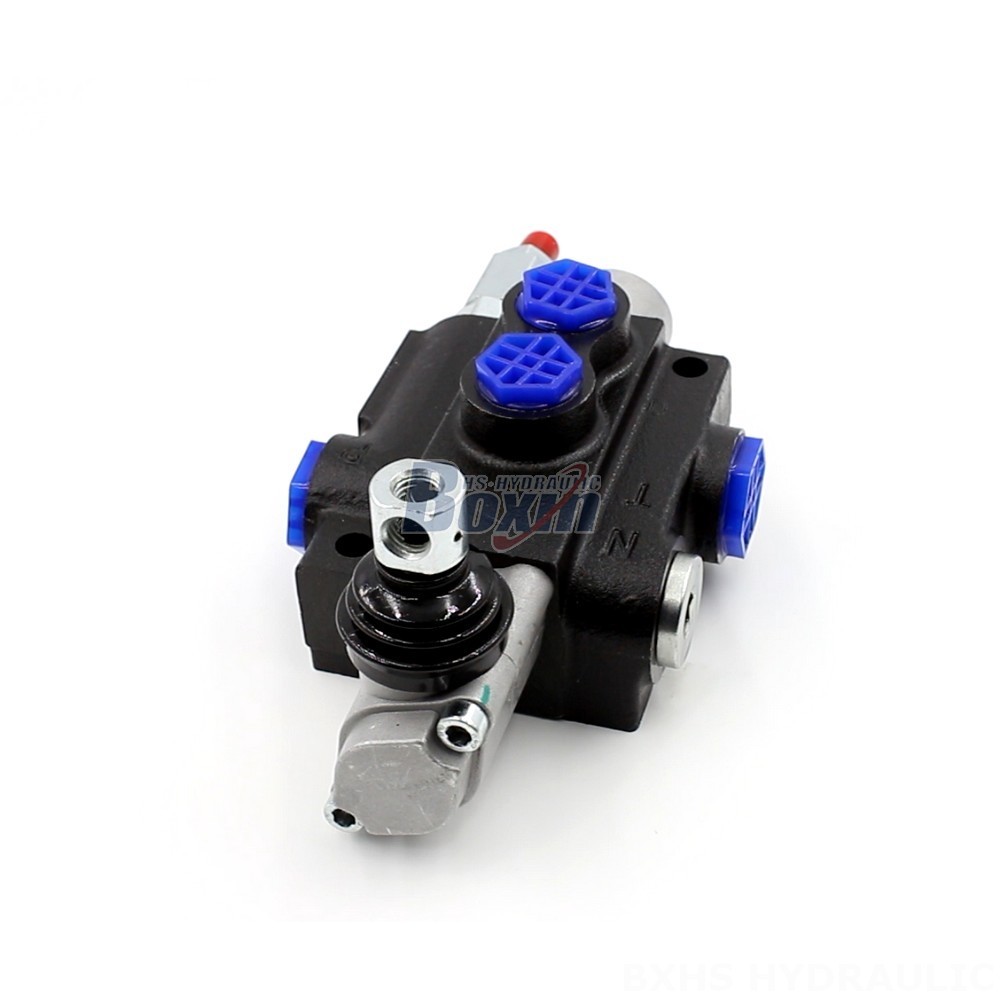

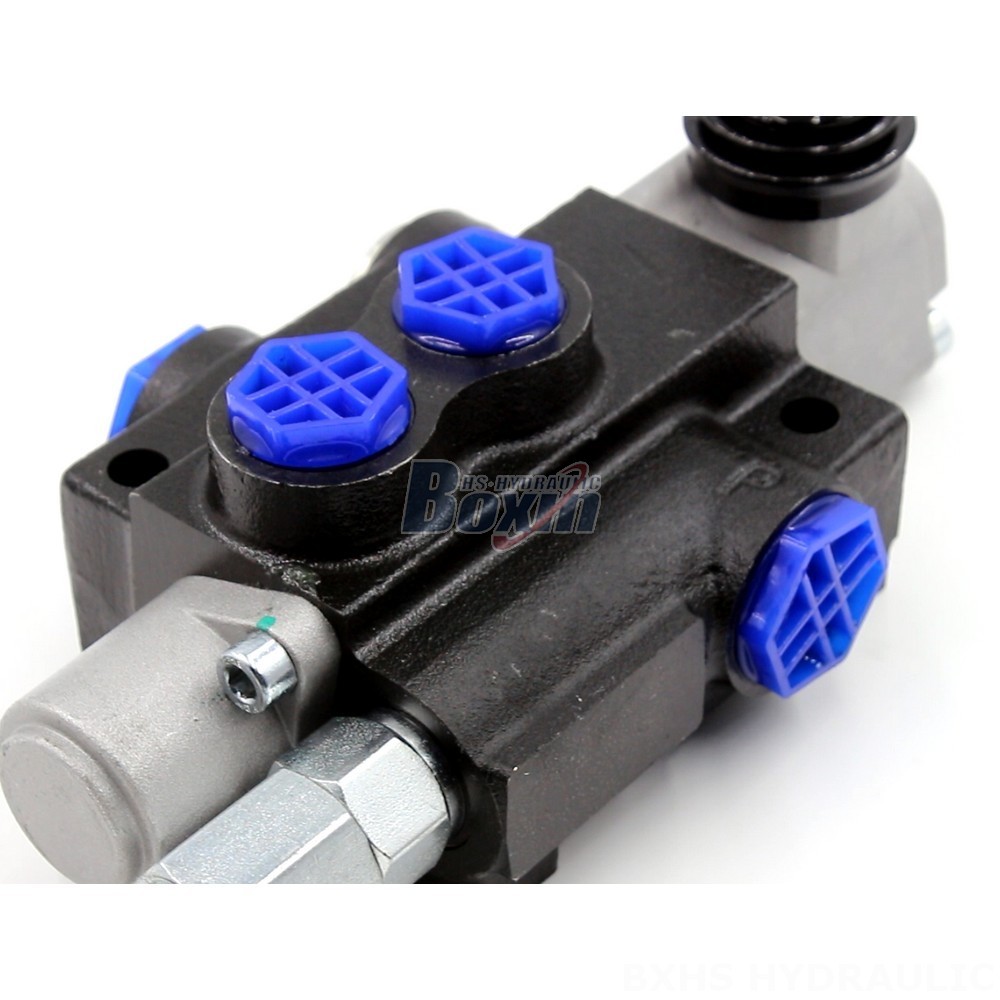

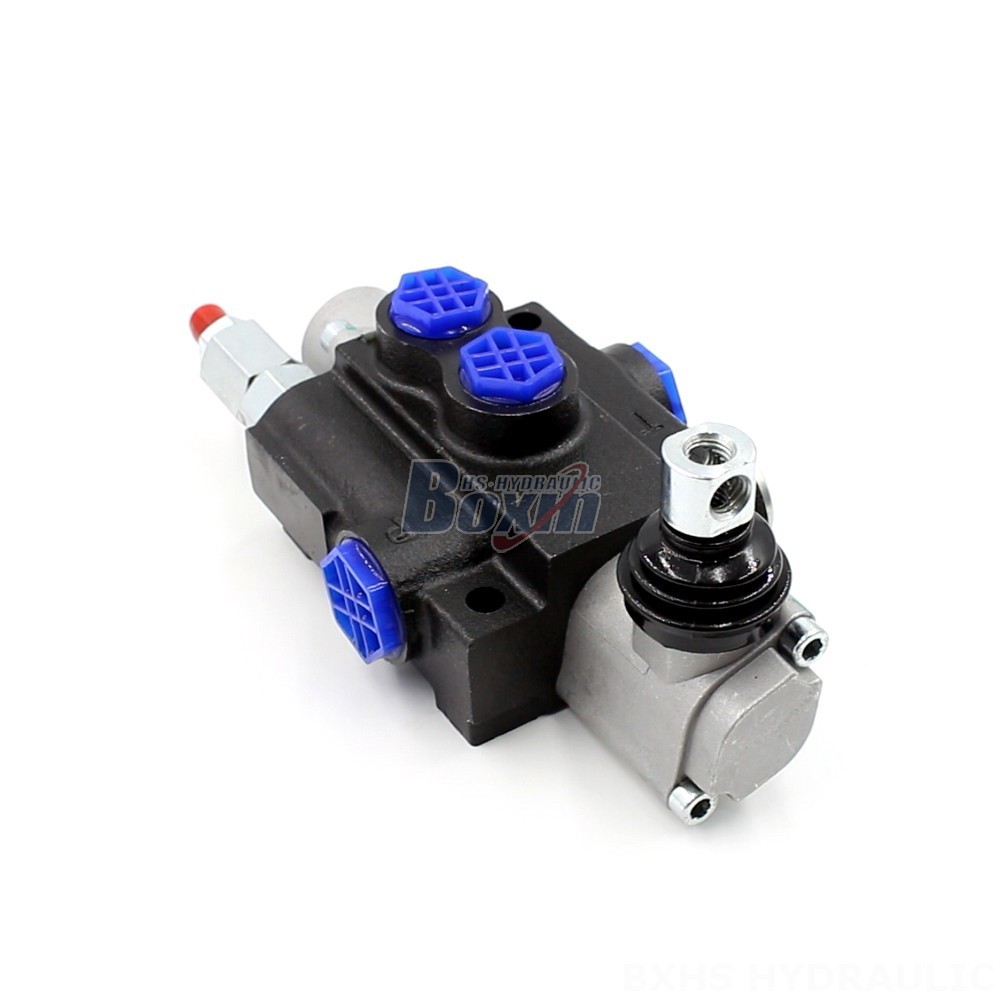

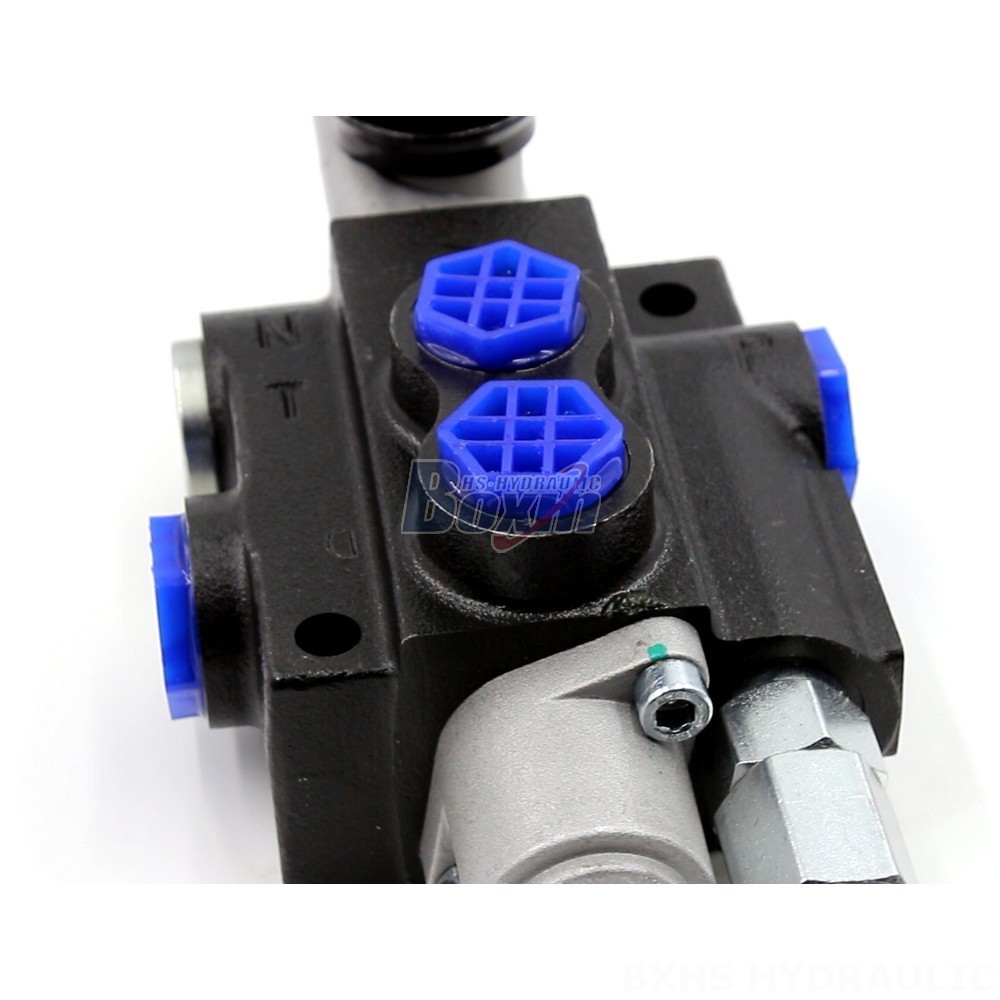

The P40-G12 Series Directional Control Valve is a manual, 1-spool monoblock valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. It offers a rated flow of 40 L/min, a maximum pressure of 250 bar, and an operating viscosity range of 15-75 mm²/s.

P40-serien Monoblockriktningsventil Parametrar
Kontrollmetod Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Solenoid och Joystick, Manuell och Joystick, Magnetventil och kabel
Spole 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner
Omgivningstemperaturintervall -40°C till +80°C (-40°F till +176°F)
Strukturtyp Monoblockventil
Sektion 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner
Driftsviskositetsintervall 15 - 75 mm²/s (15 cSt till 75 cSt)
Nominellt flöde 40 l/min (10,5 US gpm)
Maximalt tryck 250 bar (3600 psi)
Inloppsport G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Utloppsport G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Portstorlek G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

This P40-G12 Series Directional Control Valve is a high-quality, reliable hydraulic component designed for manual operation. It features a 1-spool monoblock construction, providing a compact and efficient design. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is suitable for demanding applications in various industries. Its operating viscosity range of 15-75 mm²/s ensures optimal performance across a wide range of temperatures. The valve is designed for use in various equipment, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. We offer this valve in wholesale quantities and are also available for OEM applications. Contact us for more information on this product and its suitability for your specific requirements.
