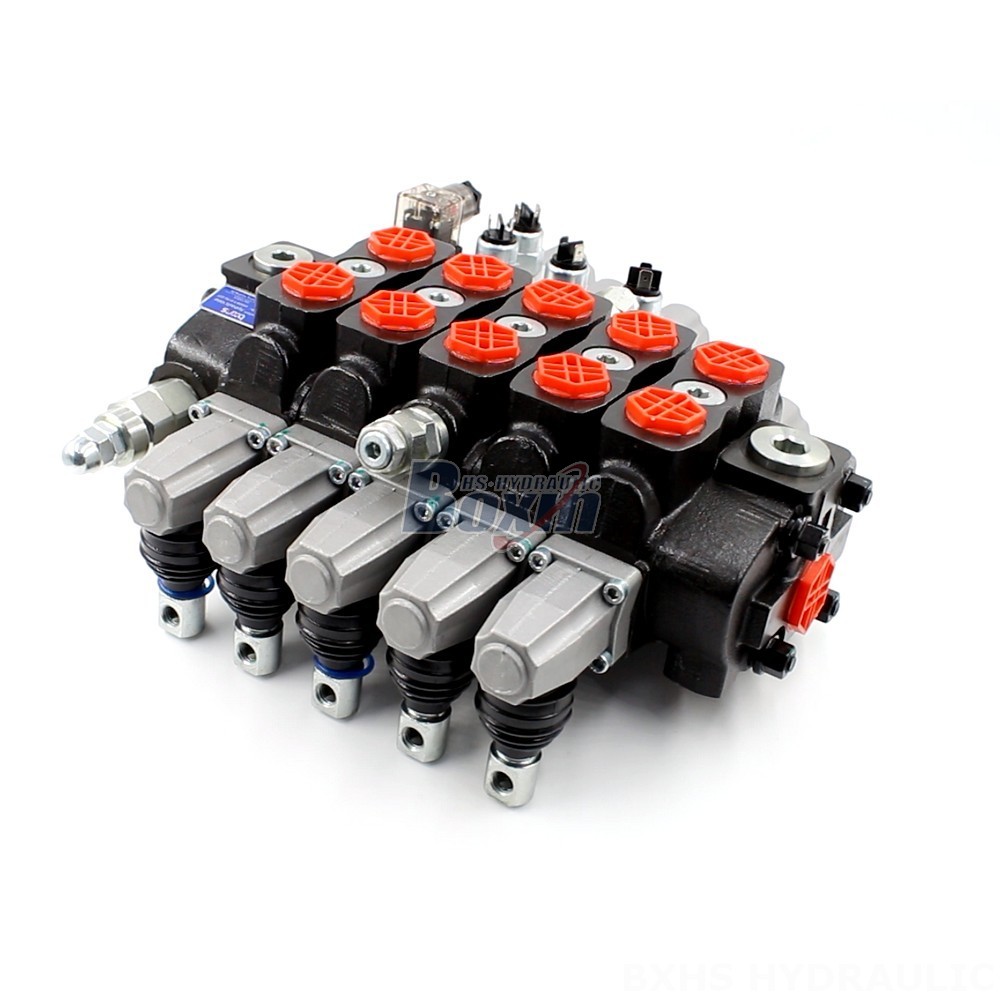

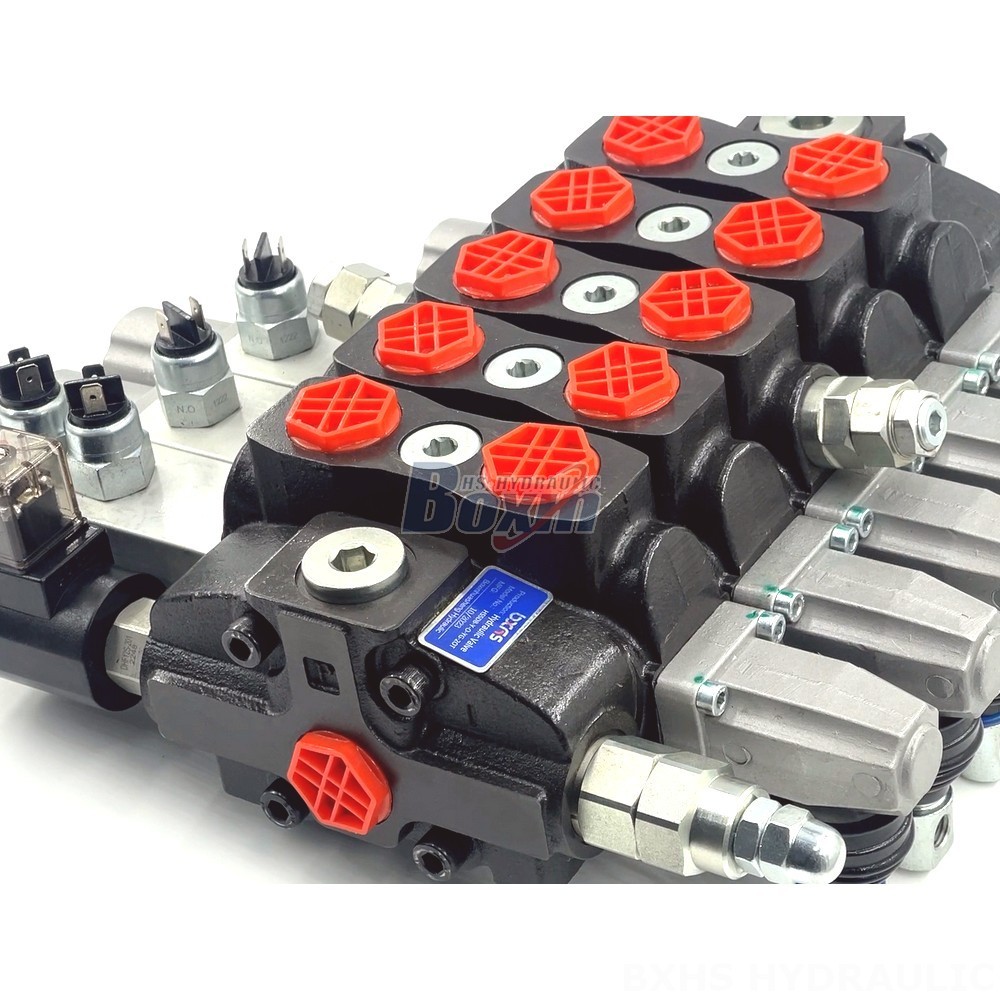

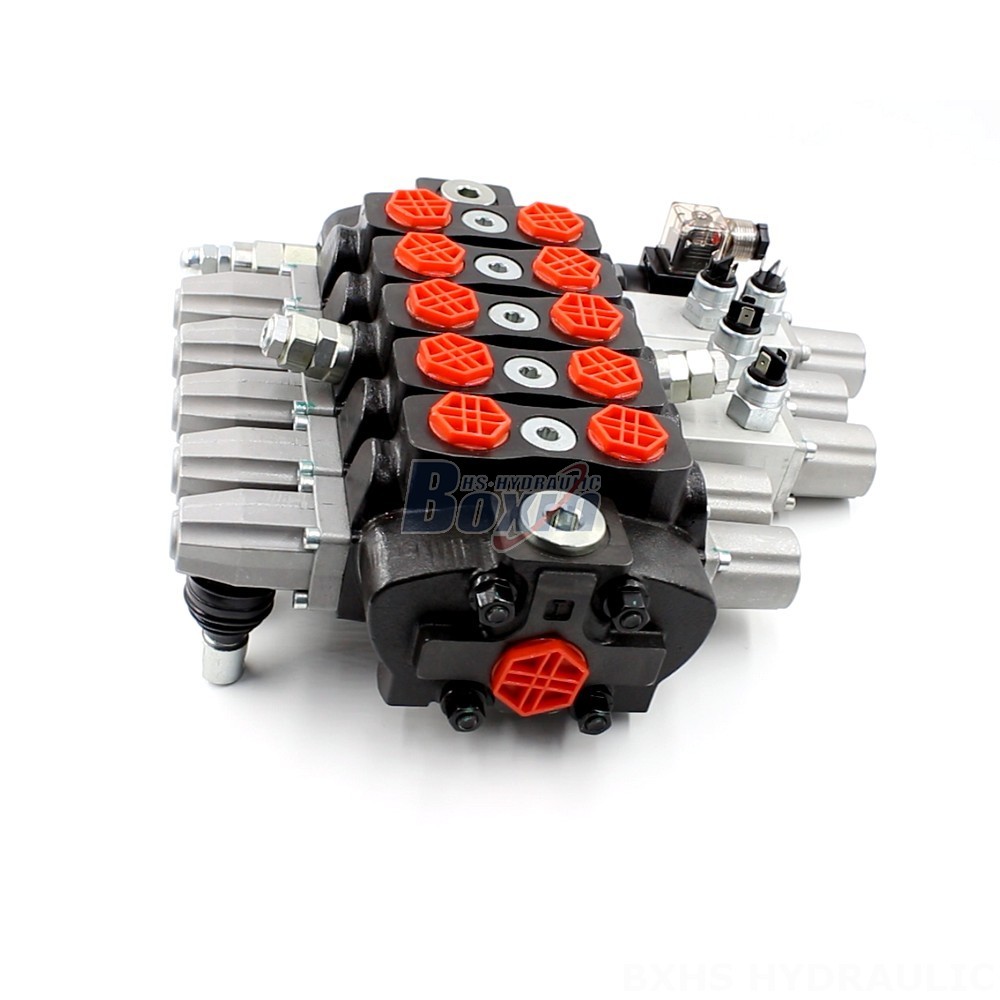

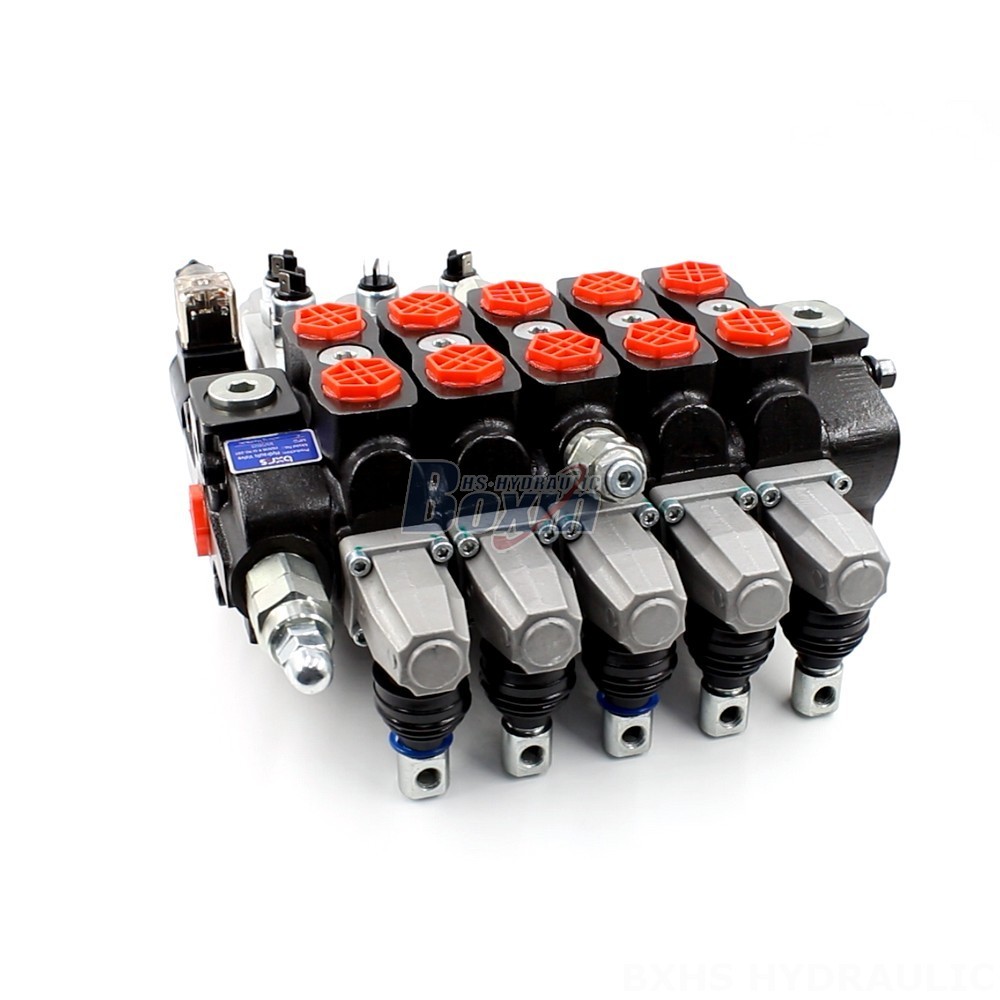

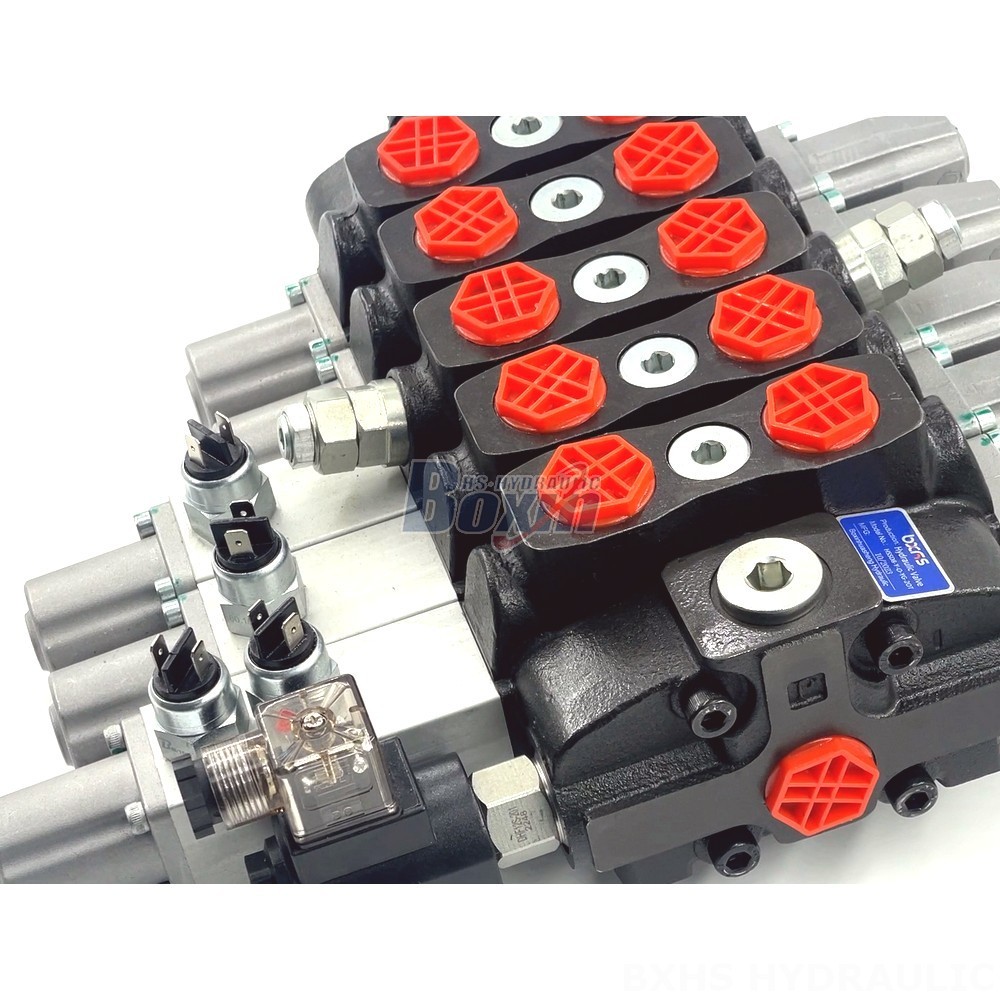

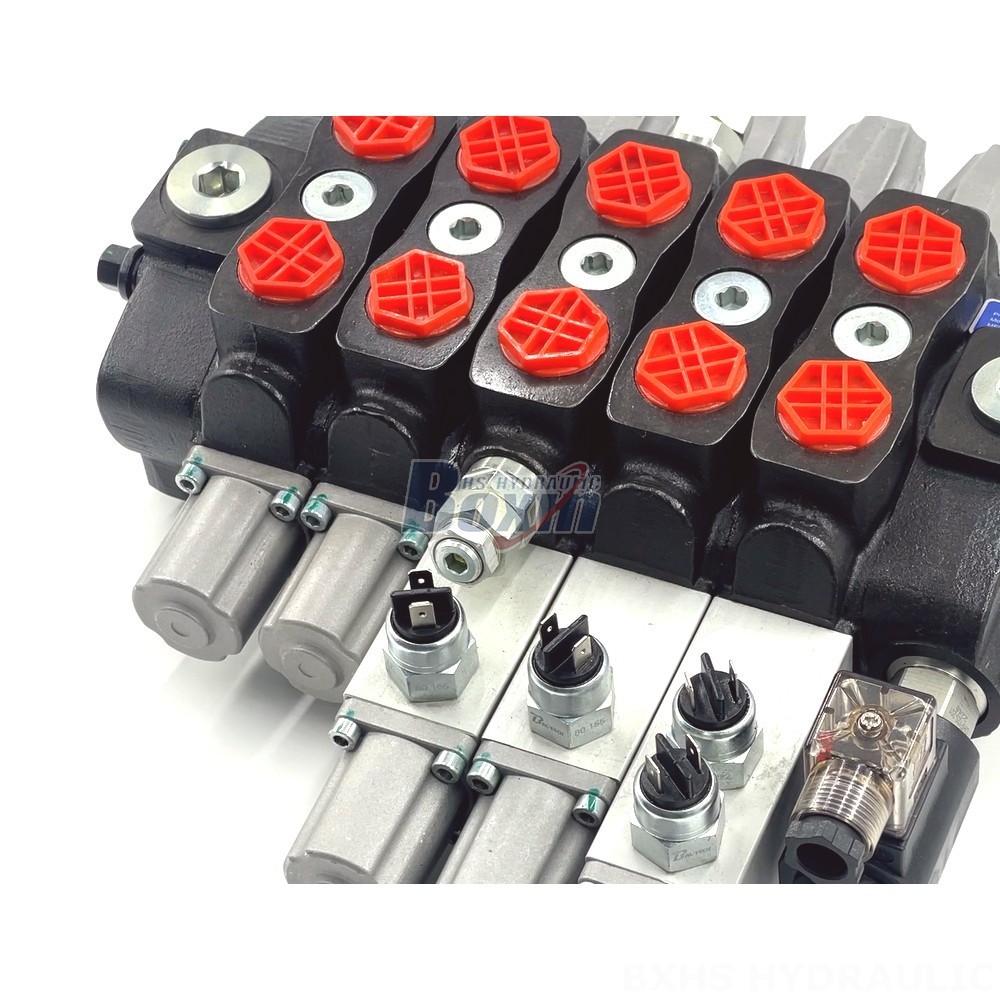

This 5-spool, sectional hydraulic directional valve is designed for manual control of hydraulic tipper systems. It features a rated flow of 90 L/min and a maximum pressure of 350 bar, making it suitable for a wide range of construction, agricultural, and industrial vehicles.
| SD8-serien Sektionsstyrvventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Solenoid och Joystick, Manuell och Joystick |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner, 8 ventilsektioner, 9 ventilsektioner, 10 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Sektionsventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner, 8 sektioner, 9 sektioner, 10 sektioner |
| Driftsviskositetsintervall | 12 - 400 mm²/s (12 cSt till 400 cSt) |
| Nominellt flöde | 90 l/min (23,8 US gpm) |
| Maximalt tryck | 315 bar (4600 psi) |
| Inloppsport | G1/2, G3/4, SAE 10 |
| Utloppsport | G1/2, G3/4, SAE 10, 3/4 NPT |
| Portstorlek | G1/2, SAE 10 |
This manual hydraulic directional valve is specifically designed for tipper control applications. With its 5-spool, sectional design, it offers precise and reliable control of hydraulic functions. The valve has a rated flow of 90 L/min and a maximum pressure of 350 bar, making it suitable for a wide range of applications. It is designed to operate within a viscosity range of 12 to 400 mm²/s and withstand ambient temperatures from -40°C to +80°C. The valve is suitable for a variety of vehicles, including forklifts, telehandlers, mini-excavators, midi-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, and harvesters.
