Maximize efficiency with the SD25 Valve, an electro-hydraulic control and automation solution designed for various applications, including material handling, construction, agriculture, and industrial vehicles.
| SD25-serien Sektionsstyrvventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Elektrohydraulisk, Hydraulisk |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Sektionsventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner, 8 sektioner, 9 sektioner, 10 sektioner |
| Driftsviskositetsintervall | 12 - 400 mm²/s (12 cSt till 400 cSt) |
| Nominellt flöde | 240 l/min (63,4 US gpm) |
| Maximalt tryck | 315 bar (4600 psi) |
| Inloppsport | G1, SAE 16 |
| Utloppsport | G1-1/4, SAE 16 |
| Portstorlek | G1, G1-1/4, SAE 12 |

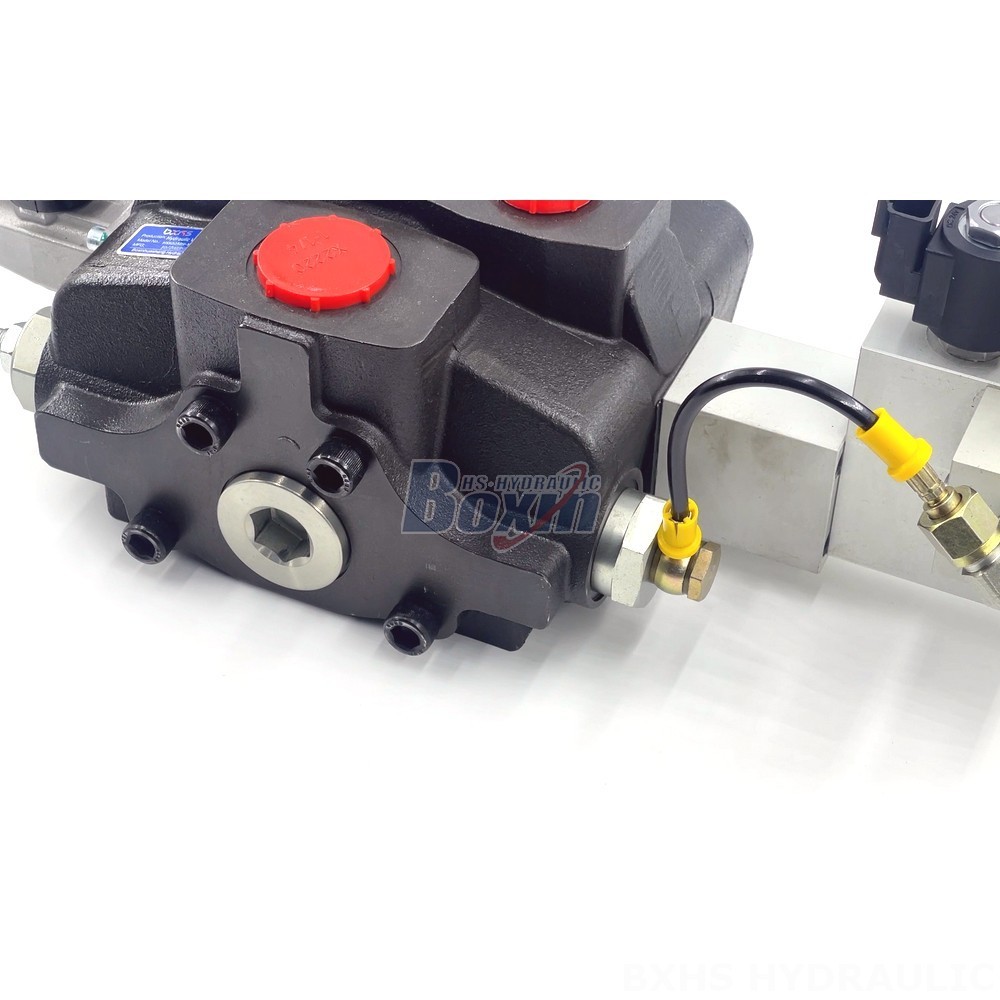

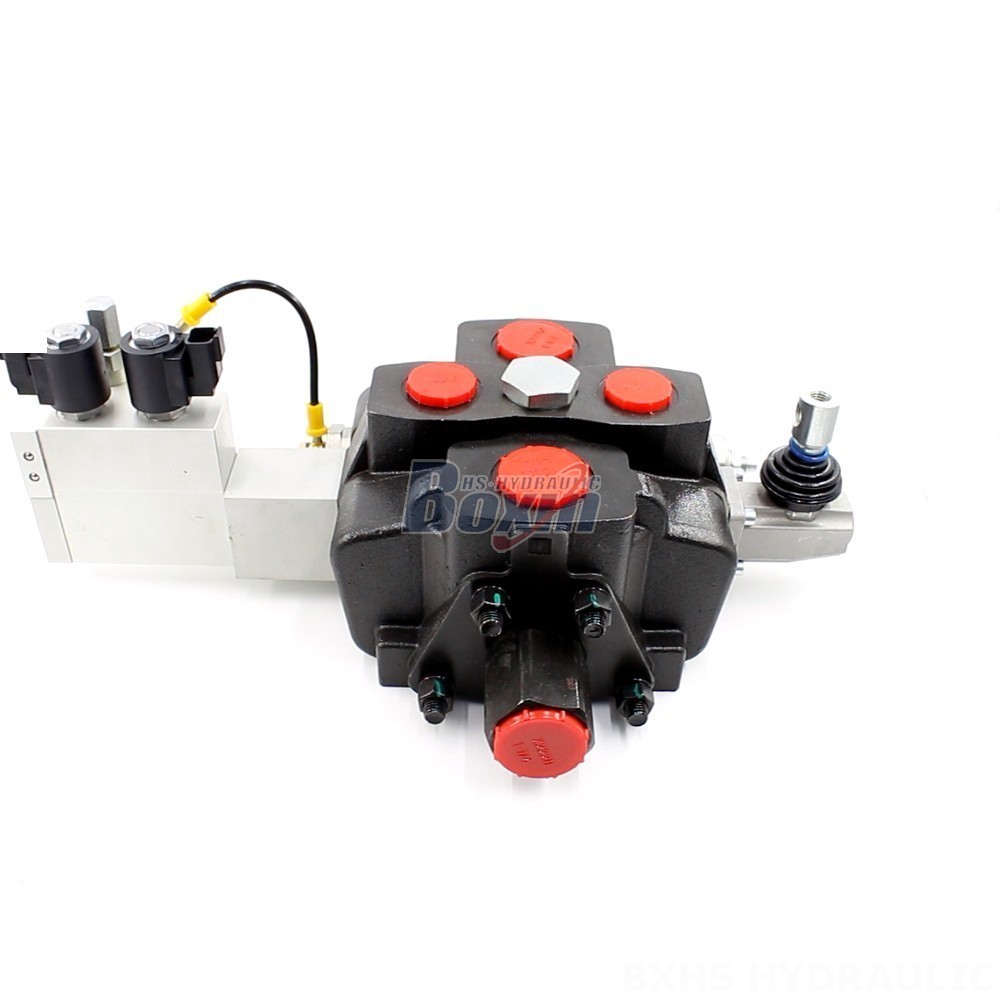

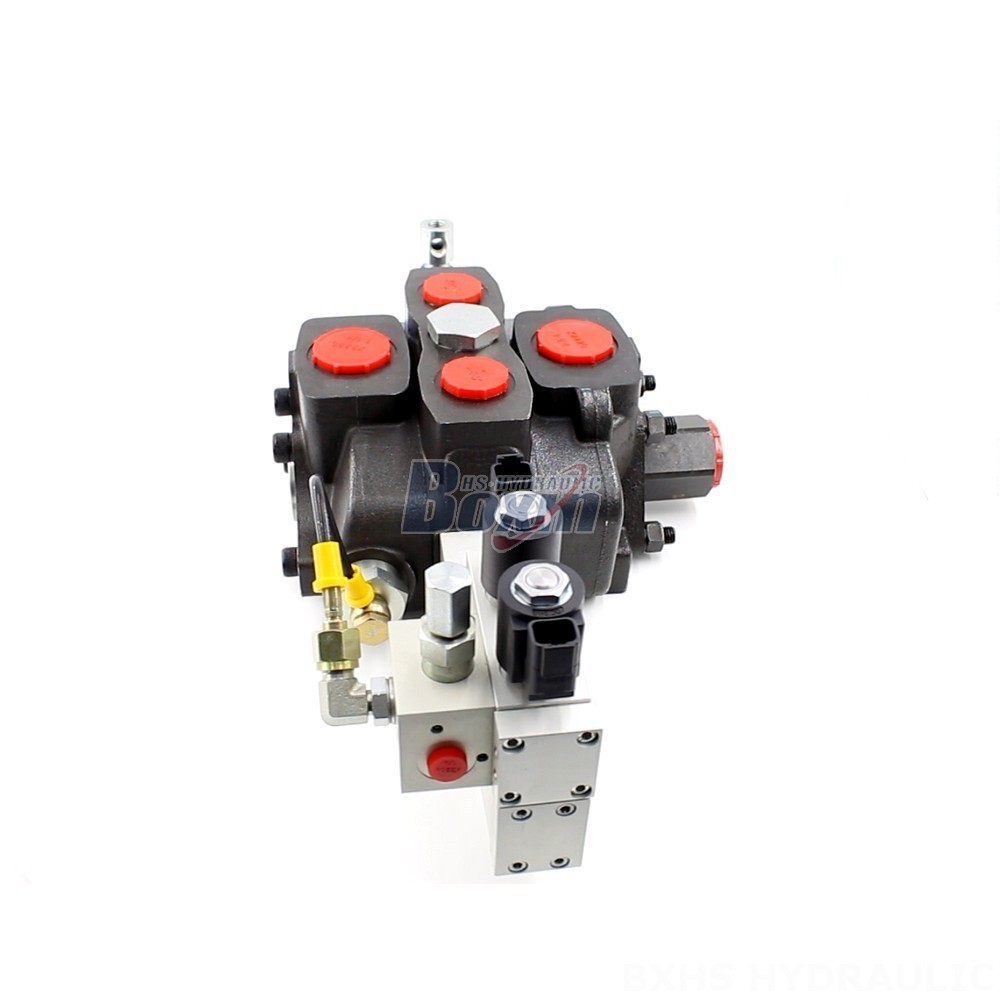

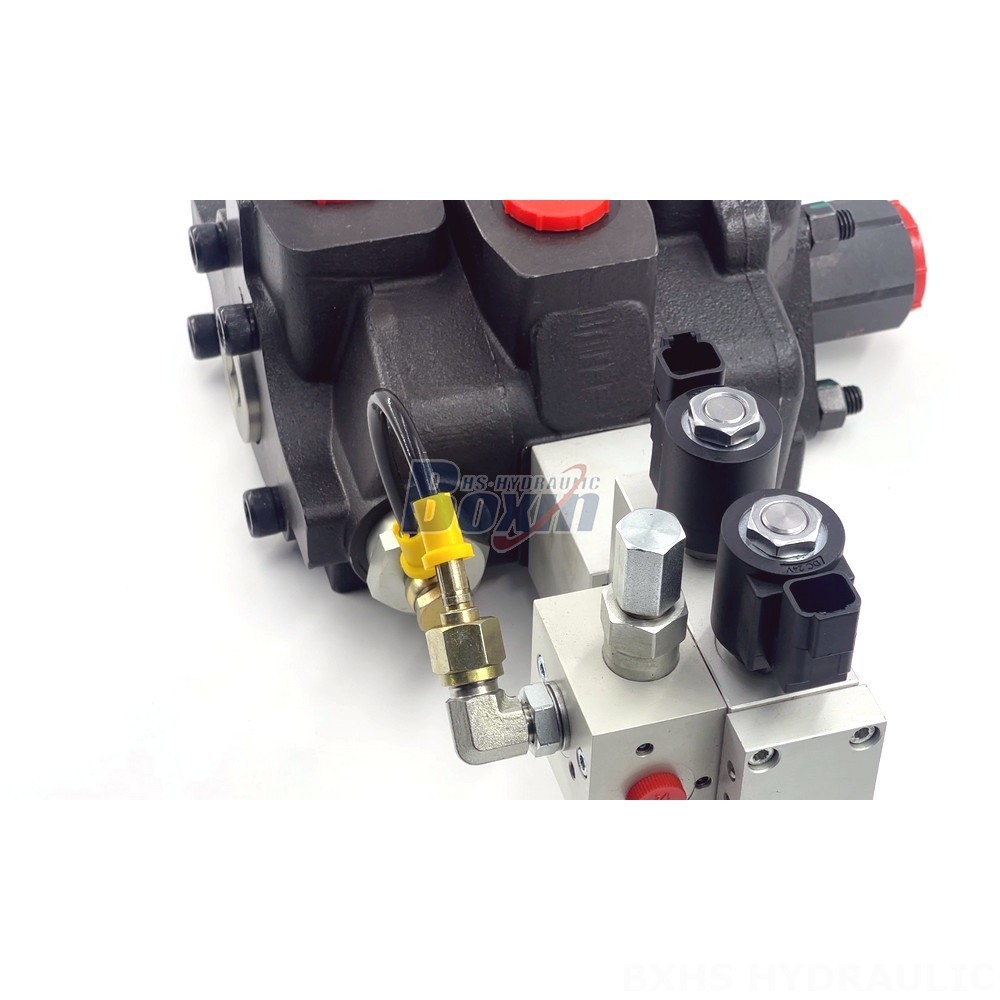

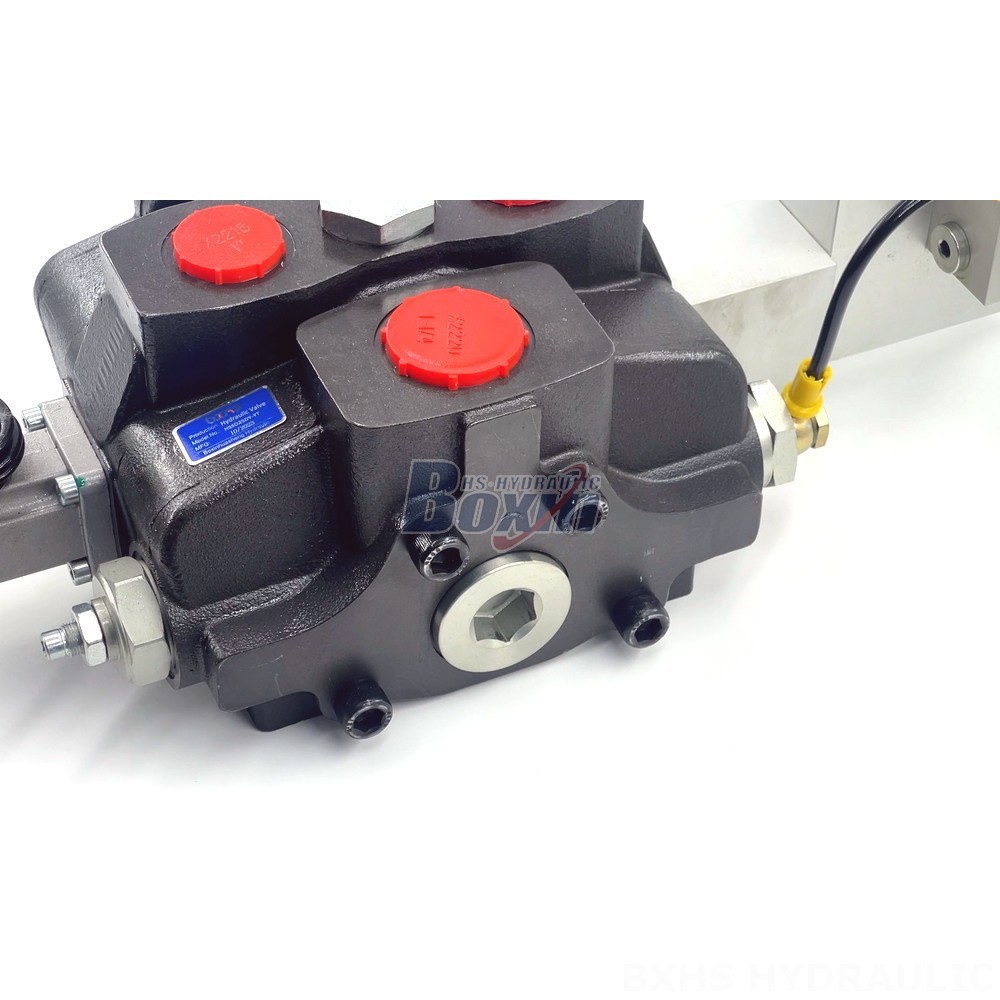

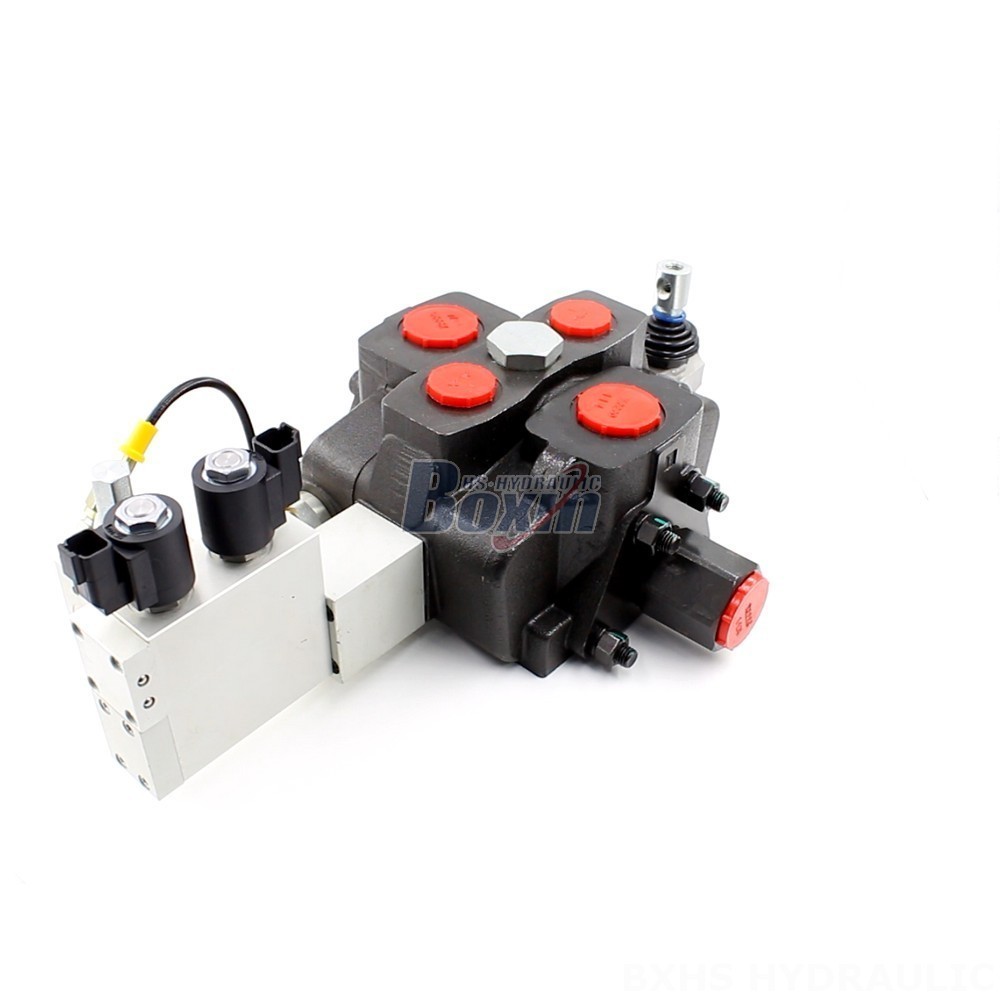

The SD25 Valve is a monoblock valve with a rated flow of 240 L/min and a maximum pressure of 315 bar. It operates within an ambient temperature range of -40°C to +80°C and features a single spool. Its electro-hydraulic control system provides precise and efficient operation, making it an ideal choice for demanding hydraulic applications.
