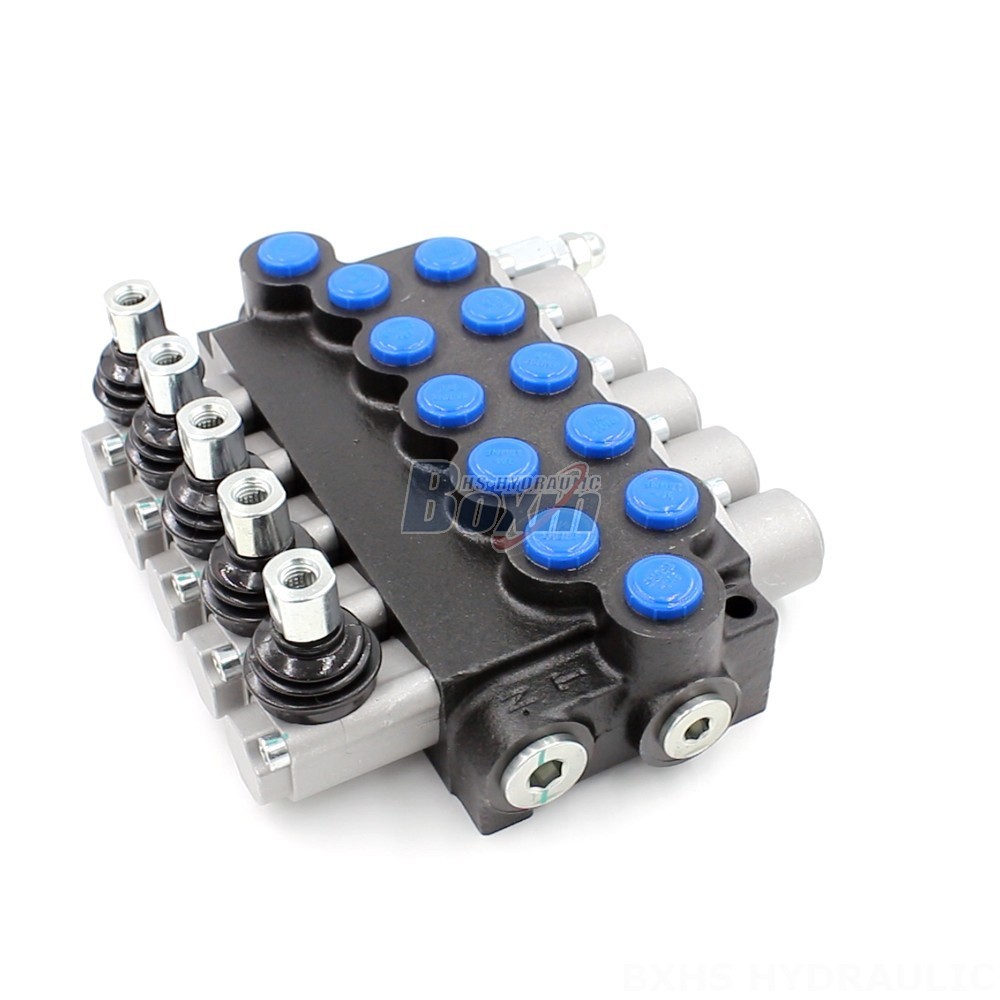

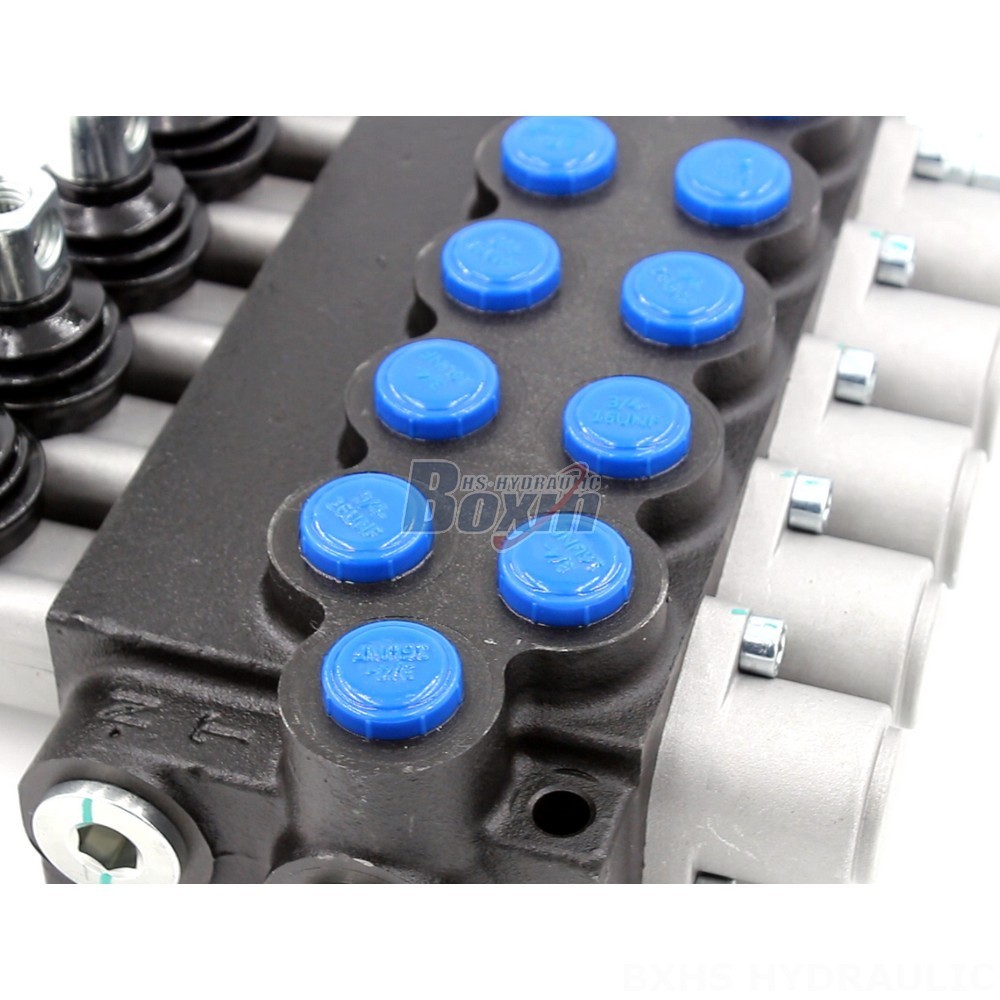

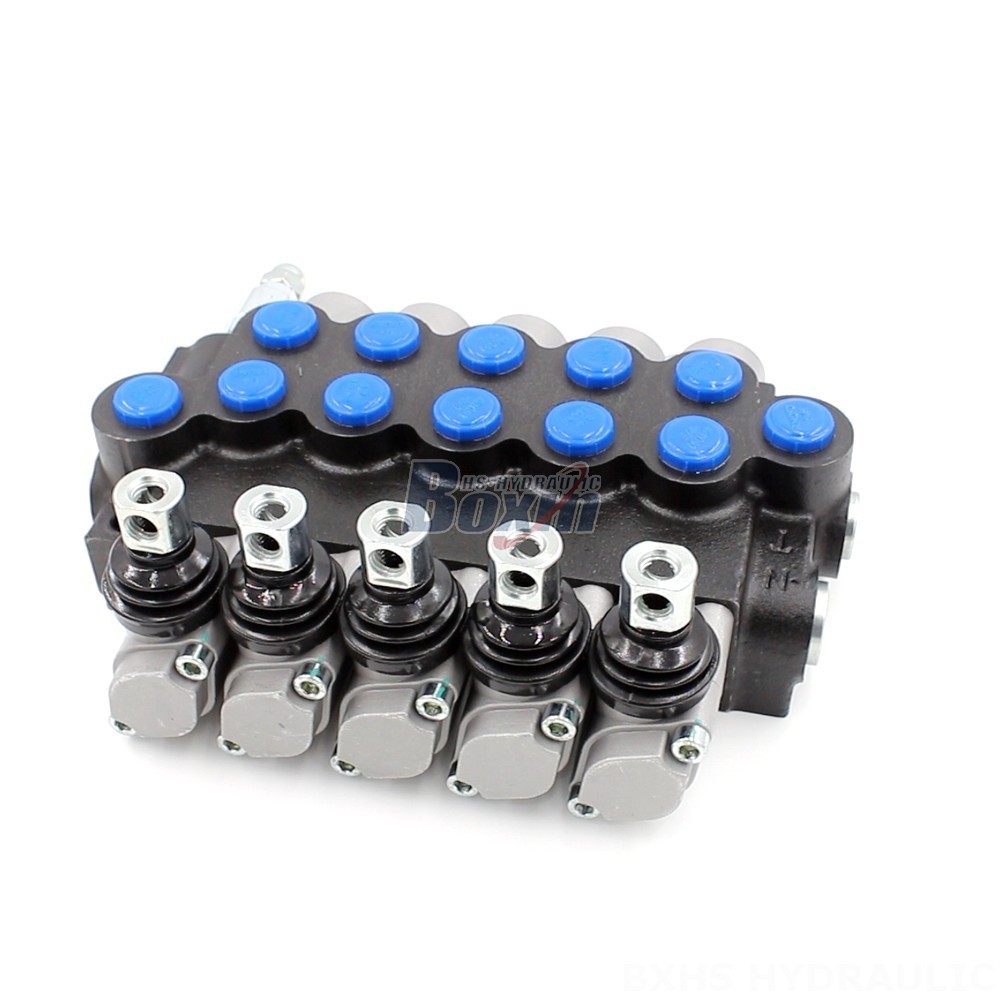

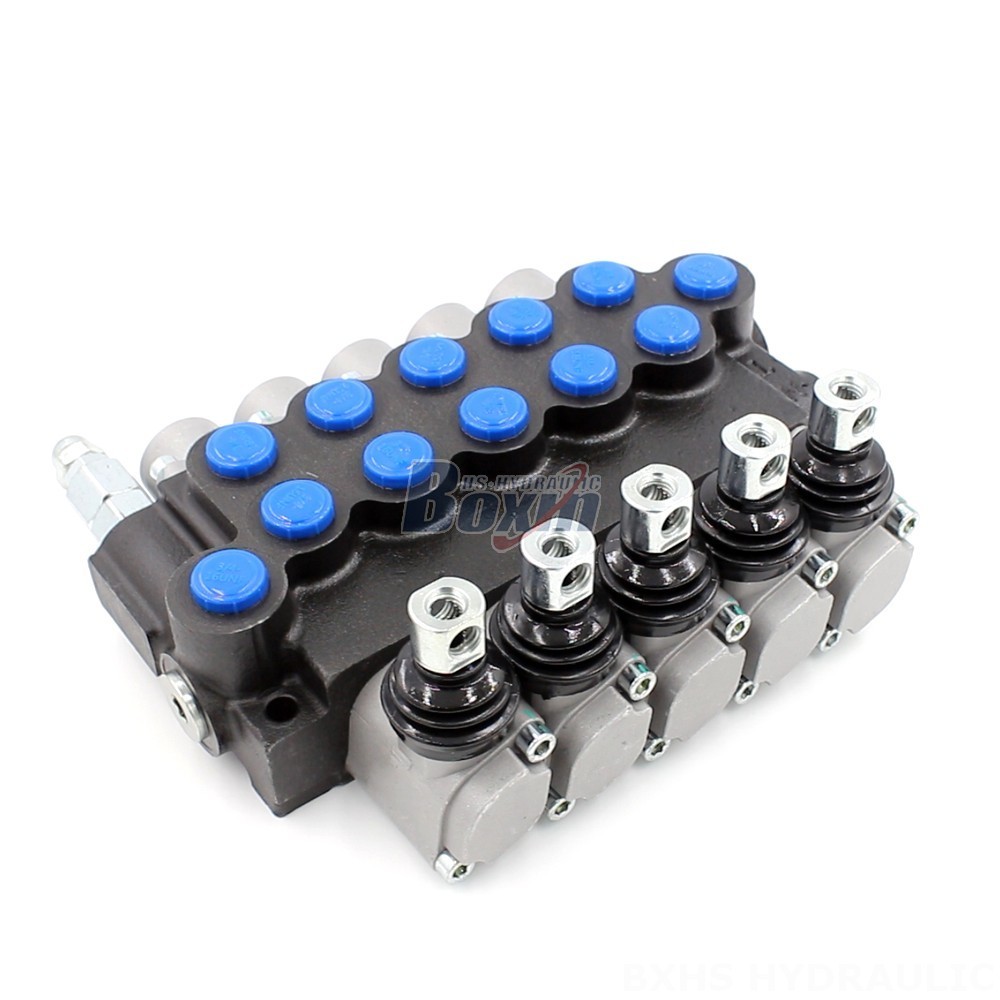

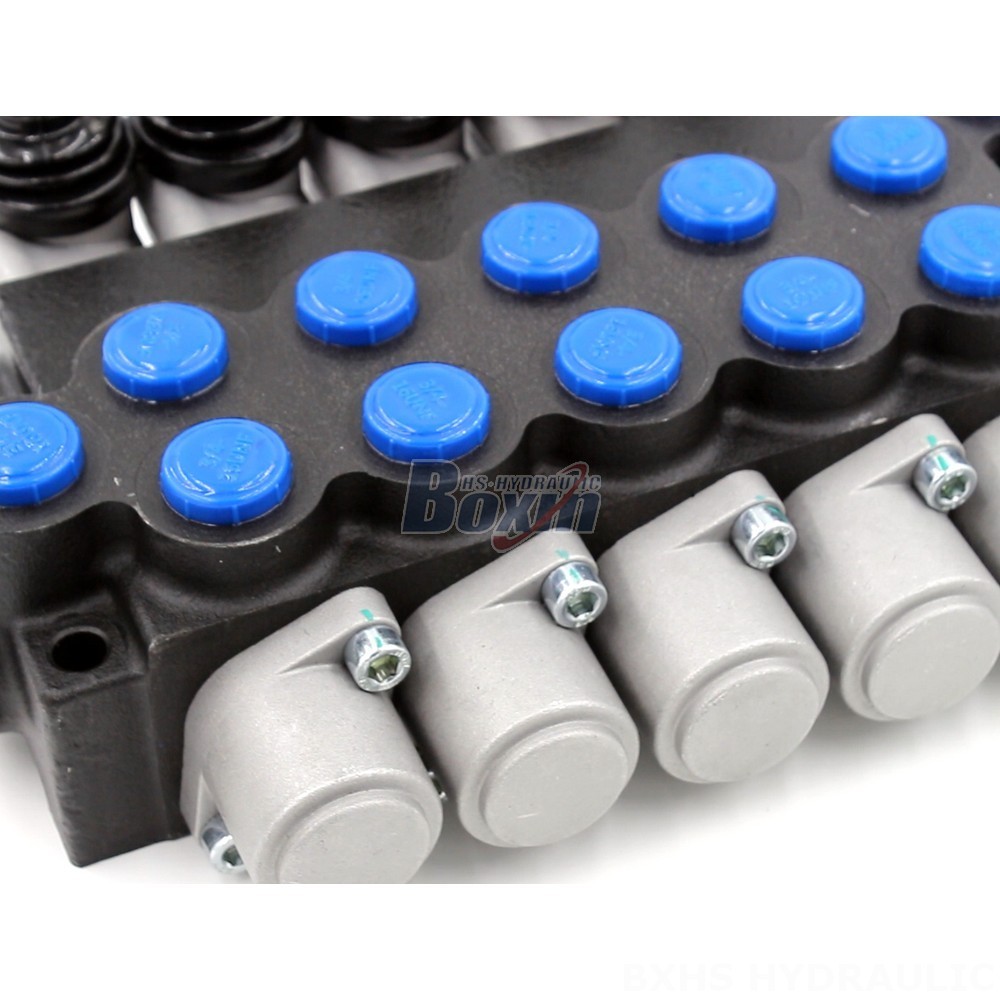

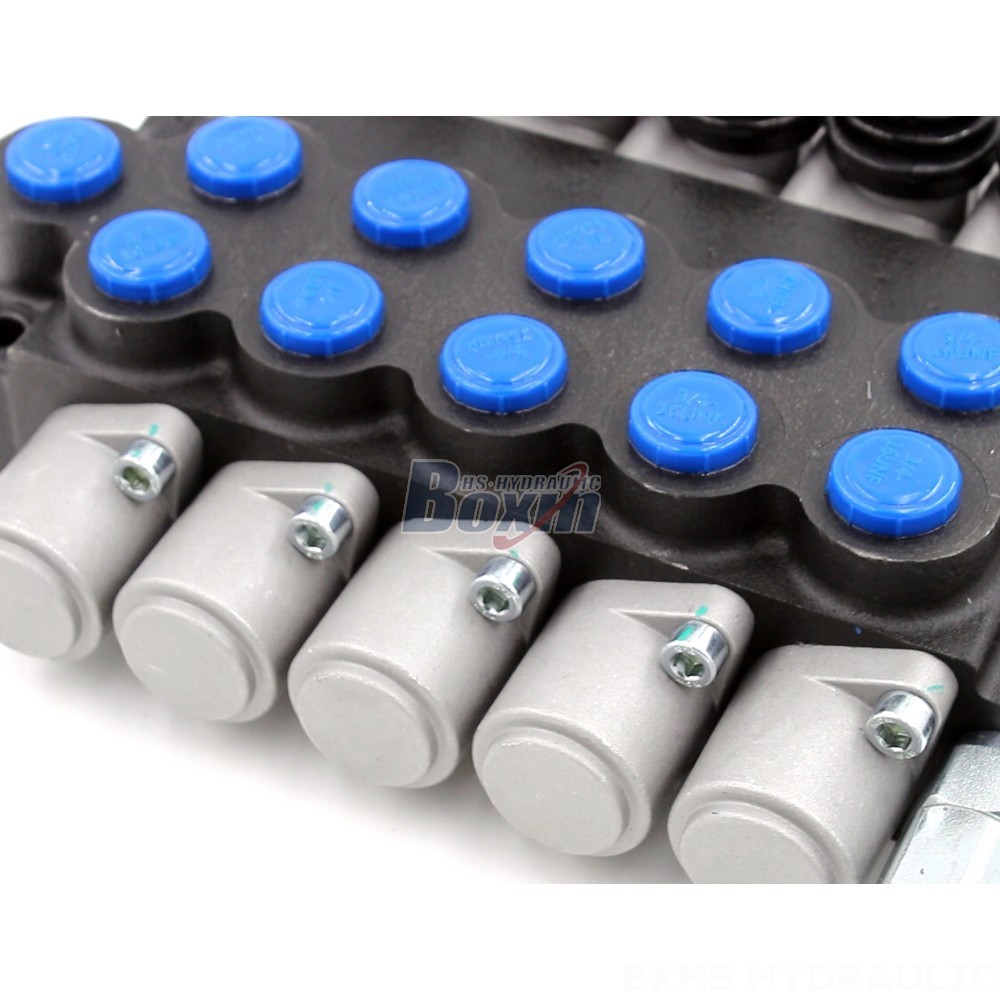

Monoblock Directional Control Valve: P40-U78 Series | Wholesale & OEM

Kontrollmetod:Manuell

Spole:5 ventilsektioner

Nominellt flöde:40 l/min (10,5 US gpm)

Maximalt tryck:250 bar (3600 psi)

Inloppsport:SAE 10

Utloppsport:SAE 10

Portstorlek:SAE 10

Märke:BXHS

Produkttyp:Monoblockriktningsventil

Produktserie:P40-serien Monoblockriktningsventil

Förpackningsstorlek:28*23*13

Bruttovikt:9.80 kg

Tillgänglighet: I lager

1072 Vyer letar efter den här produkten

Monoblock Directional Control Valve: P40-U78 Series | Wholesale & OEM

Monoblock Directional Control Valve: P40-U78 Series | Wholesale & OEM

Monoblock Directional Control Valve: P40-U78 Series | Wholesale & OEM drawing image

The P40-U78 Series Hydraulic Log Splitter Monoblock Directional Control Valve is a high-performance valve designed for use in a wide range of applications, including material handling, construction, and agriculture. This 5-section, manually controlled valve features a rated flow of 40 L/min and a maximum pressure of 250 bar, making it ideal for powering log splitters and other heavy-duty equipment.

P40-serien Monoblockriktningsventil Parametrar
Kontrollmetod Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Solenoid och Joystick, Manuell och Joystick, Magnetventil och kabel
Spole 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner
Omgivningstemperaturintervall -40°C till +80°C (-40°F till +176°F)
Strukturtyp Monoblockventil
Sektion 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner
Driftsviskositetsintervall 15 - 75 mm²/s (15 cSt till 75 cSt)
Nominellt flöde 40 l/min (10,5 US gpm)
Maximalt tryck 250 bar (3600 psi)
Inloppsport G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Utloppsport G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Portstorlek G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The P40-U78 Series Hydraulic Log Splitter Monoblock Directional Control Valve is a robust and reliable solution for controlling hydraulic systems in a variety of applications. This 5-section, monoblock valve features a manual control method, making it easy to operate. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is capable of handling demanding hydraulic tasks. Its wide operating viscosity range (15-75 mm²/s) and ambient temperature range (-40°C to +80°C) ensure optimal performance in a variety of environments. The P40-U78 Series is available in OEM and wholesale quantities, making it a perfect choice for manufacturers and distributors looking for high-quality hydraulic components. This valve is suitable for use in various types of equipment, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
