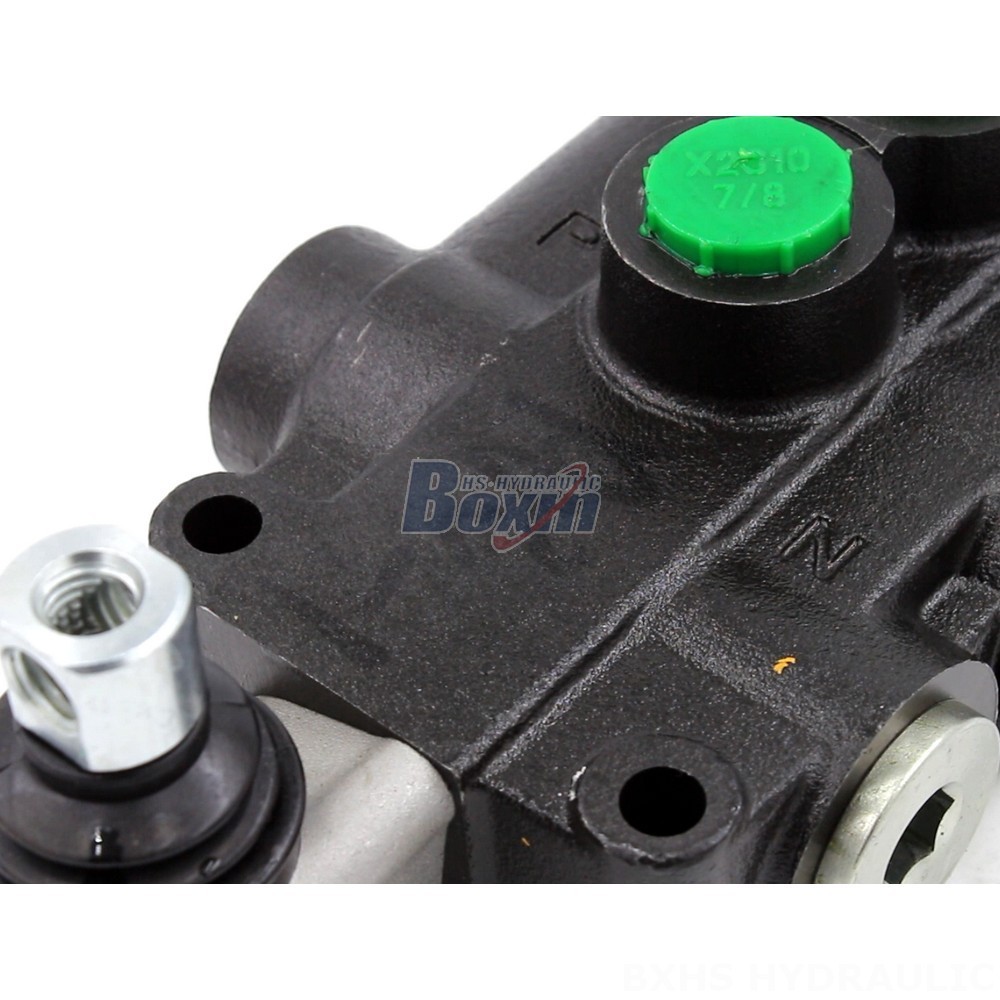

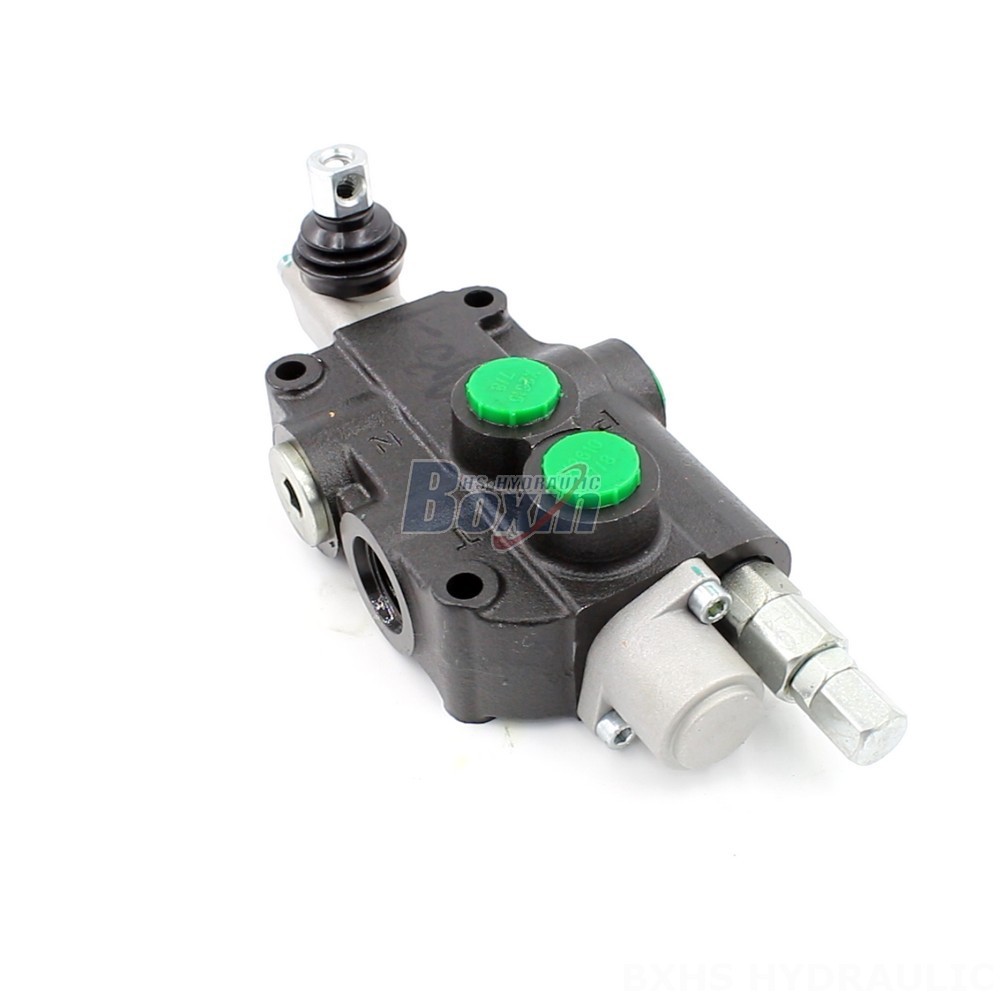

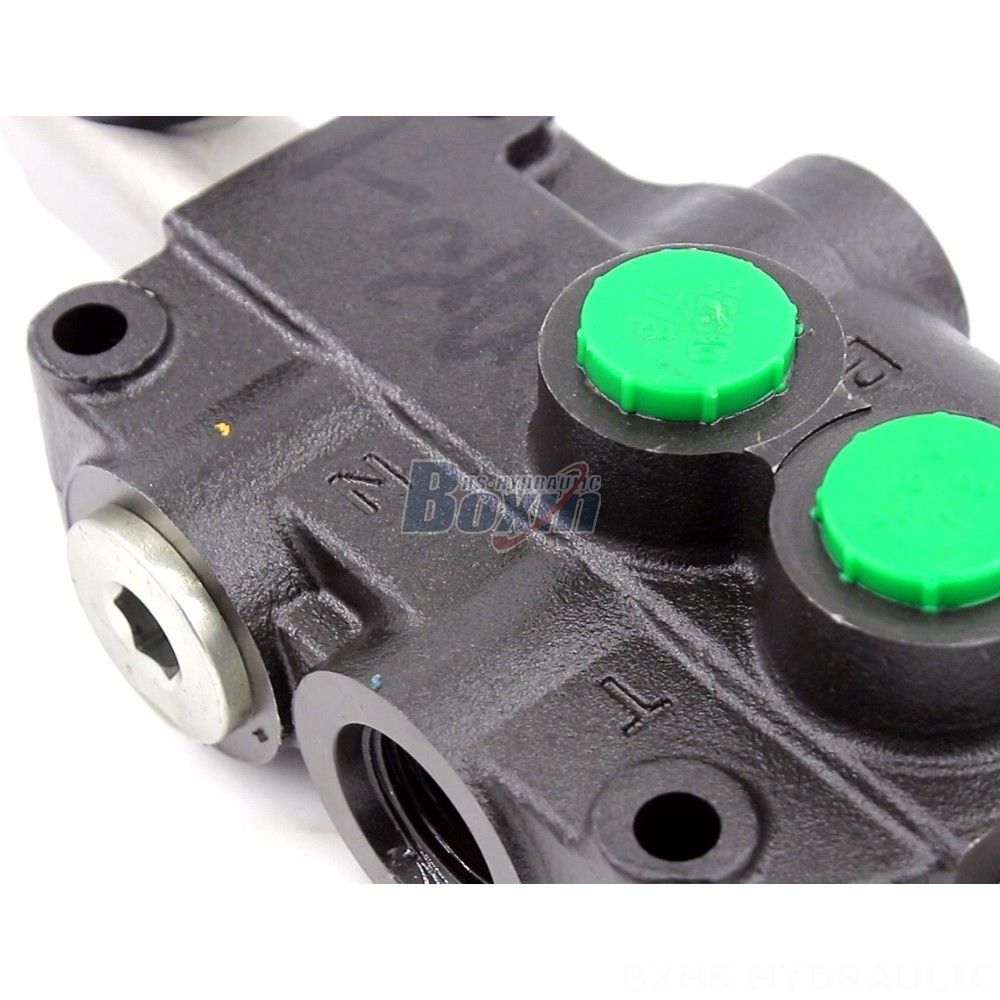

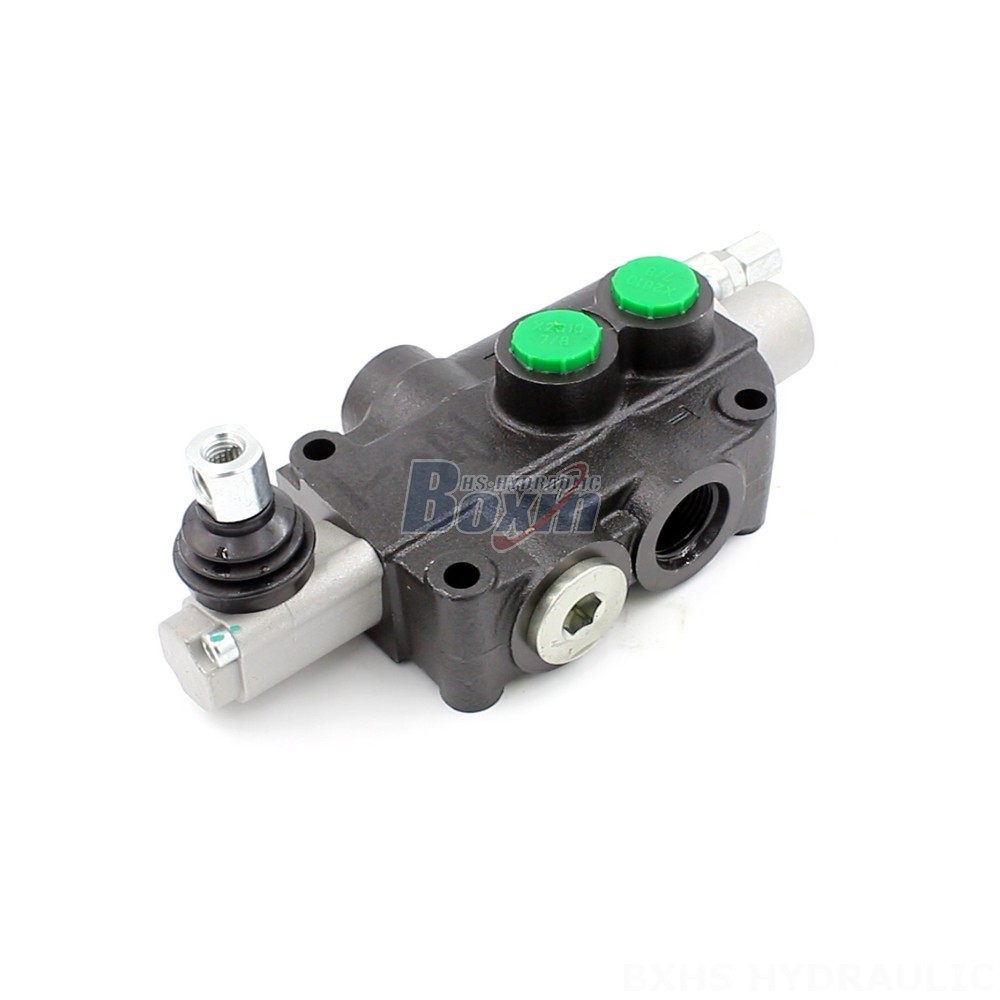

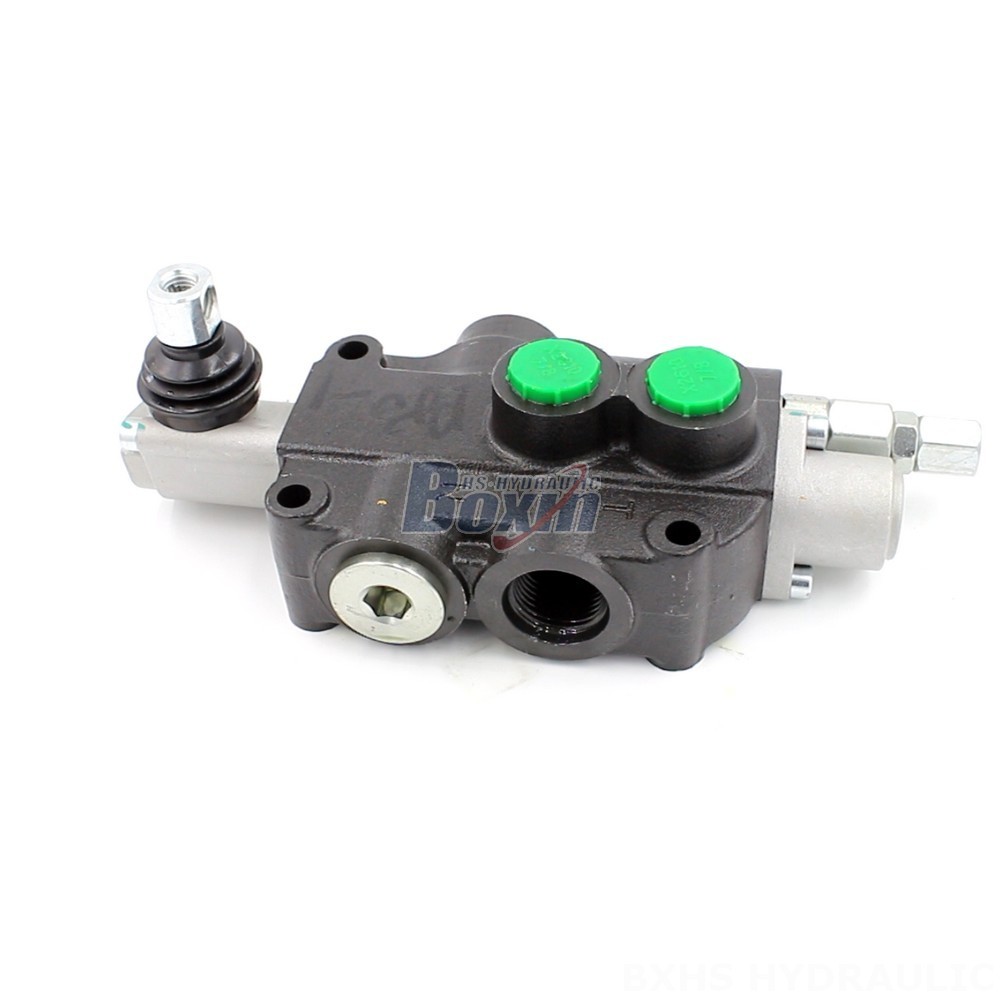

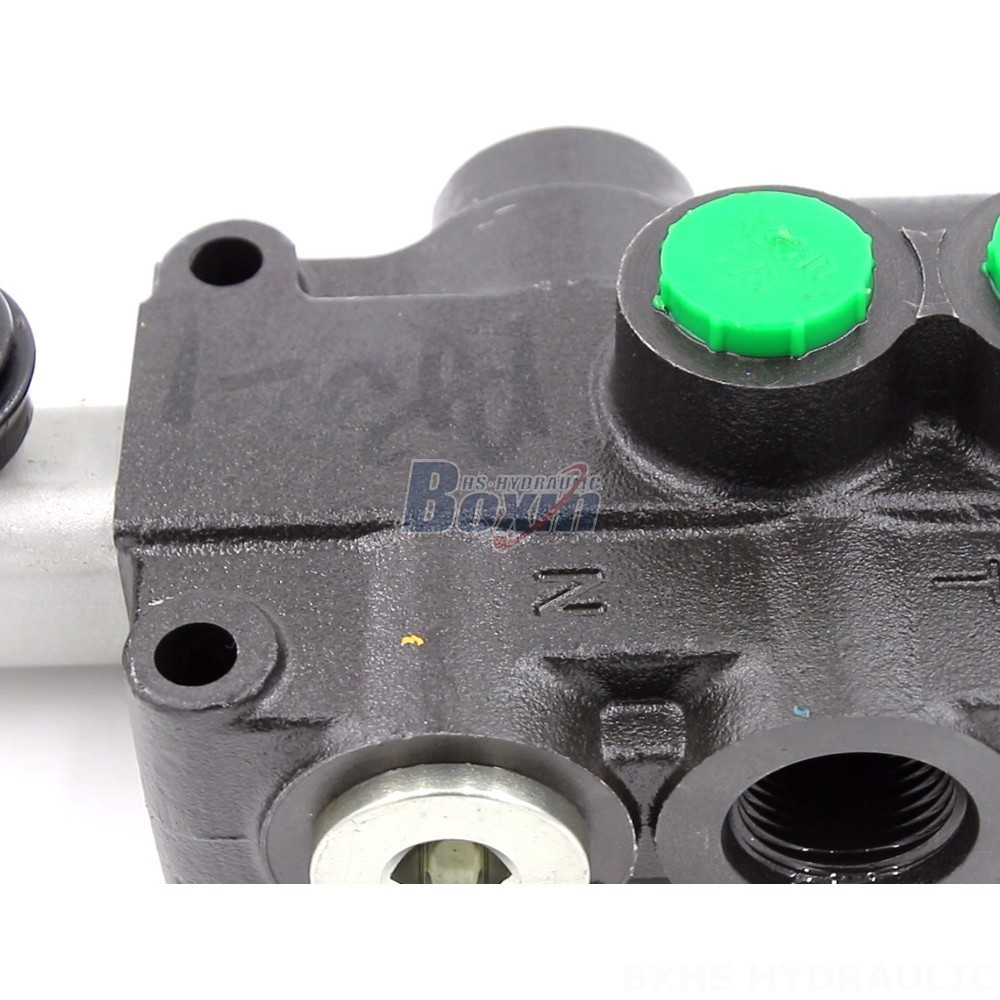

The P80-LDG-U78-OT Hydraulic Lift Solenoid Monoblock Directional Control Valve is a reliable and durable solution for a variety of applications in material handling, construction, agriculture, and industrial vehicles. Featuring a manual control method, 1 section, and a monoblock structure, it delivers a rated flow of 80 L/min and a maximum pressure of 250 bar.
| P80-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Manuell och Joystick |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 80 l/min (21,2 US gpm) |
| Maximalt tryck | 315 bar (4600 psi) |
| Inloppsport | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Utloppsport | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Portstorlek | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
This P80 Series valve is designed for demanding applications and offers a range of features including:
* **Manual Control:** Provides user-friendly operation with a simple and intuitive interface.
* **Monoblock Structure:** Offers a robust and compact design, minimizing space requirements.
* **Rated Flow:** 80 L/min (21.2 US gpm) ensures efficient hydraulic fluid flow.
* **Maximum Pressure:** 250 bar (3600 psi) handles high-pressure applications with ease.
* **Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt) allows for compatibility with various hydraulic fluids.
* **Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F) ensures reliable operation in diverse environmental conditions.
Suitable for a wide array of applications, including:
* **Telehandlers:** For lifting heavy materials and equipment
* **Forklifts:** Essential for material handling and warehousing operations
* **All Terrain Cranes:** For lifting and positioning heavy loads in challenging terrain
* **Stackers:** For storing and retrieving materials in warehouses
* **Aerial Platforms:** For reaching elevated work areas
* **Motor Graders:** For grading and leveling surfaces
* **Midi-Excavators:** For digging and excavating operations
* **Mini-Excavators:** For compact construction projects
* **Skid Steer Loaders:** For versatile material handling and construction tasks
* **Compact Wheel Loaders:** For loading and transporting materials in tight spaces
