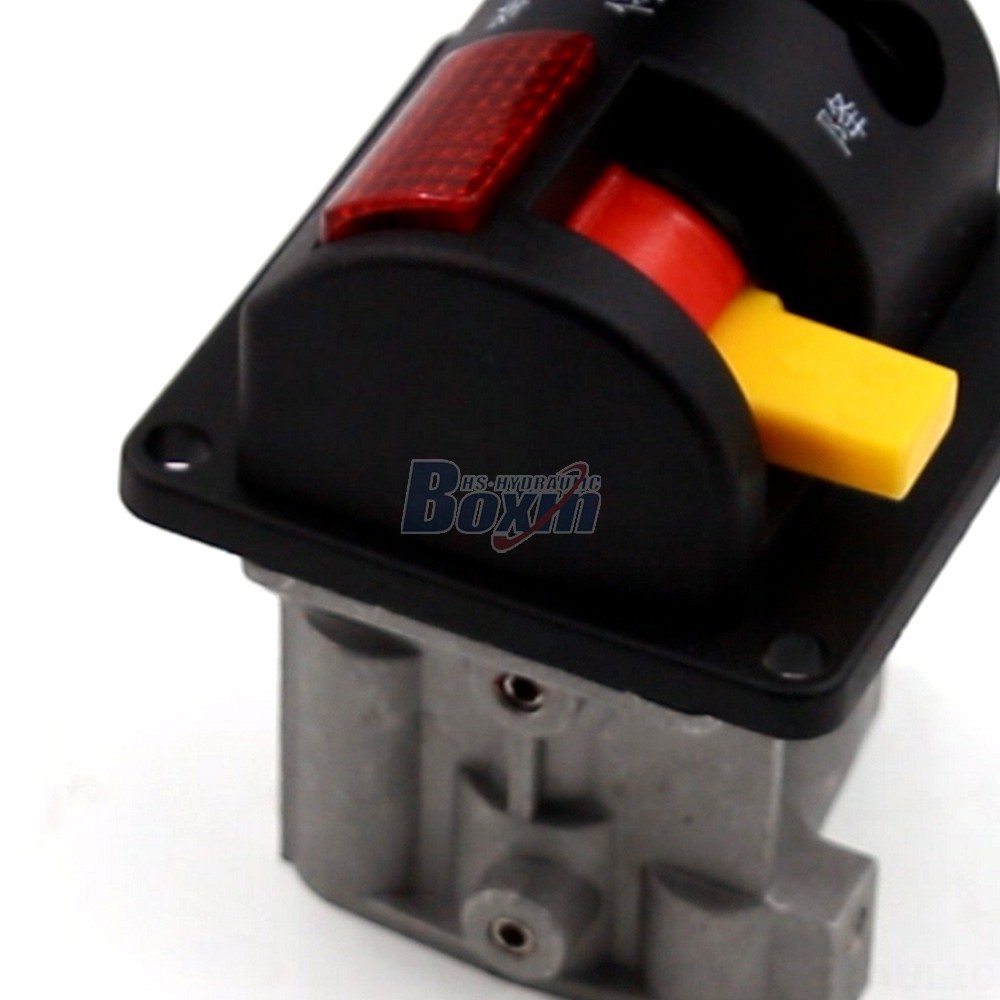

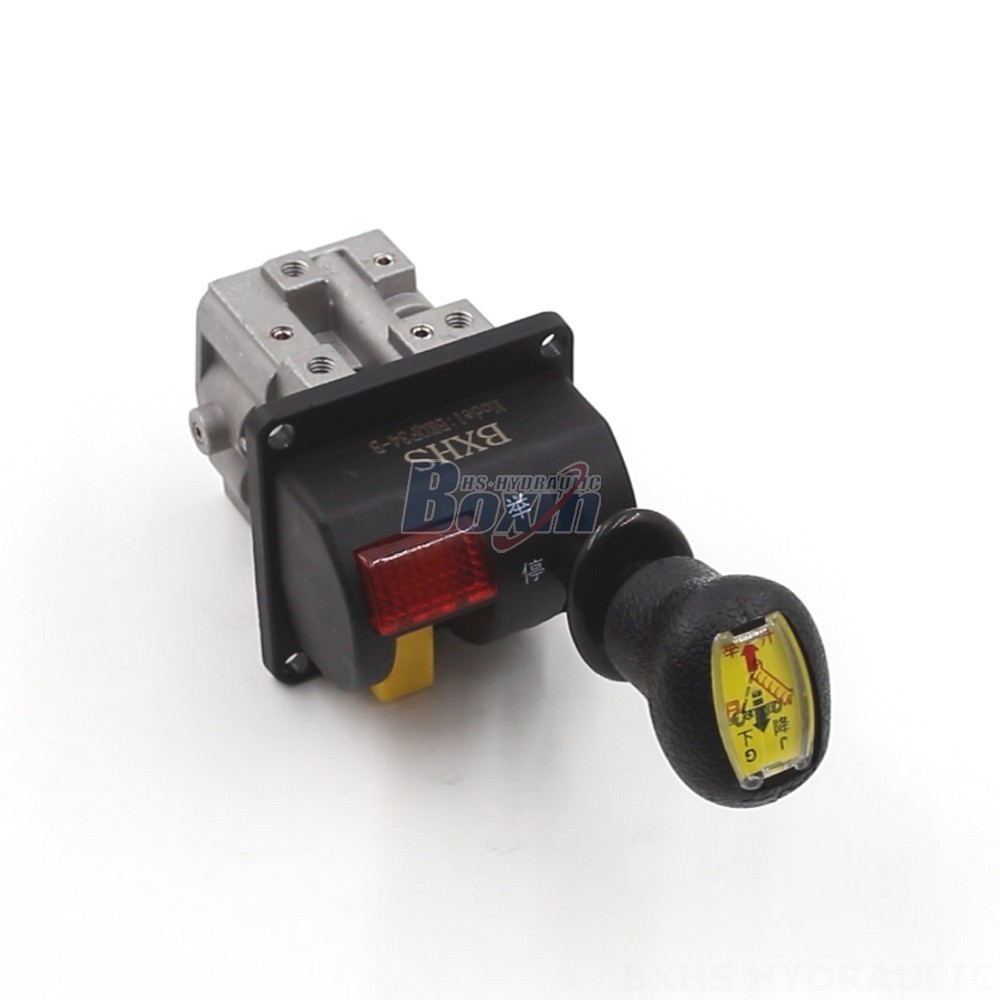

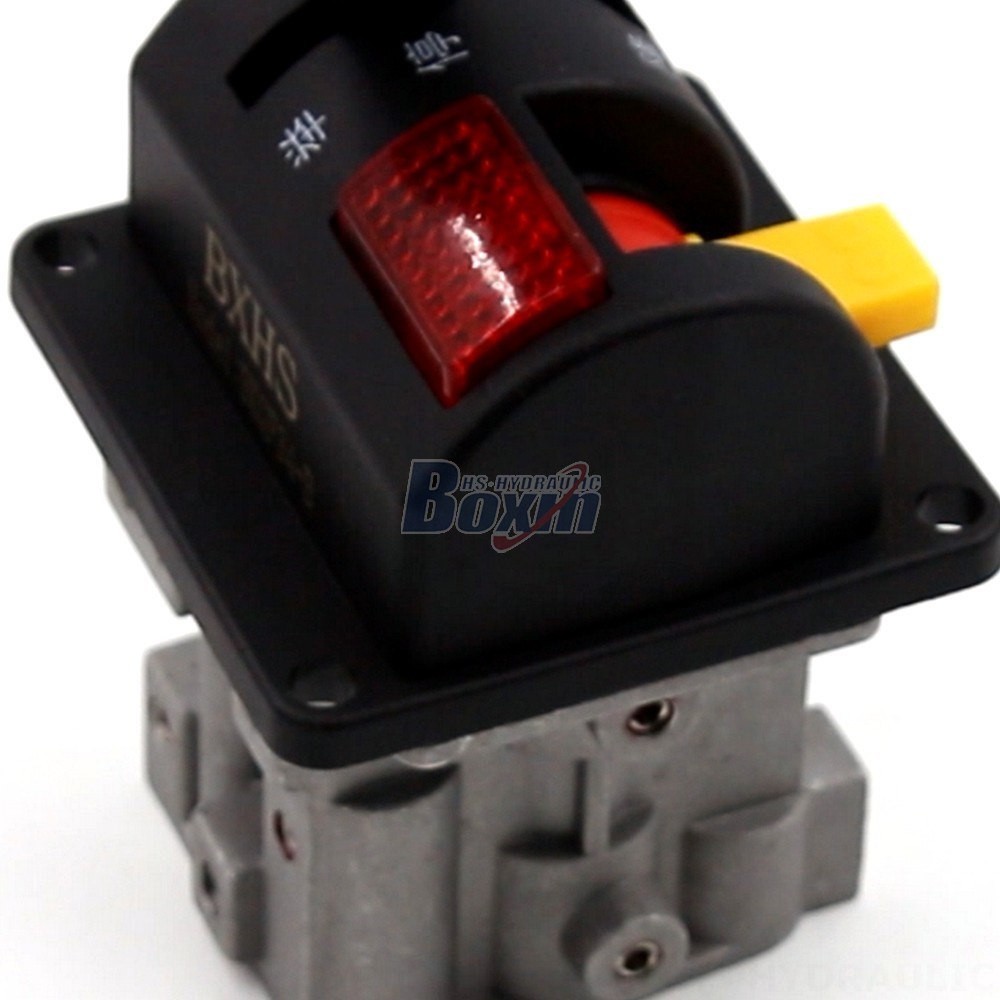

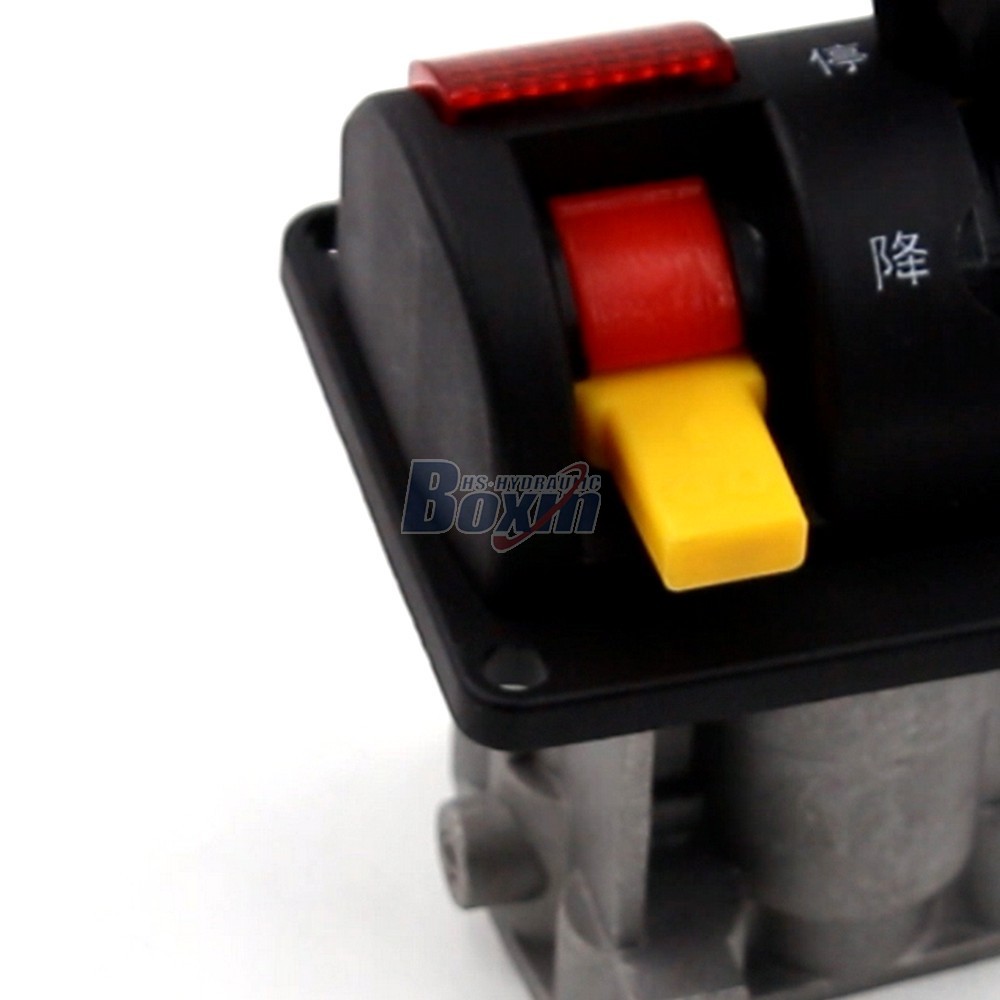

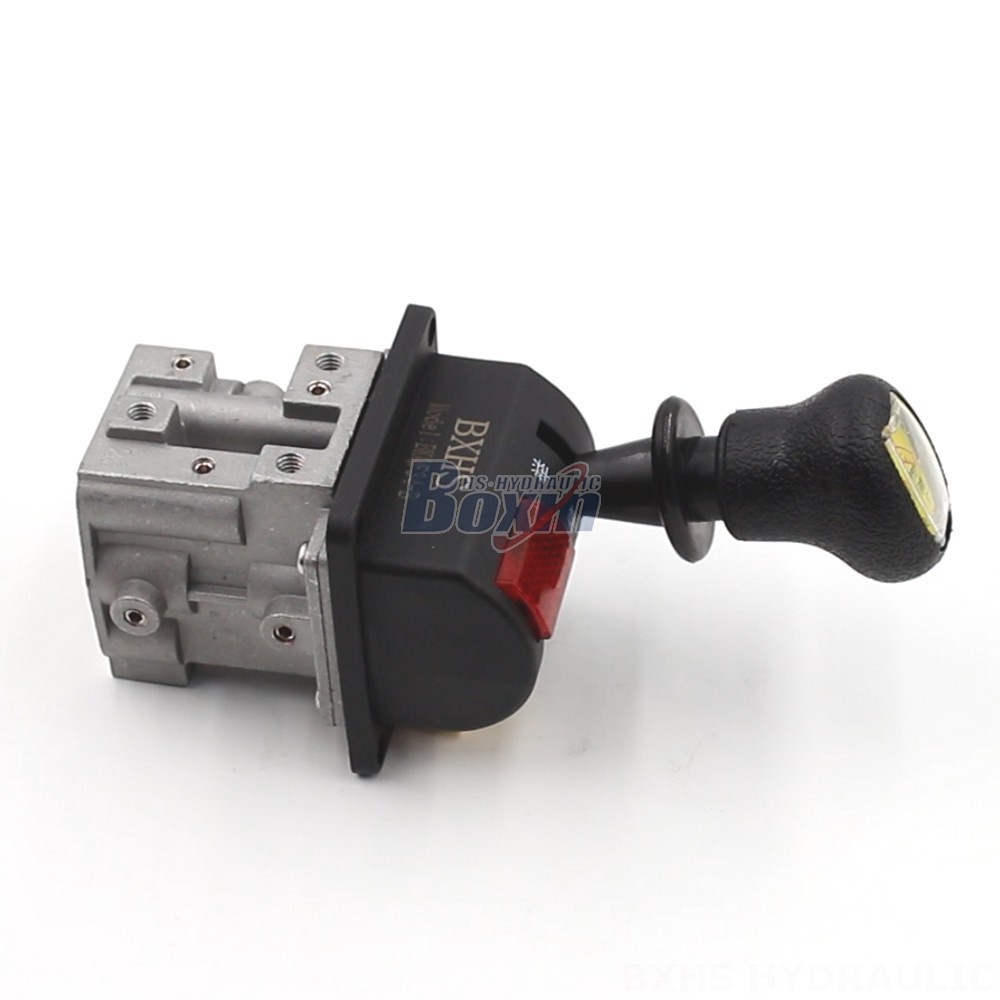

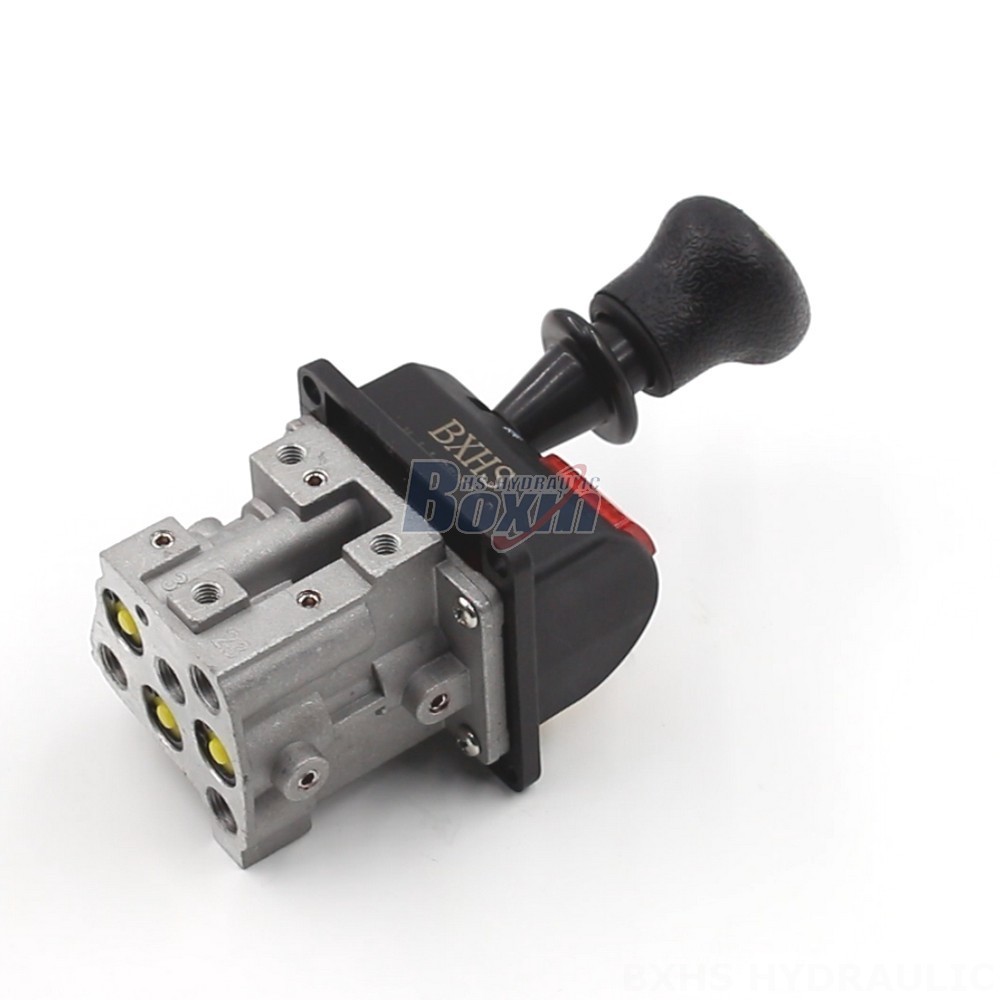

The BKQF34-B Series Hydraulic Valve Controller Monoblock Directional Valve is a high-performance valve designed for use in a variety of construction, agricultural, and material handling applications. This manual-control valve features a compact monoblock design and a rated flow of 40 L/min, making it ideal for use with telehandlers, forklifts, mini excavators, and other equipment.
| BKQF34-serien Pneumatiskt styrventil Parametrar | |
|---|---|
| Kontrollmetod | Pneumatisk |
| Spole | 1 ventilsektion |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion |
| Driftsviskositetsintervall | 12 - 400 mm²/s (12 cSt till 400 cSt) |
| Nominellt flöde | 40 l/min (10,5 US gpm) |
| Maximalt tryck | Nominellt tryck |
| Inloppsport | G1/4 |
| Utloppsport | G1/4 |
| Portstorlek | G1/4 |
The BKQF34-B Series Hydraulic Valve Controller Monoblock Directional Valve is a high-performance valve designed for use in a variety of construction, agricultural, and material handling applications. Featuring a compact monoblock design, this valve is available in a 1-section configuration with a 1-spool design. It has a rated flow of 40 L/min and a maximum pressure of 1 MPa, making it suitable for use with a variety of equipment, including telehandlers, forklifts, mini excavators, skid steer loaders, and compact wheel loaders. The valve's operating viscosity range is 12 - 400 mm²/s (12 cSt to 400 cSt), and it can operate in ambient temperatures from -40°C to +80°C (-40°F to +176°F). The BKQF34-B Series valve is a reliable and durable option for a wide range of applications.
