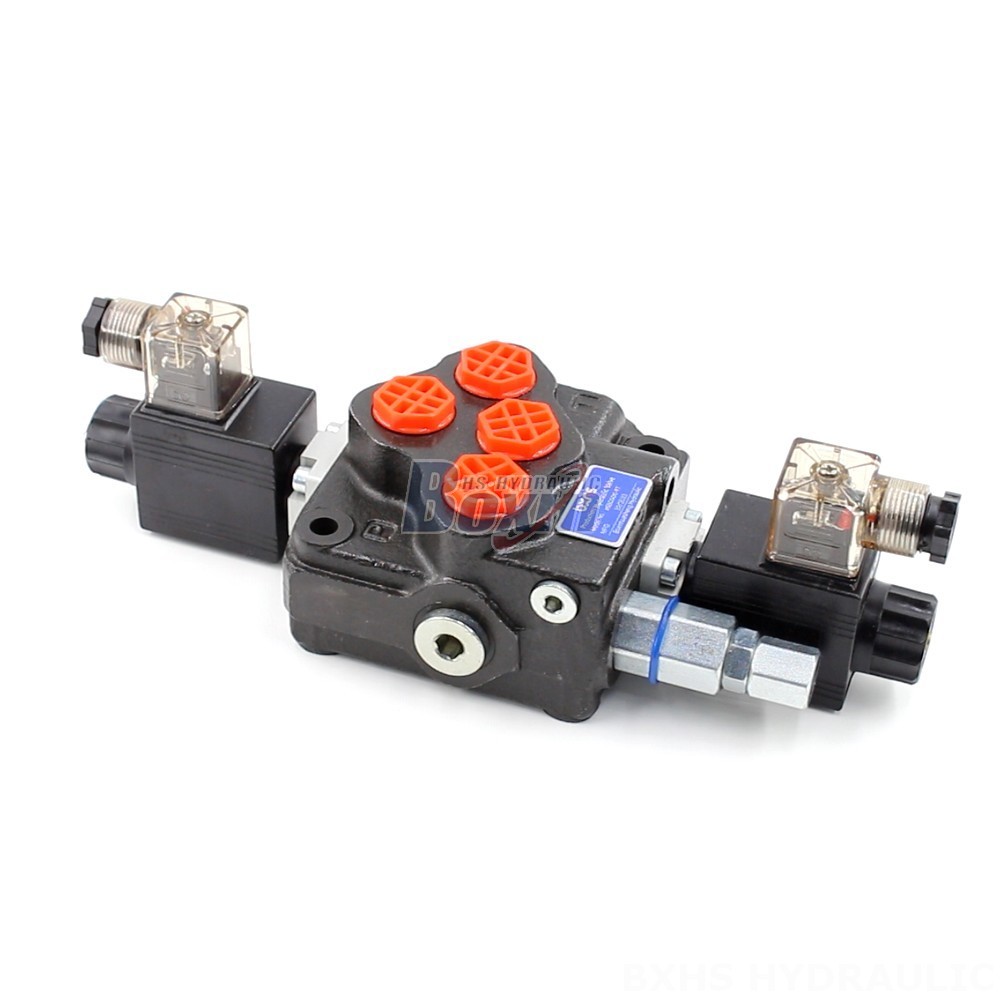

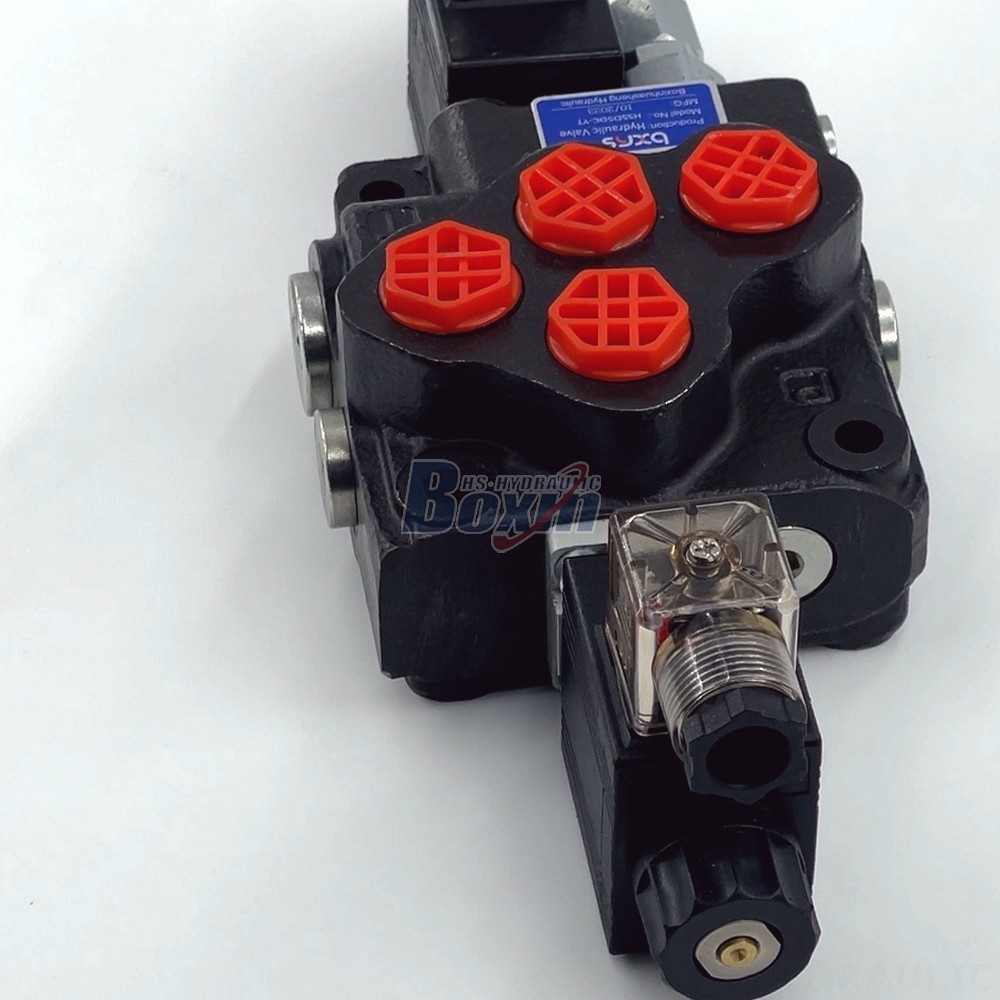

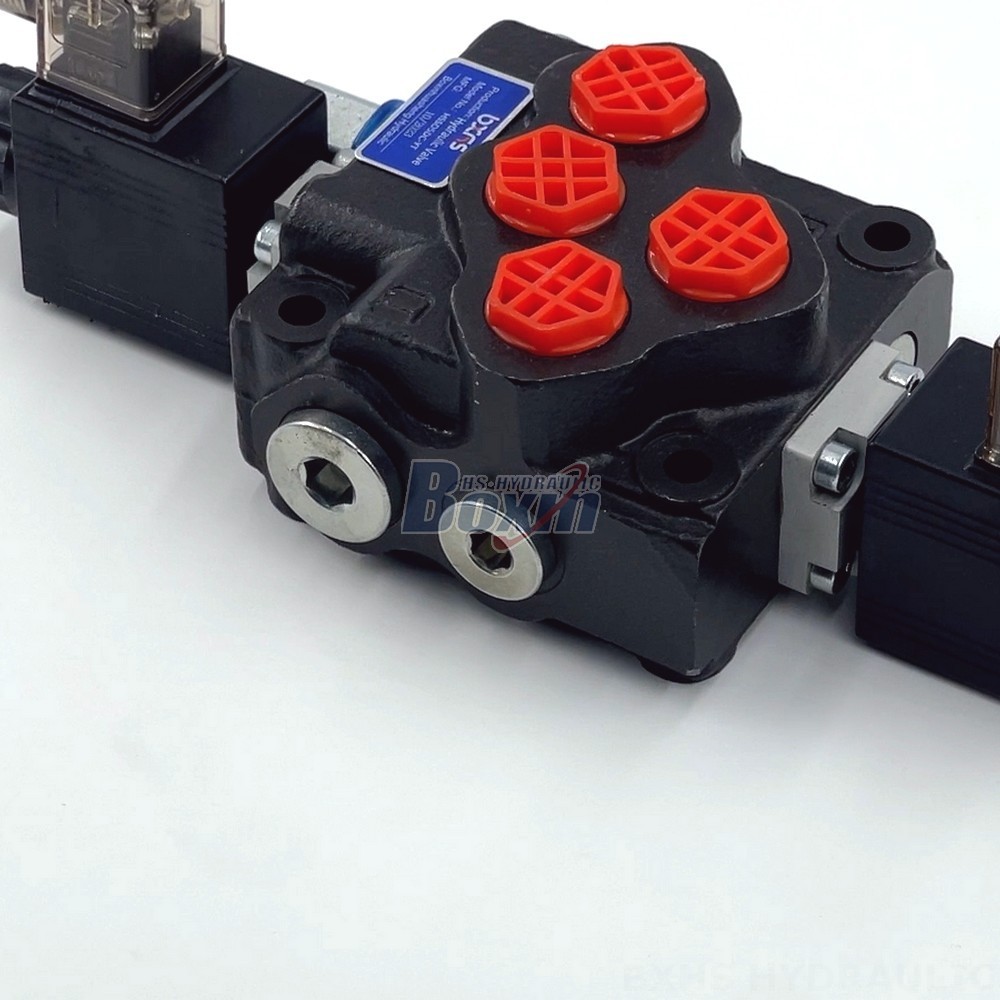

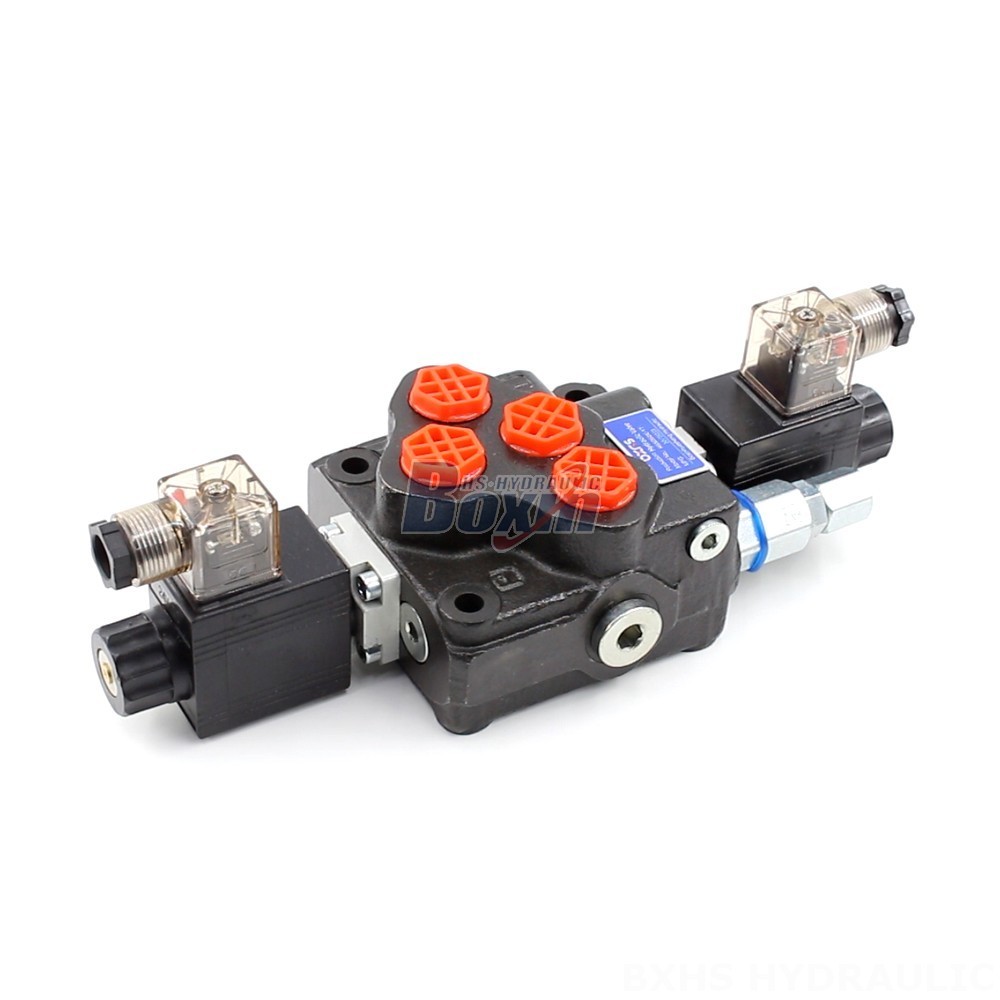

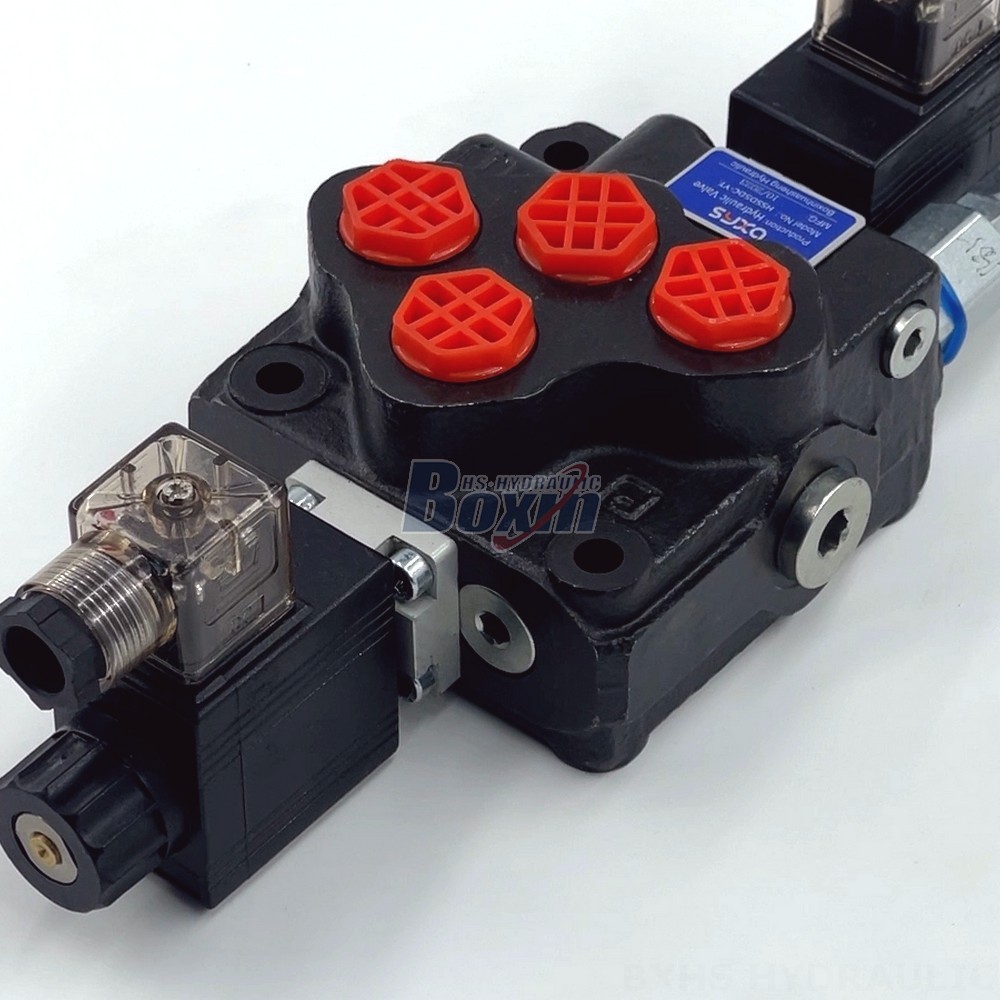

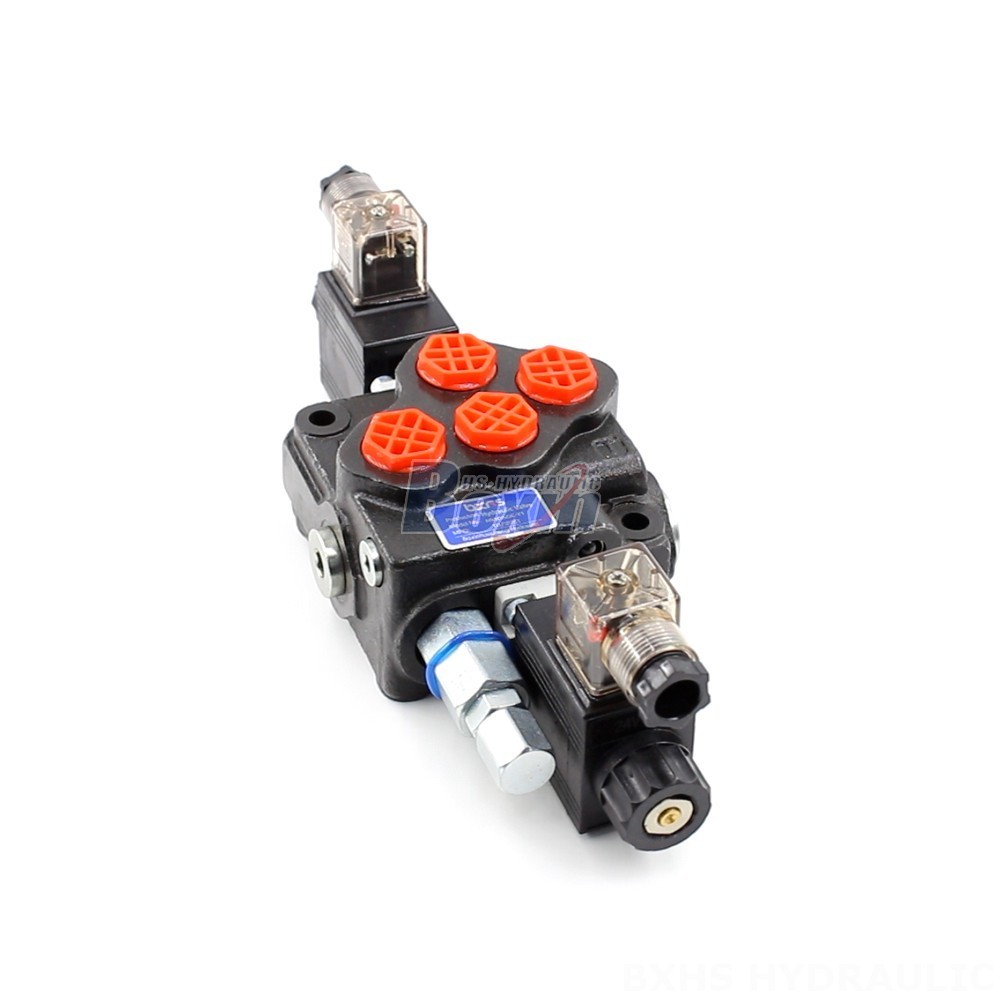

The SD5 Series Mini Control Valve is a compact and powerful 12v solenoid operated monoblock valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles.
| SD5-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +60°C (-40°F till +140°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 40 l/min (10,5 US gpm) |
| Maximalt tryck | 305 bar (4400 psi) |
| Inloppsport | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Utloppsport | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Portstorlek | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
This 12v mini control valve is a high-performance monoblock valve with a rated flow of 40 L/min and a maximum pressure of 305 bar. The SD5 Series is ideal for a wide range of applications including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. It offers reliable performance in a variety of environments with an operating temperature range of -40°C to +60°C. The 1-section, 1-spool design ensures precise control and efficient operation. This versatile valve is a cost-effective solution for your hydraulic system needs.
