P120 2-Spool Hydraulic Valves | Factory Wholesale & Customization

Kontrollmetod:Manuell

Spole:2 ventilsektioner

Nominellt flöde:120 l/min (31.7 US gpm)

Maximalt tryck:250 bar (3600 psi)

Inloppsport:G3/4

Utloppsport:G1

Portstorlek:G3/4

Märke:BXHS

Produkttyp:Monoblockriktningsventil

Produktserie:P120-serien Monoblockriktningsventil

Förpackningsstorlek:30*39*17

Bruttovikt:19.00 kg

Tillgänglighet: I lager

985 Vyer letar efter den här produkten

P120 2-Spool Hydraulic Valves | Factory Wholesale & Customization

P120 2-Spool Hydraulic Valves | Factory Wholesale & Customization

P120 2-Spool Hydraulic Valves | Factory Wholesale & Customization drawing image

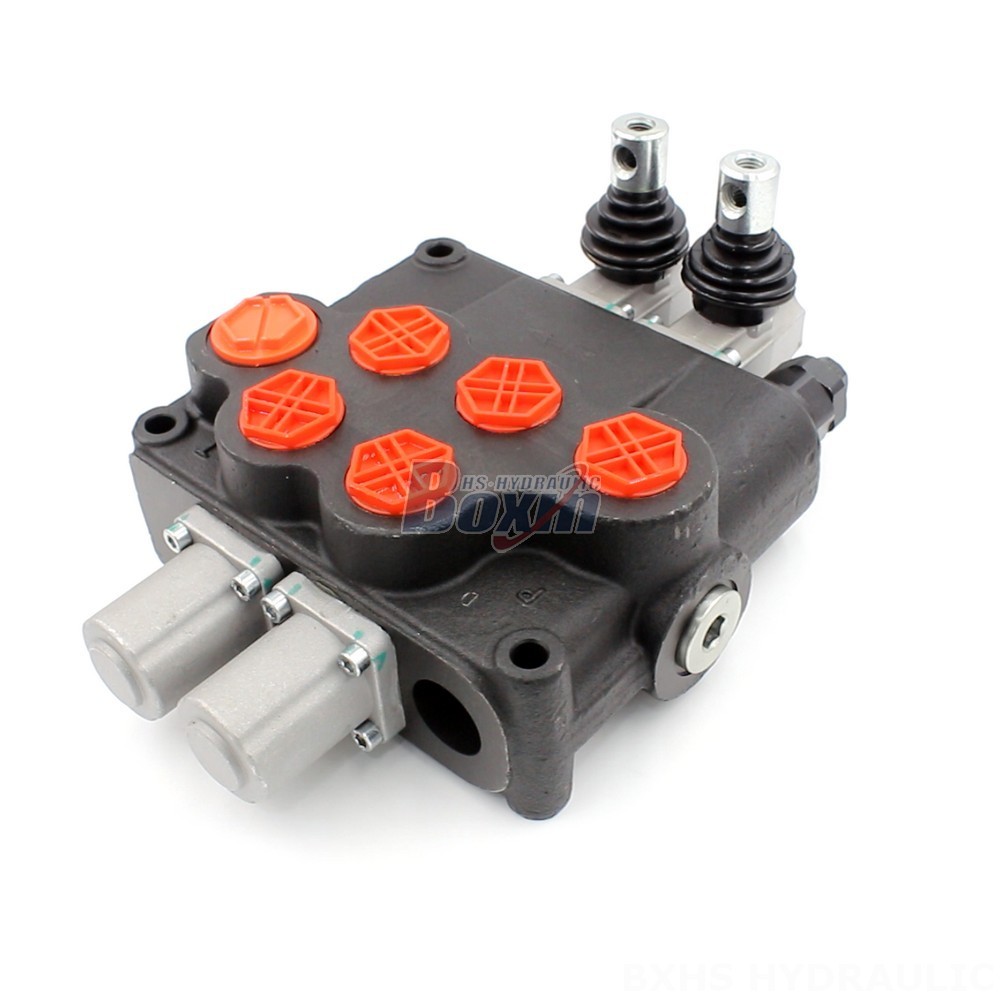

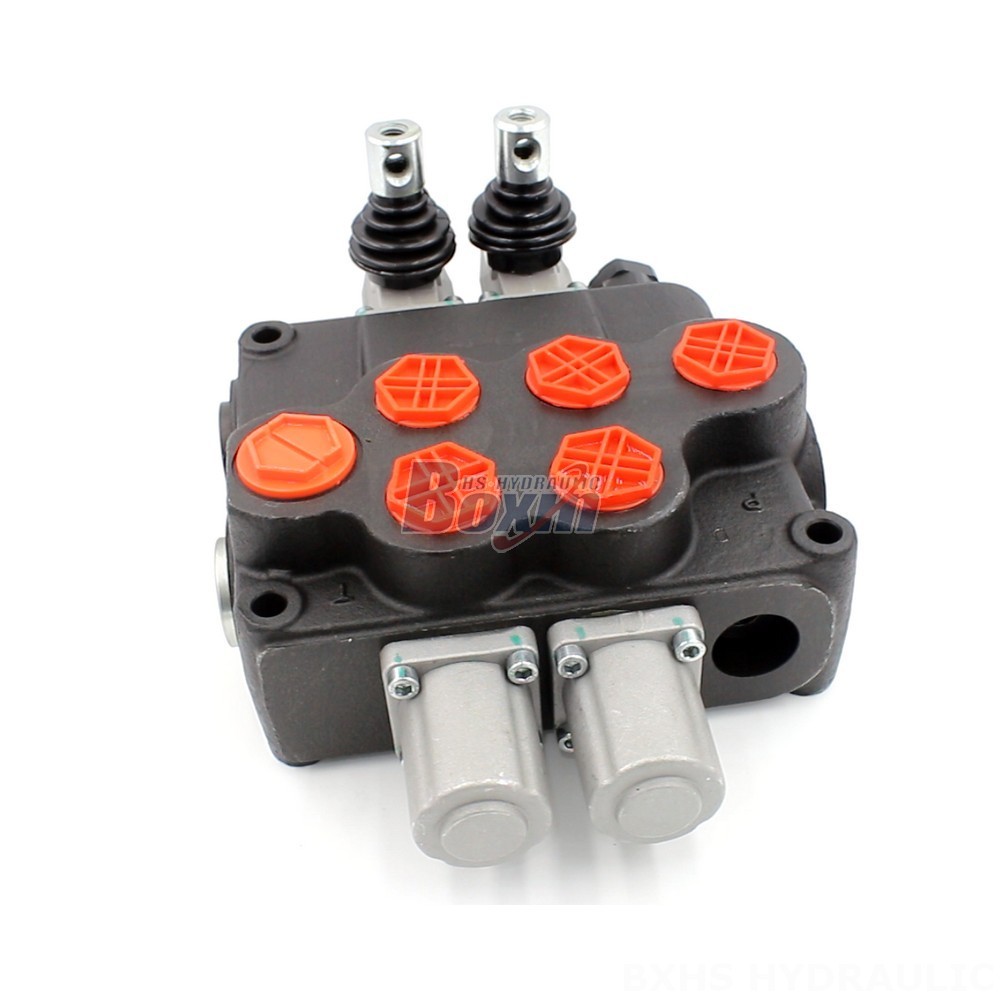

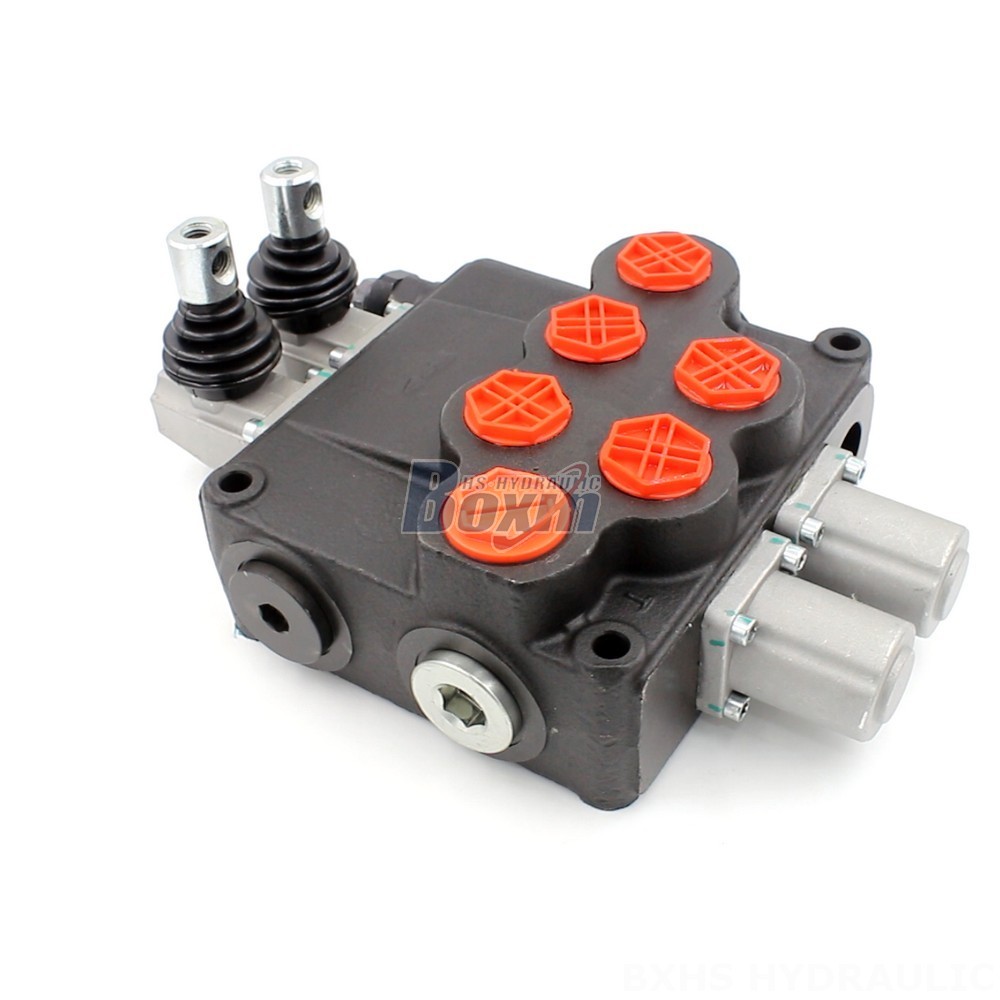

The P120 2-Spool Hydraulic Valve is a robust and reliable monoblock valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. It features a rated flow of 120 L/min and a maximum pressure of 250 bar, making it suitable for demanding tasks.

P120-serien Monoblockriktningsventil Parametrar
Kontrollmetod Manuell, Kabel, Joystick, Manuell och Joystick
Spole 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner
Nominellt flöde 120 l/min (31.7 US gpm)
Maximalt tryck 250 bar (3600 psi)
Inloppsport G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2
Utloppsport G1, SAE 16, 1 NPT, M36×2
Portstorlek G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2
Sektion 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner
Strukturtyp Monoblockventil
Omgivningstemperaturintervall -40°C till +80°C (-40°F till +176°F)
Driftsviskositetsintervall 15 - 75 mm²/s (15 cSt till 75 cSt)

This high-performance hydraulic distributor valve is part of the P120 series and is specifically designed for 2-spool operation. It offers a compact and durable design with a robust monoblock construction. The valve is manually controlled and features a rated flow of 120 L/min (31.7 US gpm) with a maximum pressure rating of 250 bar (3600 psi). Its operating viscosity range is 15 - 75 mm²/s (15 cSt to 75 cSt), ensuring reliable performance in various operating conditions. The P120 2-Spool Hydraulic Valve can withstand ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F). It is widely applicable in various equipment, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini excavators, skid steer loaders, compact wheel loaders, and wheel loaders.
