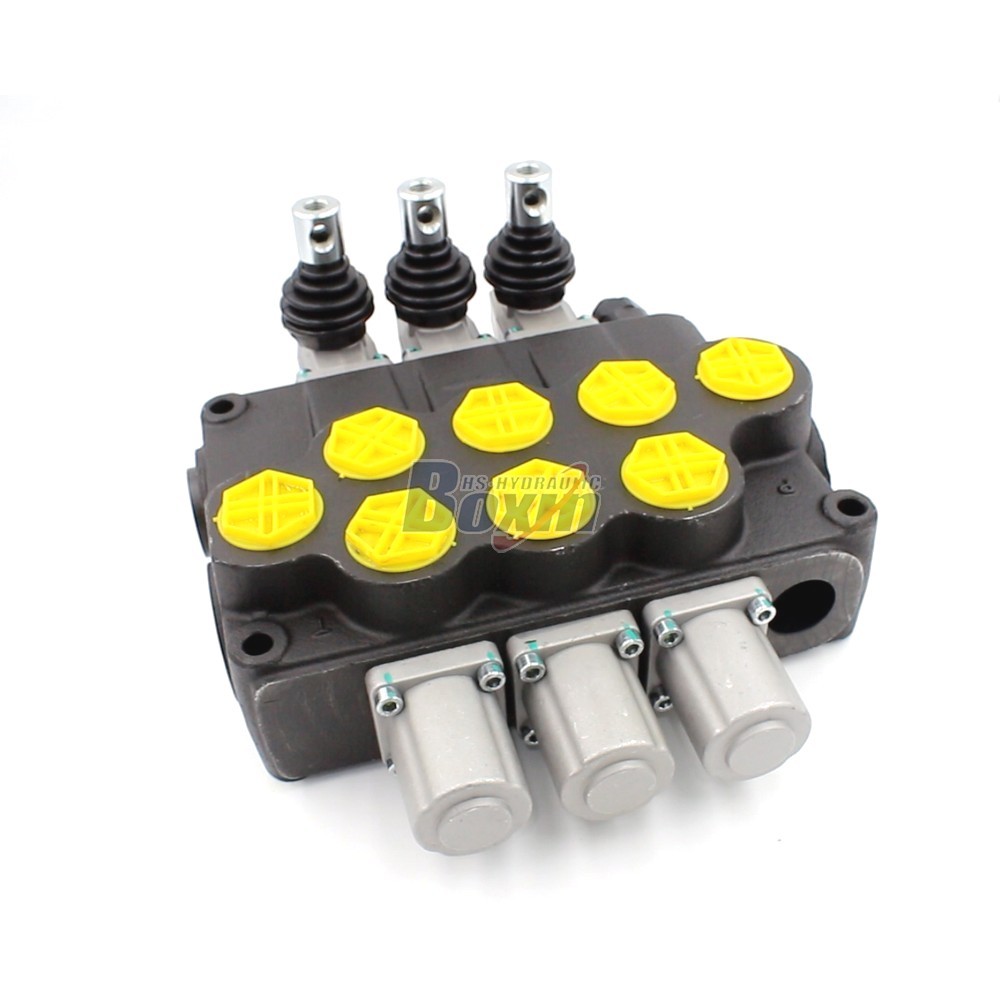

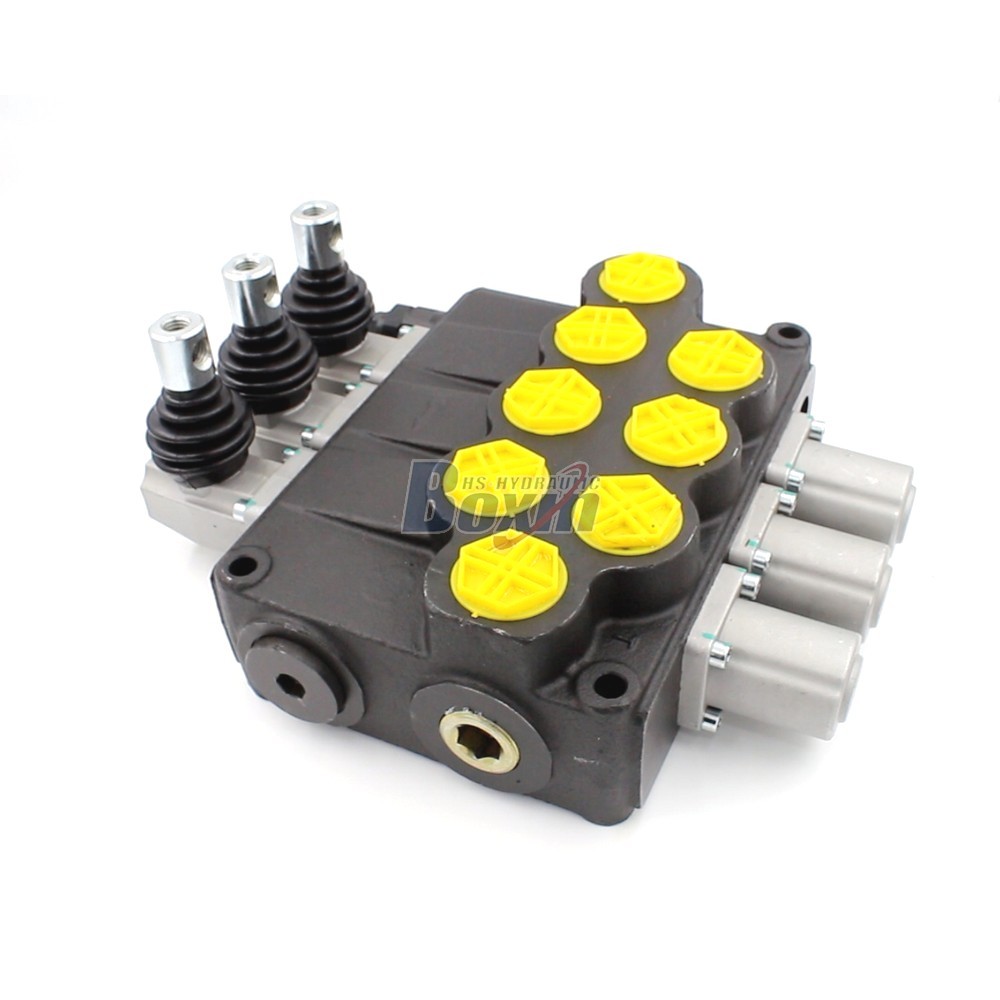

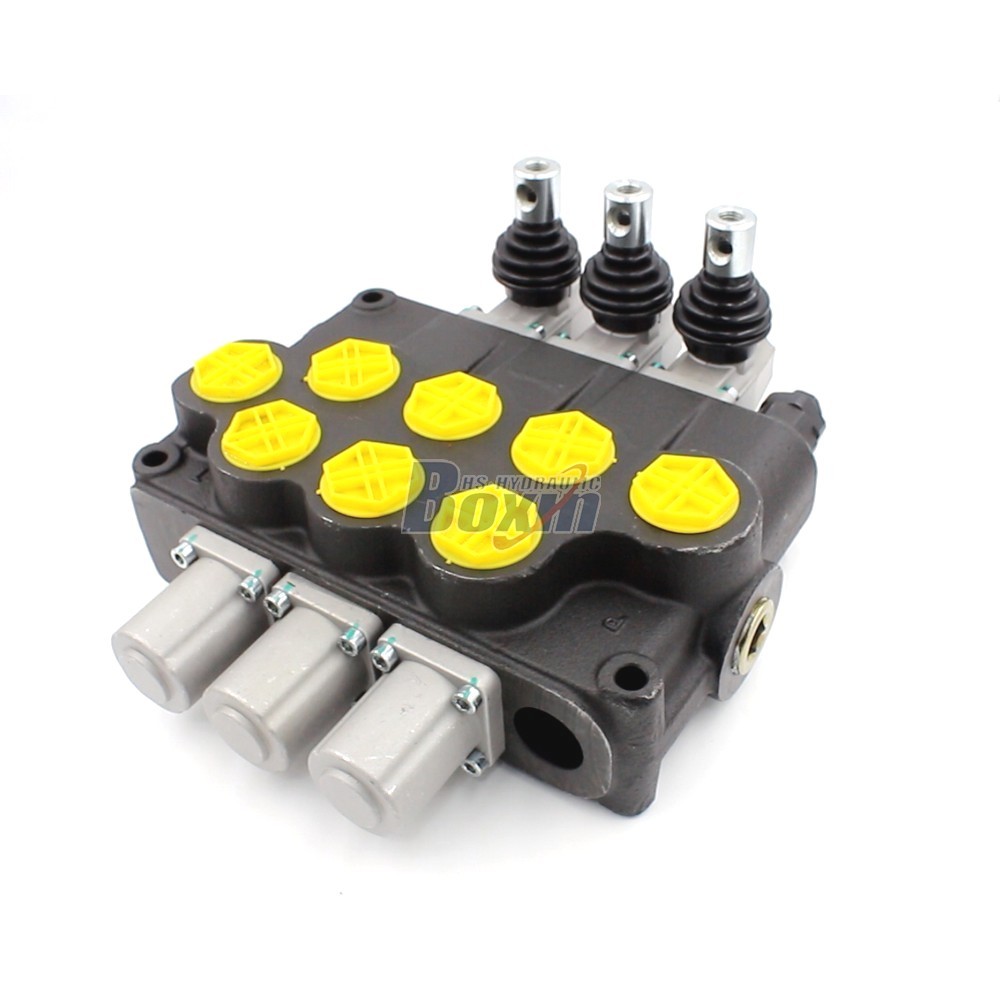

P120-G1-OT Valve: Technical Data, CAD Drawings, and Support

Kontrollmetod:Manuell

Spole:3 ventilsektioner

Nominellt flöde:120 l/min (31.7 US gpm)

Maximalt tryck:250 bar (3600 psi)

Inloppsport:G1

Utloppsport:G1

Portstorlek:G1

Märke:BXHS

Produkttyp:Monoblockriktningsventil

Produktserie:P120-serien Monoblockriktningsventil

Förpackningsstorlek:37*37*18

Bruttovikt:24.10 kg

Tillgänglighet: I lager

1328 Vyer letar efter den här produkten

P120-G1-OT Valve: Technical Data, CAD Drawings, and Support

P120-G1-OT Valve: Technical Data, CAD Drawings, and Support

P120-G1-OT Valve: Technical Data, CAD Drawings, and Support drawing image

The P120-G1-OT Hydraulic Forward And Reverse Valve is a high-performance, manual control monoblock valve designed for a variety of construction, material handling, and industrial applications. It features a 3-section design, 120 L/min rated flow, and a maximum pressure of 250 bar.

P120-serien Monoblockriktningsventil Parametrar
Kontrollmetod Manuell, Kabel, Joystick, Manuell och Joystick
Spole 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner
Nominellt flöde 120 l/min (31.7 US gpm)
Maximalt tryck 250 bar (3600 psi)
Inloppsport G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2
Utloppsport G1, SAE 16, 1 NPT, M36×2
Portstorlek G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2
Sektion 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner
Strukturtyp Monoblockventil
Omgivningstemperaturintervall -40°C till +80°C (-40°F till +176°F)
Driftsviskositetsintervall 15 - 75 mm²/s (15 cSt till 75 cSt)

This P120 Series hydraulic valve is a 3-section, manual control monoblock valve with a rated flow of 120 L/min and a maximum pressure of 250 bar. It is ideal for use in a wide range of applications, including construction equipment (telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders), material handling equipment (telehandlers, midi-excavators, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, dumpers), and agricultural machinery. The valve operates with an operating viscosity range of 15 - 75 mm²/s and is suitable for ambient temperatures ranging from -40°C to +80°C. The P120-G1-OT valve offers reliable performance and durability, making it an excellent choice for demanding applications.
