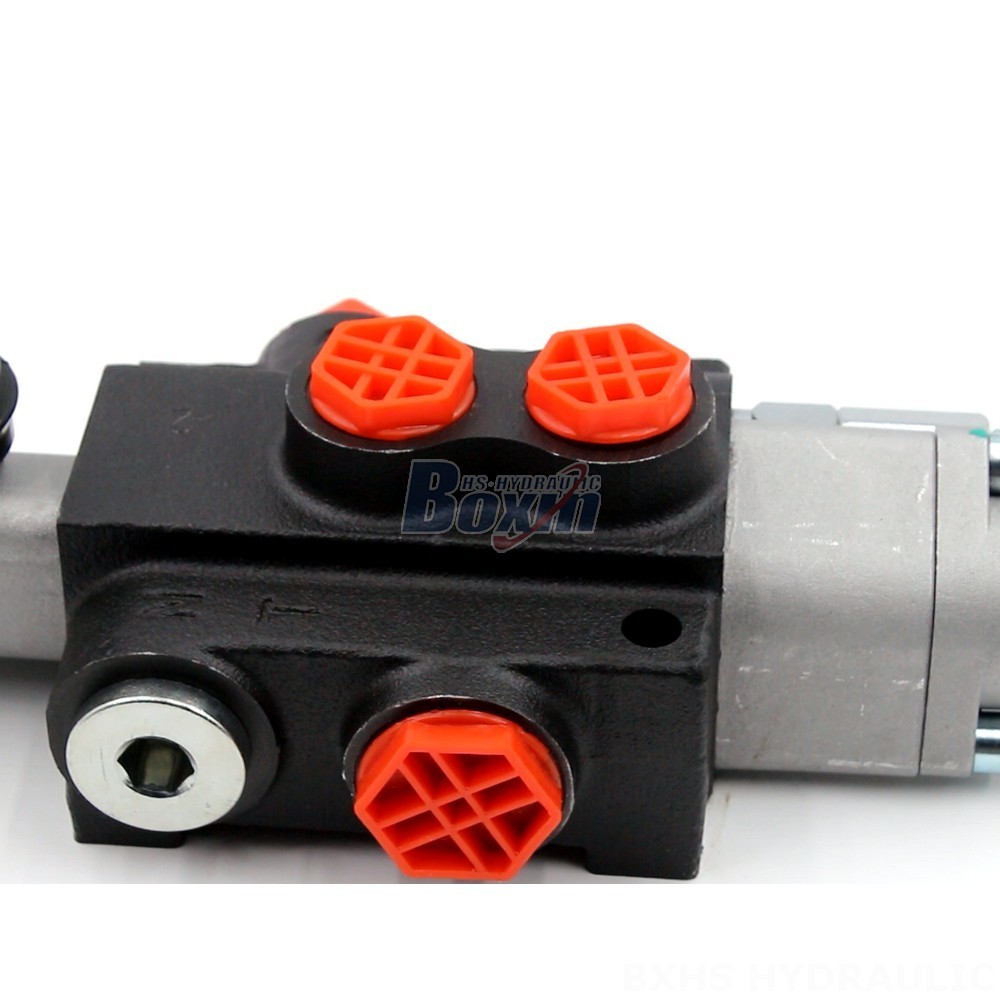

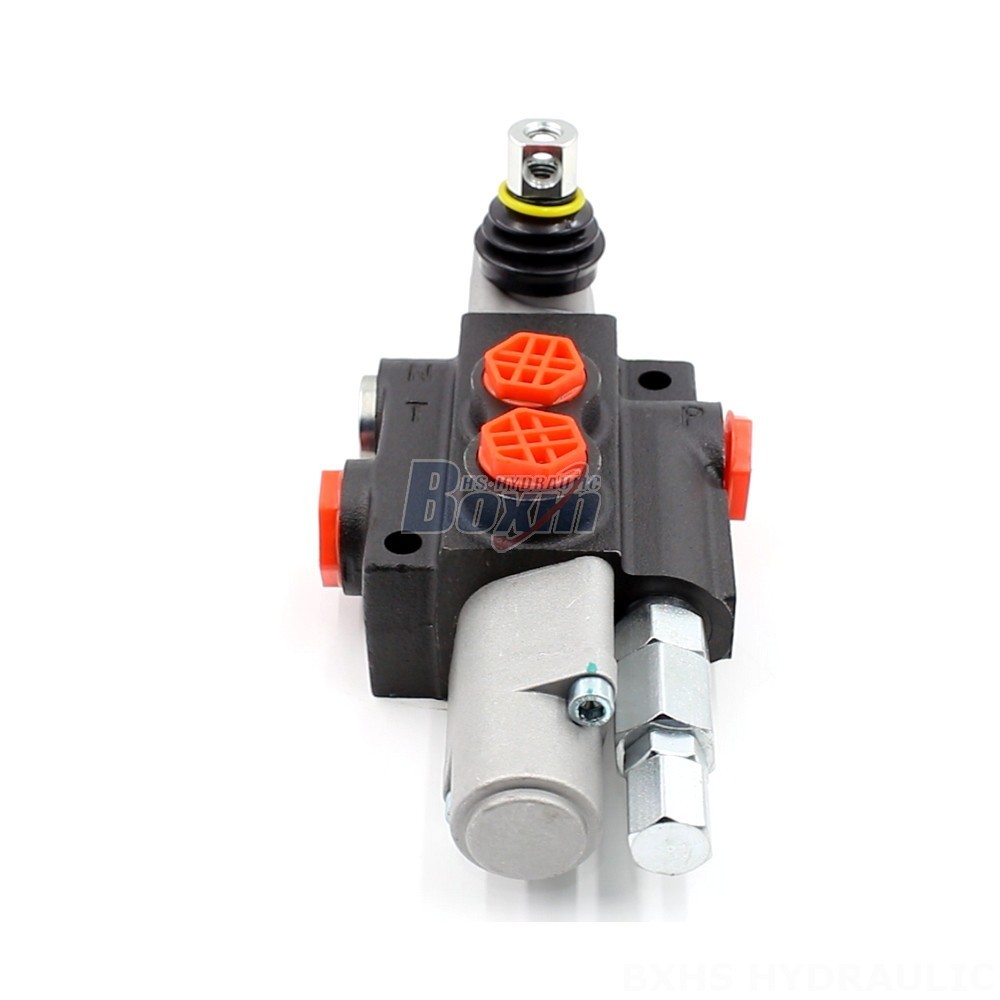

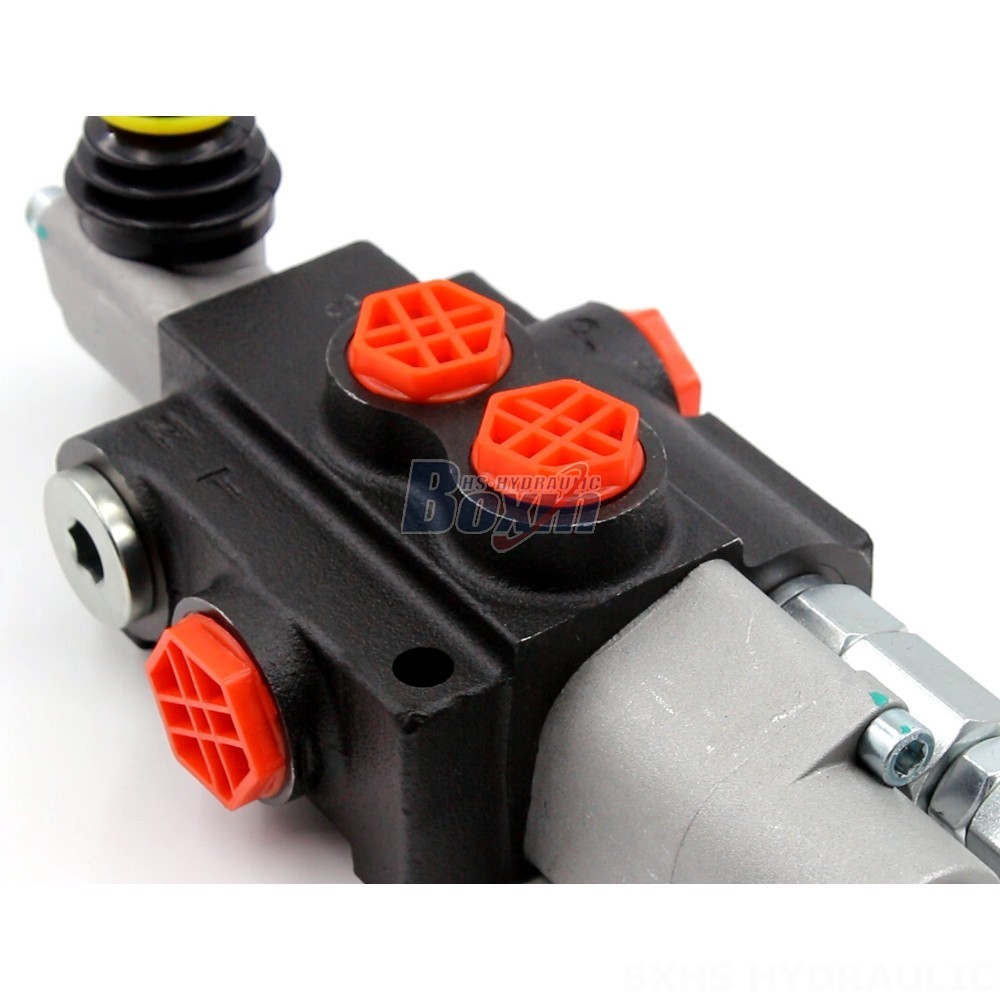

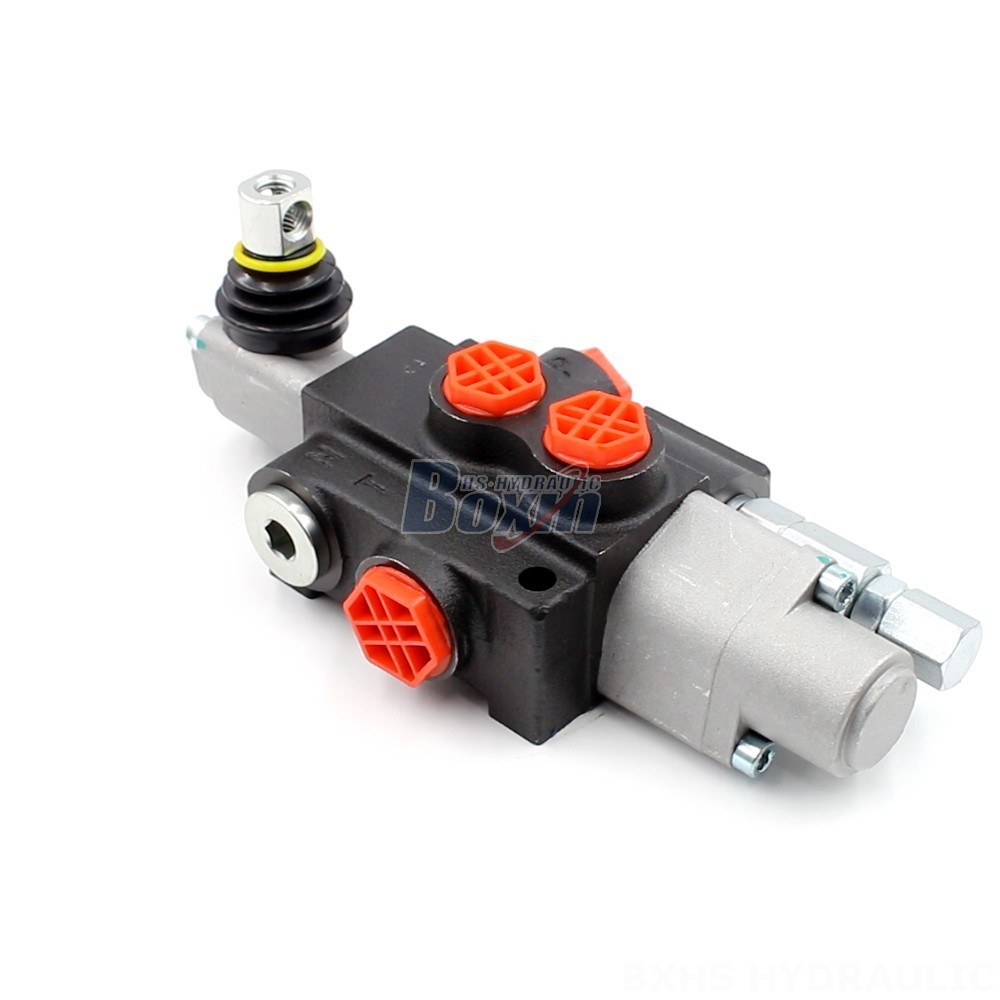

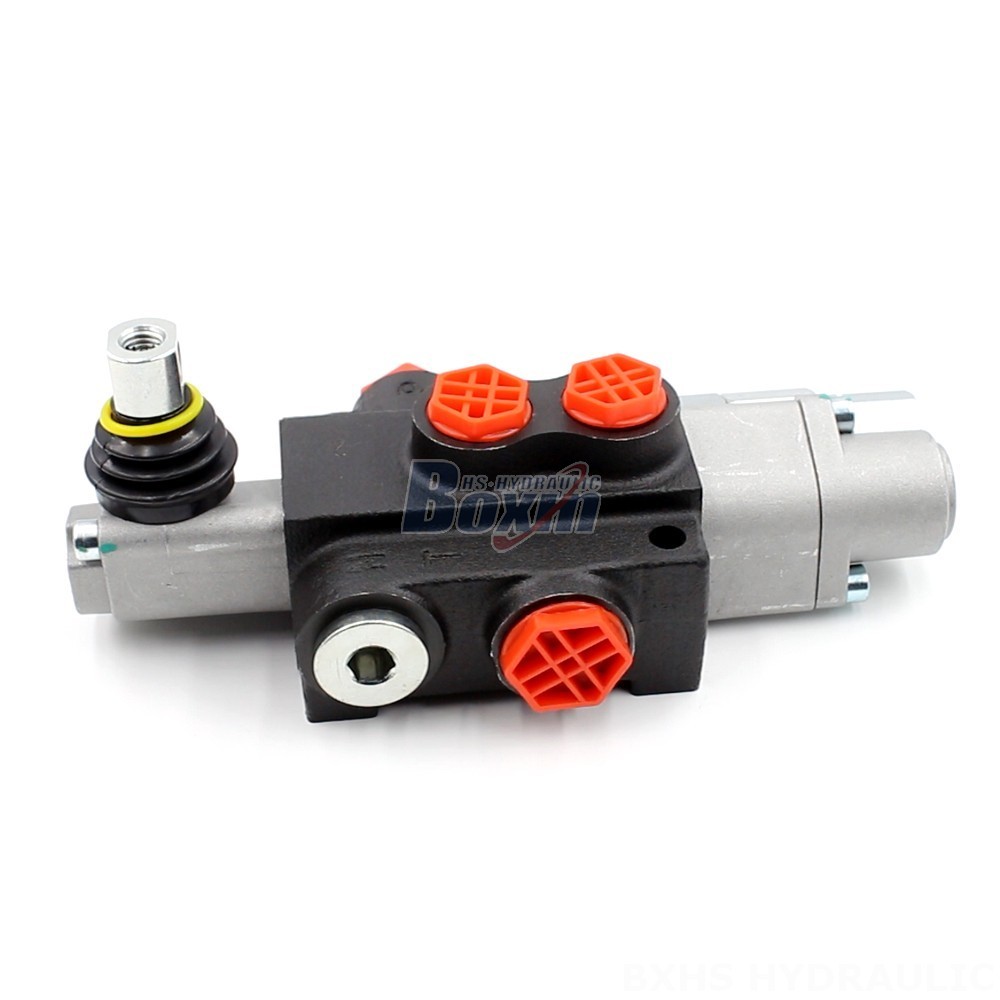

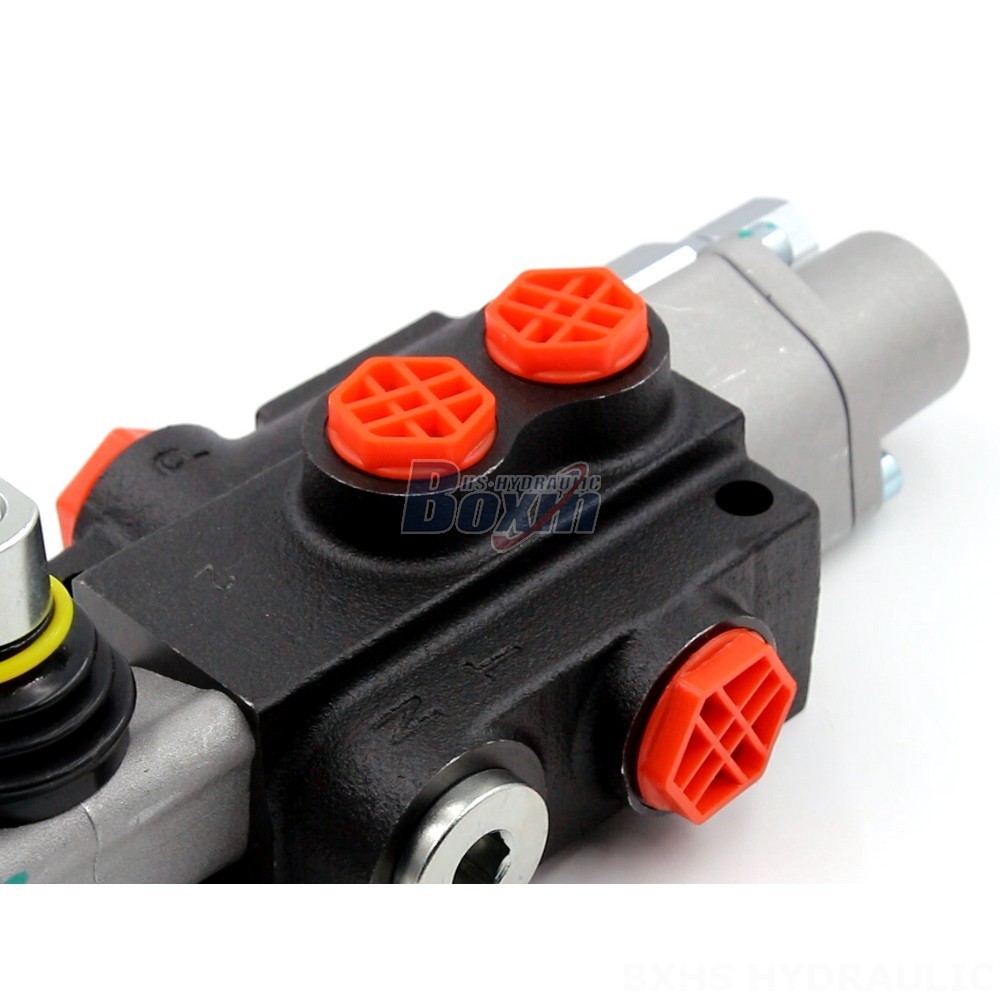

The Valve Wood Splitter P40 1-Spool Hydraulic Directional Valve is a high-performance, durable valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. It features a robust monoblock construction, a rated flow of 40 L/min, and a maximum pressure of 250 bar. Available for customization, this valve is perfect for a variety of applications including telehandlers, forklifts, all terrain cranes, stackers, and aerial platforms.
| P40-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Solenoid och Joystick, Manuell och Joystick, Magnetventil och kabel |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 40 l/min (10,5 US gpm) |
| Maximalt tryck | 250 bar (3600 psi) |
| Inloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Utloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Portstorlek | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This Valve Wood Splitter P40 1-Spool Hydraulic Directional Valve is a manual control, 1-section, monoblock valve. With a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi), this valve can handle demanding applications. Its operating viscosity range is 15 - 75 mm²/s (15 cSt to 75 cSt) and it operates in an ambient temperature range of -40°C to +80°C (-40°F to +176°F). The valve is designed for use in material handling, construction and earth moving, agriculture, and industrial vehicles, including telehandlers, forklifts, all terrain cranes, stackers, and aerial platforms. This valve is available for customization and is factory direct.
