P40-DKL 2-Spool Hydraulic Valve: Factory Direct & Customizable

Kontrollmetod:Manuell

Spole:2 ventilsektioner

Nominellt flöde:40 l/min (10,5 US gpm)

Maximalt tryck:250 bar (3600 psi)

Inloppsport:G3/8

Utloppsport:G3/8

Portstorlek:G3/8

Märke:BXHS

Produkttyp:Monoblockriktningsventil

Produktserie:P40-DKL-serien Monoblockriktningsventil

Förpackningsstorlek:23*18*13

Bruttovikt:5.00 kg

Tillgänglighet: I lager

1171 Vyer letar efter den här produkten

P40-DKL 2-Spool Hydraulic Valve: Factory Direct & Customizable

P40-DKL 2-Spool Hydraulic Valve: Factory Direct & Customizable

P40-DKL 2-Spool Hydraulic Valve: Factory Direct & Customizable drawing image

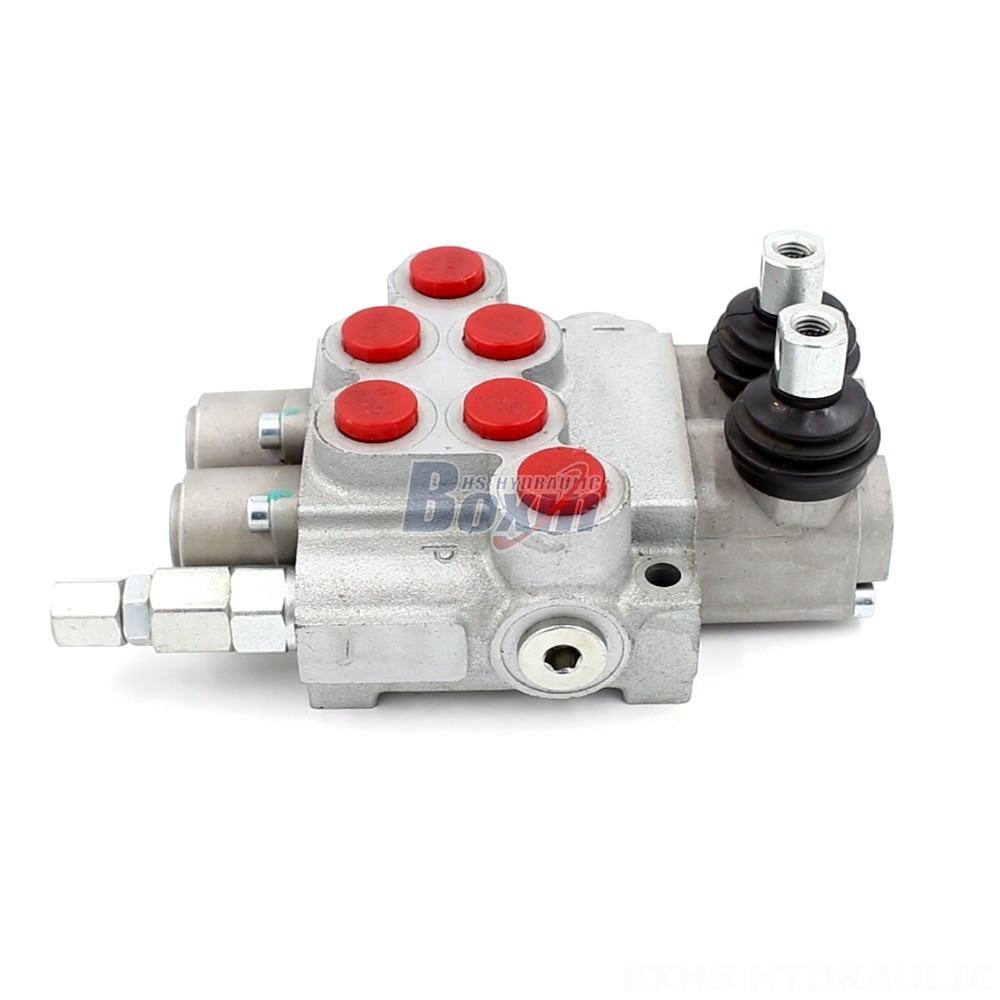

The P40-DKL 2-Spool Hydraulic Valve is a manual speed control valve designed for hydraulic cylinders in various applications, including material handling, construction, and agriculture. This 2-section monoblock valve offers a rated flow of 40 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of equipment.

P40-DKL-serien Monoblockriktningsventil Parametrar
Kontrollmetod Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Manuell och Joystick
Spole 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner
Nominellt flöde 40 l/min (10,5 US gpm)
Maximalt tryck 250 bar (3600 psi)
Inloppsport G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Utloppsport G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Portstorlek G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Sektion 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner
Strukturtyp Monoblockventil
Omgivningstemperaturintervall -40°C till +80°C (-40°F till +176°F)
Driftsviskositetsintervall 15 - 75 mm²/s (15 cSt till 75 cSt)

The P40-DKL 2-Spool Hydraulic Valve is a high-quality, durable valve designed for controlling the speed of hydraulic cylinders. It features a manual control method and a 2-section monoblock structure. The valve has a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi). It is designed for use in a wide range of operating conditions, with an ambient temperature range of -40°C to +80°C (-40°F to +176°F). The valve is compatible with a variety of hydraulic fluids, with an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). This versatile valve is suitable for various applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. It is compatible with a wide range of equipment, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi- excavators, mini-excavators, and skid steer loaders.
