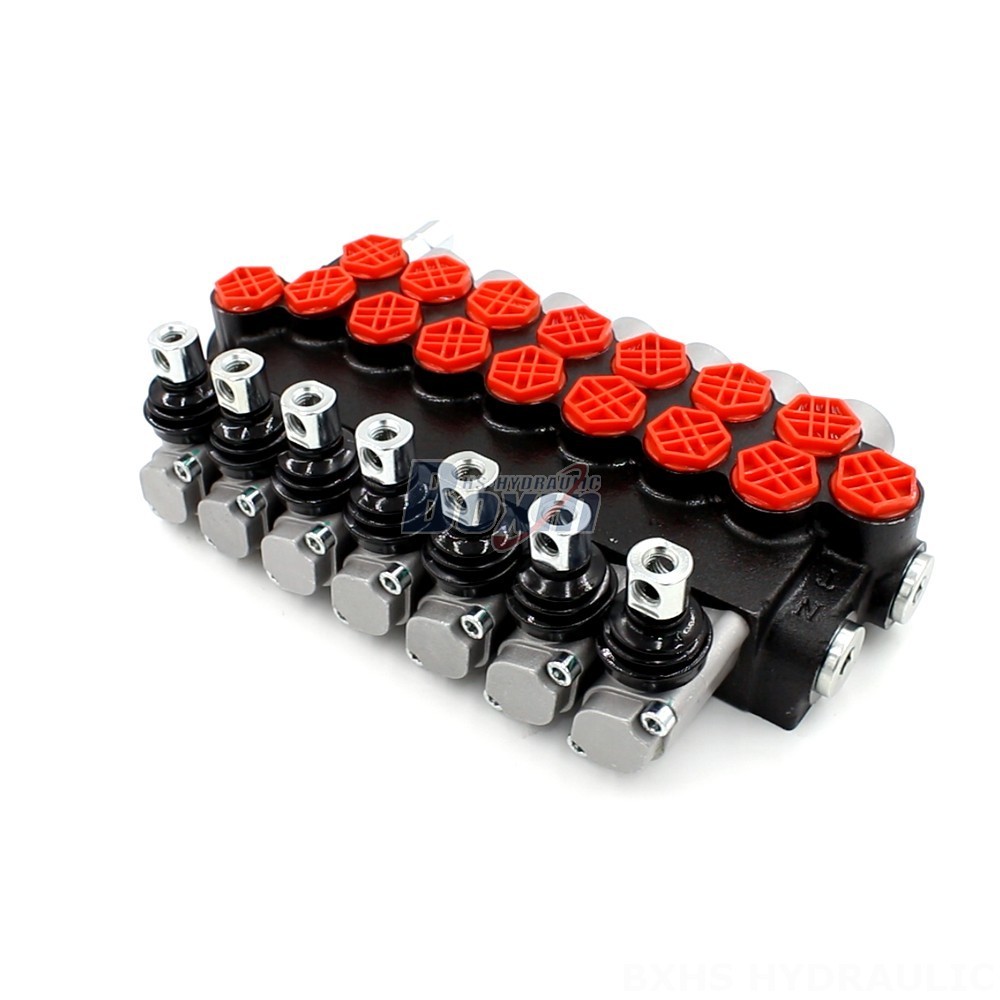

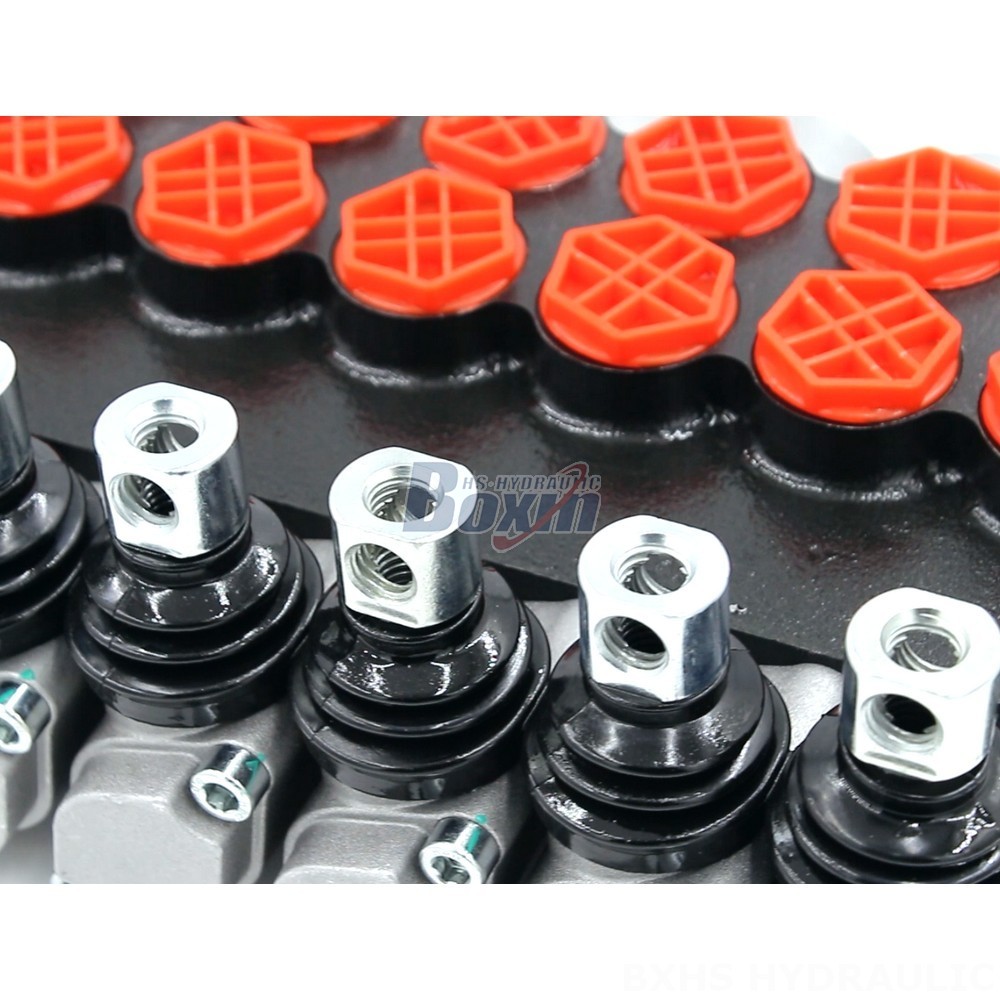

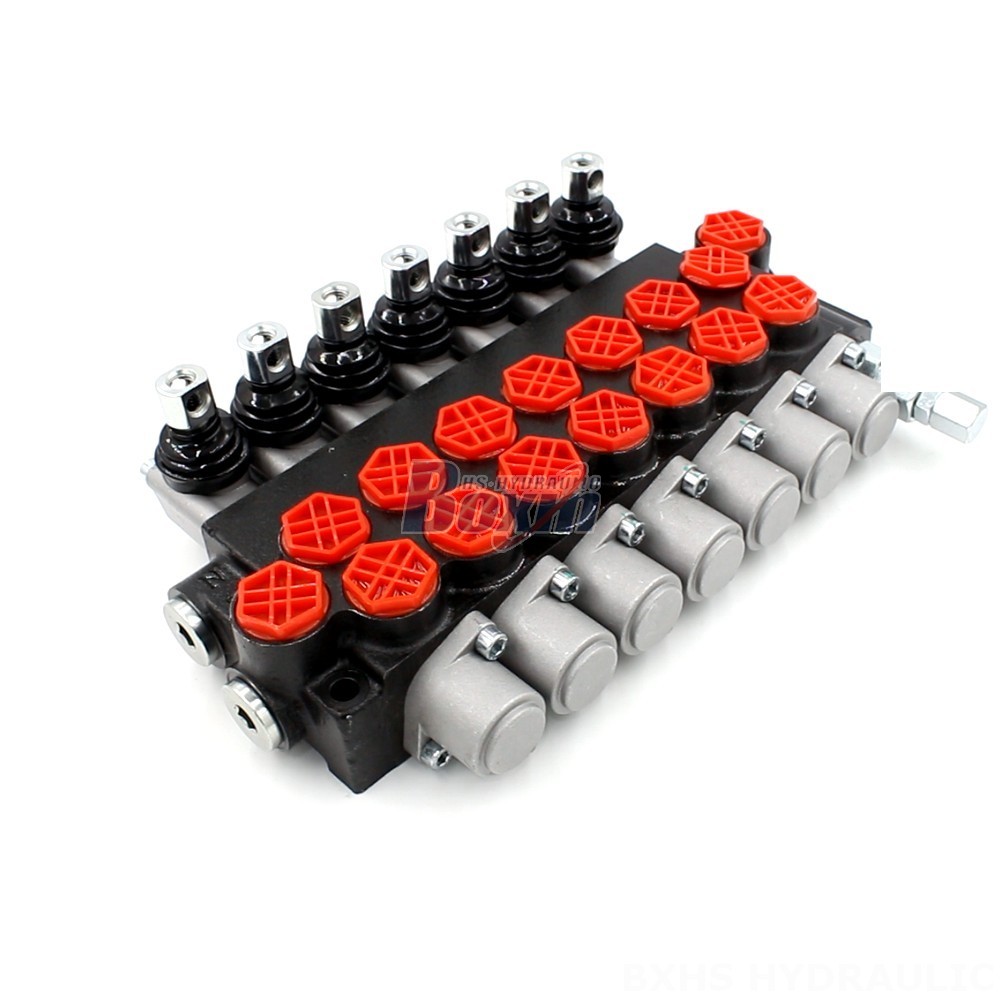

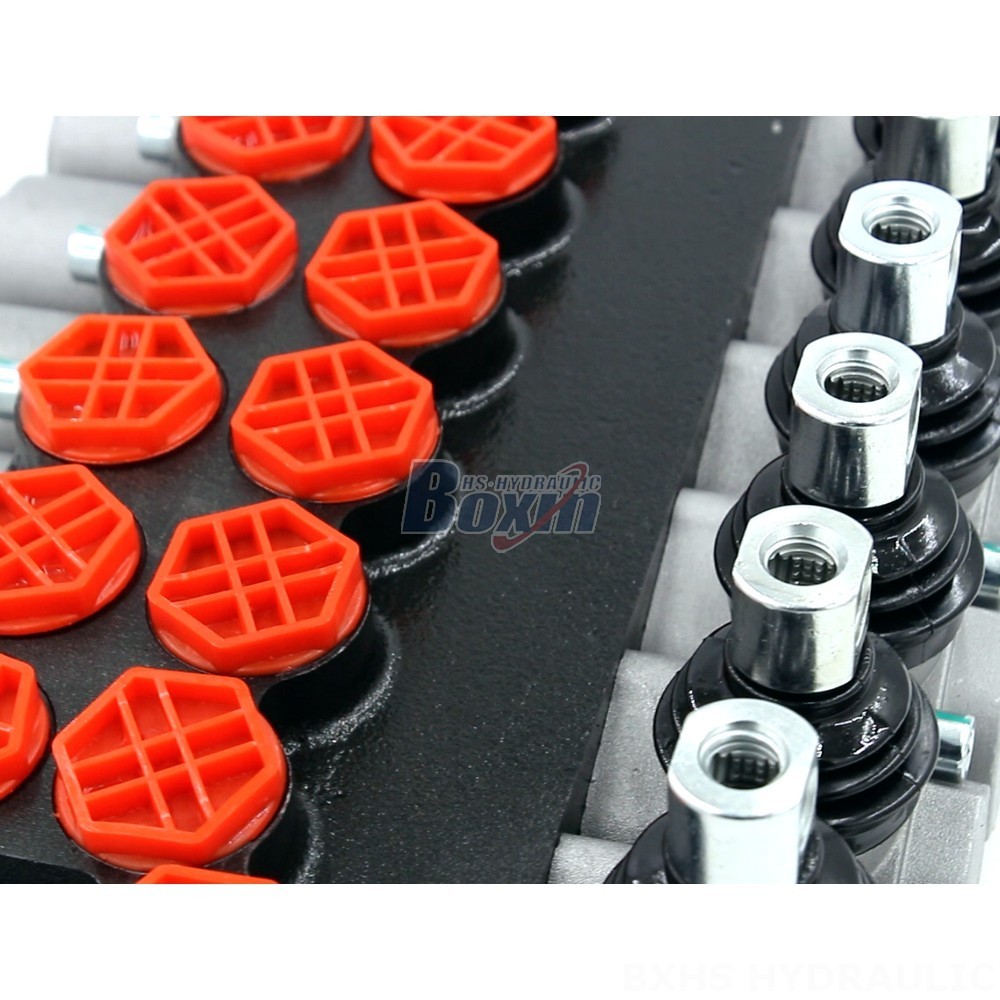

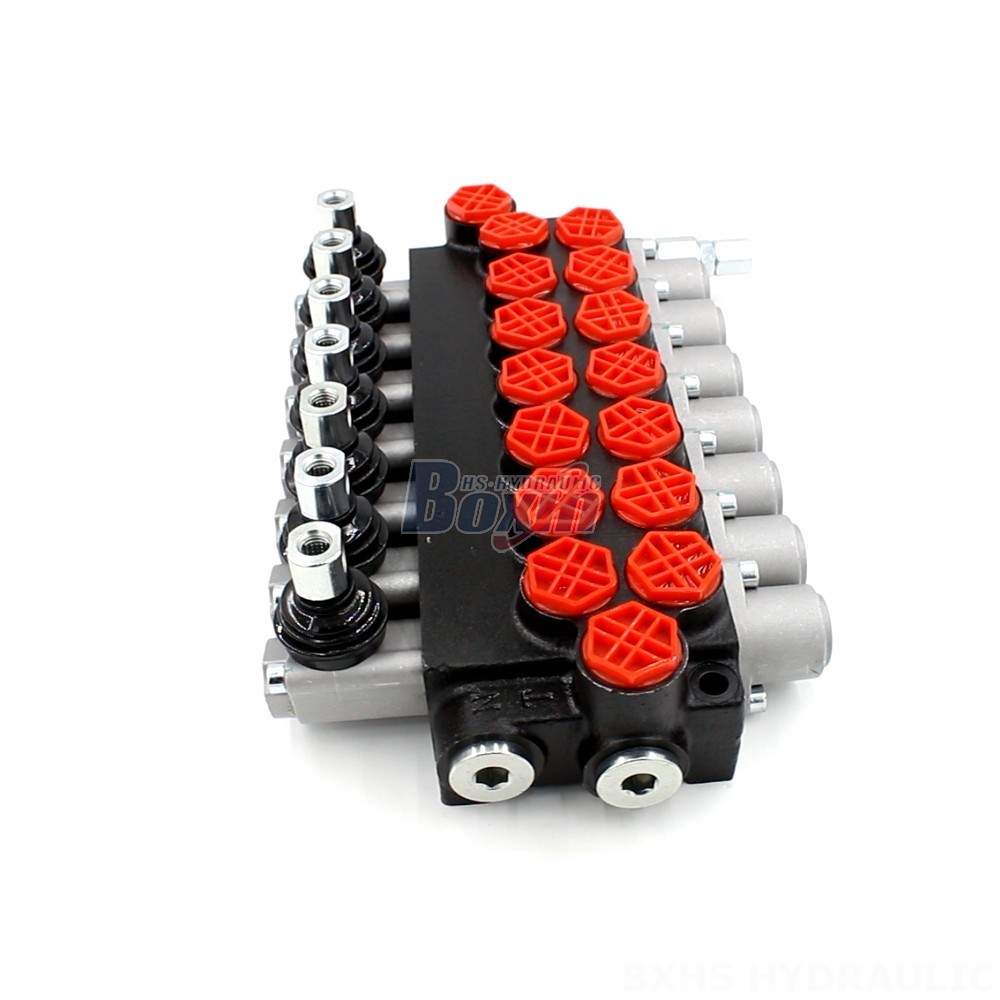

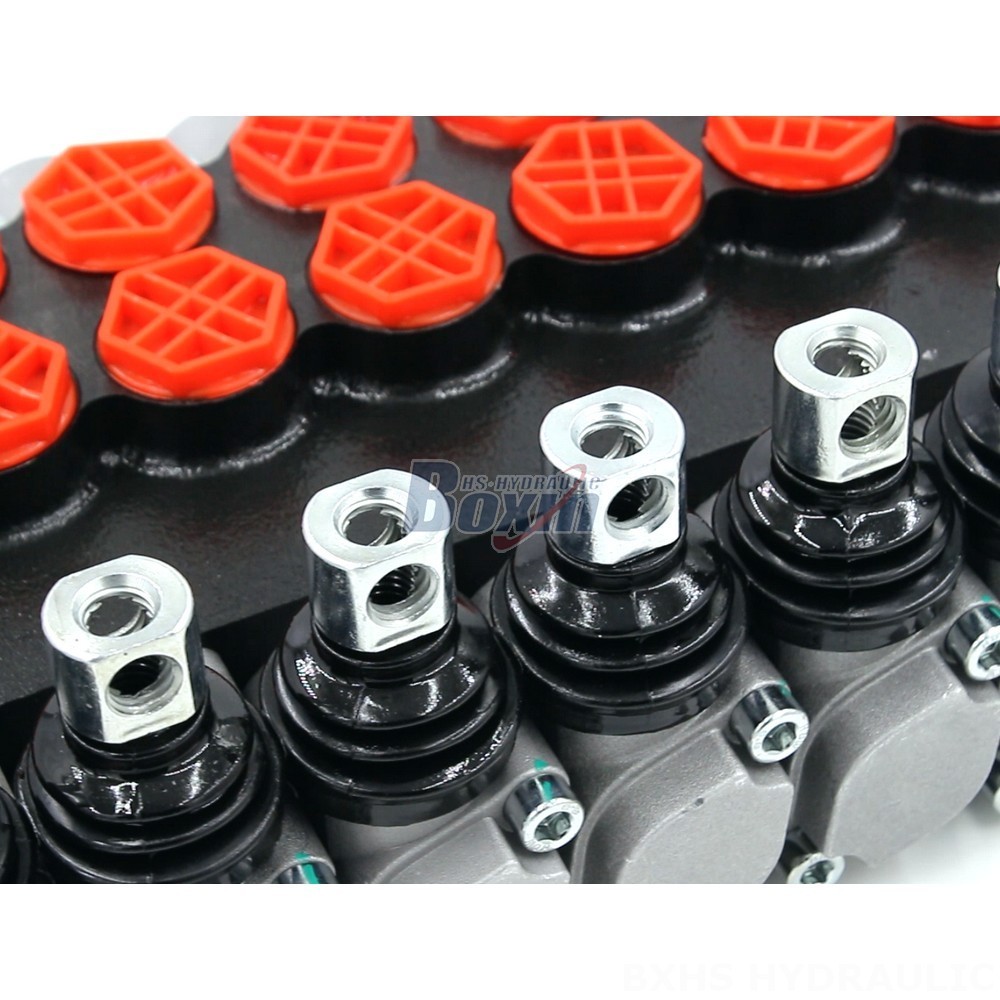

P40-G12-7OT Valve: The Ultimate Hydraulic Control Solution

Kontrollmetod:Manuell

Spole:7 ventilsektioner

Nominellt flöde:40 l/min (10,5 US gpm)

Maximalt tryck:250 bar (3600 psi)

Inloppsport:G1/2

Utloppsport:G1/2

Portstorlek:G1/2

Märke:BXHS

Produkttyp:Monoblockriktningsventil

Produktserie:P40-serien Monoblockriktningsventil

Förpackningsstorlek:36*23*13

Bruttovikt:13.50 kg

Tillgänglighet: I lager

999 Vyer letar efter den här produkten

P40-G12-7OT Valve: The Ultimate Hydraulic Control Solution

P40-G12-7OT Valve: The Ultimate Hydraulic Control Solution

P40-G12-7OT Valve: The Ultimate Hydraulic Control Solution drawing image

The P40-G12-7OT Hydraulic Check Valve Flow Direction Valve is a high-performance, reliable solution for controlling fluid flow in a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. This monoblock valve features a 7-section design, rated flow of 40 L/min, and maximum pressure of 250 bar, making it ideal for demanding environments.

P40-serien Monoblockriktningsventil Parametrar
Kontrollmetod Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Solenoid och Joystick, Manuell och Joystick, Magnetventil och kabel
Spole 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner
Omgivningstemperaturintervall -40°C till +80°C (-40°F till +176°F)
Strukturtyp Monoblockventil
Sektion 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner
Driftsviskositetsintervall 15 - 75 mm²/s (15 cSt till 75 cSt)
Nominellt flöde 40 l/min (10,5 US gpm)
Maximalt tryck 250 bar (3600 psi)
Inloppsport G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Utloppsport G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Portstorlek G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The P40-G12-7OT Hydraulic Check Valve Flow Direction Valve is a robust and versatile component designed for precise hydraulic control. Its monoblock construction ensures strength and durability, while the 7-section design allows for multiple flow paths and directional control. With a rated flow of 40 L/min and maximum pressure of 250 bar, this valve is capable of handling high flow rates and demanding pressures. Its operating viscosity range of 15 to 75 mm²/s and ambient temperature range of -40°C to +80°C ensure reliable performance in a variety of environments. This valve is ideal for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, and motor graders, among other applications. Its manual control method allows for simple and intuitive operation, making it a user-friendly solution for a wide range of hydraulic systems.
