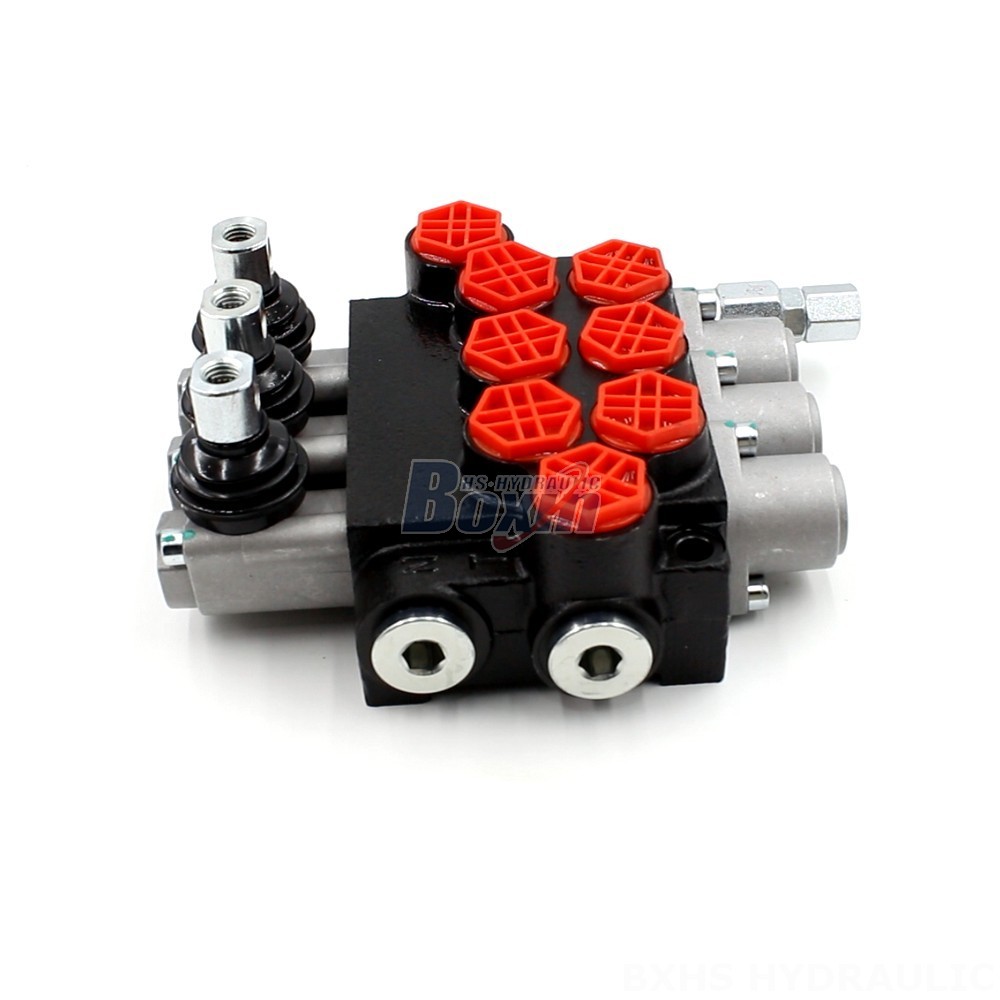

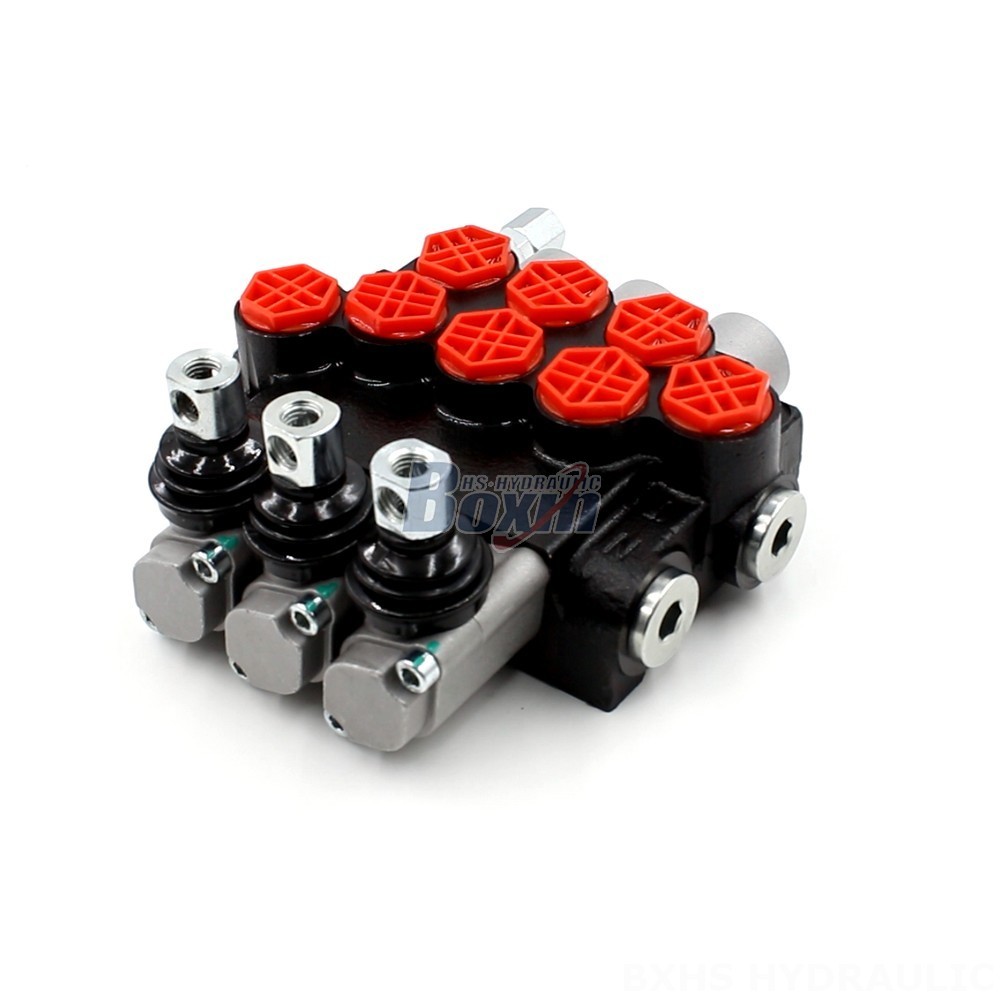

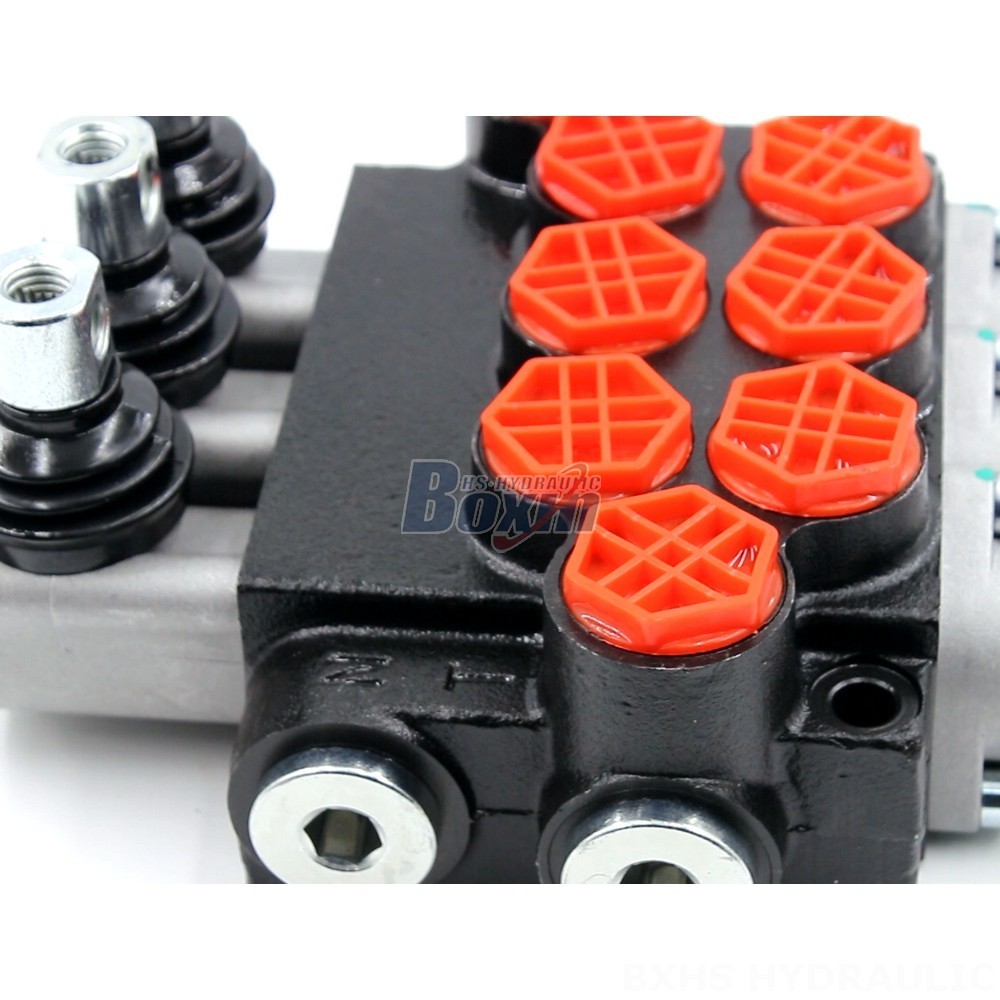

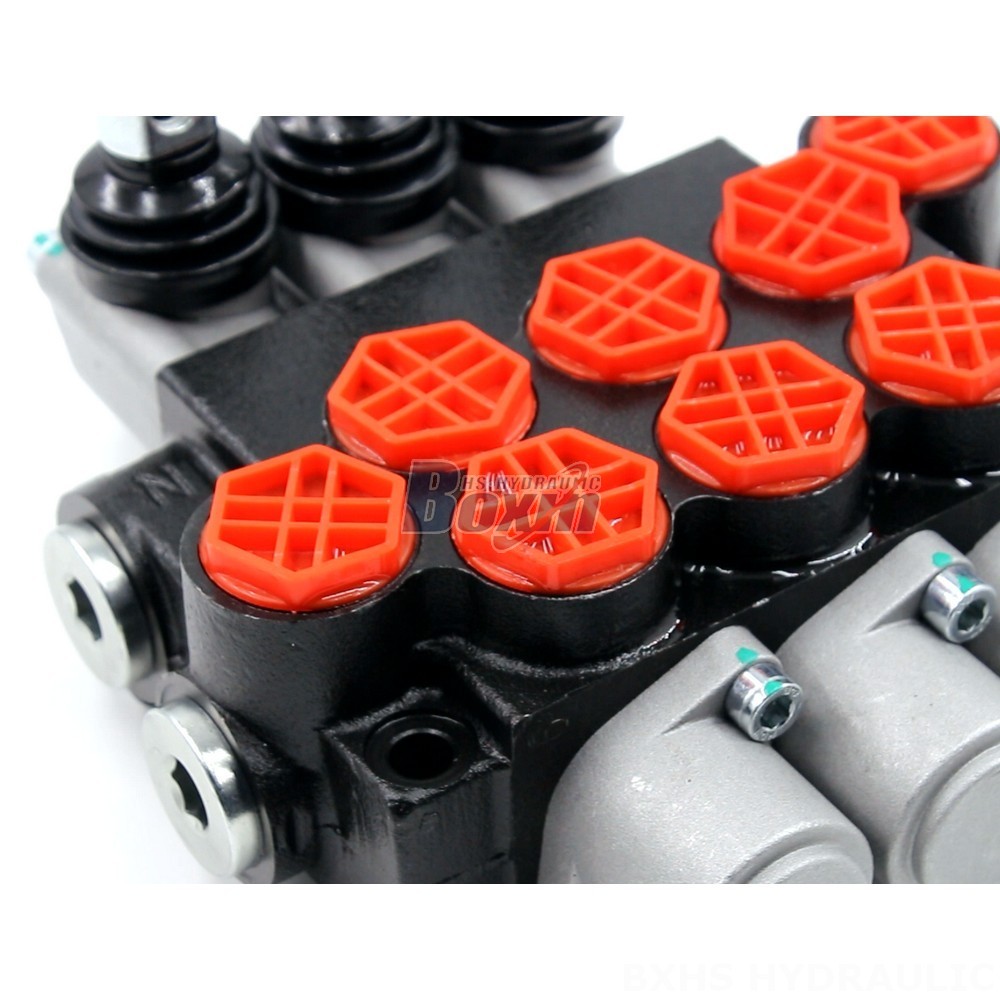

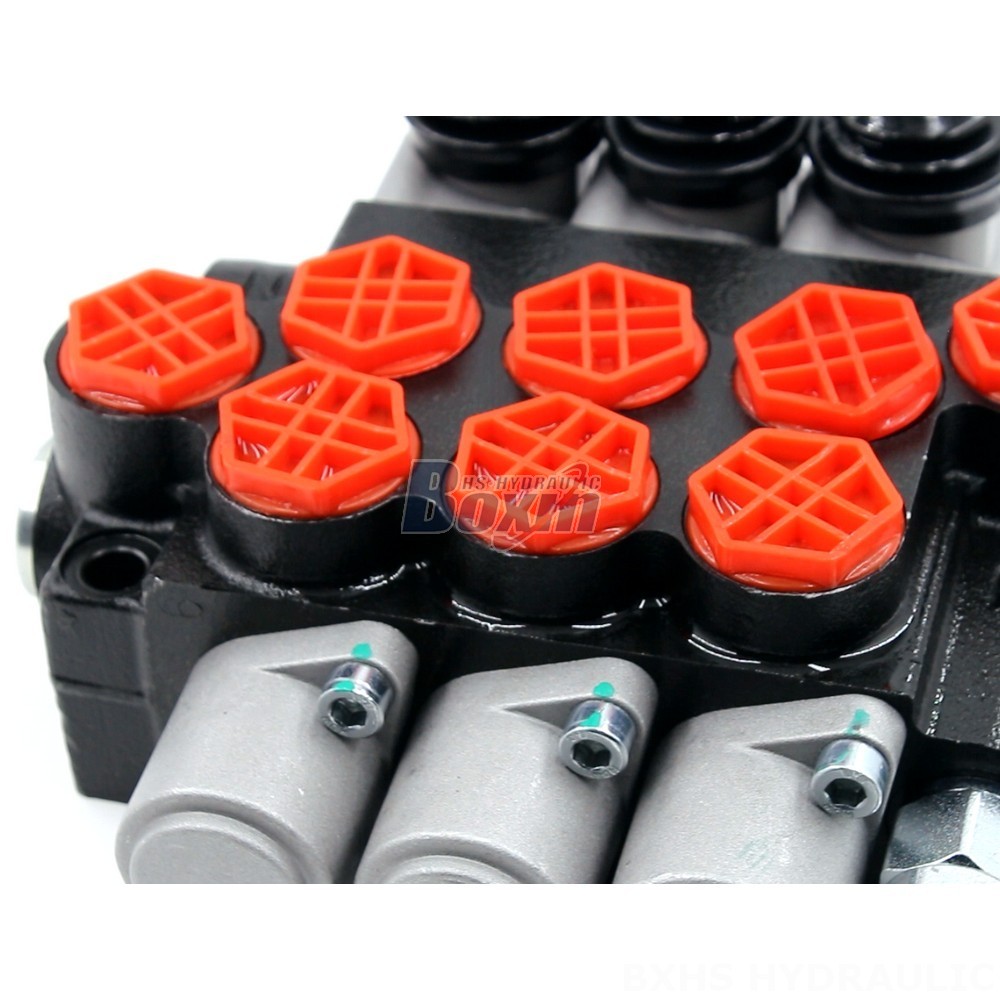

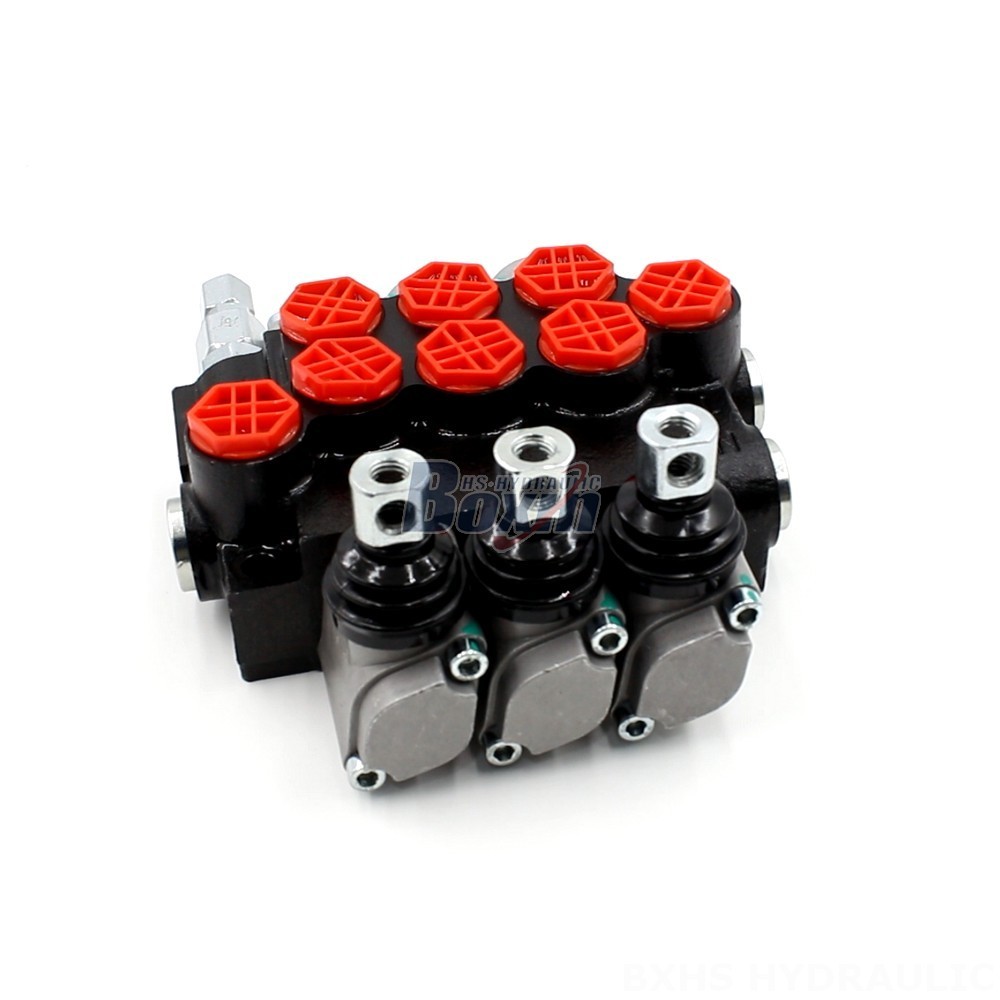

P40-G12 Directional Control Valve: Factory Direct & Customizable

Kontrollmetod:Manuell

Spole:3 ventilsektioner

Nominellt flöde:40 l/min (10,5 US gpm)

Maximalt tryck:250 bar (3600 psi)

Inloppsport:G1/2

Utloppsport:G1/2

Portstorlek:G1/2

Märke:BXHS

Produkttyp:Monoblockriktningsventil

Produktserie:P40-serien Monoblockriktningsventil

Förpackningsstorlek:24*21*13

Bruttovikt:6.60 kg

Tillgänglighet: I lager

2153 Vyer letar efter den här produkten

P40-G12 Directional Control Valve: Factory Direct & Customizable

P40-G12 Directional Control Valve: Factory Direct & Customizable

P40-G12 Directional Control Valve: Factory Direct & Customizable drawing image

The P40-G12 4 Way Hydraulic Manifold Block is a robust and versatile directional control valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. Featuring a monoblock design, 3 sections, and manual control, this valve offers a rated flow of 40 L/min and a maximum pressure of 250 bar. It is customizable to meet your specific needs.

P40-serien Monoblockriktningsventil Parametrar
Kontrollmetod Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Solenoid och Joystick, Manuell och Joystick, Magnetventil och kabel
Spole 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner
Omgivningstemperaturintervall -40°C till +80°C (-40°F till +176°F)
Strukturtyp Monoblockventil
Sektion 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner
Driftsviskositetsintervall 15 - 75 mm²/s (15 cSt till 75 cSt)
Nominellt flöde 40 l/min (10,5 US gpm)
Maximalt tryck 250 bar (3600 psi)
Inloppsport G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Utloppsport G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Portstorlek G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

This 4 Way Hydraulic Manifold Block from the P40 series is a reliable and efficient solution for controlling hydraulic circuits. Its monoblock construction ensures durability and compact size. The valve features 3 sections and manual control, providing precise and responsive operation. With a rated flow of 40 L/min and a maximum pressure of 250 bar, it is suitable for demanding applications in various industries. The P40-G12 is designed to work with a wide range of operating viscosities and temperatures. It is ideal for use in telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders. This valve is customizable to meet your specific requirements, making it a versatile choice for a variety of hydraulic systems.
