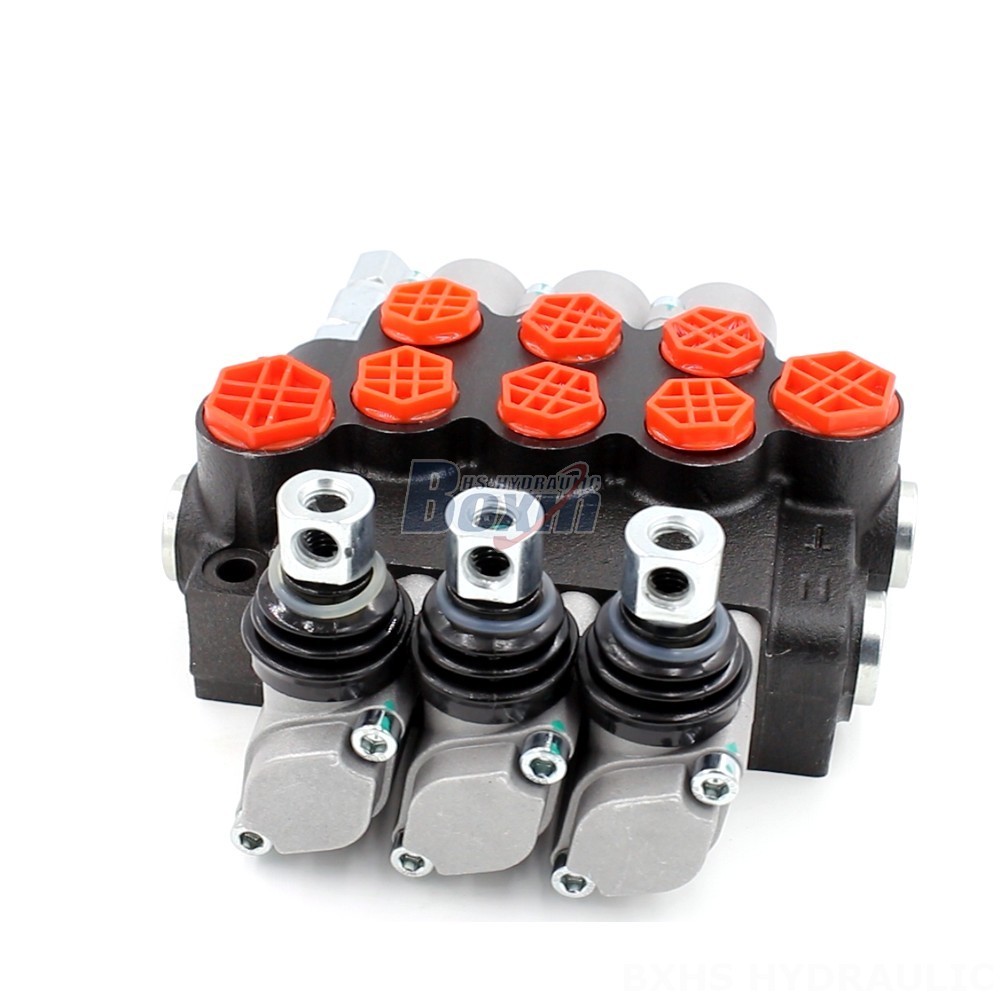

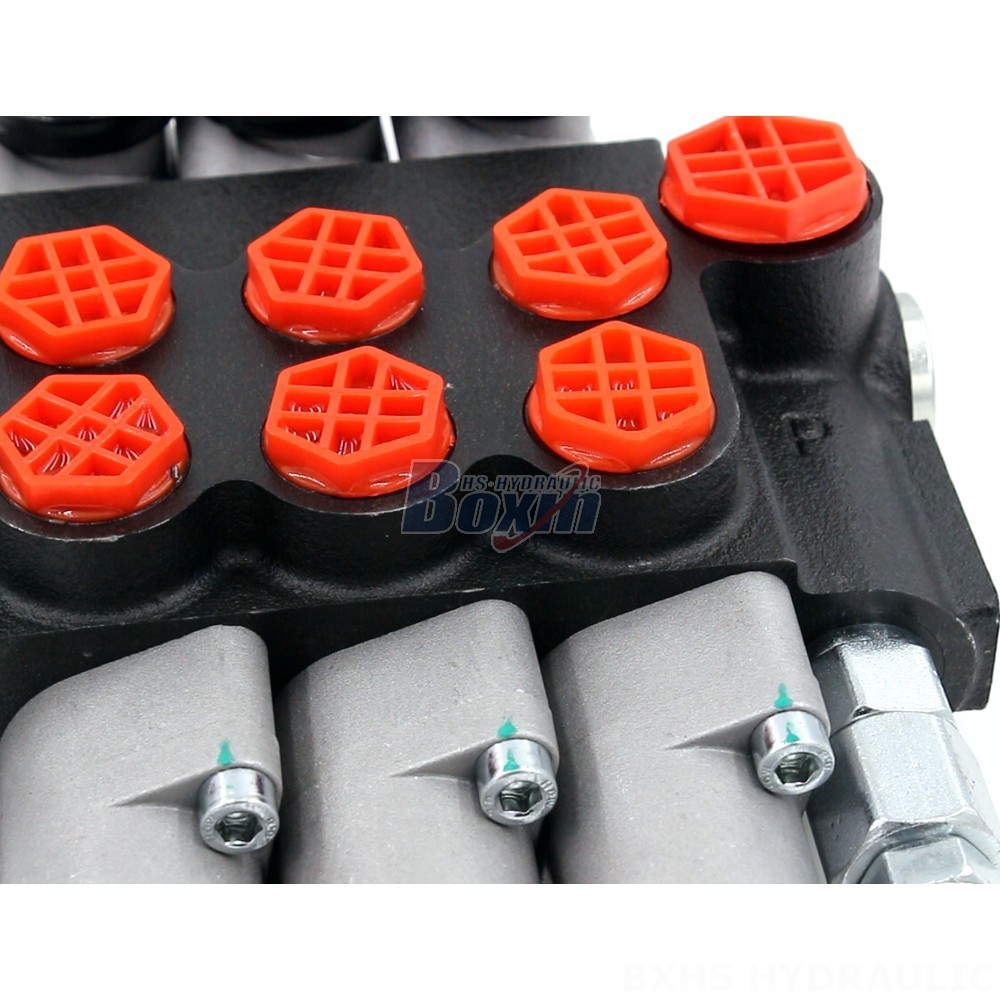

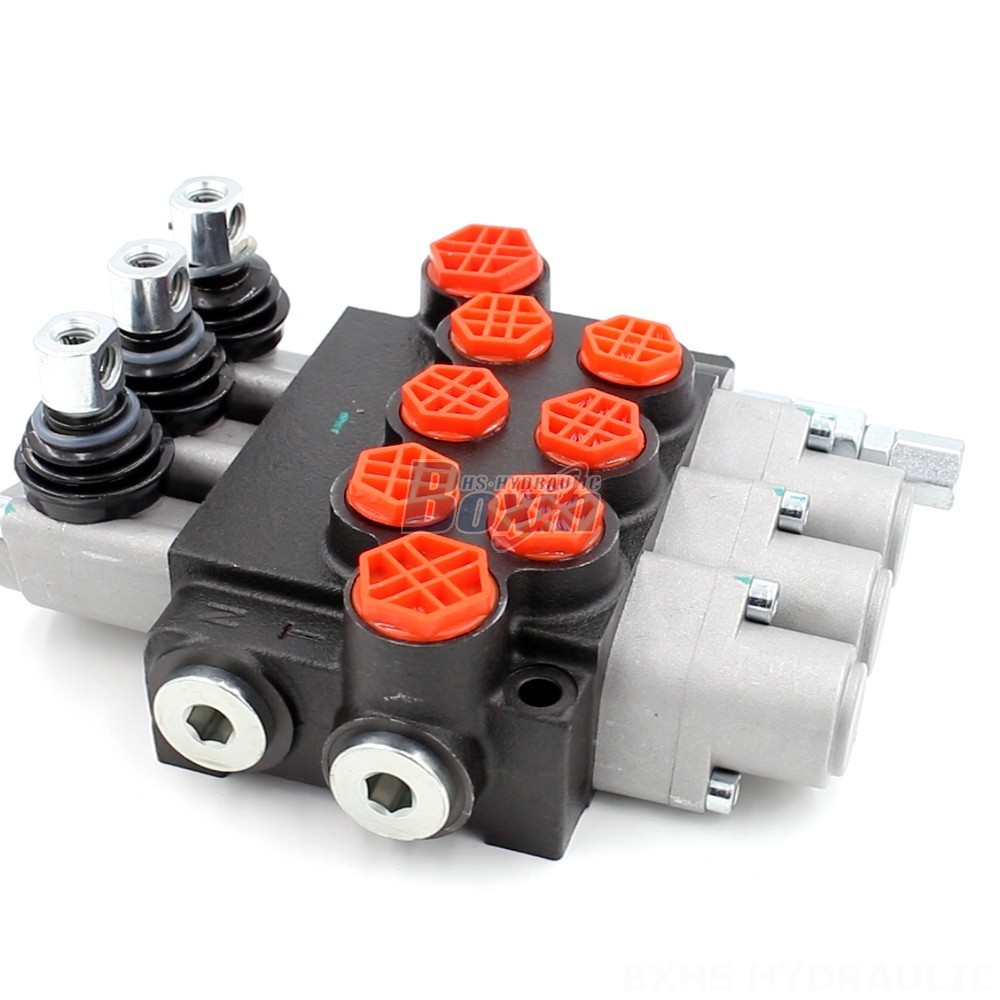

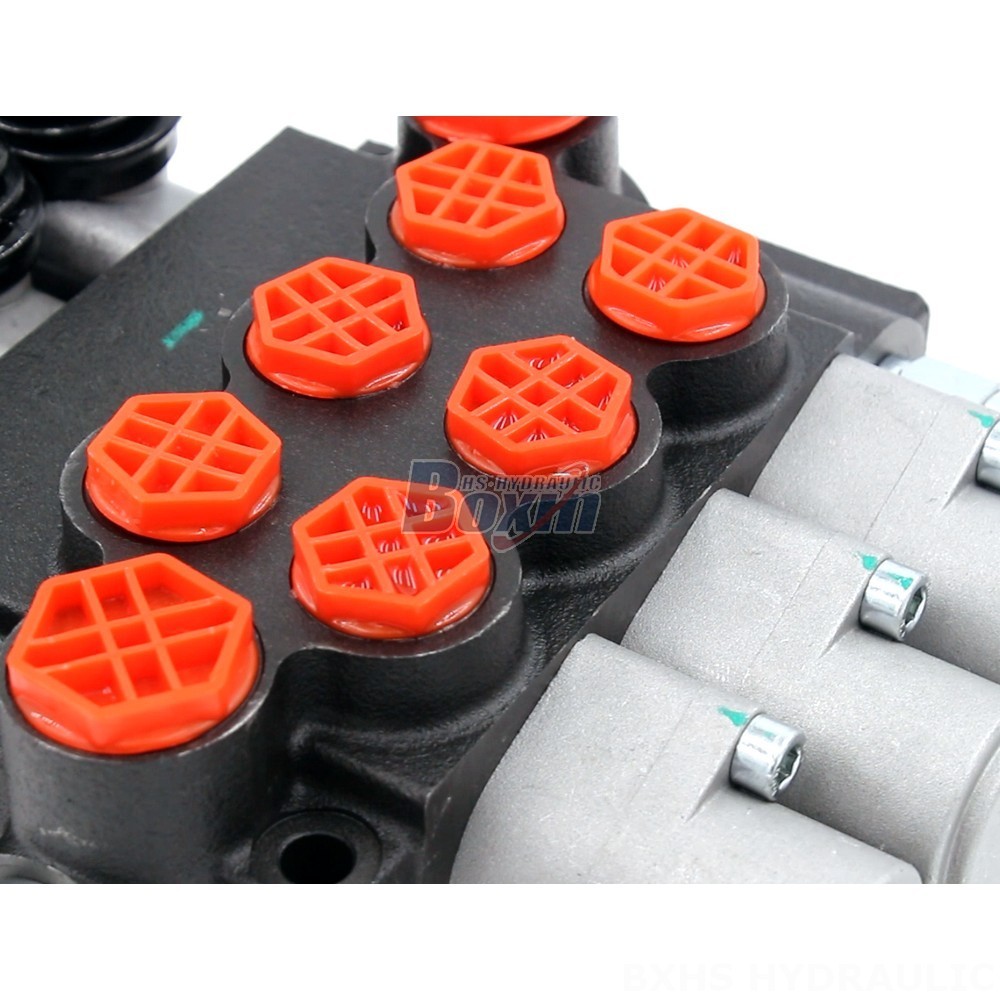

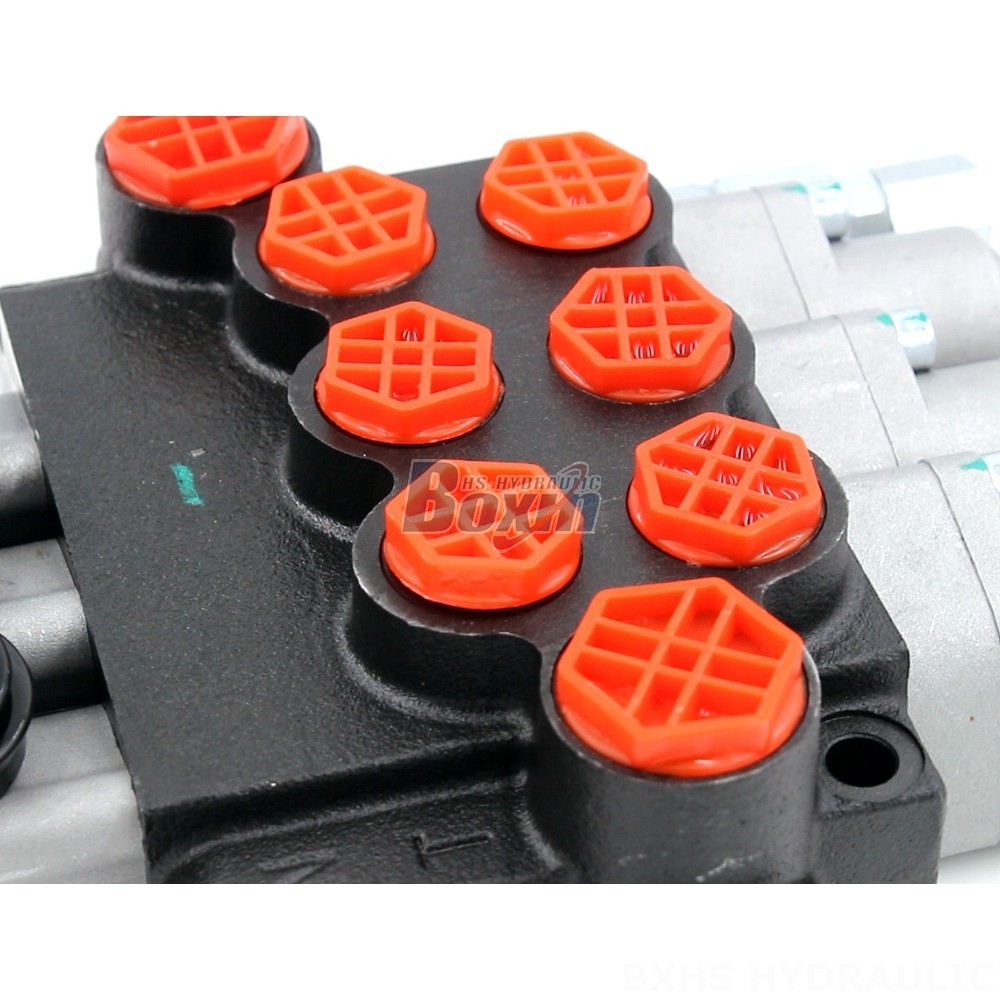

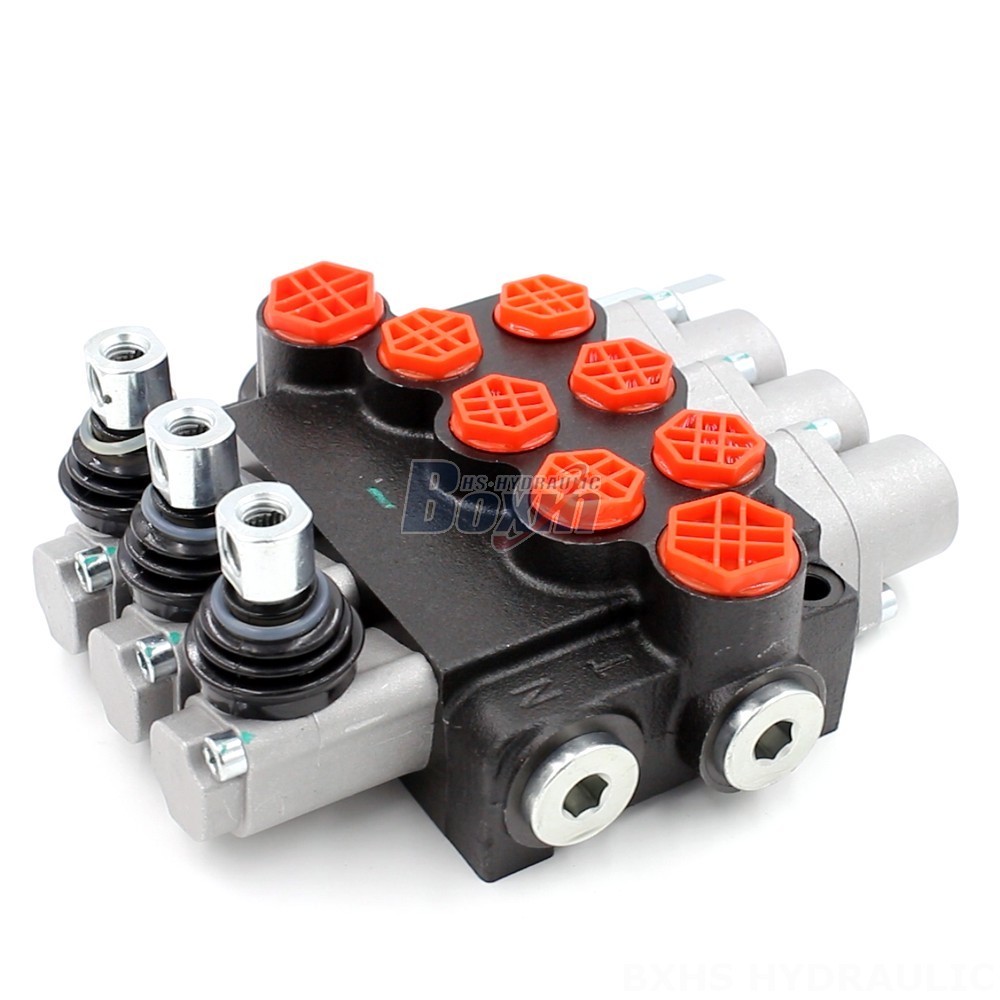

The P40-G12-G38-3OT 3-Spool Hydraulic Directional Valve is a high-performance valve designed for demanding applications in various industries. With a rated flow capacity of 40 L/min and a maximum pressure of 250 bar, it delivers precise and reliable flow control.
| P40-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Solenoid och Joystick, Manuell och Joystick, Magnetventil och kabel |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 40 l/min (10,5 US gpm) |
| Maximalt tryck | 250 bar (3600 psi) |
| Inloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Utloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Portstorlek | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**Key Features:**
* **Control Method:** Manual
* **Section:** 3 Section
* **Structure Type:** Monoblock valve
* **Rated Flow:** 40 L/min (10.5 US gpm)
* **Max Pressure:** 250 bar (3600 psi)
* **Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
* **Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
* **Spool:** 3 Spool
* **Series:** P40 Series
**Applications:**
The P40-G12-G38-3OT 3-Spool Hydraulic Directional Valve is widely used in various industries, including:
* Material Handling
* Construction and Earth Moving
* Agriculture
* Industrial Vehicles
**Applicable Models:**
* Telehandler
* Forklift
* All Terrain Crane
* Stacker
* Aerial Platform
* Motor Grader
* Midi-Excavator
* Mini-Excavator
* Skid Steer Loader
* Compact Wheel Loader
