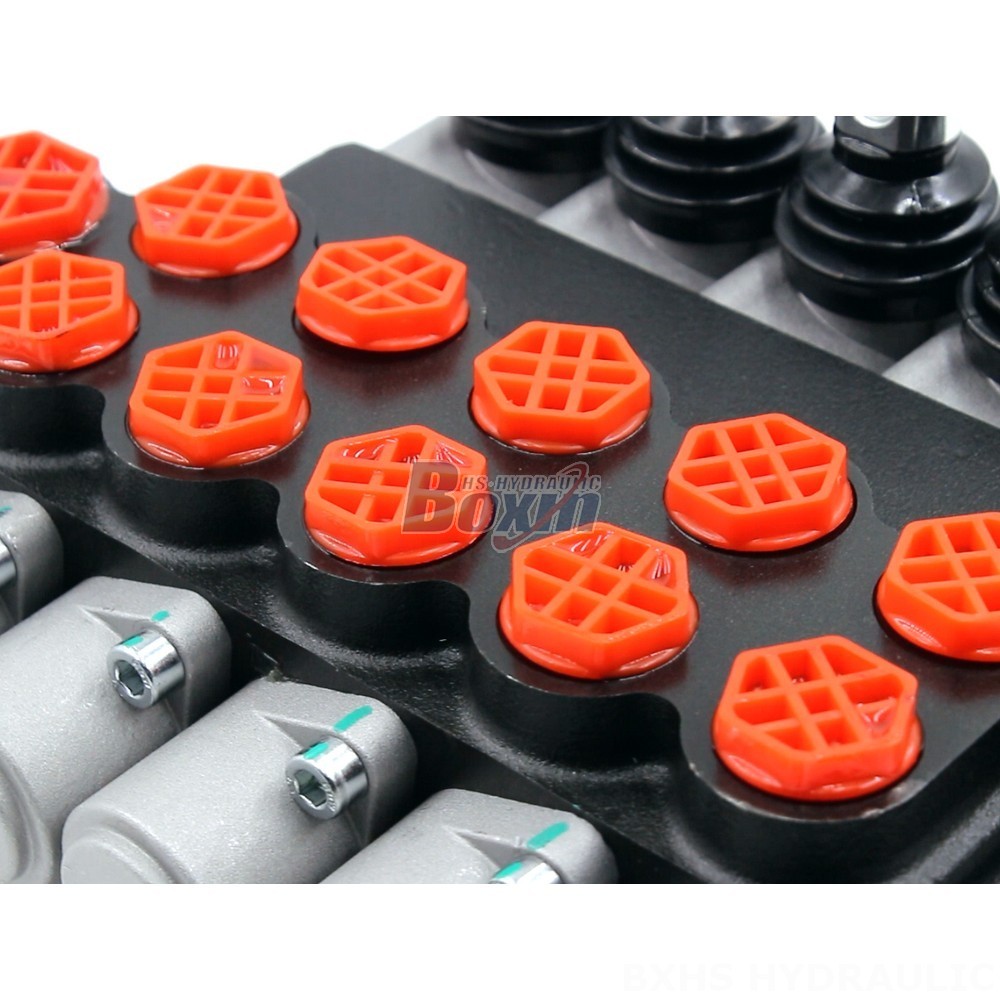

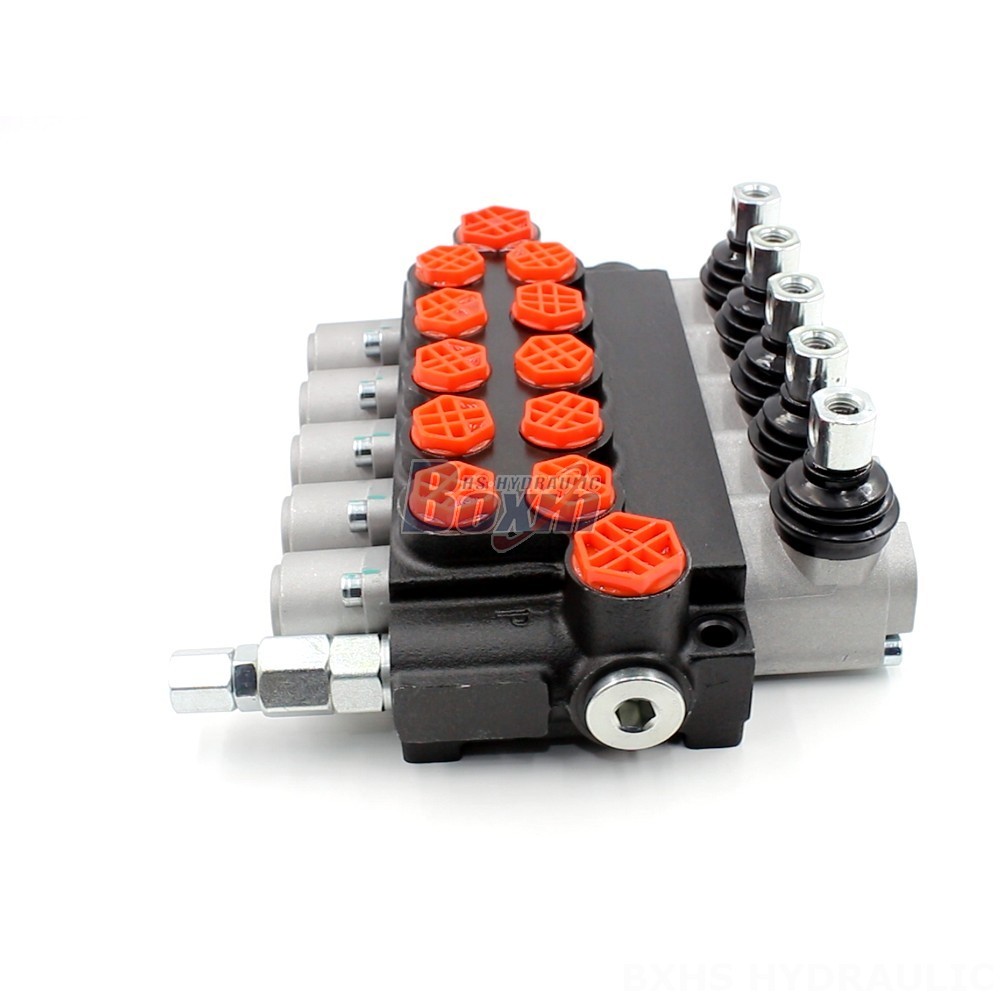

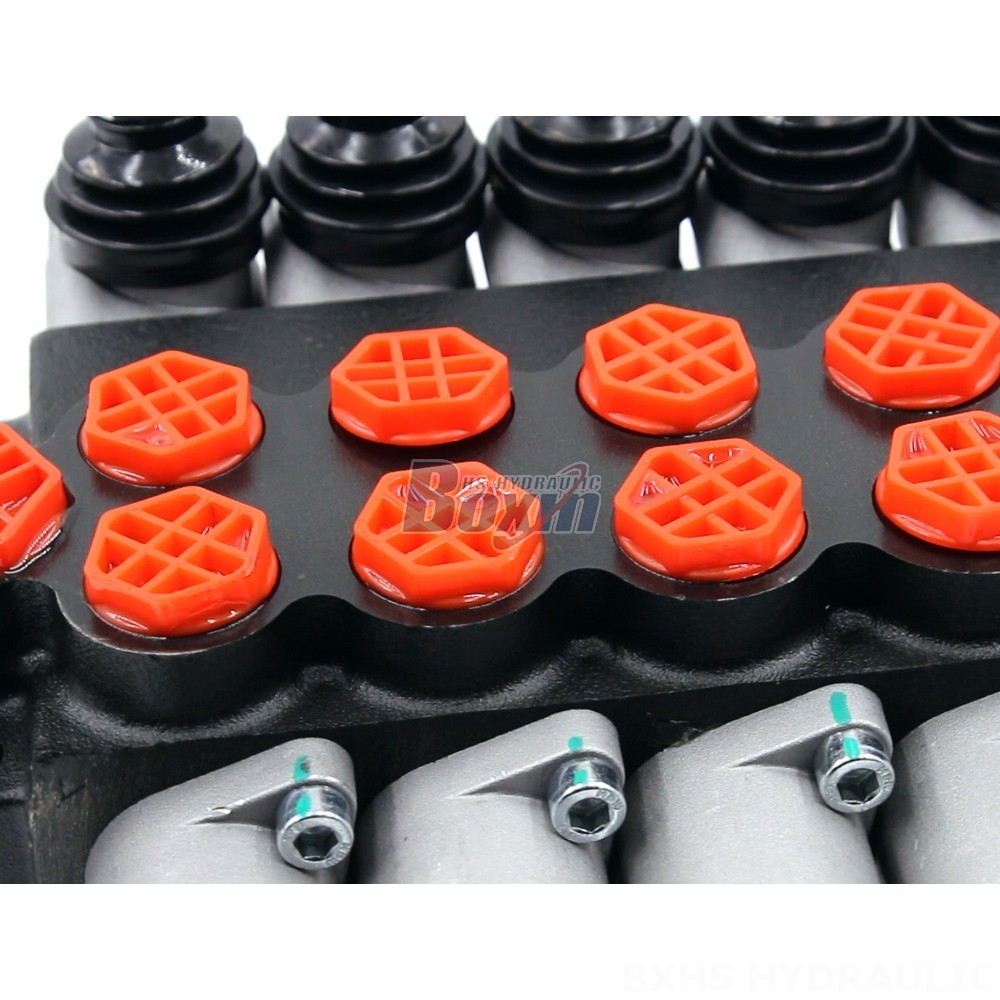

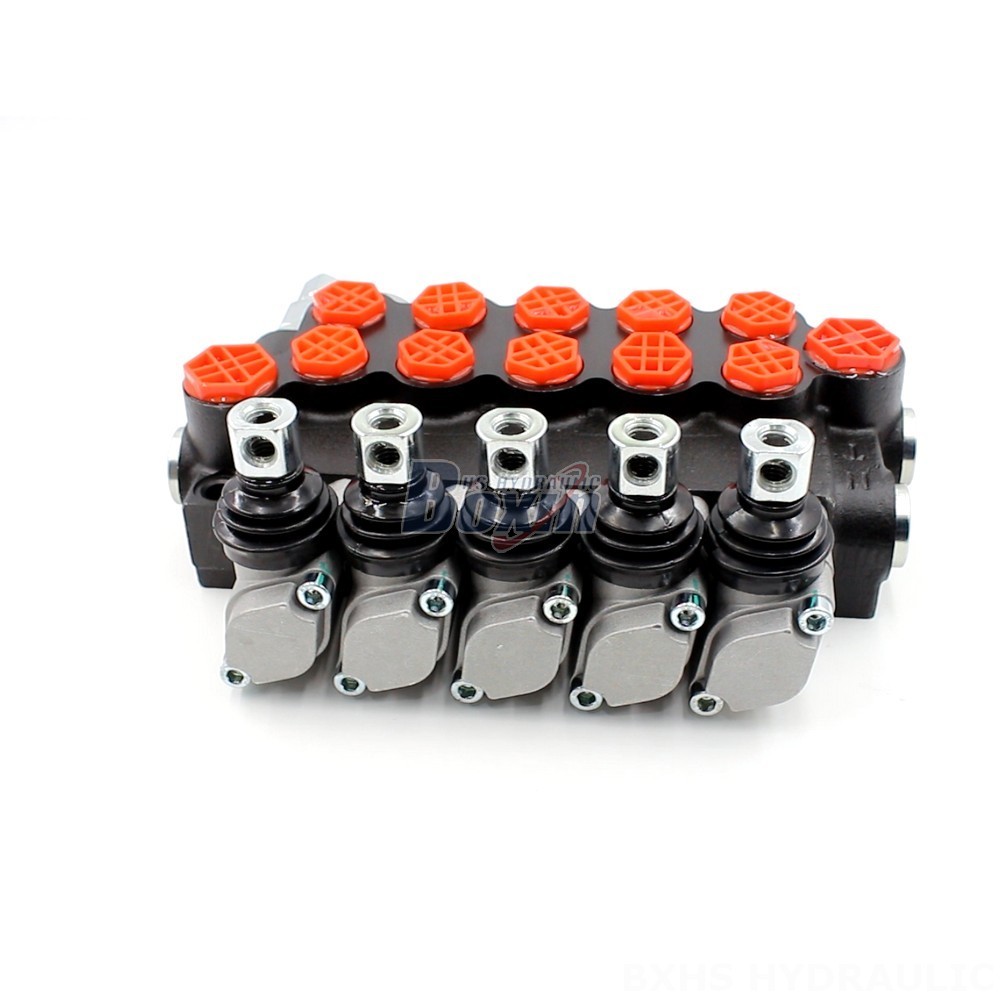

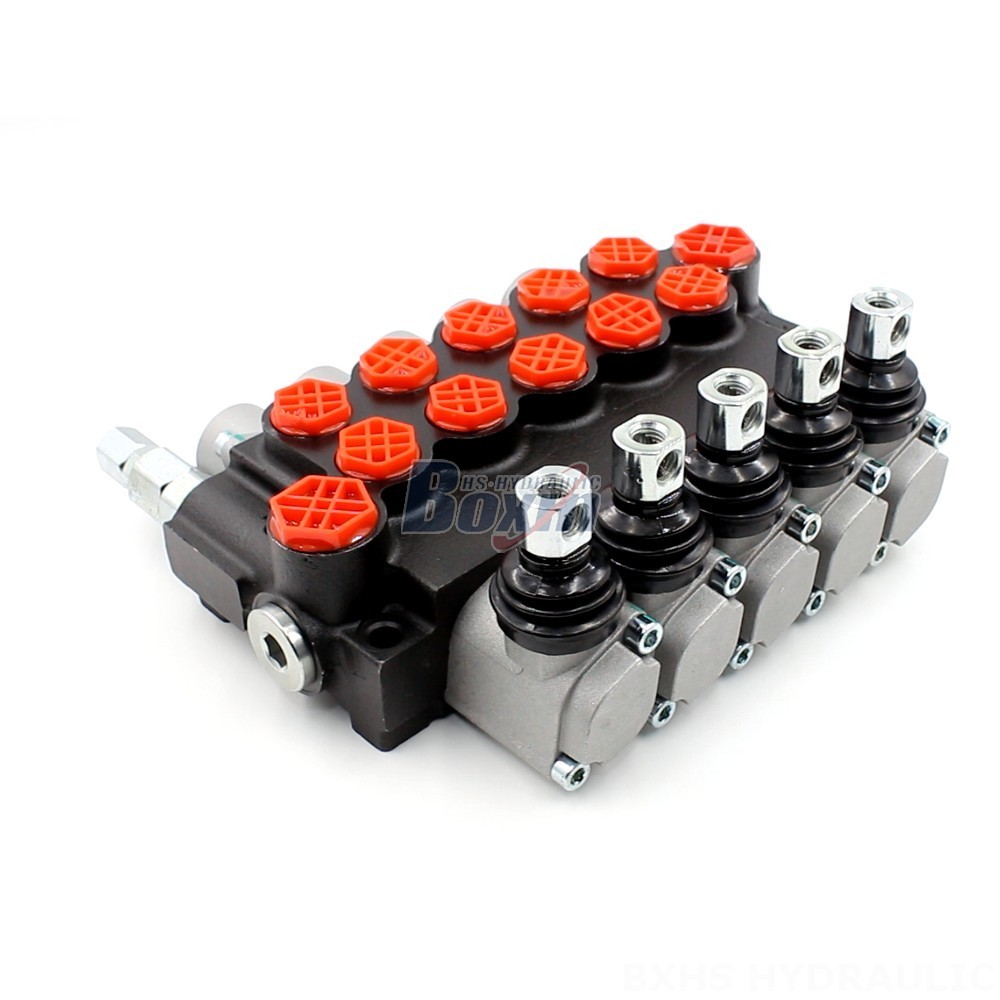

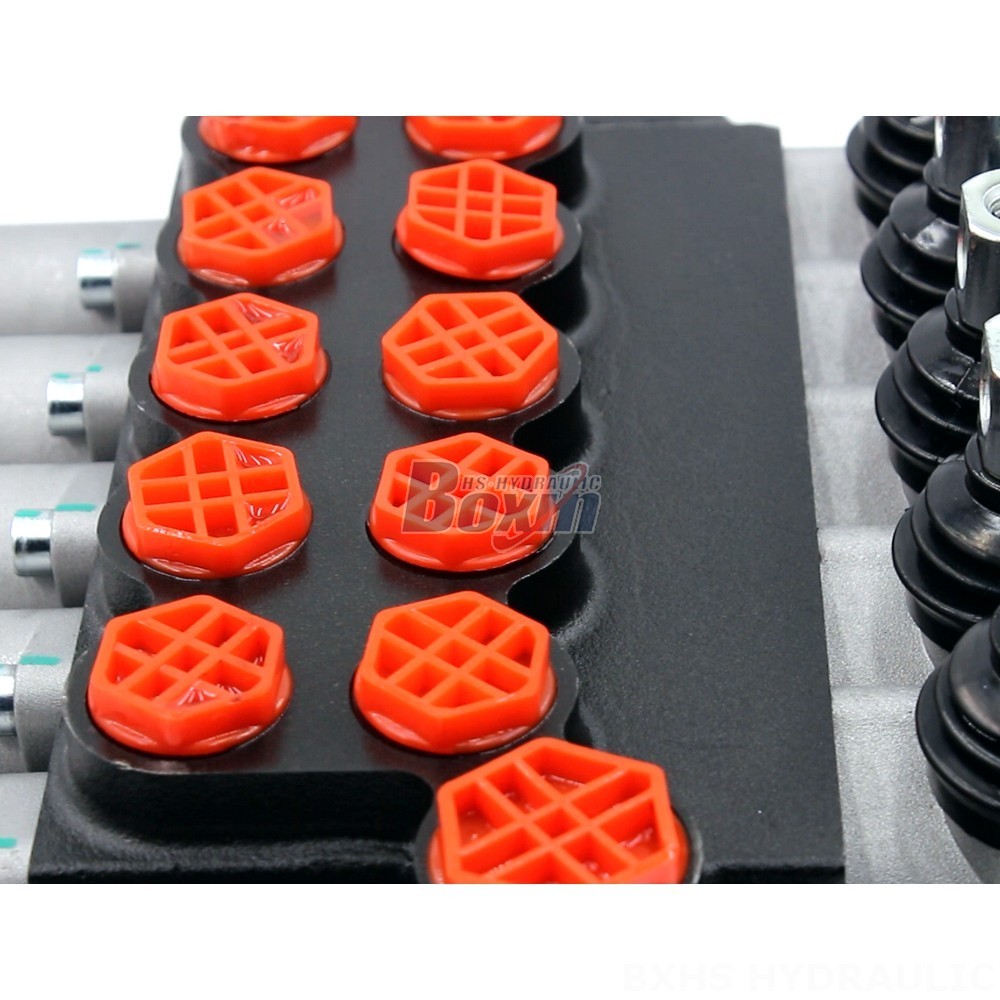

The P40-G12-G38 Directional Control Valve is a high-performance hydraulic valve designed for demanding applications in various industries, including material handling, construction, earth moving, agriculture, and industrial vehicles. This 5-section valve features a monoblock construction, manual control, and a rated flow of 40 L/min (10.5 US gpm). Its robust design ensures reliable operation under pressures up to 250 bar (3600 psi) and ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F).
| P40-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Solenoid och Joystick, Manuell och Joystick, Magnetventil och kabel |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 40 l/min (10,5 US gpm) |
| Maximalt tryck | 250 bar (3600 psi) |
| Inloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Utloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Portstorlek | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**Key Features:**
- **Control Method:** Manual
- **Section:** 5 Section
- **Structure Type:** Monoblock valve
- **Rated Flow:** 40 L/min (10.5 US gpm)
- **Max Pressure:** 250 bar (3600 psi)
- **Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
- **Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
- **Spool:** 5 Spool
- **Series:** P40 Series
**Applications:**
- Material Handling
- Construction and Earth Moving
- Agriculture
- Industrial Vehicles
**Applicable Models:**
- Telehandler
- Forklift
- All Terrain Crane
- Stacker
- Aerial Platform
- Motor Grader
- Mini Excavator
- Skid Steer Loader
- Compact Wheel Loader
- Wheel Loader
