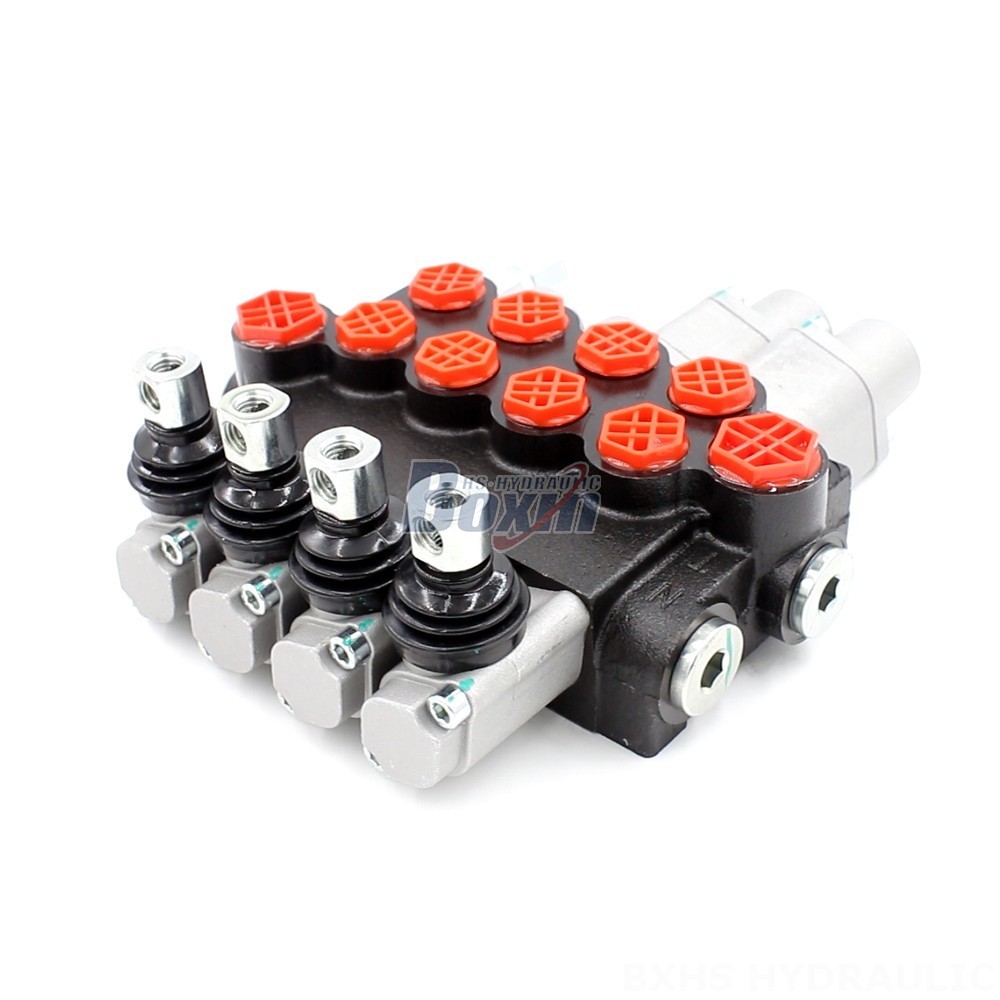

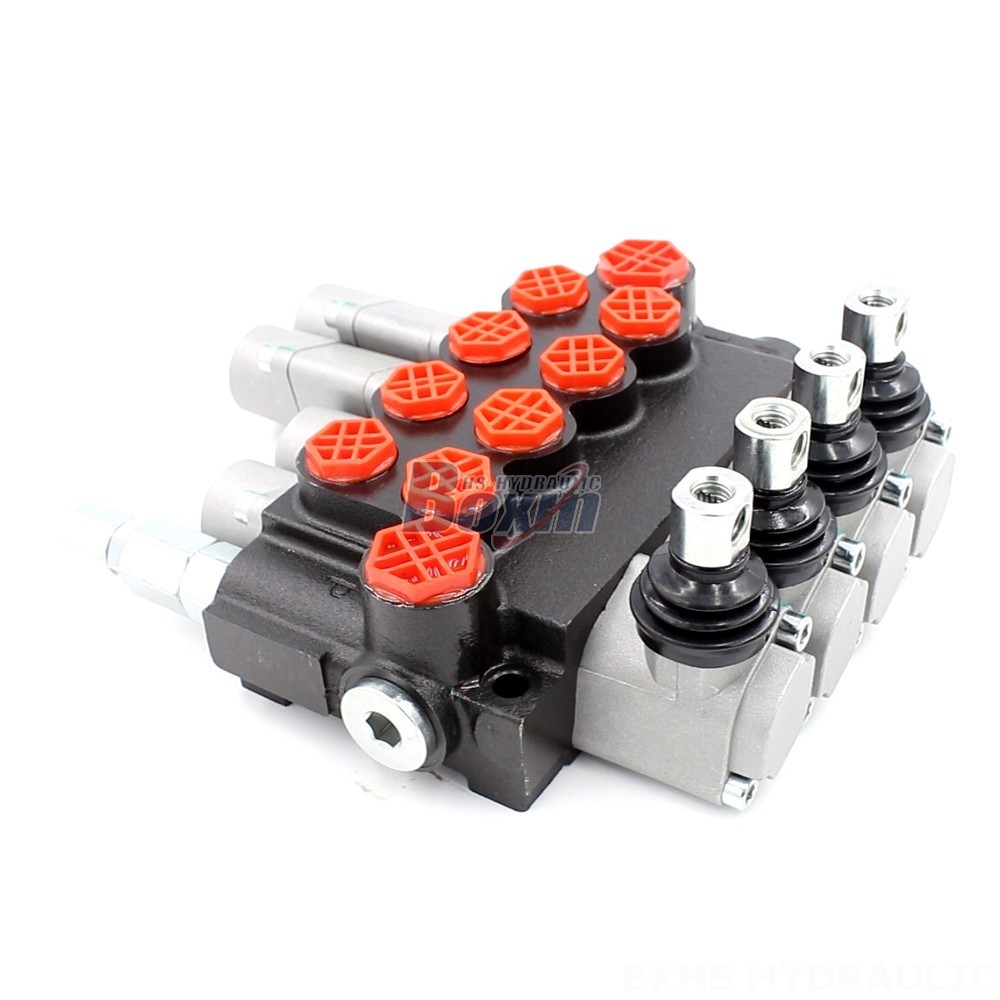

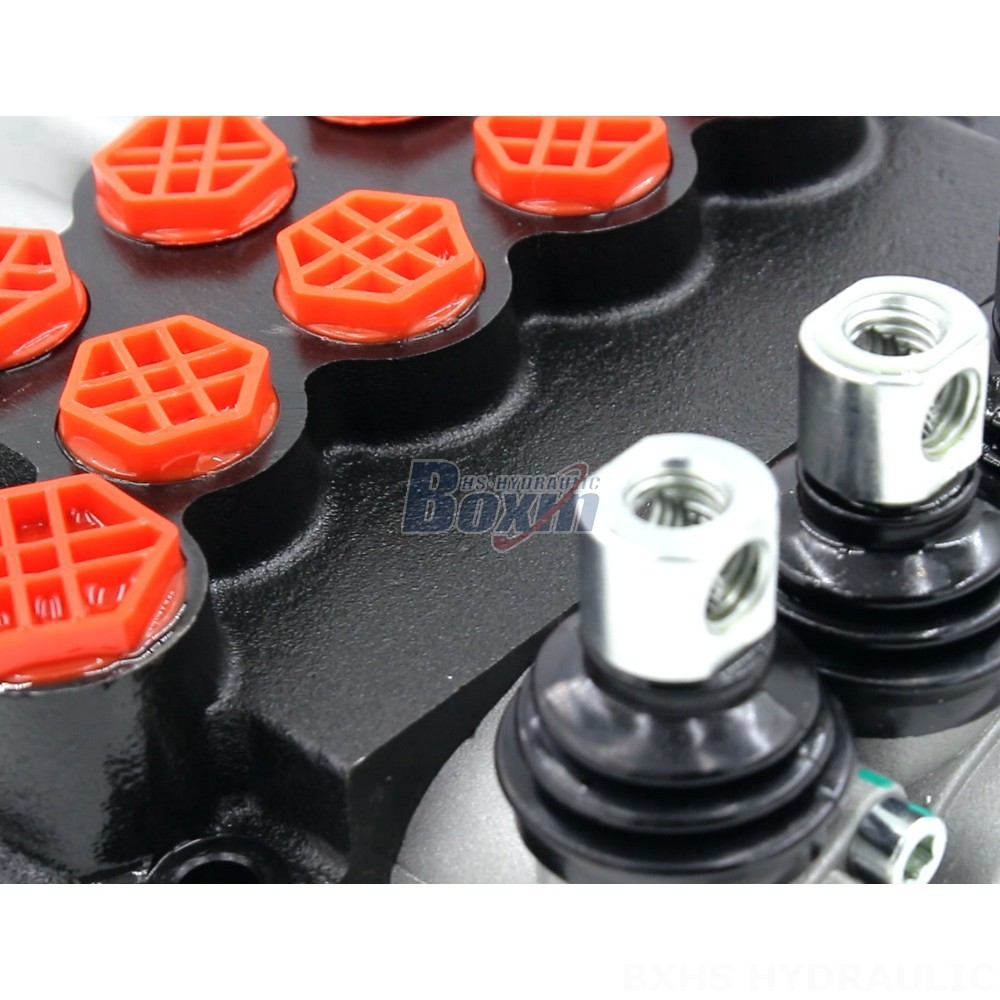

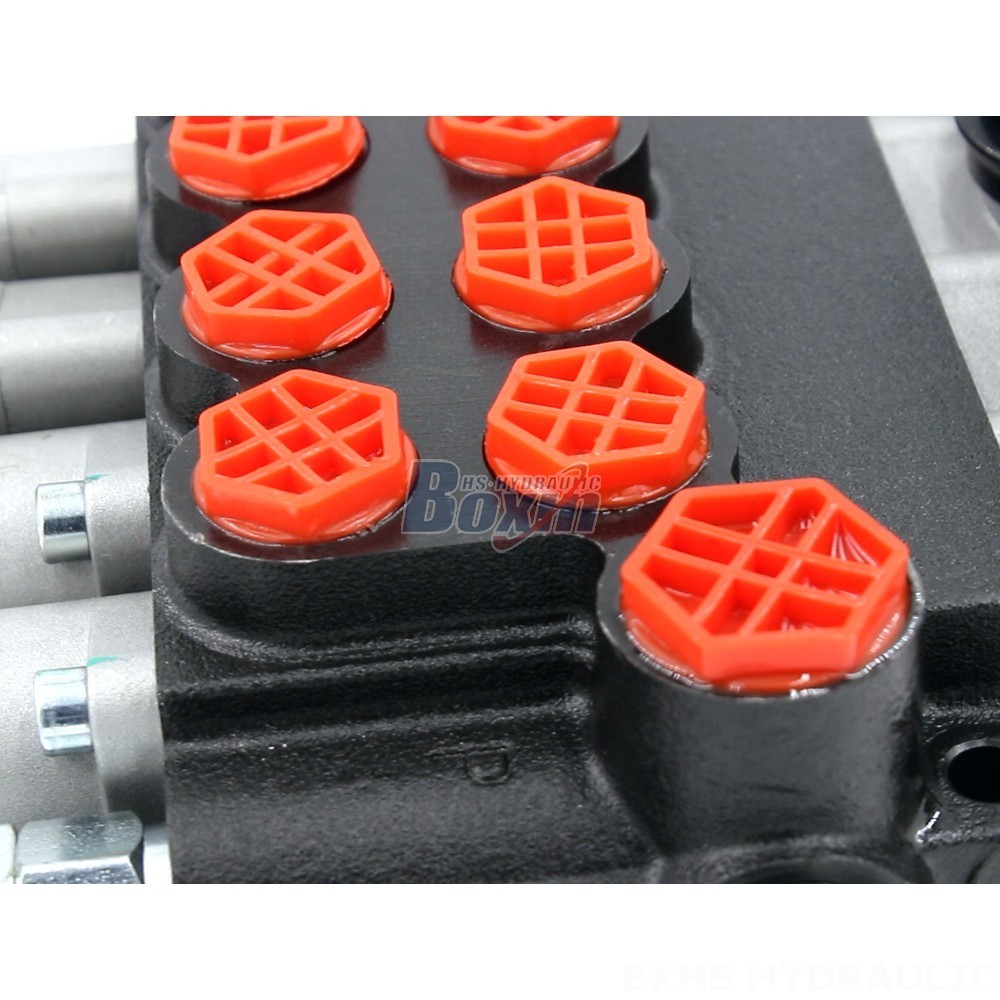

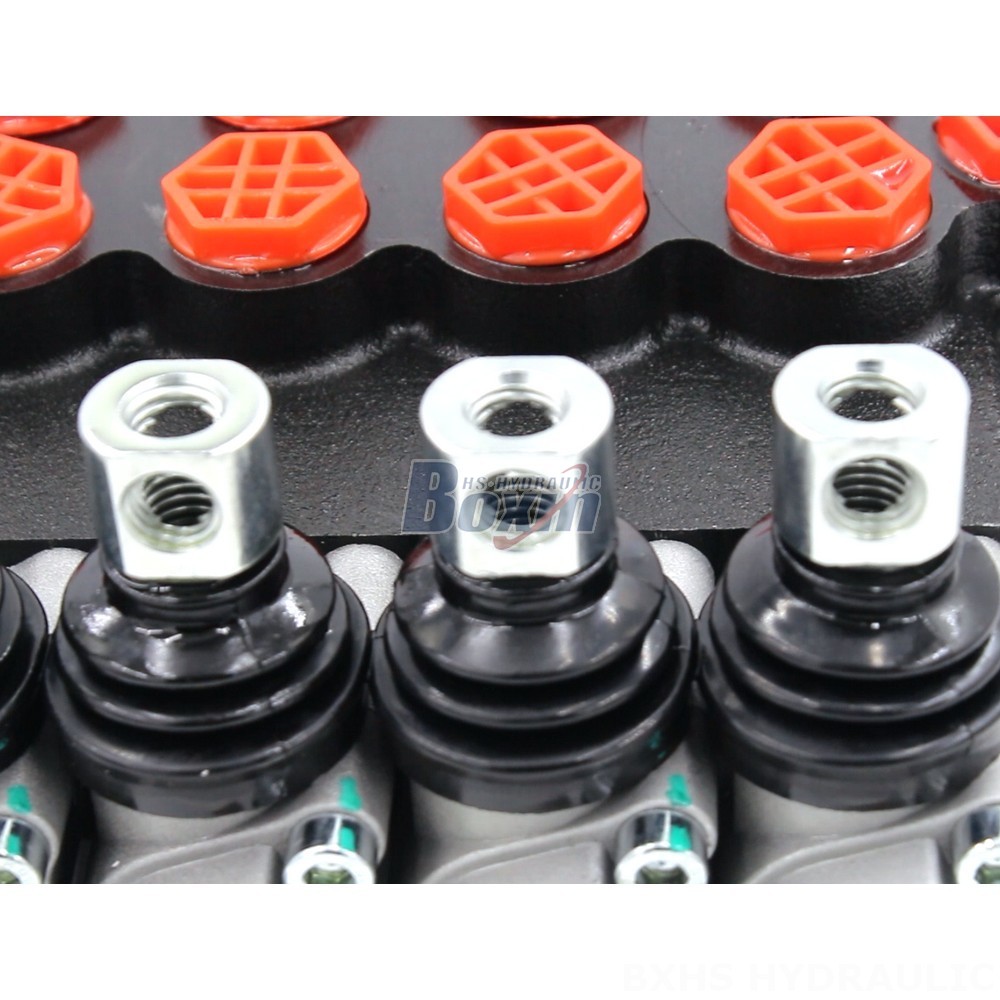

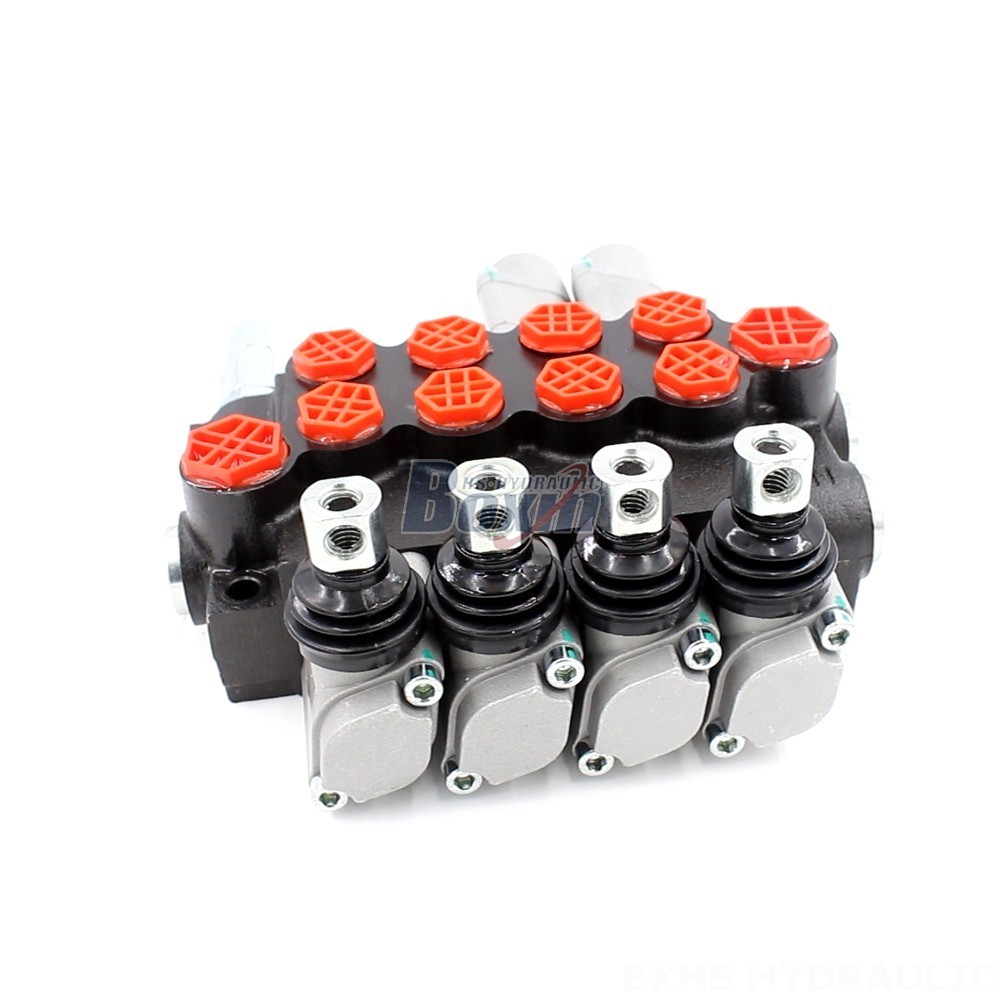

Introducing the P40-G12-G38 Monoblock Directional Valve, a high-performance hydraulic valve designed for precision and durability in demanding hydraulic applications. This 4-section, manually controlled valve boasts a rated flow of 40 L/min and a maximum pressure of 250 bar, making it ideal for a wide range of hydraulic systems.
| P40-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Solenoid och Joystick, Manuell och Joystick, Magnetventil och kabel |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 40 l/min (10,5 US gpm) |
| Maximalt tryck | 250 bar (3600 psi) |
| Inloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Utloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Portstorlek | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**P40-G12-G38 Monoblock Directional Valve: Precision and Durability in Hydraulics**
**Key Features:**
- **Manual Control** for precise and reliable operation
- **4 Section** design for versatile hydraulic system configurations
- **Monoblock Valve** construction for compact and robust performance
- **Rated Flow of 40 L/min** for efficient hydraulic fluid flow
- **Maximum Pressure of 250 bar** for demanding hydraulic applications
- **Operating Viscosity Range of 15 - 75 mm²/s** for compatibility with various hydraulic fluids
- **Ambient Temperature Range of -40°C to +80°C** for reliable operation in harsh environments
- **4 Spool** design for precise flow control
- **P40 Series** compatibility for seamless integration with other hydraulic components
**Application Areas:**
- Material Handling (e.g., forklifts, telehandlers)
- Construction and Earth Moving (e.g., excavators, motor graders)
- Agriculture (e.g., tractors, harvesters)
- Industrial Vehicles (e.g., skid steer loaders, compact wheel loaders)
**Applicable Models:**
- Telehandlers
- Forklifts
- All Terrain Cranes
- Stackers
- Aerial Platforms
- Motor Graders
- Midi-Excavators
- Mini-Excavators
- Skid Steer Loaders
- Compact Wheel Loaders
The P40-G12-G38 Monoblock Directional Valve is the ideal choice for hydraulic systems that demand precision, durability, and reliable performance. Its advanced design and robust construction ensure long-lasting operation even in the most challenging hydraulic applications.
