The P40-G12-G38 Monoblock Directional Valve is a versatile and high-performing component designed for demanding hydraulic applications in various industries, including material handling, construction, earth moving, agriculture, and industrial vehicles. It offers precise control with its manual operation, ensuring reliable and efficient system performance.
| P40-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Solenoid och Joystick, Manuell och Joystick, Magnetventil och kabel |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 40 l/min (10,5 US gpm) |
| Maximalt tryck | 250 bar (3600 psi) |
| Inloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Utloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Portstorlek | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

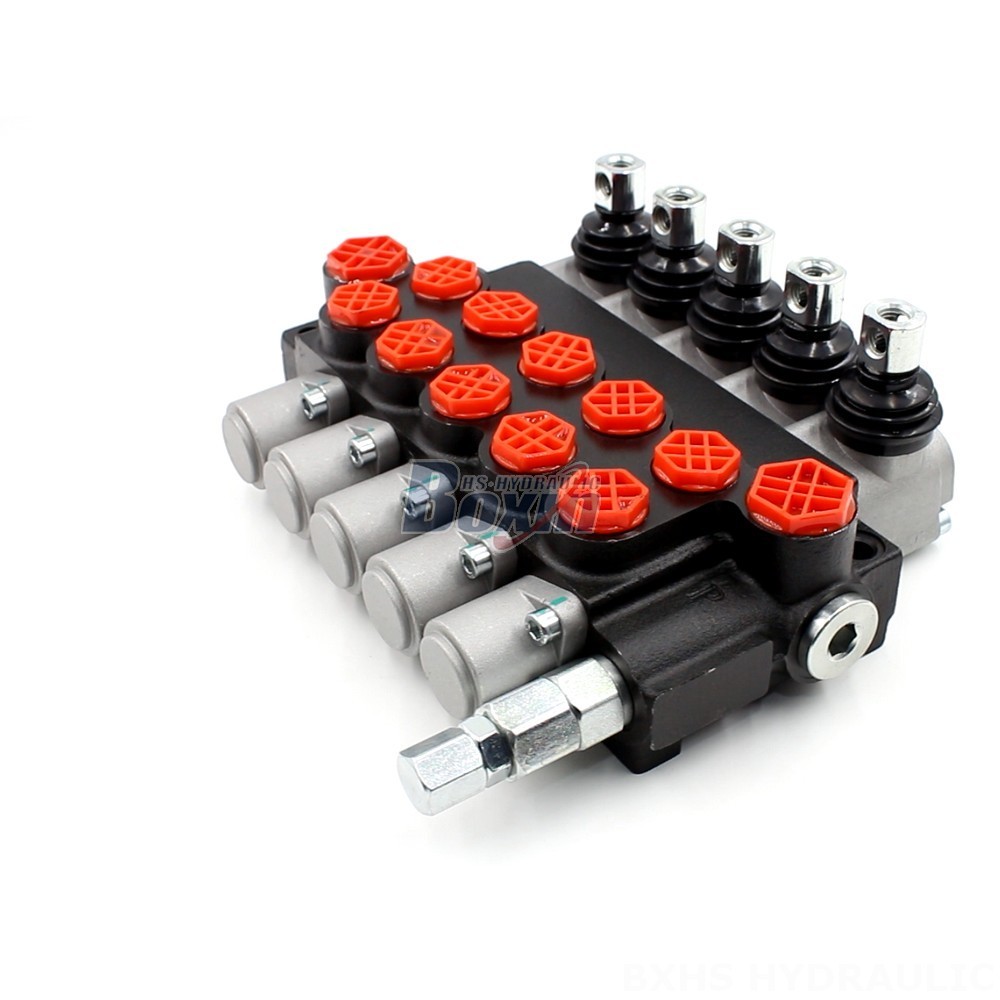

**P40-G12-G38 Monoblock Directional Valve**
**Control Method:** Manual
**Section:** 5 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 40 L/min (10.5 US gpm)
**Max Pressure:** 250 bar (3600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 5 Spool
**Series:** P40 Series
The P40-G12-G38 Monoblock Directional Valve is a robust and durable component, well-suited for applications requiring precise control and high pressure handling. Its versatile design makes it suitable for a wide range of hydraulic systems, providing reliable performance in demanding operating conditions.
**Key Features:**
* Manual control for precise operation
* Monoblock construction for enhanced durability
* High flow capacity of 40 L/min
* Maximum pressure rating of 250 bar
* Wide operating viscosity range for adaptability
* Temperature resistance from -40°C to +80°C
* 5 spool design for versatile control options
