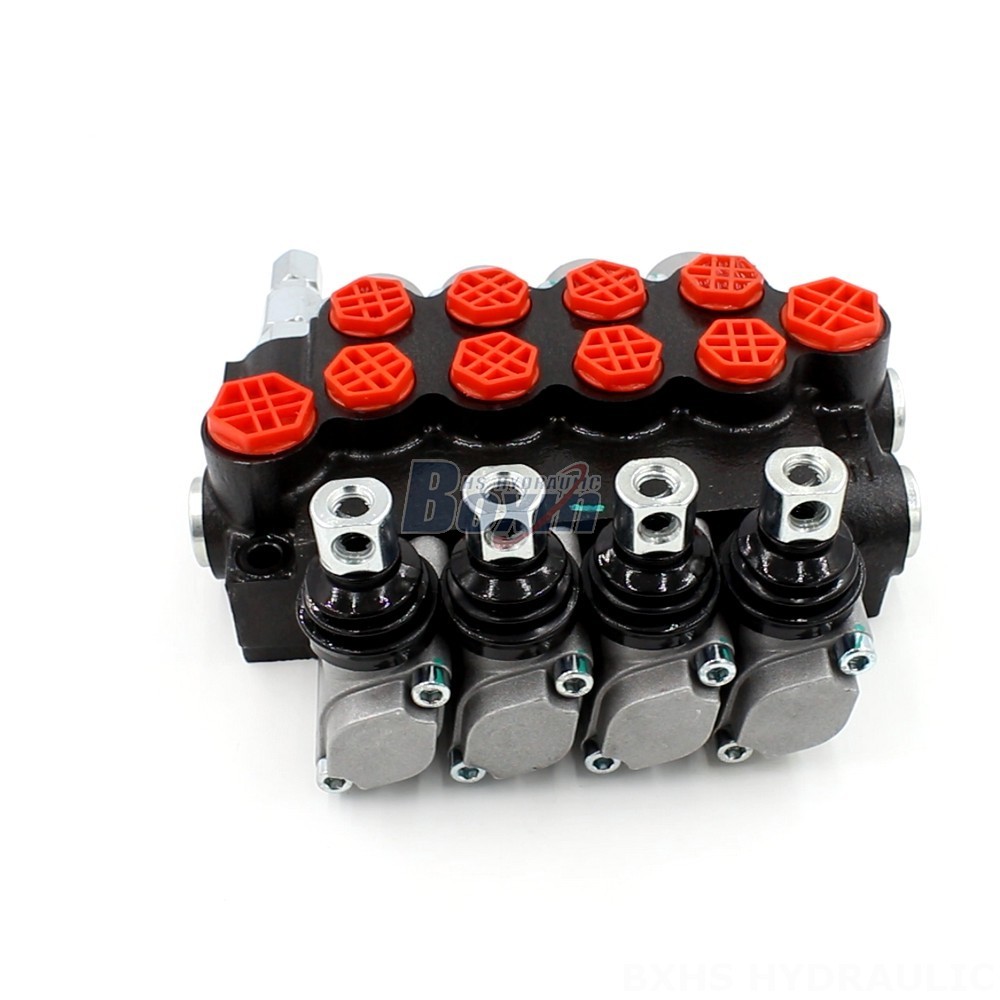

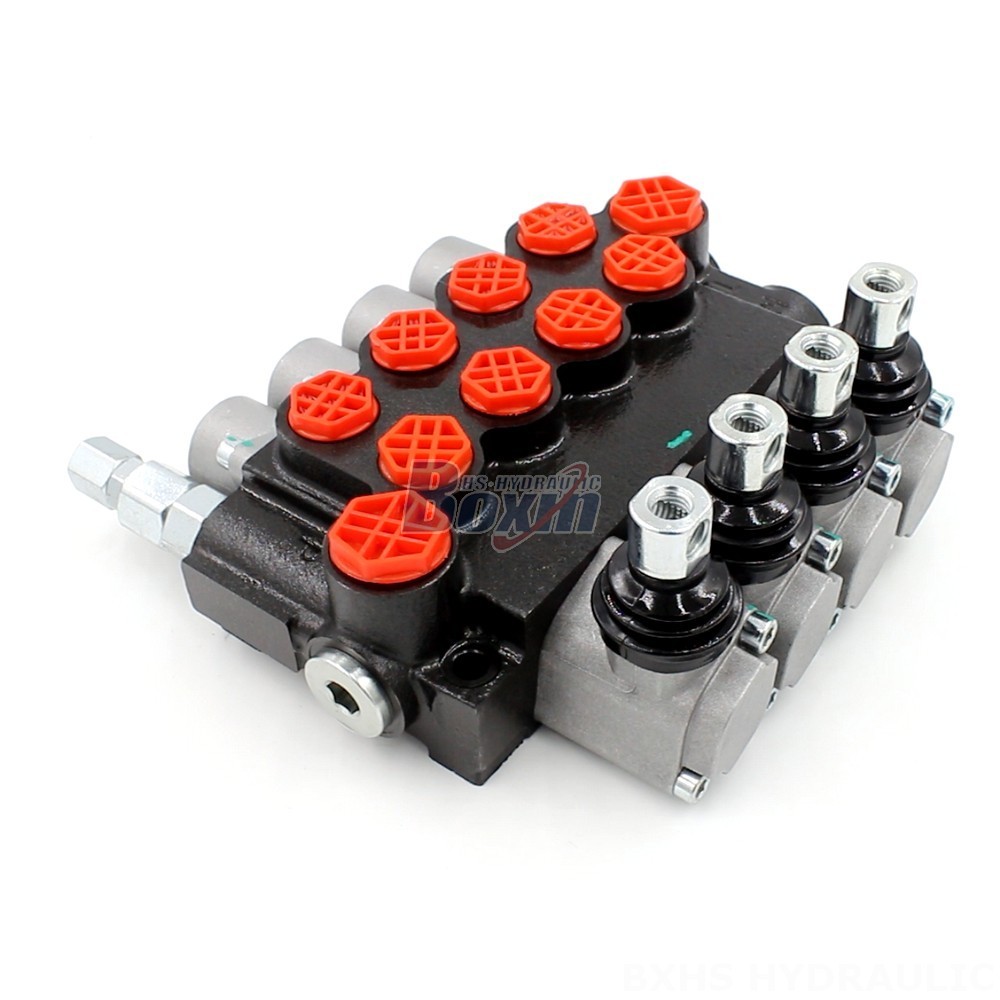

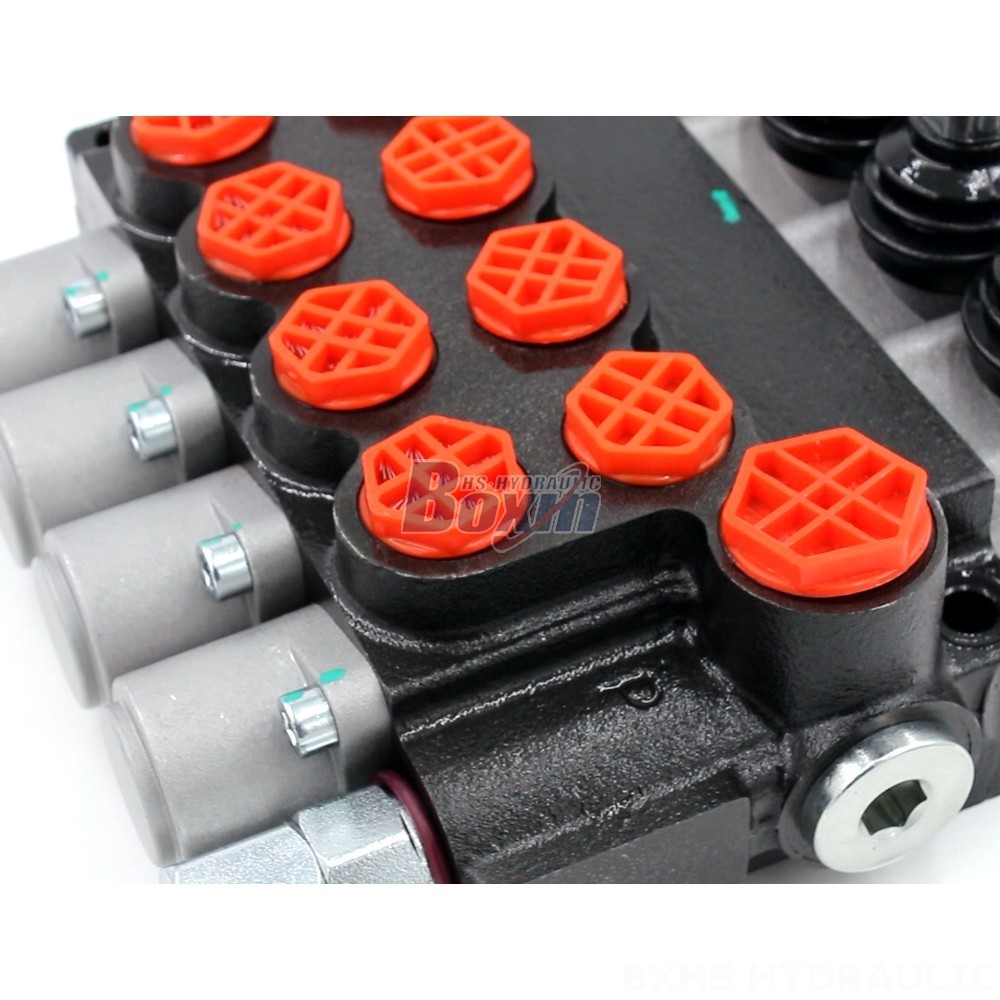

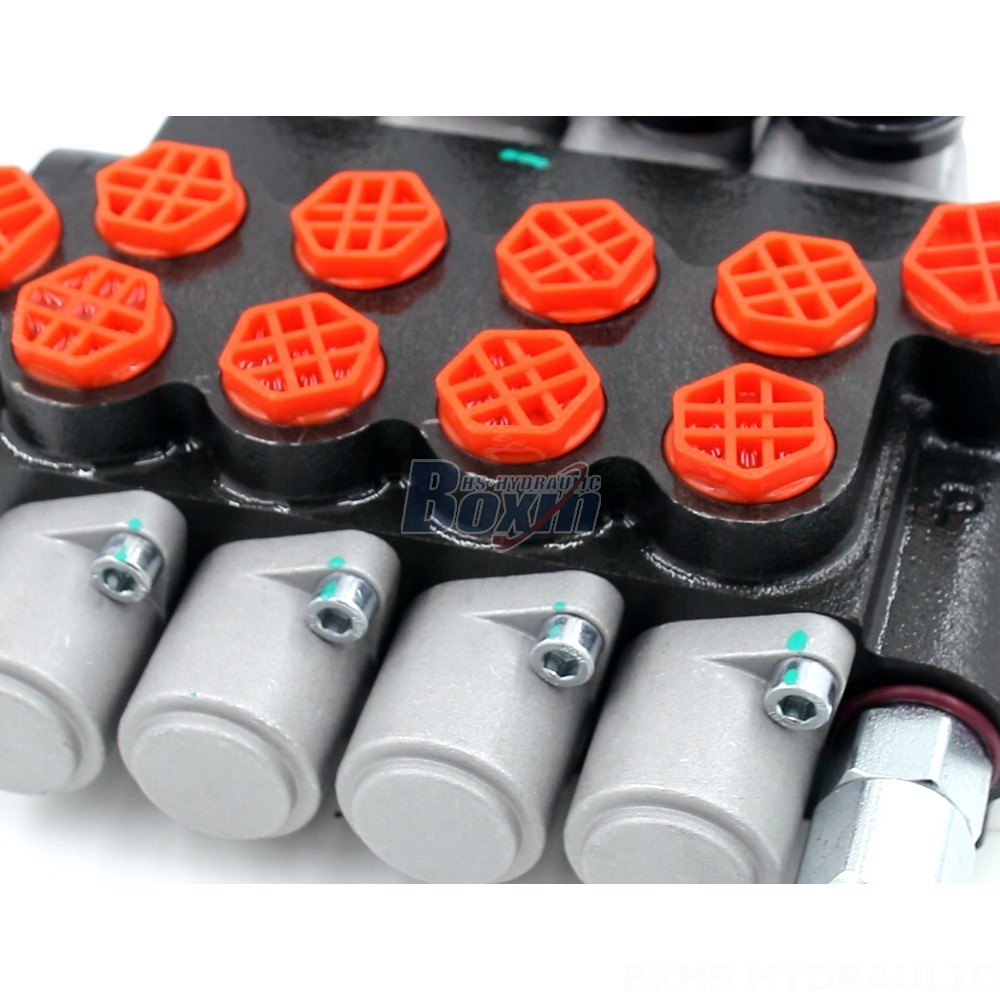

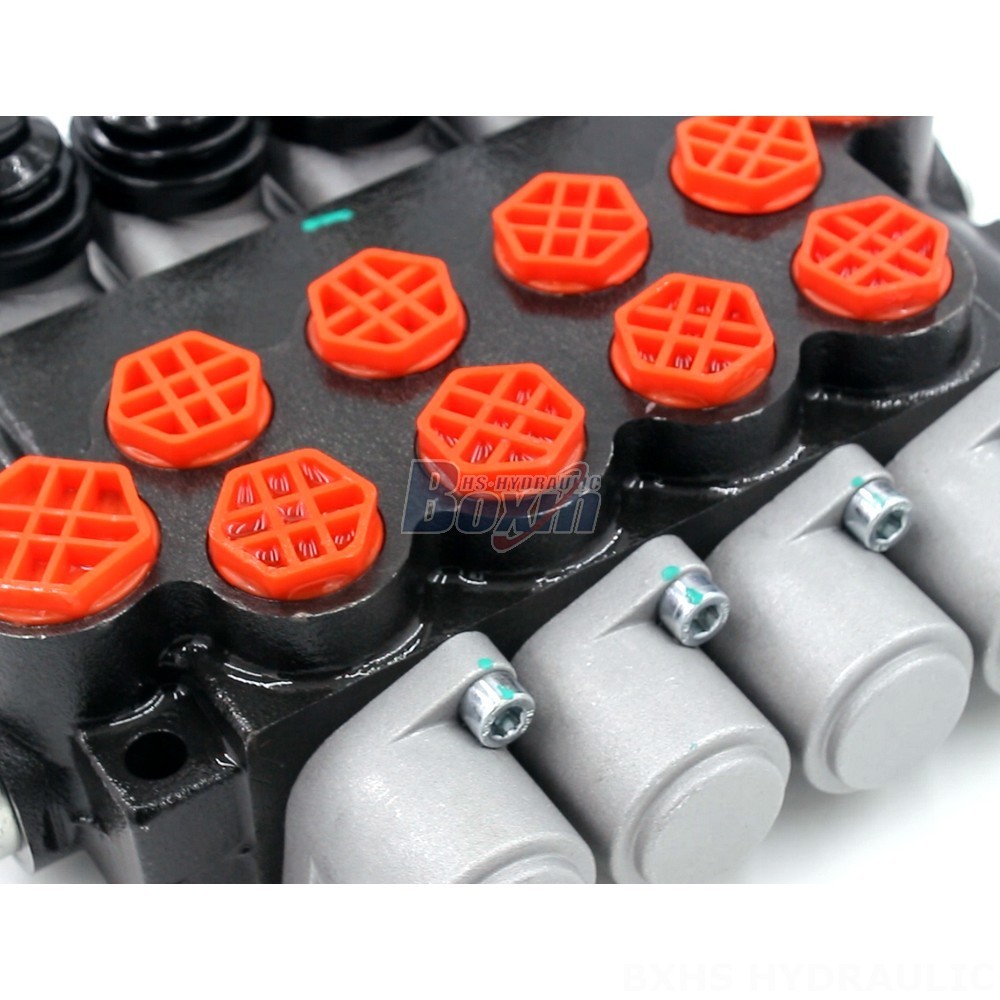

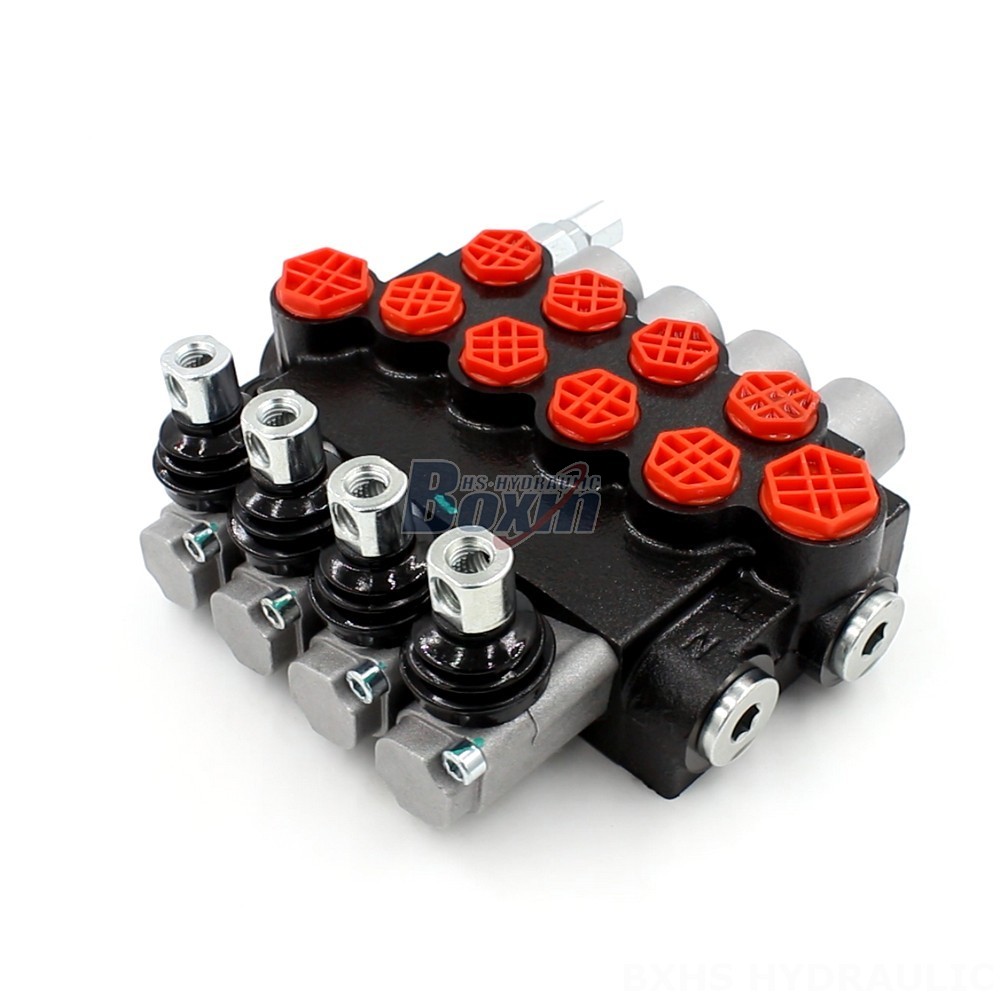

P40-G12-G38-OT 4-Spool Hydraulic Directional Valve | Factory Direct & Customizable

Name: P40-G12-G38-OT 4-Spool Hydraulic Directional Valve | Factory Direct & Customizable
Brand: Boxinhuasheng
SKU: BXHS-53470
Availability: InStock

Kontrollmetod:Manuell

Spole:4 ventilsektioner

Nominellt flöde:40 l/min (10,5 US gpm)

Maximalt tryck:250 bar (3600 psi)

Inloppsport:G1/2

Utloppsport:G1/2

Portstorlek:G3/8

Leverantör:BXHS

Produkttyp:Monoblockriktningsventil

Produktserier:P40-serien Monoblockriktningsventil

Packagingsize:24*23*13

Grossweight:8.20 kg

Tillgänglighet: I lager

Beskrivning

P40-G12-G38-OT 4-Spool Hydraulic Directional Valve | Factory Direct & Customizable

P40-G12-G38-OT 4-Spool Hydraulic Directional Valve | Factory Direct & Customizable drawing image

The P40-G12-G38-OT 4-Spool Hydraulic Directional Valve is a high-performance valve designed for demanding hydraulic systems. With its robust monoblock construction, it offers exceptional durability and reliability. The valve features a 40 L/min rated flow capacity and a maximum pressure of 250 bar, making it suitable for a wide range of applications.

P40-serien Monoblockriktningsventil Parametrar
Kontrollmetod	Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Solenoid och Joystick, Manuell och Joystick, Magnetventil och kabel
Spole	1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner
Omgivningstemperaturintervall	-40°C till +80°C (-40°F till +176°F)
Strukturtyp	Monoblockventil
Sektion	1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner
Driftsviskositetsintervall	15 - 75 mm²/s (15 cSt till 75 cSt)
Nominellt flöde	40 l/min (10,5 US gpm)
Maximalt tryck	250 bar (3600 psi)
Inloppsport	G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Utloppsport	G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Portstorlek	G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

**Key Features:**

* Manual control for precise operation
* Monoblock design for improved durability and reduced leakage
* 4-spool configuration for versatile control
* Rated flow of 40 L/min for efficient system operation
* Maximum pressure of 250 bar for handling high-pressure applications
* Operating viscosity range of 15 - 75 mm²/s for compatibility with various fluids
* Ambient temperature range of -40°C to +80°C for operation in extreme conditions

**Applications:**

* Material handling equipment
* Construction equipment
* Agricultural equipment
* Industrial vehicles
