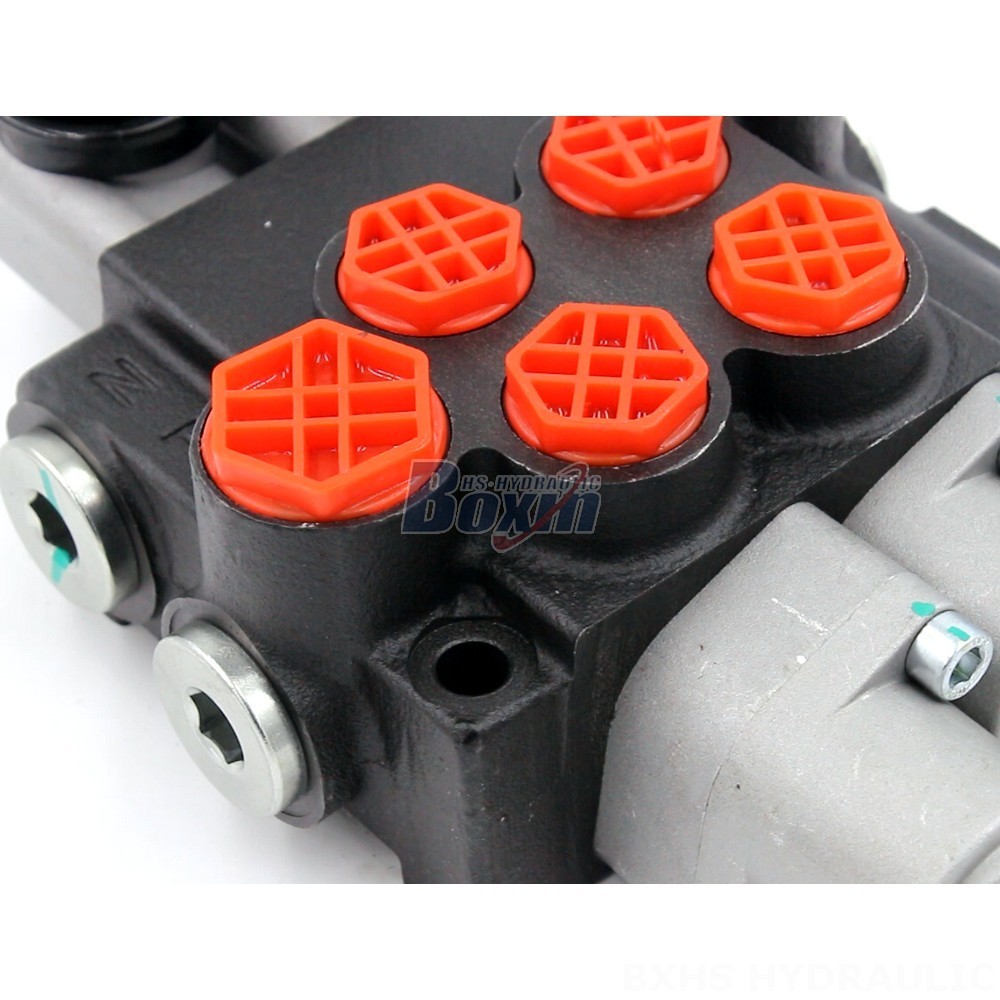

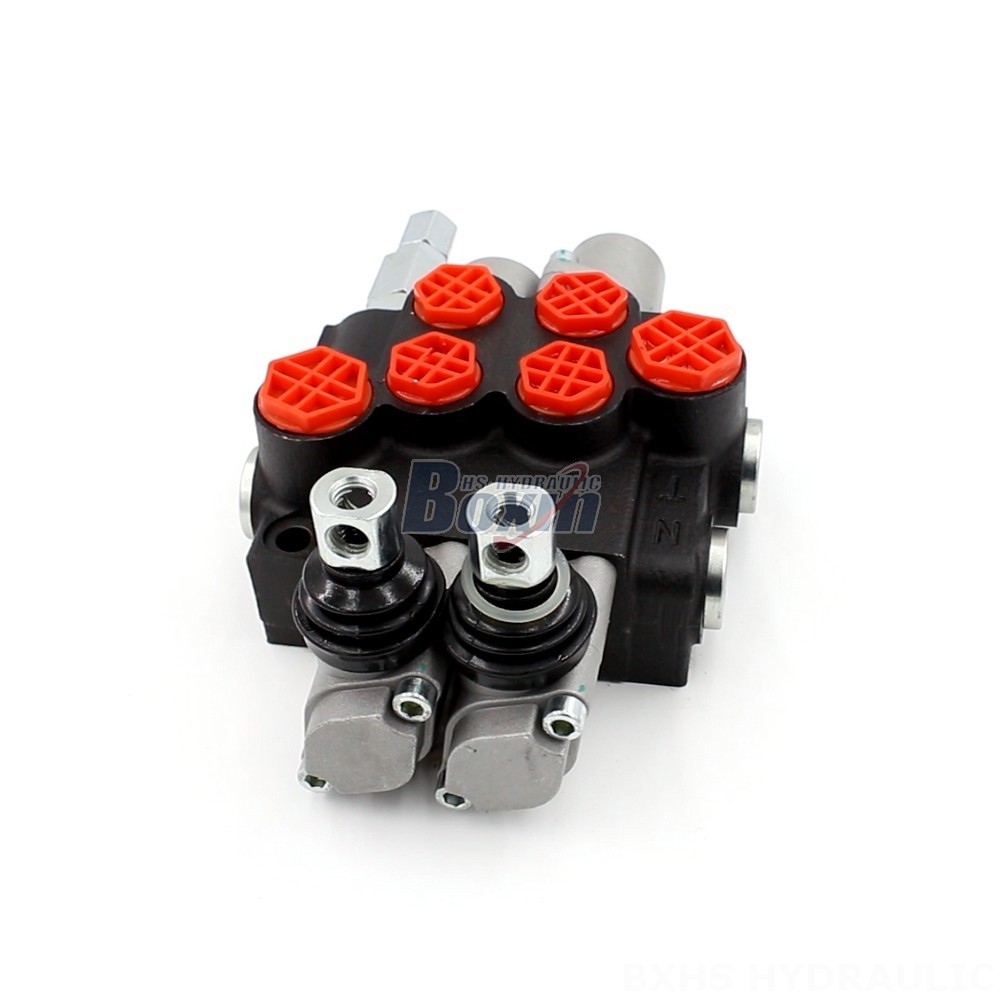

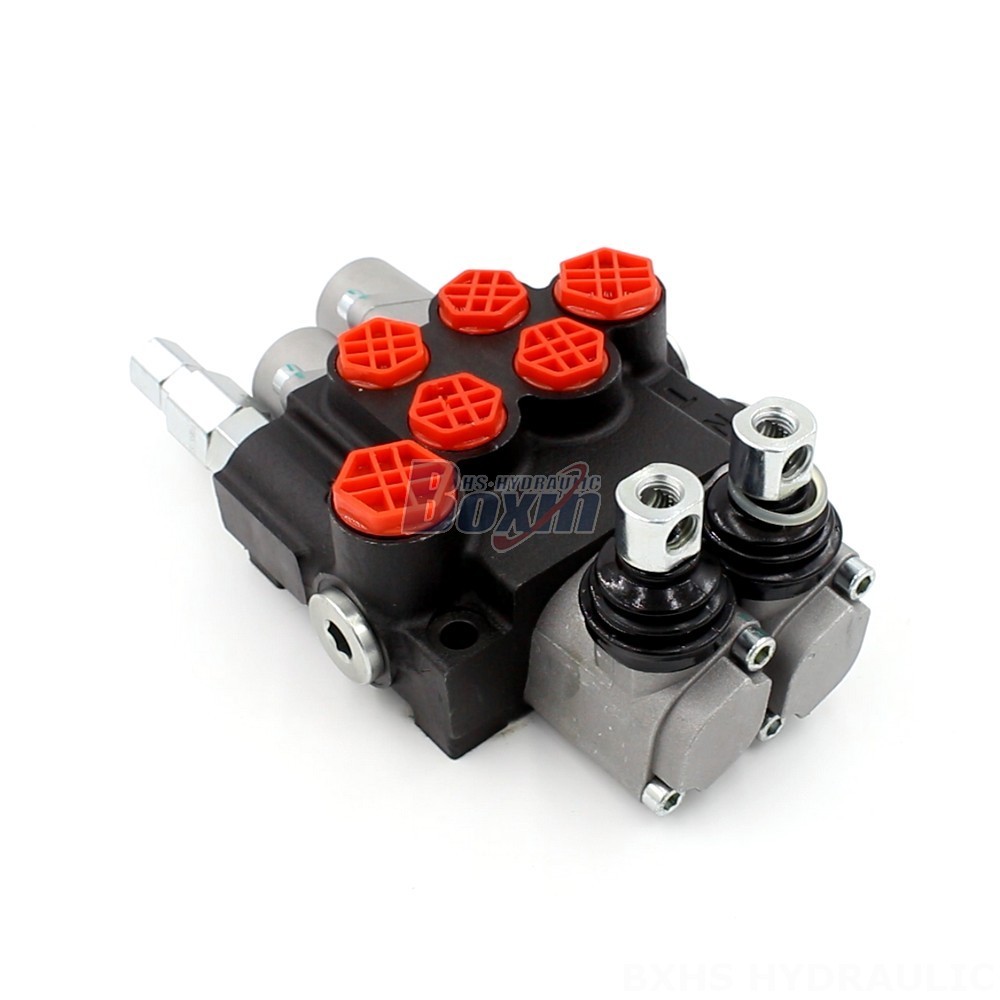

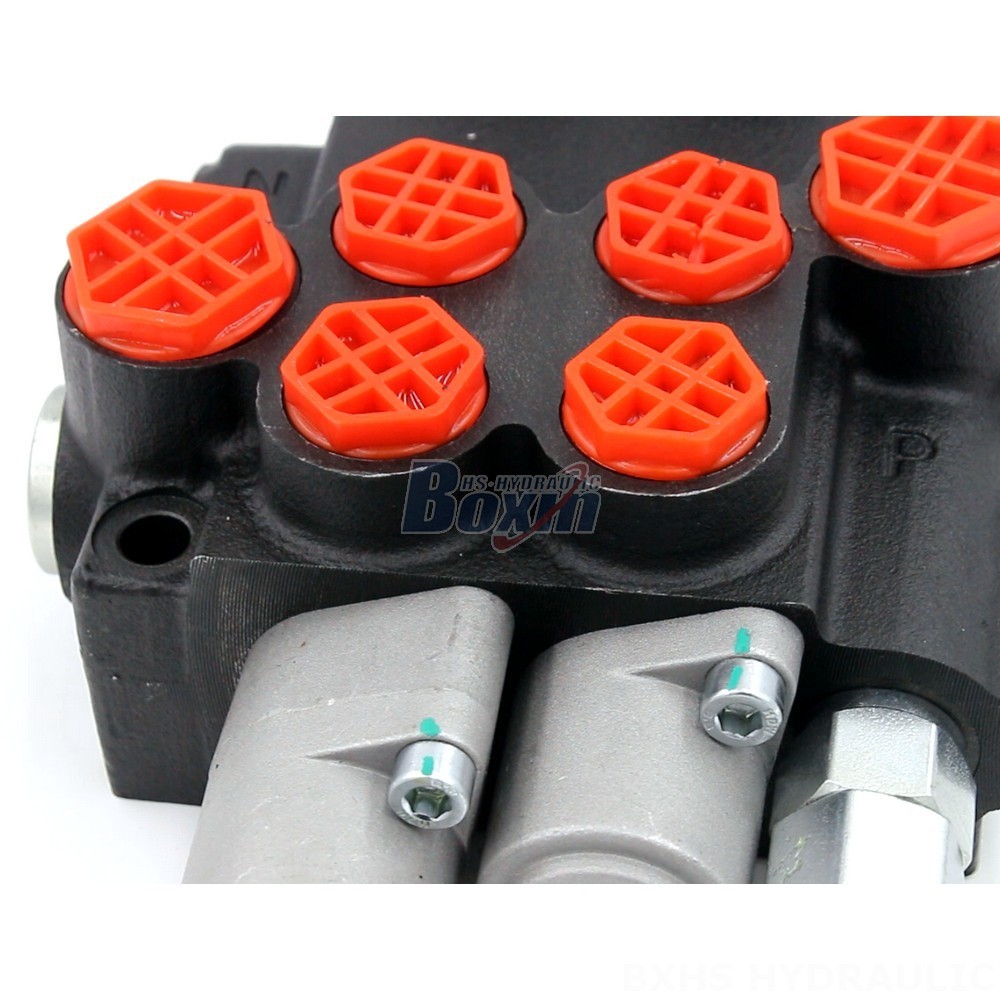

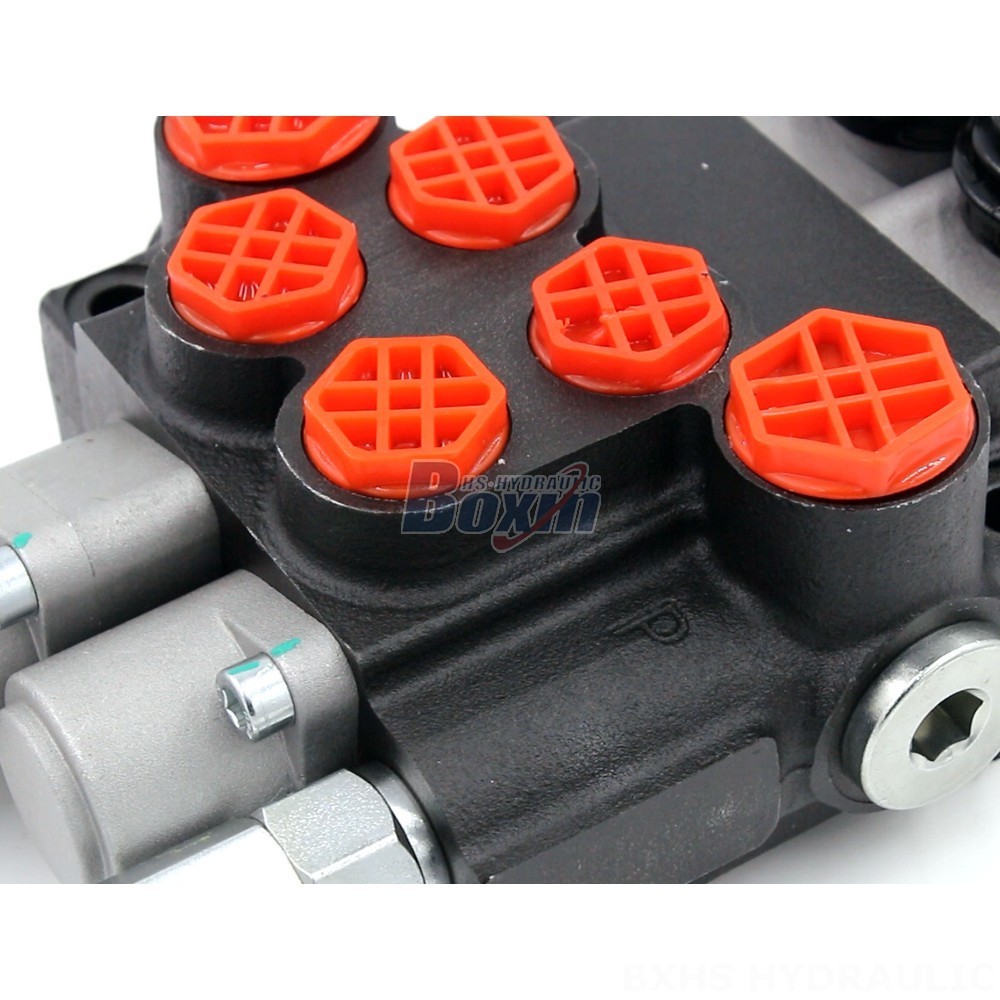

The P40-G12-G38-OT-QTW Monoblock Valve is a solenoid operated, 2-section directional control valve designed for demanding hydraulic applications in industries such as material handling, construction, and agriculture. It features a maximum operating pressure of 250 bar and a rated flow of 40 L/min, making it suitable for a wide range of machinery including telehandlers, forklifts, and excavators.
| P40-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Solenoid och Joystick, Manuell och Joystick, Magnetventil och kabel |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 40 l/min (10,5 US gpm) |
| Maximalt tryck | 250 bar (3600 psi) |
| Inloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Utloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Portstorlek | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This P40 Series directional control valve is a robust, monoblock construction offering manual control. The valve is designed for demanding hydraulic applications, boasting a rated flow of 40 L/min and a maximum operating pressure of 250 bar. Its operating viscosity range spans from 15 to 75 mm²/s, suitable for various hydraulic fluids. The valve is equipped with two spools, allowing for precise control over hydraulic circuits. The P40-G12-G38-OT-QTW valve is ideally suited for heavy-duty machinery within material handling, construction, and agriculture industries, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders. Its compact design and high performance make it a reliable choice for demanding hydraulic applications.
