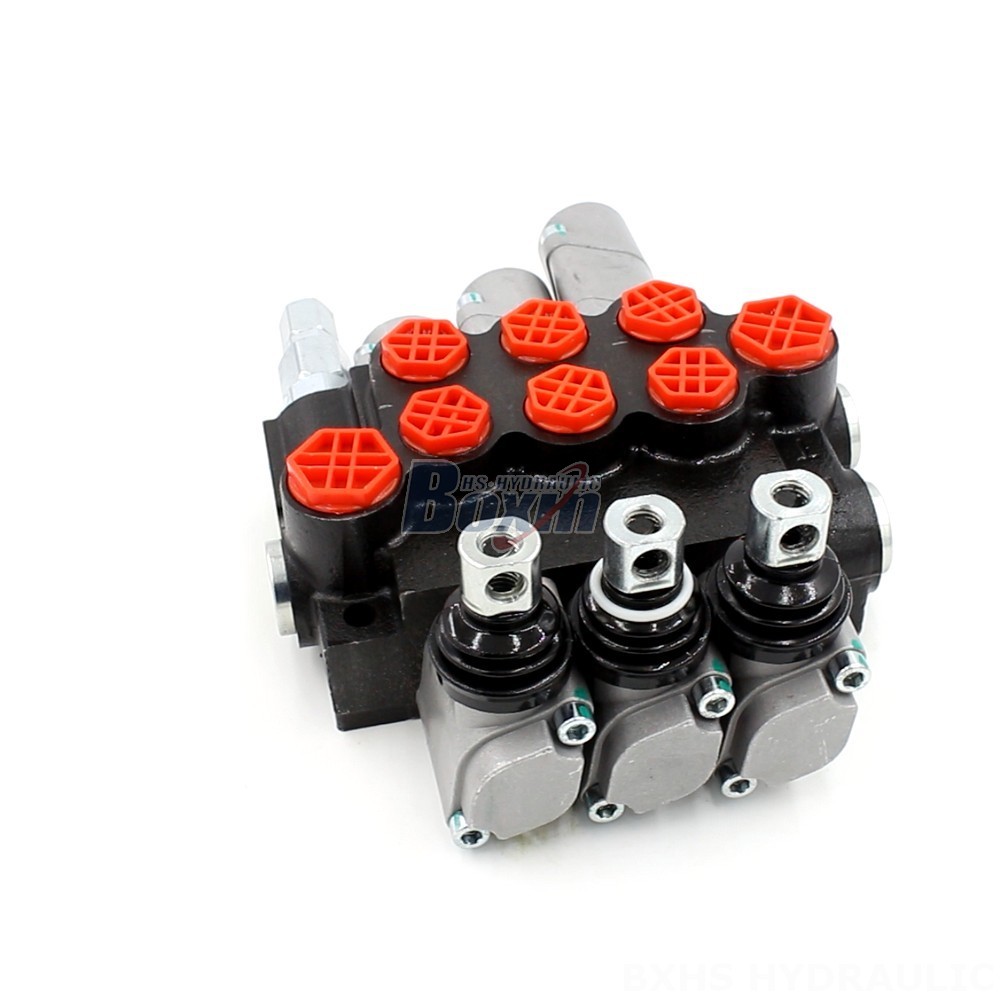

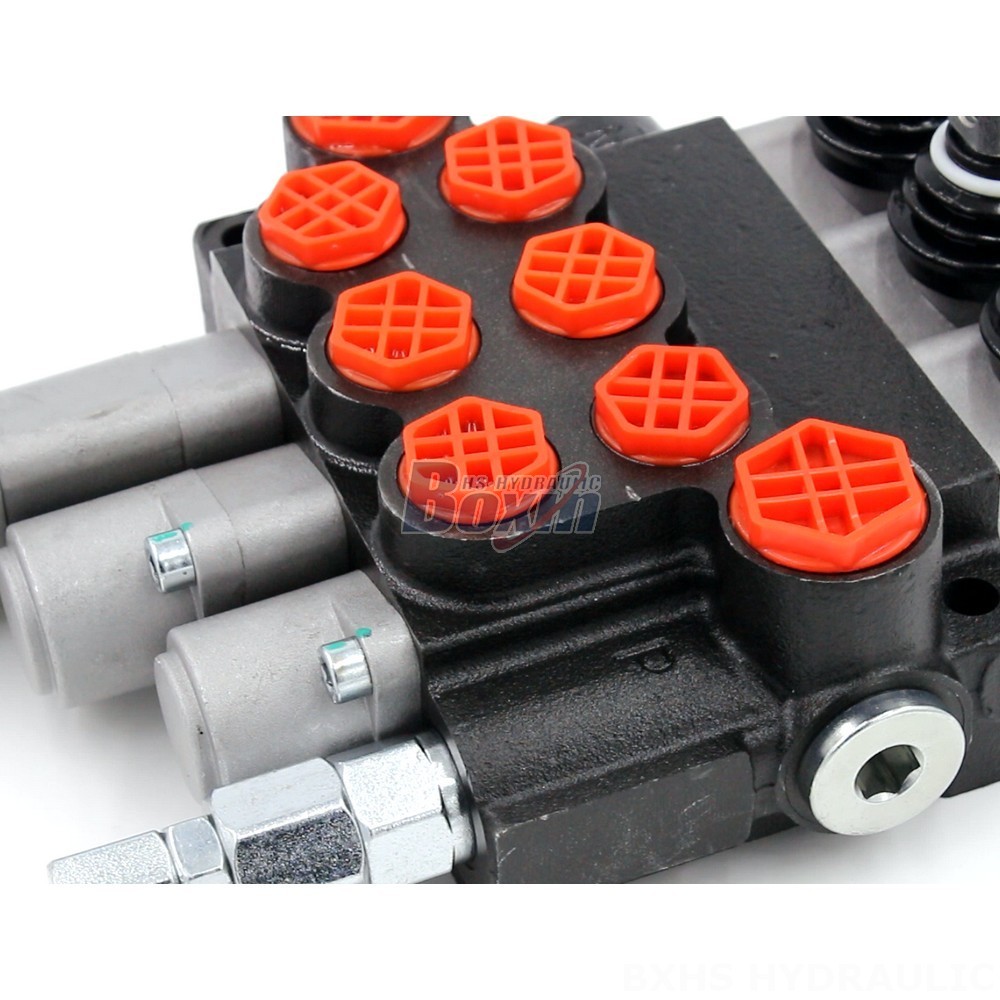

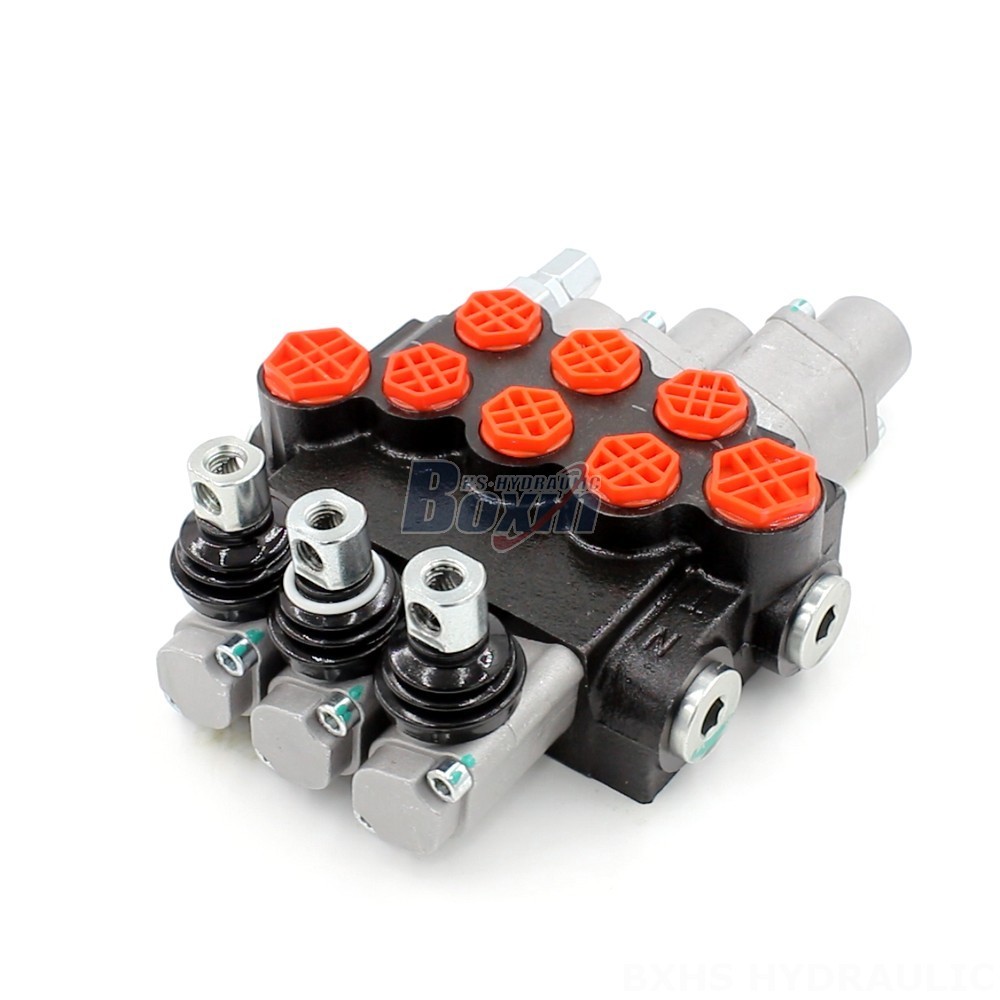

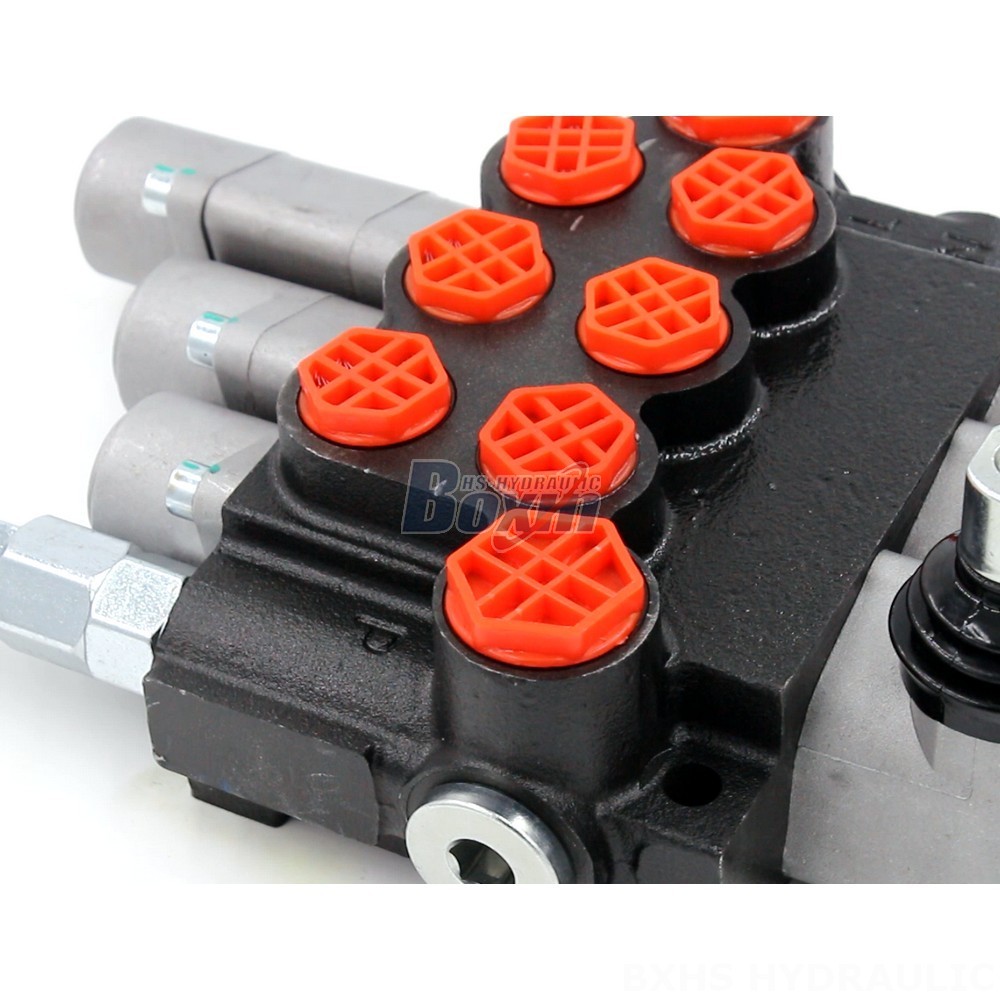

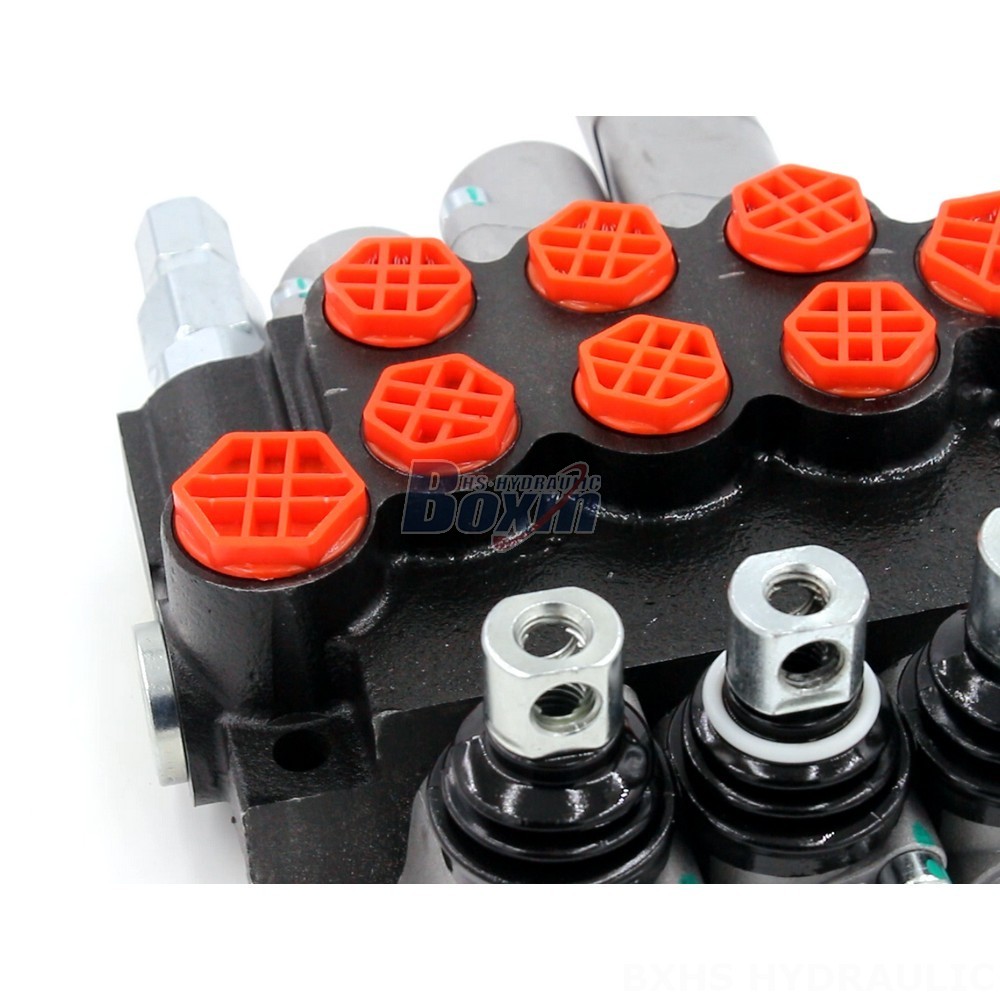

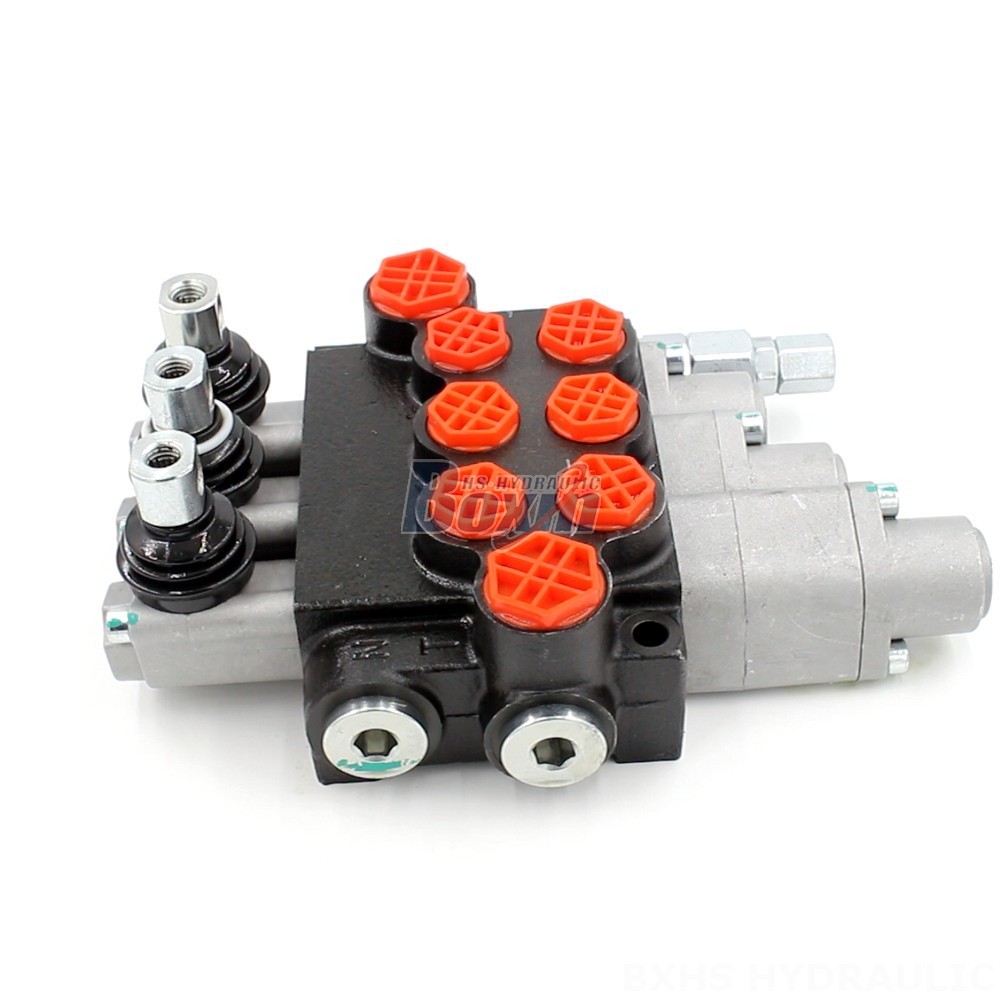

The P40-G12-G38-OT-QTW-QTW1 Directional Valve is a high-performance, reliable hydraulic valve designed for use in a variety of material handling and construction applications. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this 3-section monoblock valve provides superior control and durability.
| P40-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Solenoid och Joystick, Manuell och Joystick, Magnetventil och kabel |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 40 l/min (10,5 US gpm) |
| Maximalt tryck | 250 bar (3600 psi) |
| Inloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Utloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Portstorlek | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-G12-G38-OT-QTW-QTW1 Directional Valve is a manual control valve designed for use in a wide range of applications including forklifts, telehandlers, mini-excavators, skid steer loaders, and more. This 3-section monoblock valve features a rated flow of 40 L/min and a maximum pressure of 250 bar, ensuring optimal performance in demanding environments. The valve's operating viscosity range is 15 - 75 mm²/s, and it can withstand ambient temperatures from -40°C to +80°C. With its robust construction and reliable operation, the P40-G12-G38-OT-QTW-QTW1 Directional Valve is an ideal choice for applications where high performance and durability are critical.
