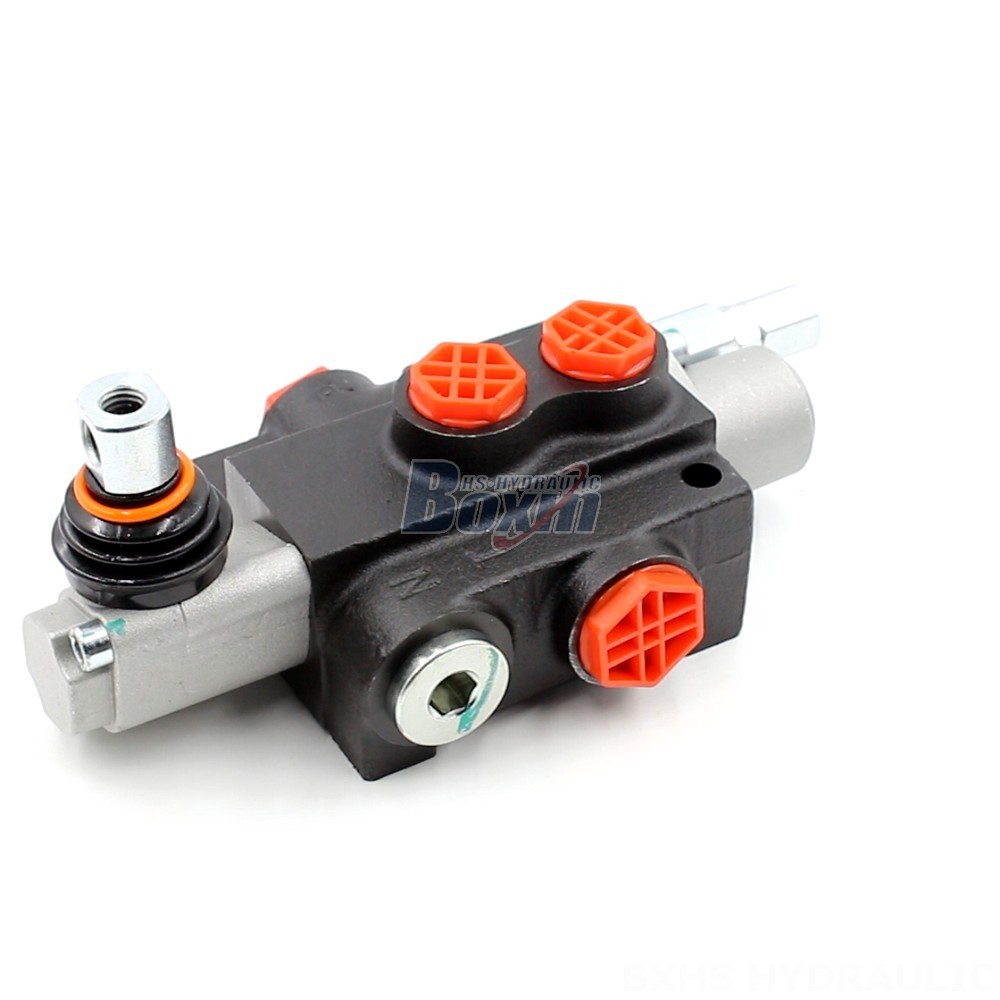

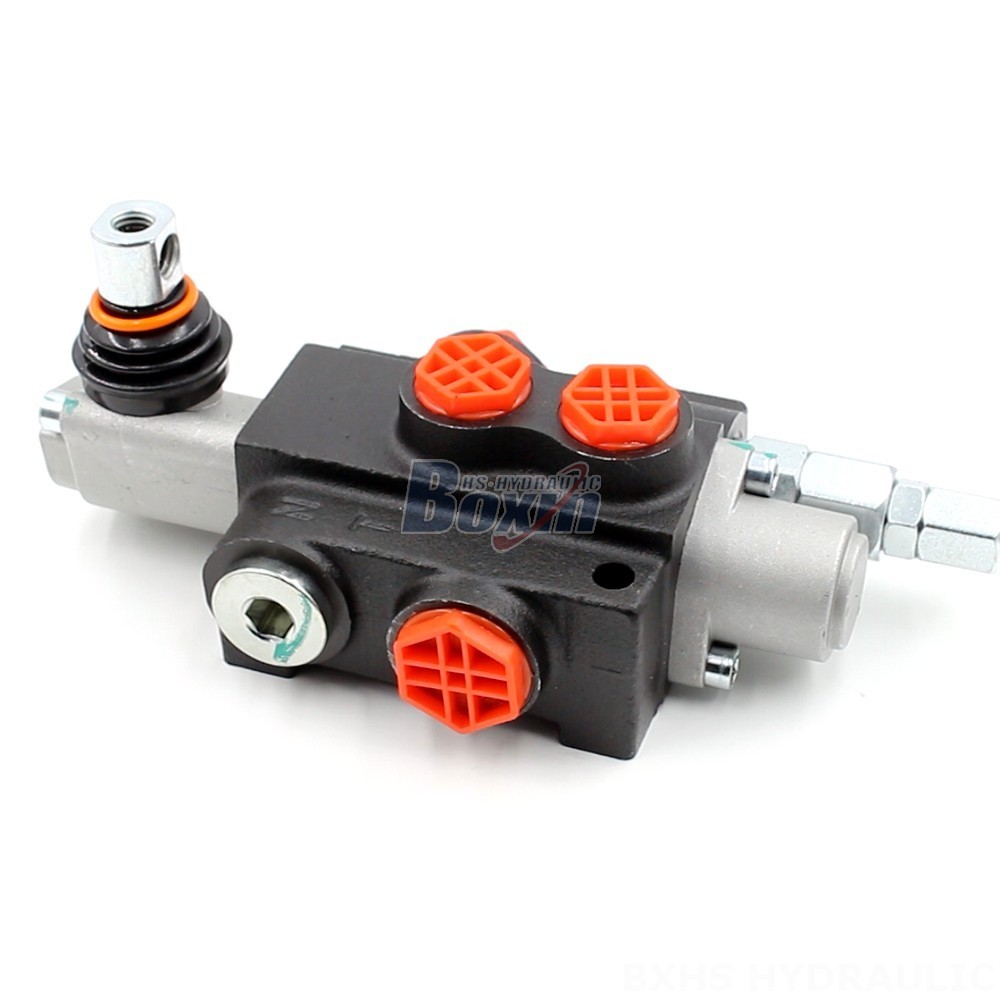

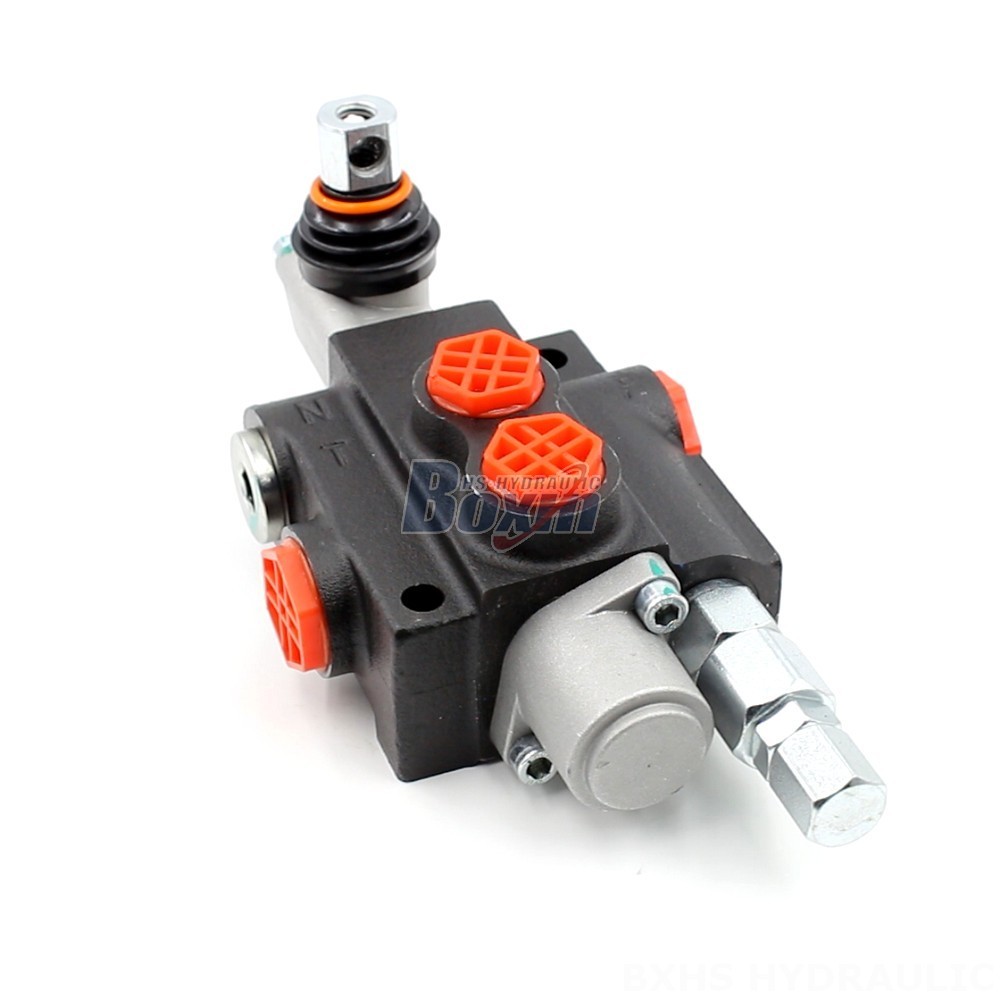

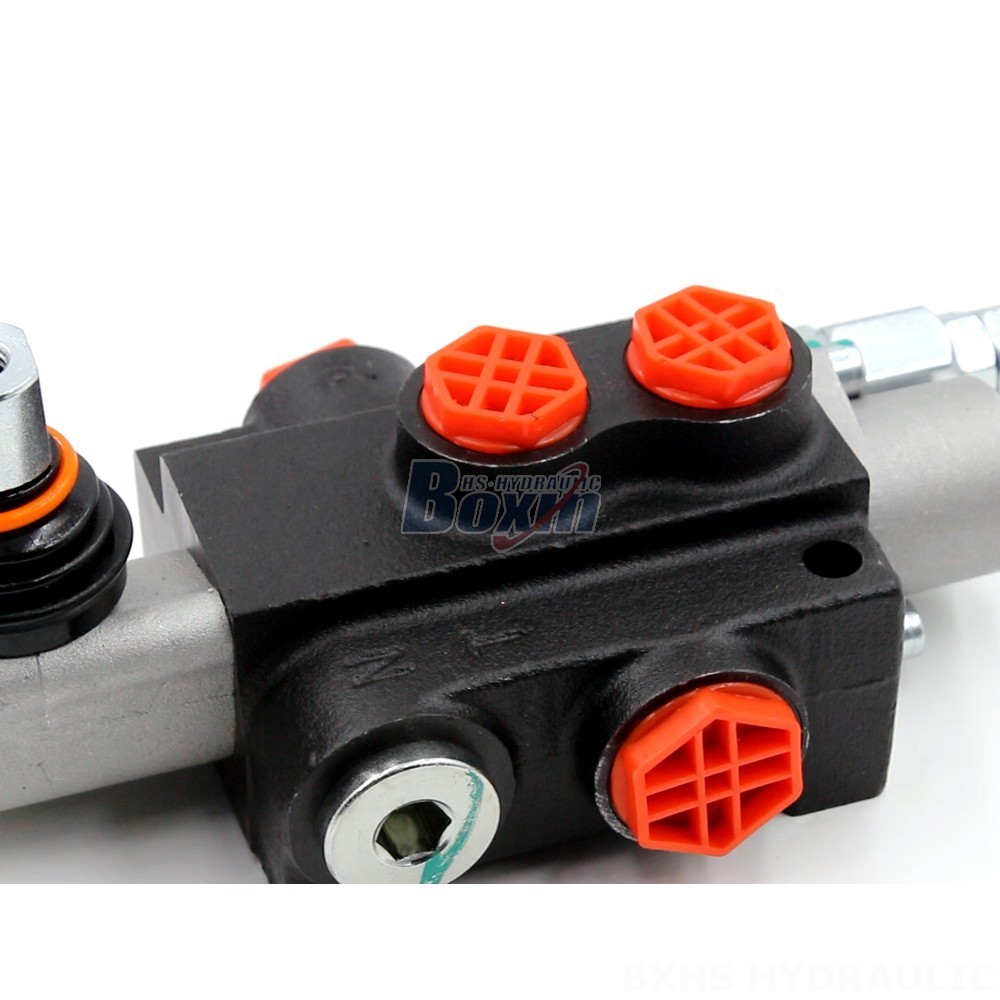

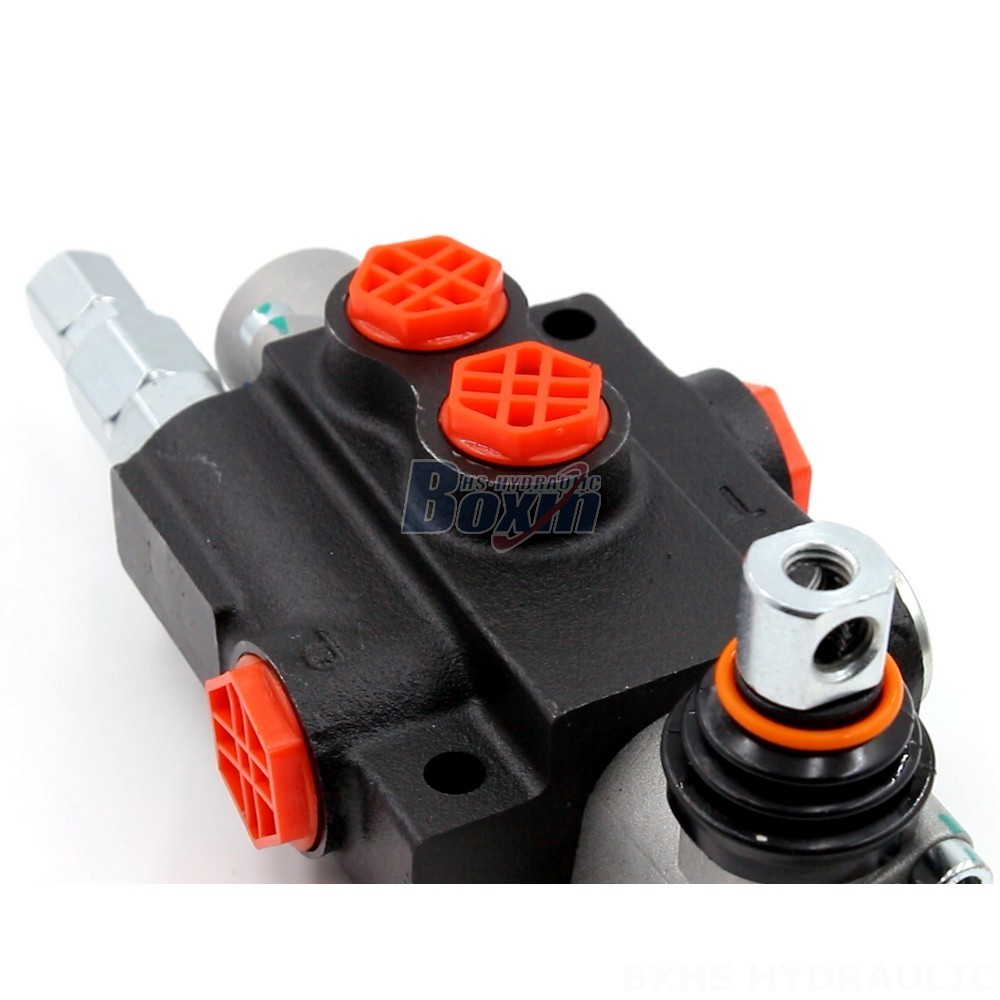

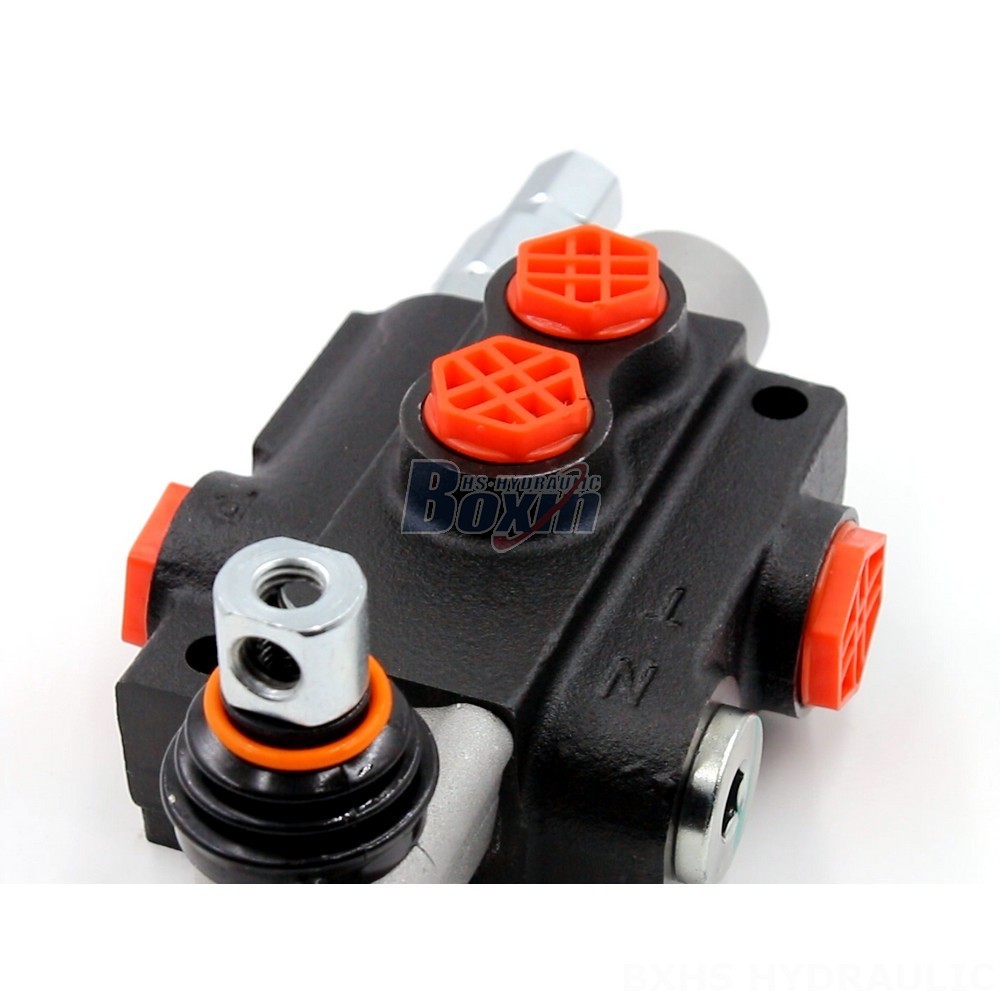

The P40-G12-YW Directional Control Valve is a robust and reliable hydraulic component designed for demanding applications in various industries, including material handling, construction, agriculture, and industrial vehicles. This monoblock valve features manual control and offers a rated flow of 40 L/min (10.5 US gpm) at a maximum pressure of 250 bar (3600 psi). Its operating viscosity range spans from 15 to 75 mm²/s (15 cSt to 75 cSt), and it can withstand ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F).
| P40-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Solenoid och Joystick, Manuell och Joystick, Magnetventil och kabel |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 40 l/min (10,5 US gpm) |
| Maximalt tryck | 250 bar (3600 psi) |
| Inloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Utloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Portstorlek | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**Key Features and Benefits:**
* **Manual Control:** Allows for precise and responsive operation.
* **Monoblock Valve:** Provides a compact and durable design with reduced leakage potential.
* **High Flow Capacity:** Delivers up to 40 L/min (10.5 US gpm) to meet the demands of demanding applications.
* **Robust Construction:** Built to withstand harsh operating conditions, ensuring long-lasting performance.
* **Wide Operating Range:** Can handle a wide range of fluid viscosities and temperatures, making it suitable for diverse applications.
**Applications:**
The P40-G12-YW Directional Control Valve finds applications in a variety of hydraulic systems, including:
* Telehandlers
* Forklifts
* All Terrain Cranes
* Stackers
* Aerial Platforms
* Motor Graders
* Midi-Excavators
* Mini-Excavators
* Skid Steer Loaders
* Compact Wheel Loaders
