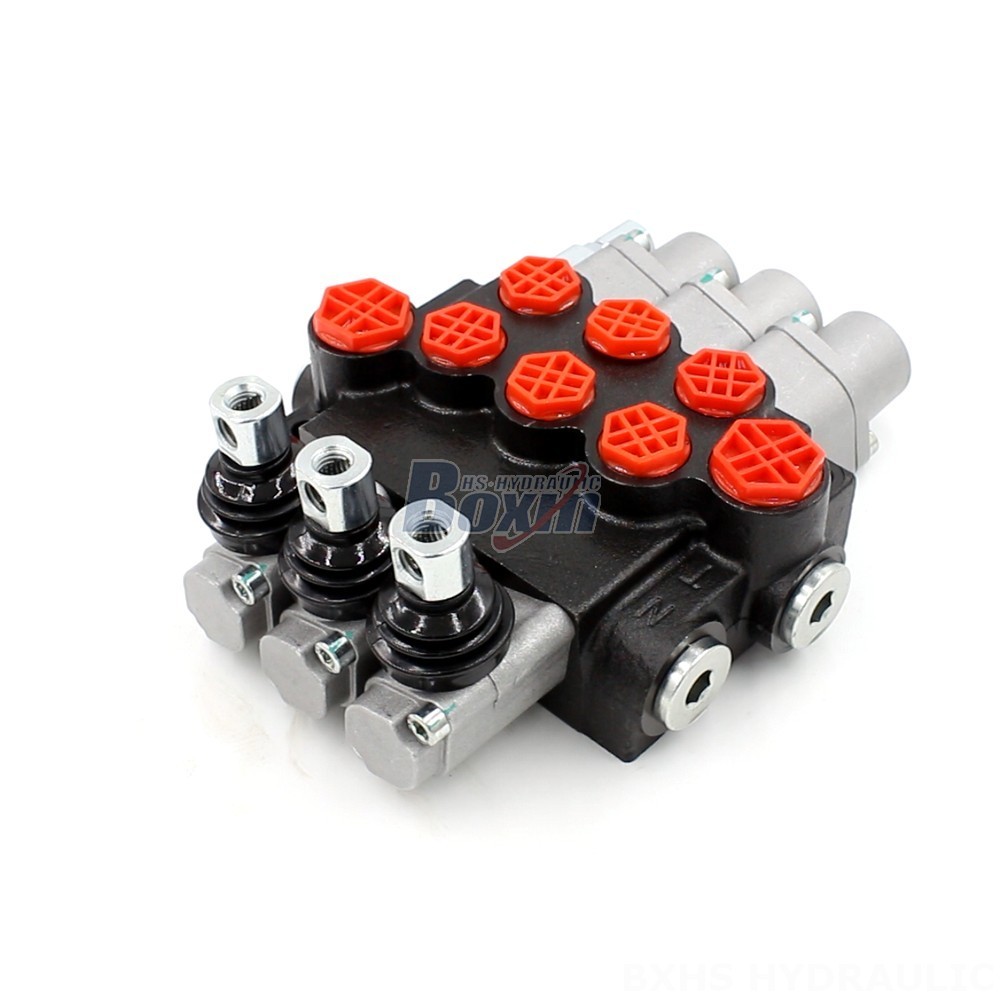

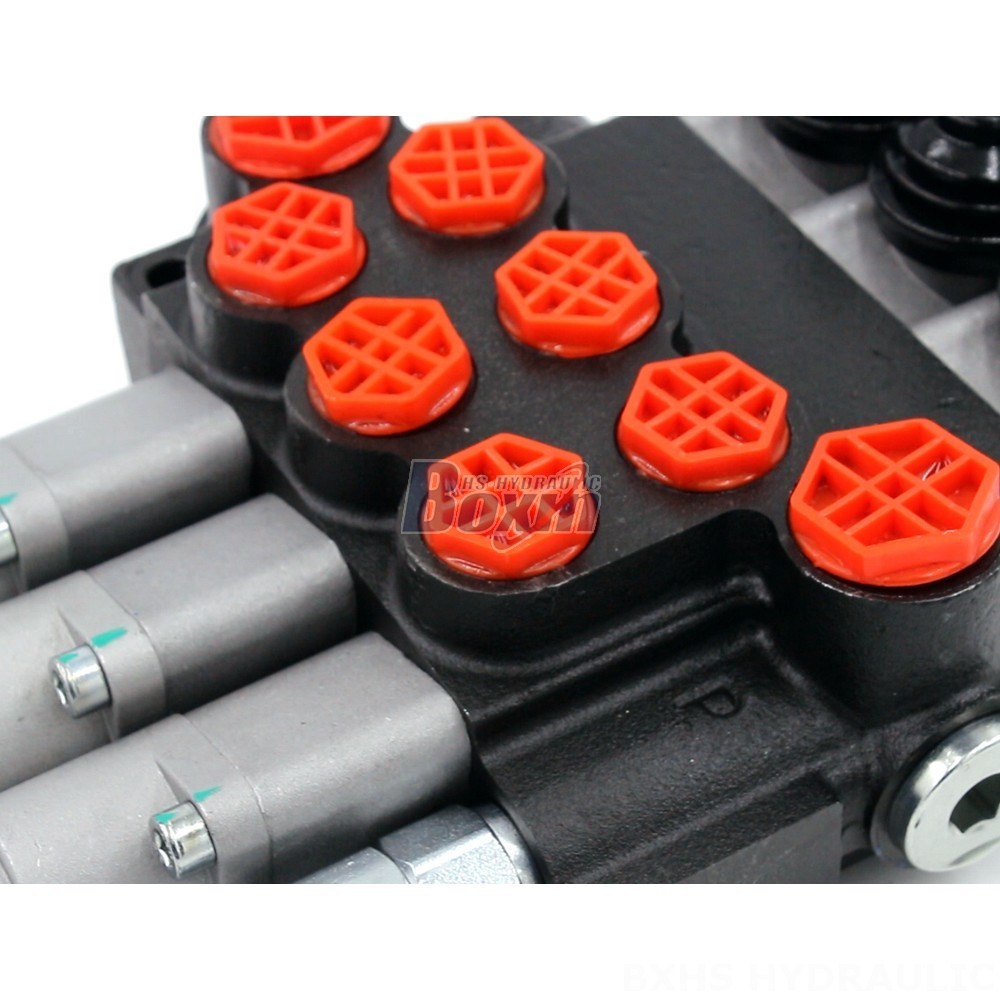

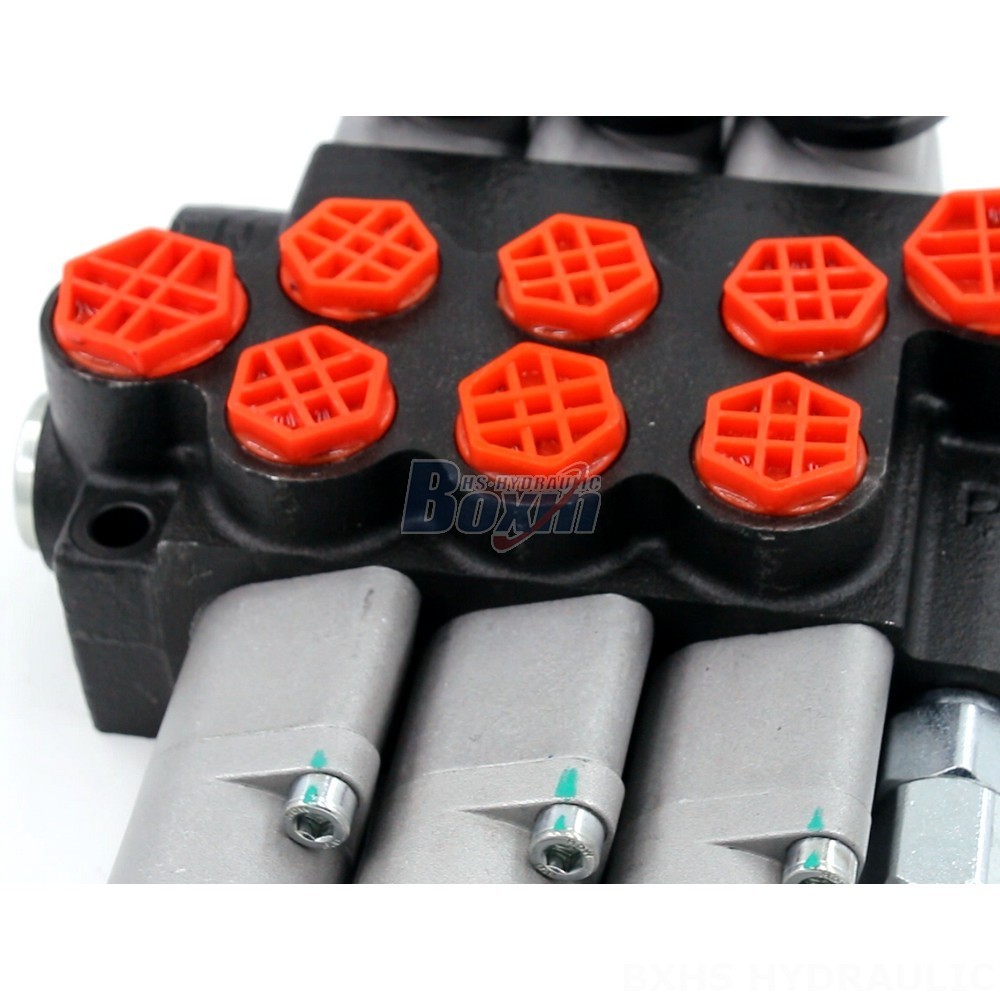

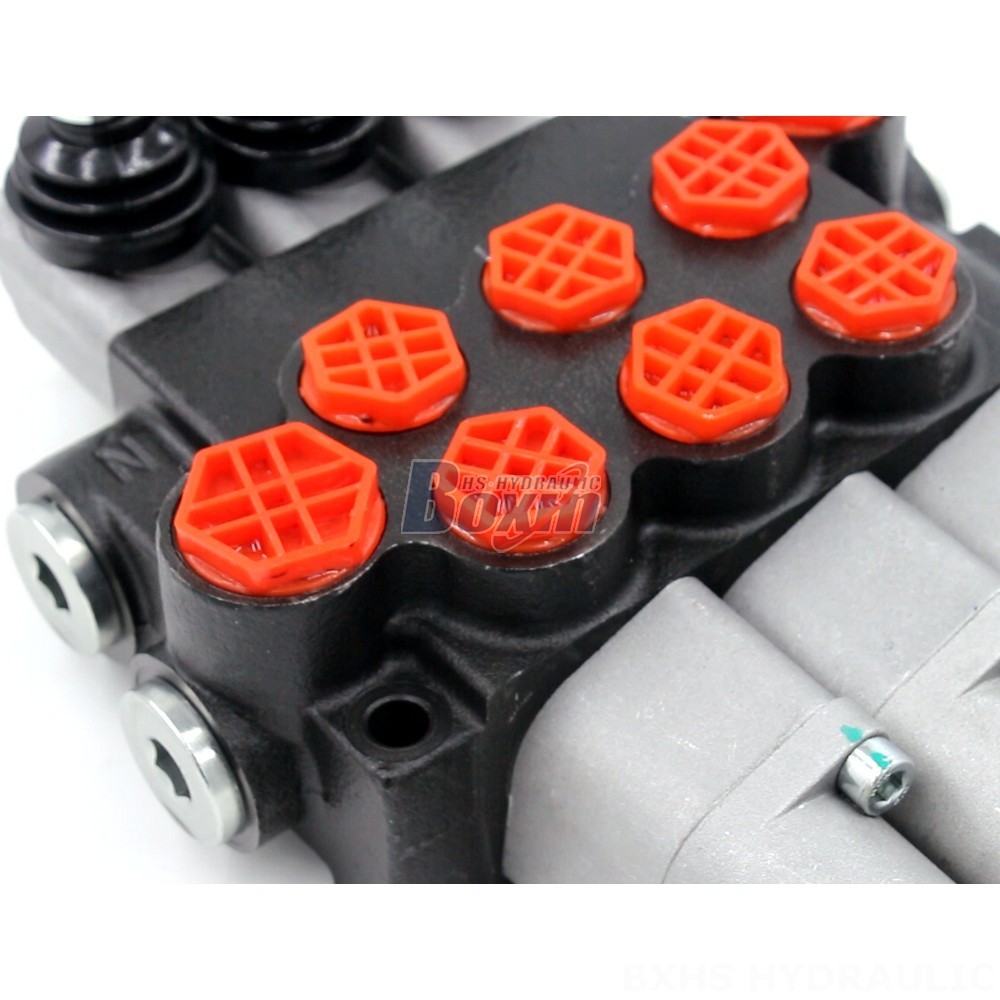

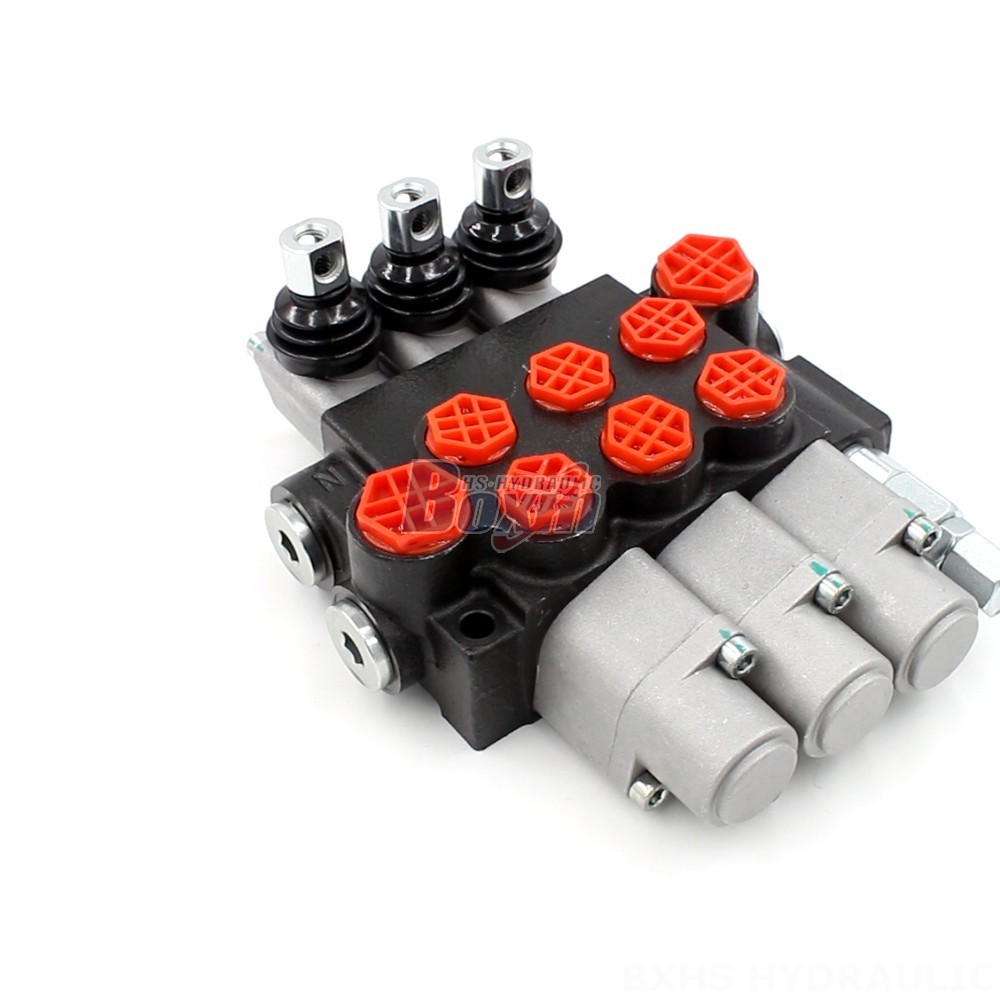

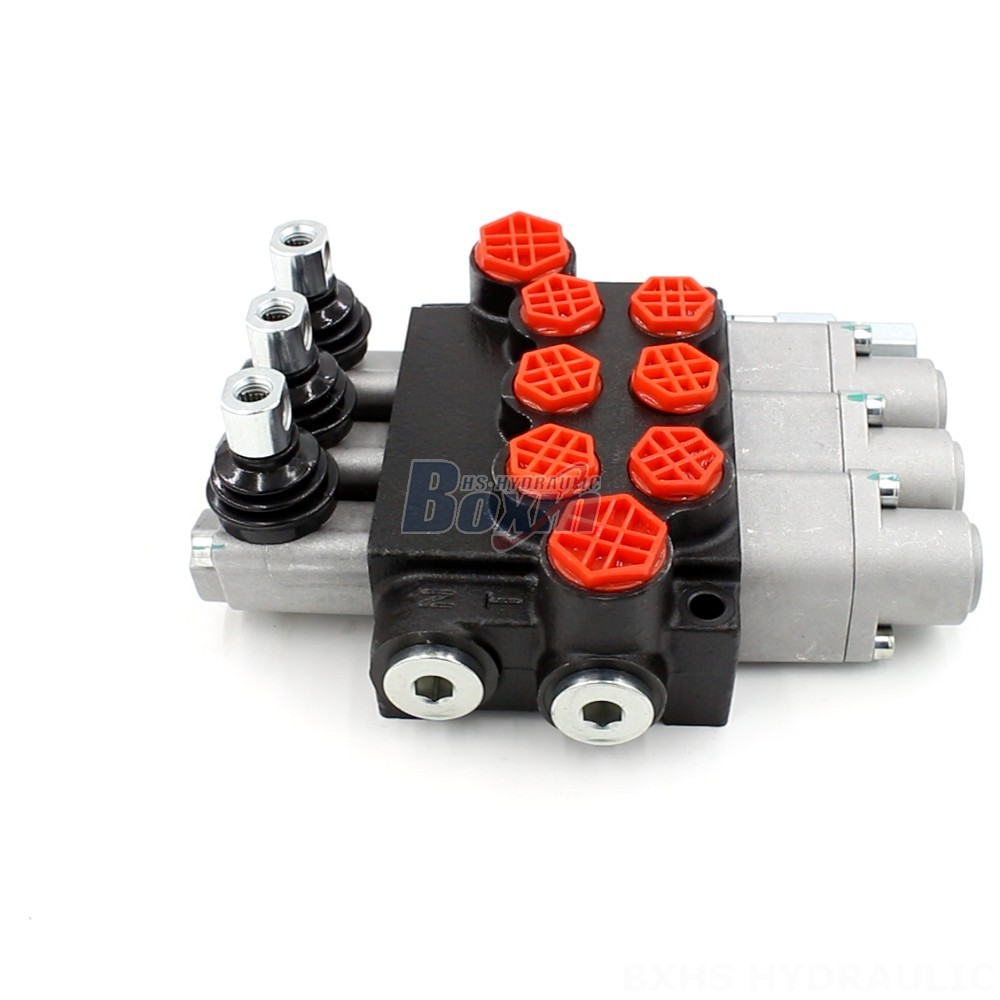

The P40-G38-G12-OT 12 Volt Hydraulic Spool Valve is a 3-section, monoblock directional control valve designed for manual control of hydraulic systems in construction, agriculture, and industrial vehicles. With a rated flow of 40 L/min and a maximum pressure of 250 bar, it's suitable for telehandlers, forklifts, mini excavators, and more.
| P40-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Solenoid och Joystick, Manuell och Joystick, Magnetventil och kabel |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 40 l/min (10,5 US gpm) |
| Maximalt tryck | 250 bar (3600 psi) |
| Inloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Utloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Portstorlek | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This 12 Volt Hydraulic Spool Valve, part of the P40 series, features a 3-section, monoblock design for robust performance. It offers manual control and is rated for 40 L/min flow and 250 bar maximum pressure, ensuring reliable operation in demanding applications. The valve operates with a viscosity range of 15 to 75 mm²/s and withstands ambient temperatures from -40°C to +80°C. Ideal for use in construction and earth-moving equipment, material handling, agriculture, and industrial vehicles, this valve is compatible with telehandlers, forklifts, mini excavators, skid steer loaders, and more.
