P40-G38 Hydraulic Valve: Advanced Technology for Superior Performance

Kontrollmetod:Manuell

Spole:1 ventilsektion

Nominellt flöde:40 l/min (10,5 US gpm)

Maximalt tryck:250 bar (3600 psi)

Inloppsport:G3/8

Utloppsport:G3/8

Portstorlek:G3/8

Märke:BXHS

Produkttyp:Monoblockriktningsventil

Produktserie:P40-serien Monoblockriktningsventil

Förpackningsstorlek:23*16*11

Bruttovikt:3.00 kg

Tillgänglighet: I lager

953 Vyer letar efter den här produkten

P40-G38 Hydraulic Valve: Advanced Technology for Superior Performance

P40-G38 Hydraulic Valve: Advanced Technology for Superior Performance

P40-G38 Hydraulic Valve: Advanced Technology for Superior Performance drawing image

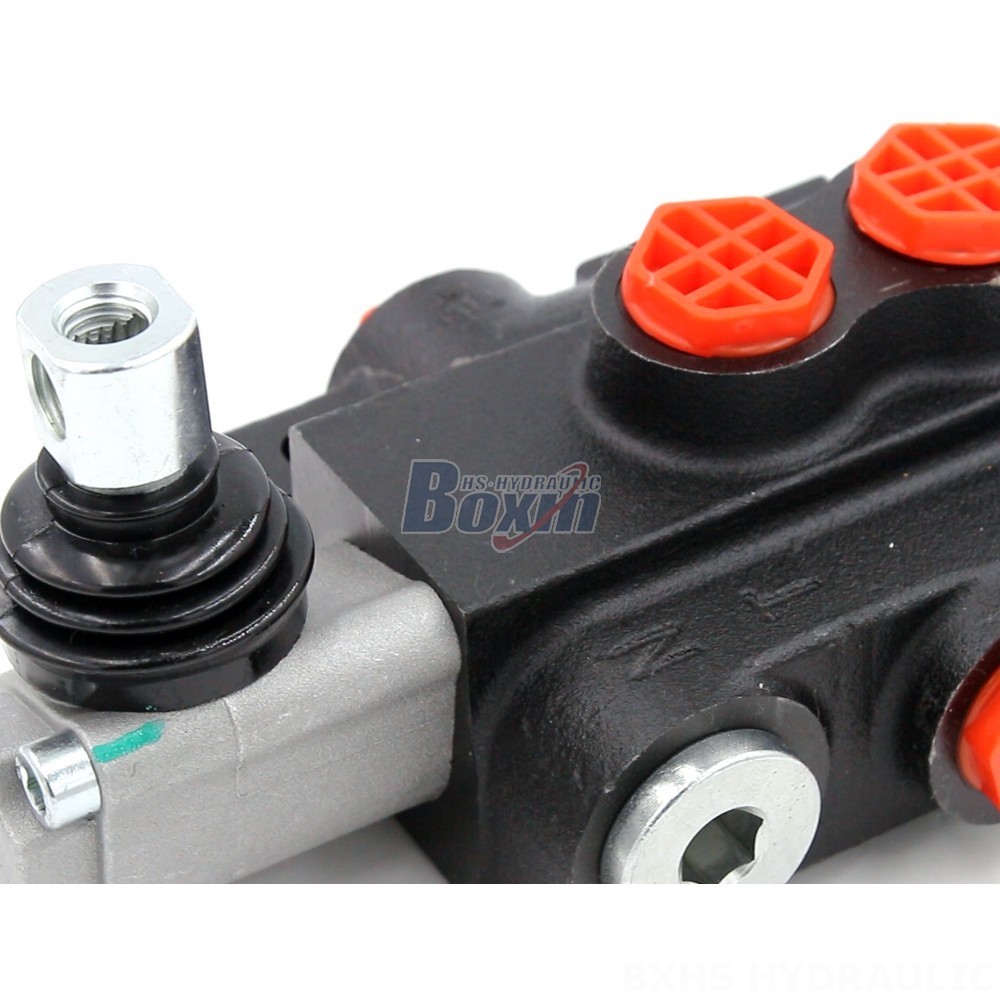

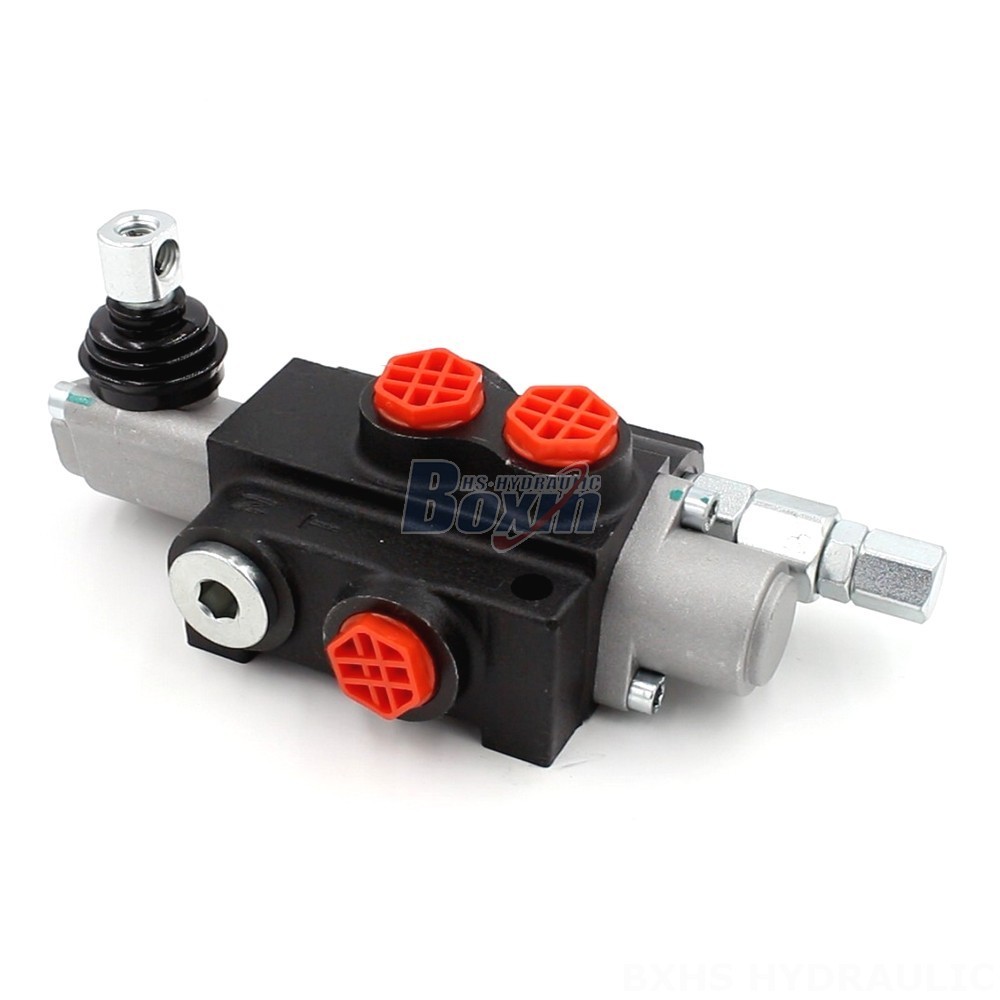

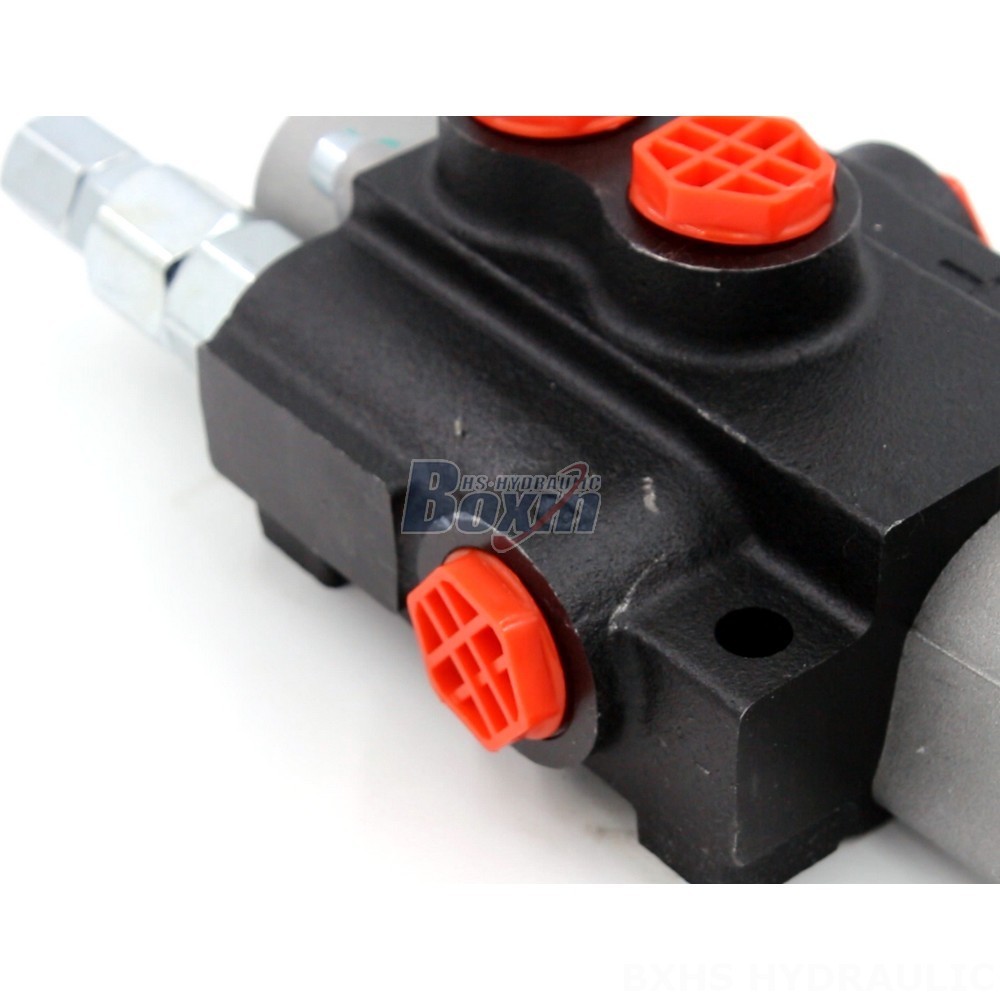

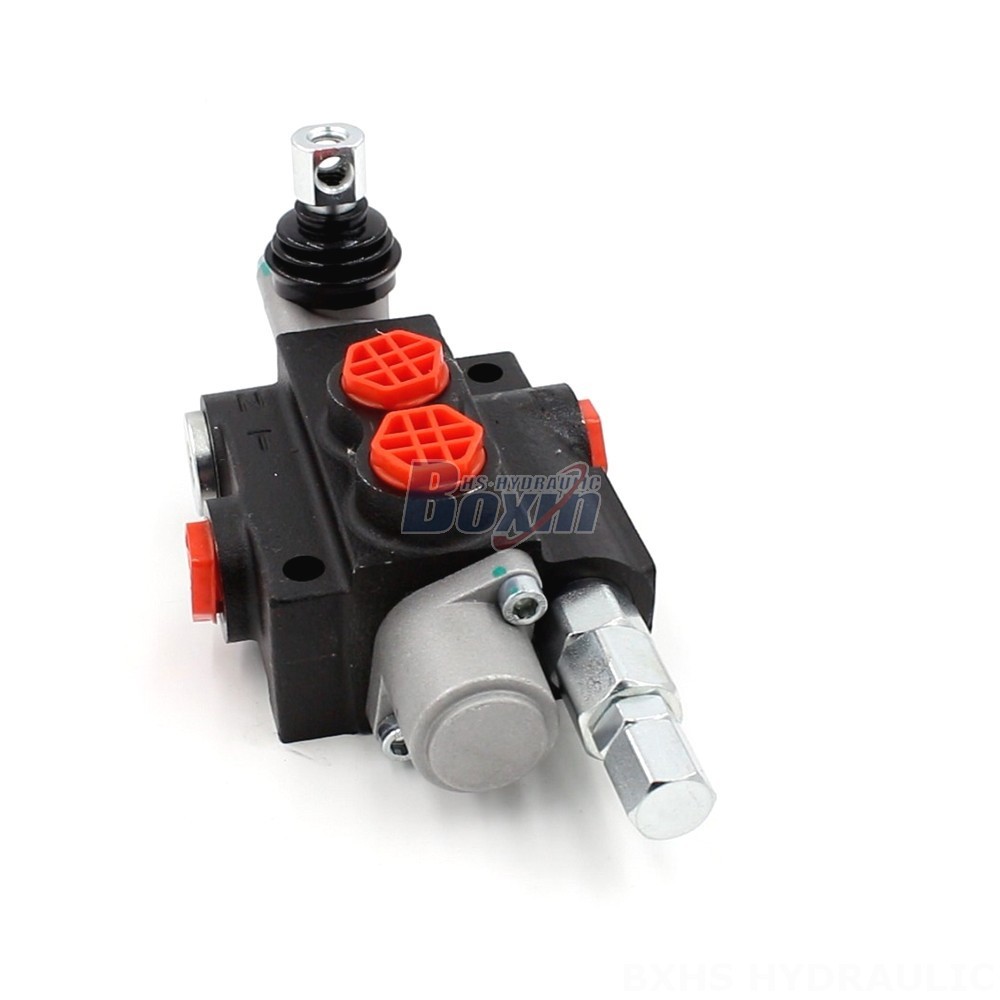

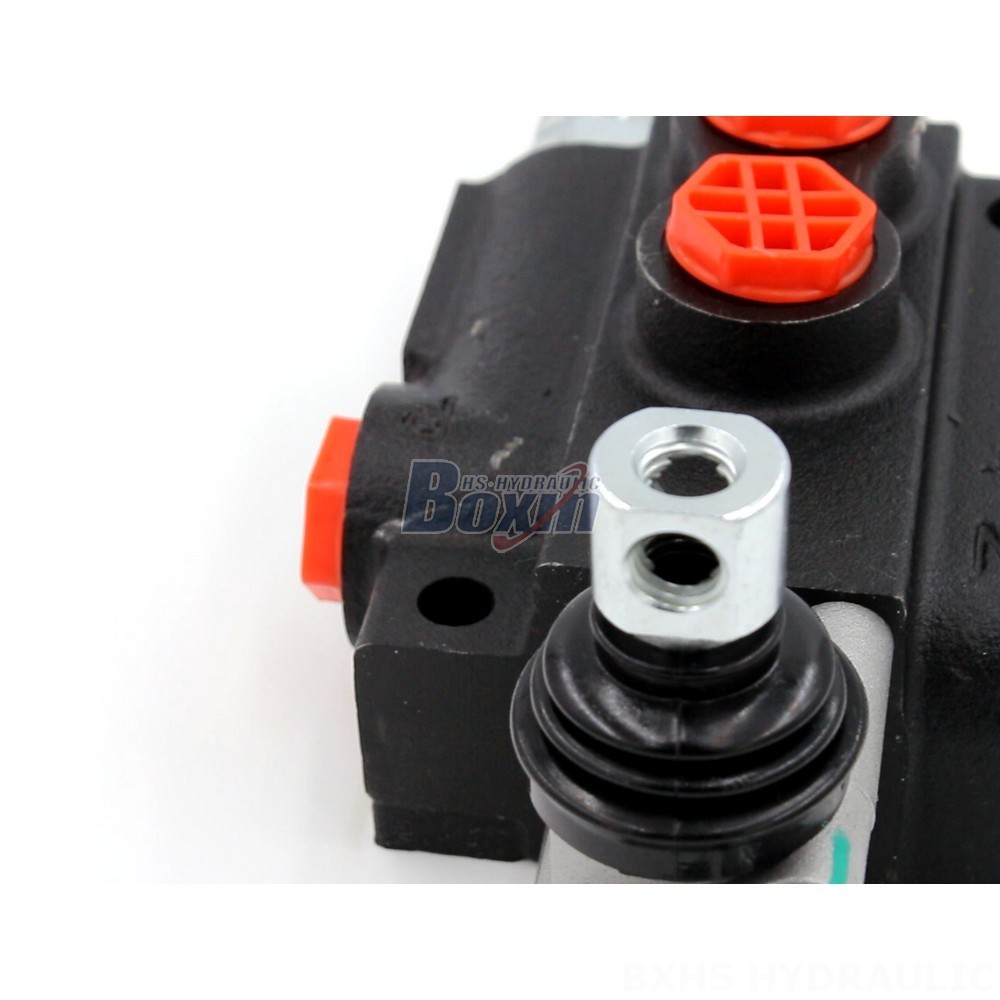

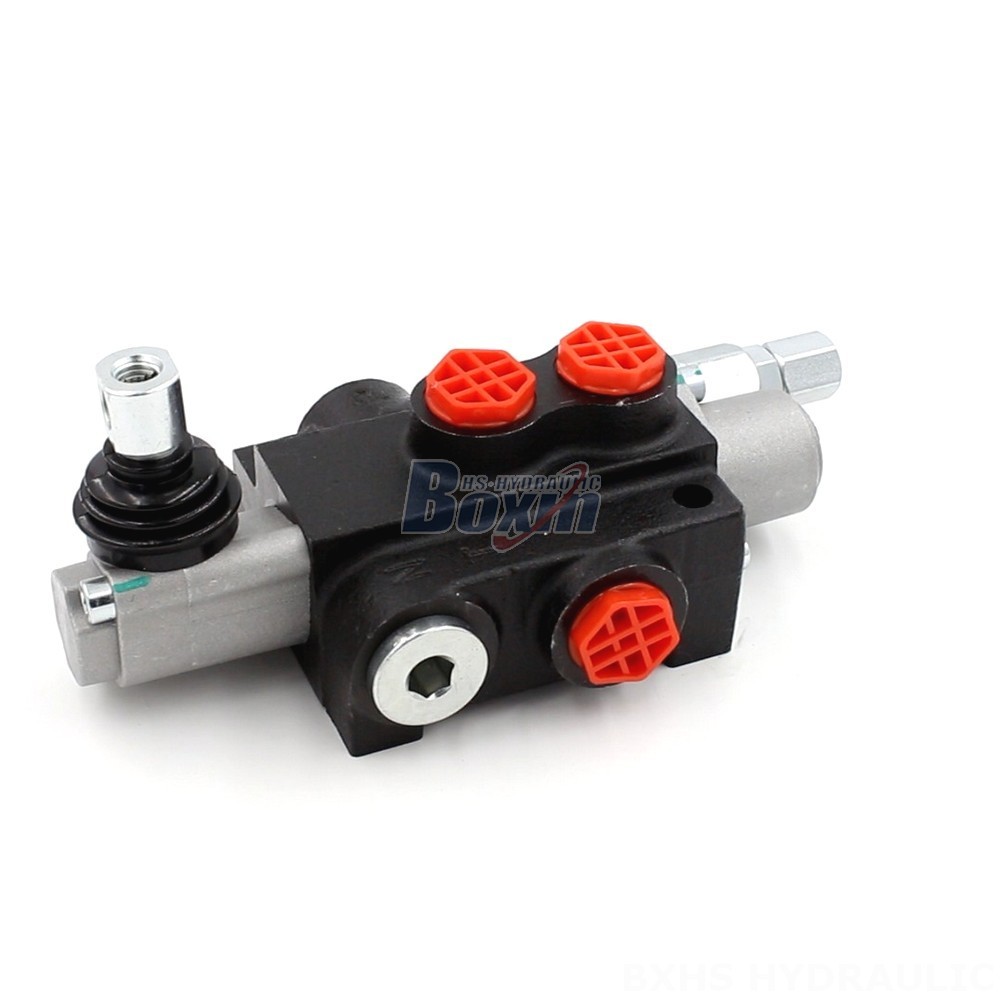

The P40-G38 6 Port Hydraulic Valve is a high-performance, manual, monoblock valve designed for various applications in material handling, construction, agriculture, and industrial vehicles. This valve features a rated flow of 40 L/min and a maximum pressure of 250 bar.

P40-serien Monoblockriktningsventil Parametrar
Kontrollmetod Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Solenoid och Joystick, Manuell och Joystick, Magnetventil och kabel
Spole 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner
Omgivningstemperaturintervall -40°C till +80°C (-40°F till +176°F)
Strukturtyp Monoblockventil
Sektion 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner
Driftsviskositetsintervall 15 - 75 mm²/s (15 cSt till 75 cSt)
Nominellt flöde 40 l/min (10,5 US gpm)
Maximalt tryck 250 bar (3600 psi)
Inloppsport G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Utloppsport G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Portstorlek G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The P40-G38 6 Port Hydraulic Valve is a reliable and efficient solution for controlling hydraulic systems in a wide range of applications. This manual, monoblock valve provides superior performance with a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi). Its robust design ensures durability and long-lasting operation in demanding environments. The valve is suitable for operating viscosities between 15 - 75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). Its compact and versatile design makes it ideal for use in various machines, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders. This advanced hydraulic valve offers reliable control and precision, enhancing the overall performance of your equipment.
