Produktion & Leverans
15-30 dagars produktionsledtid

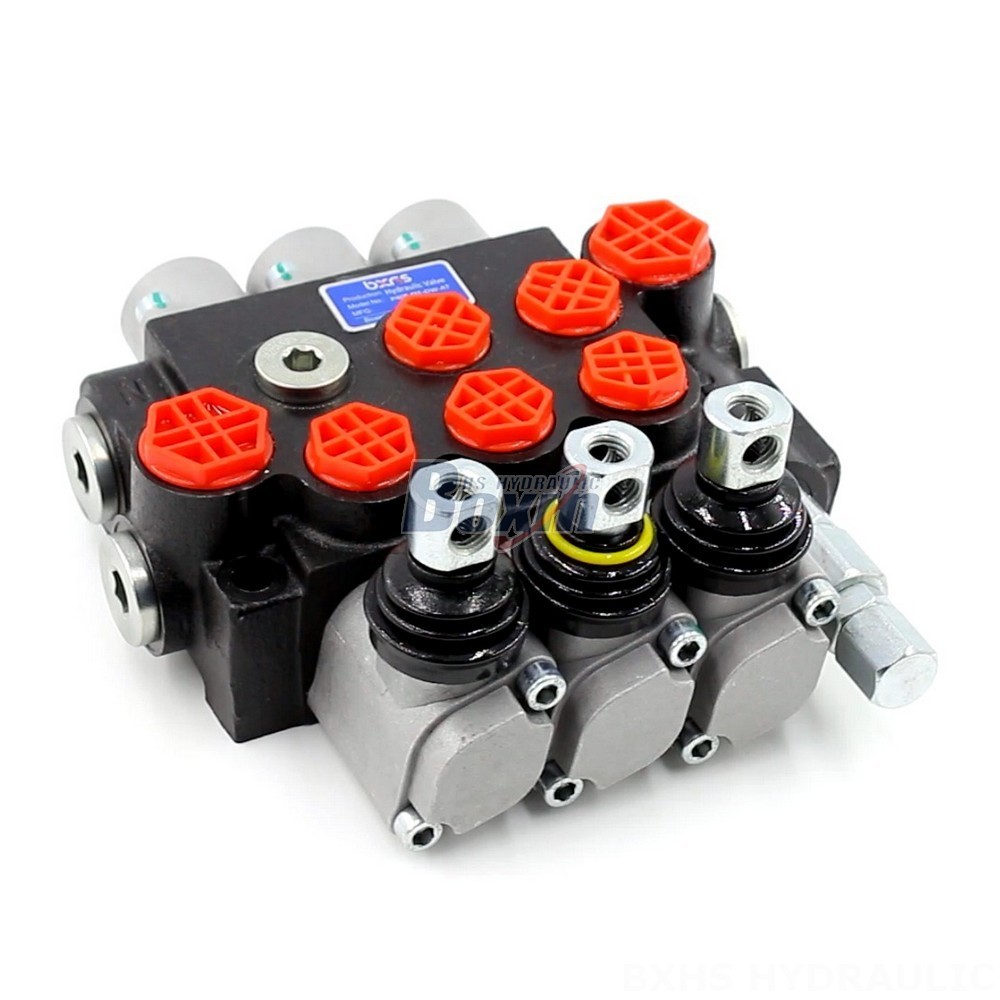

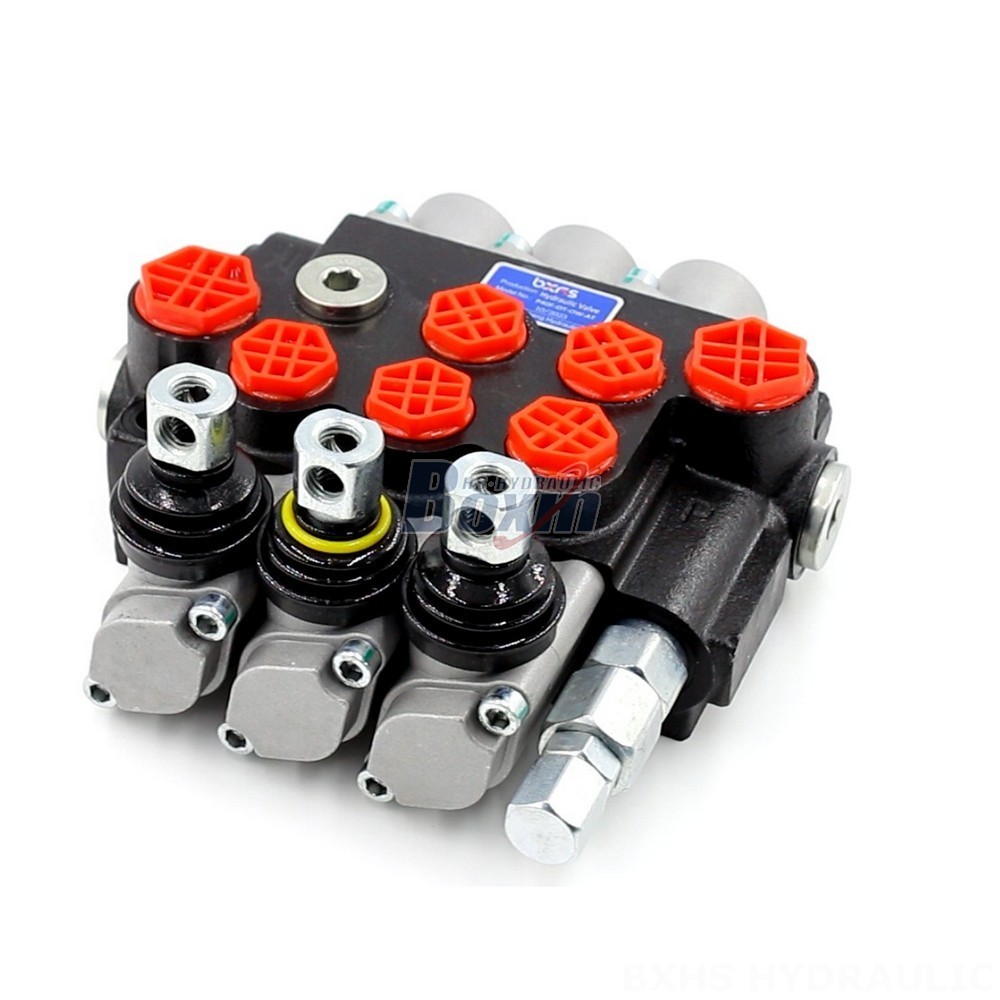

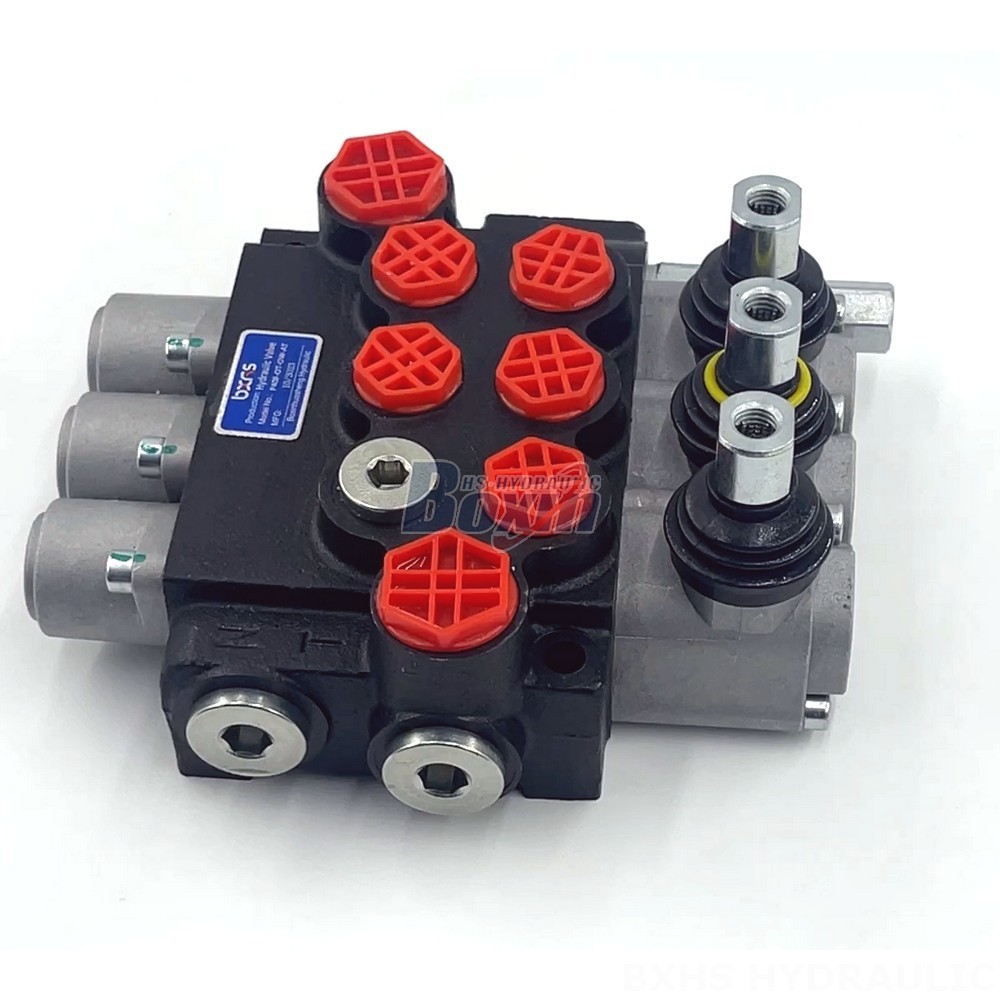

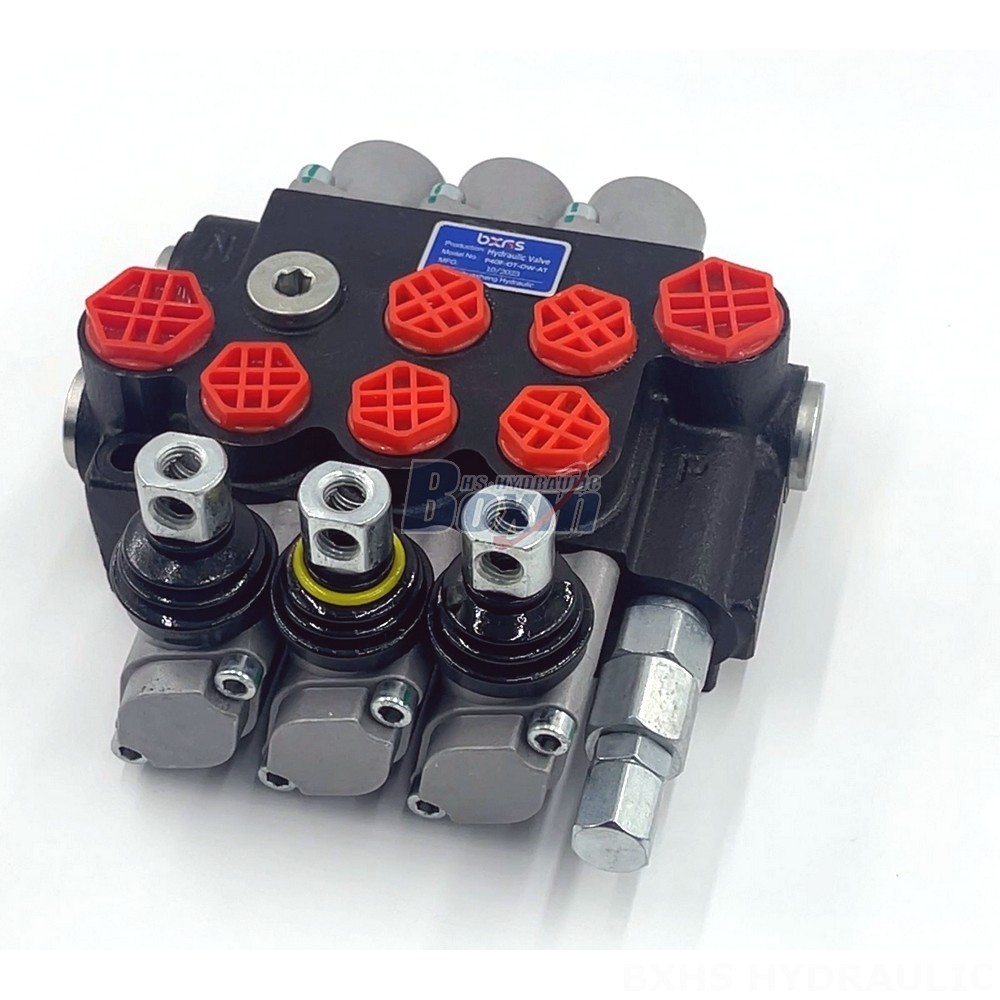

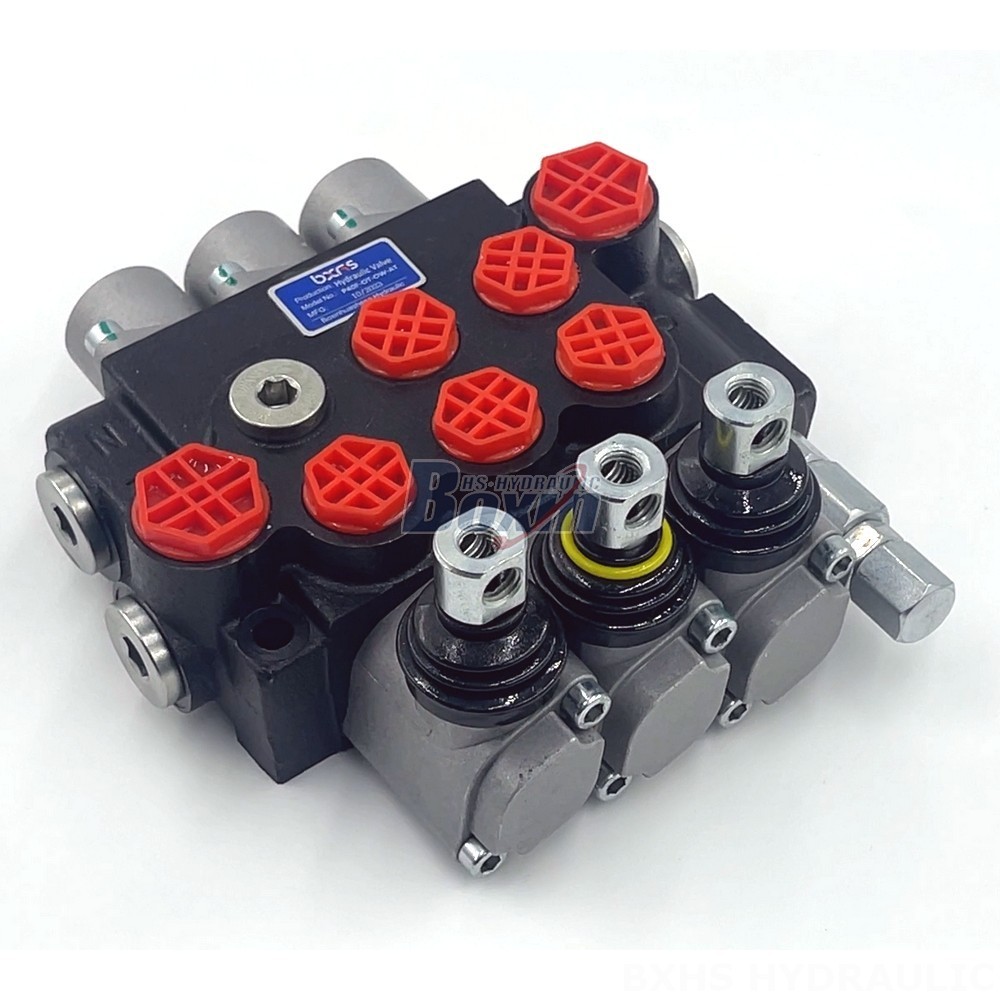

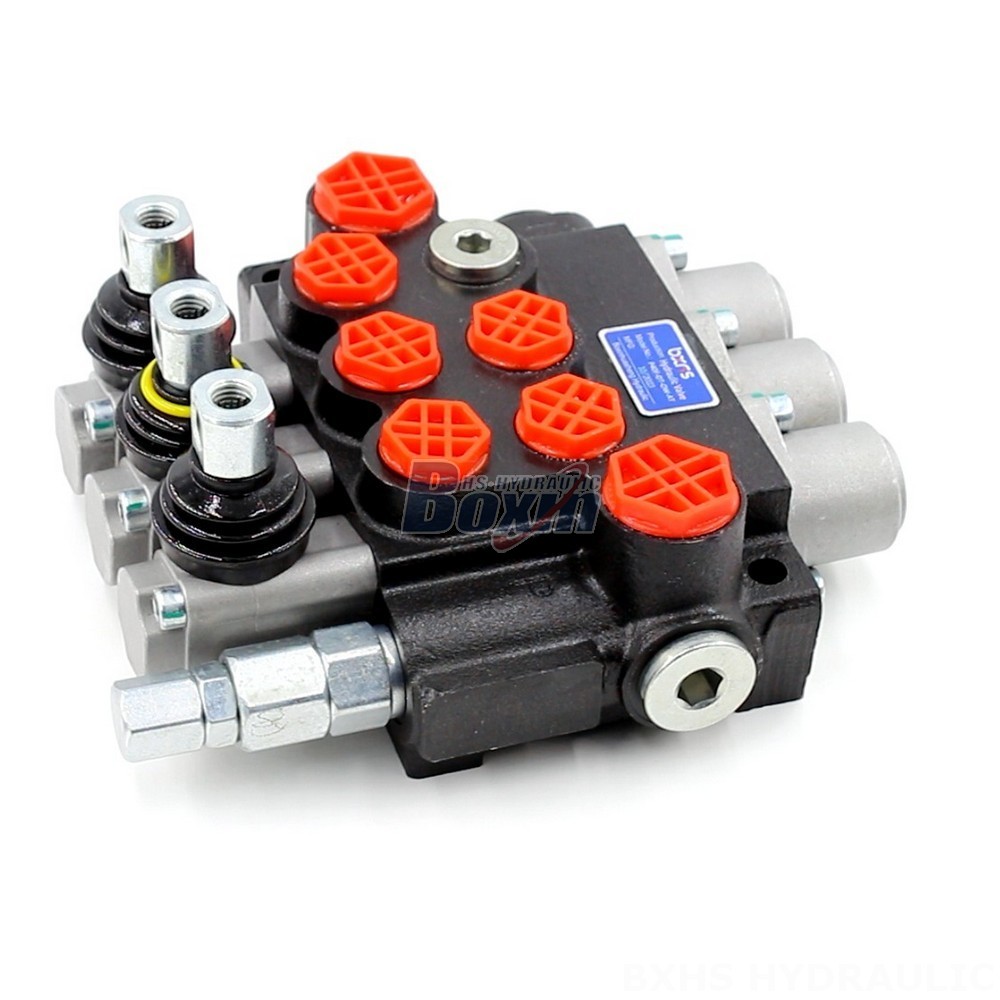

The P40 Series 3 Spool Monoblock Directional Control Valve is a manual hydraulic valve designed for use in construction equipment, material handling, agriculture, and industrial vehicles. It features a compact design and high flow rate, making it ideal for a wide range of applications.
| P40-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Solenoid och Joystick, Manuell och Joystick, Magnetventil och kabel |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 40 l/min (10,5 US gpm) |
| Maximalt tryck | 250 bar (3600 psi) |
| Inloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Utloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Portstorlek | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This P40 Series 3 Spool Monoblock Directional Control Valve is a manual hydraulic valve that offers reliable and precise control of hydraulic fluid flow. It is designed for use in a variety of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, and compact wheel loaders. This valve features a compact design and high flow rate, making it ideal for demanding applications. The valve is also equipped with a manual control lever for easy operation. Key features include a rated flow of 40 L/min (10.5 US gpm), a maximum pressure of 250 bar (3600 psi), an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt), and an ambient temperature range of -40°C to +80°C (-40°F to +176°F).
