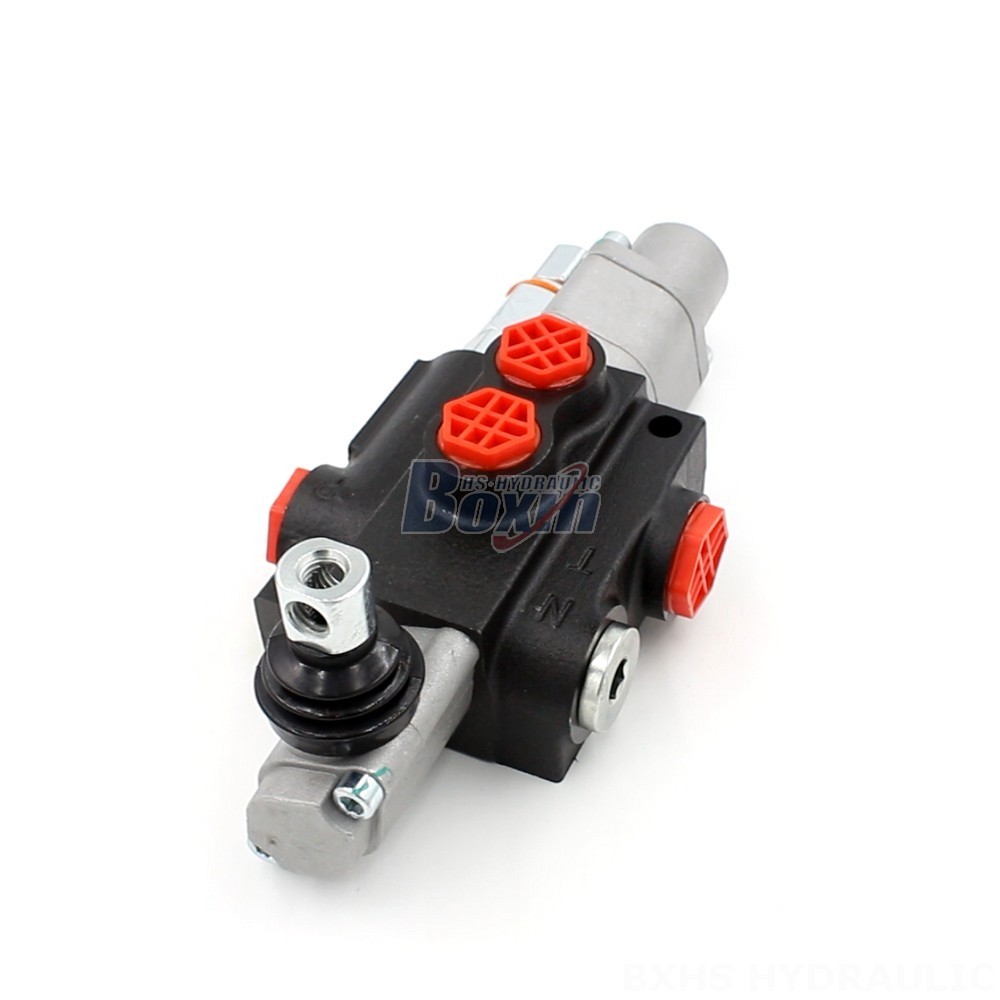

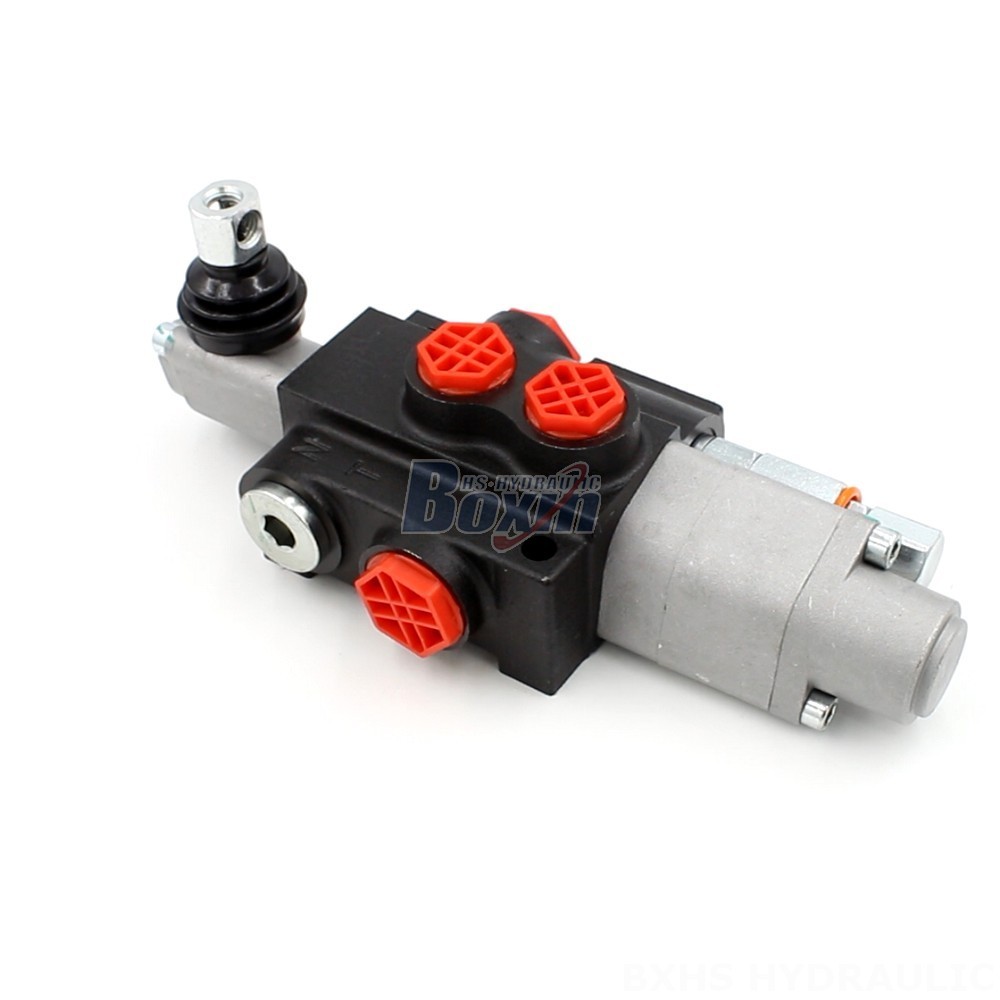

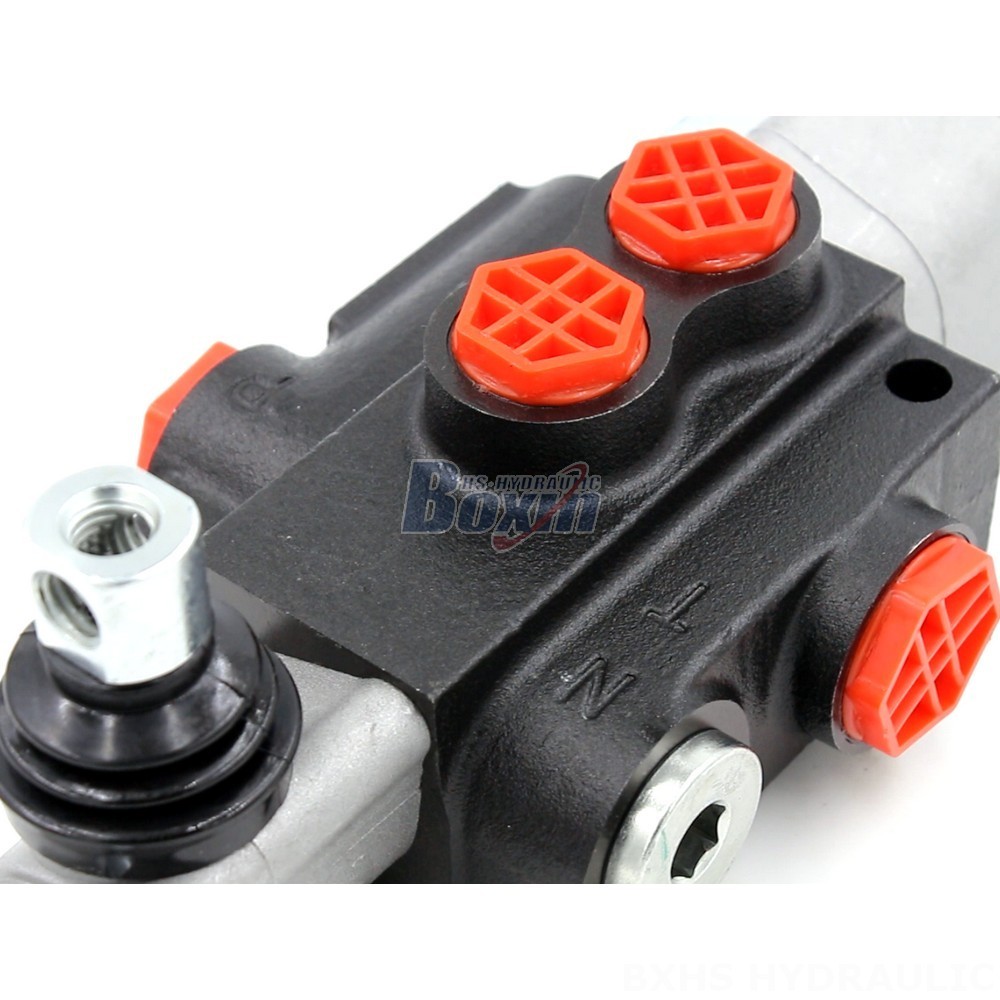

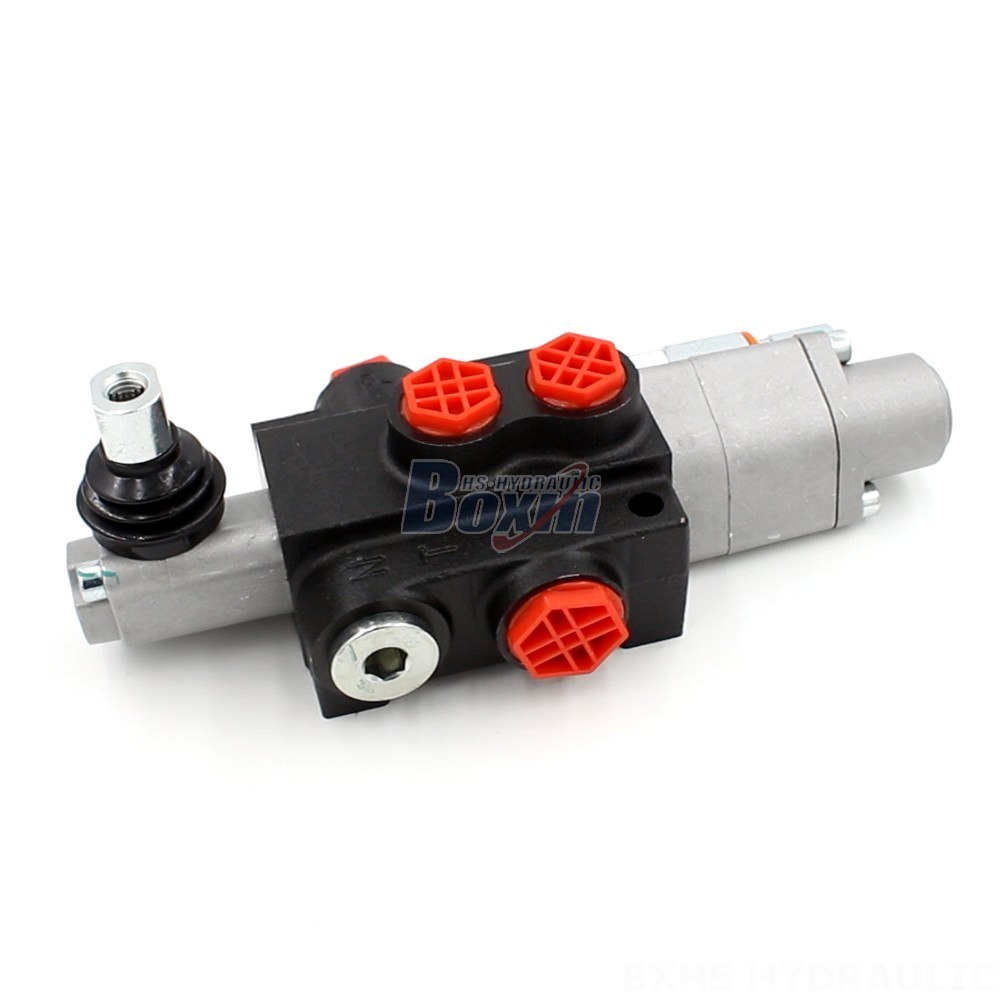

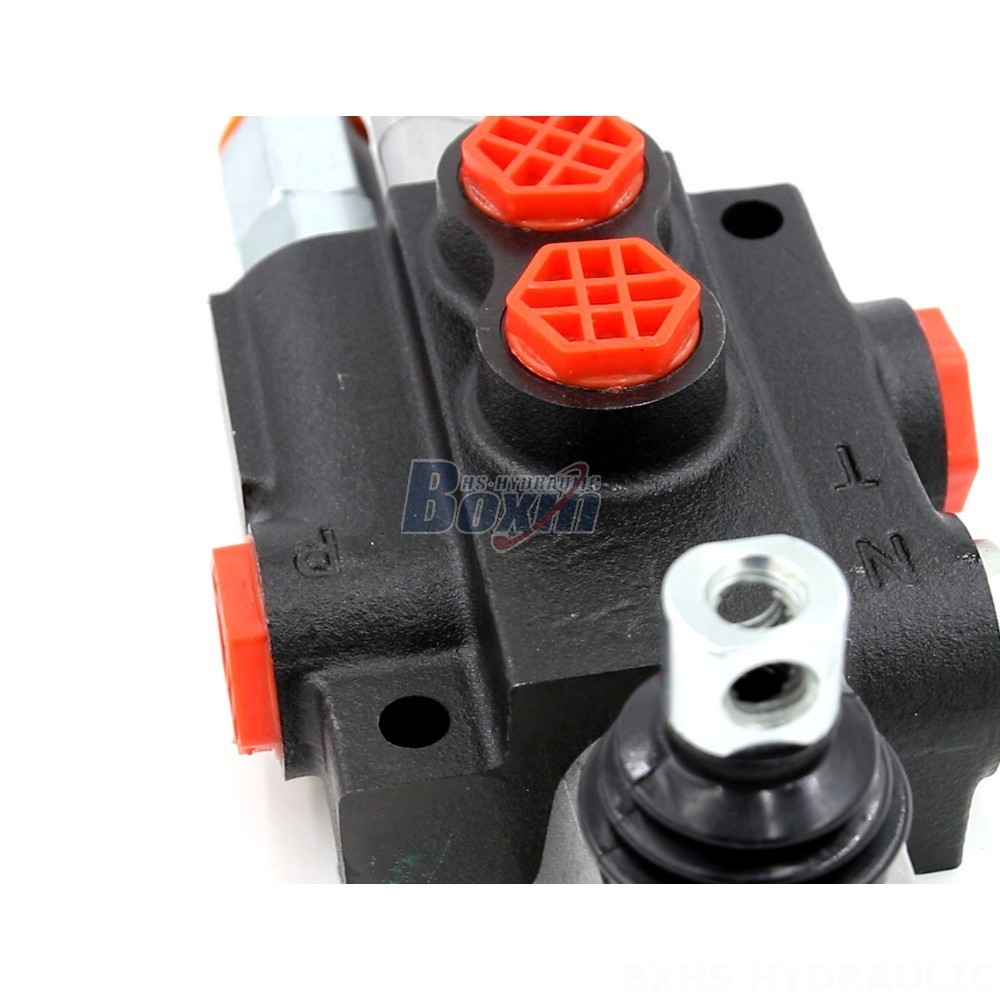

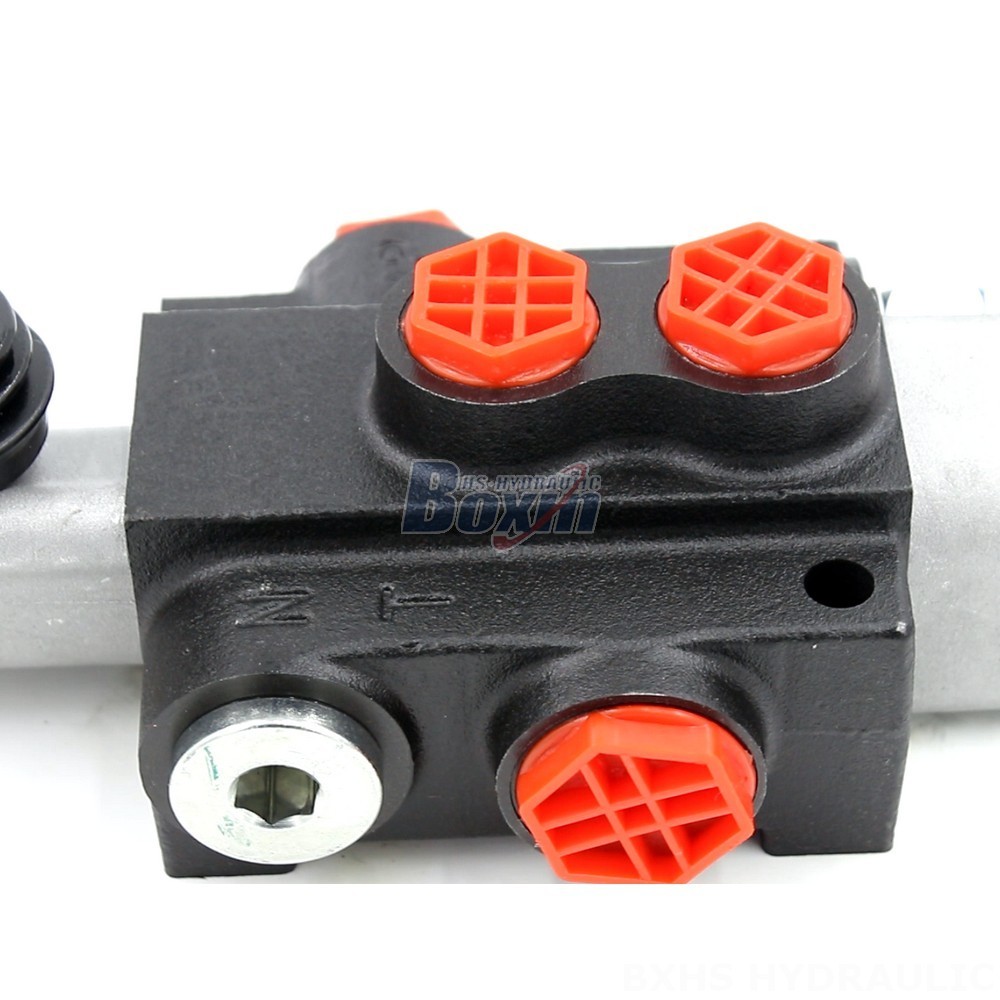

P40-QTW1 Hydraulic Valve | Reliable and Efficient Fluid Power Control

Kontrollmetod:Manuell

Spole:1 ventilsektion

Nominellt flöde:40 l/min (10,5 US gpm)

Maximalt tryck:250 bar (3600 psi)

Inloppsport:G3/8

Utloppsport:G3/8

Portstorlek:G3/8

Märke:BXHS

Produkttyp:Monoblockriktningsventil

Produktserie:P40-serien Monoblockriktningsventil

Förpackningsstorlek:23*16*11

Bruttovikt:3.19 kg

Tillgänglighet: I lager

1393 Vyer letar efter den här produkten

P40-QTW1 Hydraulic Valve | Reliable and Efficient Fluid Power Control

P40-QTW1 Hydraulic Valve | Reliable and Efficient Fluid Power Control

P40-QTW1 Hydraulic Valve | Reliable and Efficient Fluid Power Control drawing image

The P40-QTW1 is a reliable and efficient hydraulic flow control valve designed for a variety of applications in construction, material handling, agriculture, and industrial vehicles. This monoblock valve offers manual control and a rated flow of 40 L/min, ideal for telehandlers, forklifts, and other equipment.

P40-serien Monoblockriktningsventil Parametrar
Kontrollmetod Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Solenoid och Joystick, Manuell och Joystick, Magnetventil och kabel
Spole 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner
Omgivningstemperaturintervall -40°C till +80°C (-40°F till +176°F)
Strukturtyp Monoblockventil
Sektion 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner
Driftsviskositetsintervall 15 - 75 mm²/s (15 cSt till 75 cSt)
Nominellt flöde 40 l/min (10,5 US gpm)
Maximalt tryck 250 bar (3600 psi)
Inloppsport G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Utloppsport G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Portstorlek G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The P40-QTW1 Hydraulic Flow Control Valve is a high-performance, 1-section, monoblock valve with manual control. This valve offers a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi). Its operating viscosity range spans from 15 to 75 mm²/s (15 cSt to 75 cSt), allowing for operation in various conditions. The P40-QTW1 is designed for use in a wide range of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. It is suitable for various equipment types, such as telehandlers, forklifts, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, tractors, and front-end loaders. The valve's robust design and reliable performance make it an ideal choice for demanding applications.
