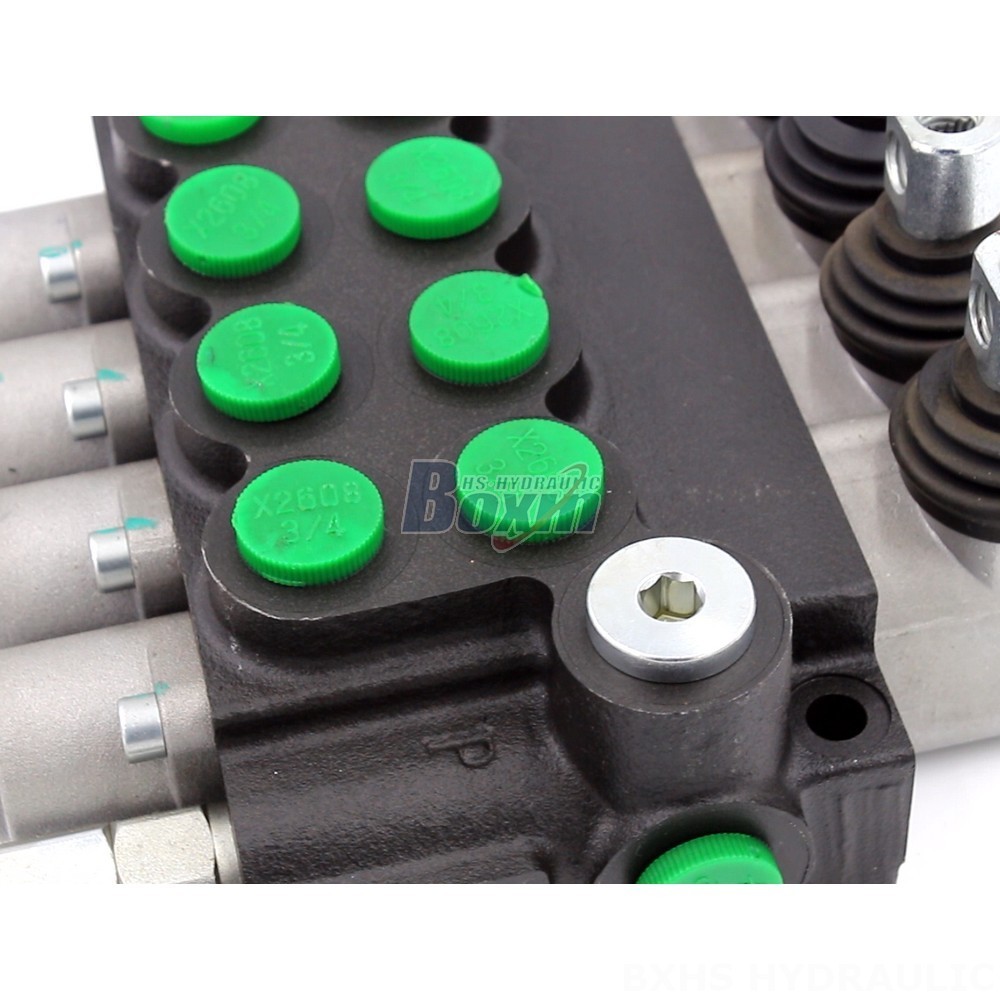

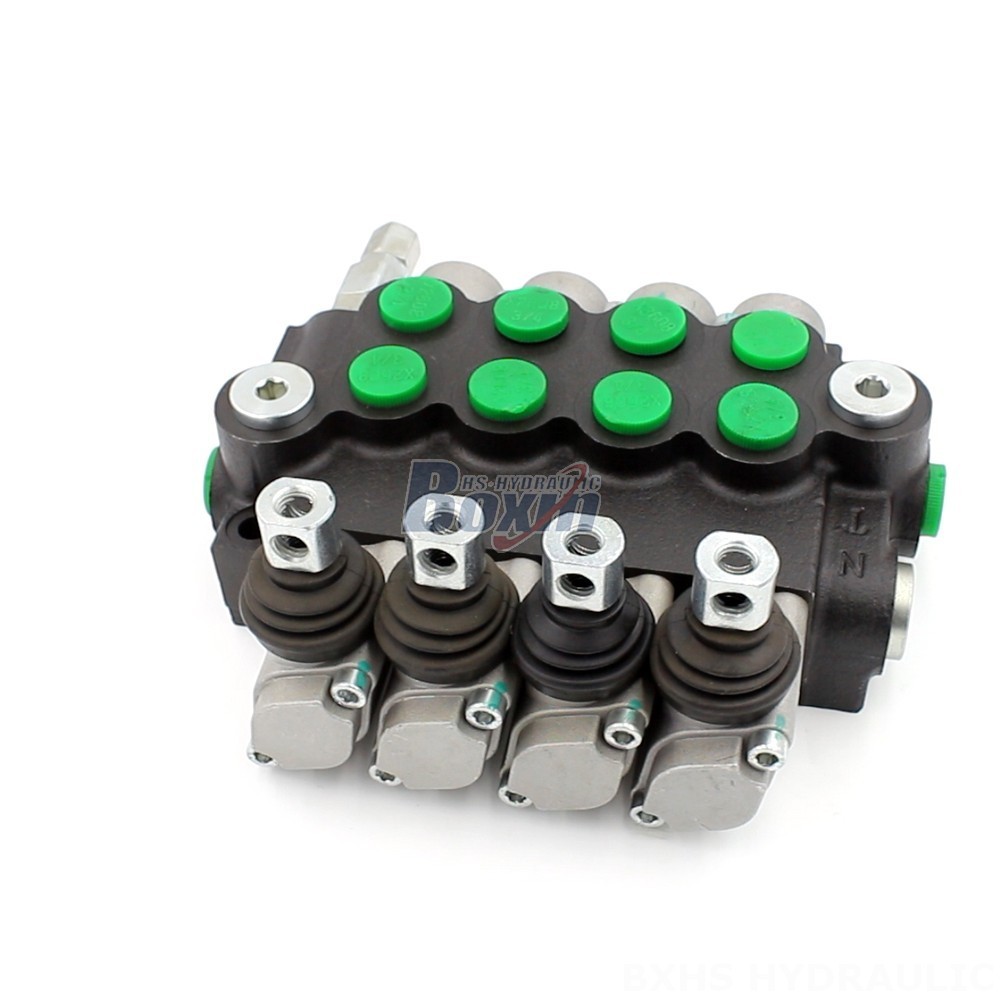

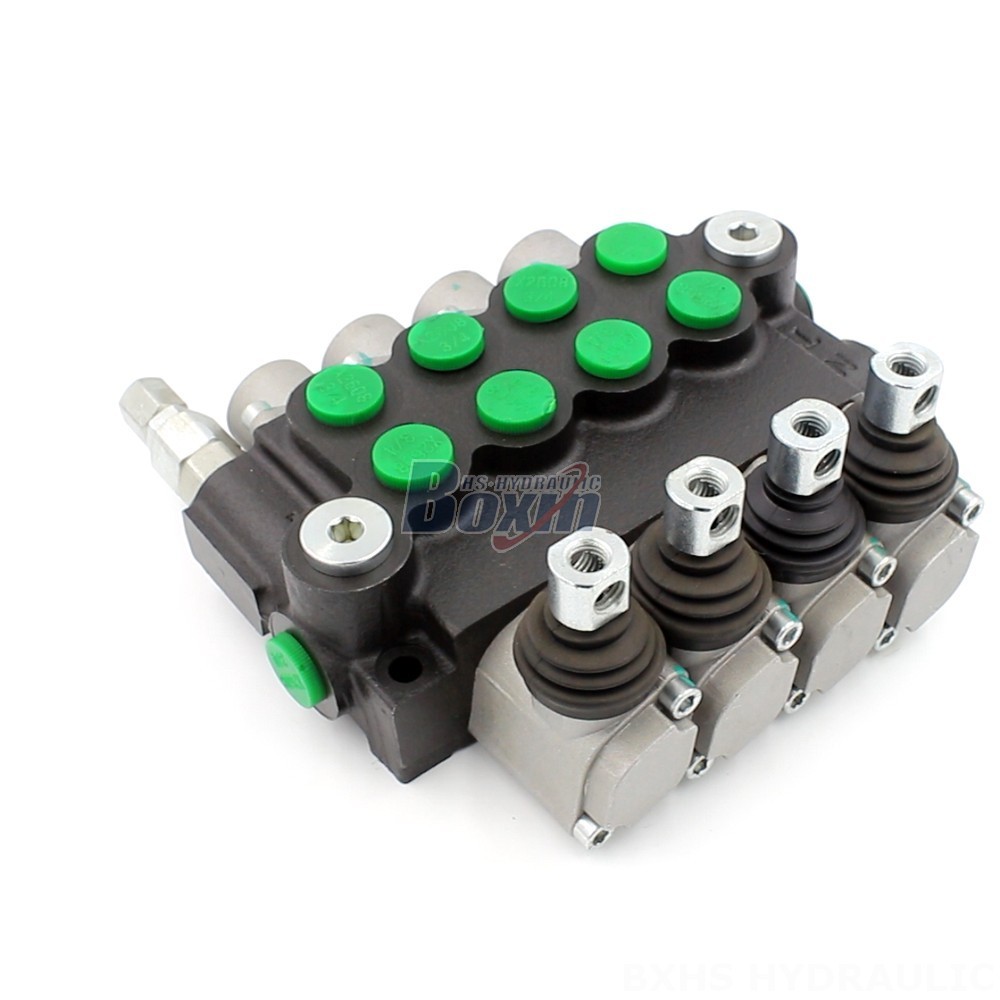

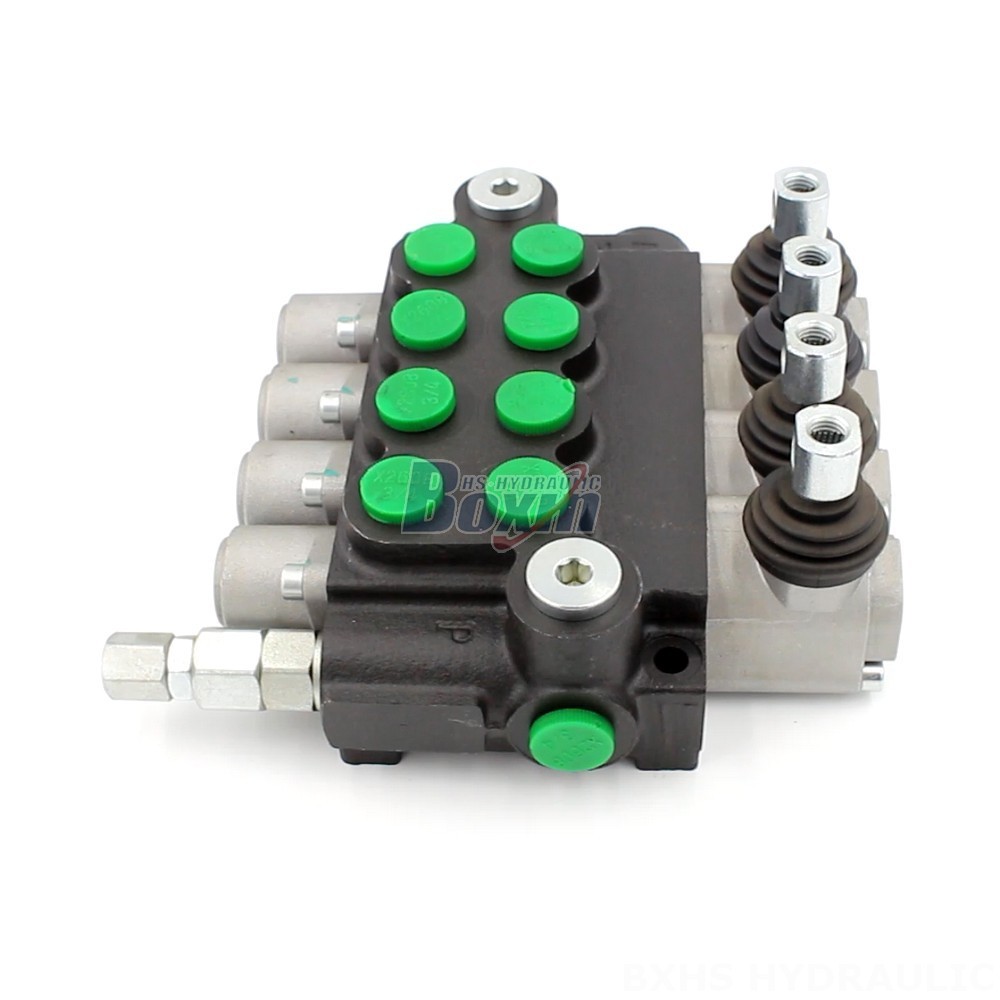

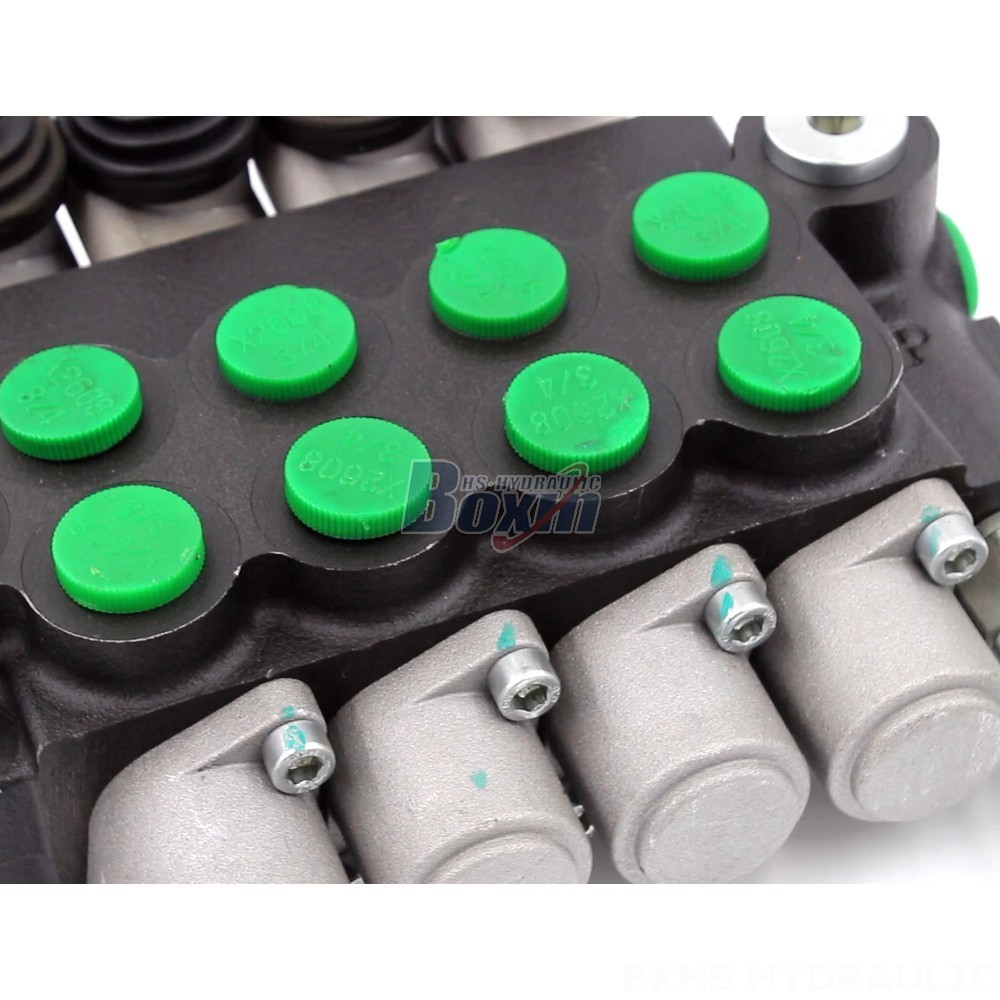

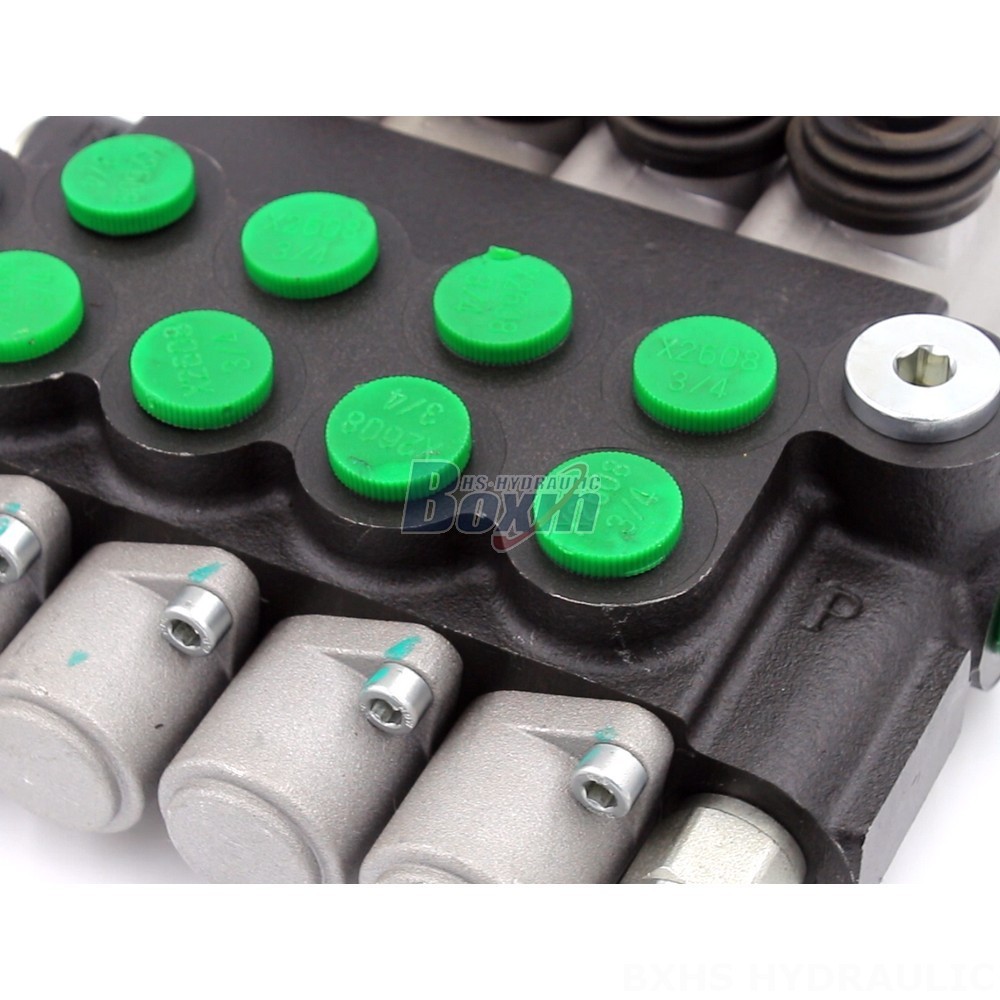

The P40-U34 Manual 4 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in various industrial and mobile applications. Featuring manual control and a compact monoblock construction, this valve provides precise flow control and reliable operation.
| P40-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Solenoid och Joystick, Manuell och Joystick, Magnetventil och kabel |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 40 l/min (10,5 US gpm) |
| Maximalt tryck | 250 bar (3600 psi) |
| Inloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Utloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Portstorlek | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**P40-U34 Manual 4 Spool Monoblock Directional Valve**
**Key Features:**
* Manual control for precise flow regulation
* 4 spool design for versatile flow management
* Monoblock construction for compact and durable installation
* Rated flow capacity of 40 L/min (10.5 US gpm)
* Maximum pressure rating of 250 bar (3600 psi)
* Wide operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient temperature range of -40°C to +80°C (-40°F to +176°F)
**Applications:**
The P40-U34 Manual 4 Spool Monoblock Directional Valve finds applications in various industries, including:
* Material handling equipment
* Construction machinery
* Earth-moving vehicles
* Agricultural machinery
* Industrial vehicles
**Specific Applications:**
* Telehandlers
* Forklifts
* Stackers
* Aerial platforms
* Motor graders
* Mini excavators
* Skid steer loaders
* Wheel loaders
* Tractors
* Front-end loaders
* Harvesters
