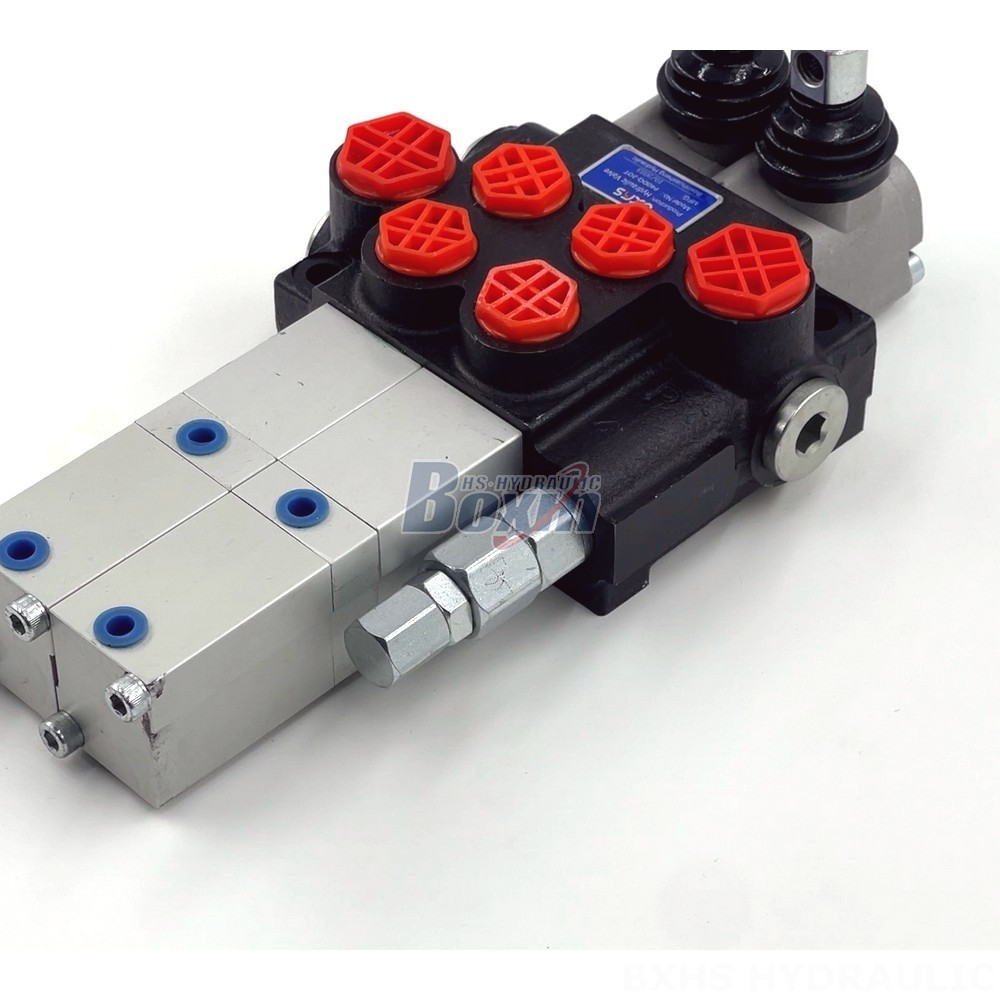

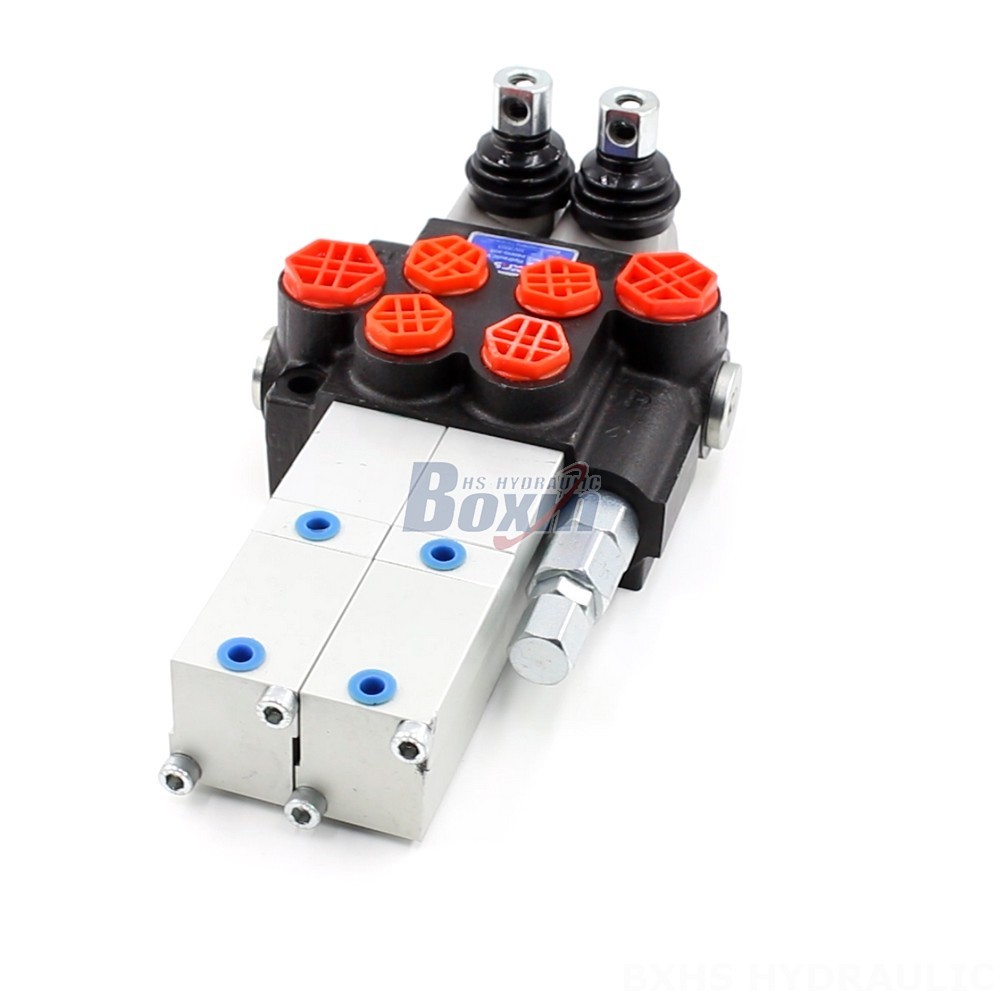

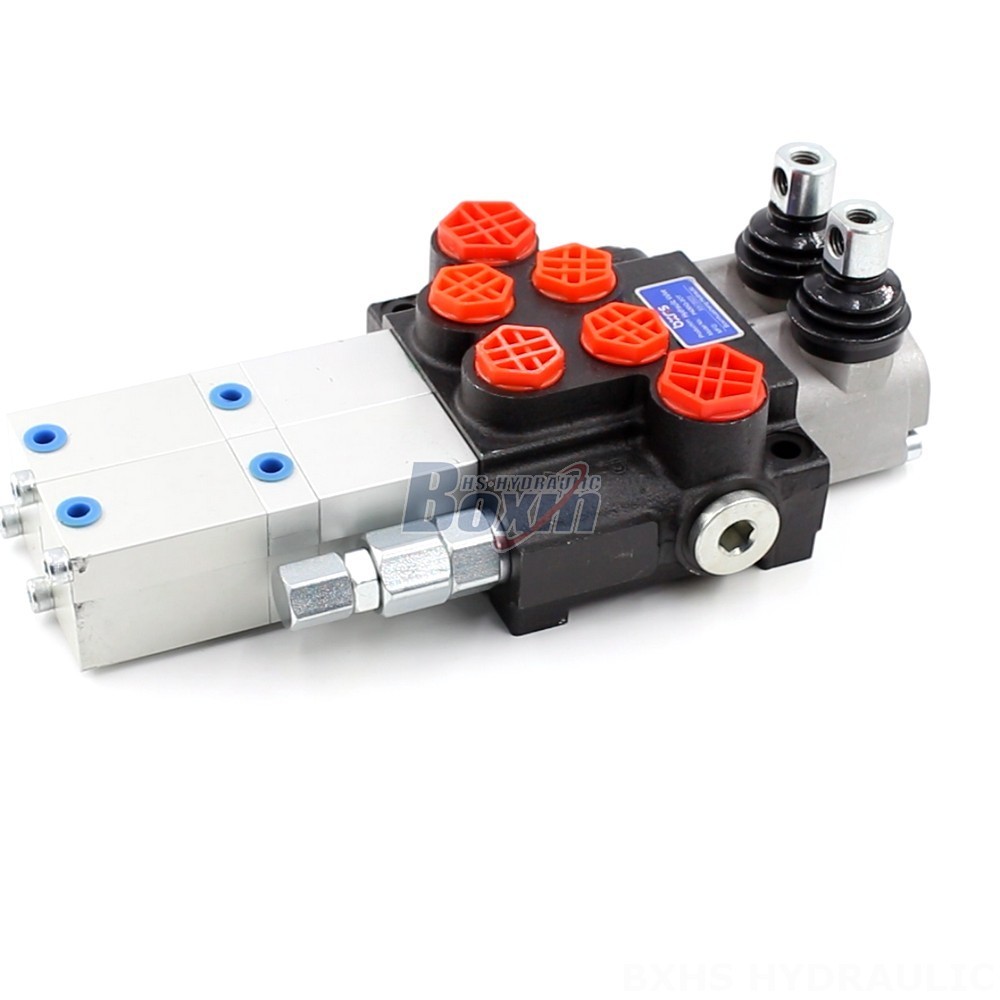

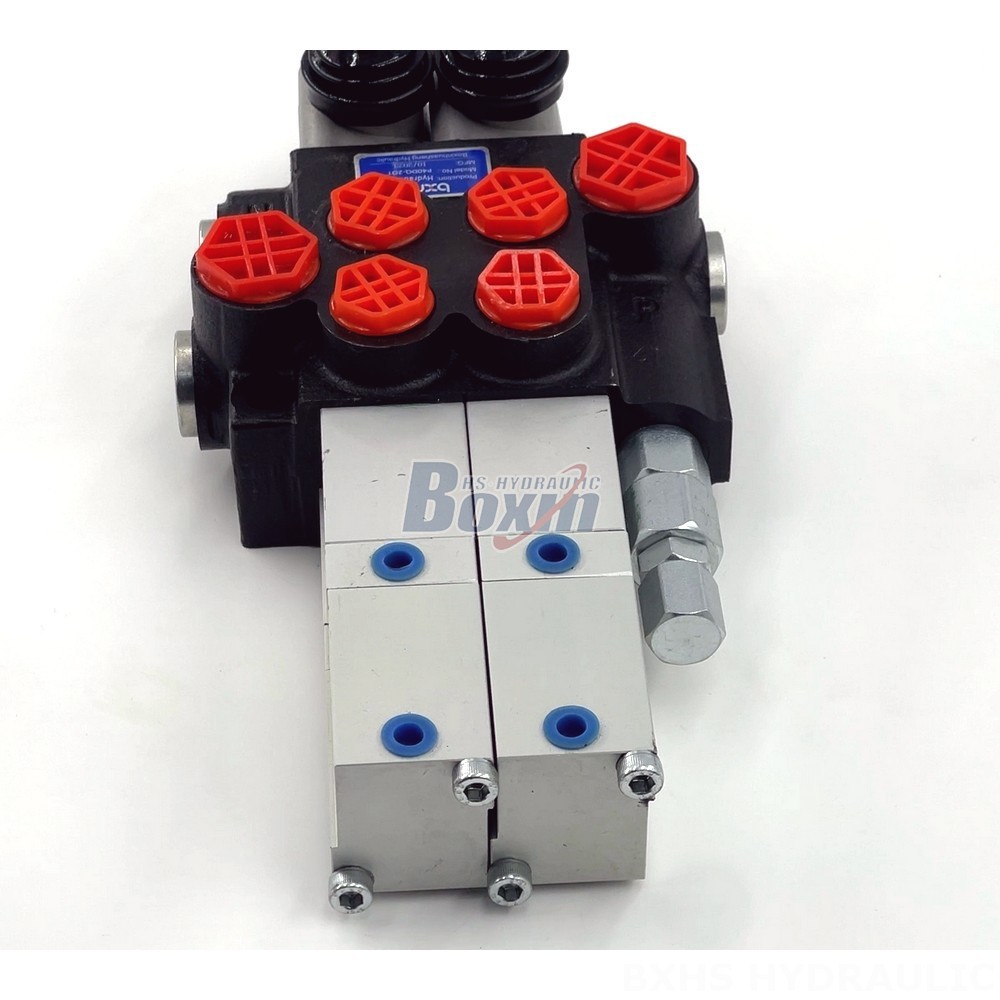

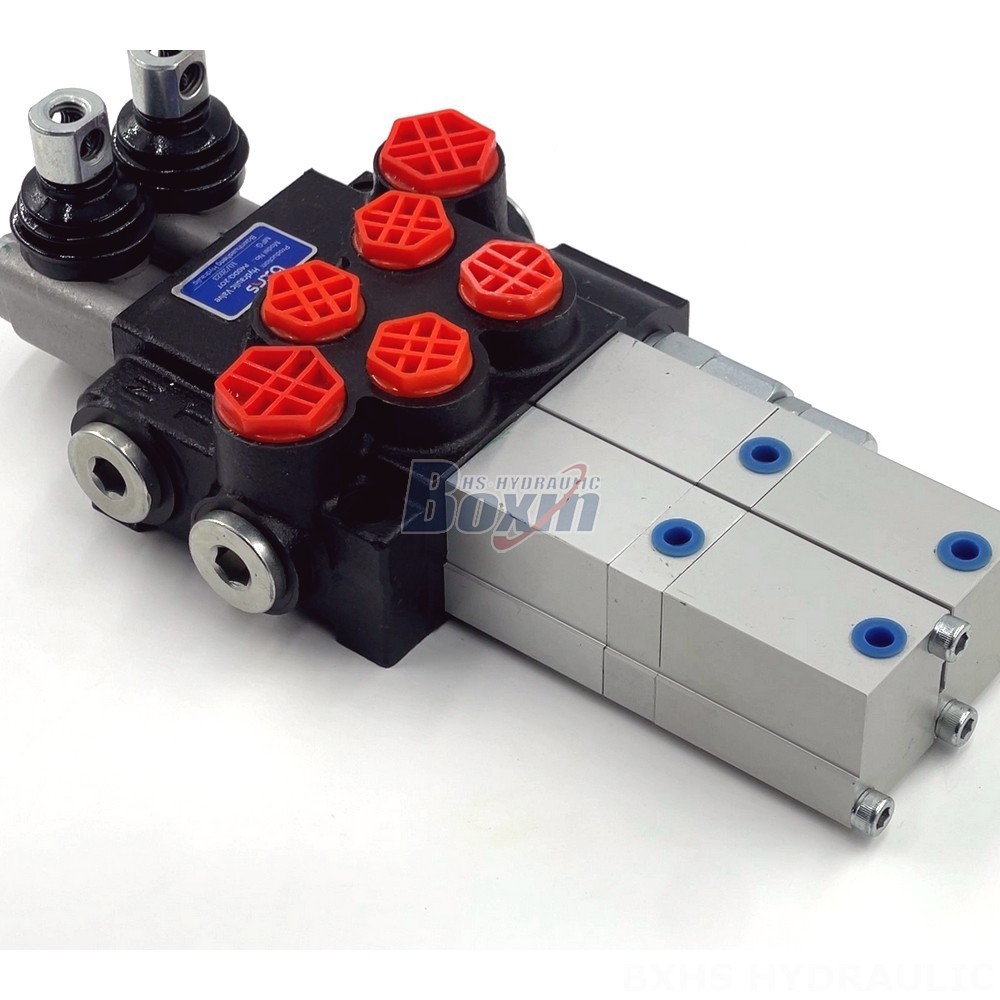

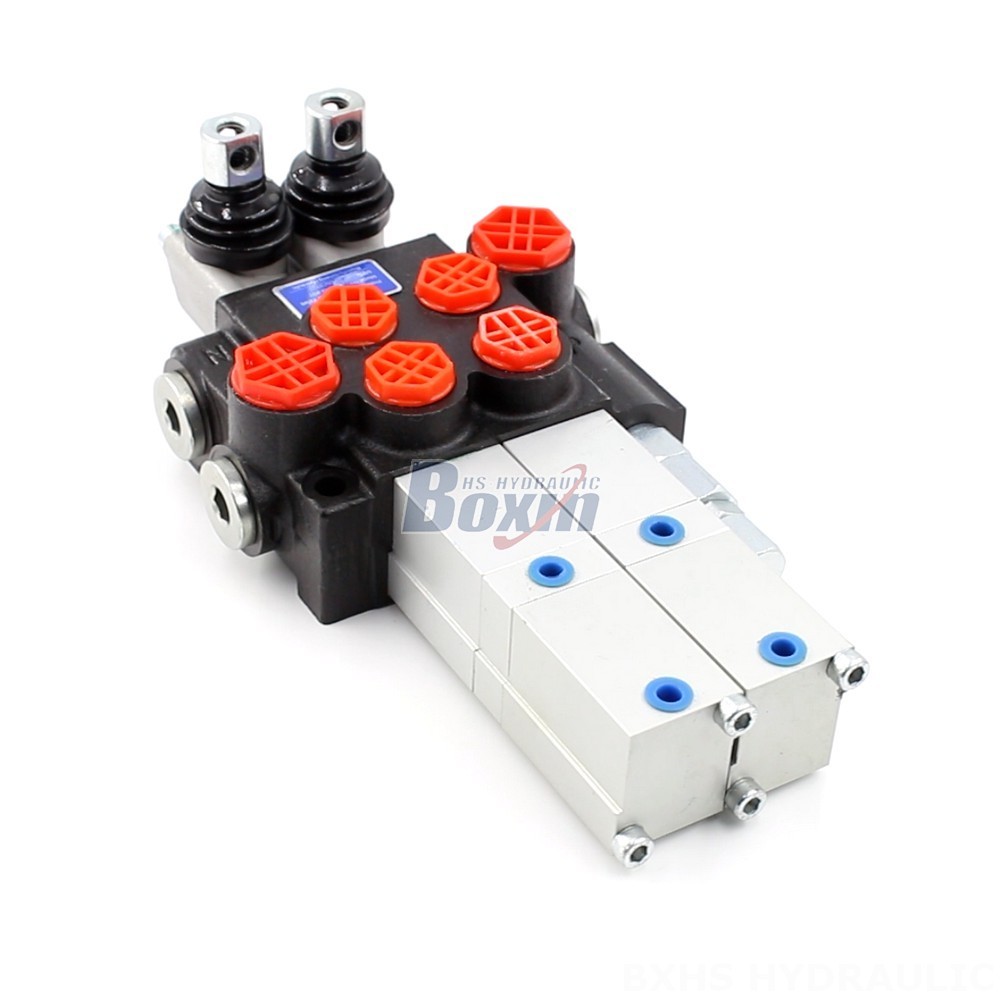

The P40 Series Hydraulic Control Valve is a pneumatic controlled, monoblock valve designed for double-acting cylinders. It features a 2-section design and a rated flow of 40 L/min, with a maximum pressure of 250 bar. This valve is perfect for a wide range of applications in material handling, construction, agriculture, and industrial vehicles.
| P40-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Solenoid och Joystick, Manuell och Joystick, Magnetventil och kabel |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 40 l/min (10,5 US gpm) |
| Maximalt tryck | 250 bar (3600 psi) |
| Inloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Utloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Portstorlek | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40 Series Hydraulic Control Valve is a high-performance, pneumatic controlled, monoblock valve specifically designed for double-acting cylinders. It features a 2-section design with a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi). The valve operates efficiently within a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). With a 2-spool configuration, it is suitable for various applications in MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, and INDUSTRIAL VEHICLES, including TELEHANDLER, FORKLIFT, ALL TERRAIN CRANE, STACKER, AERIAL PLATFORM, MOTOR GRADER, MIDI-EXCAVATOR, MINI-EXCAVATOR, SKID STEER LOADER, and COMPACT WHEEL LOADER. This valve is an excellent choice for demanding applications that require reliable and efficient hydraulic control.
