Produktion & Leverans
15-30 dagars produktionsledtid
Innovation driver utvecklingen Tekniken formar framtiden
1669 Vyer letar efter den här produkten

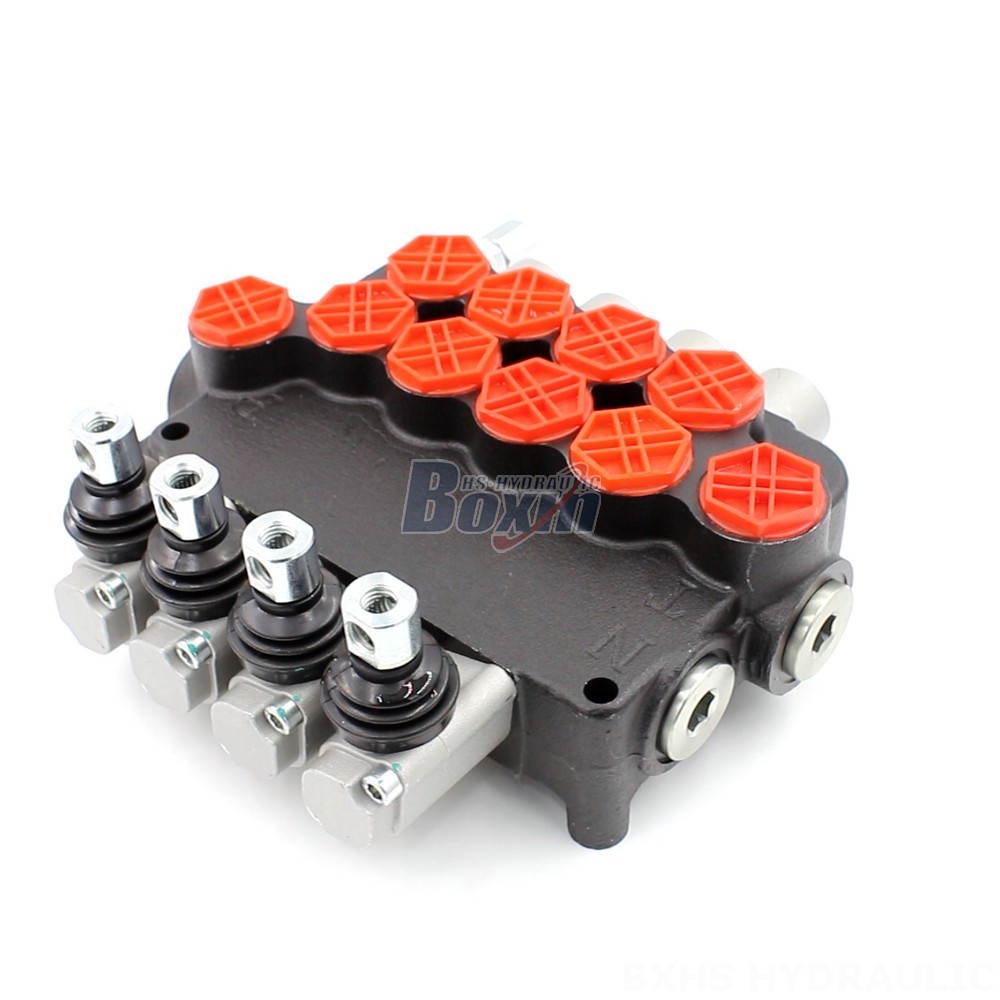

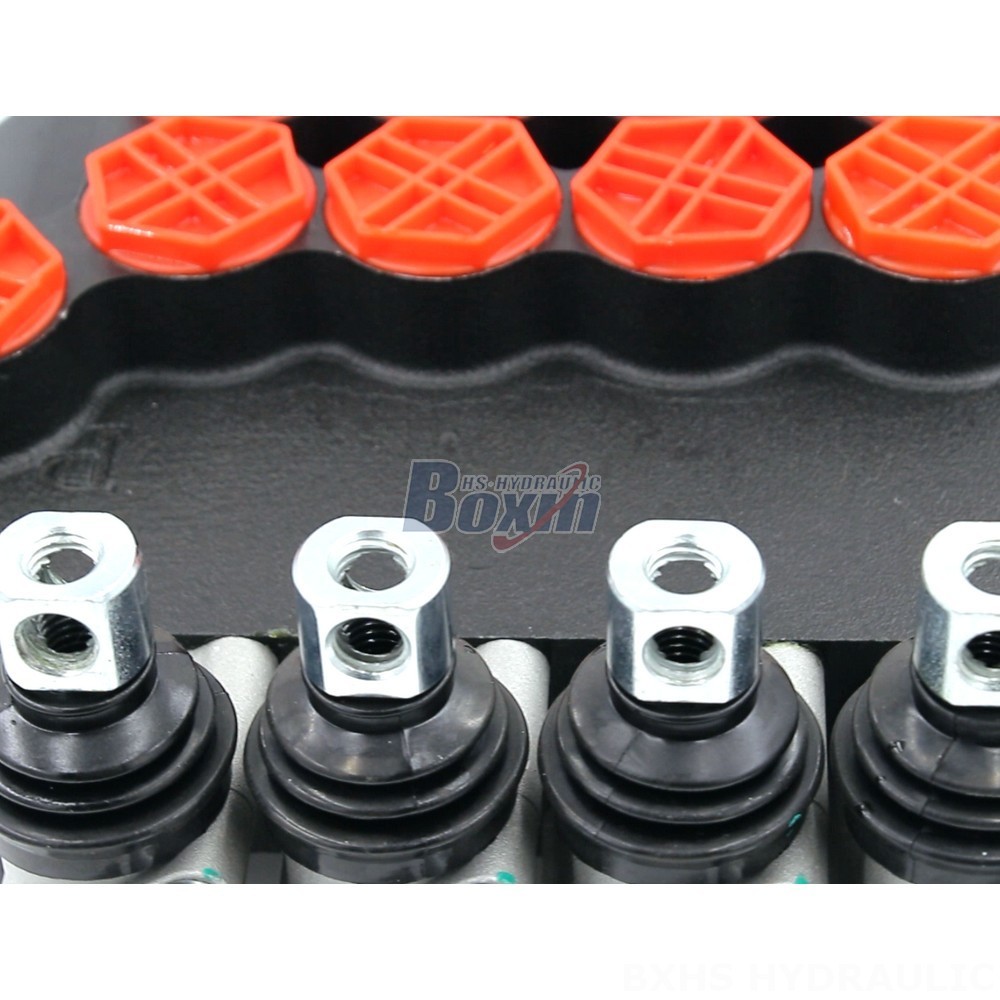

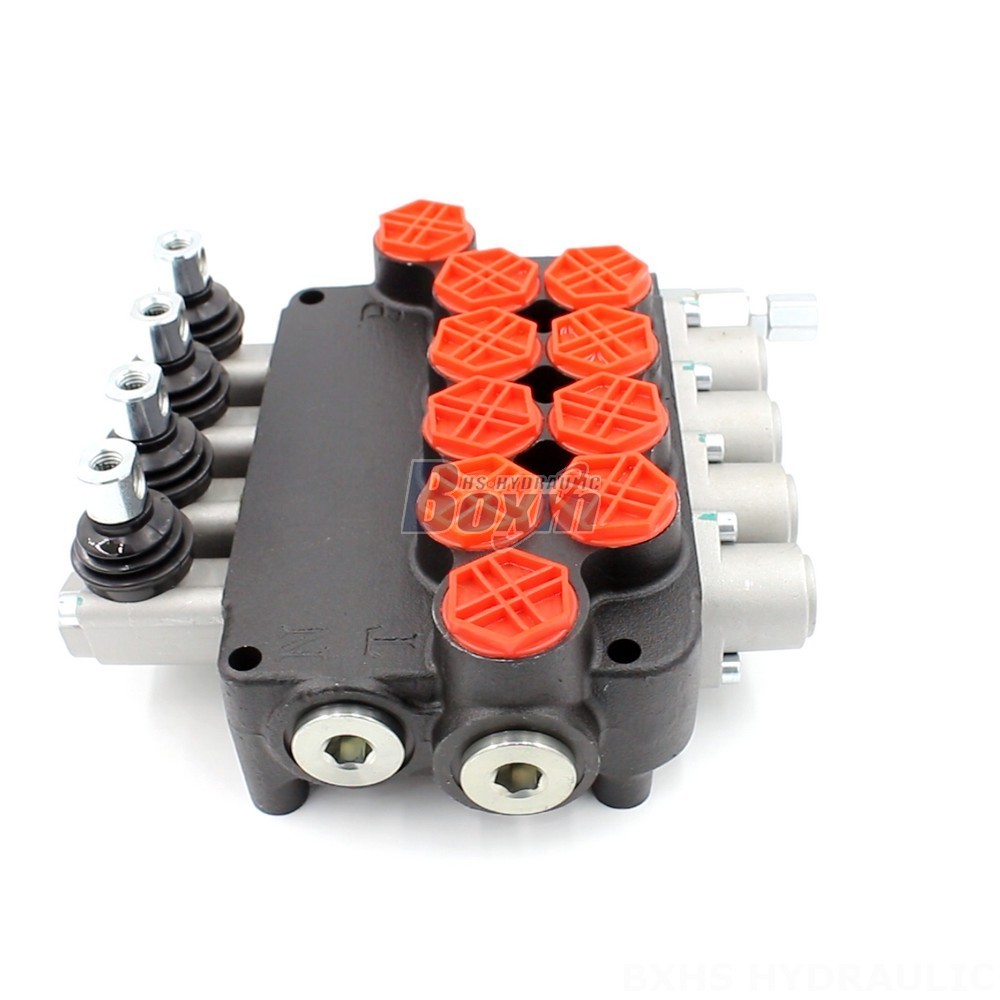

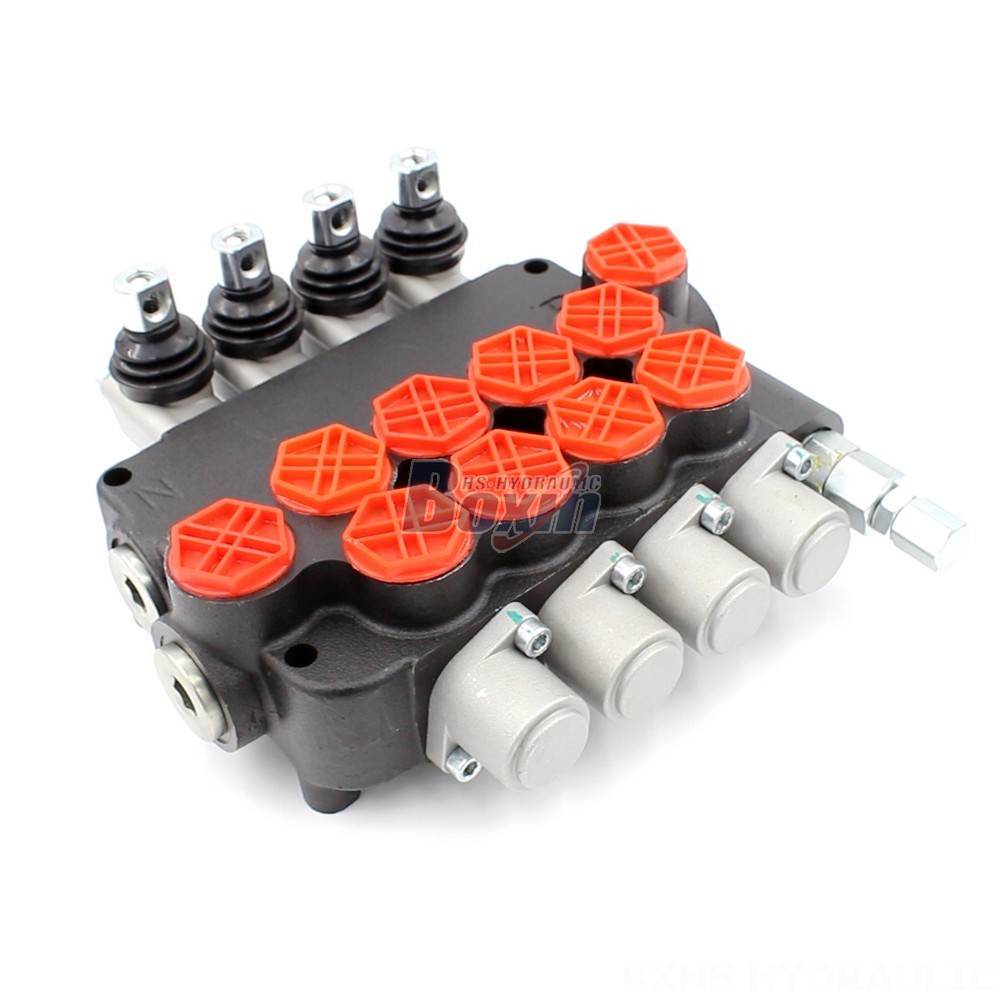

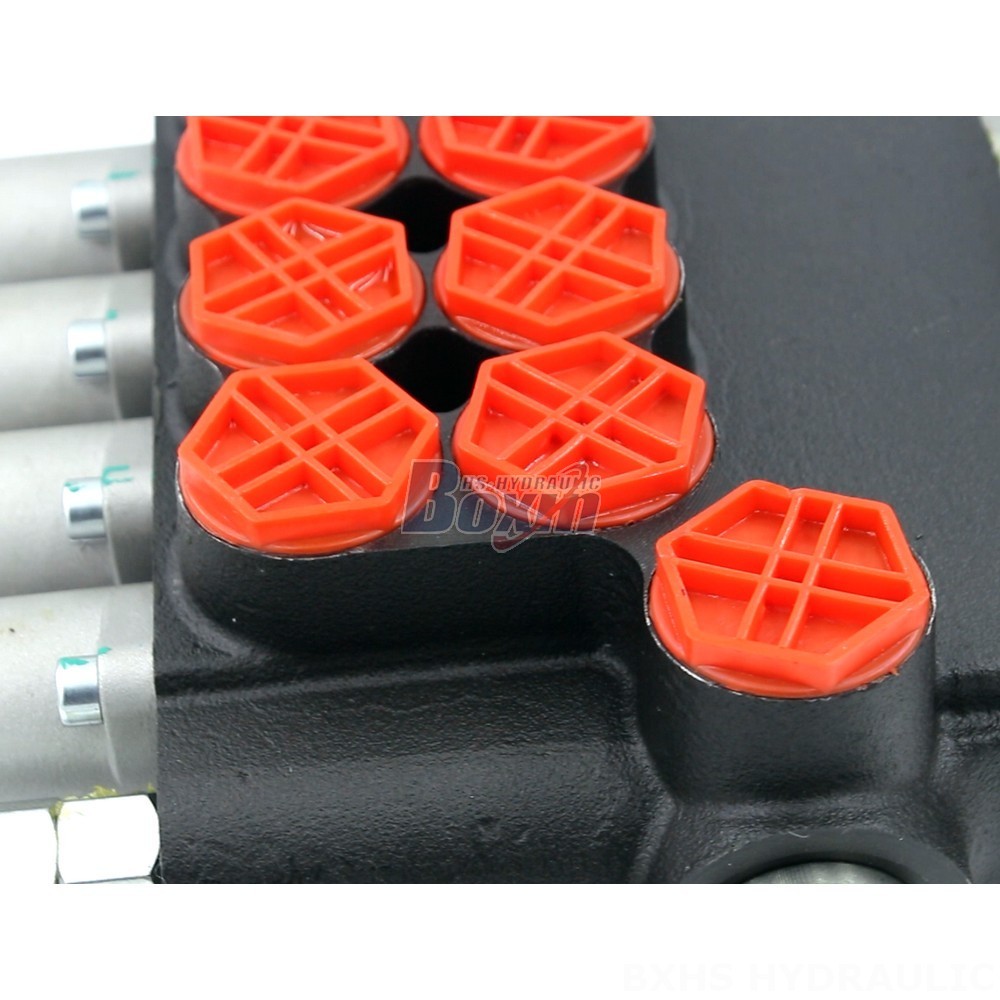

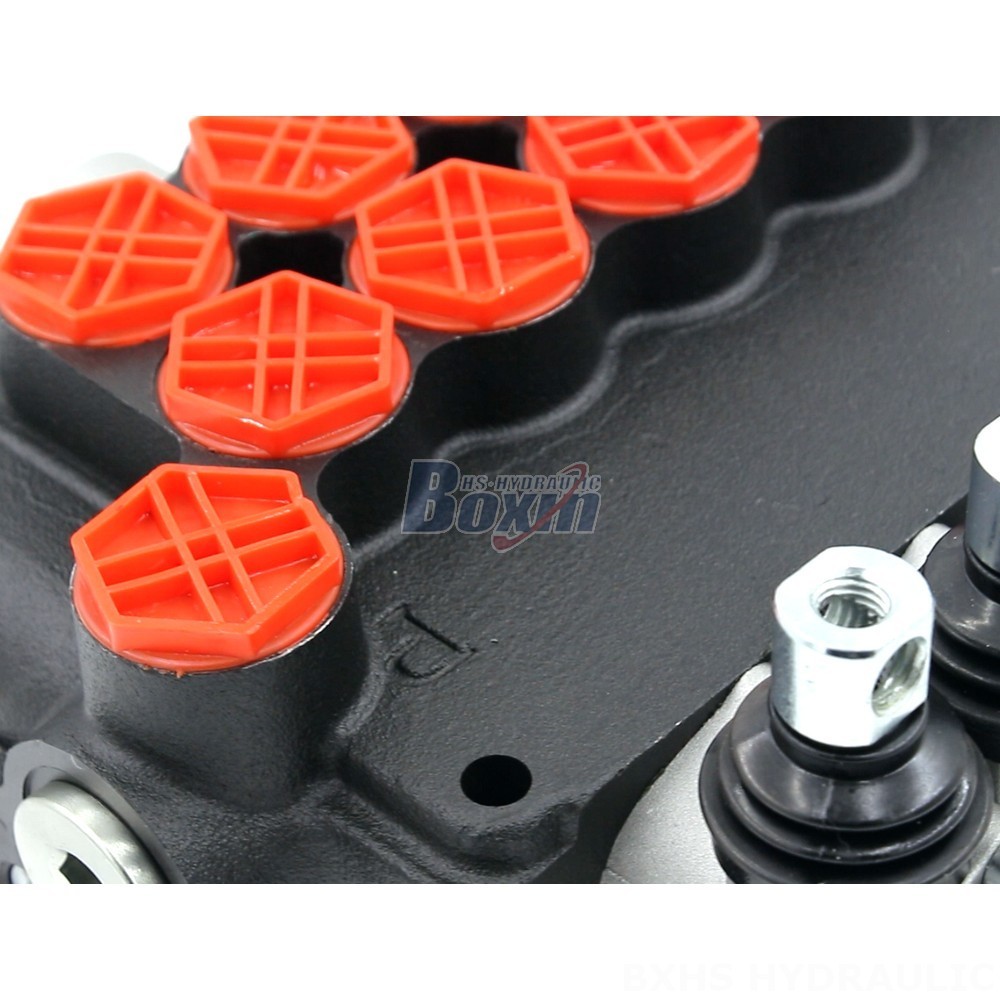

The P80 Series Hydraulic Directional Valve is a high-performance, 4-section monoblock valve designed for heavy-duty applications in construction, material handling, and industrial vehicles. It features manual control, a rated flow of 80 L/min, and a max pressure of 250 bar. This versatile valve is customizable to meet specific requirements and is available direct from the factory.
| P80-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Manuell och Joystick |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 80 l/min (21,2 US gpm) |
| Maximalt tryck | 315 bar (4600 psi) |
| Inloppsport | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Utloppsport | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Portstorlek | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
This P80 Series Hydraulic Directional Valve is a powerful and reliable solution for controlling hydraulic systems in various applications. It's a 4-section monoblock valve with manual control, providing precise and efficient operation. The valve boasts a high flow rate of 80 L/min, making it suitable for demanding applications. Its maximum pressure rating of 250 bar ensures robust performance under pressure. This valve is ideal for a wide range of applications, including telehandlers, forklifts, excavators, wheel loaders, and other construction and industrial equipment. It's customizable to meet specific requirements and is available direct from the factory.
