The P80 Electro-hydraulic 3 Spool Monoblock Directional Valve is a high-performance valve designed for use in demanding hydraulic systems. It features a robust monoblock construction, electro-hydraulic control, and a flow rate of 80 L/min. The valve is suitable for a wide range of applications, including material handling, construction, agriculture, and industrial vehicles.
| P80-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Manuell och Joystick |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 80 l/min (21,2 US gpm) |
| Maximalt tryck | 315 bar (4600 psi) |
| Inloppsport | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Utloppsport | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Portstorlek | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |

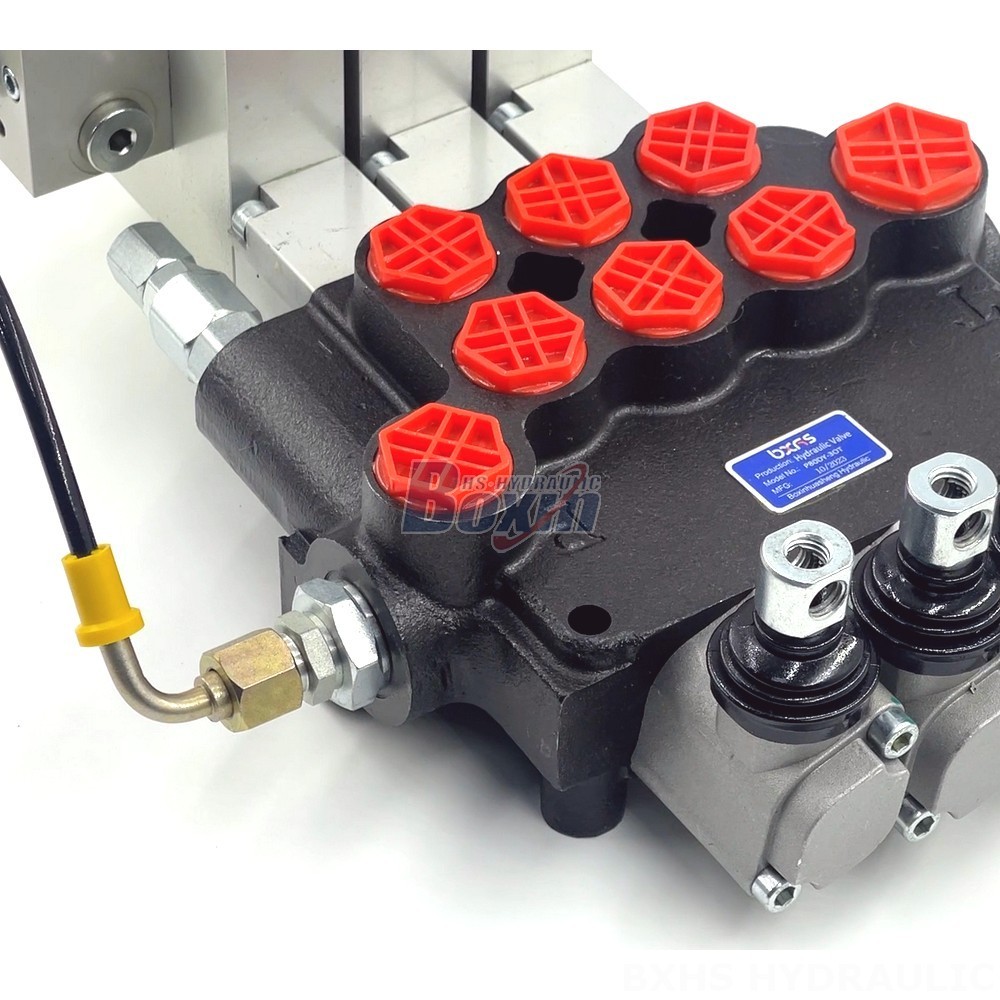

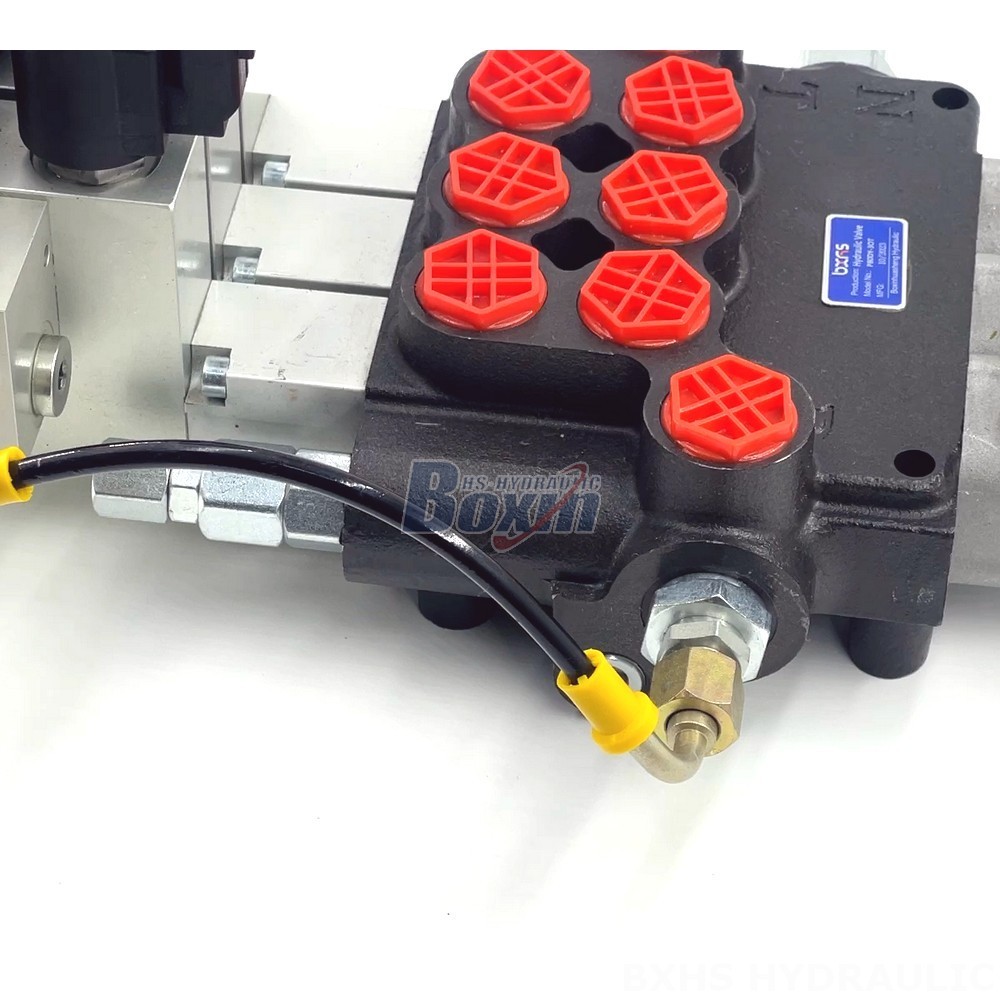

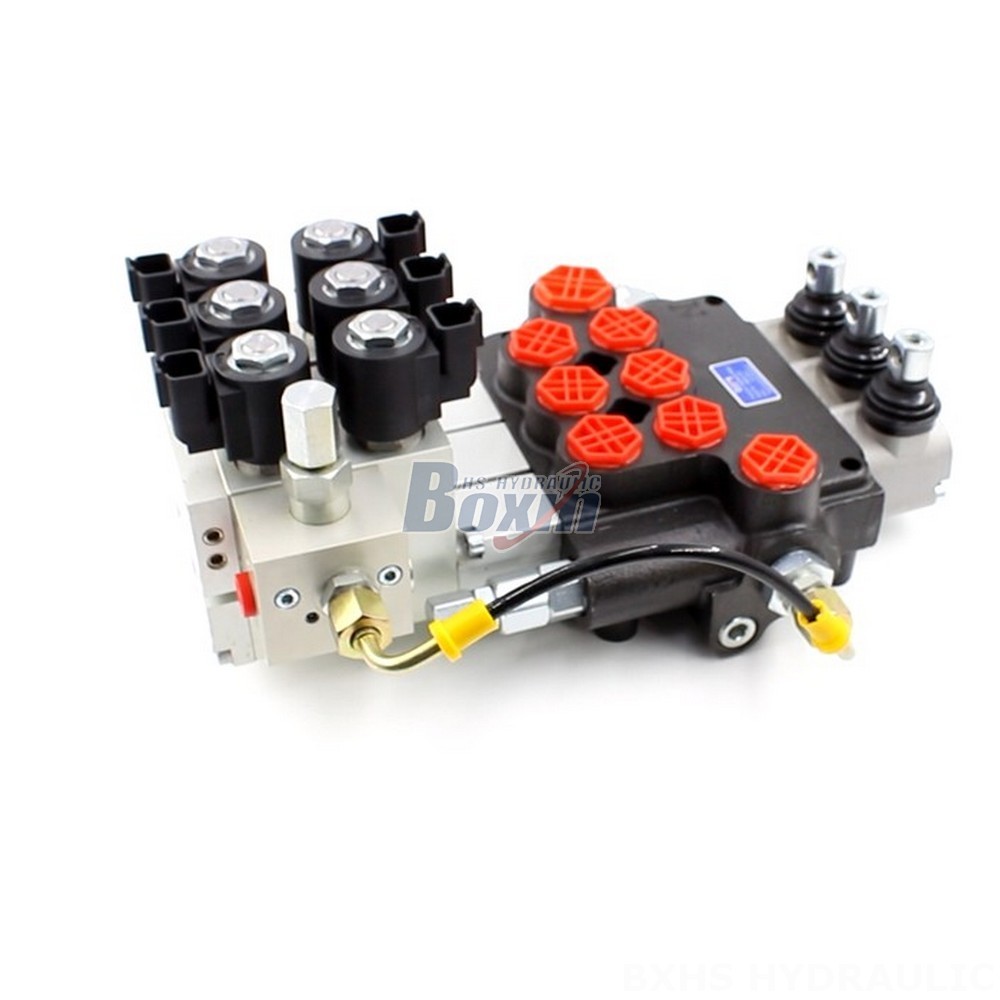

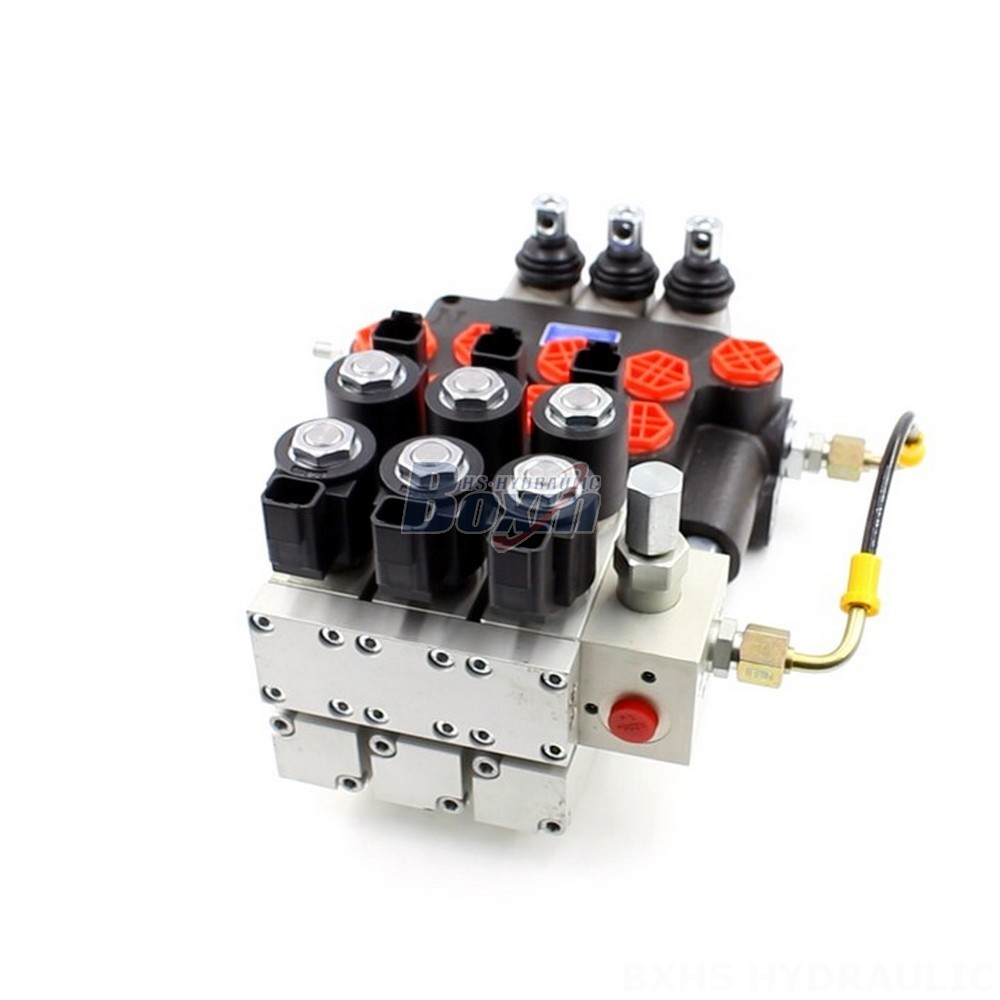

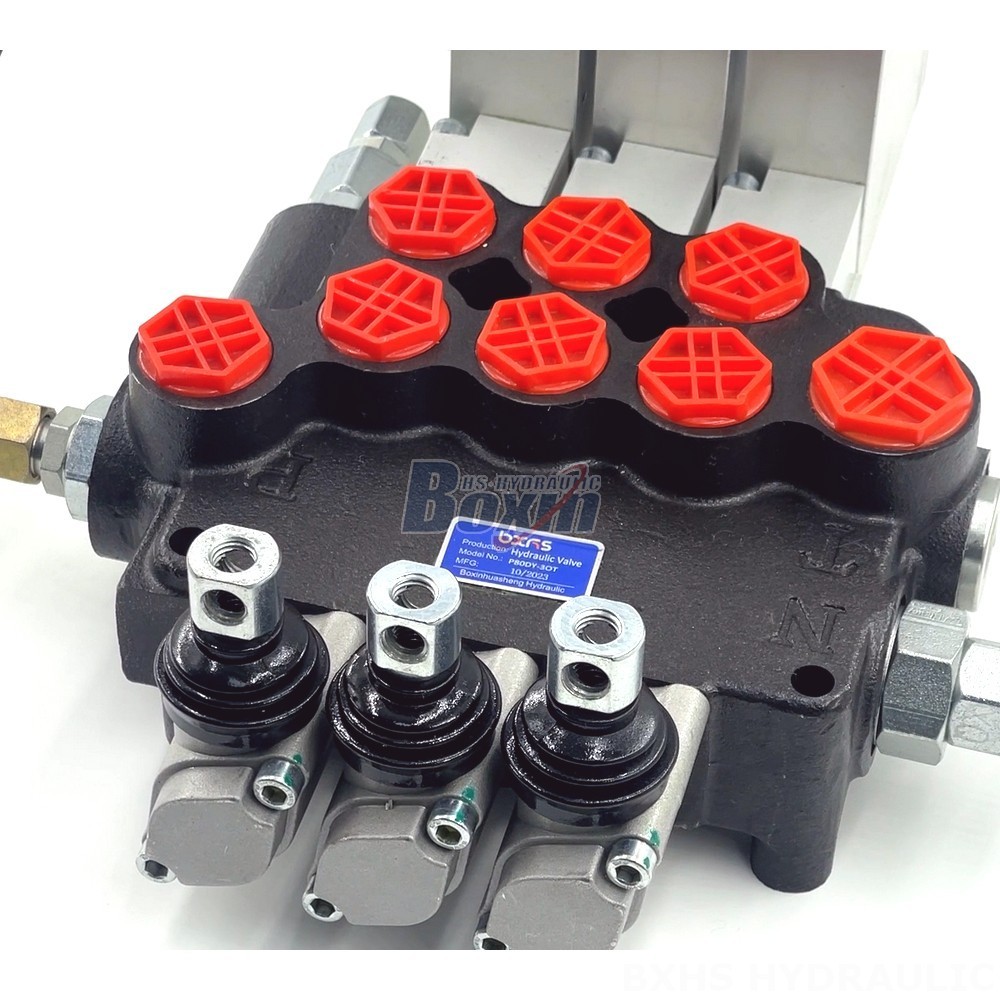

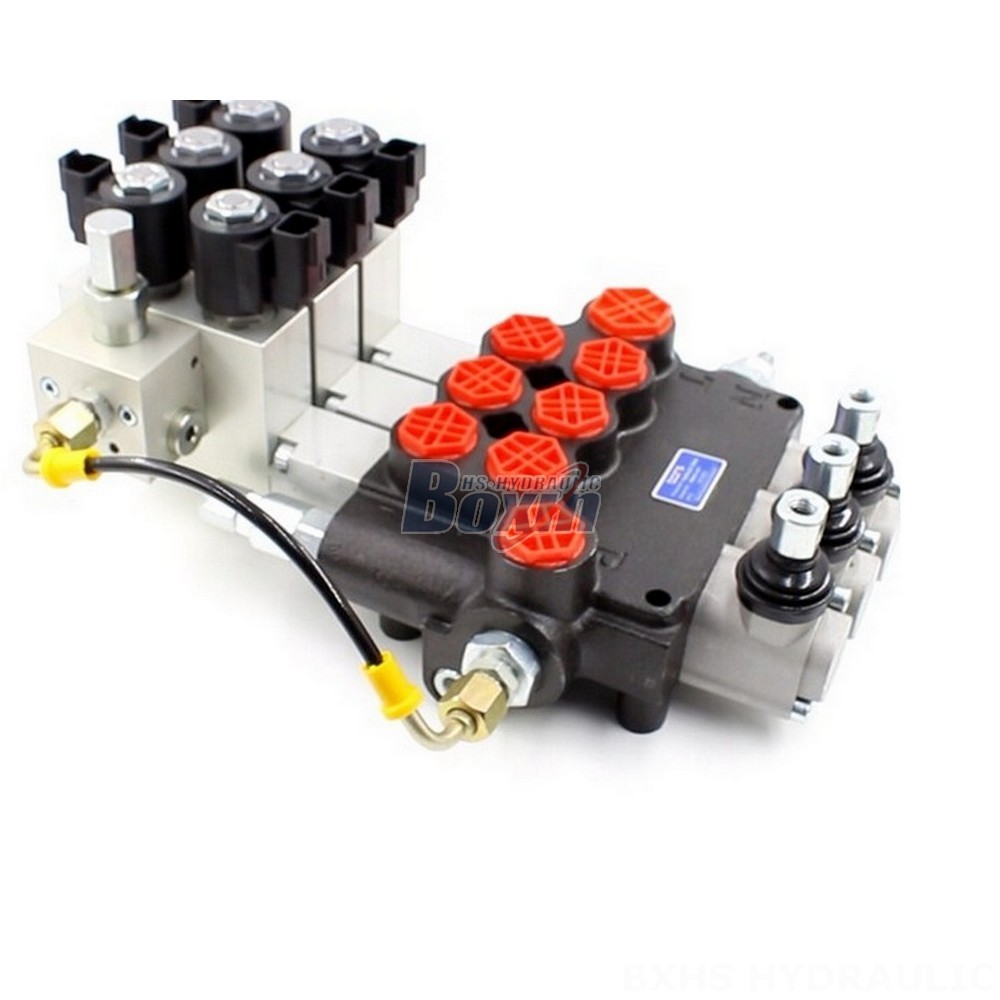

**P80 Electro-hydraulic 3 Spool Monoblock Directional Valve**
The P80 Electro-hydraulic 3 Spool Monoblock Directional Valve is a versatile and reliable valve that is ideal for use in a variety of hydraulic systems. It features a robust monoblock construction that provides excellent strength and durability. The valve is also equipped with electro-hydraulic control, which allows for precise and responsive operation. With a flow rate of 80 L/min and a maximum pressure of 250 bar, the P80 valve is capable of handling even the most demanding applications.
**Key Features:**
* Monoblock construction for strength and durability
* Electro-hydraulic control for precise and responsive operation
* Flow rate of 80 L/min
* Maximum pressure of 250 bar
* Suitable for a wide range of applications
**Applications:**
* Material handling
* Construction
* Agriculture
* Industrial vehicles
