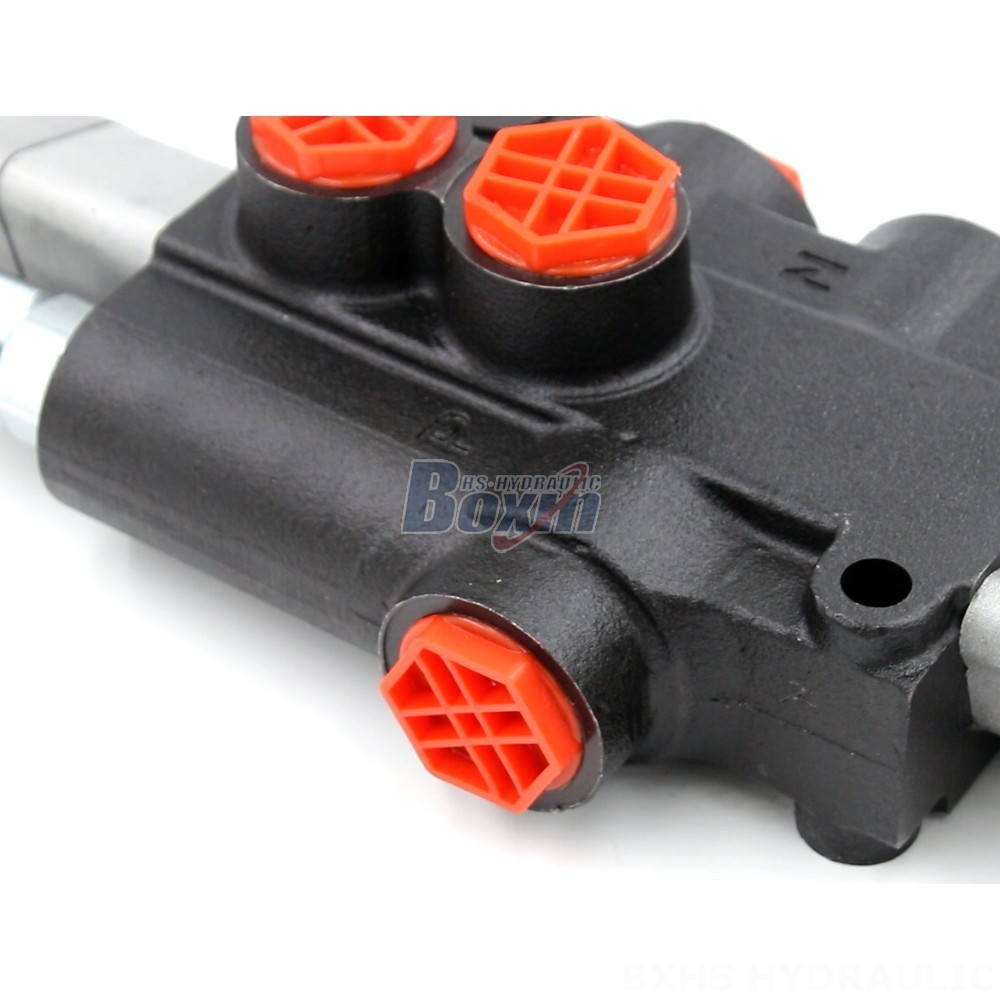

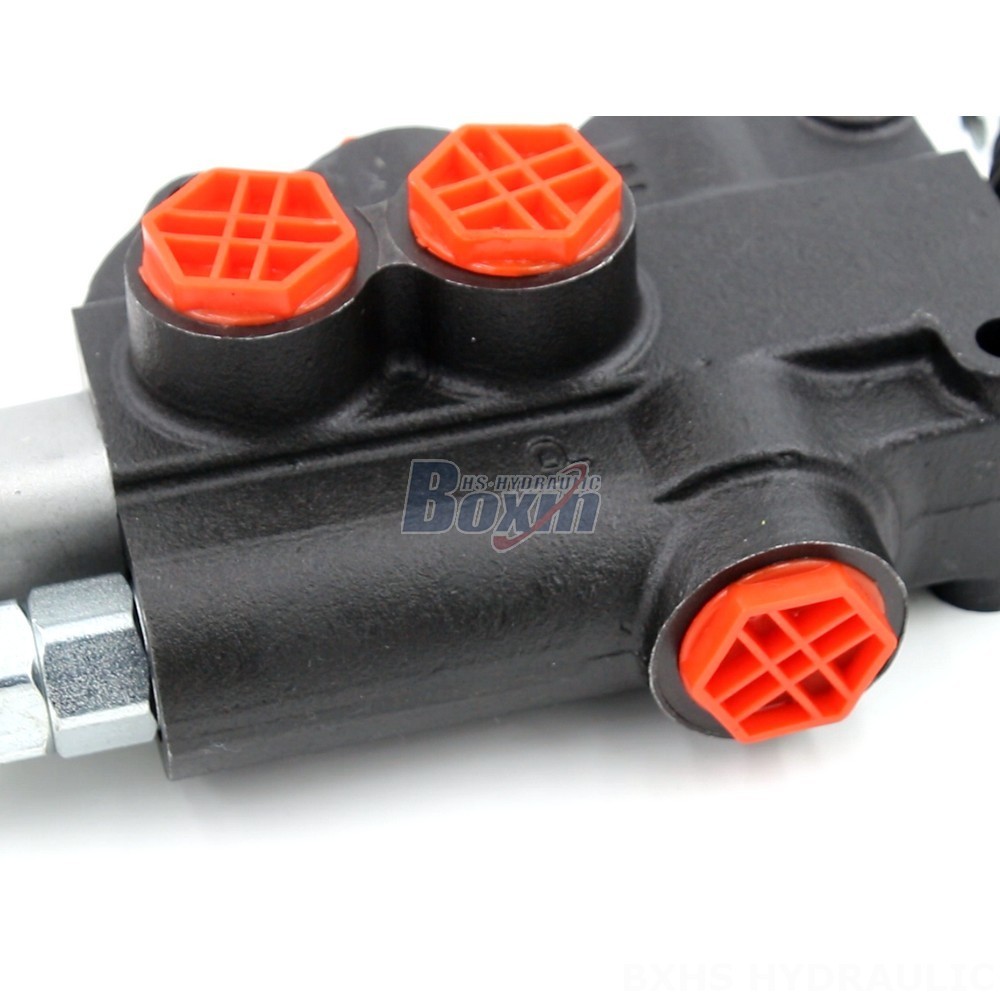

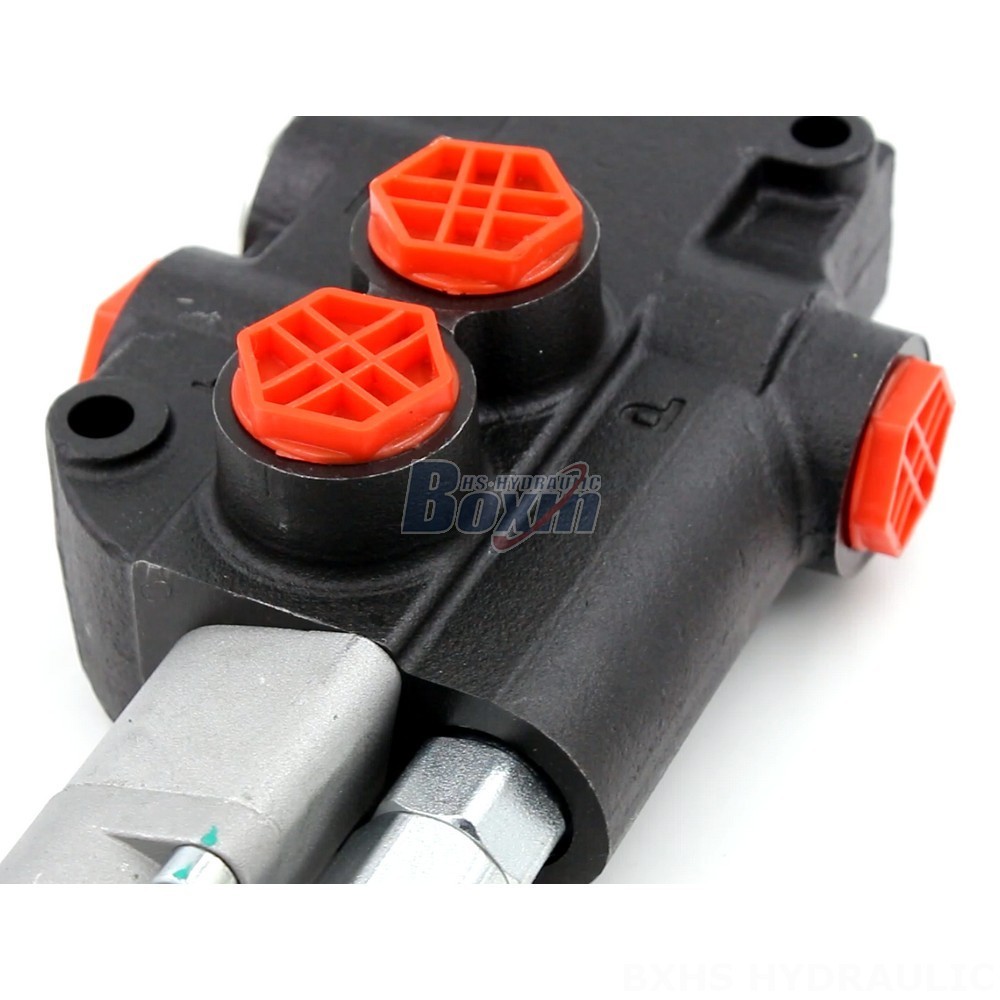

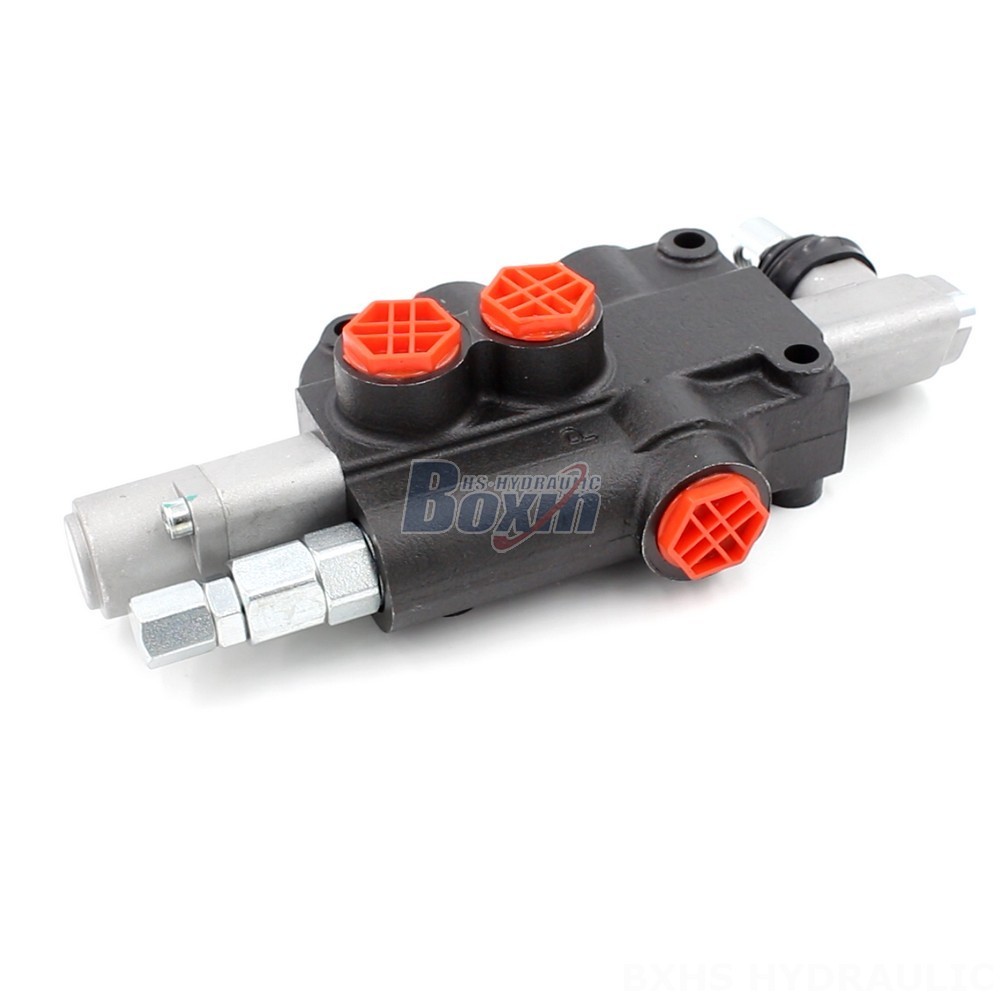

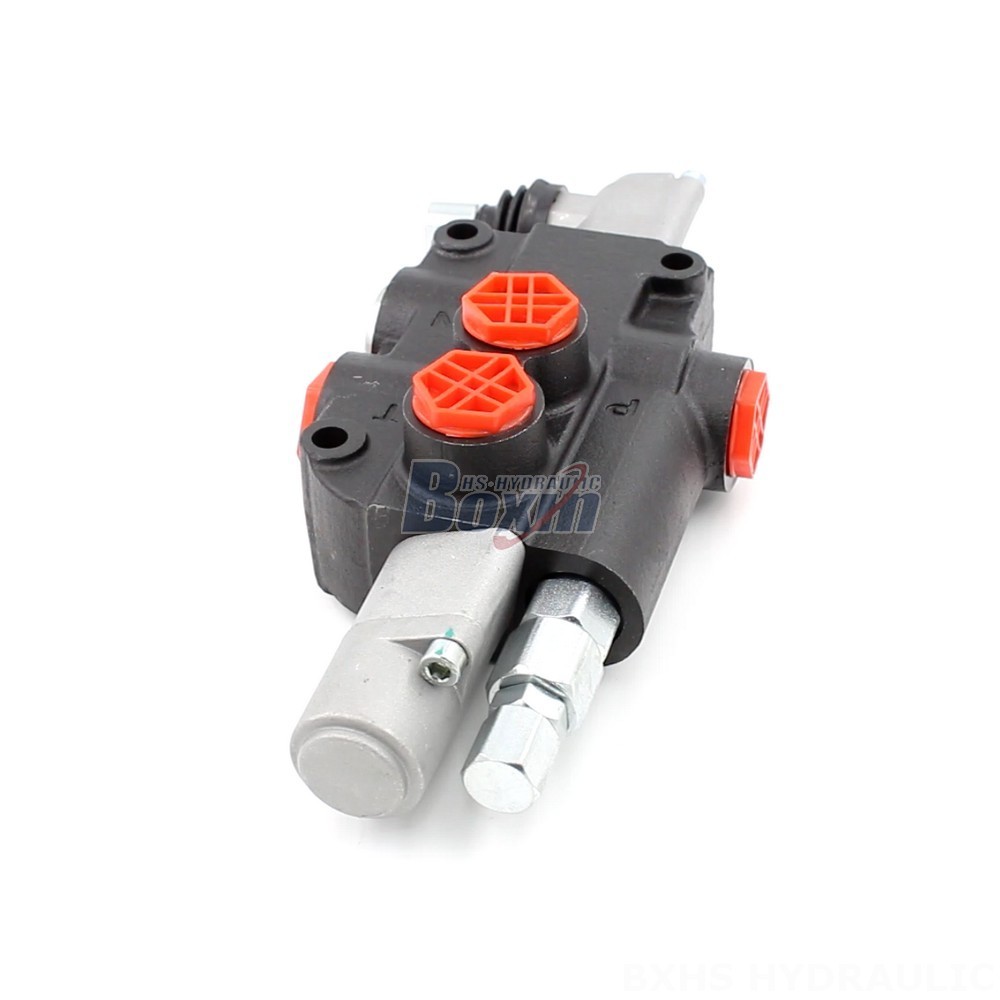

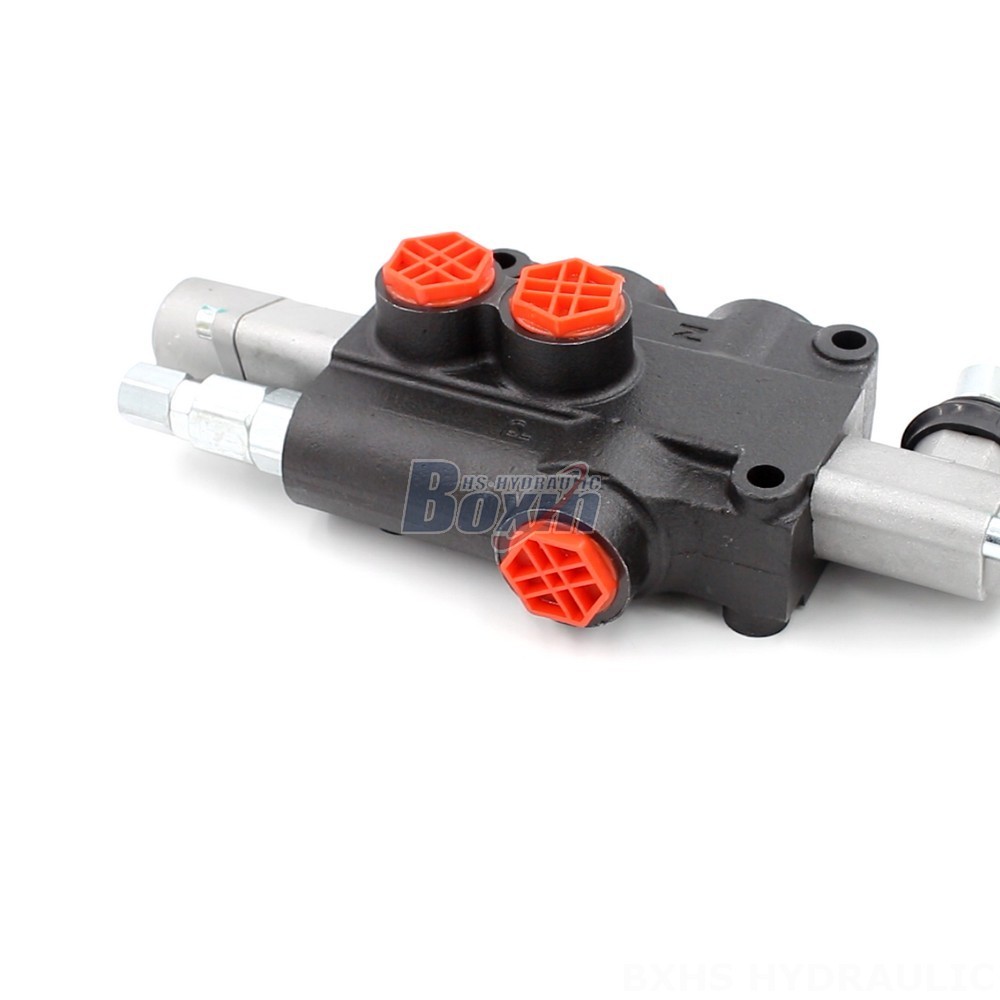

The P80-G12-QTW Manual 1 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in a variety of industrial applications. It features a manual control method, a 1 section structure type, and a rated flow of 80 L/min (21.2 US gpm). The valve has a maximum pressure of 250 bar (3600 psi) and an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). It also has an ambient temperature range of -40°C to +80°C (-40°F to +176°F). The valve is suitable for use in material handling, construction and earth moving, agriculture, and industrial vehicles.
| P80-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Manuell och Joystick |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 80 l/min (21,2 US gpm) |
| Maximalt tryck | 315 bar (4600 psi) |
| Inloppsport | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Utloppsport | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Portstorlek | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**Product Name**: P80-G12-QTW Manual 1 Spool Monoblock Directional Valve
**Control Method**: Manual
**Section**: 1 Section
**Structure Type**: Monoblock valve
**Rated Flow**: 80 L/min (21.2 US gpm)
**Max Pressure**: 250 bar (3600 psi)
**Operating Viscosity Range**: 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range**: -40°C to +80°C (-40°F to +176°F)
**Spool**: 1 Spool
**Series**: P80 Series
**Application Area**: MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
**Applicable Model**: TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,MIDI-EXCAVATOR,MINI-EXCAVATOR,SKID STEER LOADER,COMPACT WHEEL LOADER
