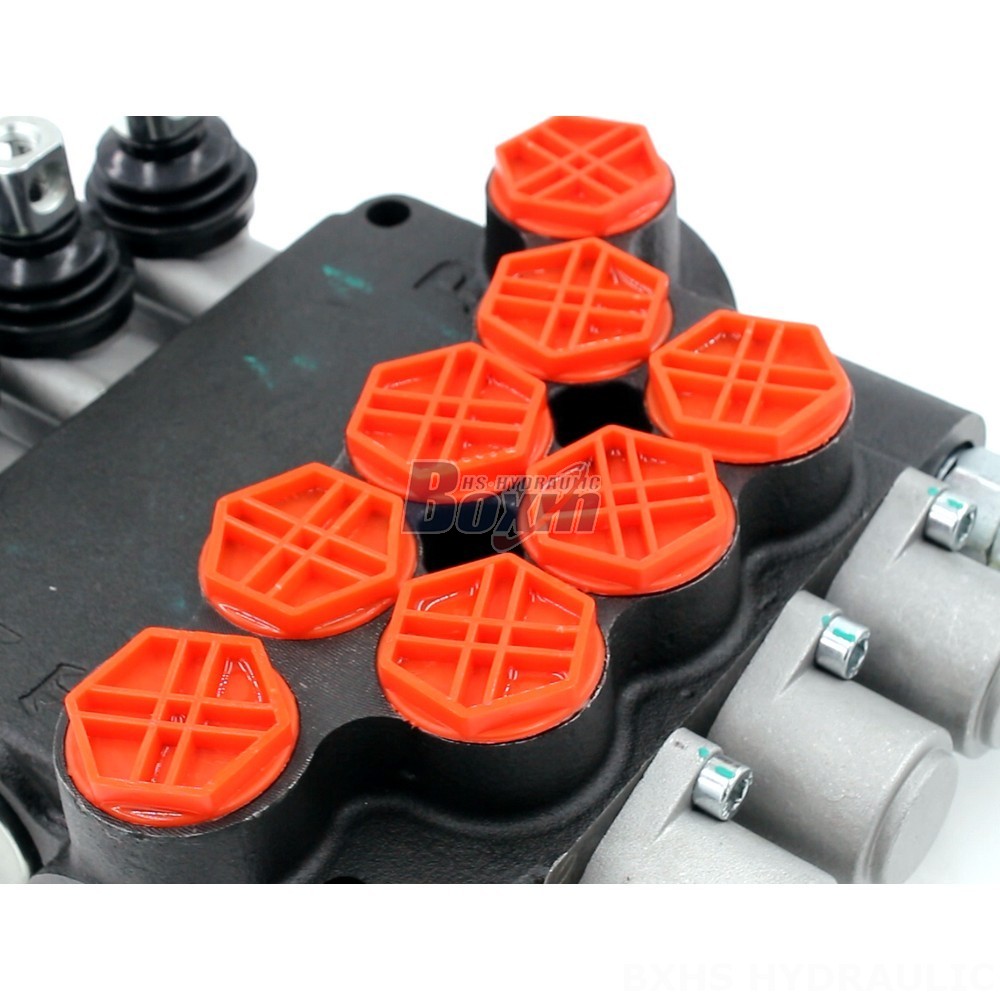

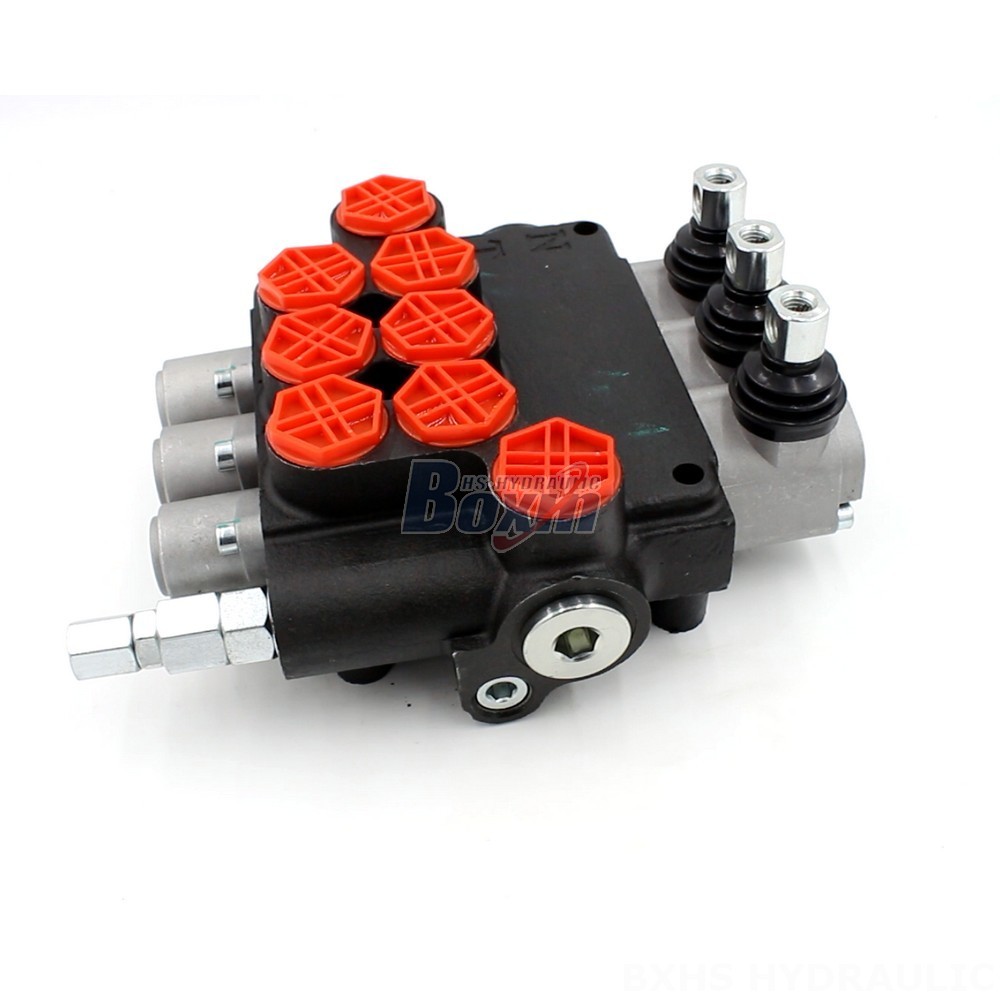

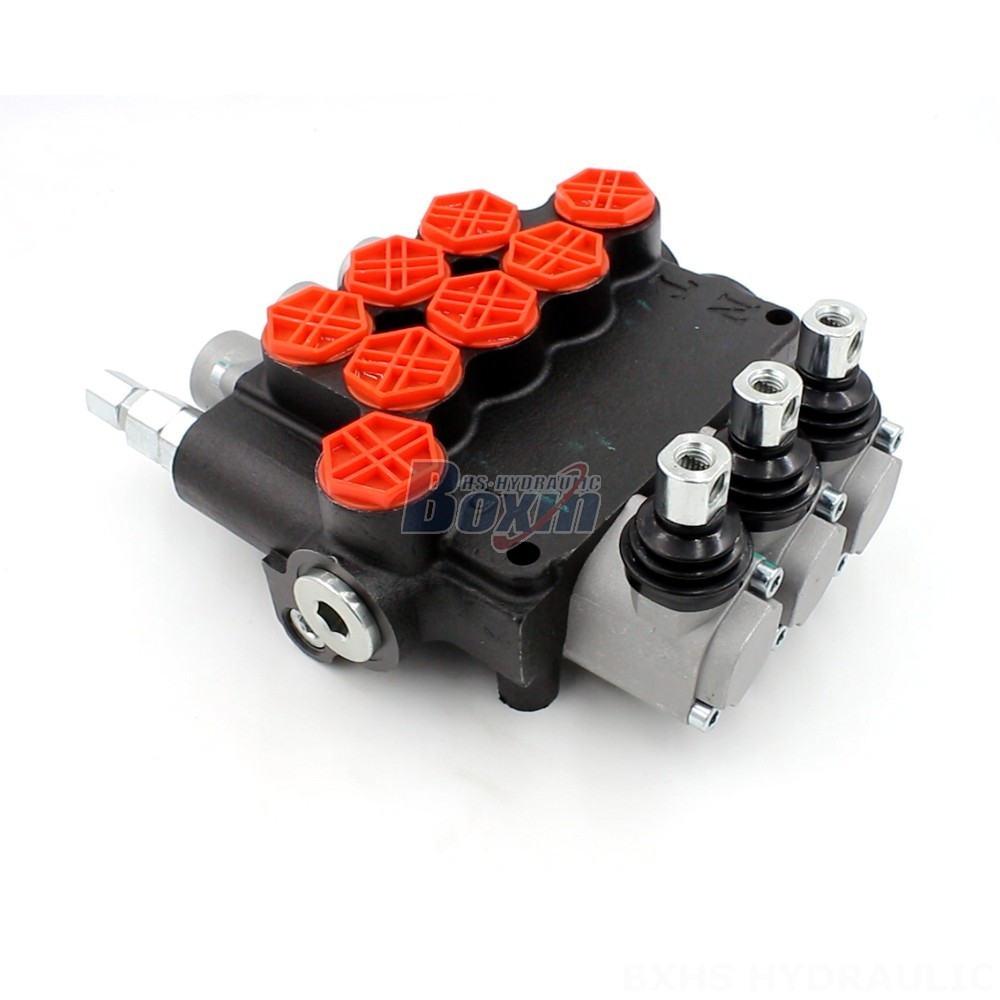

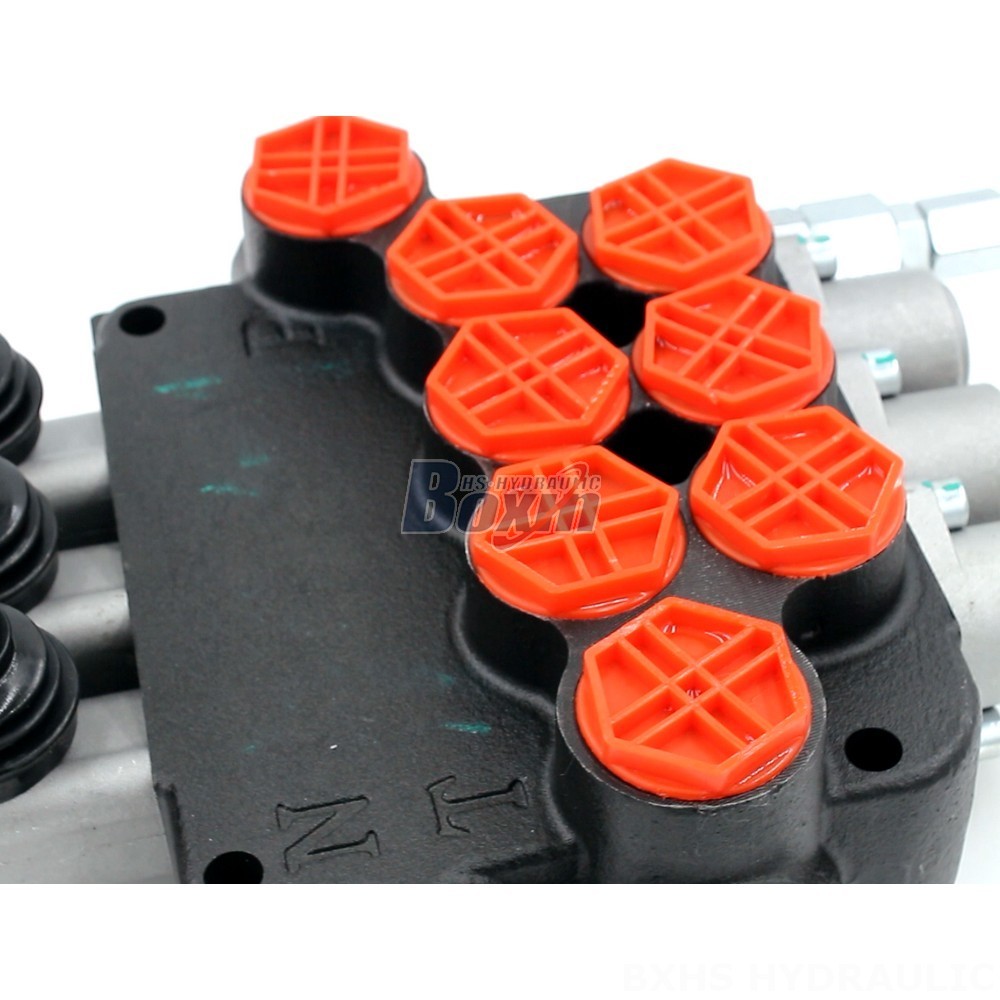

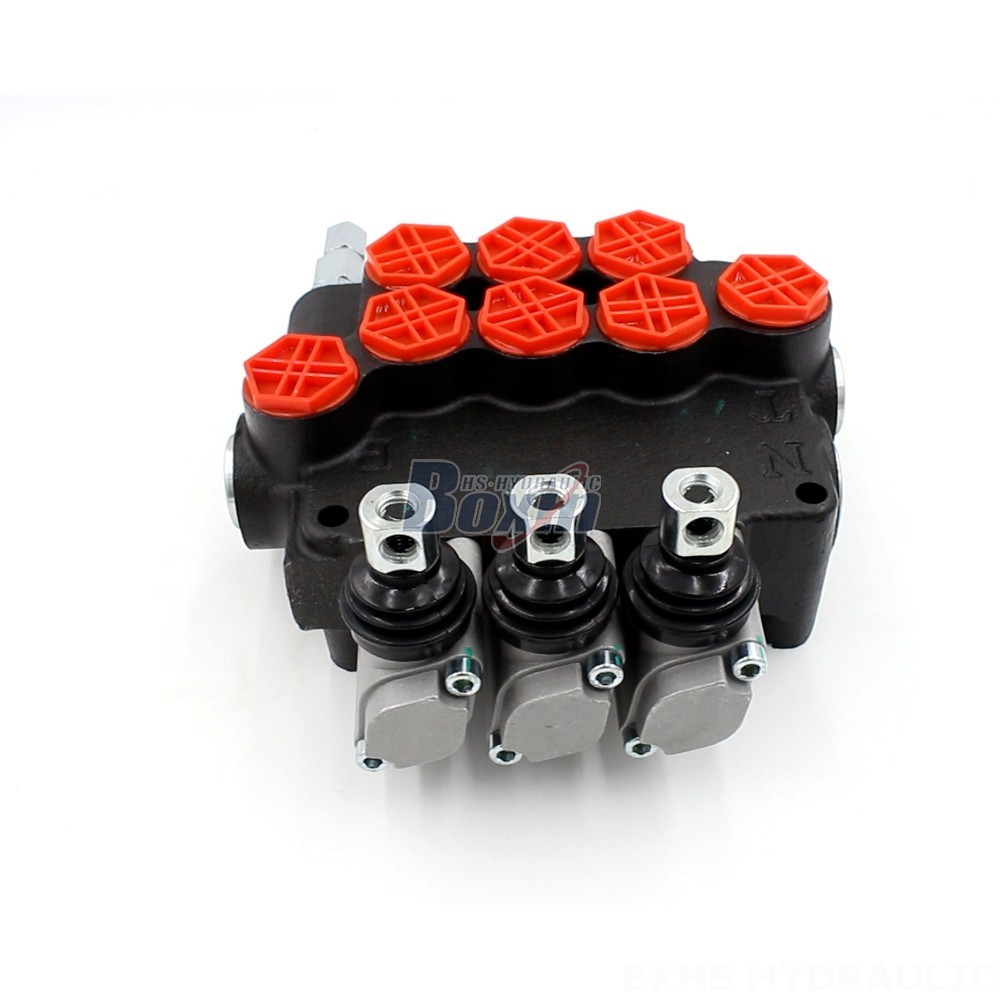

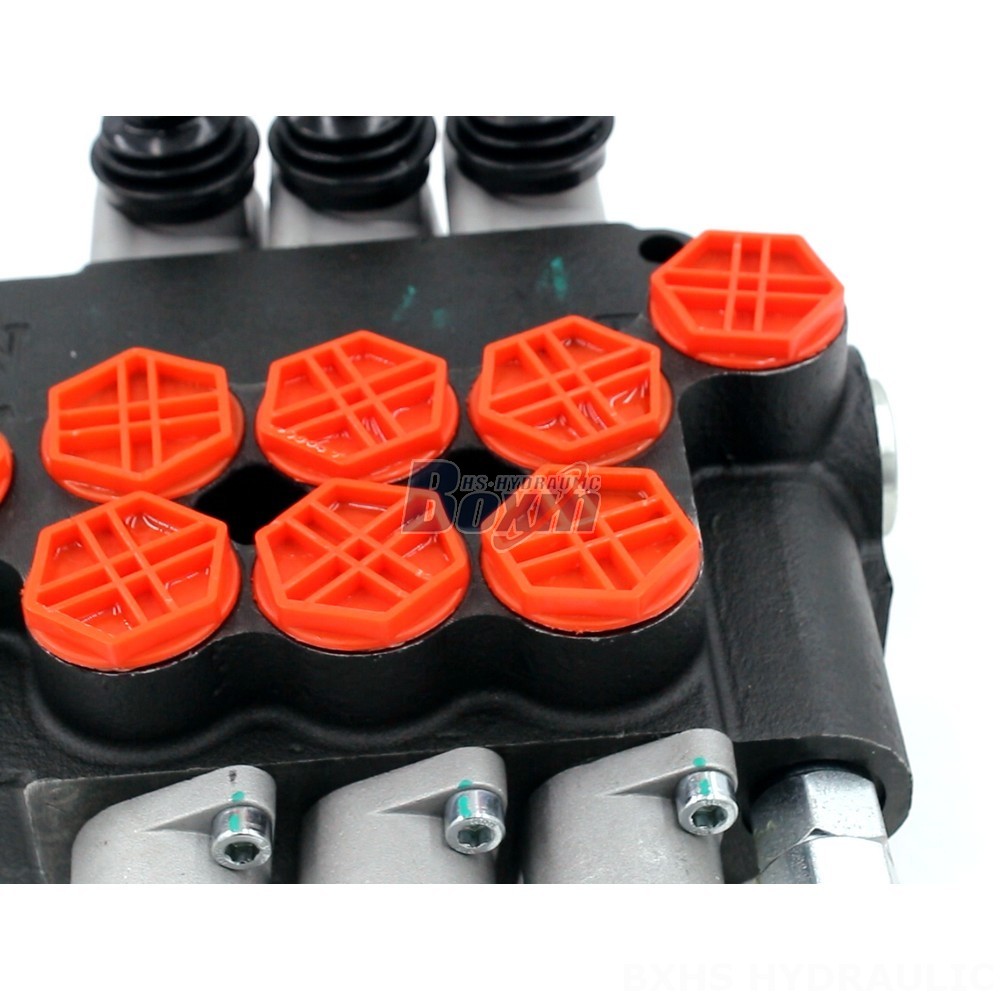

The P80 Series Monoblock Hydraulic Directional Control Valve is a manual control, 3-section valve with a rated flow of 80 L/min and a max pressure of 250 bar. It's ideal for applications in construction, material handling, agriculture, and industrial vehicles.
| P80-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Manuell och Joystick |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 80 l/min (21,2 US gpm) |
| Maximalt tryck | 315 bar (4600 psi) |
| Inloppsport | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Utloppsport | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Portstorlek | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
The P80 Series Monoblock Hydraulic Directional Control Valve offers reliable performance and durability for demanding applications. It features a compact design, manual control, 3-section configuration, and a rated flow of 80 L/min. The valve can withstand a maximum pressure of 250 bar and operates within a viscosity range of 15 to 75 mm²/s. Designed for use in a wide range of applications, including telehandlers, forklifts, excavators, loaders, dumpers, concrete pumps, and drilling rigs, the P80 Series valve is a versatile and efficient solution for your hydraulic system needs.
