The P80 Solenoid 1 Spool Monoblock Directional Valve is a medium-pressure hydraulic valve designed for mobile applications. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it is suitable for various applications in material handling, construction, agriculture, and industrial vehicles.
| P80-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Manuell och Joystick |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 80 l/min (21,2 US gpm) |
| Maximalt tryck | 315 bar (4600 psi) |
| Inloppsport | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Utloppsport | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Portstorlek | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |

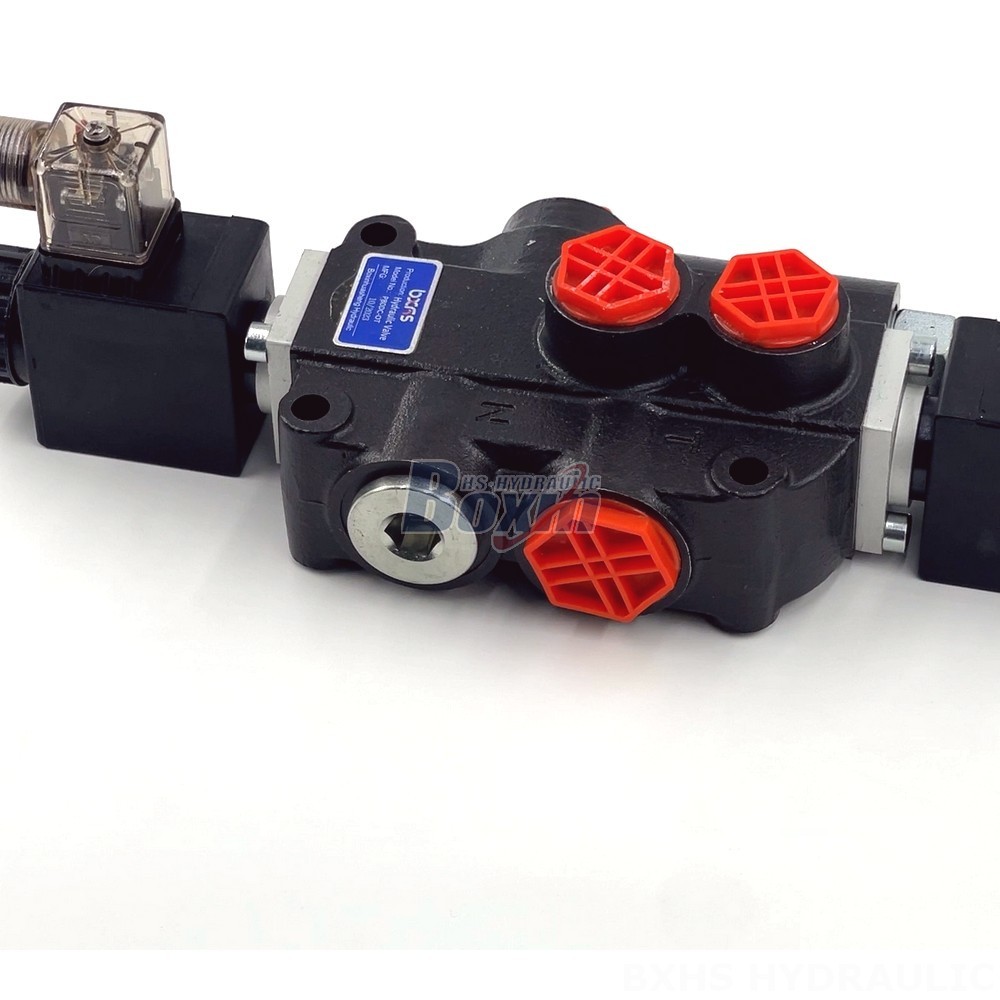

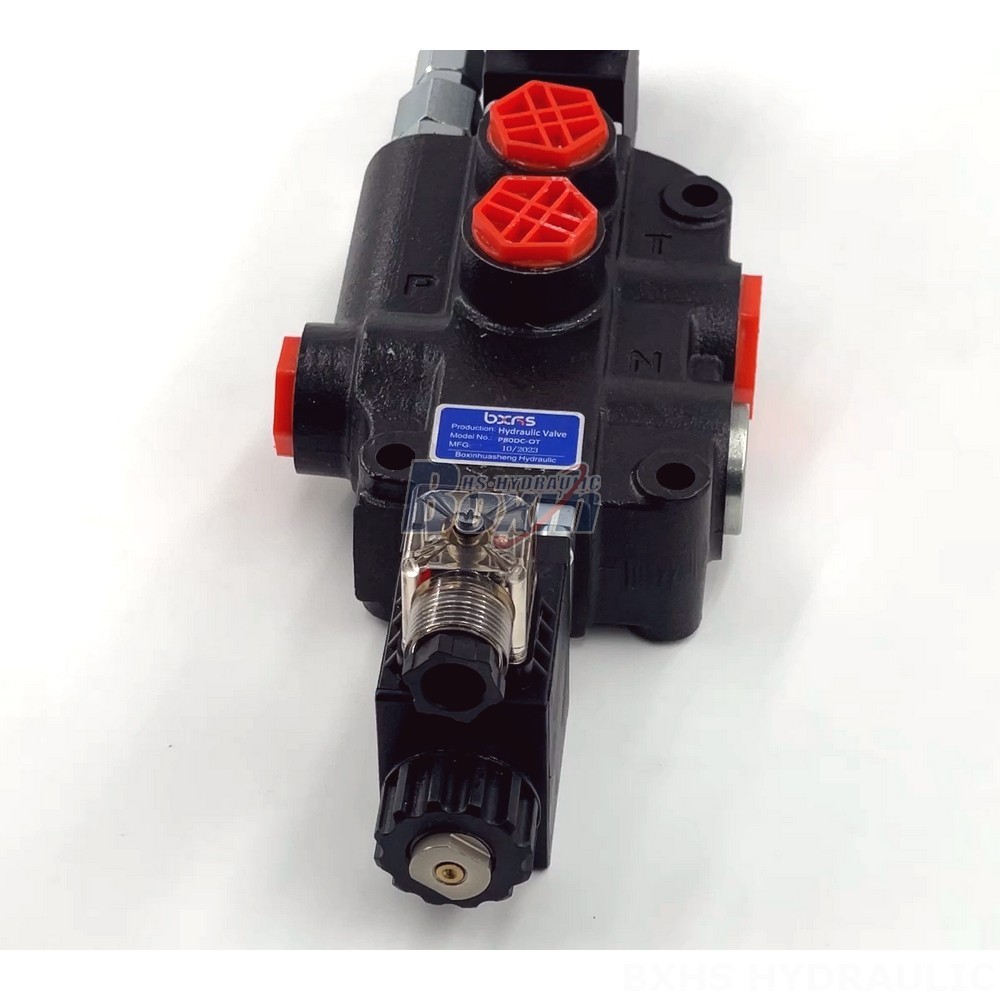

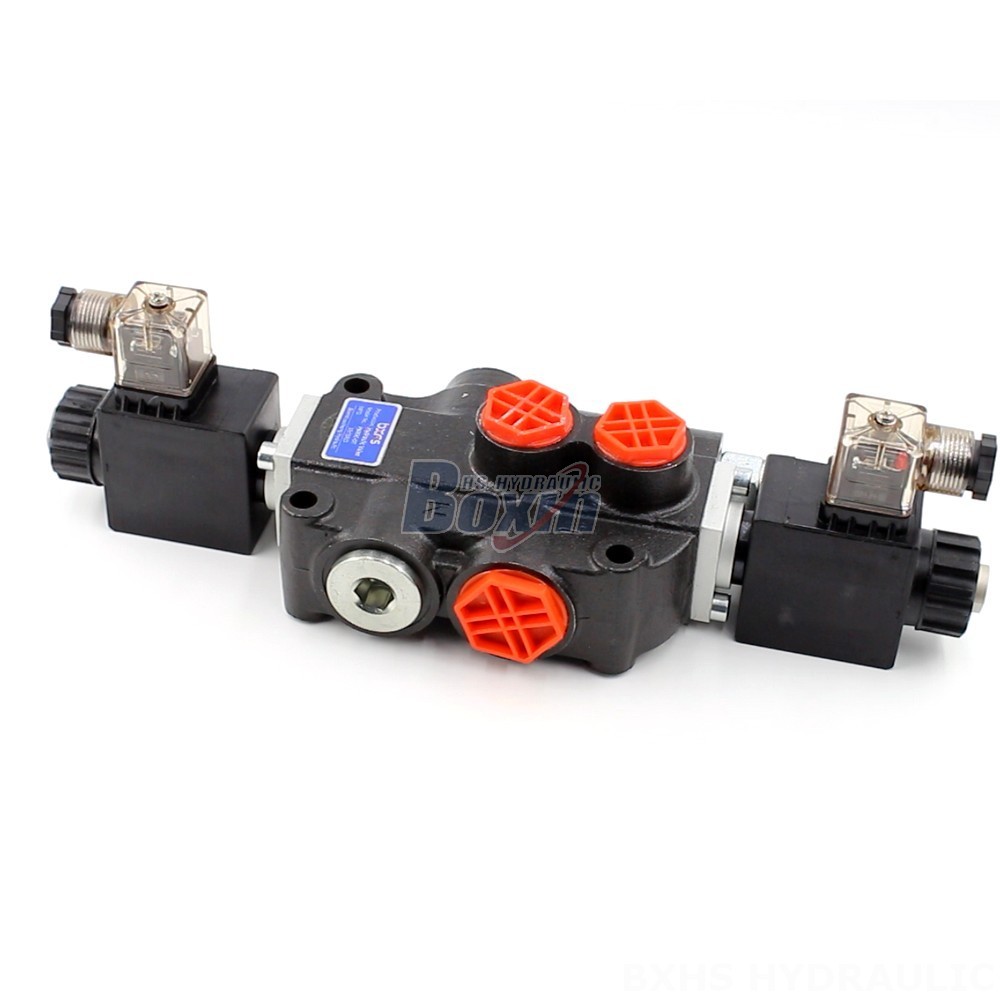

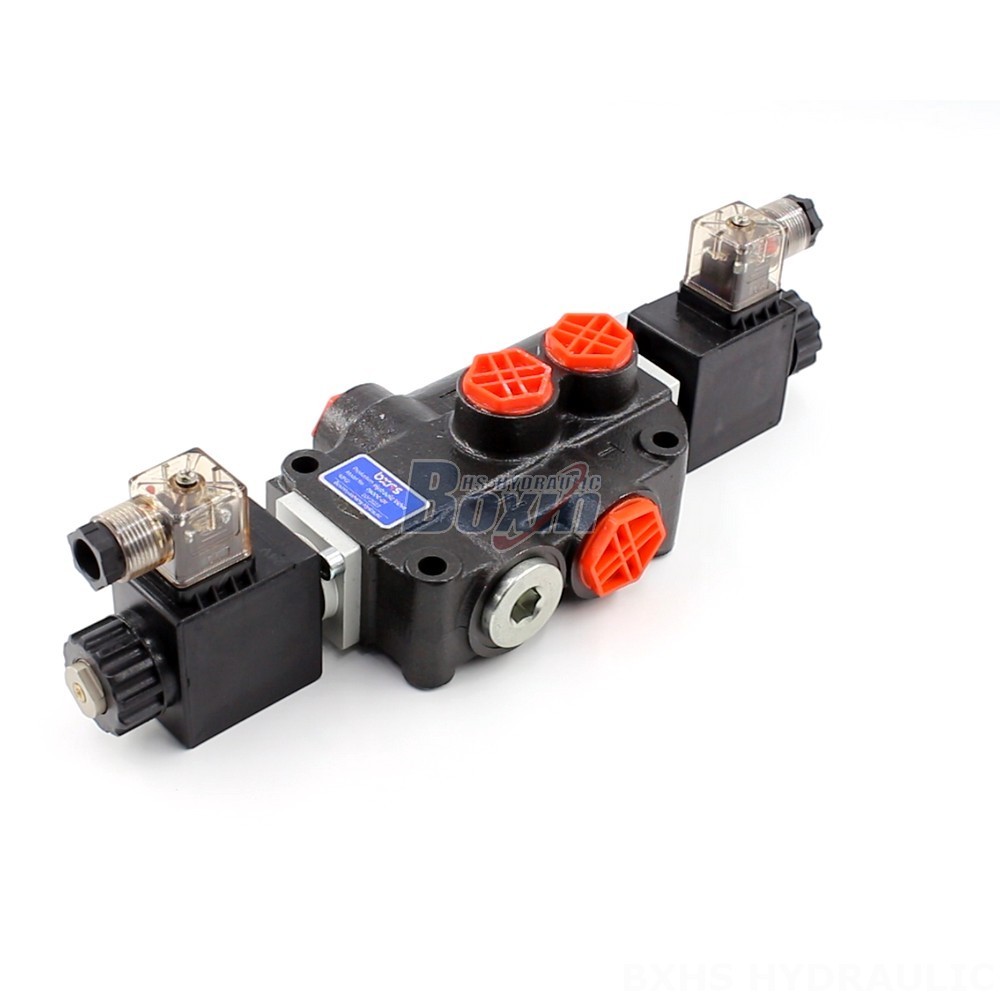

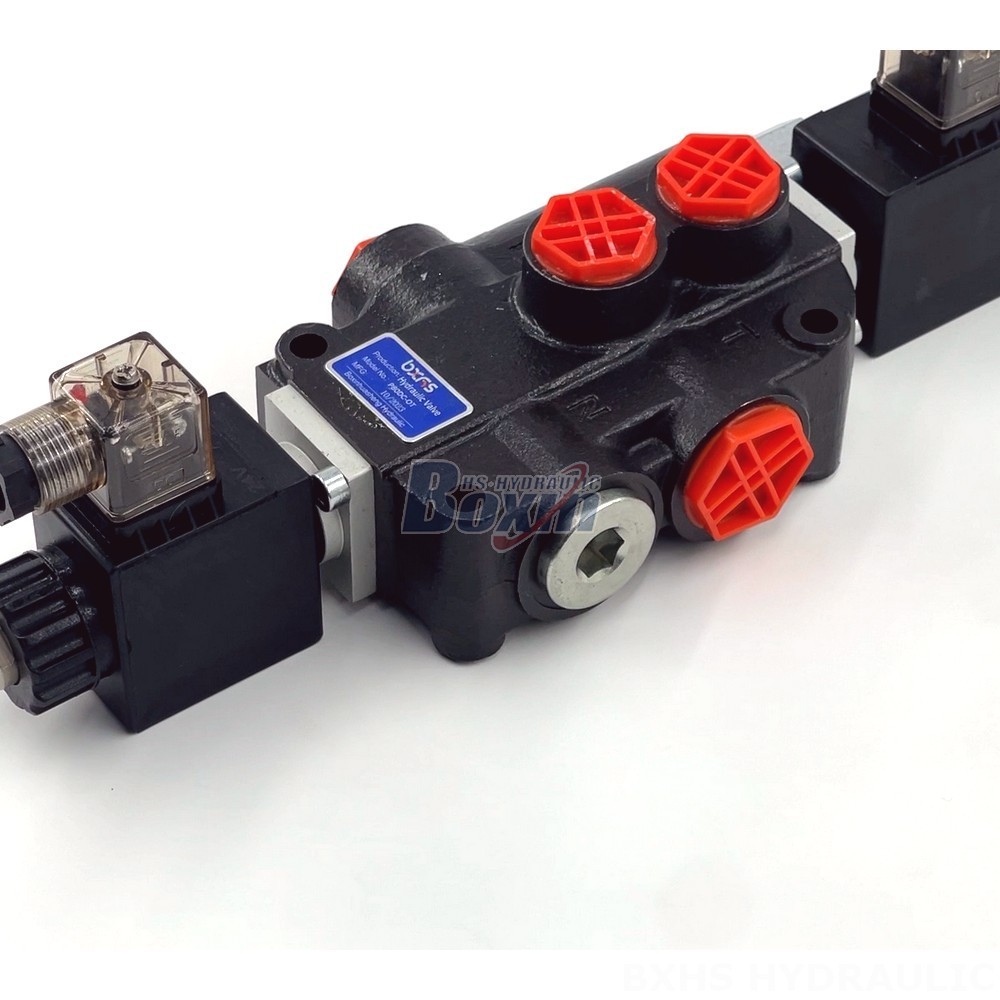

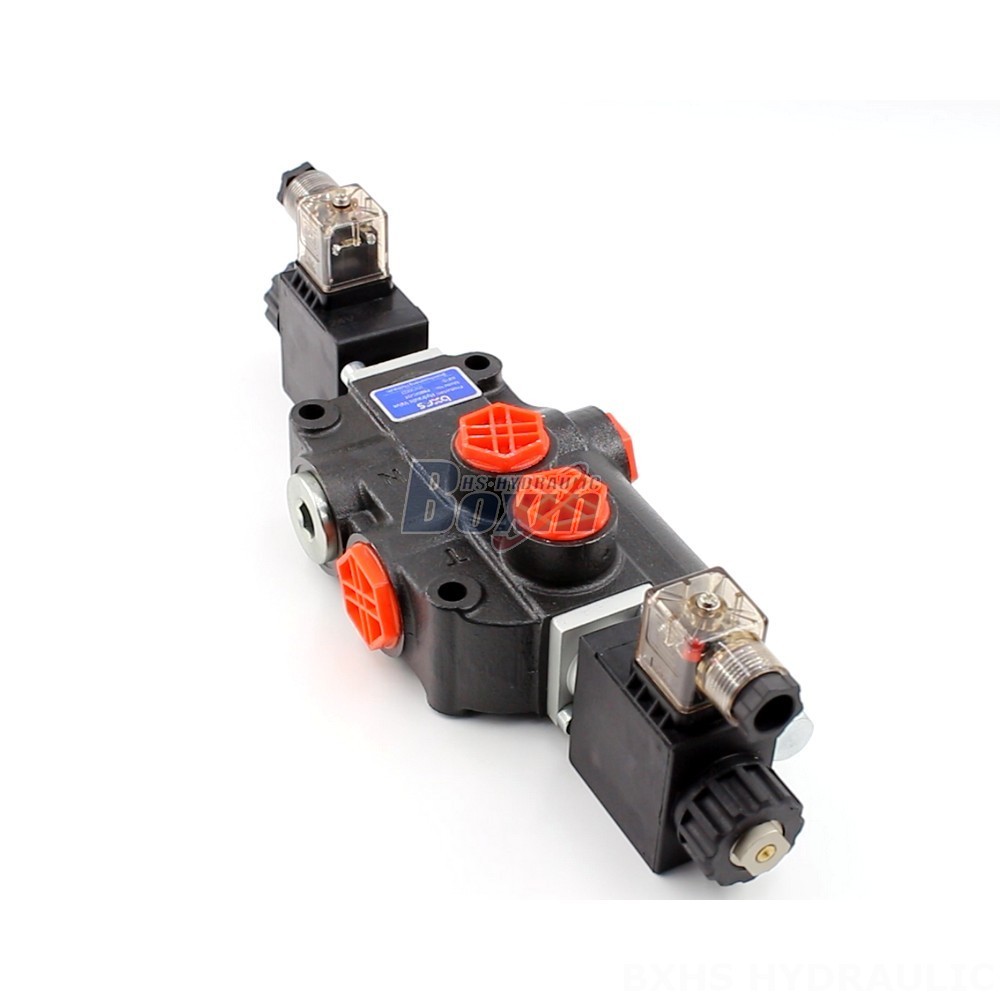

**P80 Solenoid 1 Spool Monoblock Directional Valve**
**Key Features:**
* Solenoid control for precise and reliable operation
* Monoblock construction for compact design and reduced leakage potential
* Rated flow of 80 L/min for efficient hydraulic power transmission
* Maximum pressure of 250 bar for demanding applications
* Operating viscosity range of 15-75 mm²/s for compatibility with various hydraulic fluids
* Ambient temperature range of -40°C to +80°C for use in harsh environments
* 1 spool design for simple and cost-effective directional control
* P80 Series for compatibility with other P80 components
**Applications:**
* Telehandlers
* Forklifts
* All-terrain cranes
* Stackers
* Aerial platforms
* Motor graders
* Midi-excavators
* Mini-excavators
* Skid steer loaders
* Compact wheel loaders
