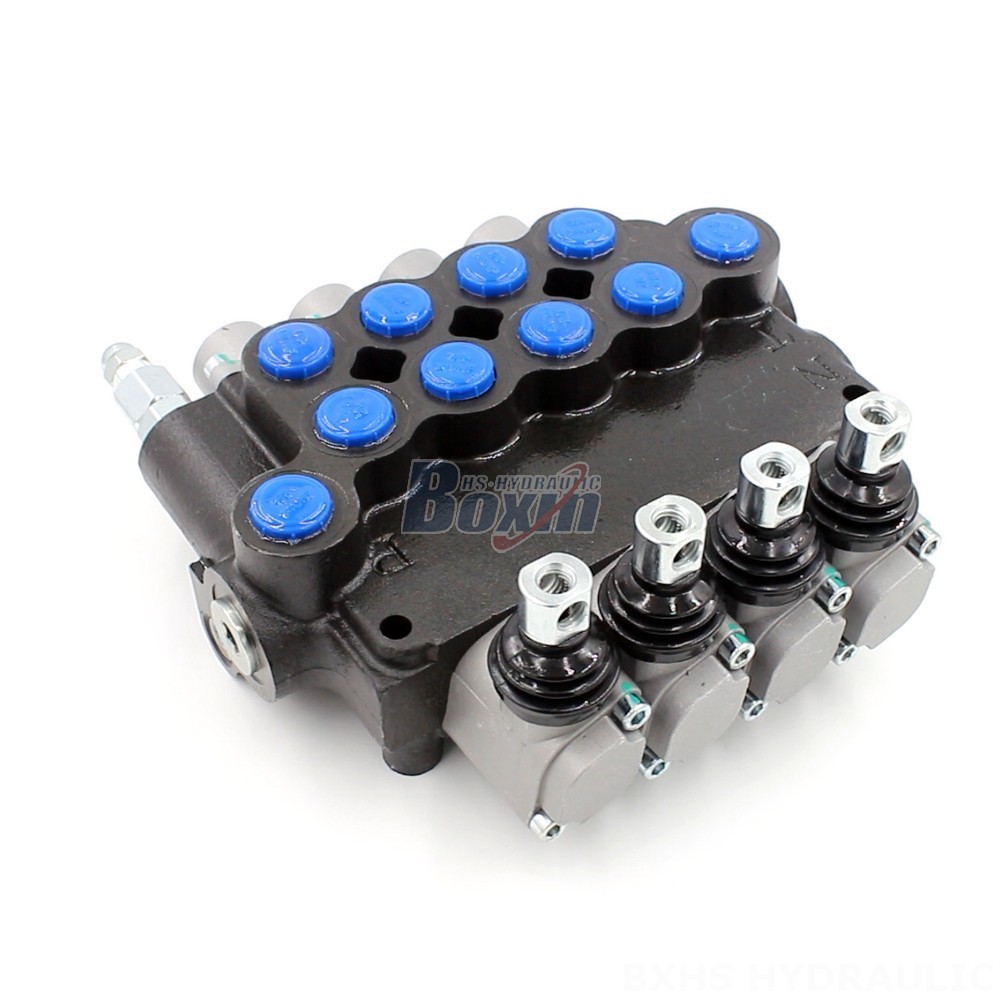

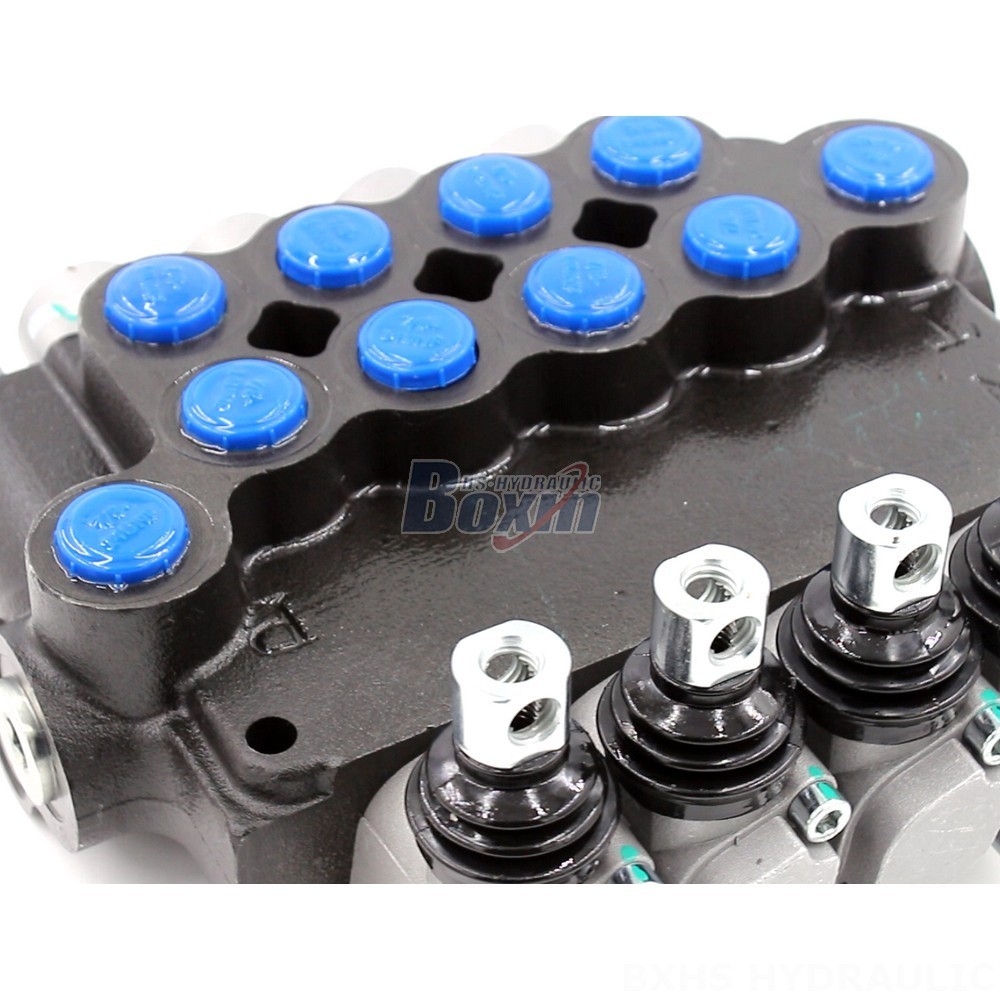

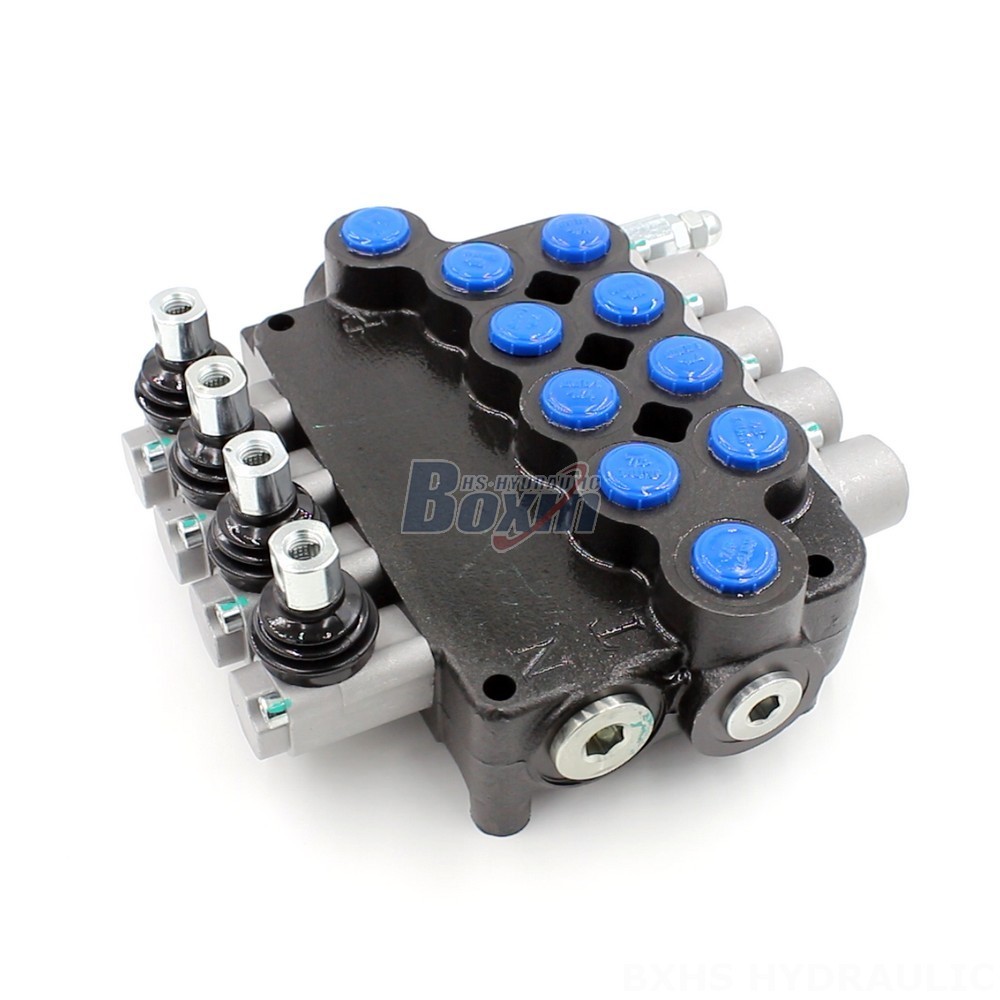

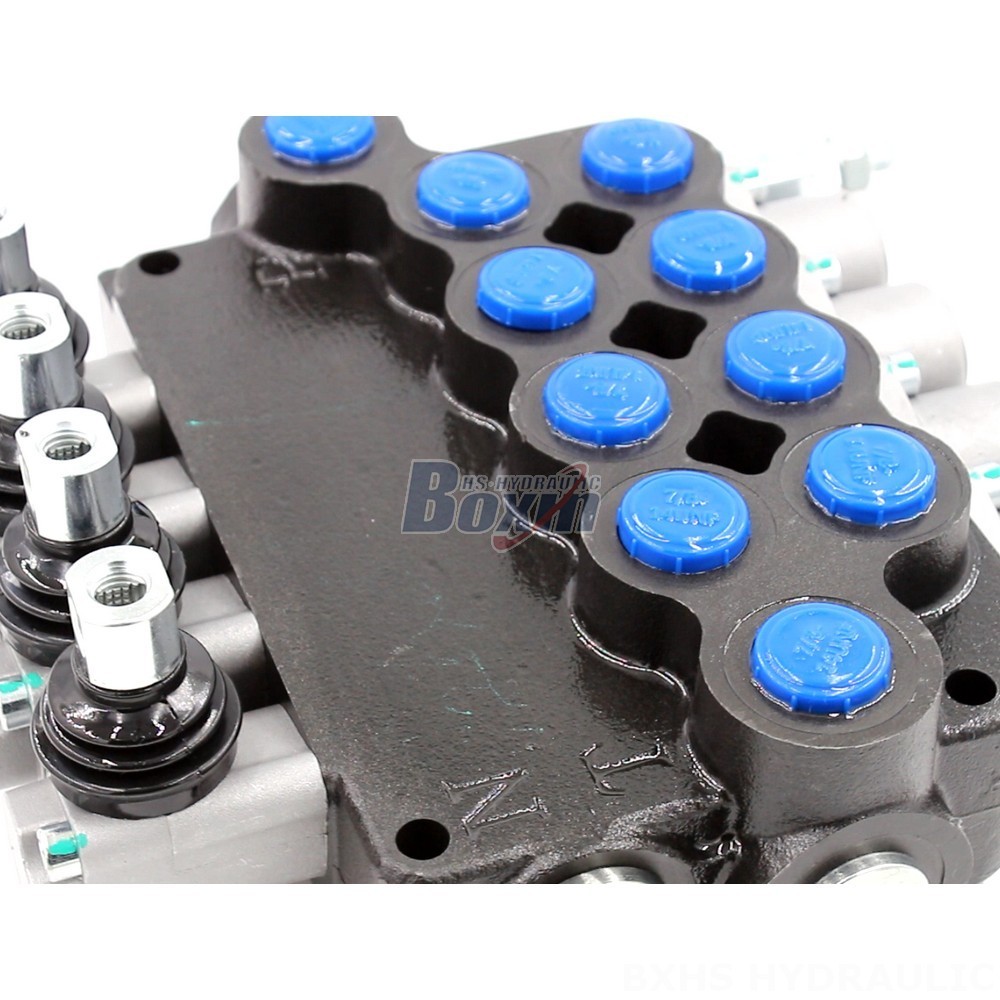

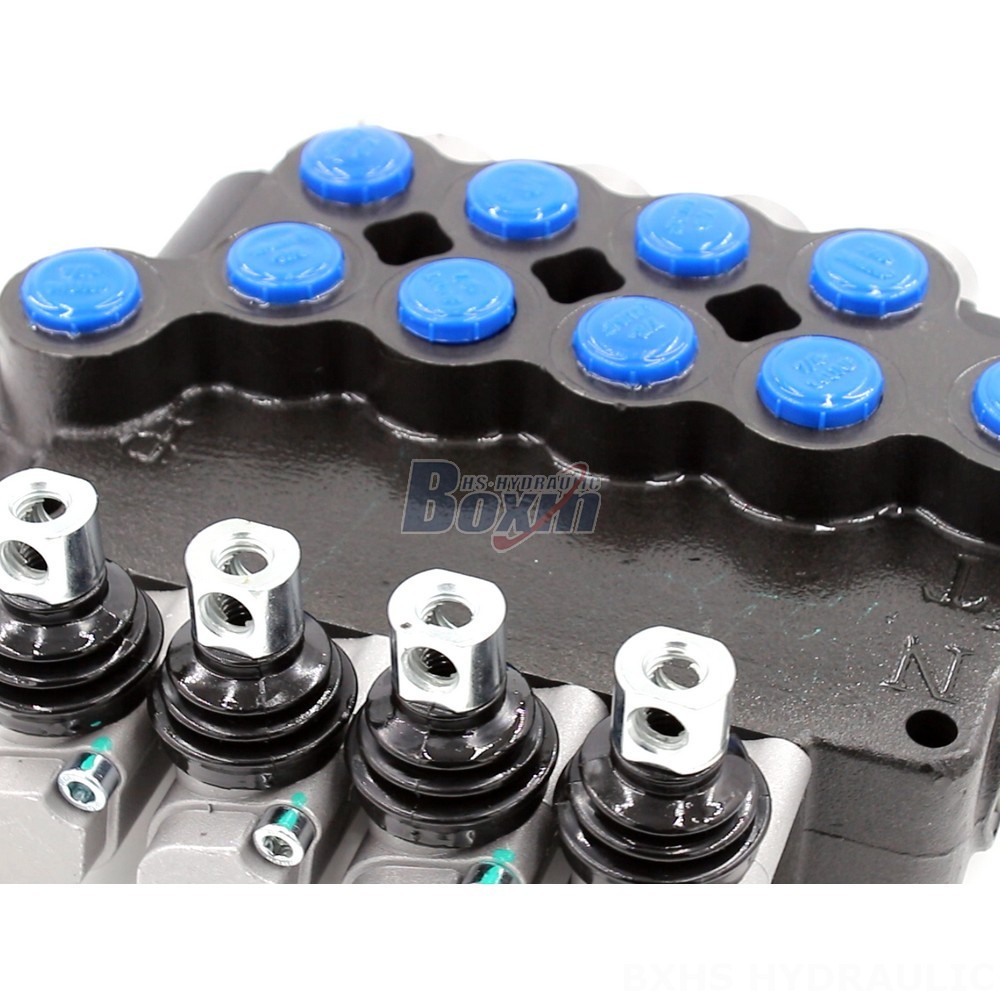

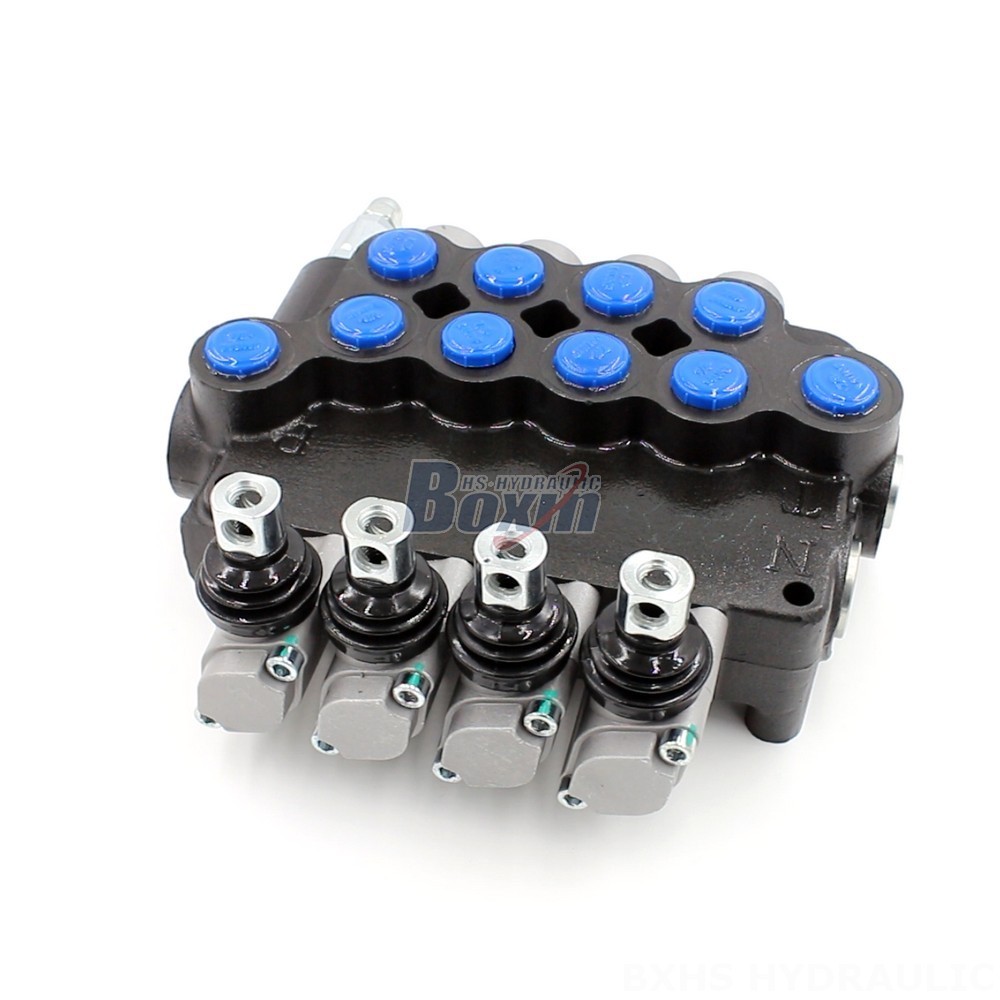

The P80-U78-4OT Manual 4 Spool Directional Valve is a reliable hydraulic control solution for various applications in material handling, construction, agriculture, and industrial vehicles. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this valve provides precise and efficient flow control.
| P80-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Manuell och Joystick |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 80 l/min (21,2 US gpm) |
| Maximalt tryck | 315 bar (4600 psi) |
| Inloppsport | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Utloppsport | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Portstorlek | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**Product Highlights:**
- Manual control for accurate flow regulation
- 4 spool design for versatile flow management
- Monoblock valve construction for compact and durable design
- High rated flow of 80 L/min for demanding applications
- Maximum pressure of 250 bar for reliable operation
- Wide operating viscosity range of 15 - 75 mm²/s for compatibility with various hydraulic fluids
- Temperature range of -40°C to +80°C for use in diverse environments
**Applications:**
- Telehandlers
- Forklifts
- All terrain cranes
- Stackers
- Aerial platforms
- Motor graders
- Mini-excavators
- Skid steer loaders
- Compact wheel loaders
- Wheel loaders
