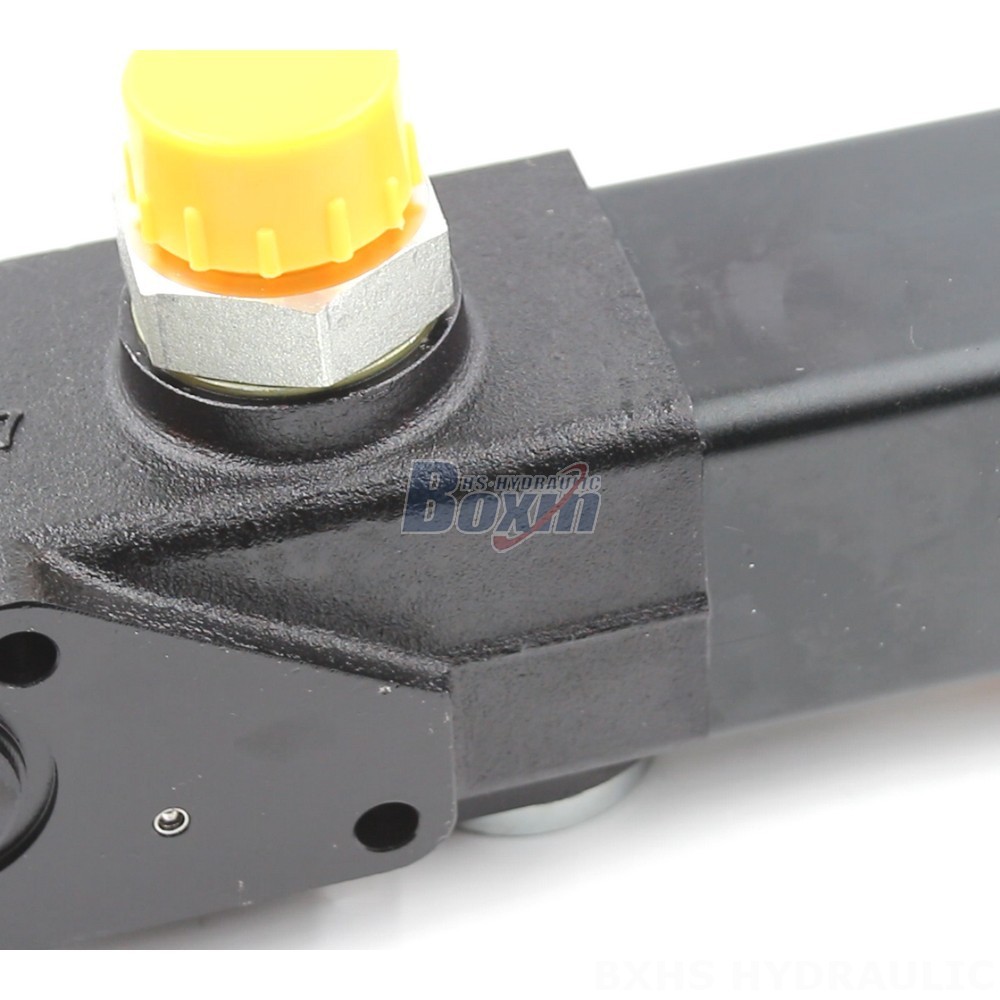

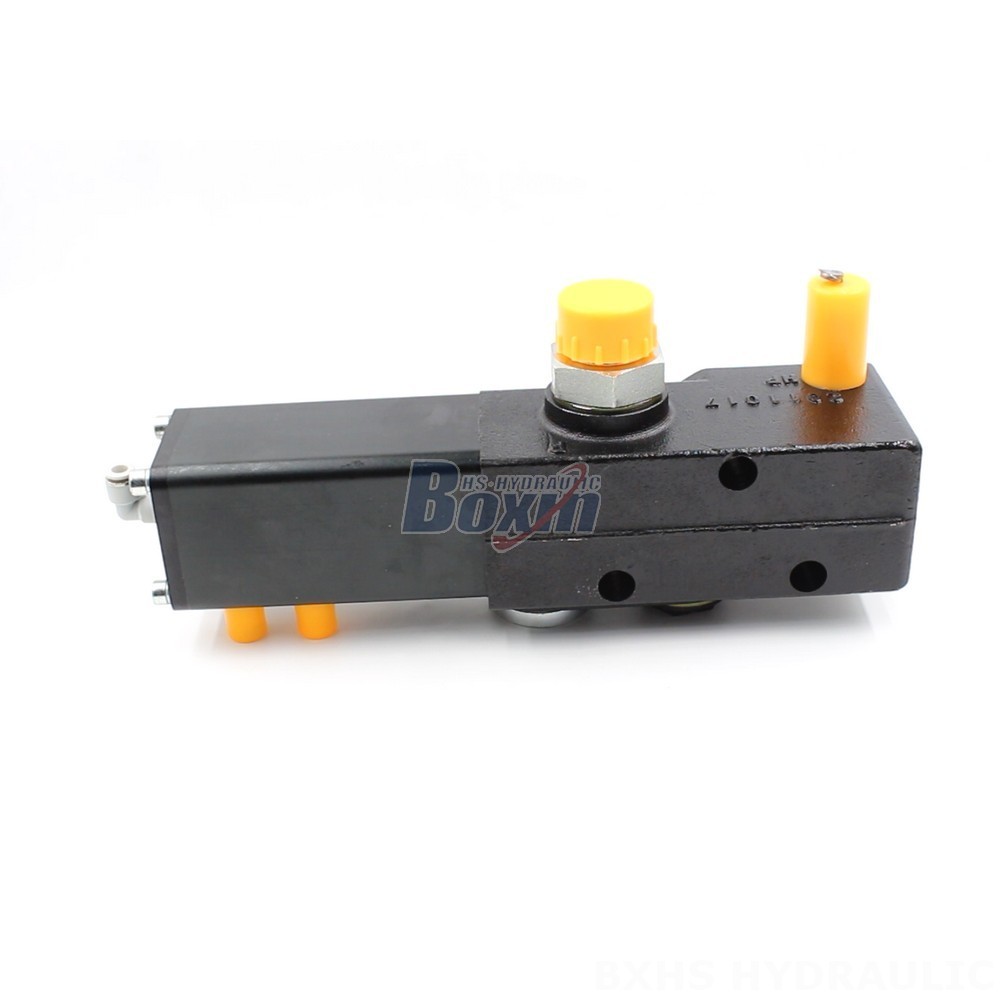

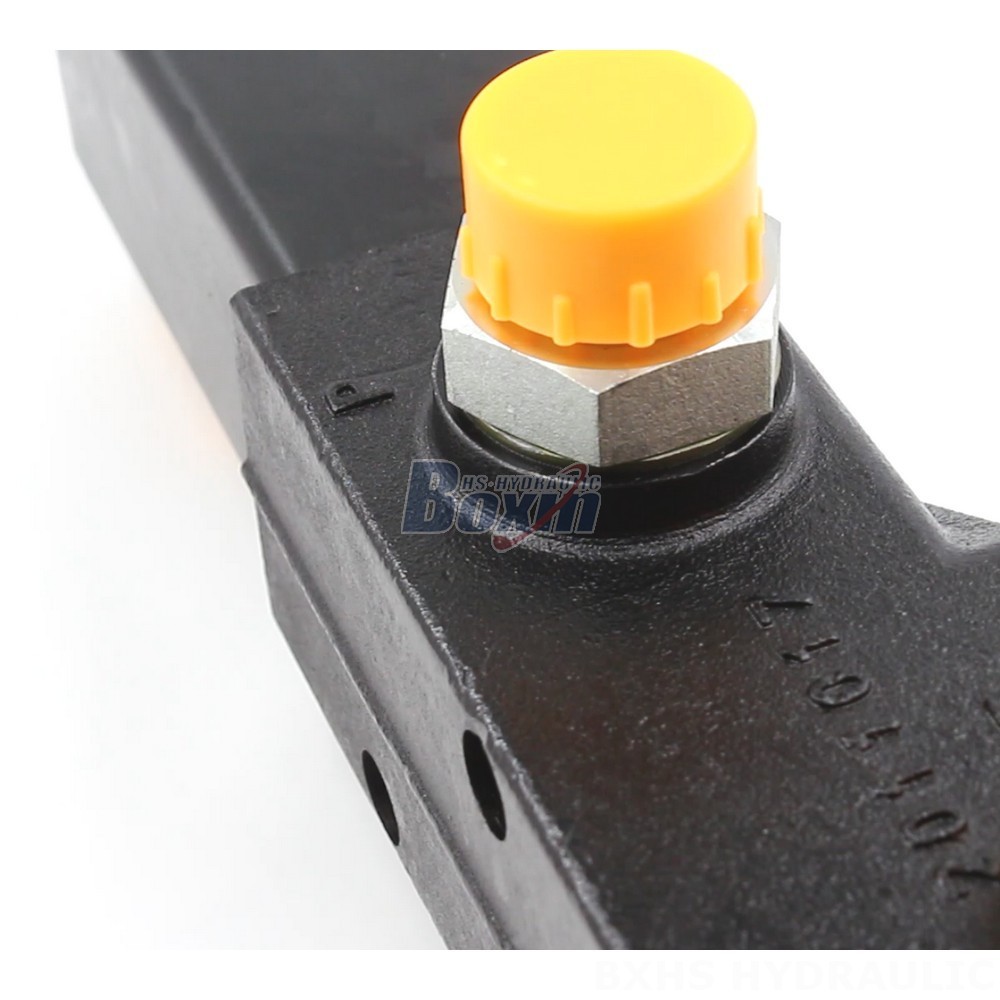

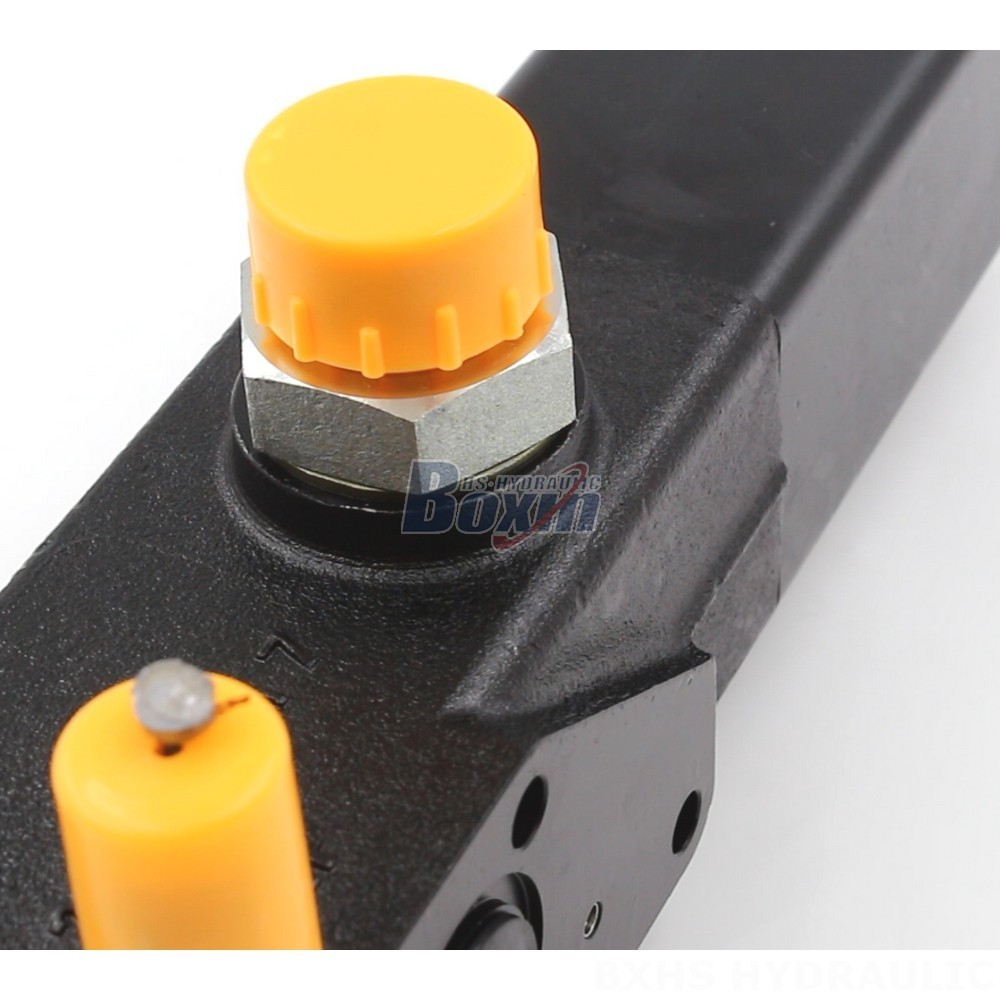

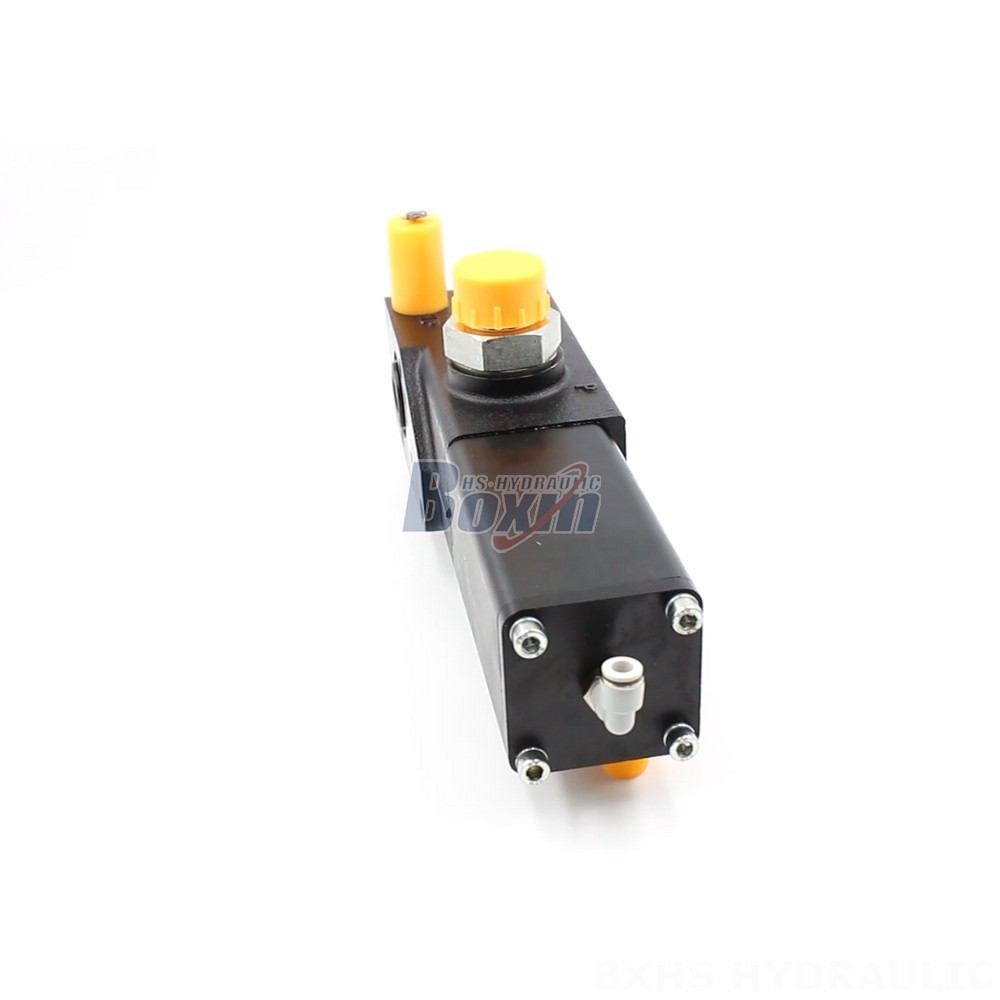

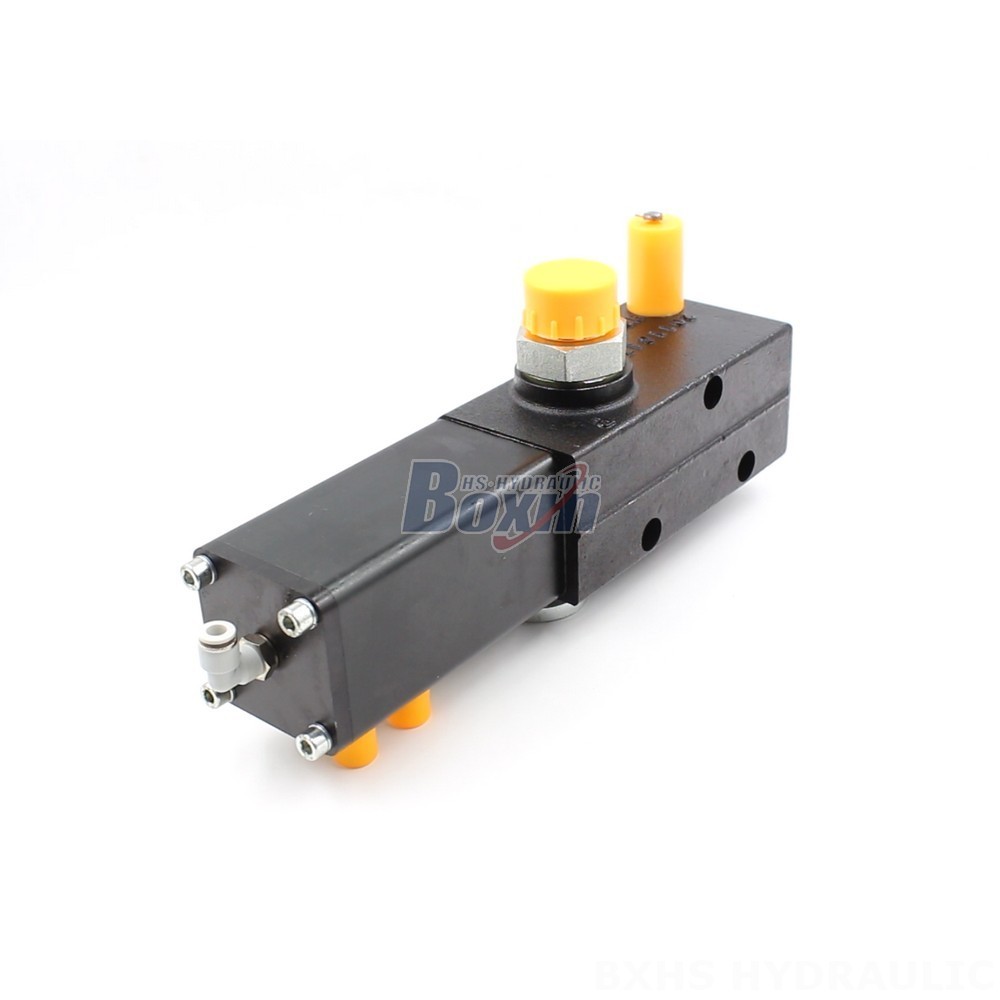

The PT-1220 Series Pneumatic 1 Spool Monoblock Directional Valve is a high-performance, high-flow valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. It features a robust design, compact size, and reliable operation.
| PT-1220-serien Tippventil Parametrar | |
|---|---|
| Kontrollmetod | Pneumatisk |
| Spole | 1 ventilsektion |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion |
| Driftsviskositetsintervall | 12 - 400 mm²/s (12 cSt till 400 cSt) |
| Nominellt flöde | 220 L/min (58 US gpm) |
| Maximalt tryck | 250 bar (3600 psi) |
| Inloppsport | G1 |
| Utloppsport | G1 |
| Portstorlek | G1 |
This pneumatic directional valve boasts a robust monoblock construction, offering exceptional durability and long service life. Its single spool design provides efficient control with a rated flow of 200 L/min (52 US gpm) and a maximum pressure rating of 315 bar (4600 psi). The valve is engineered for diverse applications including telehandlers, forklifts, mini and midi-excavators, skid steer loaders, compact and wheel loaders, backhoe loaders, dumpers, tractors, and front-end loaders. The PT-1220 Series delivers reliable performance across a wide operating viscosity range of 12-400 mm²/s (12 cSt to 400 cSt) and ambient temperature range of -40°C to +80°C (-40°F to +176°F).
