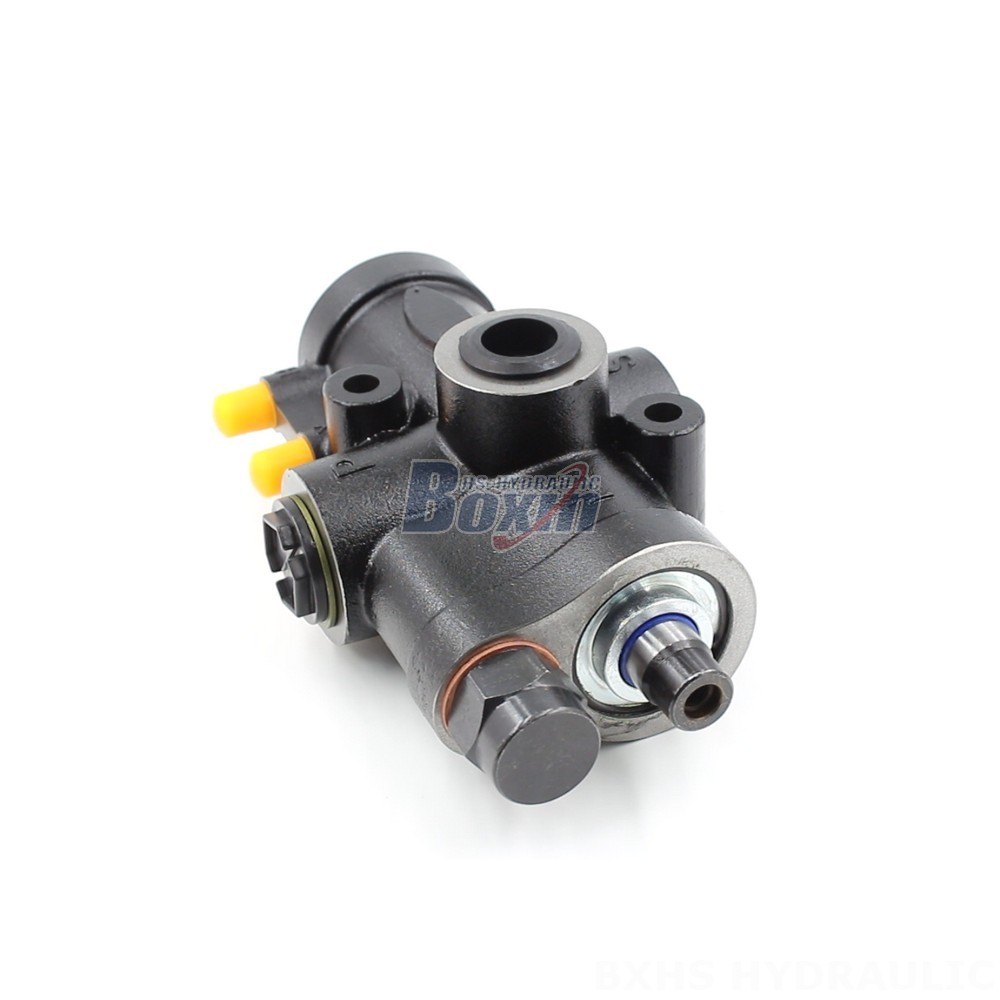

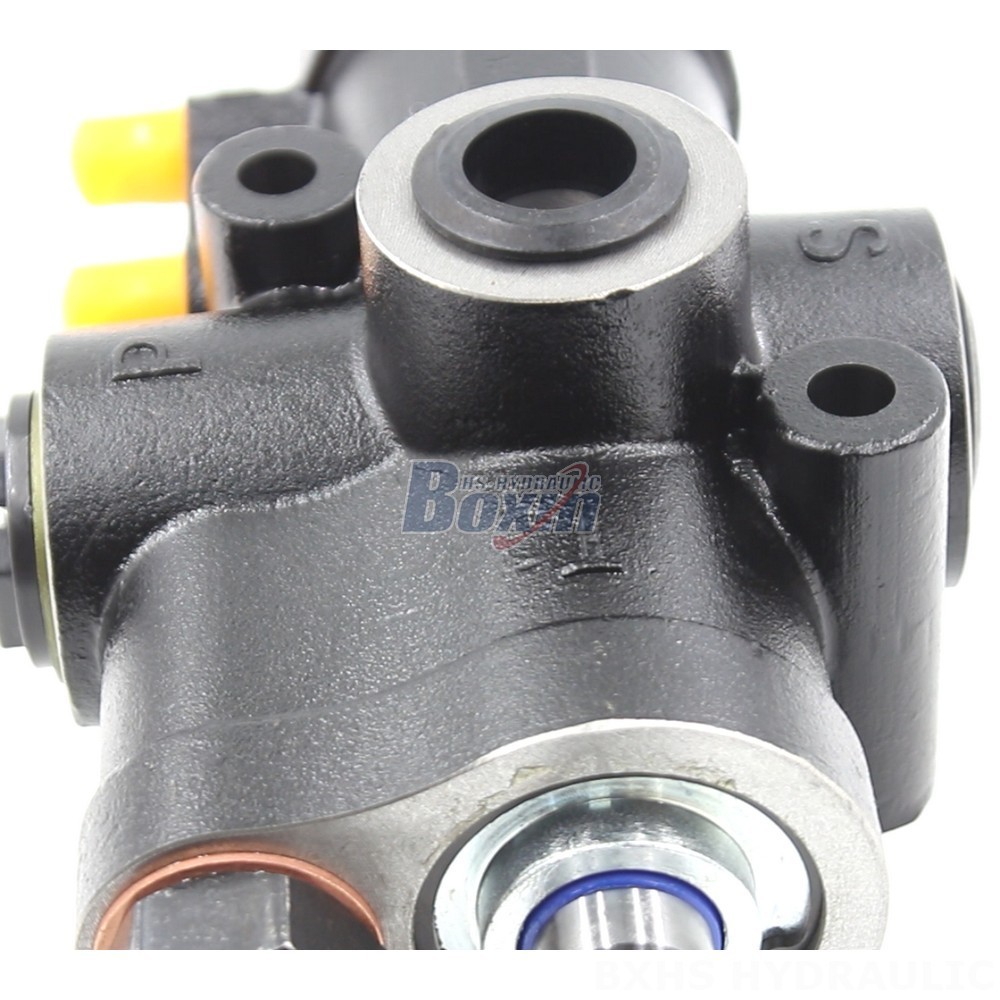

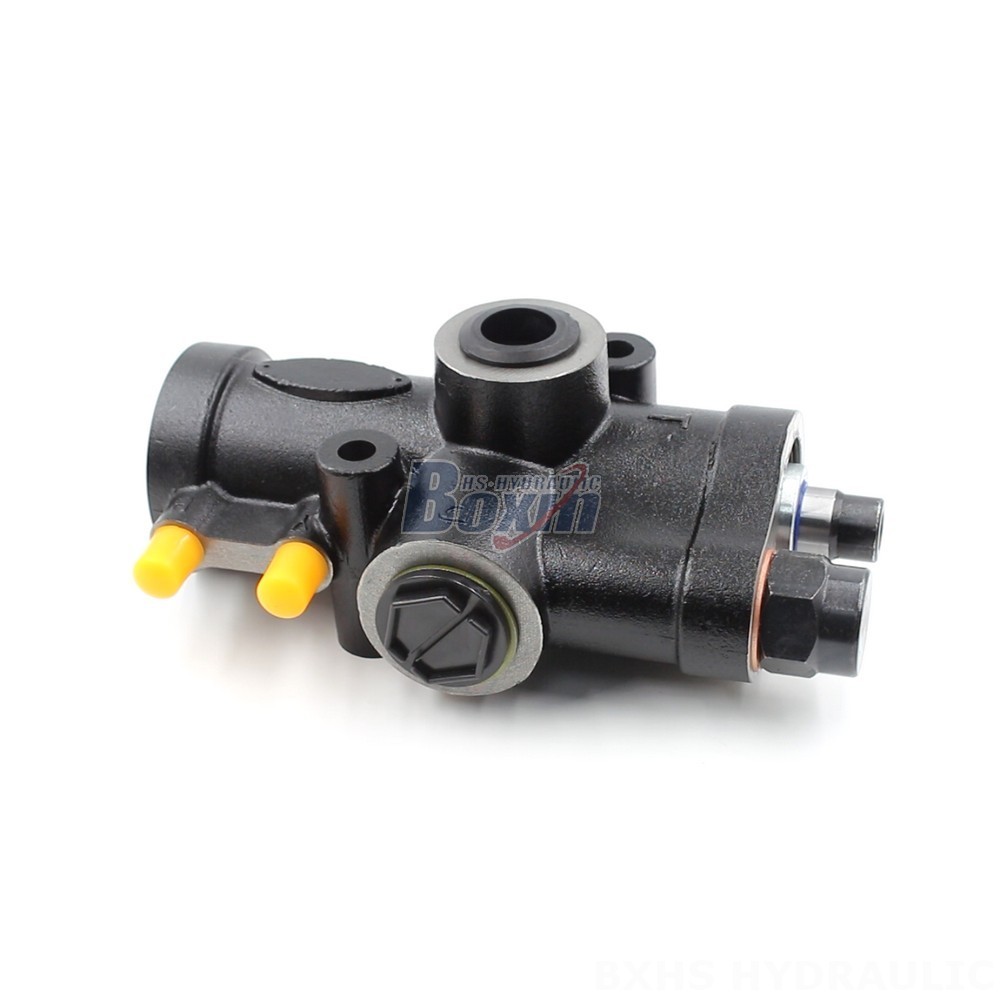

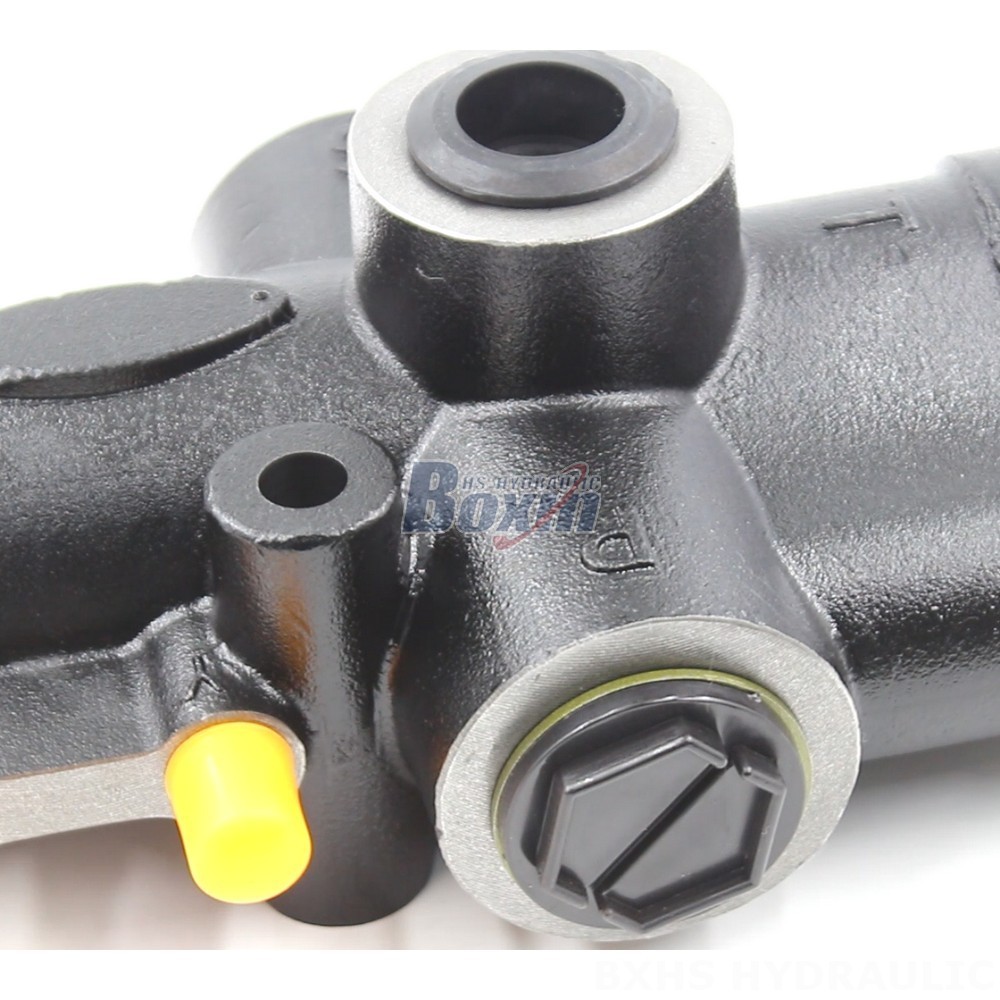

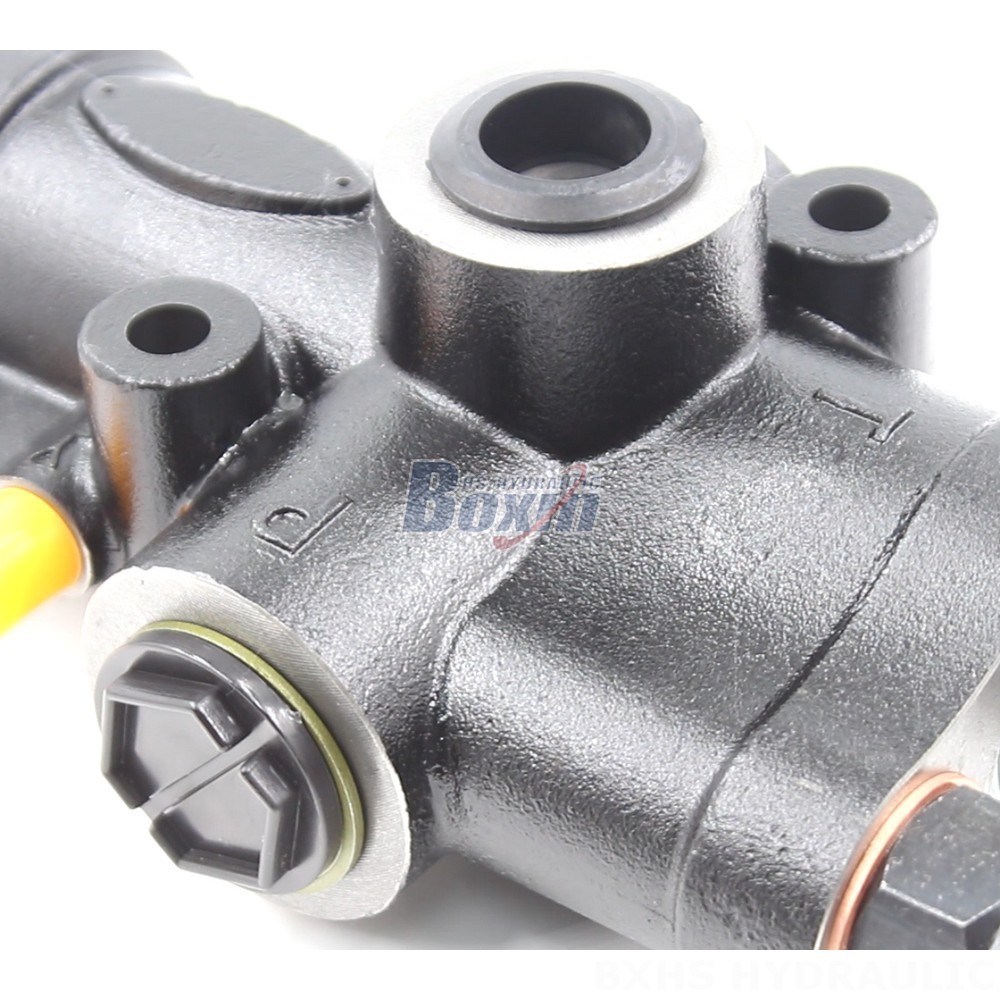

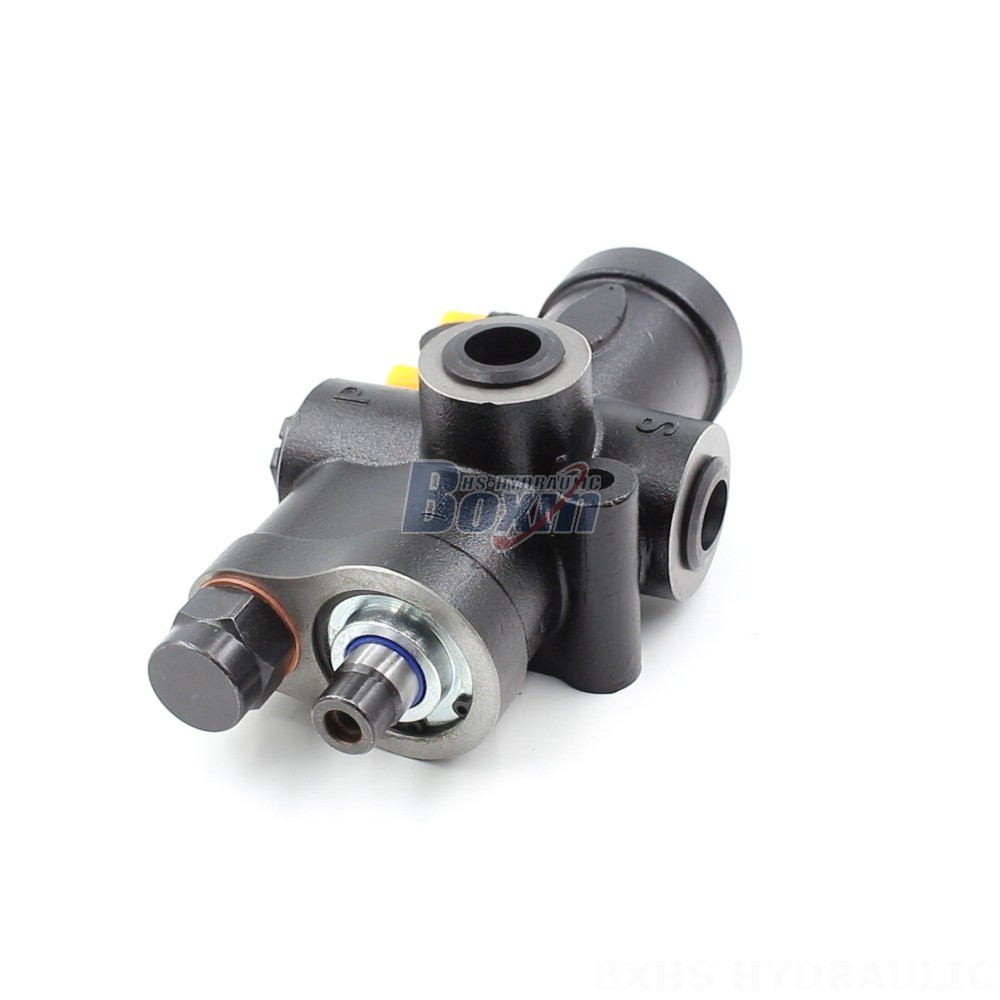

The QFCK-F20L is a high-quality, customizable pneumatic hydraulic directional control valve designed for use in various construction, agriculture, and industrial vehicles. With a rated flow of 140 L/min and a maximum pressure of 210 bar, this valve offers reliable performance for demanding applications.
| QFCK-F20L-serien Tippventil Parametrar | |
|---|---|
| Kontrollmetod | Pneumatisk |
| Spole | 1 ventilsektion |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | Nominellt flöde |
| Maximalt tryck | 210 bar (3045 psi) |
| Inloppsport | G3/4 |
| Utloppsport | G1 |
| Portstorlek | G3/4, G1, G1/4 |
This robust directional control valve features a monoblock construction and a single spool design. It is suitable for operating pressures up to 210 bar (3045 psi) and has a rated flow of 140 L/min (37 US gpm). The valve operates with a wide viscosity range of 15-75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). Its versatility makes it ideal for use in a wide range of applications, including telehandlers, forklifts, mini and midi excavators, skid steer loaders, wheel loaders, backhoe loaders, dumpers, tractors and front-end loaders, and harvesters.
