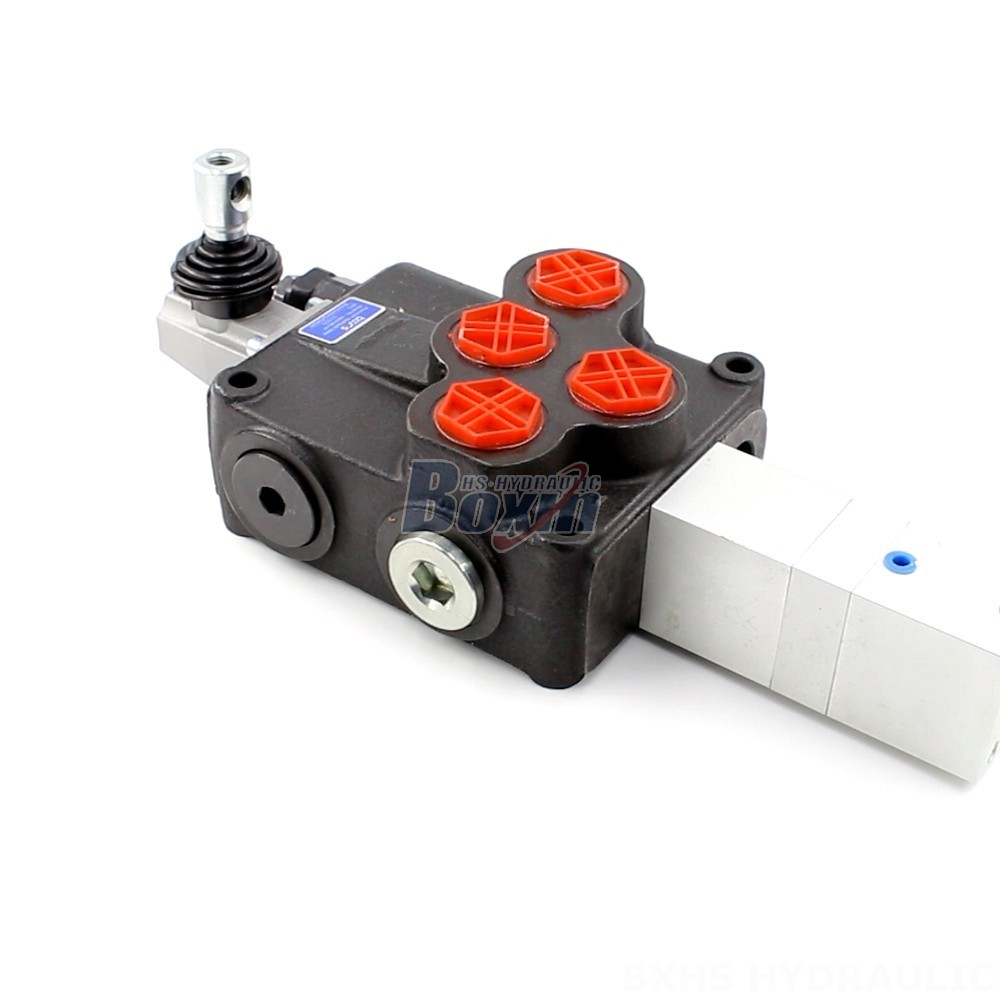

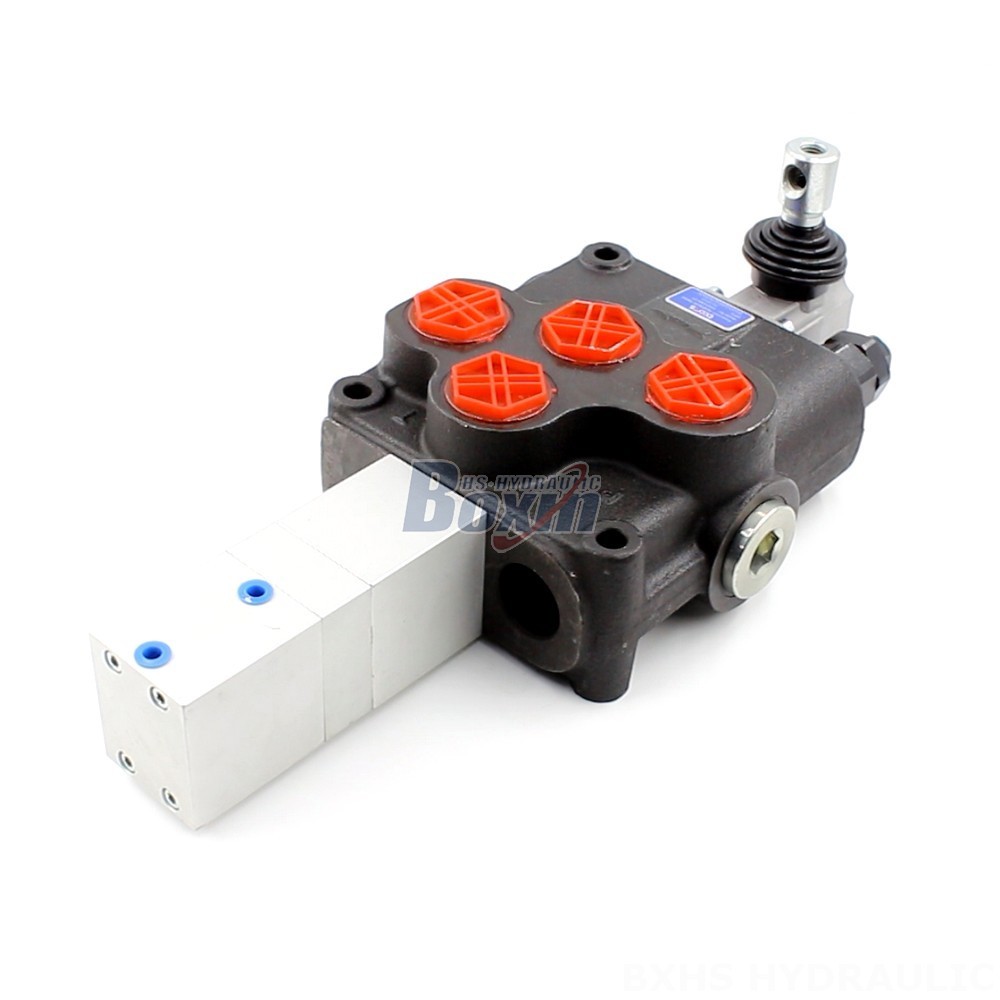

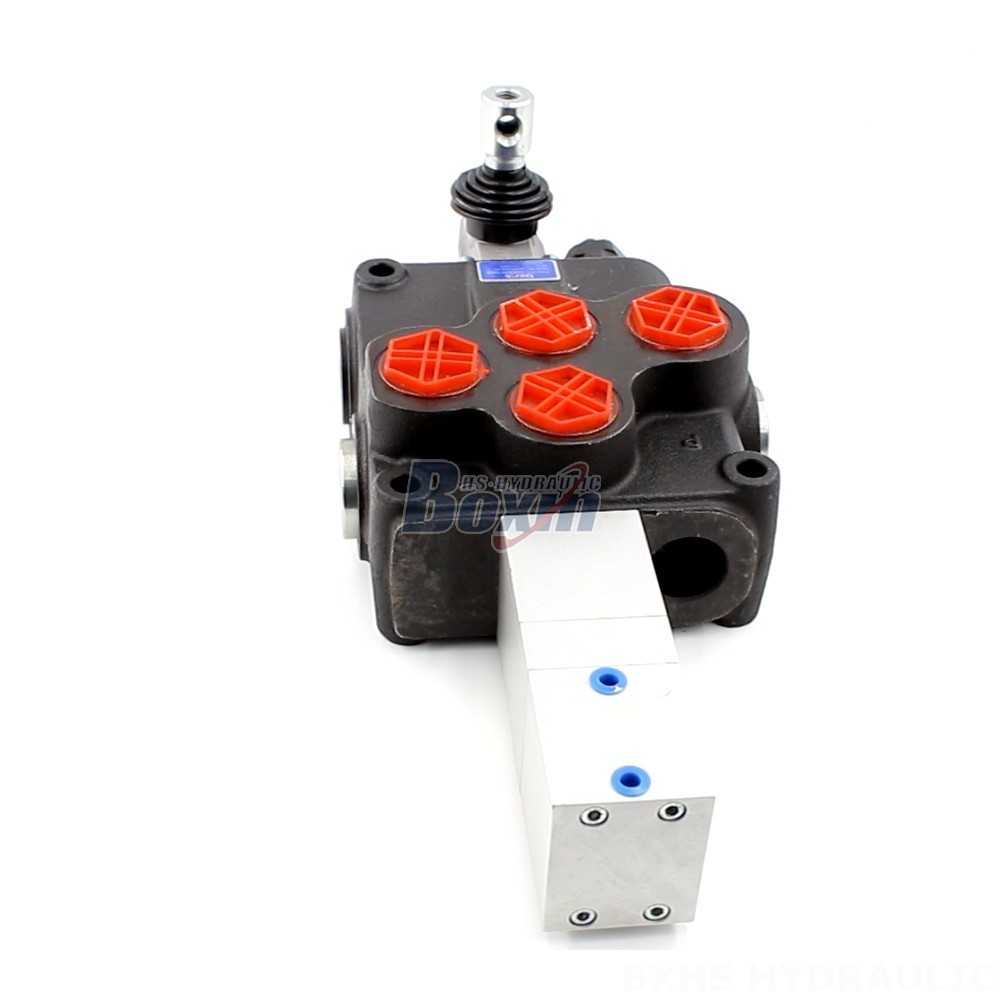

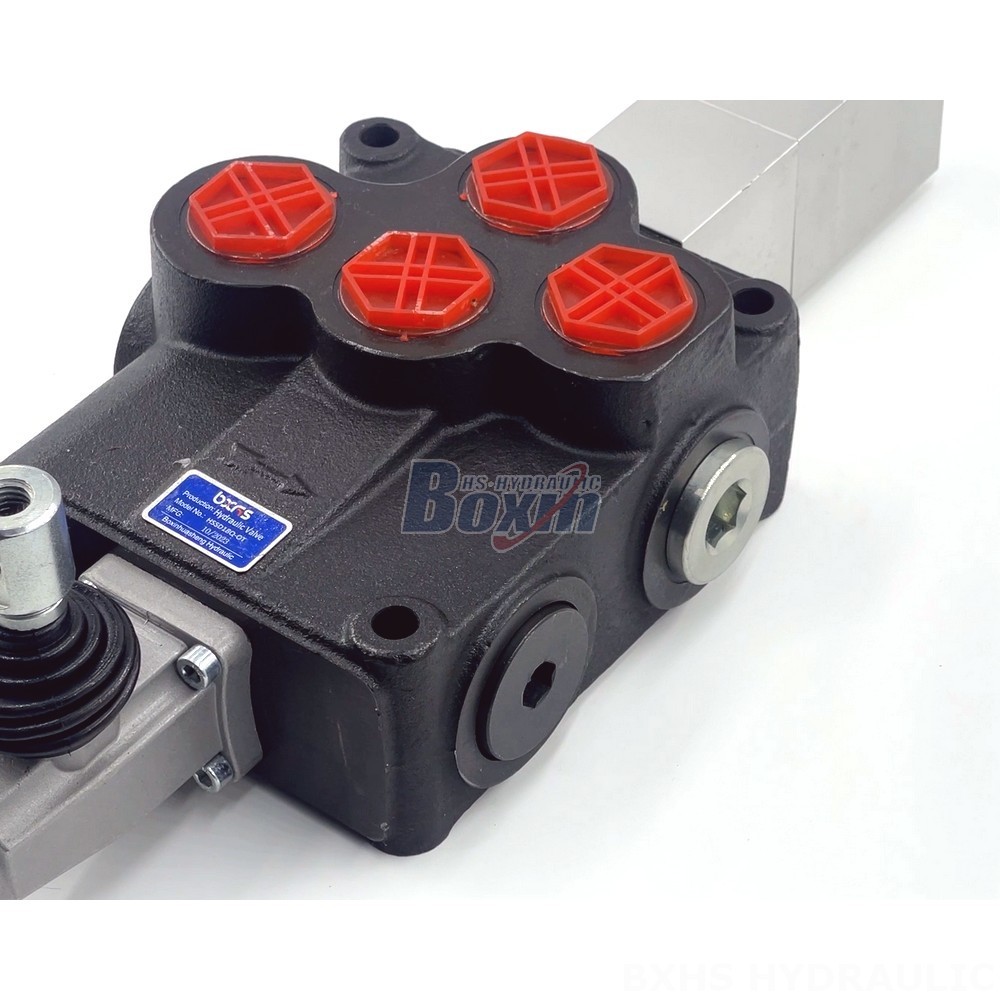

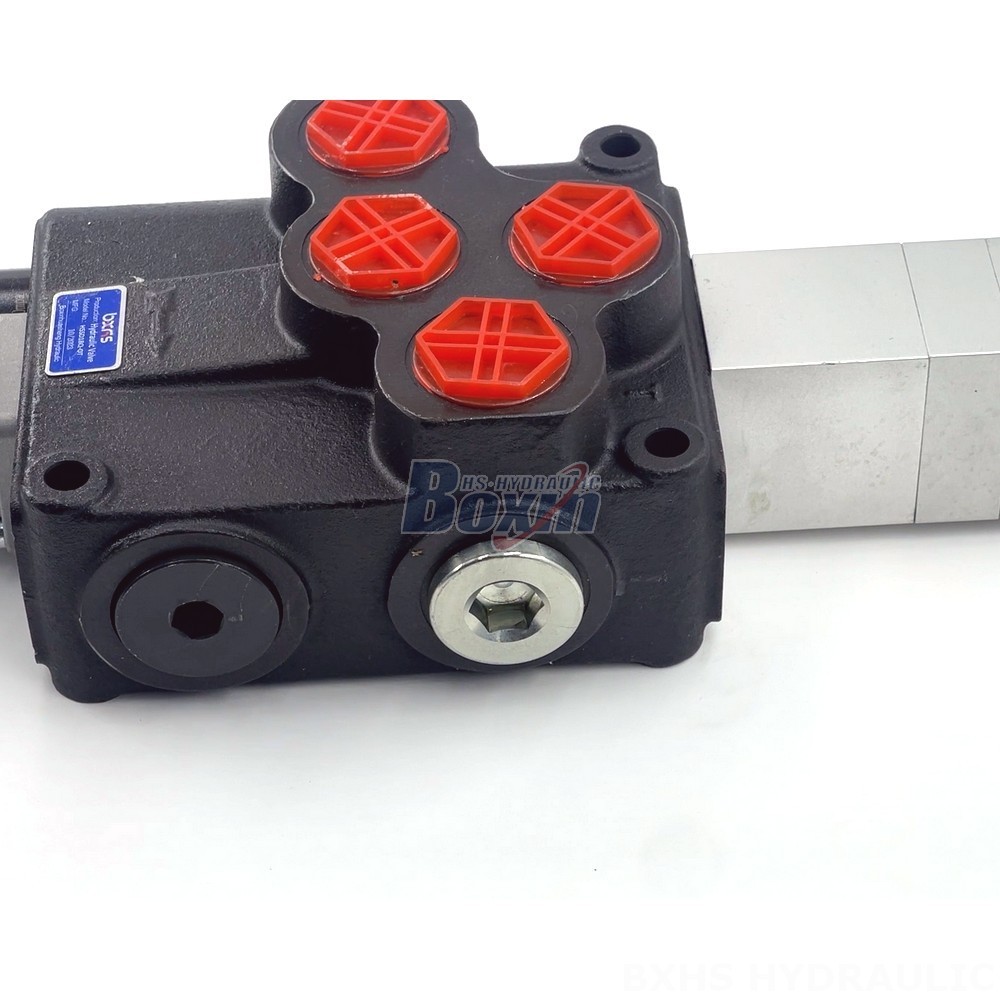

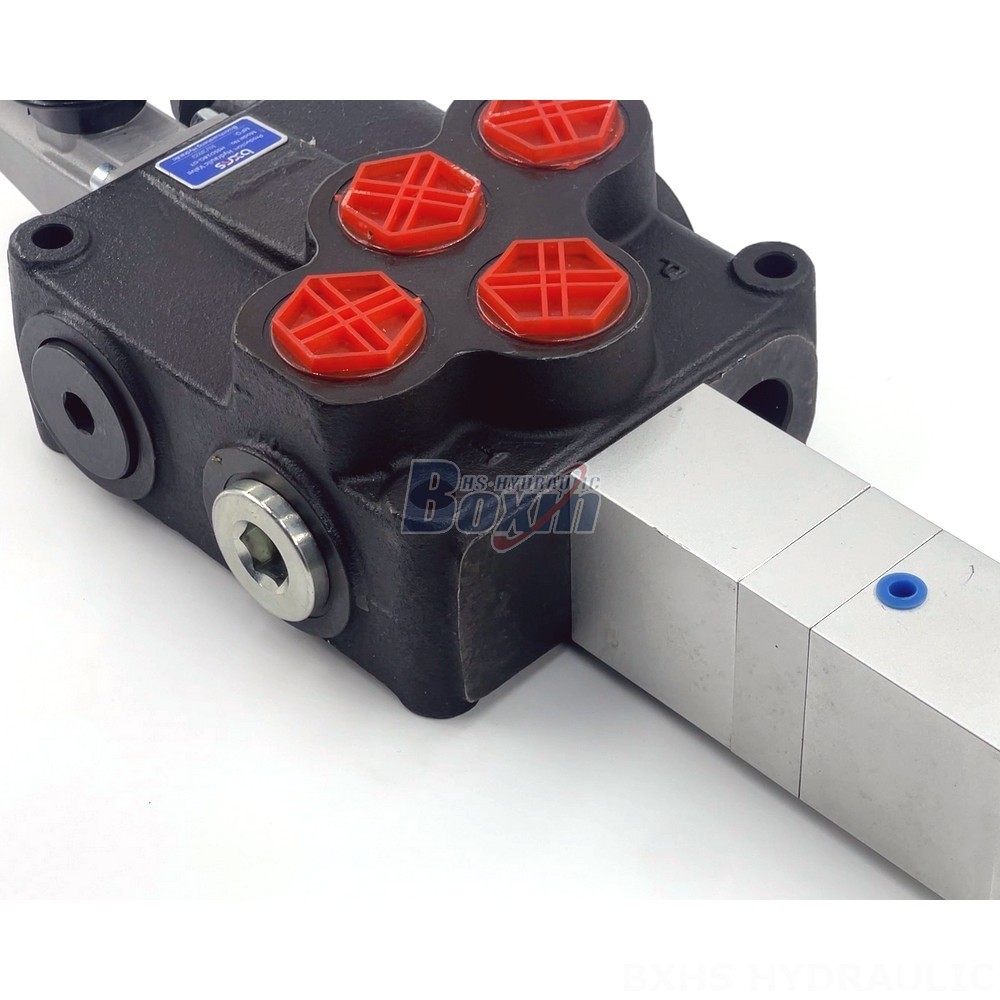

The SD18 Series Hydraulic Direction Control Valve is a pneumatic, monoblock valve designed for a variety of applications including material handling, construction, agriculture, and industrial vehicles. This high-performance valve offers a rated flow of 120 L/min and a maximum pressure of 315 bar.
| SD18-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner |
| Nominellt flöde | 160 l/min (42,2 US gpm) |
| Maximalt tryck | 305 bar (4400 psi) |
| Inloppsport | G1/2, G1, SAE 16 |
| Utloppsport | G1, SAE 16 |
| Portstorlek | G1, SAE 16 |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner |
| Strukturtyp | Monoblockventil |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Driftsviskositetsintervall | 12 - 400 mm²/s (12 cSt till 400 cSt) |
This SD18 Series Hydraulic Direction Control Valve is a robust and reliable solution for controlling hydraulic systems. Its pneumatic control method provides precise and responsive operation. The monoblock valve construction ensures durability and minimizes leakage. With a rated flow of 120 L/min and a maximum pressure of 315 bar, this valve is suitable for various applications in material handling, construction, agriculture, and industrial vehicles. It is compatible with a range of equipment including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. The valve features a wide operating viscosity range and can withstand a wide range of ambient temperatures.
