The P40-DKL Precision Directional Control Valves are a high-performance solution for industrial applications. These 4-section monoblock valves feature a solenoid control method, a rated flow of 40 L/min, and a maximum pressure of 250 bar. With their wide operating viscosity range and temperature range, these valves are suitable for a variety of applications in material handling, construction, earth moving, agriculture, and industrial vehicles.
| P40-DKL-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Manuell och Joystick |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Nominellt flöde | 40 l/min (10,5 US gpm) |
| Maximalt tryck | 250 bar (3600 psi) |
| Inloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Utloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Portstorlek | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Strukturtyp | Monoblockventil |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |

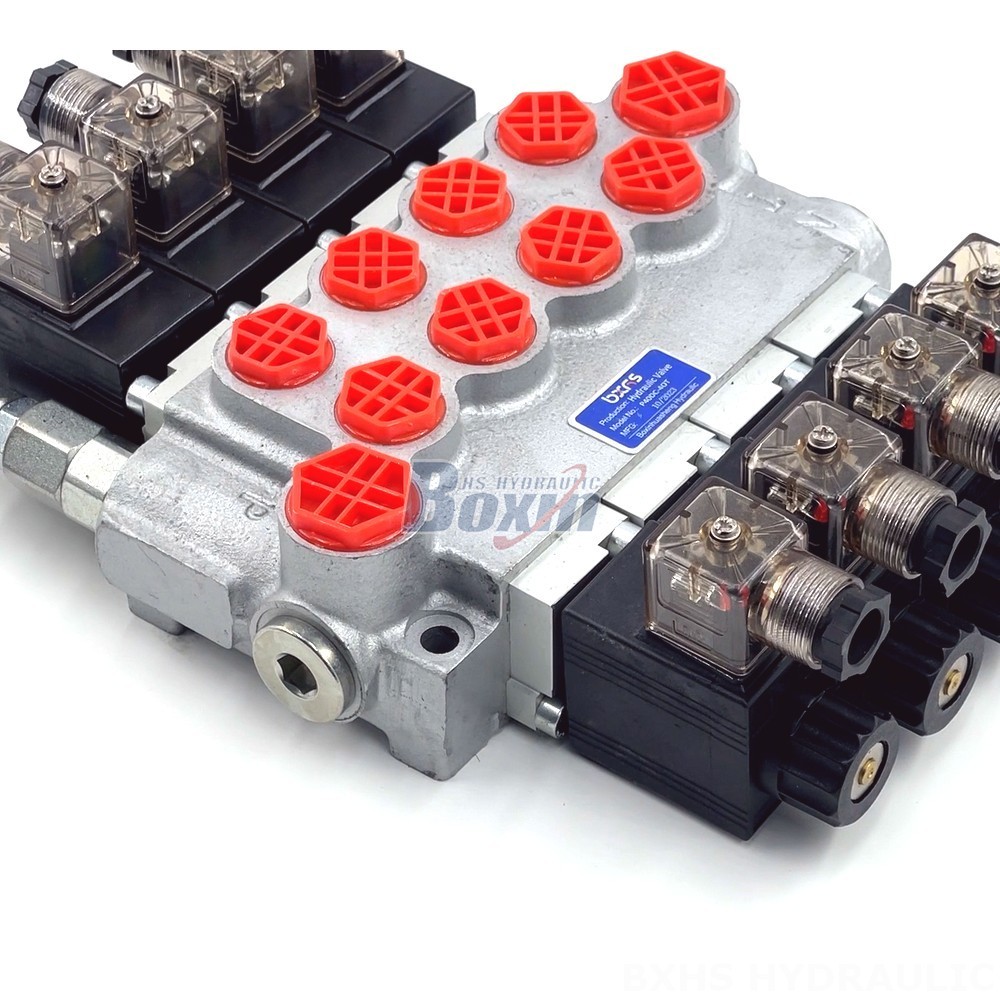

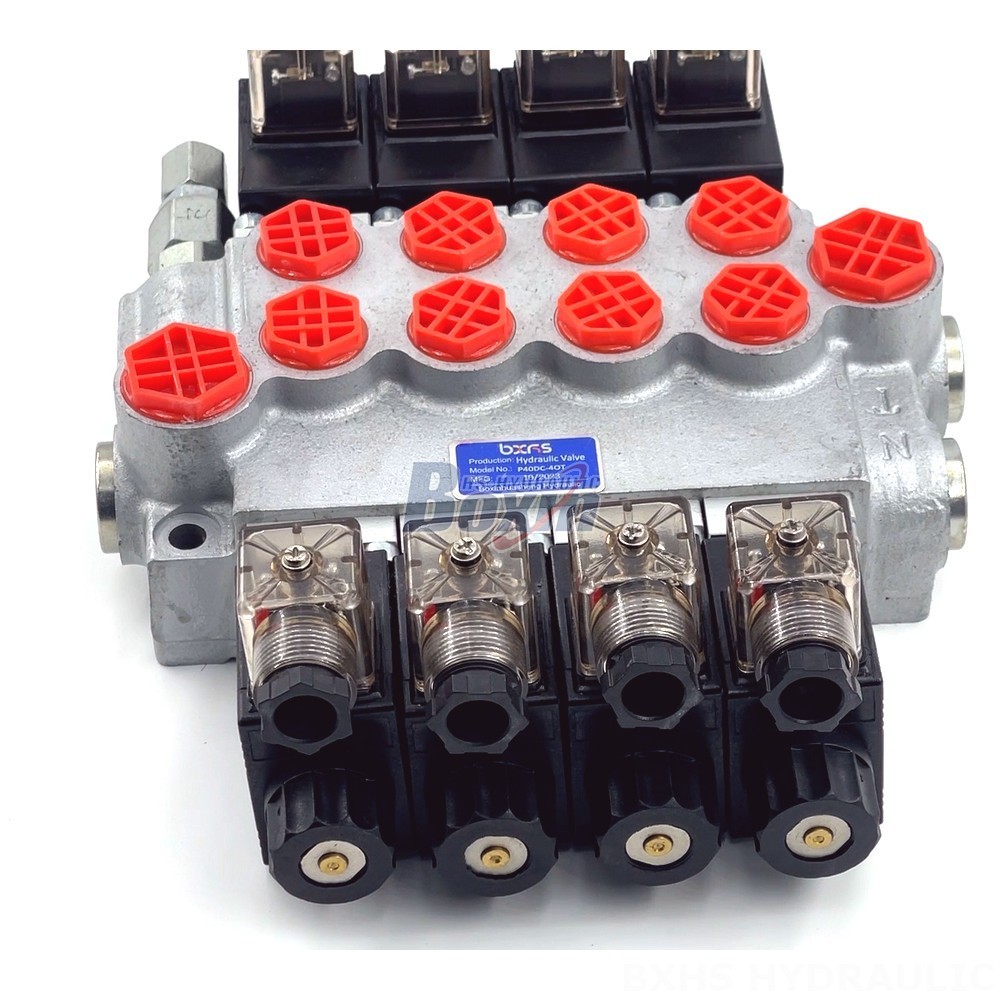

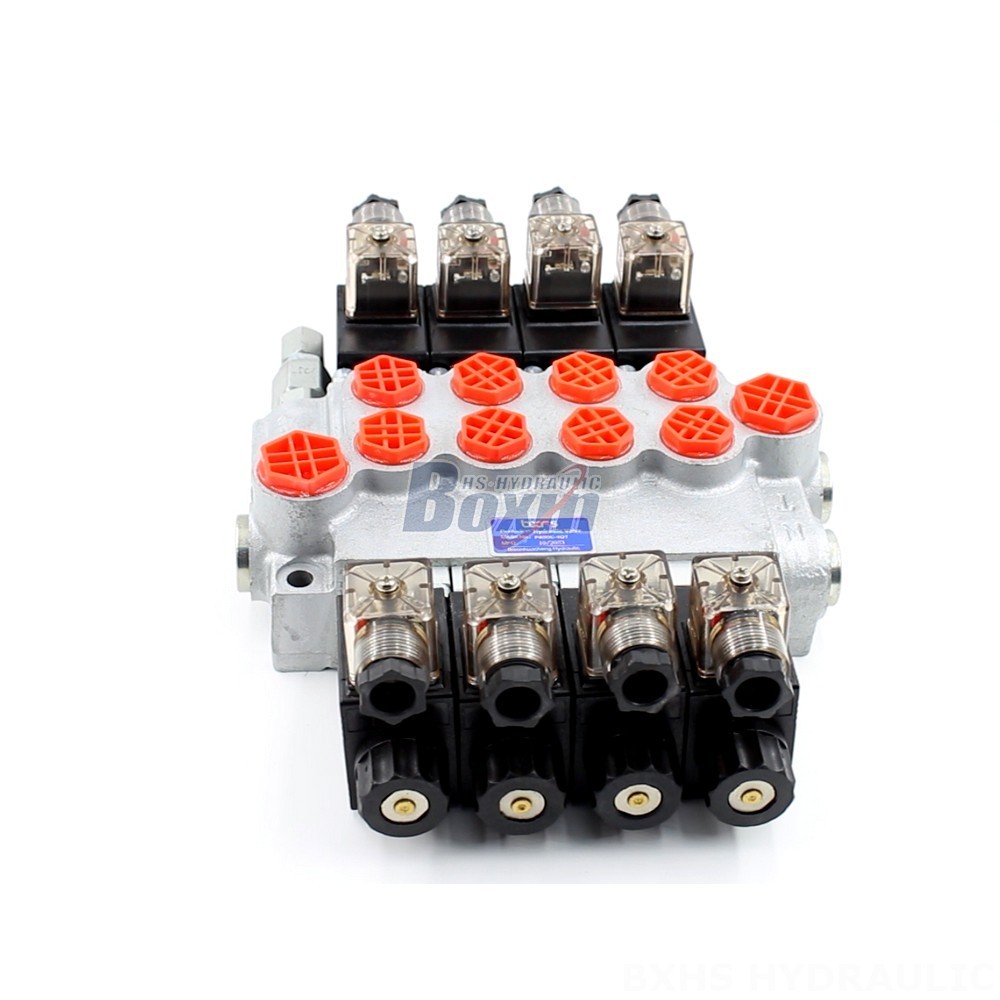

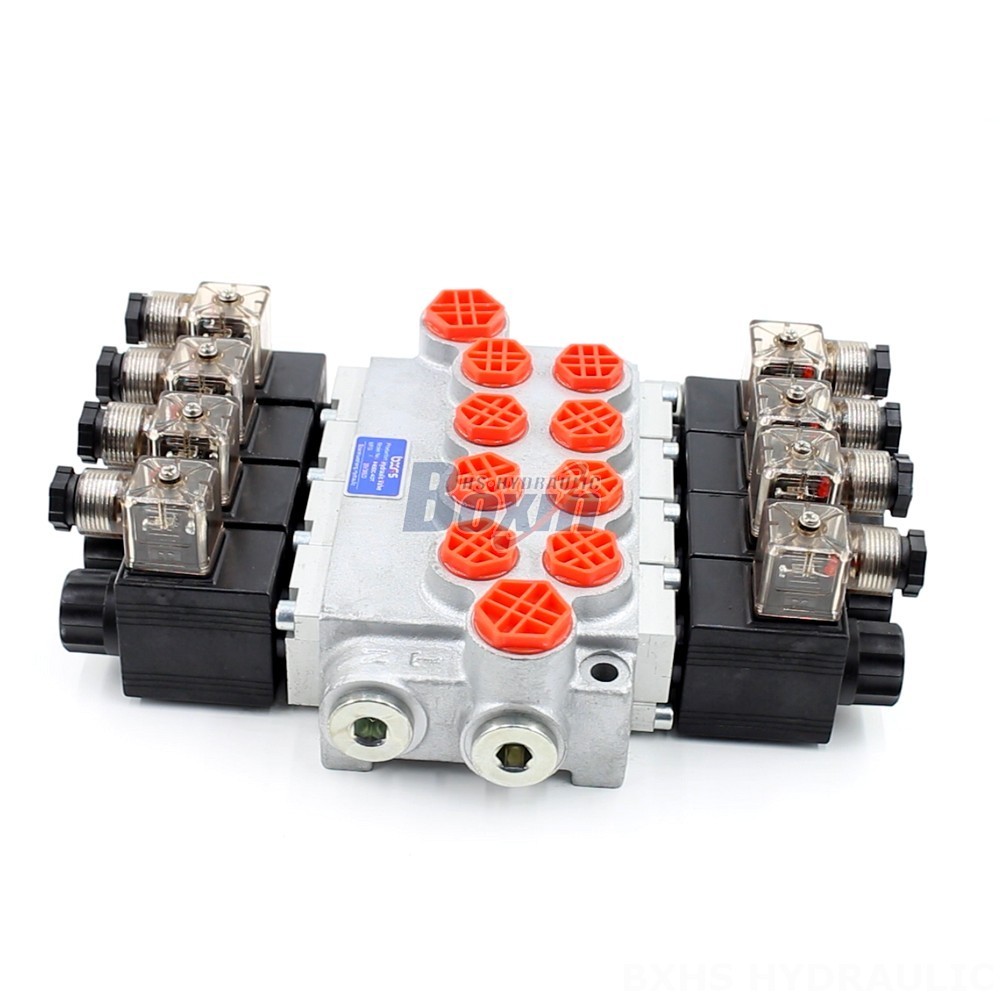

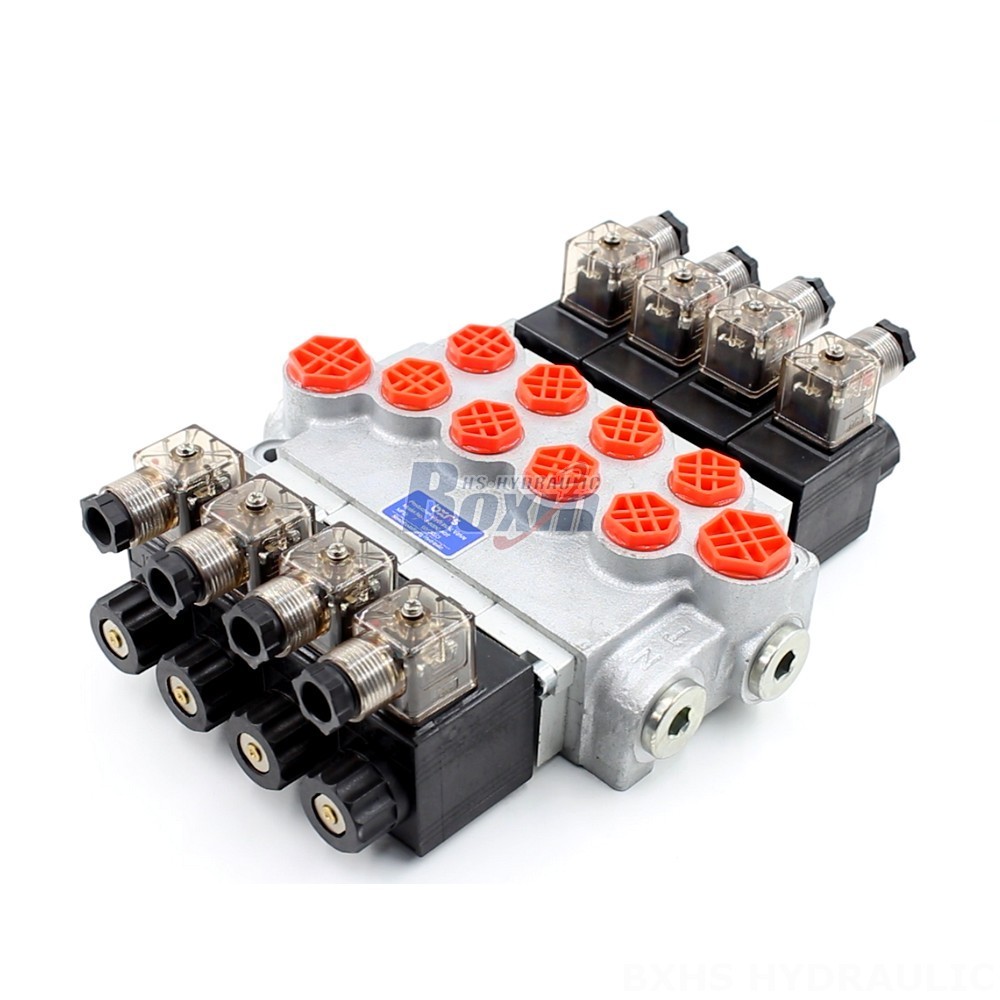

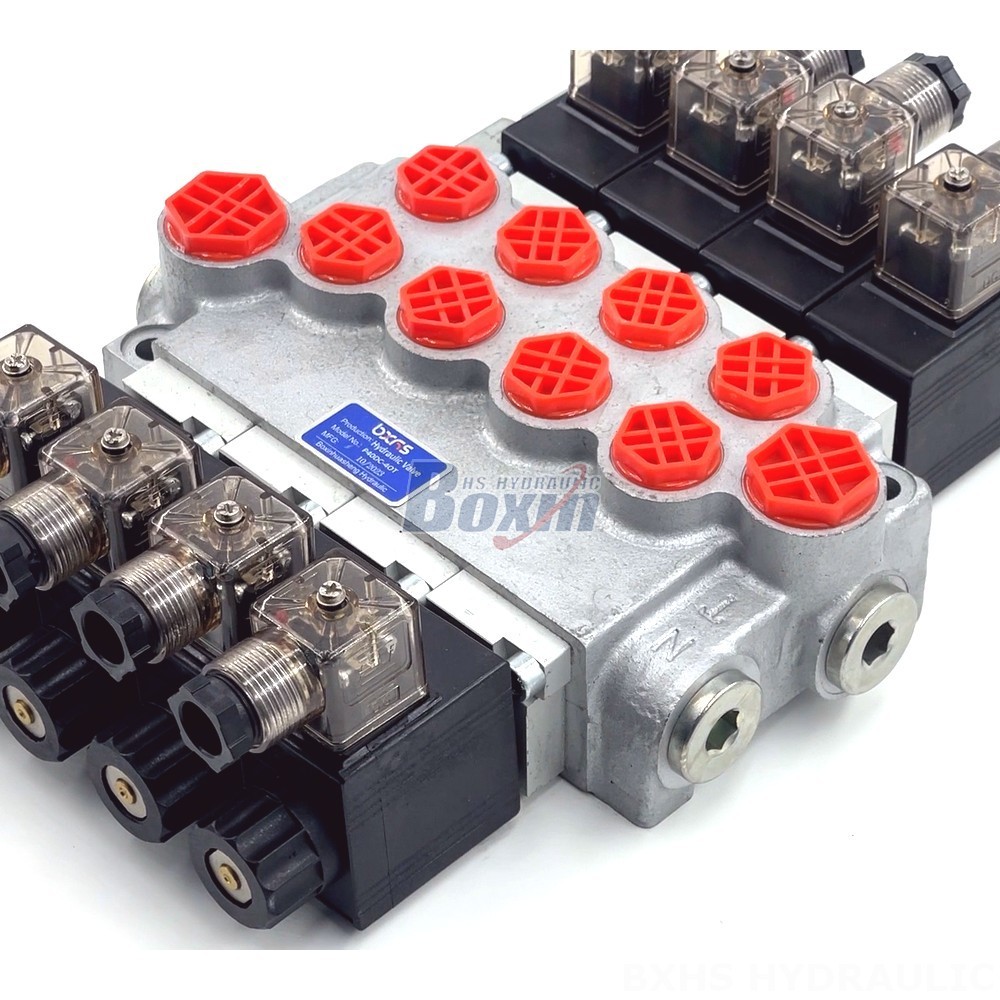

**P40-DKL Precision Directional Control Valves**
The P40-DKL Precision Directional Control Valves are designed for demanding industrial applications. These valves feature a robust monoblock construction and a solenoid control method for precise and reliable operation. With a rated flow of 40 L/min and a maximum pressure of 250 bar, these valves can handle high-pressure hydraulic systems. They also have a wide operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C, making them suitable for various operating conditions.
**Key Features:**
* 4-section monoblock valve
* Solenoid control method
* Rated flow: 40 L/min
* Maximum pressure: 250 bar
* Operating viscosity range: 15 - 75 mm²/s
* Ambient temperature range: -40°C to +80°C
* 4 spool
* Suitable for material handling, construction, earth moving, agriculture, and industrial vehicles
