The SDS180 Sectional Valve is a precision hydraulic control valve designed for use in various applications including material handling, construction, earth moving, agriculture, and industrial vehicles. It offers precise control with a manual operation, a rated flow of 160 L/min, and a maximum pressure of 350 bar.
| SDS180-serien Sektionsstyrvventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Hydraulisk |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Sektionsventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner, 8 sektioner, 9 sektioner, 10 sektioner |
| Driftsviskositetsintervall | 12 - 400 mm²/s (12 cSt till 400 cSt) |
| Nominellt flöde | 160 l/min (42,2 US gpm) |
| Maximalt tryck | 315 bar (4600 psi), 350 bar (5100 psi) |
| Inloppsport | G3/4, G1, SAE 12 |
| Utloppsport | G1, SAE 16 |
| Portstorlek | G3/4, G1, SAE 12 |

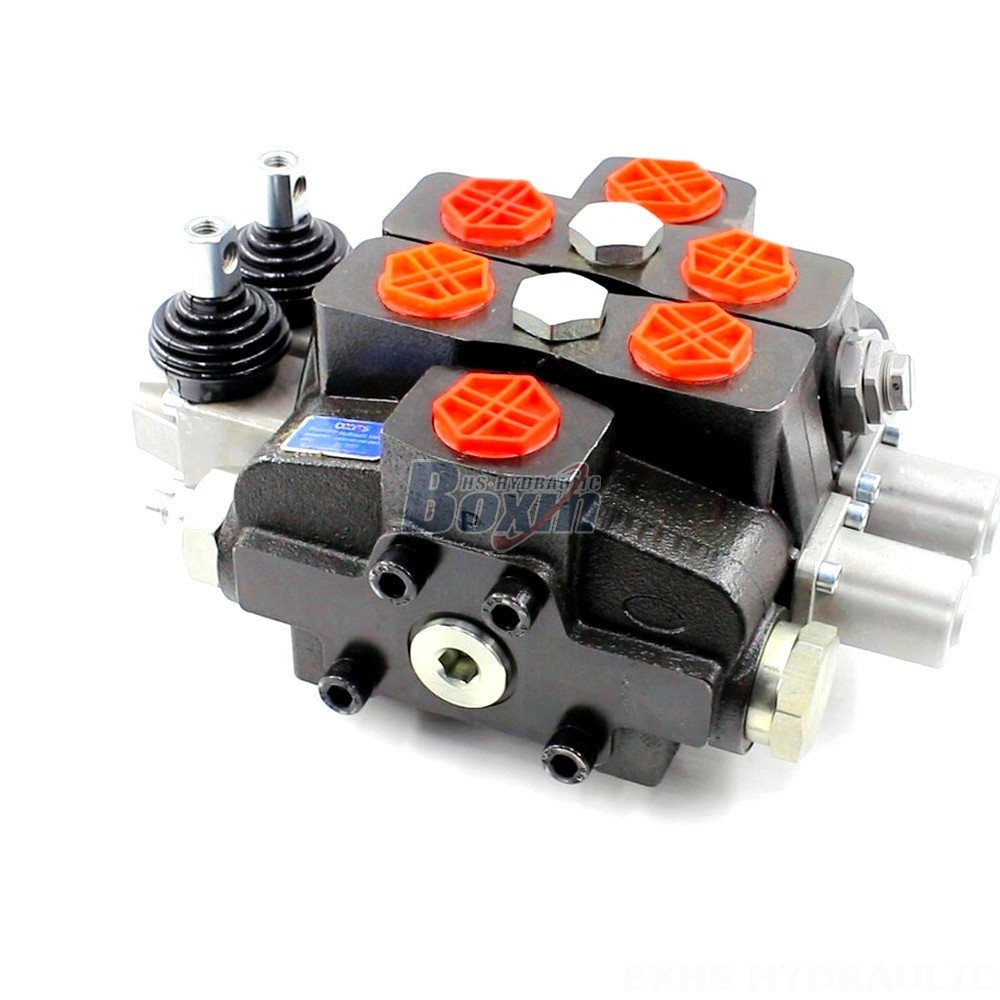

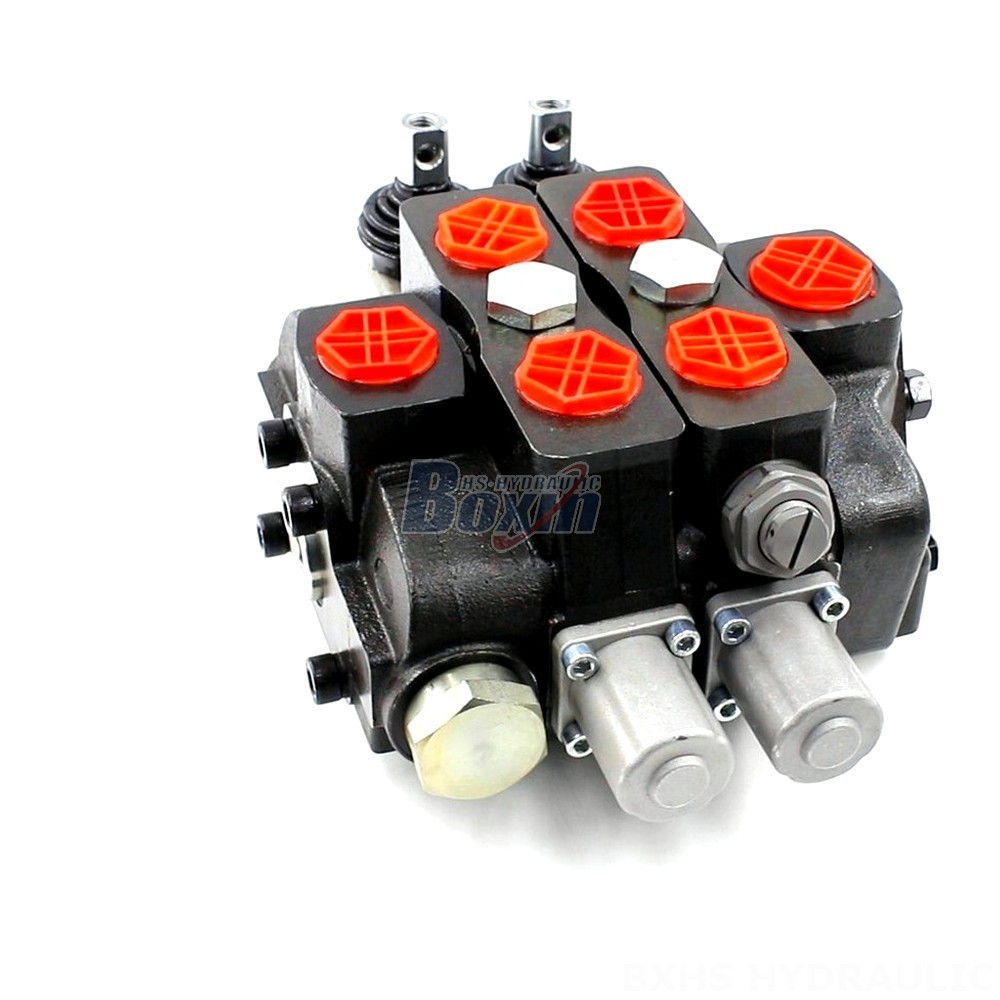

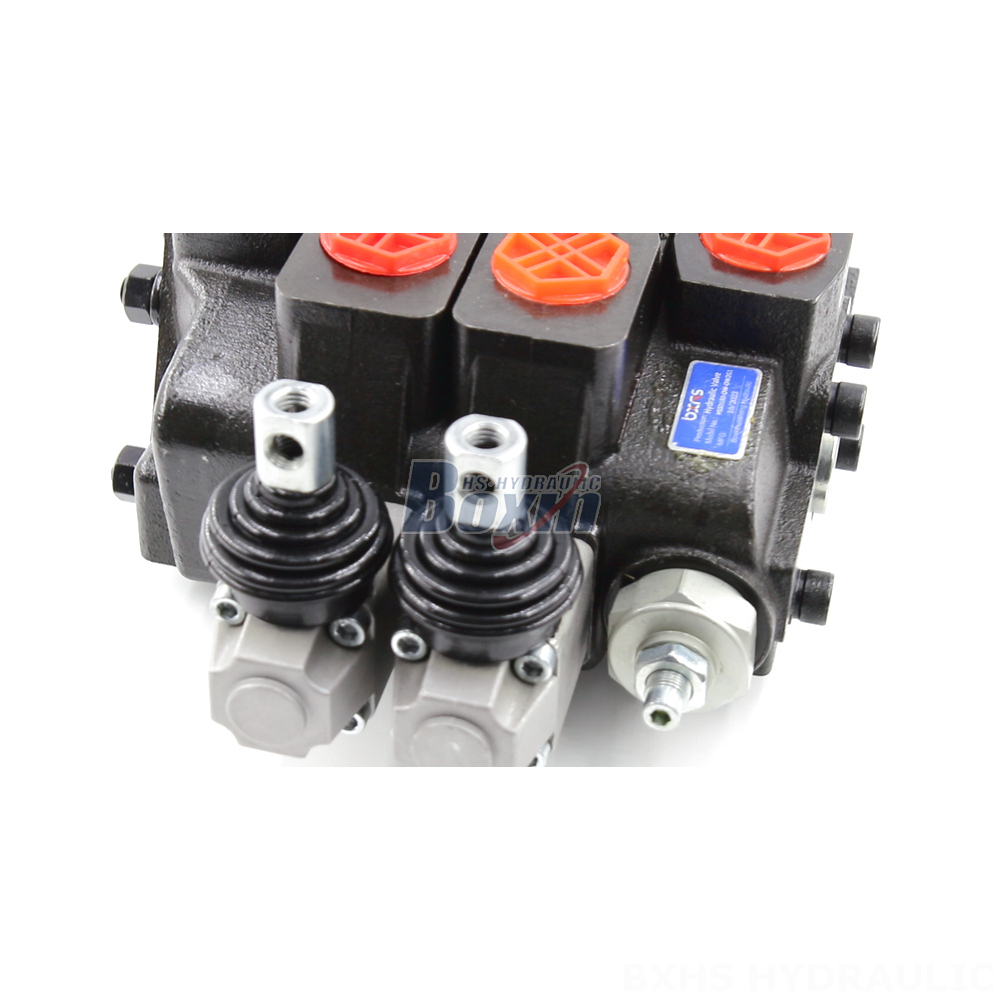

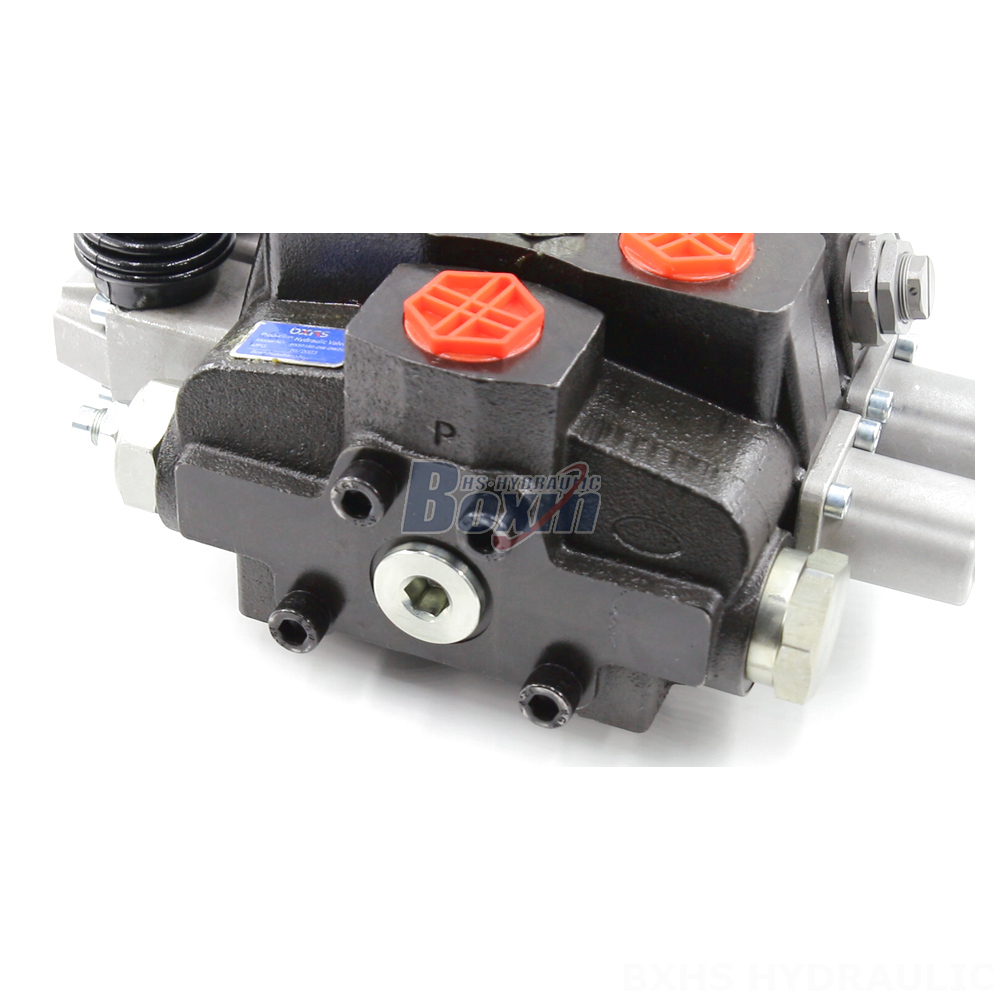

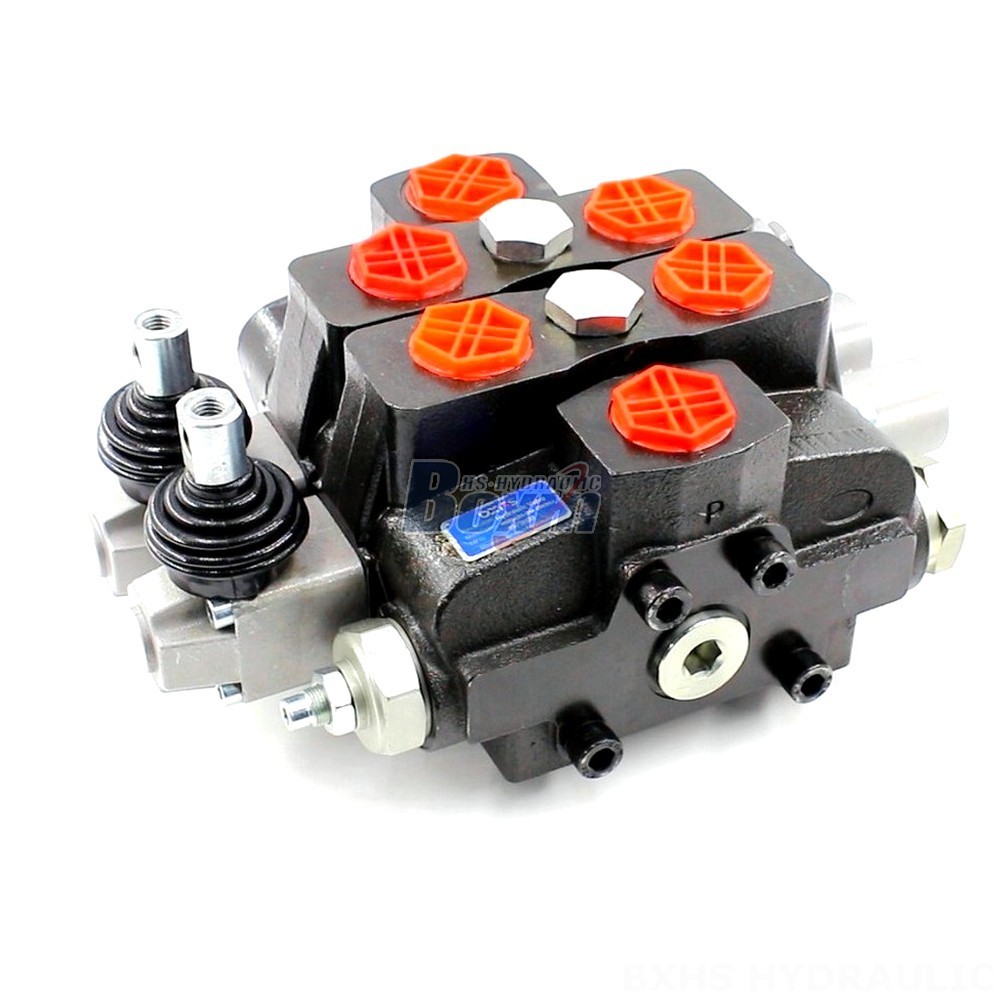

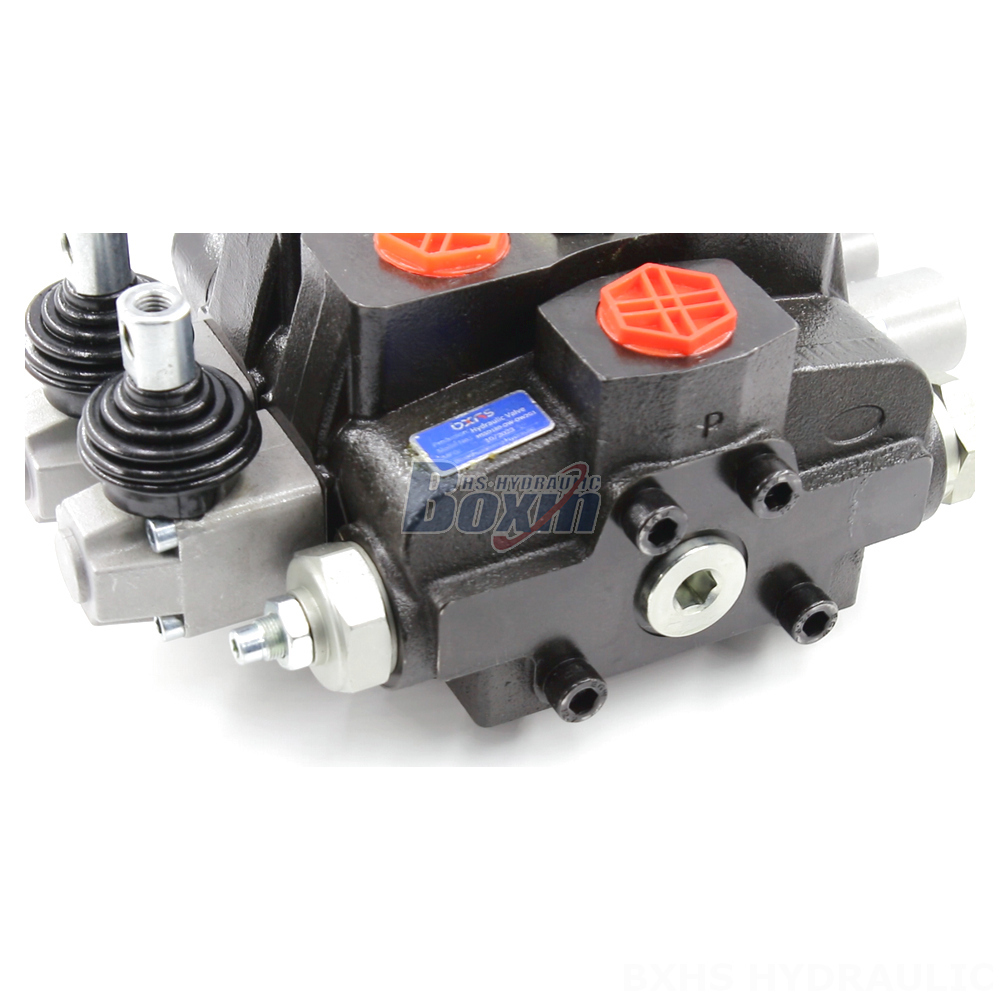

**SDS180 Sectional Valve**
The SDS180 Sectional Valve is a 2-section, manually operated hydraulic valve designed to provide precise control of hydraulic systems. It features a rated flow of 160 L/min, a maximum pressure of 350 bar, and an operating viscosity range of 12 - 400 mm²/s. The valve is constructed using high-quality materials and is engineered to meet the demands of demanding applications.
**Key Features:**
* Manual control for precise operation
* 2-section design for versatility
* Rated flow of 160 L/min
* Maximum pressure of 350 bar
* Operating viscosity range of 12 - 400 mm²/s
* Durable construction for long-lasting performance
**Applications:**
The SDS180 Sectional Valve is suitable for a wide range of applications, including:
* Material Handling
* Construction and Earth Moving
* Agriculture
* Industrial Vehicles
**Applicable Models:**
The SDS180 Sectional Valve is commonly used in the following types of equipment:
* Telehandlers
* Forklifts
* All Terrain Cranes
* Stackers
* Aerial Platforms
* Motor Graders
* Midi-Excavators
* Mini-Excavators
* Skid Steer Loaders
* Compact Wheel Loaders
