Produktion & Leverans
15-30 dagars produktionsledtid

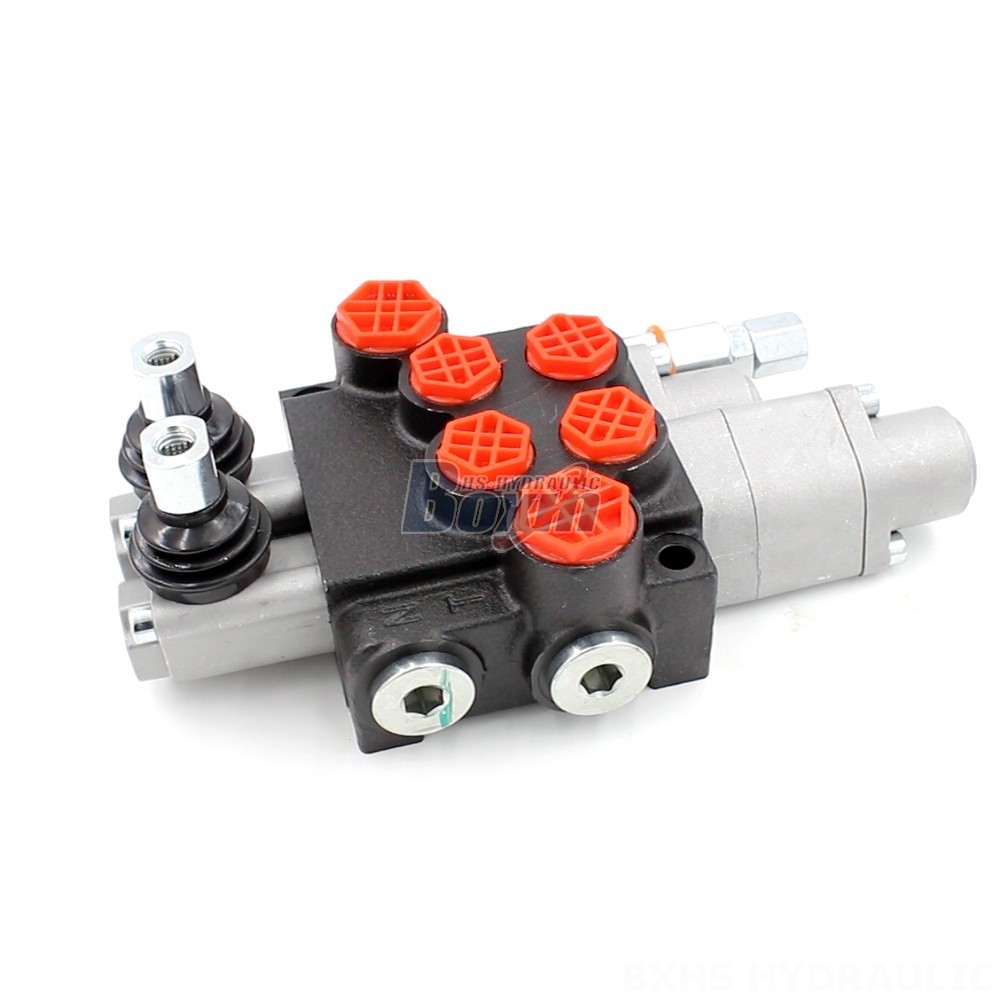

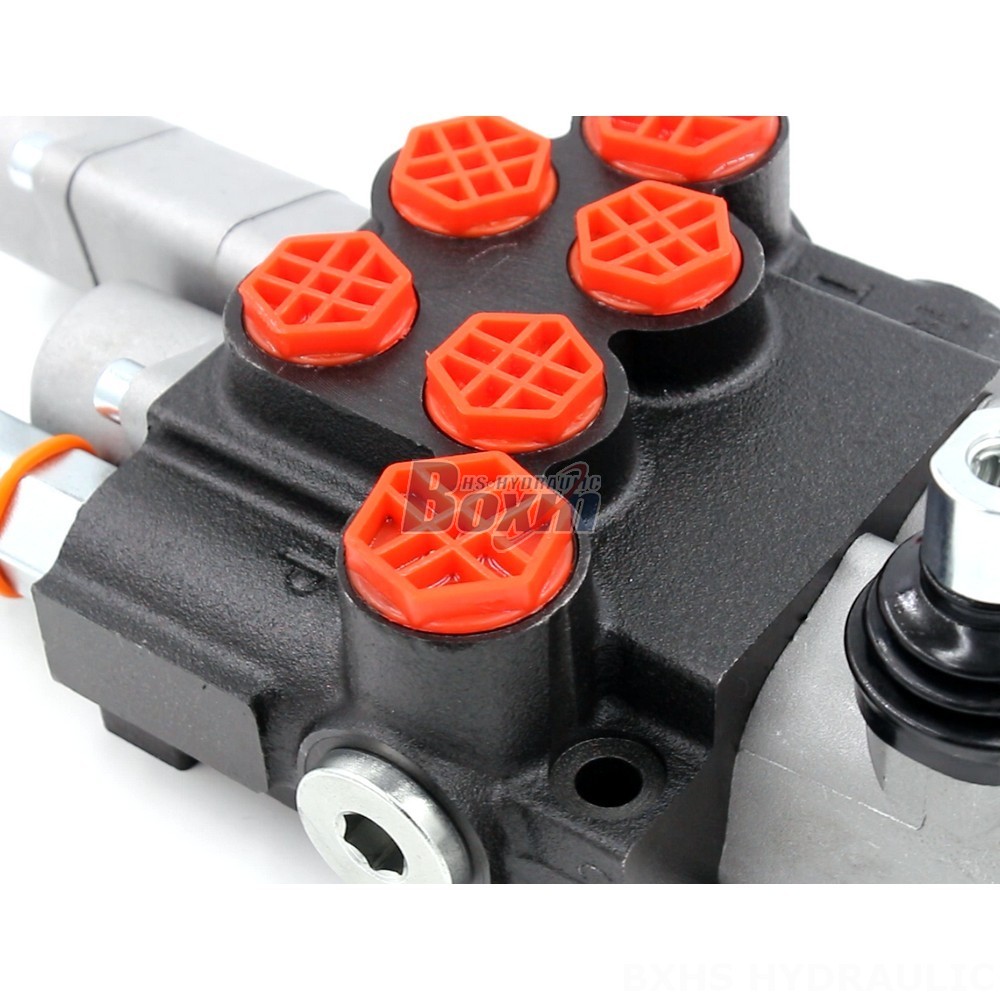

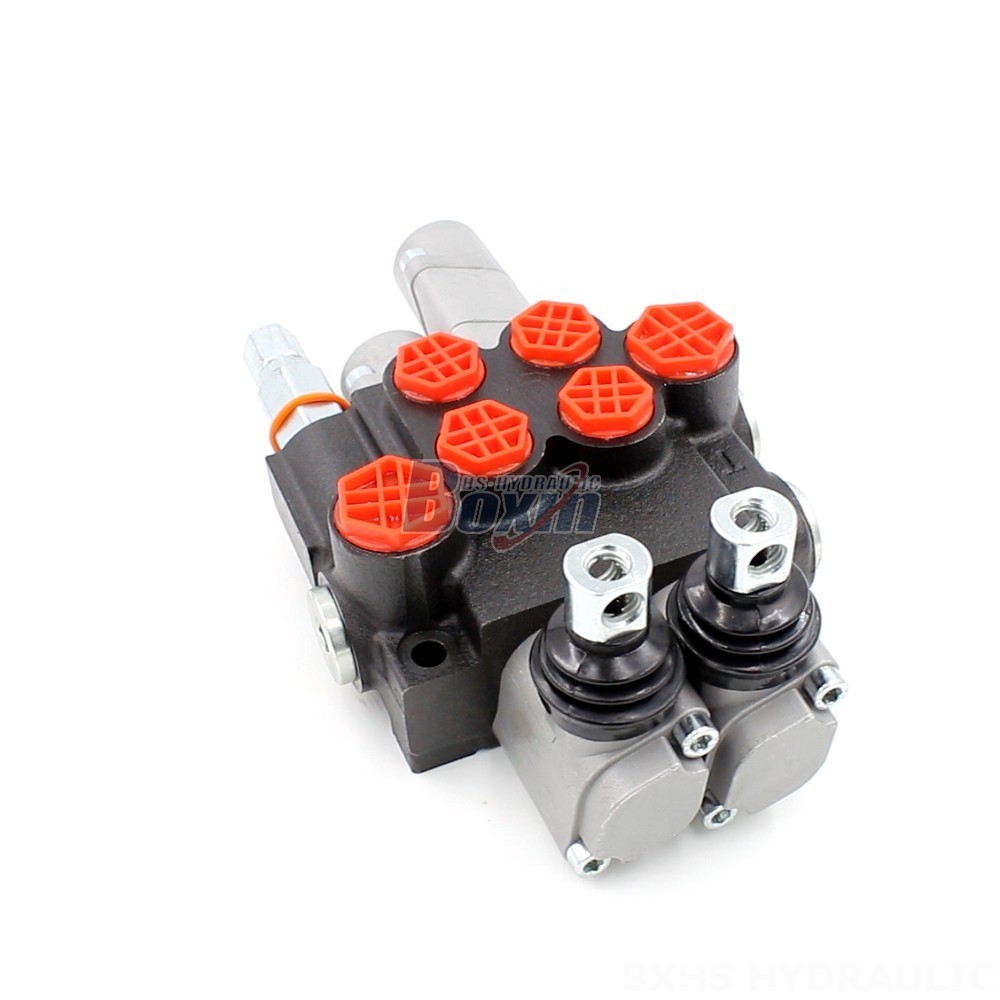

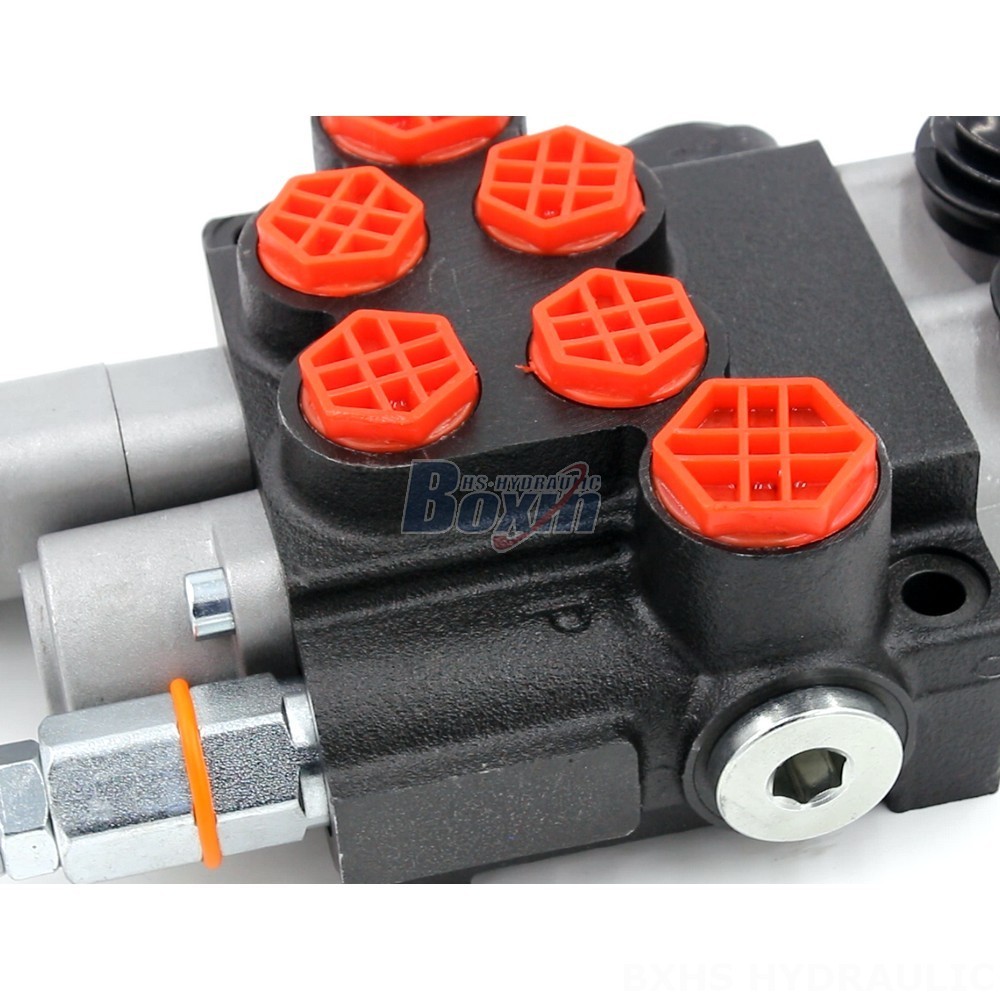

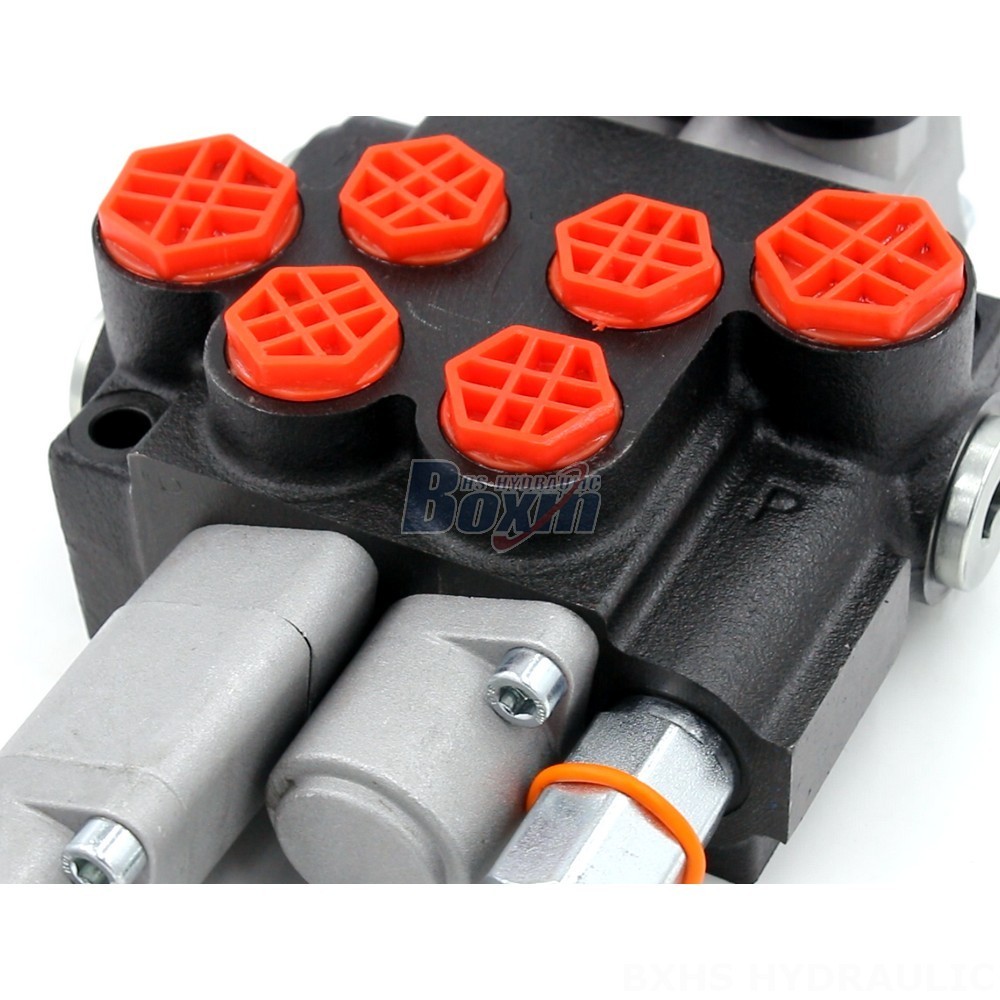

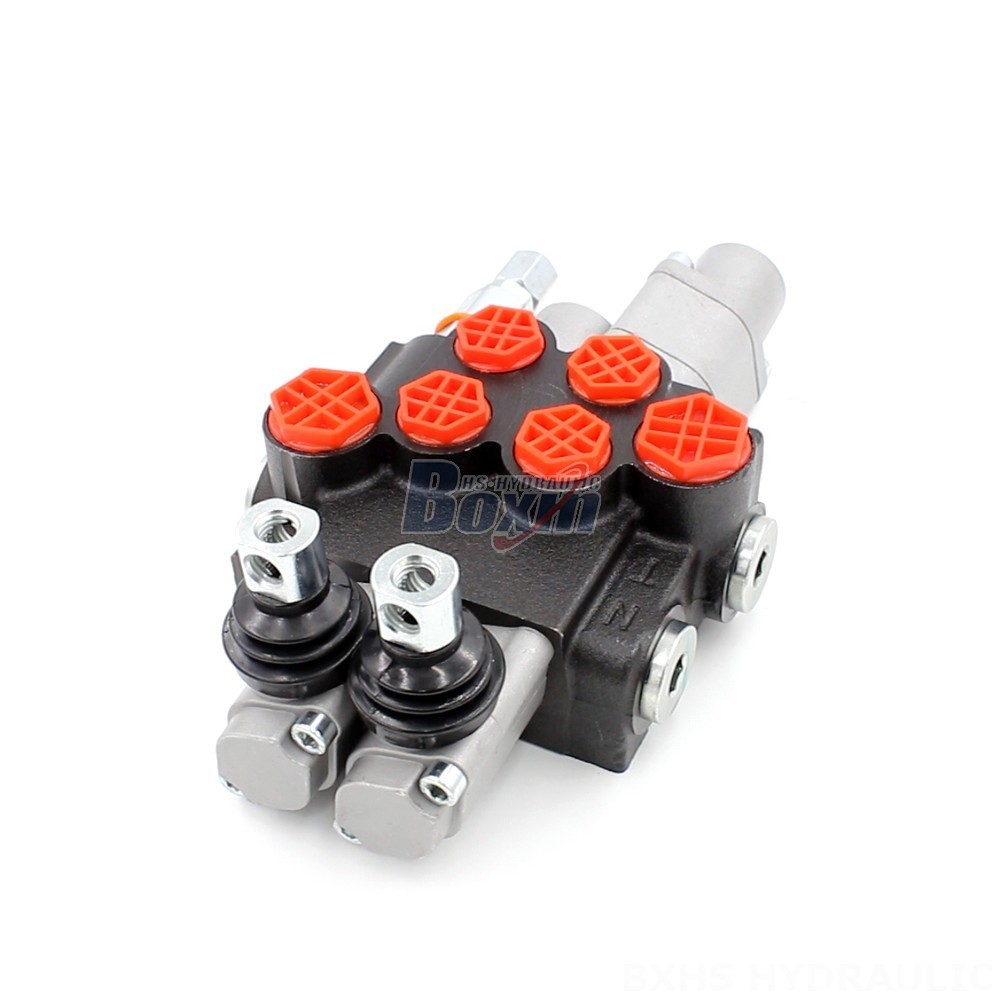

The P40-AQF-G38-G12 is a premium integral hydraulic valve designed for demanding applications in material handling, construction, earthmoving, agriculture, and industrial vehicles. This monoblock valve features manual control, a 2-section design, and a rated flow of 40 L/min, making it ideal for use in telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and backhoe loaders.
| P40-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Solenoid och Joystick, Manuell och Joystick, Magnetventil och kabel |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 40 l/min (10,5 US gpm) |
| Maximalt tryck | 250 bar (3600 psi) |
| Inloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Utloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Portstorlek | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-AQF-G38-G12 is a high-performance integral hydraulic valve designed for demanding applications in various industries. It features a robust monoblock valve design with manual control for precise operation. With a 2-section configuration and a rated flow of 40 L/min (10.5 US gpm), this valve can handle high flow rates and pressures. The P40-AQF-G38-G12 is capable of operating at pressures up to 250 bar (3600 psi) and can handle a wide viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). This valve is designed for reliable performance even in extreme environments, with an operating temperature range of -40°C to +80°C (-40°F to +176°F). It is specifically suited for use in various heavy-duty applications including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and backhoe loaders. The P40-AQF-G38-G12 combines premium quality, high performance, and versatility, making it an ideal choice for demanding hydraulic applications.
