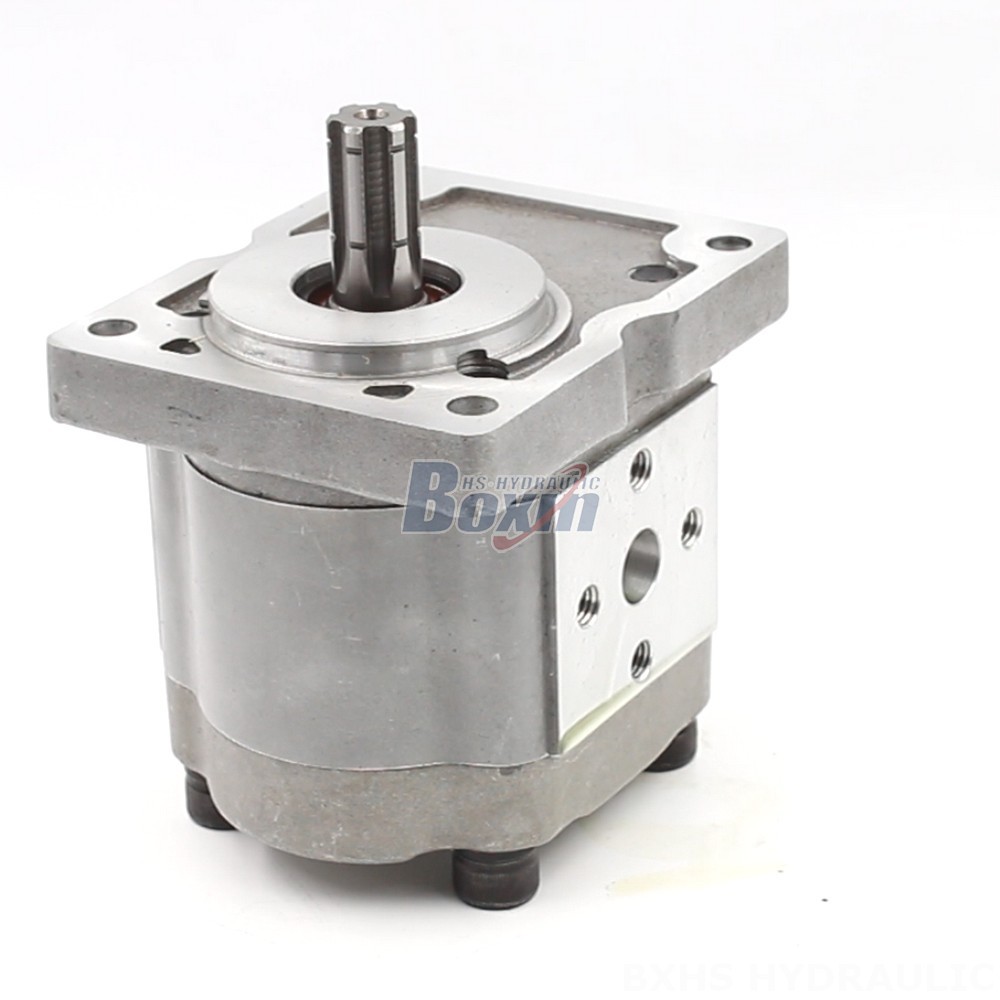

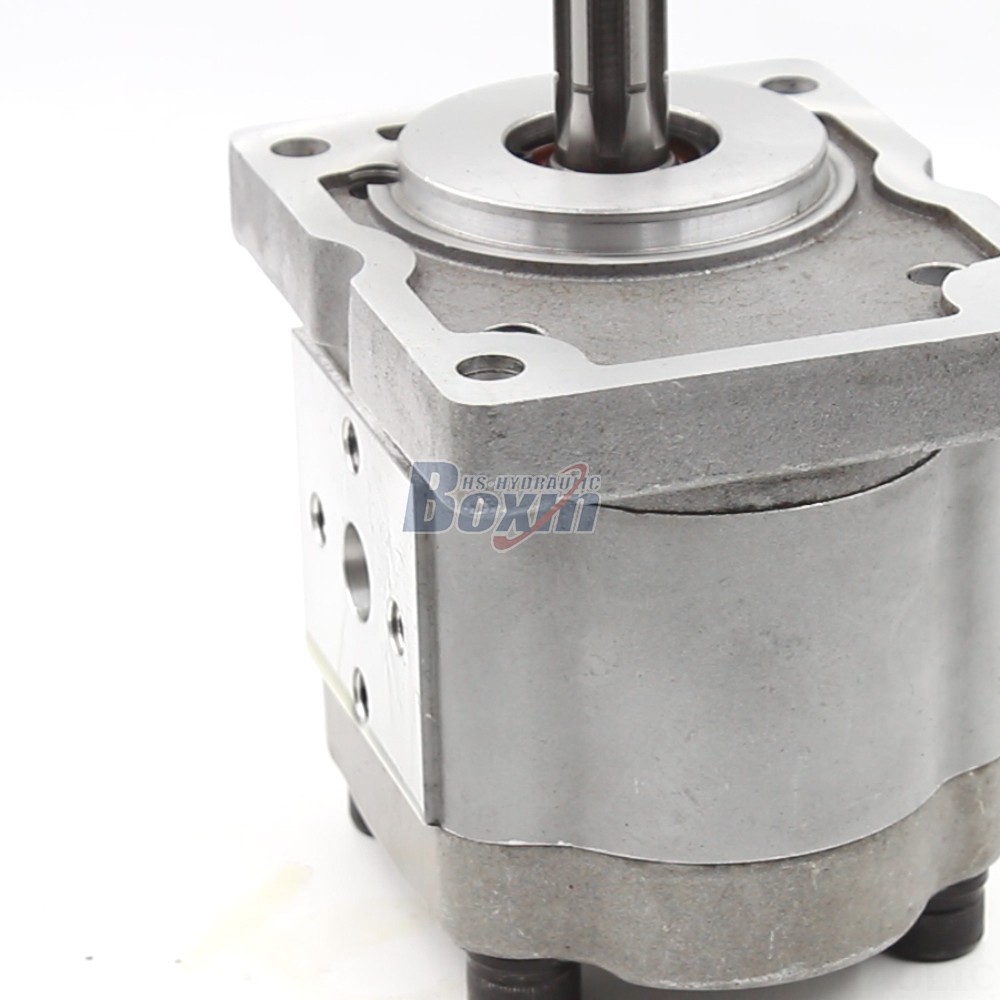

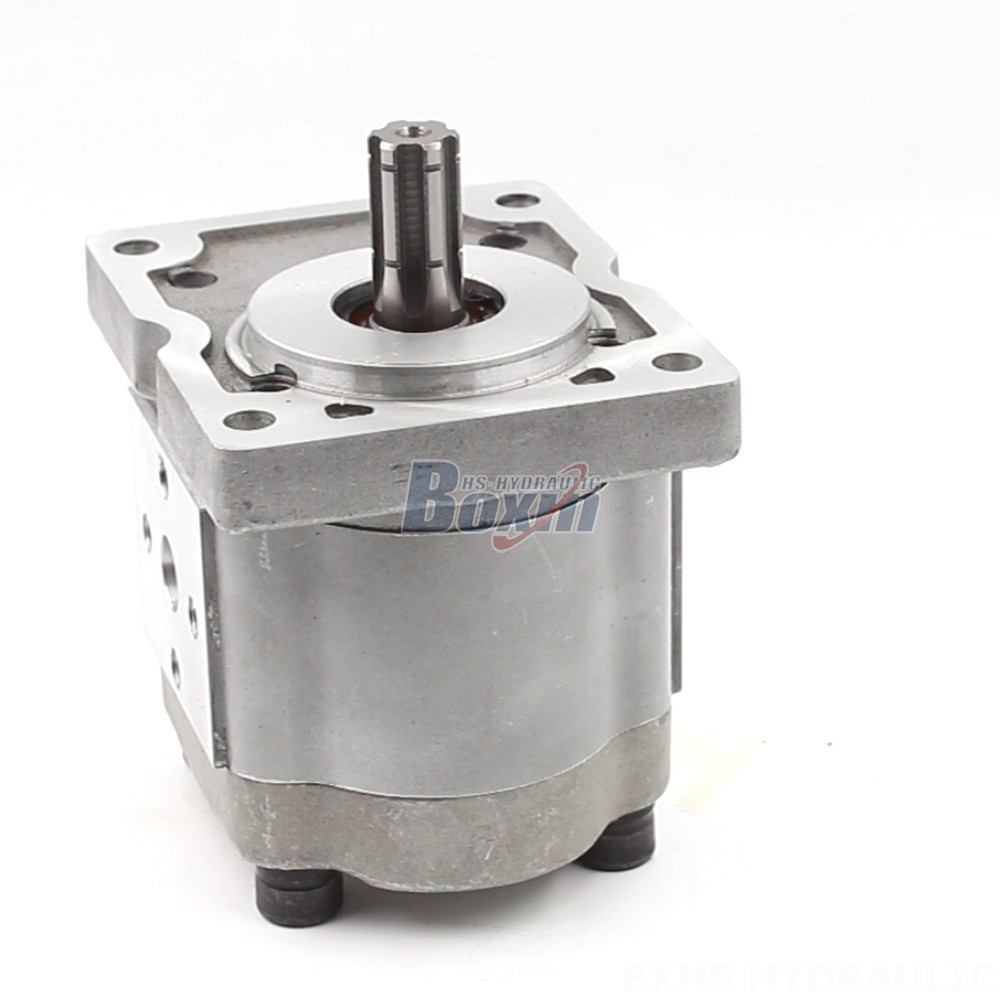

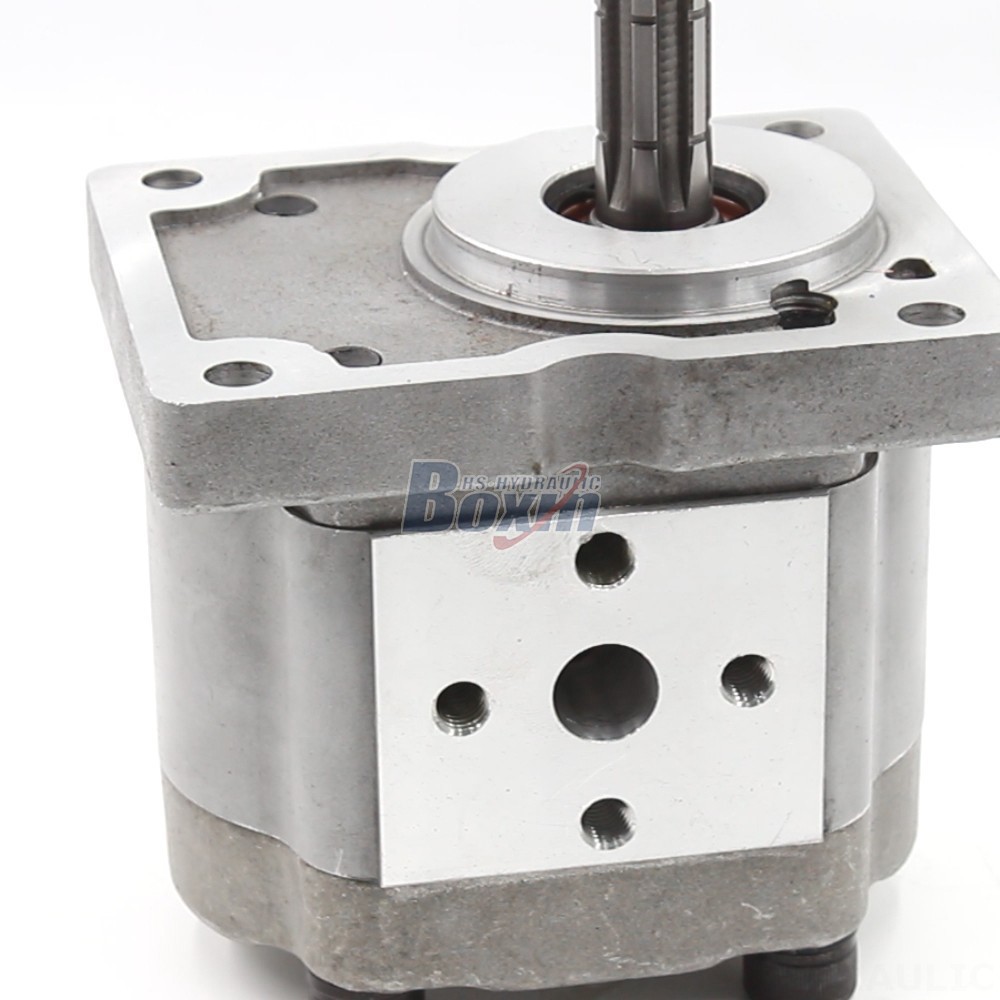

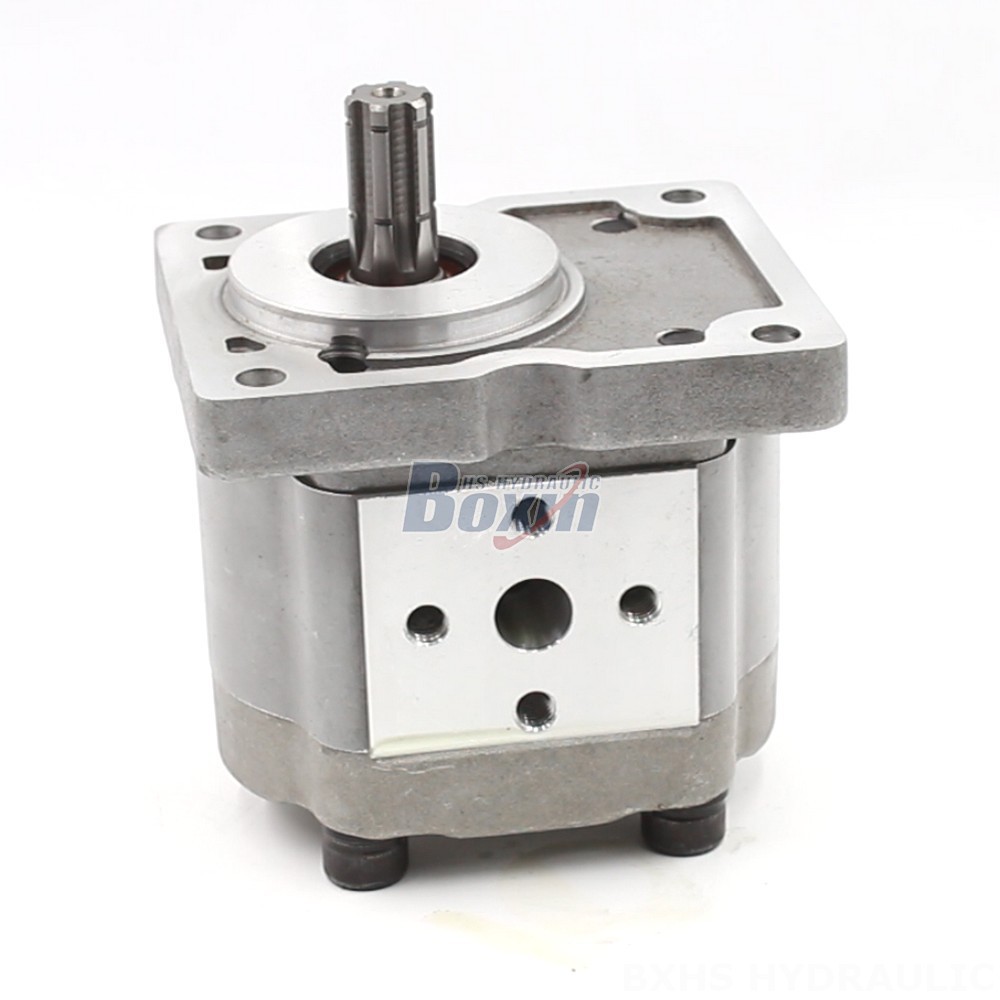

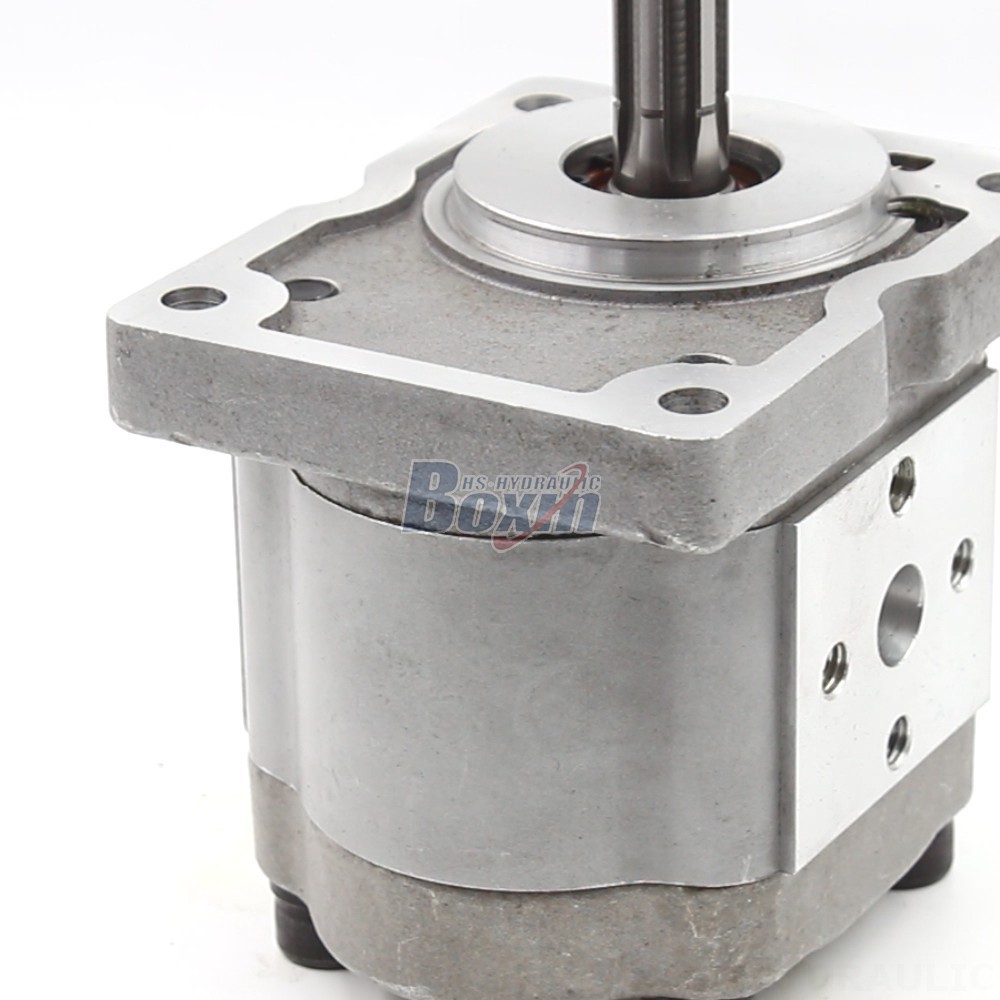

Private Label Hydraulic Gear Pumps: NSH-10 Series with Your Brand Name. These hydraulic gear pumps are manufactured with high-quality materials and components, and they are designed to meet the demanding requirements of a wide range of applications. With displacement options of 100 cc/rev, 10 cc/rev, 40 cc/rev, and 50 cc/rev, and a rated pressure of 18 MPa (2610 psi), these pumps are ideal for use in a variety of industrial and mobile applications.
| NSH-serien Hydraulisk kugghjulspump Parametrar | |
|---|---|
| Deplacement | 10 cc/varv, 32 cc/varv, 40 cc/varv, 50 cc/varv, 100 cc/varv |
| Nominellt tryck | 18 MPa (2610 psi) |
| Maximalt tryck | 20 MPa (2900 psi) |
| Nominell hastighet | 2000 varv/min |
| Maximal hastighet | 4200 varv/min |
| Rotationsriktning | Vänster (motsols) |
| Material | Aluminium |
| Struktur | Externt kugghjulspump |
| Flanschversion | B-Kvadratisk fläns |
| Axeltyp | X: Evolventsplines |
**Private Label Hydraulic Gear Pumps: NSH-10 Series with Your Brand Name**
**OEM, ODM, and customization services are available.**
**Product Parameters:**
* Displacement: 100 cc/rev, 10 cc/rev, 40 cc/rev, 50 cc/rev
* Rated Pressure: 18 MPa (2610 psi)
* Rated Speed: 2000 r/min
* Max Speed: 4200 r/min
* Rotation: L: Left (counter-clockwise)
* Structure: External Gear Pump
* Material: Aluminum
* Flange Version: B-Square Flange
* Shaft Type: X: Involute Spline
* Series: NSH Series
**Application Areas:**
* Material Handling
* Construction and Earth Moving
* Agriculture
* Industrial Vehicles
**Applicable Models:**
* Telehandler
* Forklift
* All Terrain Crane
* Stacker
* Aerial Platform
* Motor Grader
* Telehandler
* Midi-Excavator
* Mini-Excavator
* Skid Steer Loader
