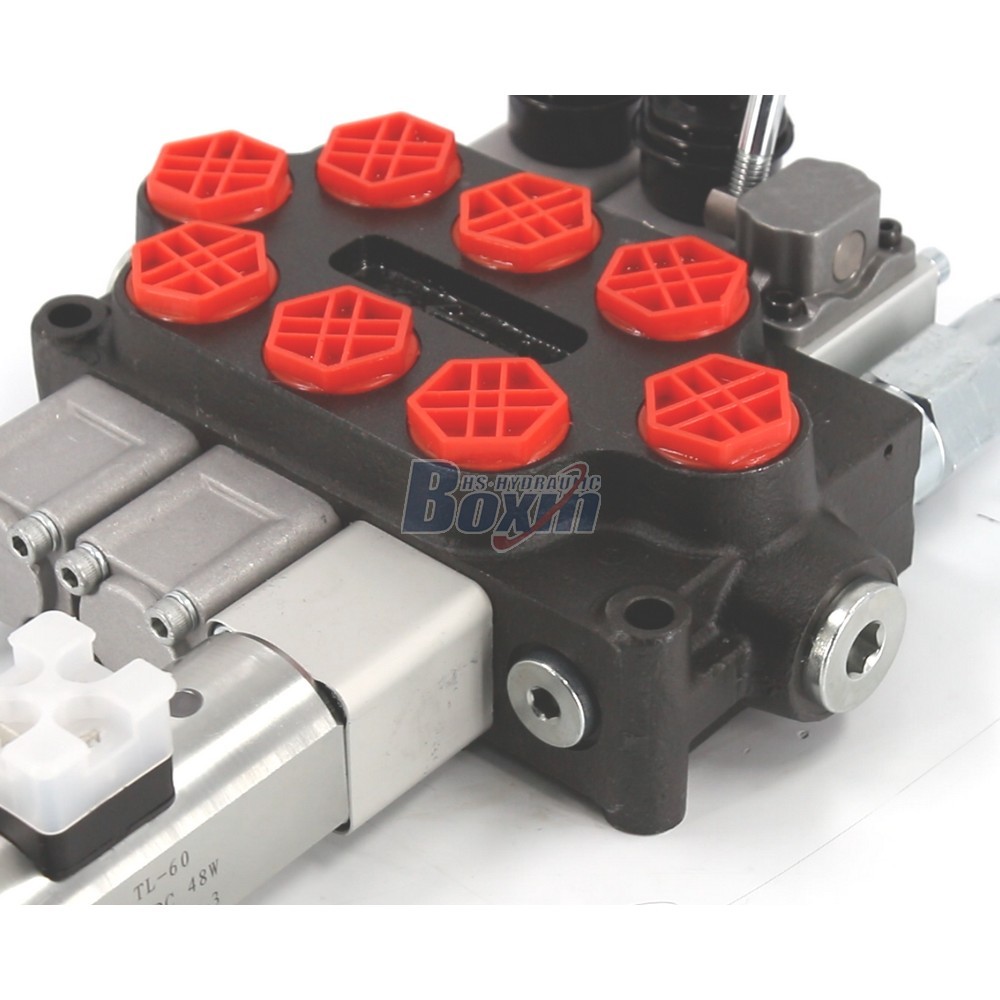

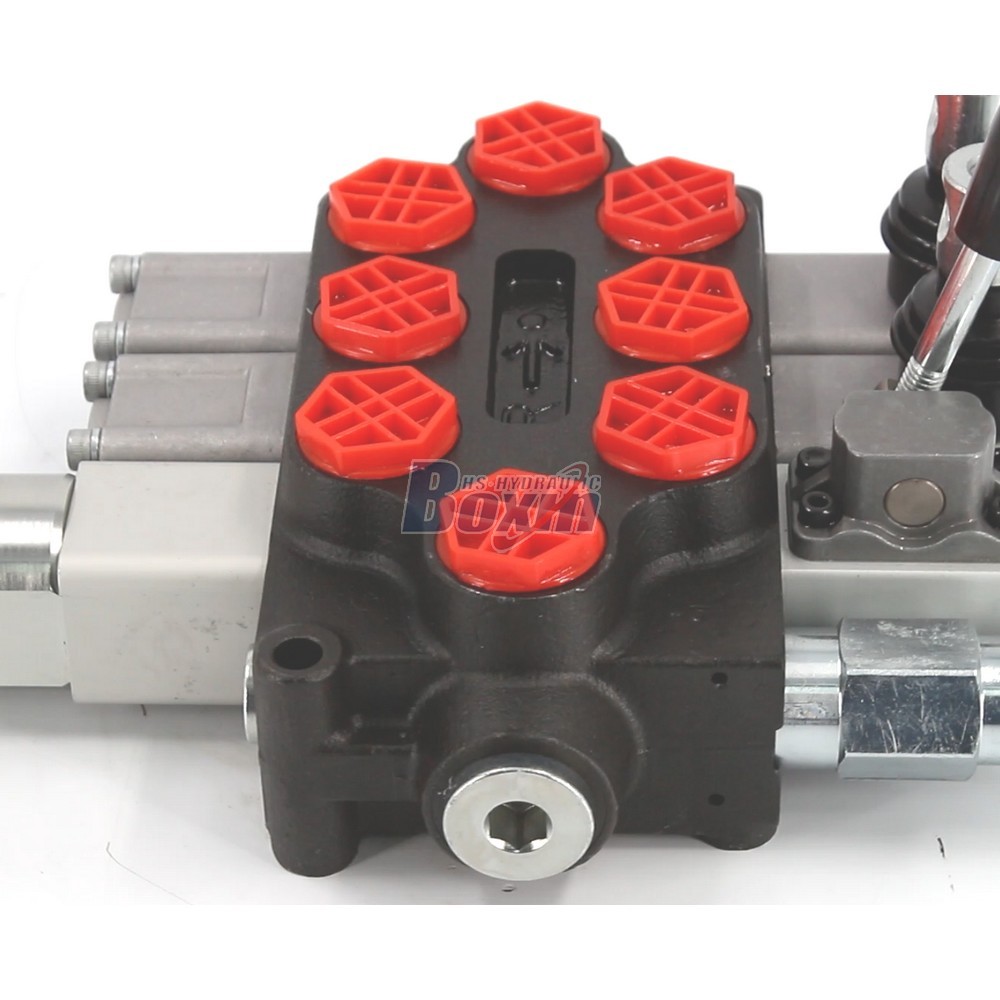

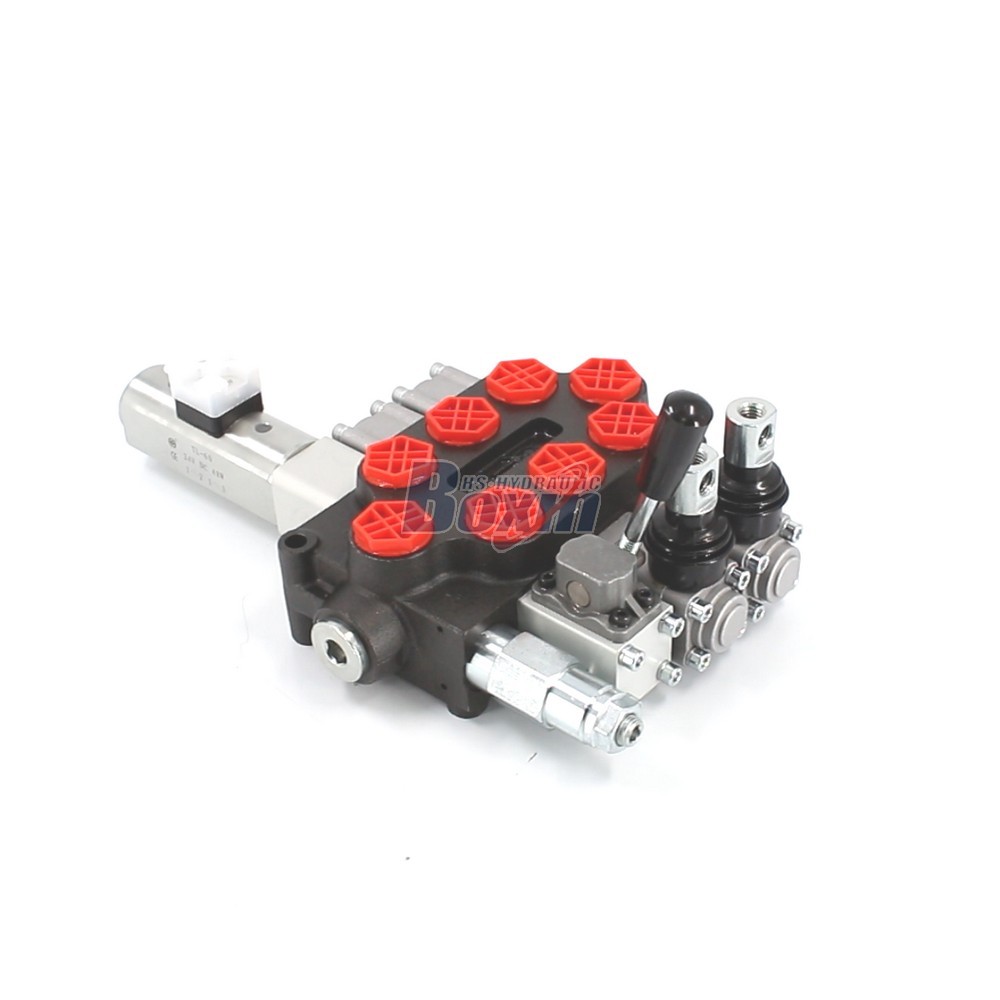

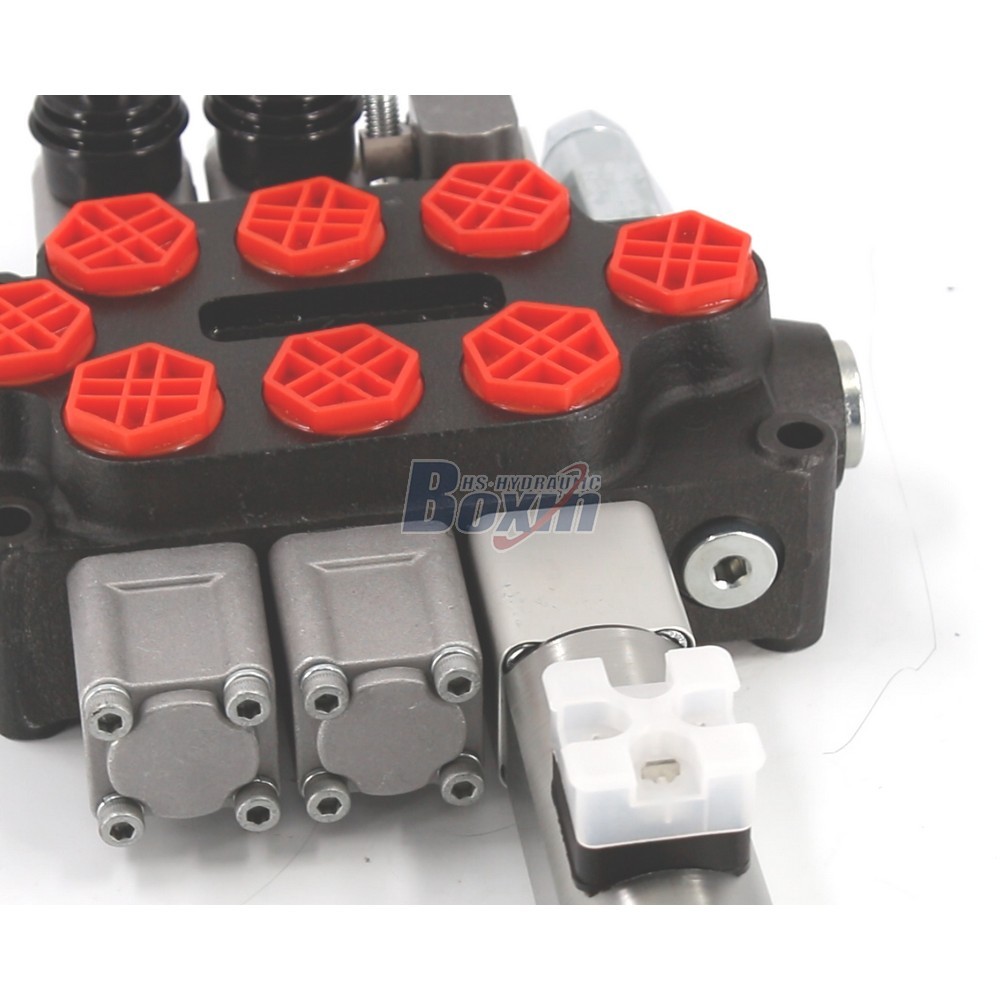

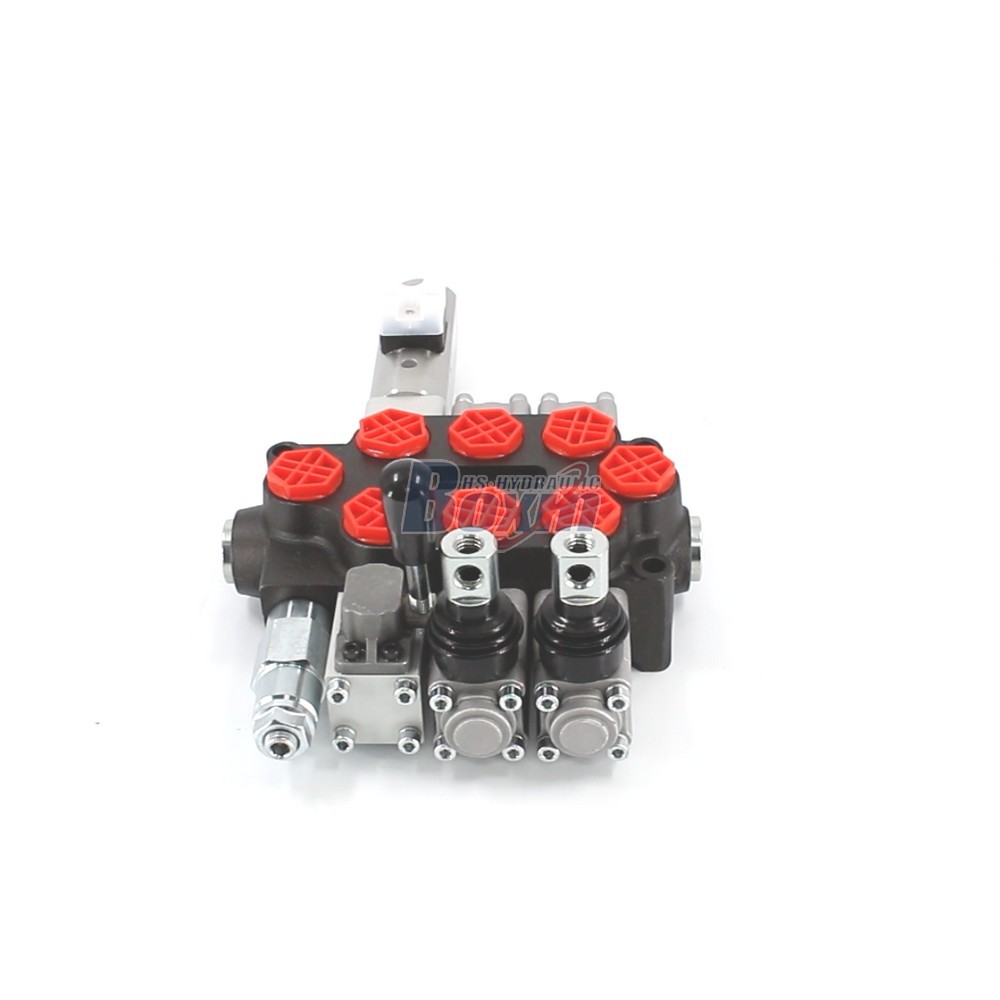

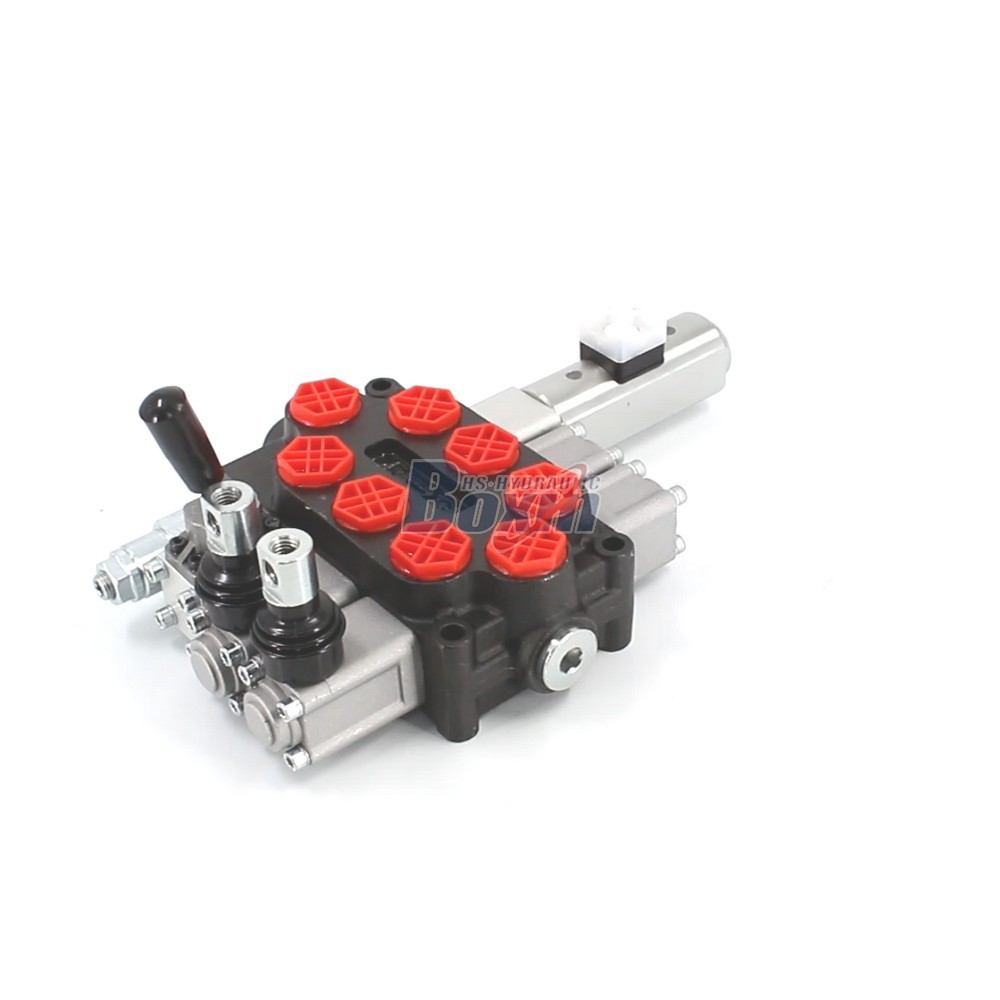

Q45-DT-2OT Manual and Push-pull Electromagnet 3 Spool Monoblock Directional Valve

Kontrollmetod:Manuell och push-pull elektromagnet

Spole:3 ventilsektioner

Nominellt flöde:45 l/min (11,8 US gpm)

Maximalt tryck:315 bar (4600 psi)

Inloppsport:G1/2

Utloppsport:G1/2

Portstorlek:G1/2

Märke:BXHS

Produkttyp:Monoblockriktningsventil

Produktserie:Q45-serien Monoblockriktningsventil

Förpackningsstorlek:22.0*36.5*19.0

Bruttovikt:9.00 kg

Tillgänglighet: I lager

110 Vyer letar efter den här produkten

Q45-DT-2OT Manual and Push-pull Electromagnet 3 Spool Monoblock Directional Valve

Q45-DT-2OT Manual and Push-pull Electromagnet 3 Spool Monoblock Directional Valve

Q45-DT-2OT Manual and Push-pull Electromagnet 3 Spool Monoblock Directional Valve drawing image

The Q45-DT-2OT is a versatile 3-spool monoblock directional control valve featuring both manual and push-pull electromagnet control. With a rated flow of 45 L/min and a maximum pressure of 315 bar, it is designed for precision and reliability in demanding mobile applications.

Q45-serien Monoblockriktningsventil Parametrar
Kontrollmetod Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Joystick, Solenoid och manuell, Manuell och push-pull elektromagnet, Push-pull elektromagnet
Spole 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner
Omgivningstemperaturintervall -20 °C till +80 °C (-4 °F till +176 °F)
Strukturtyp Monoblockventil
Sektion 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner
Driftsviskositetsintervall 15 - 75 mm²/s (15 cSt till 75 cSt)
Nominellt flöde 45 l/min (11,8 US gpm)
Maximalt tryck 315 bar (4600 psi)
Inloppsport G1/2
Utloppsport G1/2
Portstorlek G1/2

As a leading manufacturer of high-performance hydraulic solutions, we offer the Q45-DT-2OT 3 Spool Monoblock Directional Valve for global markets. This valve integrates manual and push-pull electromagnet control methods, ensuring flexible operation for material handling, construction, and agricultural machinery. It handles a rated flow of 45 L/min (11.8 US gpm) and pressures up to 315 bar (4600 psi), featuring standard G1/2 ports. We provide comprehensive OEM, ODM, and customized manufacturing services to meet specific technical requirements. Our factory provides direct wholesale pricing and high-volume supply capabilities. We are actively seeking long-term partnerships with distributors, wholesalers, agents, and traders worldwide. Whether you need reliable components for tractors, mini-excavators, or forklifts, our Q45 series offers robust quality and versatile functionality for industrial vehicle manufacturers and aftermarket suppliers.
