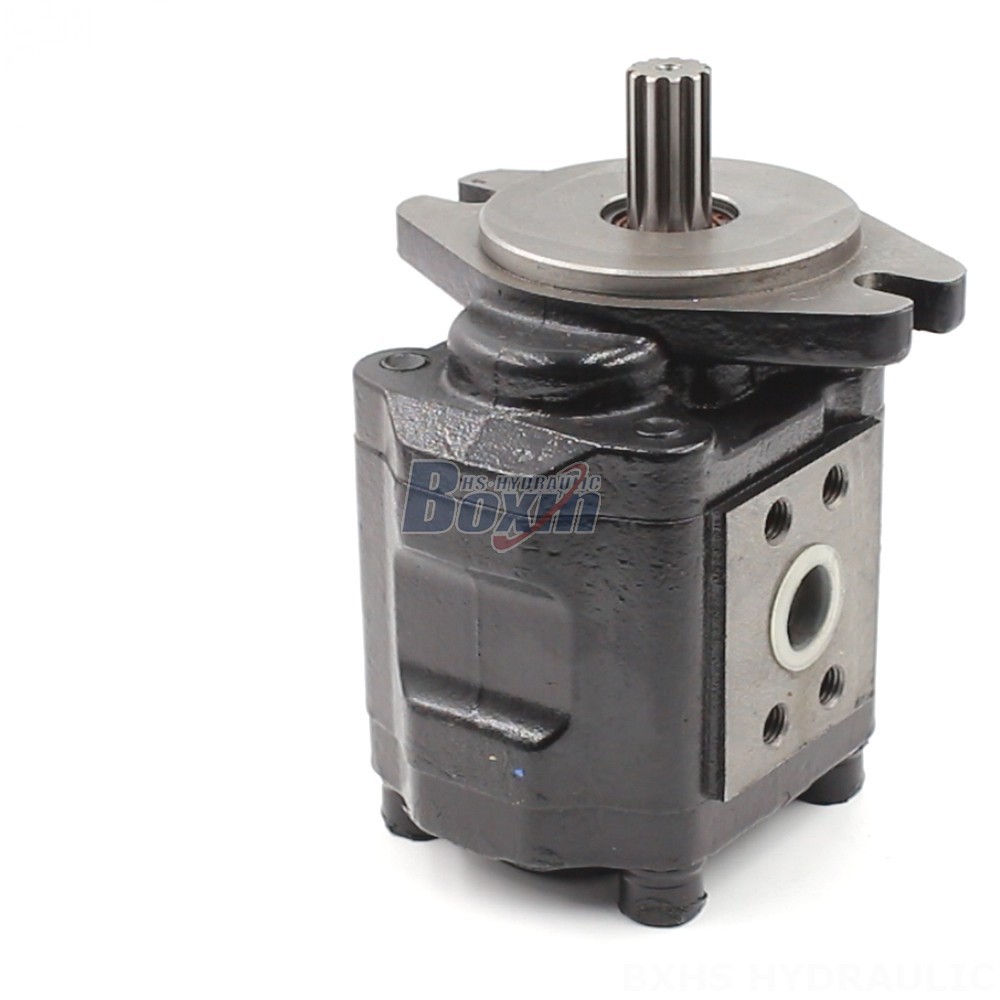

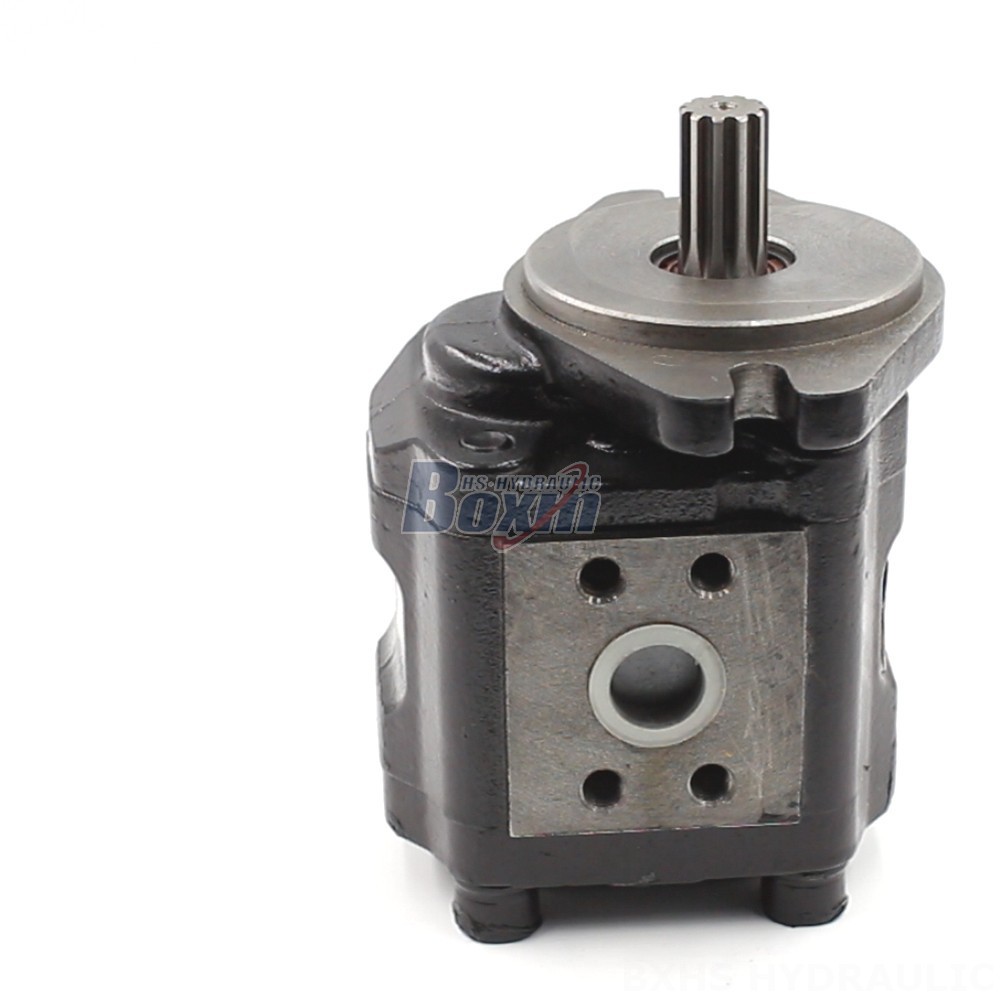

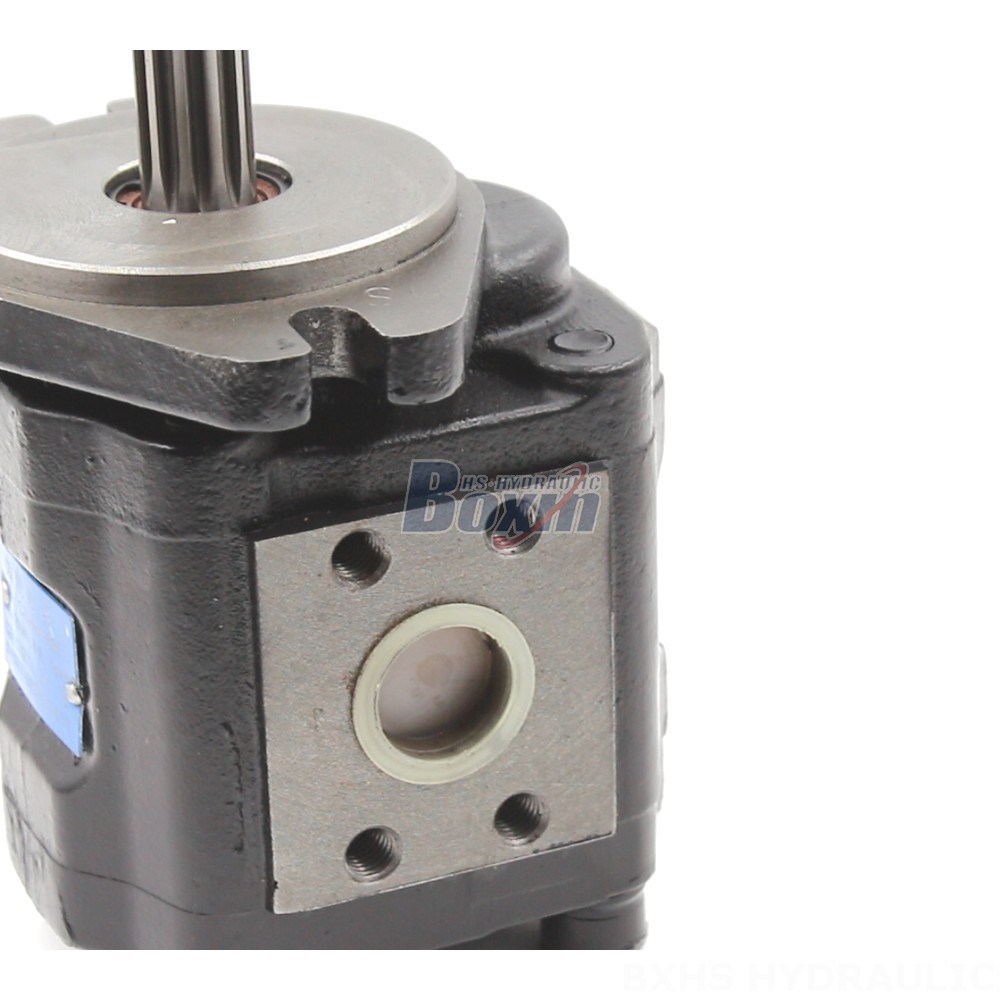

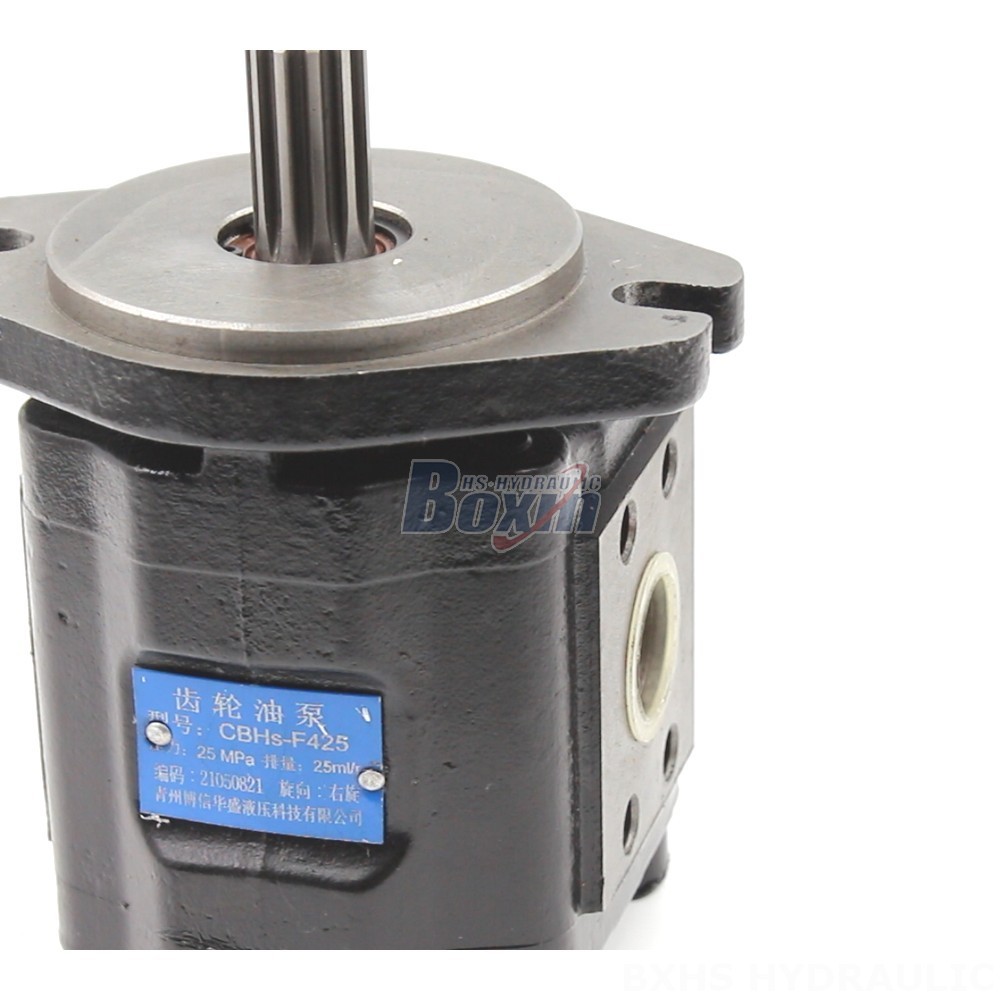

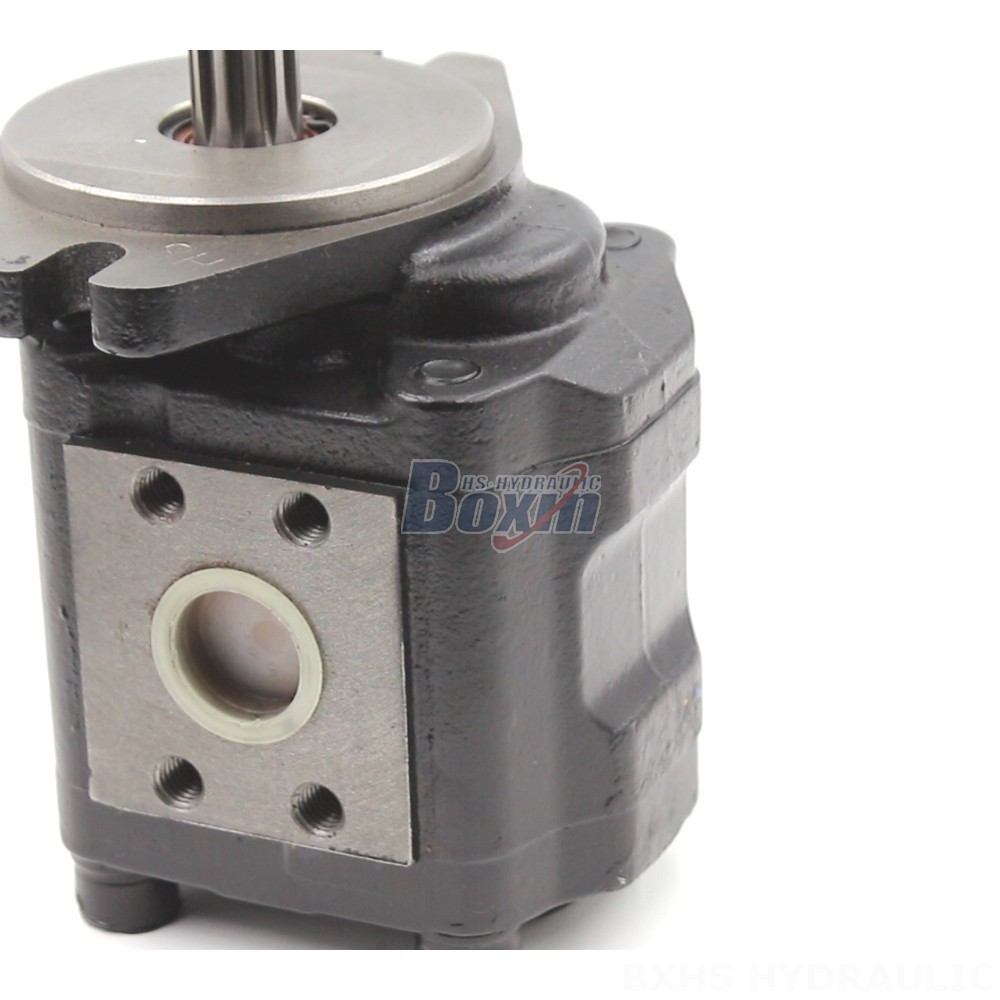

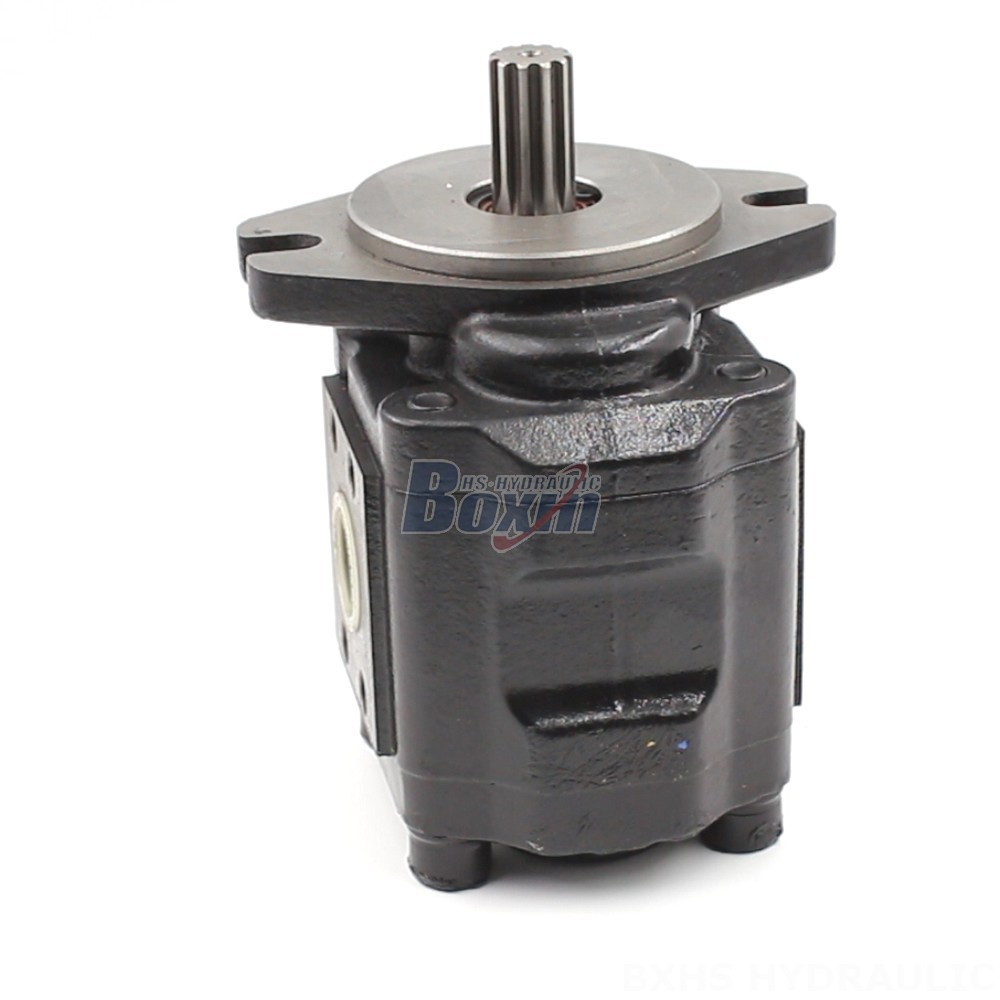

This Reliable 40 cc/rev Hydraulic Gear Pump is manufactured directly from our factory and can be customized to meet your specific needs. It offers high pressure, heavy duty performance and is ideal for a wide range of applications in construction, material handling, agriculture and industrial vehicles.
| CBHS-F4-serien Hydraulisk kugghjulspump Parametrar | |
|---|---|
| Deplacement | 40 cc/varv, 25 cc/varv, 20 cc/varv |
| Nominellt tryck | 20 MPa (2900 psi), 25 MPa (3625 psi) |
| Maximalt tryck | 25 MPa (3625 psi) |
| Nominell hastighet | 2000 varv/min |
| Maximal hastighet | 2500 varv/min |
| Rotationsriktning | Vänster (motsols), Höger (medsols) |
| Material | Gjutjärn, Aluminiumgjutjärn, Aluminium |
| Struktur | Kamaxeltyp |
| Flanschversion | A-Oval fläns, B-Kvadratisk fläns, ISO-4 monteringshål, UNI-3 monteringshål, SAE-fläns |
| Axeltyp | H: Rektangulär splines, X: Evolventsplines, P: Enkel nyckel |
This Reliable 40 cc/rev Hydraulic Gear Pump is a high-performance, durable and reliable solution for various applications. It is available in different displacement options, including 63 cc/rev, 80 cc/rev, 40 cc/rev, 45 cc/rev and 32 cc/rev, offering flexibility for various equipment needs. The pump operates at high pressure up to 25 MPa (3625 psi) and features different flange and shaft type options for optimal compatibility. This pump is designed for use in construction and earth moving equipment, agricultural machinery, and industrial vehicles like telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, harvesters, and balers.
