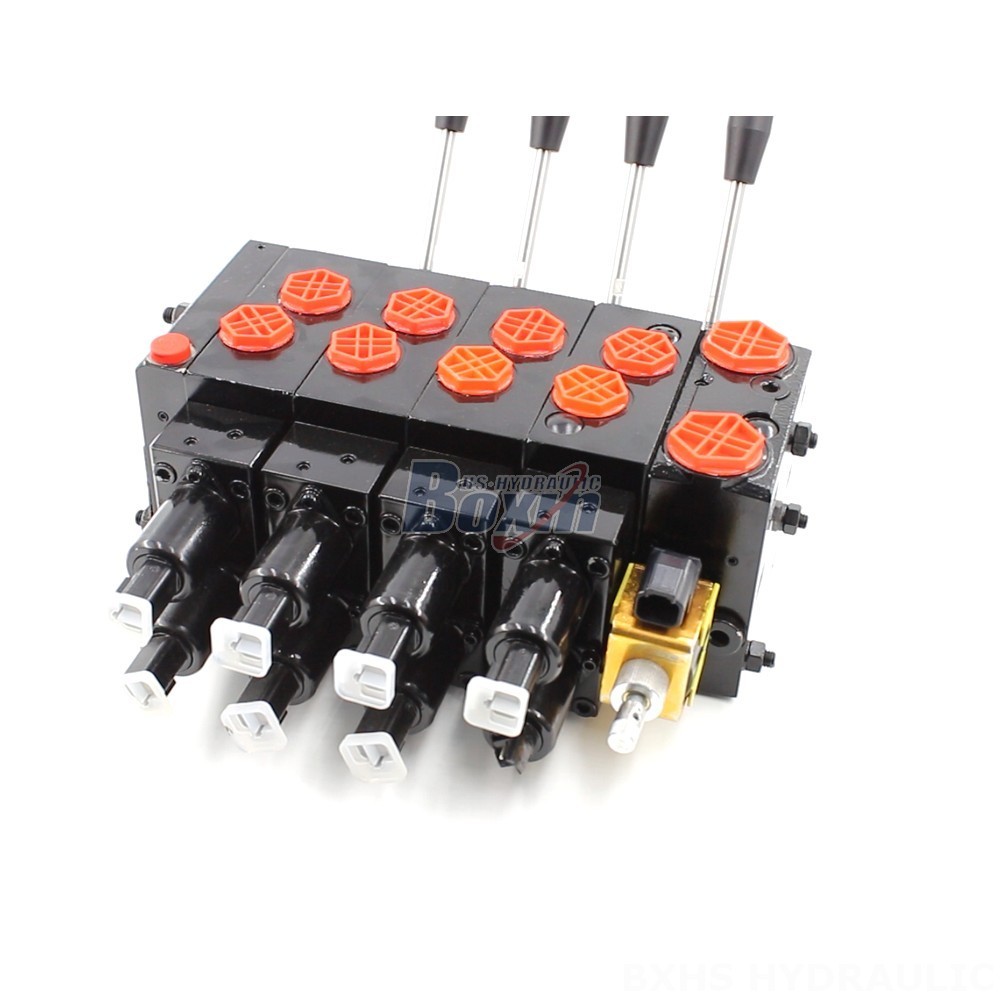

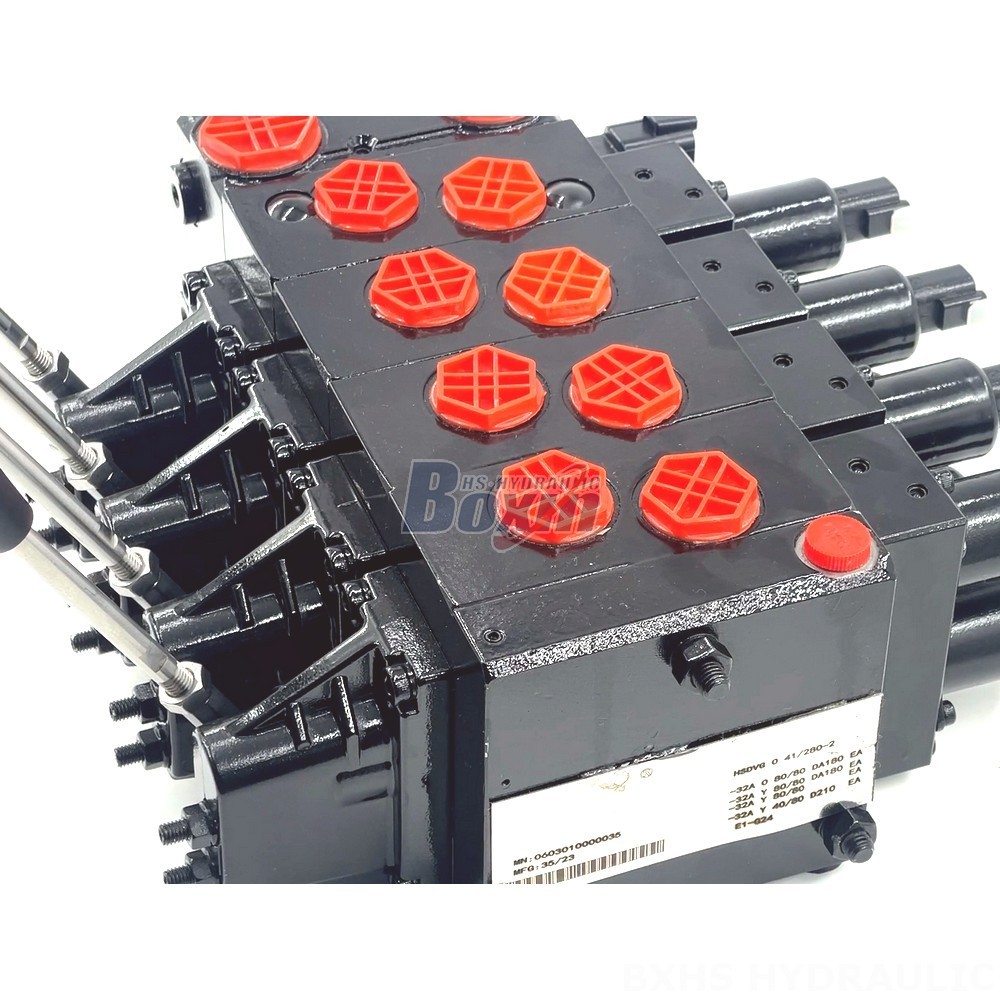

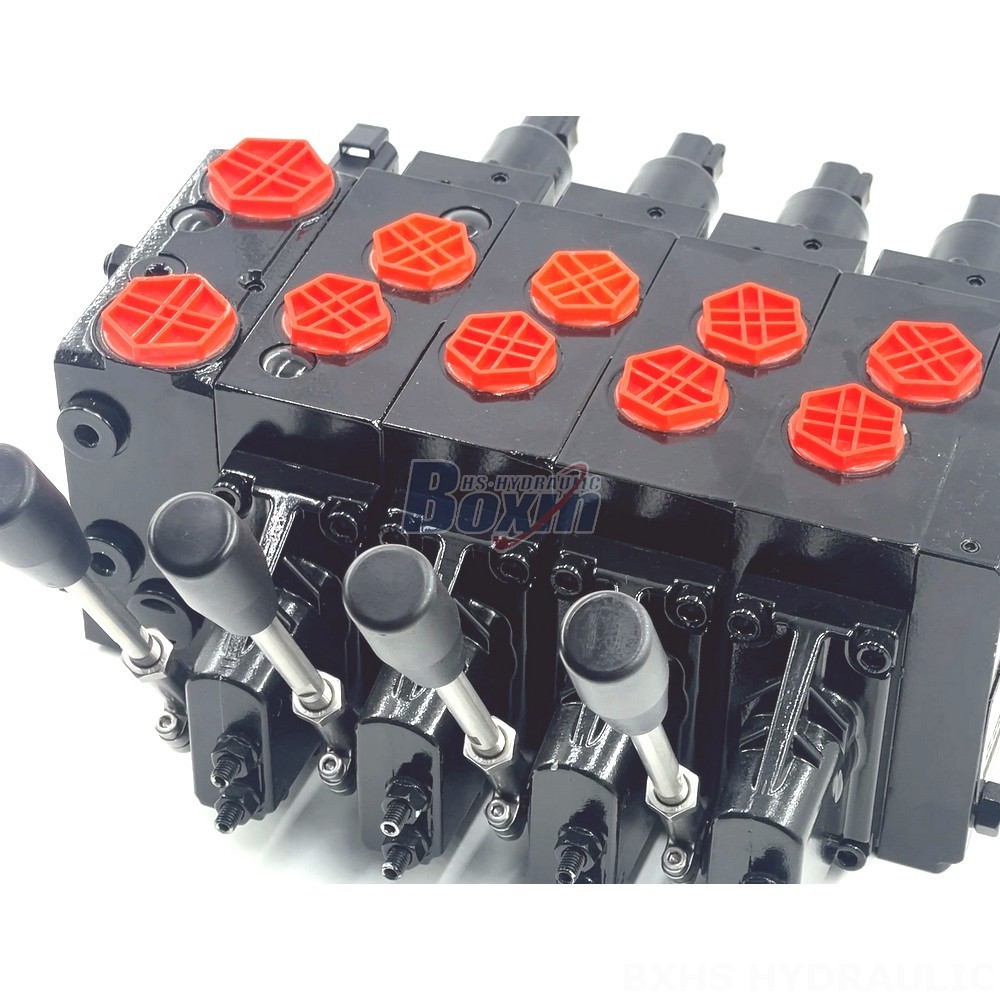

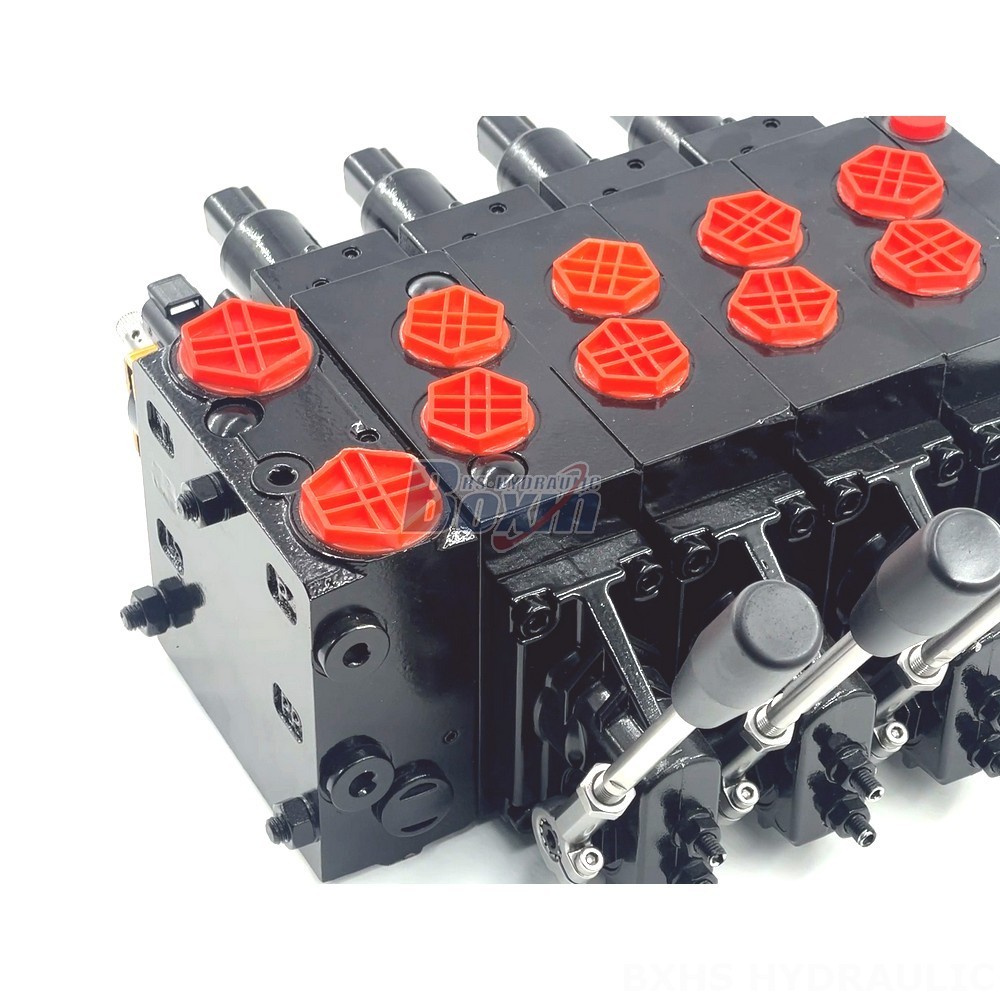

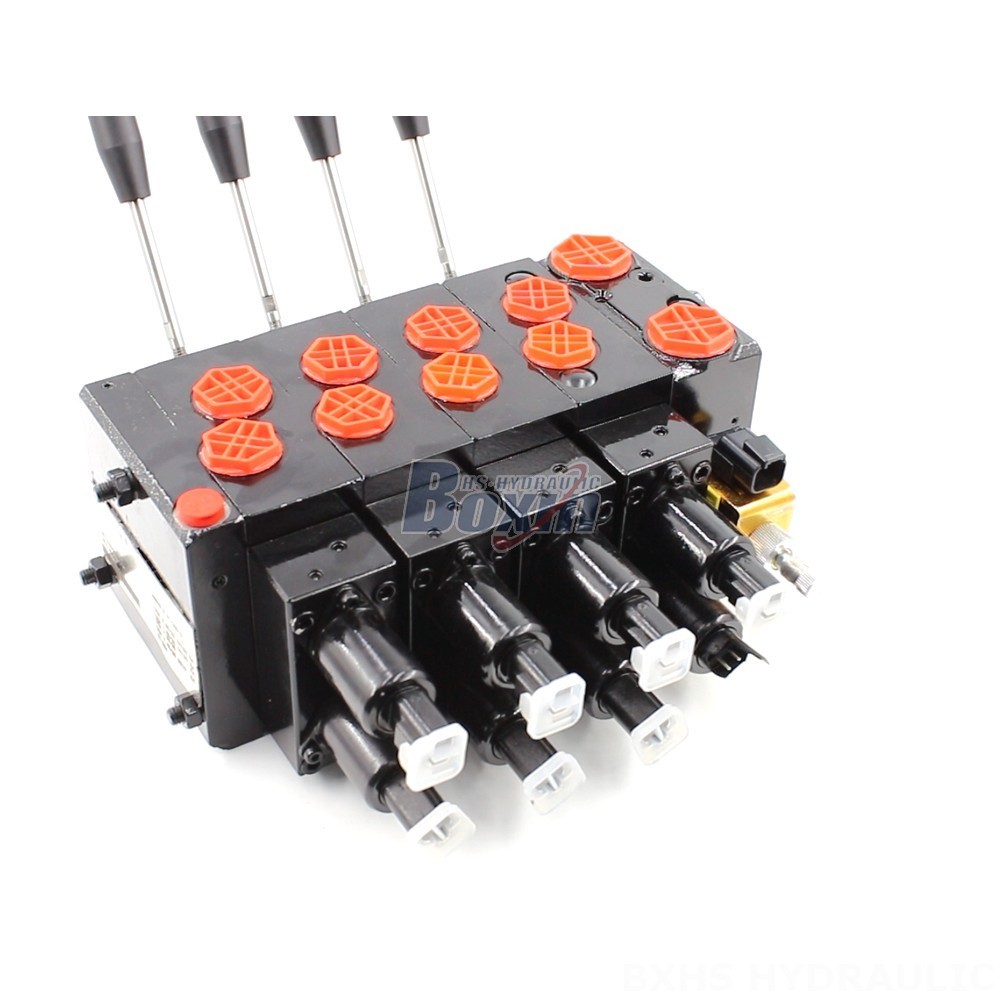

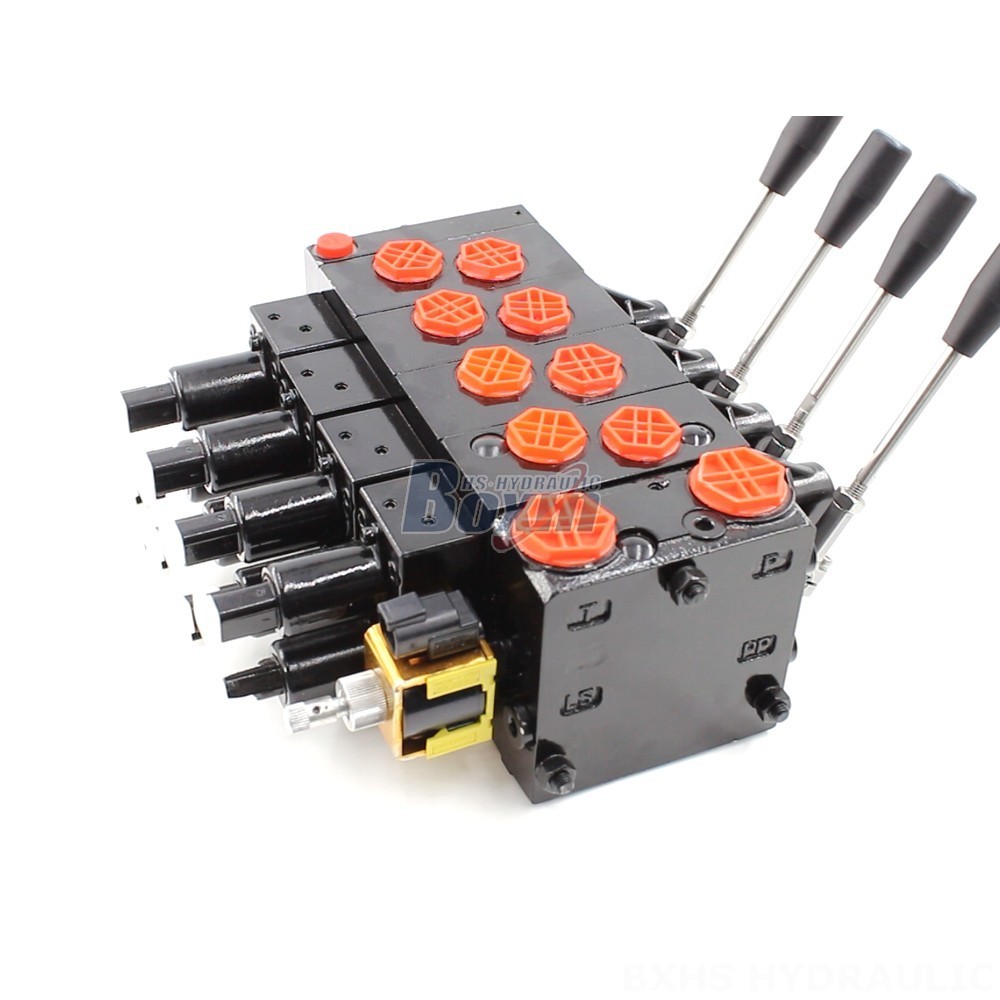

The HSDVG32 Electric Proportional Valves are reliable and efficient hydraulic control valves designed for various applications in material handling, construction, agriculture, and industrial vehicles. These 4-section, sectional valves offer precise electric proportional and manual control, providing a flow rate of up to 140 L/min and a maximum pressure of 315 bar. With an operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C, these valves ensure optimal performance in demanding operating conditions.
| HSDVG32-serien Proportionalkontrollventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk och Manuell, Kabel, Elektroproportionell, Solenoid och manuell, Elektroproportionell och Manuell |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner, 8 ventilsektioner, 9 ventilsektioner, 10 ventilsektioner, 11 ventilsektioner, 12 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Sektionsventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner, 8 sektioner, 9 sektioner, 10 sektioner, 11 sektioner, 12 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 140 L/min (37 US gpm) |
| Maximalt tryck | 315 bar (4600 psi) |
| Inloppsport | G3/4 |
| Utloppsport | G3/4 |
| Portstorlek | G1/2, G3/4 |
**HSDVG32 Electric Proportional Valves**
**Control Method:** Electric proportional and Manual
**Section:** 4 Section
**Structure Type:** Sectional valve
**Rated Flow:** 140 L/min (37 US gpm)
**Max Pressure:** 315 bar (4600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 4 Spool
**Series:** HSDVG32 Series
**Application Area:**
- MATERIAL HANDLING
- CONSTRUCTION AND EARTH MOVING
- AGRICULTURE
- INDUSTRIAL VEHICLES
**Applicable Model:**
- TELEHANDLER
- FORKLIFT
- ALL TERRAIN CRANE
- STACKER
- AERIAL PLATFORM
- MOTOR GRADER
- TELEHANDLER
- MIDI-EXCAVATOR
- MINI-EXCAVATOR
- SKID STEER LOADER
