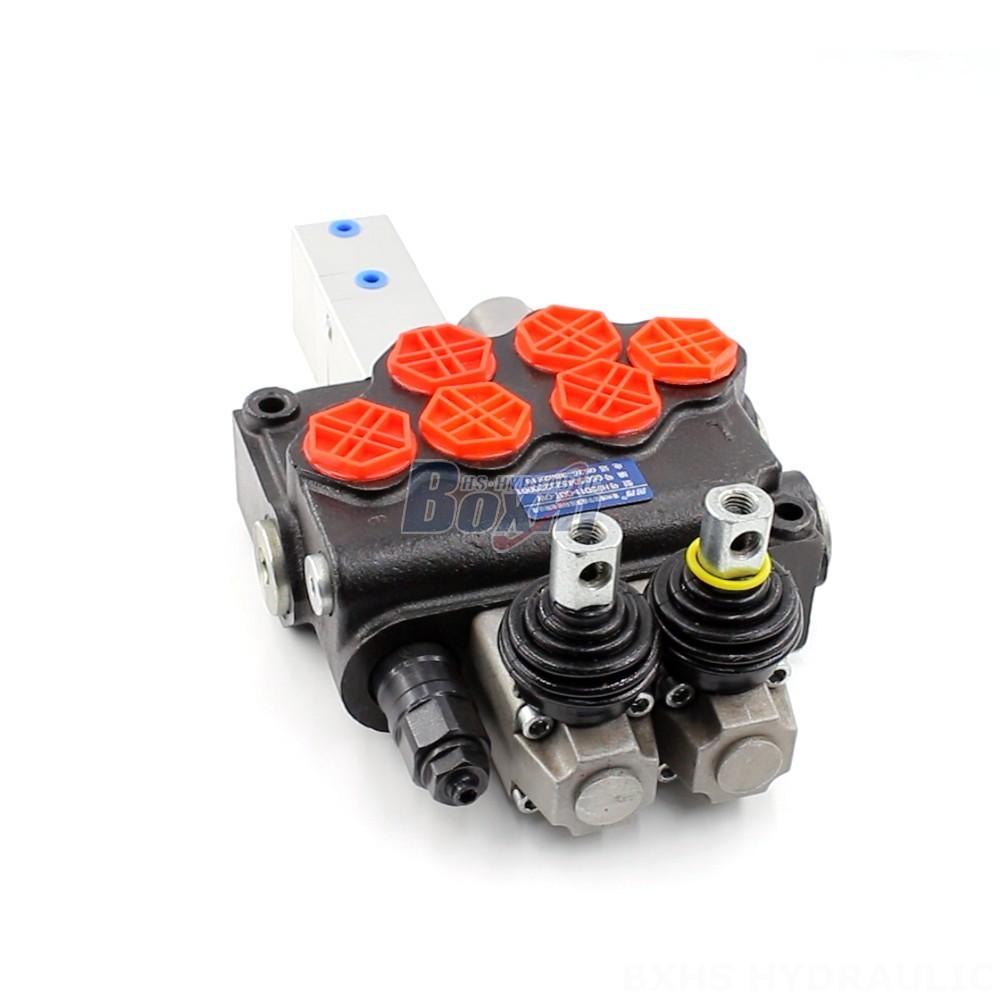

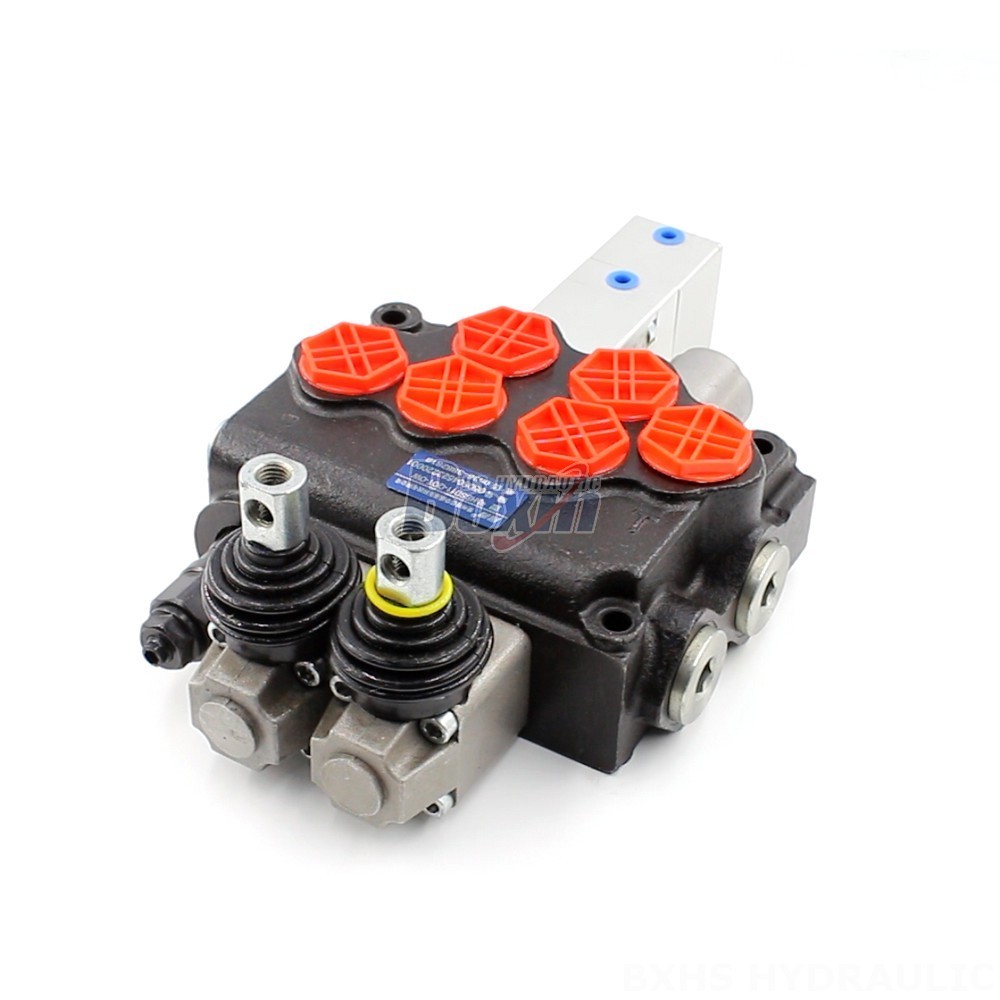

The SD11 Manual Monoblock Directional Valve is a reliable and efficient hydraulic solution for a wide range of applications. With its 1 section, 70 L/min rated flow, and 250 bar max pressure, this valve is designed to deliver optimal performance in demanding hydraulic systems.
| SD11-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Elektrisk, Pneumatisk och manuell |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +60°C (-40°F till +140°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 70 l/min (18,5 US gpm) |
| Maximalt tryck | 305 bar (4400 psi), 315 bar (4600 psi) |
| Inloppsport | G3/4, SAE 12 |
| Utloppsport | G3/4, SAE 12 |
| Portstorlek | G3/4, SAE 12 |
**Product Name:** SD11 Manual Monoblock Directional Valve
**Control Method:** Manual
**Section:** 1 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 70 L/min (18.5 US gpm)
**Max Pressure:** 250 bar (3600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +60°C (-40°F to +140°F)
**Spool:** 1 Spool
**Series:** SD11 Series
**Application Area:** MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER, FORKLIFT, ALL TERRAIN CRANE, STACKER, AERIAL PLATFORM, MOTOR GRADER, EXCAVATOR, SKID STEER LOADER, COMPACT WHEEL LOADER, WHEEL LOADER, BACKHOE LOADER, DUMP TRUCK, FACE DRILL RIG, CONCRETE BOOM PUMP, PAVE ROLLER, ROTARY DRILLING, CRUSHER - STONE CUTTER, SCREENER, TRACTOR AND FRONT-END LOADER
